Akura KBB-1 User manual

Customer Help Line: 01422 263313
Opening Hours: Mon-Fri 8am-8pm, Sat 9am-4pm, Sun 11am-4pm
Or visit our website at www.ekey.co.uk
iPod Docking Station
KBB-1

1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2.) Do not use this apparatus near water.
3.) Clean only with dry cloth.
4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8.) Only use attachments / accessories specified by the manufacturer.
9.) Unplug this apparatus during lightning storms or when unused for long periods of time.
10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on the apparatus.
12.) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13.) Do not overload wall outlet. Use only power source as indicated.
14.) Use replacement parts as specified by the manufacturer.
15.) The product may be mounted to a wall only if recommended by the manufacturer.
16.) Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.
!
C AU T I O N
RISK OF ELECTRIC SH OCK
DO NOT OPEN
The lightning flash with arrow-
head symbol, within an equi-
lateral triangle is intended to
alert the user to the presence
of uninsulated ‘dangerousvoltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
The exclamation point within
an equilateral triangle is in-
tended to alert the user to
the presence of important
operating and maintenance
(ser vi ci ng) instructions in
th e lit er ature accompan y-
ing th e appliance.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
( O R B A C K ) , N O U S E R
SERVICEABLE PARTS INSIDE
R E F E R S E R V I C I N G T O
Q U A L I F I E D S E R V I C E
PERSONNEL.
CAUTION
The Caution Marking maybe located at the bottom enclosure of the apparatus.

2
Thank you ………….
For purchasing this iPod® Compatible Portable Stereo System.
This compact portable system features a built in iPod docking station so
®
you can play your iPod through the speakers of this system when you
®
are in the mood to share your music with others, or when you simply do
not want to use earphones. In addition, when this system is connected
to an AC outlet with the included AC adapter it will also recharge the battery
of any ‘dockable’ iPod . We have even included four separate inserts so that
every ‘dockable’ iPod currently vailable will fit correctly in the docking area.
®
.
®
This system also includes an AM/FM Stereo Radio with digital station
frequency display for more precise tuning, and a digital alarm clock that
can wake you to the radio or an electronic buzzer.
Finally we have also included an auxiliary input jack so that you can also
connect non-dockable iPod® such as the first generation models, or the
iPod® Shuffle, or even other brands of MP3 players and portable CD players
to this system. The required connection cable is included of course.
We have taken great care to ensure this system was in perfect working
order when it left our factory. If you experience any problems with the set
up or operation of this system please do not return it to the retail store.
iPod®is a trademark of Apple Computer Inc., registered in the U.S. and other countries.

3
I M P O RTAN T N O T ES
• Operate controls and switches as
described in the manual.
• Before turning on the power, make
certain that the AC/DC adapter is
properly installed.
• When moving the set, be sure to first
disconnect the AC/DC adapter.
• Avoid installing this unit in places
exposed to direct sunlight or close to
heat radiating appliances such as
electric heaters, on top of other stereo
equipment that radiates too much
heat, places lacking ventilation or
dusty areas, places subject to
constant vibration and/or humid or
moist areas.
Do not dispose of this product in the usual household garbage at the
end of its life cycle; hand it over at a collection point for the recycling
of electrical and electronic appliances. The symbol on the product, the
instructions for use or the packing will inform about the methods for
disposal.
The materials are recyclable as mentioned in its marking. By recycling, material
recycling or other forms of re-utilization of old appliances, you are making an
important contribution to protect our environment.
Please inquire at the community administration for the authorized disposal location.

4
Unpacking And Set Up
• Remove the main unit, the AC adapter, the accessory auxiliary device
connection cord, and the 4 iPod® adapters from the carton, and remove all
packing material from the main unit. We recommend that you save the carton
and packing material in the event that the unit ever needs to be returned for
service. Using the original carton and packing material is the only way to protect
your unit from damage during shipment.
• Remove any descriptive labels or stickers from the top or front panels of the
unit but do not remove any labels or stickers from the back or bottom panels.
• Remove the “dummy iPod®” display card from the docking area and discard it.
Power Sources
This system is designed to operate on 6 “C” batteries, not included, or on normal
230V AC house current with the included AC adapter. In addition, this unit requires
2 “AA” batteries for the clock and alarm memory back up. We recommend that
you use a well-known brand of alkaline batteries for longest life and best
performance.
Attempting to operate this system from any other power source may cause damage
to the system, and such damage is not covered by your warranty.
PREPARATION FOR U S E
Battery Precautions
• Replacement of batteries must be done by an adult.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries.
• The supply terminals are not to be short-circuited.
• Non-rechargeable batteries are not to be recharged.
• Exhausted batteries are to be removed.
• Only batteries of the equivalent type are to be used.
• Batteries are to be inserted with the correct polarity.
• Dispose of batteries properly. Do not dispose of batteries in fire. The batteries
may explode or leak.

5
Battery Installation
The battery compartments for the 6 “C” batteries and 2 “AA” batteries are located
on the back panel. To open the battery compartment covers press the door locking
tabs in the direction of the arrows. Remove the doors and insert the 6 “C” and 2
“AA” batteries in their respective compartments. Be sure the batteries are installed
correctly according to the polarity markings in the battery compartments. If the
batteries are installed incorrectly the unit will not work.
After installing the batteries replace both battery compartment covers and make
sure that they lock securely.
Battery Replacement
When the sound output becomes weak and distorted during battery operation it is
probably time to change the 6 “C” batteries. Try operating the system with the AC
adapter. If the sound is normal with the AC adapter this confirms that the batteries
are weak and should be replaced as soon as possible. If exhausted batteries are
left in the unit they may eventually leak and cause damage to the unit. When
changing the 6 “C” batteries always change all 6 at the same time and do not mix
different types of batteries such as alkaline, carbon-zinc, and nickel cadmium.
The 2 “AA” batteries are only used for maintaining the clock and timer memory
and therefore they will probably last longer than the 6 “C” batteries. Two fresh
alkaline “AA” batteries should provide back up power for the clock and timer for a
period of 12 month.
Battery
Compartment
+-+-+-
- + -+-+
+
-
-
+
OPEN OPEN
OPEN

6
Using The AC Adapter
Connect the small female plug of the AC adapter to the DC Input Jack on the back
panel. Connect the housing of the AC adapter to the 230V AC outlet.
When the adapter is connected to the unit the AC power source is selected
automatically, even if there are batteries in the battery compartment. Note: In
order to operate the unit on batteries the AC adapter must be completely
disconnected from the DC Input Jack on the back panel.
NOTES:
• The housing of the AC adapter may become warm during operation. This
is normal.
• To reduce the risk of electric shock never connect or disconnect the AC
adapter while your hands are wet.
Protect Your Furniture
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood preservatives,
or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a
rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the
bottom of the rubber 'feet' before you place the product on fine wooden furniture.
OPEN OPEN
OPEN

7
1. VOLUME Control
2. Button
(ON/OFF/ALARM ON)
3.DBBS Button
4.FUNCTION Button
(i
5. FM AUTO /AM Button
6. TUNING Control
7. FM Antenna
8. Left Speaker
9. LCD Display
10.FM Stereo Indicator
11.Power Indicator
12.Right Speaker
13.ALARM ON/OFF Button
14.ALARM SET Button
15.TIME SET Button
16.MINUTE Button
17.HOUR Button
18.AUX IN Jack
19 PHONES Jack
20Battery Compartment
21.Backup Battery
Compartment
22.
23.
POWER Mode
-Pod/ AUX Buzzer ,
RADIO)
AC Adapter Jack
i Pod holder(4 inserts)
LOCATION OF CONTROLS AND INDICATORS
1 32 7 6
5
4
13 14 15 16 17 1819
8 9 10 11 12
20 21 22
23
OPEN
OPEN
OPEN

8

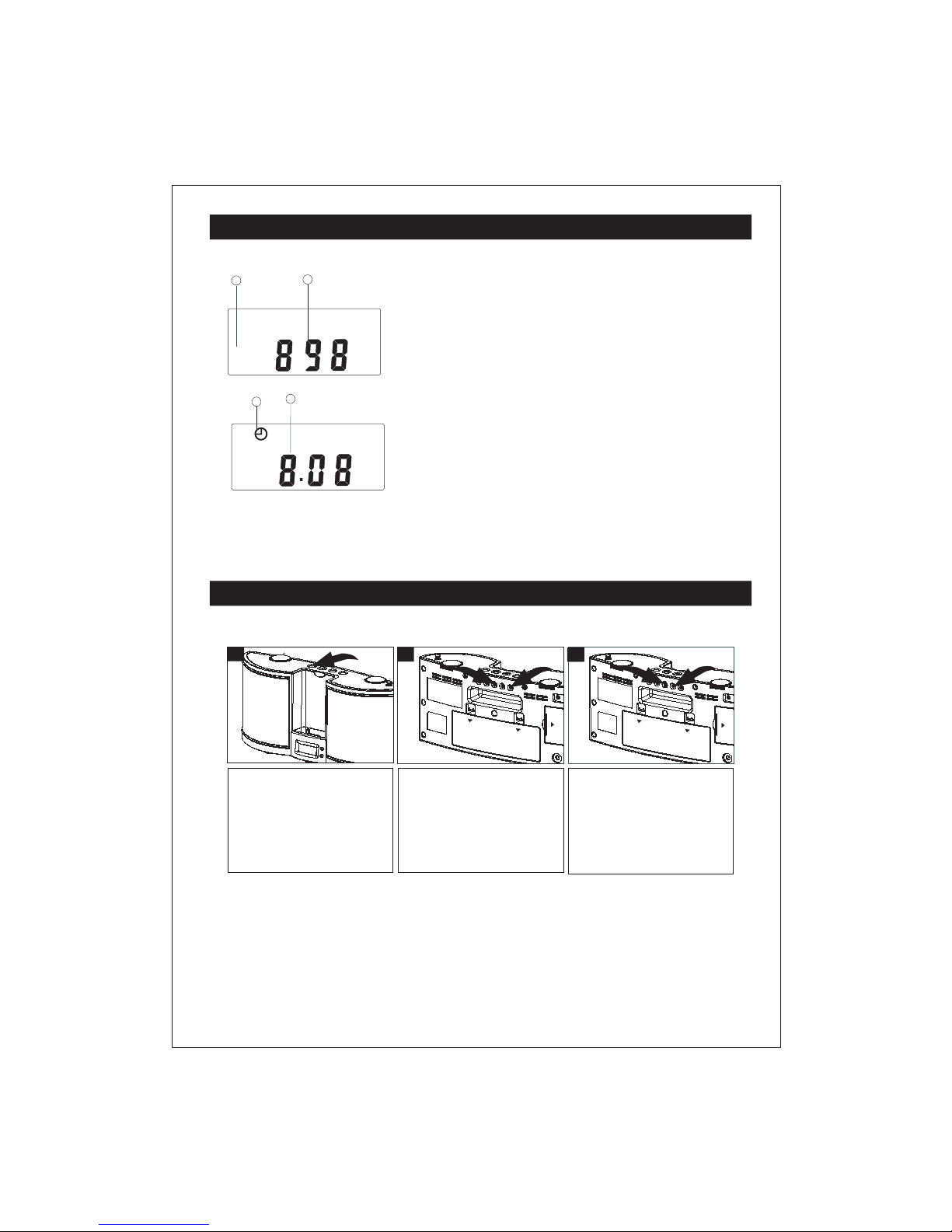

Radio mode
1. Band Indicator (AM/FM)
2.
Clock/Timer Mode
3.Alarm On Indicator
4.Time/Alarm Time Display
Radio Frequency
11
44
33
Fig 1
Fig 2
LCD DISPLAY
FM
MHz
.
.
ALARM
22
OPERATING INSTRUCTIONS
SETTING THE CLOCK
Make sure the POWER switch
is set to the ‘Off’ position. The
time or alarm time cannot be
set or adjusted while the unit
is ‘On’.
Press and hold the TIME SET
button. While holding the TIME
SET button press the HR SET
button to adjust the hour.
While holding the TIME SET
button, press the MINUTE
SET button to adjust the
minute. Release all buttons
to complete time setting.
2
3
12 3
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN

OPERATING INSTRUCTIONS (CONTINUED)
9
123
Set the POWER button to the
‘On’ position, the display
lighting
turns on.
Set the FUNCTION button to
the Radio position. The display
will change from time to radio
frequency. Set the BAND
selector to the desired band,
AM or FM Auto.
Rotate the TUNING control
until
the display shows the
desired
AM or FM station
frequency. Turn the TUNING
control clockwise to
select
higher numbered frequencies
or counter-clockwise to select
lower numbered frequencies.
The FM STEREO indicator will
light when you tune to an FM
Stereo station.
L
NOTE: To prevent any interference between your iPod and the radio in this unit,
your iPod should be switched 'Off' when listening to the radio.
ISTENING TO THE RADIO
R
R
1
Rotate the VOLUME control to
increase or decrease the
volume level. If you want to
increase the bass response
s et the DBBS button to the
‘On’ positon.
Note: If you are listening to
music that contains heavy
bass at high volume levels the
sound may become distorted
if the DBBS switch is set to the
‘ On’ position. If this occurs
set the DBBS switch to the
‘Off’ position, or reduce
the volume level.
1
When you are finished listening
set the POWER button to the
‘ Off’ position. The display
changes from radio frequency
to correct time and the display
lighting goes off.
45

OPERATING INSTRUCTIONS (CONTINUED)
10
Docking and Charging The iPod
This system is designed with the same 30-pin connector found in all iPod docks.
By simply connecting the iPod to the docking station on the front panel of this
system you can play the iPod through the speakers of this system. And you
can also recharge the battery in the iPod .
Note: Recharging is only possible when you are using the system with the included
AC adapter. The iPod battery will not be recharged when you are operating this
system on battery power.
To accommodate all models of dockable iPod we have included four different
adapter / inserts to ensure that the iPod will fit properly in the docking station.
Refer to the chart below to select the proper adapter / insert for your particular
model of dockable iPod . Note: If you have a earlier non-dockable iPod , or an
iPod Shuffle, please refer to the next section to connect you device to the
Auxiliary Input jack.
iPod inserts
Your unit comes with 4 removable inserts to ensure the iPod fits properly
in the dock on the front of the system.
1. Place the proper adaptor / insert into the docking station. The iPod 30-pin
connector should fit through the opening in the bottom of the insert.
2. Gently press the insert into the dock until it is properly seated.
3. With the iPod in the Power ‘Off’ mode carefully place it into the insert.
Note: Remove any accessory case or “skin” from the iPod before inserting
it in the dock.
4. To remove or replace an insert, first remove the iPod from the dock. then
grip the insert and gently lift it upward and out of the dock.
noi
s
rev doPi
inimG3G4
035101
04
02
ezis doPi
B
GBGB
G
B
GB
G
AAAA
BB
otohp
060342060402
BGBGBGBGBGBGBG
2
G
0
B
3
G
A
BBB
C
C
D
5G (video)onan
A
A
B
C
D
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R

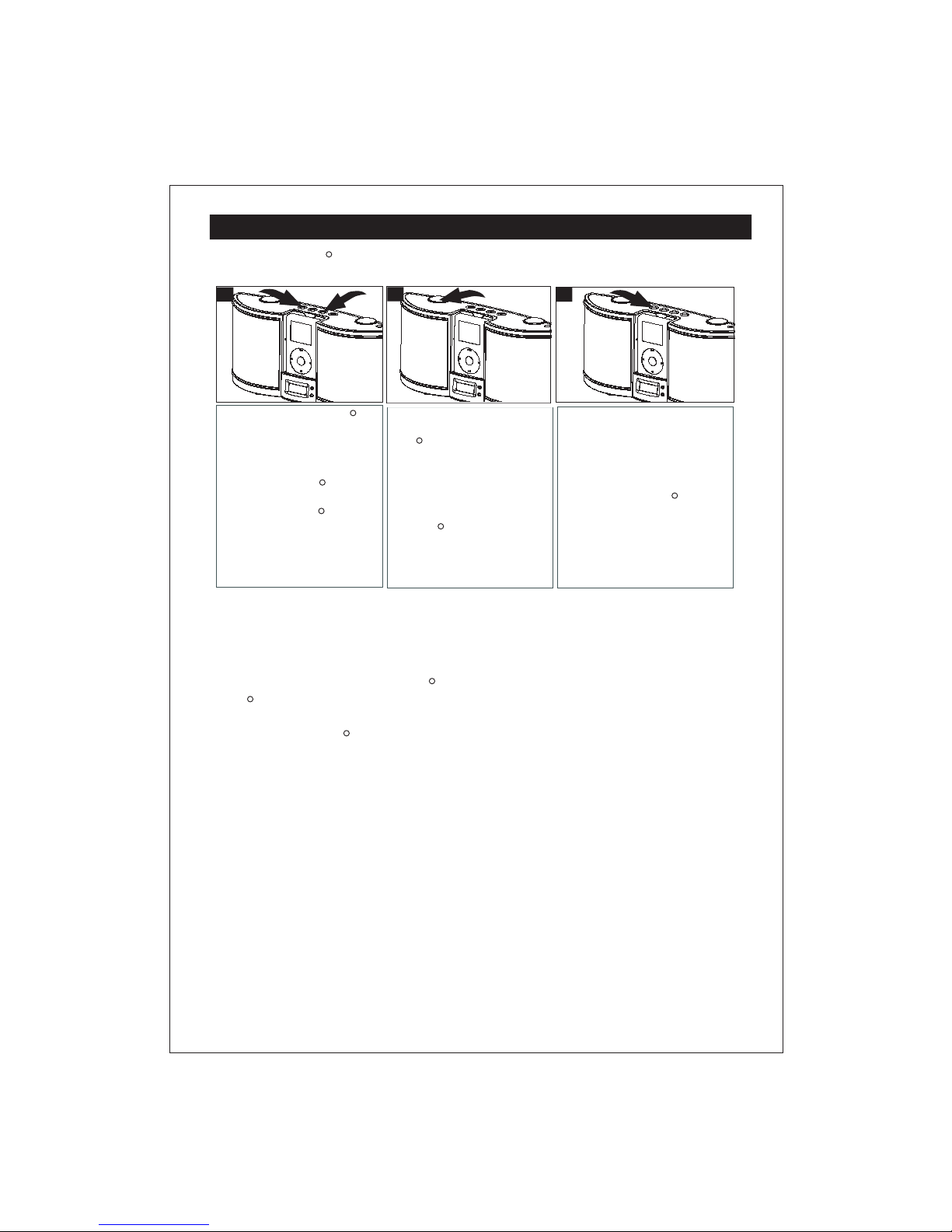

Playing the iPod
11
OPERATING INSTRUCTIONS(CONTINUED)
After inserting the iPod
in the dock as described
above, set the POWER switch
of this system to the ‘On’
position, and the FUNCTION
switch to the iPod position.
I f necessary, release the HOLD
switch on the iPod and turn
it on.
Select the song or album that
you wish to play on the
iPod using the click-wheel
navigation controls as usual.
Use the VOLUME control on
this system to increase or
decrease the speaker volume
level. The volume control on
the iPod has no effect on
the speaker volume level.
When you are finished listening
press the POWER button to
turn this system ‘Off’. The
display lighting will turn off.
If you are using the AC adapter,
the charging indicator will
appear on the iPod display.
1
Important Note
To prevent damage to the iPod we recommend that you do not play the
iPod when you are carrying this system around as a portable. The system
should be placed in a stable, secure position before connecting and
operating the iPod .
23
R
R
R
R
R
R
R
R
R
R

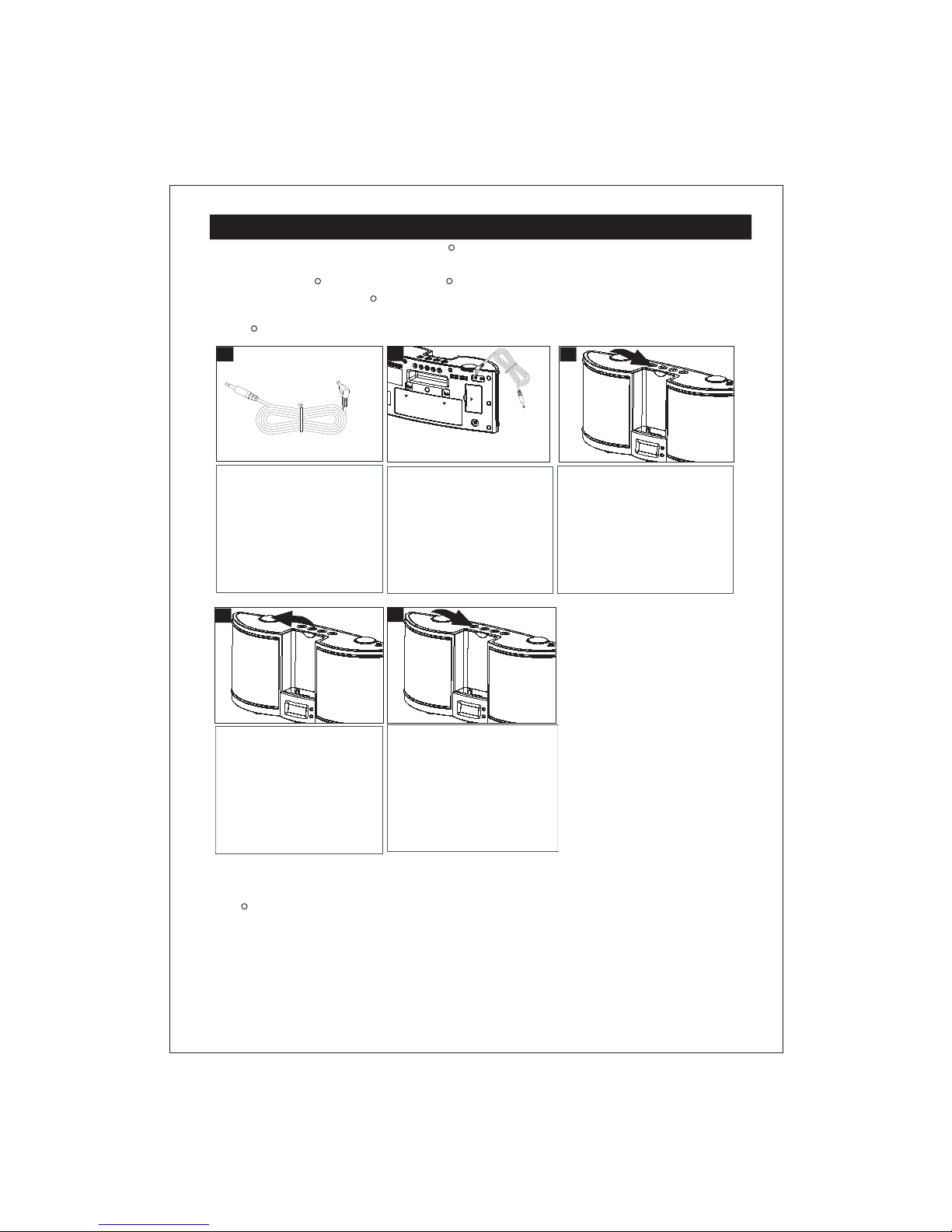

OPERATINGINSTRUCTIONS(CONTINUED)
12
Connectoneendofthe
3.5mmstereocableintothe
auxiliaryinputjack(AUX)
locatedonthebackofthe
unit,andotherendtothe
headphoneorlineoutjack
onyourportableaudio
device.
Usethecontrolto
adjustthesystemvolume.
Youmayneedtoadjustyour
devicevolume,too.
Locate the stereo connection
cable supplied with this system.
Set the POWER button to the ‘On’
position and the FUNCTION button
to the AUX position. Also turn on
your external
portable audio
player.
VOLUME When you are finished listening
set the POWER button to the
‘Off’ position. Remember to shut
off the power to your portable
audio player as well.
Important Note
Remember to disconnect the stereo connection cable from the Aux Jack before inserting an
iPod in the docking station.
R
RR
R
R
R
Listening To A Non-Docking iPod Or Other Portable Music Player
Some early iPod models and the iPod Shuffle do not include the 30-pin docking connector
found on most other iPods . We have provided an Auxiliary Input Jack on the back panel of this
system and included a stereo connection cable so that you can still connect non-docking
iPods , other MP3 players, or personal CD players to this system.
123
45
OPEN
OPEN
OPEN

13
Press and hold the ALARM
SET button to enter the alarm
Time setting mode. The front
panel display will change from
current time to alarm time.
Note: The POWER switch must
be set to the ‘Off’ position to
adjust the Alarm time.
While continuing to hold the
ALA
RM SET button press
t he HOUR button repeatedly
until the display shows the
desired wake-up hour. Be
sure to observe the AM/PM
indicator to confirm that you are
setting the alarm time correctly.
Press the ALARM ON/OFF
button to activate the alarm.
The ALARM indicator on the
front panel will turn ‘On’.
Set the FUNCTION selector
to the desired alarm mode,
Radio or Buzzer.
1
4
1
1 12 13
1
4
While continuing to hold the
ALARM SET button press
the MINUTE button repeatedly
to se the desired wake-up
minute. When the desired
wake-up time appears on the
display release all the buttons.
SETTING THE ALARM
OPERATING INSTRUCTIONS(CONTINUED)
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
.
AL ARM
.
AL ARM
.
When the actual time matches
the alarm time the system will
turn on to the radio or buzzer
a larm automatically. The radio
or buzzer will continue to
operate for one hour and then
shut off and reset itself for the
same time on the following day.
To stop the alarm sooner, press
the ALARM ON/OFF button to
d eactivate the alarm. The ALARM
indicator on the front panel goes
‘Off’.
1
5

Symptom Possible Cause Solution
Radio
Noise or sound
distorted on AM or
FM broadcasts.
FM STEREO indicator
does not light
Station not tuned properly for AM
or FM.
FM: Rod antenna is not extended.
Retune the AM or FM broadcast
station.
Extend FM Rod antenna.
Reposition the unit until
best reception is obtained.
AM: The bar antenna is not
positioned correctly.
AM or FM, no sound
iPod Player
The BAND switch is not set to FM
position.
Function switch is not set to RADIO.
Set the BAND switch to
FM ST. Position
Increase Volume
Volume at minimum.
Unit does not respond
(no power)
Set the Function switch to
RADIO.
AC adaptor is not plugged into a
wall outlet or the connector is not
plugged into the power supply jack
on the back of the unit.
Plug the AC adaptor into a wall
outlet and plug the connector
into the supply jack on the unit.
TROUBLESHOOTING GUIDE
R
R
R
iPod does not dock
porperly
Using no or wrong iPod insert
Make sure the dock insert is the
proper fit for the iPod
iPod did not install properly
Remove the iPod from the dock
and check for obstruction on the
connections in the dock and on
the iPod ,Then reseat it in the dock
iPod does not respond
to the unit
iPod is not installed properly
Remove the iPod from the dock
and check for obstruction on the
connectors in the dock and on
the iPod Then reseat it in the dock
iPod is locked up
Please make sure your iPod is
working properly before docking
into the unit. Please refer to the
iPod manual for details.
Using first or second generation iPod ,
iPod Shuffle or other devices.
This unit cannot control those
iPods or other devices.
iPod did not charge up iPod is not installed properly
Remove the iPod from the dock
and check for obstruction on the
connectors in the dock and on
the iPod . Then reseat it in the dock
iPod is locked up/frozen
iPod battery has problem
Please make sure your iPod is
working properly before docking
into the unit. Please refer to your
iPod manual for details.
14
R
RR
R
R
R
R
R
RR
R
R
RR
R
R
R
R
R
R
R
R

CAR E AND M AI NTENANCE
If the cabinet becomes dusty, wipe it with a soft cloth. If the cabinet becomes
smudged or dirty, clean it with a soft, slightly dampened cloth. Never allow
water or any liquid to get inside the cabinet.
Never use any abrasive cleaners or cleaning pads as these will damage
the finish of your unit.
