Akura ATL1510W User manual

15"Wide Screen LCD TV
ATL1510W

Safety Information……………………………………………2
Product Features…………………………………………….4
Accessories…………………………………………………..4
Front View…………………………………………………….5
Rear View……………………………………………………..6
Remote Control………………………………………………7
Basic Installation…………………………………………….9
OSD Menu…………………………………………………..10
Sound Menu…………………………………………………11
Channel Menu……………………………………………….12
Function Menu……………………………………………….13
PC Menu…………………………………………………..…14
User Help Guide……………………………………………..15
Technical Specifications……………………………………16
Mains Plug wiring……………………………………………17
Wall bracket mounting instructions………………………..17

Safety Information
The lightening flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
The crossed out “Wheelie bin” is intended to show that this appliance must not
be placed with ordinary household waste at the end of its useful life. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, please keep separate from other household waste and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where you purchased the
product, or their local government office for details of where and how you can
take this item for environmentally safe re-cycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product must not be mixed with other
commercial wastes for disposal
1. THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO INFORM
THAT THE APPARATUS CONTAINS A LASER COMPONENT.
2. THE WARNING LABEL INFORMING OF RADIATION IS PLACED INSIDE
THEn UNIT. AS SHOWN IN THE ILLUSTRATION. TO WARN AGAINST
FURTHER MEASURES ON THE UNIT. THE EQUIPMENT CONTAINS A
LASER RADIATING LASER RAYS ACCORDING THE LIMIT OF LASER
PRODUCT OF CLASS
This unit complines with European safety and electrical interference directives.

Safety Information cont.
Do not place the Tv on an unstable surface, it may tip over and cause injury or
damage to the LCD screen.
Do not place the tv in a cabinet where airflow is restricted, ensure the ventilation holes
are not covered to prevent overheating. Do NOT cover the DC mains adaptor, this will feel
warm to the touch and must be allowed to radiate the heat.
Do not use the Tv in wet or damp conditions, if water or liquids are allowed to enter the
case, disconnect the power and call the Technical Help line. Do not handle the Tv or Power
adaptor with wet hands.
During an Electrical storm or when going on holiday, disconnect from the mains supply and
aerial (if external or rooftop).
Do not place heavy objects on the mains lead or DC supply lead, do not place where they
can be stepped on, cut or damaged. If the leads do become damaged please call the
Technical Help Line for advice.
Do not drop or damage the Tv. If the casing becomes damaged it may cause a safety issue,
Do not open the case or Power adaptor, you risk a severe electric shock, injury or death.
Do not drop objects into the Tv ventilation slots or DVD disc slot. Should an object enter the
TV, contact the Technical Help Line for advice.
Do not place the Tv near heat sources such as radiators or direct sunlight
Cleaning the Tv. Disconnect from the supply before cleaning. Do NOT use petrol based or
chemical cleaning fluids. You may wipe with a soft damp cloth. For stubborn sticky dirt use
a dilute detergent solution..
LCD Screen. Do NOT use chemical solvents on the screen surface, sticky finger marks
must only be removed with a dilute detergent solution. Occasionally one or two bright dots
may be seen on the screen, this is not considered a fault.

- Inputs : Tuner, Scart, VGA, CVBS (video), Audio, S-Video, PC Audio
- Tv Systems : PAL (B/G,I,D/K). SECAM (B/G,D/K,L) for UK use PAL “I”.
- Memory. Up to 200 channels may be stored
- No Signal (Tv) Auto standby.
- Timer functions
- Programme exchange (swap)
- Power requirements (DC 12V 5 A (60W).
- LCD Screen 1440 x 900 pixels
- Tuning Range VHF / UHF 48 Mhz 847 Mhz
Users' Manual Remote Control Adapter Adapter Cable
1.Product Features
2.Accessories
TV/AV
CALL P-MODE
TXT MIX SUBP HOLD/TV /NICAM
REVEAL INDEX SIZE CANCEL
MENU
123
456
789
0
-/- --/- --/- -
CH+
CH-
VOL- VOL+
POWER
MUTE
SLEEP
RECALL
S-MODE
SYSTEM
RED GREEN CYAN
YELLOW
15"Wide Screen LCD TV
ATL151 0 W

1(IR)Infrared Receiver:Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
The effective range of the I/R signal is approx 3 metres and an angle of +/- 30 deg.
2 The functions of the buttons are described as below:
MENU: Press to display the OSD menu, Press again to exit the menu.
CH-/CH+: Press to scan through channels. When pressing and holding down either button
user can scan channels quickly.
They are also can be used to move down/up in the OSD menu screen.
VOL-/VOL+: Press to adjust the volume.
they are also can be used to move left/right in the OSD menu screen.
VOL+ button can be used to skip forward to next menu.
TV/AV: Press to select the source: TV,AV,SVIDEO,PC,SCART
Power: Turn on/off the TV set.
3.Front View
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
MENU
CH-
CH+
VOL-
VOL+
TV/AV
Led Indicator
Power Remote control window
(keep clear)

4.Rear View
Power : Connection to Power adaptor.
SCART : Composite video and Audio input from VCR or other devices.
PC Audio : Audio connection from PC.
VGA : PC Monitor display input. Connect to your Pc Mini D15 pin connector.
AV-R,AV-L (Phono): Right and Left Audio input from other sources such as Camcorder.
Video : CVBS video input from other sources such as Camcorder.
S-Video In : Alternative High Quality Video only (sound via AV-R,AV-L).
RF : Tuner / Antenna RF input.

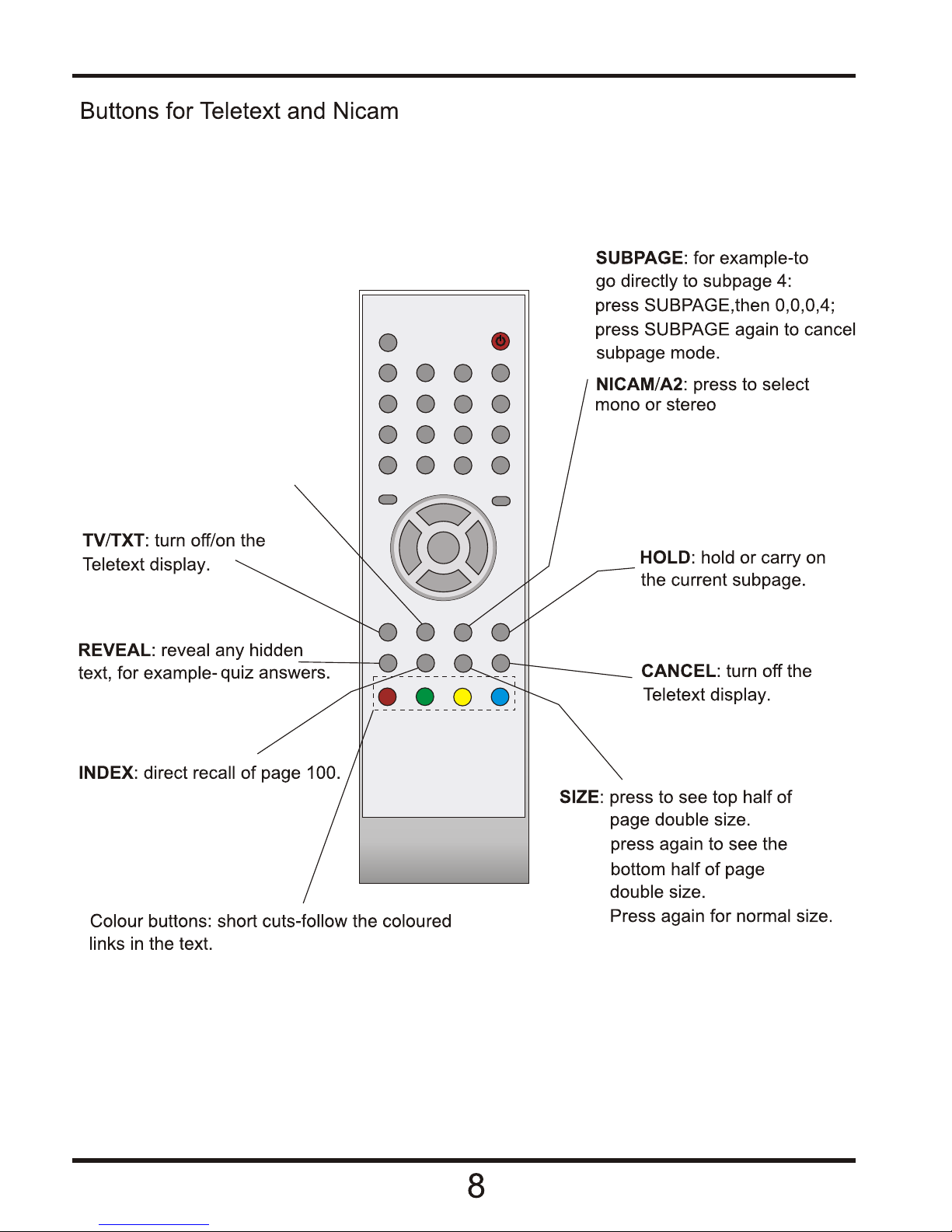

5. Remote control
Note:
1. Fit two AA batteries, making sure that they are the correct way round, as marked on the case.
2. Aim the remote control at the window to keep the right side of the screen, and keep the window
clear at all times.
3. Do not press the buttons on the remote control too quickly-allow time for the set to respond.
SYSTEM: press to adjust
TV's color & audio norm:
BG/DG/I/LL

TV/AV
CALL P-MODE
TXT MIX SUBP HOLD/TV /NICAM
REVEAL INDEX SIZE CANCEL
MENU
123
456
789
0
-/- --/- --/- -
CH+
CH-
VOL- VOL+
POWER
MUTE
SLEEP
RECALL
S-MODE
SYSTEM
RED GREEN CYAN
YELLOW
(Only on TV mode)
MIX: display Teletext on
top of the nprmal TV picture
Battery Disposal.
When the batteries are exhausted and
need replacing, do NOT break open or
throw on a fire.
Contact your local waste authority for
disposal instructions, do not throw in
the domestic waste.

TV
PC
V
V
1.Connect the T to the PC using a 15pin VGA lead (not supplied) and Audio to the PC audio
socket
2.Press the TV/AV button to display the source menu, use the CH+/- buttons to select PC and
press Vol + to confirm. The T will now display the signals from the PC. You may need to
adjust the PC to the TV. See page 14
TV
AV
S-VIDEO
SCART
PC
Channel
Move Select Exit
Auto Tune
Manual Tune
Fine Tune
Skip
Sound.SYS
Channel Swap
Off
I
1.Connect the Power adaptor to the DC input socket and the Aerial lead to the TV Tuner input.
2.To turn ON, press the “Power Button”.
3.Press the TV/AV button on the TV or Remote Control, the source menu
will display on the screen “as seen on the right”. Use the CH+/- buttons
to select the source, press Vol + to confirm.
4.Press the MENU button on the TV or the MENU button on the
remote control, the screen will display the OSD menu, press the CH+/-
button to select the third menu Channel (see picture below)press the Vol +
button to enter the menu, press CH+/- buttons to select the item“Auto Tune”.
Press the Vol + button, the TV will start to search from the lowest frequency upwards. When a
station is found it will be stored automatically in the “First” location, further received stations will
be stored in order. When Auto Tune is completed the Tv will display the first station received. In
most cases the stations stored will not be in Channel Order i.e. BBC1 will not be in Location “1”.
To move the stations into the correct locations you will need to use “Channel Swap” see page 13.
Note when Auto Tune starts, to stop it press MENU, otherwise leave to complete the search.

7. OSD menu
Press the MENU button on the remote control, the screen will display the OSD menu,
press the CH+/- button to select the main menu(there are five main menu:Picture,Sound,Channel
Function and PC), and press the VOL+ button to enter the main menu you select, press CH+/-
button to select the item of the main menu, press VOL+/- button to select, adjust or enter a
submenu.
Note Items highlighted in the Menu's may be adjusted. Items “greyed” out are not available.
Picture Mode: select the picture display mode----User, Normal, Soft, Vivid.
You can also use the P-MODE button on the remote control to select.
Brightness: adjust the brightness of the picture.
Contrast: adjust the contrast of the picture.
Sharpness: adjust the sharpness of the picture.
Hue: adjust the hue of the picture(only used in the mode of NTSC).
Scale: exchange the 16:10 and 4:3 picture mode.
Note: when you are in the mode of PC, you can only adjust the brightness and contrast .
Saturation. Adjusts the Colour depth (contrast)
Move Select Exit
Picture Mode
Brightness
Contrast
Saturation
Sharpness
Hue
Scale FULL
Normal
7.1 Picture menu

Sound Mode: select the sound mode----User, Normal, Movie, News.
You can also use the S-MODE button on the remote control to select.
Volume: adjust the volume of the sound.
You can also use the VOL+/- button on the remote control or TV set to adjust the volume.
Bass: adjust the bass of the sound.
Treble: adjust the treble of the sound.
Balance: adjust the balance of the sound.
Sound
Move Select Exit
Sound Mode
Volume
Bass
Treble
Balance
Normal
7.2 Sound menu

Auto Tune
140.15MHz VHF L
0
7.3 Channel Menu (The menu is only used in TV mode)
Channel
Move Select Exit
Auto Tune
Manual Tune
Fine Tune
Skip
Sound.SYS
Channel Swap
Off
I
Auto Tune. Press the Vol + button, the TV will start to search from the lowest frequency up- wards.
When a station is found it will be stored automatically in the “First” location, further received
stations will be stored in order. When Auto Tune is completed the TV will display the first station
received. In most cases the stations stored will not be in Channel Order i.e. BBC1 will not be in
Location “1”. To move the stations into the correct locations you will need to use “Channel Swap”
see page 13.
Note when Auto Tune starts, to stop it press MENU, otherwise leave to complete the search.
Manual Tune: press VOL+ button to search forwards, and press VOL- button to search
backwards. When a station found, it will be stored automatically.
Fine Tune : press the VOL + button to tune upwards and press VOL - to tune downwards.
(normally fine tune will not be necessary).
Skip. Some received channels may be unwanted, they may be noisy or weak stations from another
area, to remove these from the list select “Skip” . When skip is selected for a particular channel,
that channel is “Skipped” when using the CH+/- buttons. You may still select using the “Numeric”
buttons.
Sound SYS. This is used to select the “sound system” for the particular country or area. In the UK
it must be set as “I”. In Western Europe use “B/G”, Eastern Europe use “D/K”, in certain areas of
France use “L”.

Channel
Move Select Exit
Channel1
Channel2
Swap
3
4
Channel Swap: press the VOL+ button to enter the swap menu as the following picture.
Use the CH+/- buttons to select “Channel 1”. Use the Vol +/- buttons to Locate BBC1, “it is useful
to have a current copy of a TV guide to hand”. Select “Channel 2”, use the Vol +/- buttons to select
“1”. Then select “Swap” and press Vol + to swap the TV will revert to “menu”. Press Vol + to
Continue by putting BBC2 in 2, ITV in 3, CH4 in 4 and CH5 in 5. Other channels may be numbered
as required.
Function
Move Select Exit
Language
Blue Back
TXT Language
Color Temp.
DNR
Reset
Timer
English
on
EAST
User
Normal
7.4 Function menu
Language: Selects the OSD Language.
Blue Back. Select On or Off, this turns the background to Blue under no signal conditions.
TXT Language. Selects the Teletext language Chose “West” for normal viewing.
Color Temp. Adjusts the colour temperature. You may select Cool, Warm, Normal or User.
User allows you to set the Red, Green and Blue individually.
Reset. Select “Reset” and press Vol + to reset all analog settings to “Factory Default”
DNR:press the /- to choose "Normal" or "Strong" to reduce picture interfere.Vol +

Timer: press the VOL+ button to enter the timer menu as the following picture.
Channel
Move Select Exit
CURRENT
TURN OFF
TURN ON
TURN ON PROGRAM
00:00
_ _:_ _
_ _:_ _
1
7.5 PC menu(the menu can only be used in the mode of PC)
Clock: adjust the pixel clock frequency, until the image size is maximized for the screen.
Phase: adjust the phase of the ADC sampling clock relative to the sync signal, until a stable
image is obtained.
H/V. Position: adjust the transverse/vertical position of the screen.
Auto: press the VOL+ button to setup the parameter of the screen automatically.
PC
Move Select Exit
Clock
Phase
H.Position
V.Position
Auto
You MUST set the Select Current Time by pressing the CH+/- buttons, to select the “HOURS”
press Vol + and CH+/- to change the time. Press Vol + to select “MINUTES” and CH+/- buttons
to set the time.
To set the “OFF” and “ON” times Select using the CH+/CH- buttons, set the times required as you
did setting the time. If you want the Tv to switch to a particular station select “TURN ON
PROGRAMME” using the CH+/- buttons and change using the Vol +/- buttons, the TV will then
switch at the requested time.

15
8
Display shows “No Signal”
PC not connected to TV
PC not set correctly to TV
settings
Check connections
Enter the PC Display Setup
section and set the PC correctly
Picture Noisy or Jittering TV not adjusted to PC
correctly
Enter TV PC Menu and select
“AUTO” see page 14
Picture not central As above Enter TV PC Menu and select
H/V position see page 14
No Sound in PC mode Check PC sound
connection
This is different from AV mode
and must be connected
separately
If you are still having difficulty please call the Technical help line. Ring 01422 203676
(Normal rates apply).
Opening hours Mon-Fri 8 am 8pm. Sat 9 am 4pm. Sun 11am 4pm “Bank holidays as Sun”
PC Mode
Display shows “No Signal”
PC not connected to TV
PC not set correctly to
TV settings
Check connections
Enter the PC Display Setup section
and set the PC correctly
Picture Noisy or Jittering TV not adjusted to PC
correctly
Enter TV PC Menu and select
“AUTO” see page 14
Picture not central As above Enter TV PC Menu and select
H/V position see page 14
No Sound in PC mode Check PC sound
connection
This is different from AV mode and
must be connected separately

9.Technical Specification
Note:
The specification shown above may be changed without notice for quality improvement.
16
TV Dimensions
Net weight (Kg's)
Screen Size
Screen Ratio
Definition
Brightness (cd/m2)
Contrast
Inputs
DC Supply
Power Consumption
Tuner range
VGA support
400x196x362 mm
3.8kg
15.4” (39cm) diagonal
16 :10
1280 x 800 pixels
500
500 : 1
Tuner,S-Video,Video (1vPP)VGA, SCART, Audio
12V @ 3.33A
40W
VHF 48 224 Mhz, UHF 471- 847 Mhz
REMOTE CONTROL
Control Distance
Control Angle
Batteries
Weight
640x480 60Hz 70Hz 75Hz
800x600 60Hz 70Hz 75Hz
1024x768 60Hz 70Hz 75Hz
1280x600 60Hz 70Hz 75Hz
1280x720 60Hz 70Hz 75Hz
1280x768 60Hz 70Hz 75Hz
> 6 metres
> 30 deg
2 x “AA” 1.5V cells
70 g (without batteries)

17
Mains Plug Wiring Diagram
For your own saftty read following instruction before attempting to connect this unit to the mains
supply
MAINS (AC) OPERATION
The wires in the main lead are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.
The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.
The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.
For continued protection against risk of fire, replace only with same type and rating of fuse(ASTA
Approved 3A 250VAC fuse)
If your product is fitted with a moulded plug which requires replacement please out off and dispose
of safety, then rewire as shown above.
IMPORTANT
Wall Mounting
The Tv is provided with mounting holes for a VESA approved wall mounting bracket (NOT
SUPPLIED). Remove the Two Posi screws holding the base to the base bracket and lift the base
away (do not remove the base mounting bracket). Mount the VESA bracket using 4x 4mm x 10mm
Iso metric threaded screws (not supplied). Do NOT use screws longer than 12mm, damage will
occur to the internal parts. Fit the wall bracket securely following the manufacturers instructions.
Akura accept no responsibility for damage caused by faulty bracket installation.
