Akura AV32751-HD User manual

Customer Help Line: 01422 263313
Opening Hours: Mon-Fri 8am-8pm, Sat 9am-4pm, Sun 11am-4pm
Or visit our website at www.ekey.co.uk
AV32751-HD

- 1 -
Contents
Installation Of The TFTTV To The Wall .......................................................................................................1
RemoteControl Buttons ..............................................................................................................................2
LCDTV .......................................................................................................................................................2
Preparation.................................................................................................................................................3
Safety Precautions .....................................................................................................................................3
Before Switching On Your TV....................................................................................................................5
Switching The TV ON/OFF .........................................................................................................................5
Navigating the Menu System ......................................................................................................................6
Menu System..............................................................................................................................................6
Other Features .........................................................................................................................................10
Teletext ..................................................................................................................................................... 11
Connect Peripheral Equipment .................................................................................................................. 12
Tips .......................................................................................................................................................... 13
Appendix A: Aerial Connection .................................................................................................................14
AppendixB: Connect Peripheral Equipment..............................................................................................14
User Help Guide .......................................................................................................................................15
PeripheralEquipmentConnections ........................................................................................................... 16
Important Instruction ................................................................................................................................. 17
Specifications ........................................................................................................................................... 18
Installation Of The TFT TV To The Wall

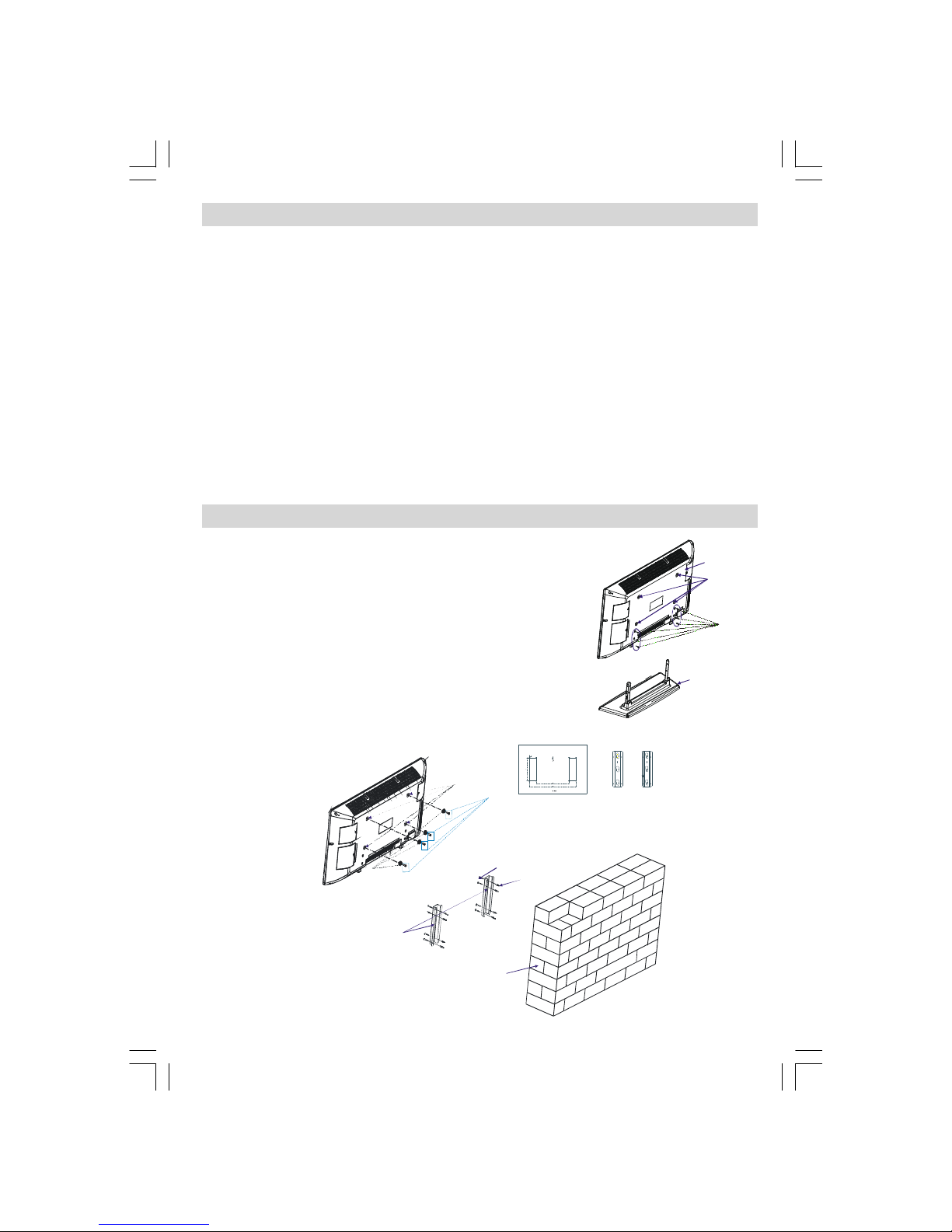

FIGURE 1
FOOT ASSEMBLY
TFT PANEL
6 SCREWS
(4 X 16)
SCREW HOLES
FOR PLASTIC PINS
1- To install the TFT TV on the wall, first of all, foot assembly should be
removed. (Figure 1). Unscrew the 6 screws (M4 x 16) that attach the foot
assemblyto the TFT panel andremove thefootassemblyfrom theTFTpanel.
2- Place the 4 plastic pins to the circular screw holes at the rear of the TFT
and screw them to the TFT panel with 4 (4 x 10) screws.
3- Decide the place on the wall where the TFT panel wouldbe placed. Fixthe
stencil wall mount (shown in Figure 2) on the wall.
The stencil wall mount is used for placing the wall hangers on the wall, properly.
4- Level and mark with a pencil the 4 mounting points on each wall hanger.
Drill pilot holes for the plastic anchors and then fix the wall hangers with 8
screws (4 x 30).
5- Raise theTFT panel and hang it to the holeson the wall hanger from the 4
hanging screws at the rear of the TFT panel.
SCREW
(4 x 30)
PLASTIC ANCHOR
WALL HANGER
WALL HANGERS
STENCIL WALL MOUNT
SCREW HOLES FOR PLASTIC PINS
4 SCREWS
(4 x 10)
TFT PANEL
PLASTIC PINS
WALL
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:051

- 2 -
LCD TV
MENU
- P/CH +
TV/AV
Remote Control Buttons
Signal Indicator
= Cursor Up
= Stand By
= Cursor Right
OK/SELECT = Okay (Store)
= Cursor Down
0 - 9 =Direct Programme
-/-- / EXIT = No Function
P + = ProgrammeUp
P - = Programme Down
I-II = Mono/Stereo-DualI-II
TV
DTV
= TV / Quit Menu
AV
= AVAV = External Source
(TV, EXT1, EXT2,EXT2 S,
FAV,S-VIDEO,HDMI,YPBPR)
= Time
= Mix, = No function
= Update, = No function
= Index Page
=Reveal
Blue button/Guide = Install
Yellow button / = Feature
Green button / = Picture
Red button = Sound
/WIDE= Imagesize/
= Expand
/ = Hold / No Function
= Teletext
PP = Personal preference
V - = Volume Down
V+ = Volume Up
P<P/SWAP =PreviousProgramme
M= Menu
31
= Cursor Left
32
= Mute
33
= Info
2
3
4
5
6
8
9
7
0
OK/
SELEC T
P<P/SWAP -/--
PP
I II -
TV
AV
+
+
GUIDE
WIDE
EXIT
ABC
DEF
GHI
JKL MNO
PQR
STU VWX YZ
M
DTV
1
SOURCE
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:052

- 3 -
Safety Precautions
Please read the following recommended safety pre-
cautions carefully for your safety
1. Power Source
The set should be operated only from a 230-240V 50
Hz supply.
2. Power Cord
Do not place the set, a piece of furniture,etc. on the
power cord(mains lead) or pinch the cord.Handle the
power cord by the plug.Do not pull out the plug by
tugging the cord and never touch the power cord
when your hands are wet as this could cause a short
circuit or electric shock.Never make a knot in the cord
or tie it with other cord.The power cord should be
placed in such a way that they are not likely to be
stepped on.
A damaged power cord can cause fire or give you an
electric shock. When it is damaged and need to be
changed, it should be done by qualified personel.
3. Moisture and Water
Donot usethis equipmentin a humid and damp place
(avoid the bathroom, the sink in the kitchen, and near
the washing machine). Do not expose this equipment
to rain or water, as this may be dangerous and do not
place objects filled with liquids,such as flower vases
on top of the set. Avoid from dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug
the set and have it checked by qualified personnel be-
fore operating it any further
4. Cleaning
Before cleaning, unplug the set from the wall outlet.
Do not use liquid or aerosol cleaners. Use soft and
dry cloth.
5. Ventilation
The slots and openings on the back cover are in-
tended for ventilation and to ensure reliable opera-
tion. To prevent overheating, these openings must not
be blocked or covered in anyway.
6. Heat and Flames
The set should not be placed near to naked flames
and sources of intense heat,such as an electric
heater. Ensure that no naked flame sources, such as
lighted candles, are placed on top of the set
7. Lightning
In the event of a Thunderstorm or when going on
holiday.Disconnect the mains supply and aerial (if
external).
Preparation
Forventilation, leave a space of at least 10 cm free all
around the set. To prevent any fault and unsafe situ-
ations, please do not place any objects on top of the
set.
Use this apparatus in moderate climates.
Features
• Remote controlled colour LCDTV.
• 100 programmes from VHF, UHF bands or cable
channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu driven
system.
• It has 2 Scart sockets for external devices (such as
video, video games, audio set, etc.)
• Stereo sound system (German+Nicam).
• Full function Teletext (500 pages).
Fastext, TOP text.
• Headphone connection.
•A.P.S. (Automatic Programming System).
•All programmes can be named.
• Forward or backward automatic tuning.
•Sleeptimer.
• Child Lock.
• Automatic sound mute when no transmission.
•NTSCPlayback.
• AV in and S-VHS in are available.
•It hasanHDMIconnectorforDigitalVideo andAudio.
This connection is also designed to accept High
Definition signals.
•AVL (Automatic Volume Limiting)
• When no valid signal is detected, after 5 minutes the
TV switches itself automatically to stand-by mode.
• PLL (Frequency Search)
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:053

- 4 -
8. Replacement Part
When replacement parts are required, be sure the ser-
vice technician has used replacement parts which are
specified by the manufacturer or have the same speci-
fications as the original one. Unauthorised substitutions
may result in fire, electrical shock, or other hazards.
9. Servicing
Please refer all servicing to qualified personnel. Do
not remove the cover yourself as this may result in an
electric shock.
WARNING: When the device is not in use for a long
time, disconnect from power.
Instructions for waste disposal:
• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materi-
als, such as foil bag, must be kept away from chil-
dren.
• Batteries.These should not be placed in the do-
mestic waste.Do NOT break open or throw on a
fire. For disposal contact your local waste authority
• Cold cathode fluoresant lamp in LCD PANEL con-
tains a small amount of mercury, please follow lo-
cal ordinates or regulations for disposal.
• The mains plug is used to disconnect the TV from
the mains and therefore it shall remain readily op-
erable.
Warning: To prevent injury, this device must be se-
curely attached to the floor/wall in accordance with
the installation instrutions.
“The LCD panel is very high technology product with
about a million thin film transistors, giving you fine
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fixed point of blue,
green or red. Please note that this does not affect the
performance of your product.”
“DONOTLEAVEYOURTVINSTANDBYOROPERAT-
INGWHENYOULEAVEYOURHOUSE”
Surely connect
the ground wire.
This is a "Class One" apparatus. Always ensure the earth terminal is
connected.
If replacing the mains plug or lead ensure the Earth wire is connected.
If you are not sure please consult your local engineer.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:054

- 5 -
Before Switching On Your TV
Power Connection
IMPORTANT: The TV set is designed to operate on
230-240V AC, 50 Hz.
•After unpacking, allow the TV set to reach the ambi-
ent room temperature before you connect the set to
themains.
Connections To The Aerial Input Socket
•Connecttheaerial orcableTvplugtotheAerialinput
socket located at the rear of the Tv. AVCR or other
box may also be connected.
VHF/UHF
75
REAR OF THE TV
CABLE TV
Inserting Batteries In The Remote
Control Handset
WARNING : Remotecontrolisbatteryincluded.Aplas-
tic protector is used to disconnect the batteries in
order to prevent the batterylife from reducing. Please
remove the plastic protector before the first use.
• Remove the battery cover located on the back of the
handset by gently pulling backwards from the indi-
cated part.
• Insert two AAA/R03 or equivalent type batteries
inside. Place the batteries in the right directions and
replace the battery cover.
Note: Remove the battery from remote control hand-
set when it is not to be used for a long period. Other-
wise it can be damaged due to any leakage of bat-
tery.
Switching The TV ON/OFF
To switch the TV on:
Your TV will switch on in two steps:
1. Connect the power supply cord to theTv. Press the
Power ON/Off button located at the REAR of the TV.
The Tv will now be in STANDBY mode.
2. To switch the Tv from Standby mode either :
Press a digit button on the remote control so that a
programme number is selected, or Press the "-P/CH"
or "P/CH+" button on the TV or press the “-P” or
“P+” button on the remote control, so that last mode
switched off is selected.
By either method the TV will switch on. When the TV
is operated for the first time, the following screen
appears:
Country
Language
Auto Program
UK
Ok
Cancel
PLEASE CHECK ANTENNA CABLE
AUTO. PROGRAMMING SYSTEM
TXT Language
By pressing “ ” or “ ” button, adjust the Country
item and press “ ” to highlight “Language” item.
Use “ ” or “ ” button to set “Language”. Use “ ”
or “ ” buttons to select “TXT Language” and set it
by using ” or “ ” buttons. Press “OK” button to
continue:
For more information on this process, see “Install
Menu” section.
To switch the TV off:
• Press the “ (stand-by)” button on the remote con-
trol or On/Off switch on theTV, so the TV willswitch
to stand-by mode.
To power down the Tv completely, press the Power
On/Off button located at the REAR of the Tv. Or dis-
connect the mains plug from the supply.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:055

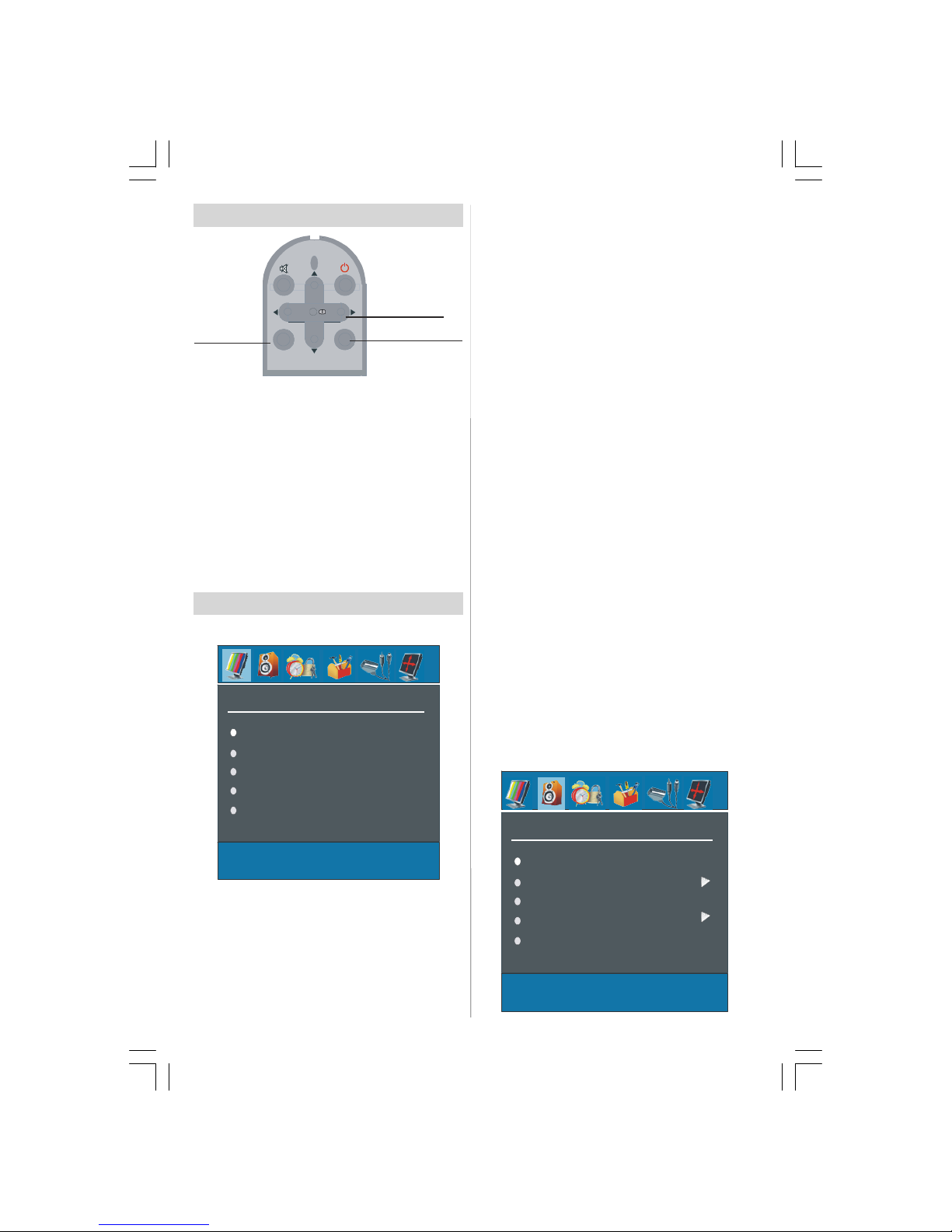

- 6 -
Navigating the Menu System
OK/ SELECT M For displaying
menu options
For navigation
To confirm choices
1- Press Mto display the menu.
2- Press “

” or “

” button to select an icon. Press
“

” for more options.
3- Use “

” or “

” button to highlight.
4- Press “

” or “

” buttons to change the settings.
Press OK to set as default.
5- To exit the menu or return from sub-menu screen,
press M.
These explanations are available for the navigation
of the whole Menu System. To select options that are
explained in the following parts, refer to “Navigating
The Menu System”.
Menu System
Picture Menu
Mode
Contrast
Brightness
Sharpness
Colour
In picture menu if YPbPr or HDMI modes are se-
lected, resolution information is displayed at the bot-
tom of the menu osd.
Mode
By pressing

/

button, select Mode. Press

/

button to choose from one of these options: Cinema,
Dynamic and Natural.
Contrast/Brightness/Sharpness/Colour/Hue
By pressing

/

button, select the desired Option.
Press

/

button to set the level.
Hint: Hue is displayed in picture menu when the TV
receives an NTSC signal.
Colour Temp
• By pressing

/

button select Colour Temp.
• Press

/

to choose from one of these options:
Cool, Normal and Warm.
Noise Reduction
By pressing

/

button select Noise Reduction.
Press

/

to choose from one of these options:
Low, Medium, High or Off.
Film Mode
Films are recorded at a different number offrames
per second to normal television programmes.
By pressing

/

button, select Film Mode.
Press

/

button to set this feature On or Off. Turn
this feature on when you are watchingfilms to see
the fast motion scenes clearly.
Picture Zoom
By pressing

/

button selectPicture Zoom. Use

/

buttons, to change picture zoom to Auto, 16:9, 4:3,
Panaromic, 14:9 Zoom, Cinema, Subtitle, or Zoom.
Reset
By pressing

/

button, select Reset. Press

or
“OK ” button to reset the picture modes to factory
default settings.
Store
• By pressing

/

button select Store.
• Press

or “OK” button to store the adjustments.
“Stored” will be displayed on the screen.
Sound Menu
SOUND
Volume
Equalizer
Balance
Headphone
Sound Mode
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:056

- 7 -
Volume
By pressing

/

select Volume . Press

/

button to change the level of the Volume.
Equalizer
By pressing

/

select Equalizer.Press

/

button to change the Equalizer setting. In equalizer
menu, the mode canbe changed to Pop, Rock, Jazz,
Flat, Classic or User. Select the desired frequency
by

/

button and increase or decrease the fre-
quency gain by pressing

/

button.
Note: Equalizer menu settings can be altered only
when the Equalizer Mode is in User.
Balance
By pressing

/

select Balance.Press

/

button
to change the level of the balance.Balance level can
be adjusted between -32 and 32.
Headphone
By pressing

/

button, select Headphone. Press

button to enter hedphone menu.
volume
By pressing

/

button, select Volume. Press

button to increase hpvolume level. Press

button to
decrease hp volume level. Headphone volume level
can be adjusted between 0 and 63.
sound mode
By pressing

/

button, selectSound Mode. Press

/

button to change sound mode.
Sound mode is used to identify sound mode of the
headphone and can be set to mono, stereo, dual I or
dual II according to the transmission.
balance
By pressing

/

button, select Balance. Press

button to increase balance to the right. Press

button to decrease balance to the left. Balance level
can be adjusted between -32 and +31.
Press the “M” button to return to the previous menu.
Sound Mode
By pressing

/

select Sound Mode. Press

/

button, you can select Mono, Stereo, Dual I or Dual II
mode,onlyiftheselectedchannelsupportsthatmode.
AVL
By pressing

/

select AVLVL.Press

/

button to
set the AVL as on or off.
Effect
By pressing

/

select Effect.Press

/

button
to set Effect as on or off.
Dynamis Bass
Dynamic Bass is used to increase bass effect of the
TV set.
By pressing

/

button, select Dynamic Bass. By
pressing

/

button set Dynamic bass to Low, High
or Off. It is notrecommended to select Highif listening
at high volume levels.
Store
• By pressing

/

button select Store.
• Press

or “OK” button to store the adjustments.
“Stored” will be displayed on the screen.
Features Menu
FEATURE
Sleep Timer
Child Lock
Language
Ext-2 Out
Blue background
Sleep Timer
By pressing

/

select “Sleep Timer”.Press

/

button to set the Sleep Timer..
The timer can be programmed between Off and 120
minutes in steps of 10 minutes.
Child Lock
By pressing

/

select Child Lock.
Press

/

button tosettheChildLockonoroff.When
on is selected, the TV can only be controlled by the
remote control handset. In this case the control panel
buttons will not work. Hence, if one of these buttons
is pressed, “Child Lock On” will be displayed on the
screen when the Menu screen is not visible.
Language
By pressing

/

button, select Language.Use

/

button to select the language.
EXT2 Out
By pressing

/

select EXT2 Output.Use

/

button, to set Ext-2 Out to TV, EXT1, FAV or Audio
YPbPr.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:057

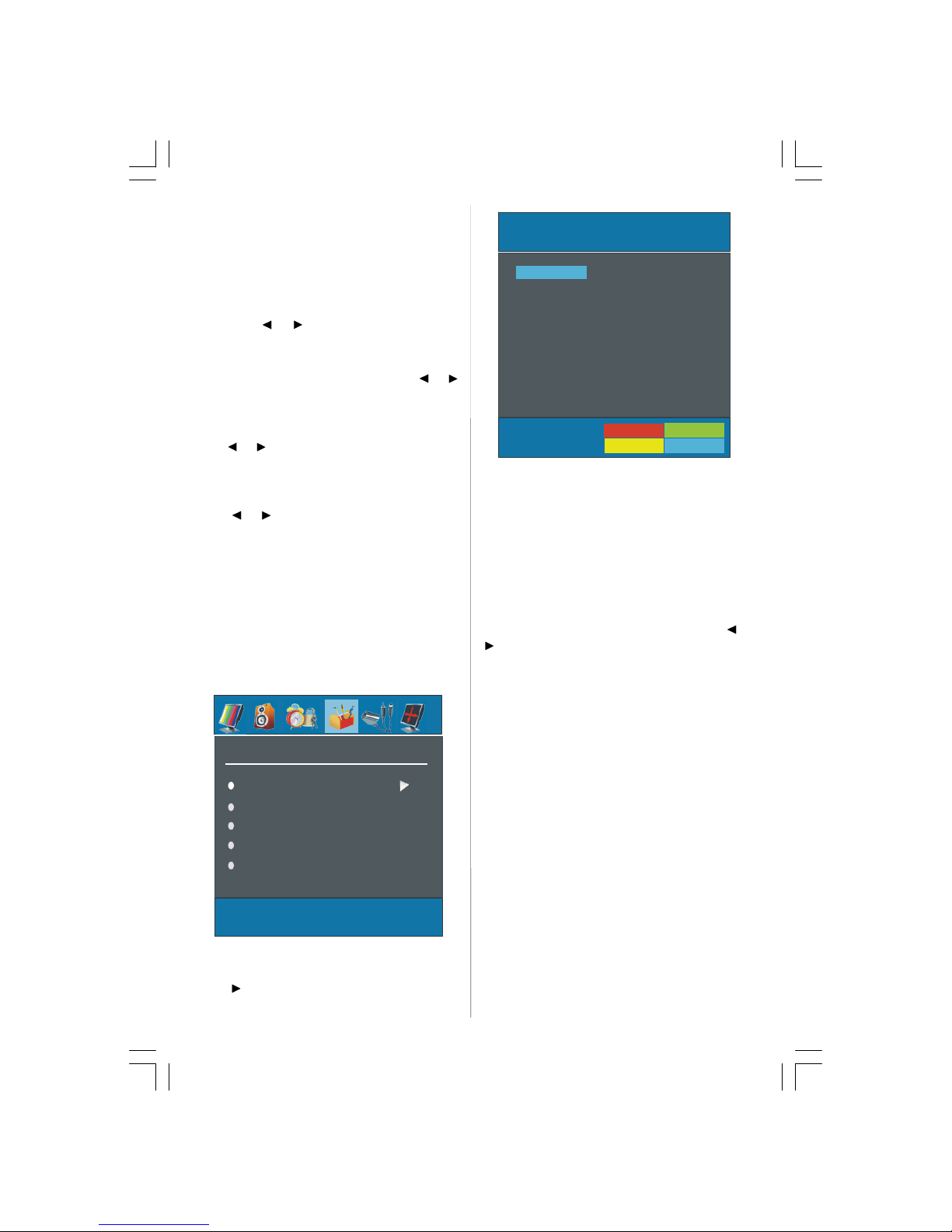

- 8 -
Note: When TV Source is set to HDMI, HDMI Audio
setting will be available among EXT-2 Out options.
Blue Background
You can set the TV to automatically change to a blue
screen if the signal is weak or absent, or when there
is no input from an external device.
The Blue Background feature can be turned on or off
by pressing “ ” / “ ” button.
Menu Background
By pressing

/

button, select Menu Background.
Transparency level is adjusted by pressing “ ” / “ ”
button.
Menu Timeout
By pressing

/

button, select Menu Timeout.
Press ” / “ ” buttonto change menu timeout to 15
sec, 30 sec or 60 sec.
Teletext Language
By pressing

/

button, select Teletext Language.
Press “ ” / “ ” button to change Teletext Language
to West, East, Turk/Gre,Cyrillic, orArabic.
Default Zoom
Defaultzoomisafeaturethatprovidesthezoommode
of the TV set to be switched to the selected default
zoom mode(Panoramic,4:3,14:9zoom,16:9)incase
no WSS or 4:3 signal by end-user.
By pressing

/

button, select Default Zoom. Youou
can set Default Zoom to Panoramic, 4:3, 14:9
Zoom or 16:9 by pressing

/

button.
Install Menu
INSTALL
Program Table
Program
Band
Channel
Colour System
Program Table
By pressing

/

button, select Program Table.
Press “ ” to display Program Table.
P02 C 04
P03 C 05
P04 BBC 1
P05 CH 4
P06 BBC 2
P07 C 04
P08 C 07
P09 C 12
P10 C 15
P11 S 18
P12 S 29
P13 S 31
P14 S 33
P15 S 34
P16 S 35
P17 S 36
P18 S 37
P19 S 40
P20 C 21
Name
Delete
Insert
APS
P01 BBC 1
Program Table
By moving the cursor in four directions you can reach
20 programmes in the same page. You can scroll the
pages up or down by pressing the navigation buttons
to seeall the programmes in TV mode (except theAV
mode).Bycursoraction,programmeselectionisdone
automatically.
Name:
To change the name of a decided programme, select
the programme and press the RED button.
Thefirstletteroftheselectednamewillbehighlighted.
Press

/

button to change that letter and “ ” /
“” button to select the other letters. By pressing
the RED button, you can store the name.
Insert:
Select the programme which you want to insert by
navigationbuttons.PresstheGREENbutton.Bynavi-
gation buttons move the selected programme to the
decidedprogrammespaceandpresstheGREENbut-
ton again.
Delete:
To delete a programme, press the YELLOW button.
Pressing the YELLOW button again erases the se-
lected programme from the programme list, and the
programmes below shift one up.
APS (Auto Programming System)
When you press the BLUE button forAPS,Auto Pro-
gramming System Menu will appear on the Screen.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:058

- 9 -
Country
WARNING!
All Prestored Programs
will be deleted
UK
Ok
Cancel
Auto Program
A.P.S. (Auto Programming System) Country
Press / button to select your country. If you
want to exit from A.P.S. function, press the “BLUE”
button.
When you press OK or REDbutton for starting APS,
all stored programs will be erased and the following
screen will be displayed:
UK
P 03 - C 04
63.75 MHz
6%
63.75 MHz
Cancel
APS is running...
Whenever you press the “BLUE” button, A.P.S. func-
tion stops and Program Tableappears on the screen.
If you wait until the end of A.P.S., Program Table is
displayed with the programmes found and located.
Program
By pressing

/

button, select Program. Press
“” / “ button to select the program number. Youou
can also enter a number via digit buttons on the re-
motecontrol. Thereare100program storagebetween
0 and 99.
Band
Band can be selected either “C” or “S” by press“ ” /
“button.
Channel
Channel can be changed by “ ” / “ ” button or Digit
Buttons.
Colour System
By pressing

/

button, select Colour System.
Press “ ” / “ ” button to change the colour system
to PAL, SECAM, PAL60orAUTO.
IfSound System isset toI, SECAMis not available for
the Colour System.
Note: In EXT mode, you can choose NTSC 3.58 and
NTSC 4.43 as well.
Sound System
By pressing

/

button, select Sound System.
Press “ ” / “ ” button to change the sound system
to BG, I, L, L’,DK.
Fine Tune
By pressing

/

button, select Fine Tune. Press
“” / “ ” button to adjust the tuning.
Search
By pressing

/

button, select Search. Press
“” / “ ” button to start program searching.You can
alsoenterthedesiredfrequencyviadigitbuttonswhen
search item is highlighted.
Store
By pressing

/

button, select Store. Press
“”or“OK”buttontostoretheadjustments.“Stored...”
will be displayed on the screen.
Install menu in AV modes
The following screen appears in the install menu:
INSTALL
Colour System
VCR
Store
Colour System
By pressing

/

select Colour System. By press-
ing “ ” / “ ” button, you can change the colour
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:059

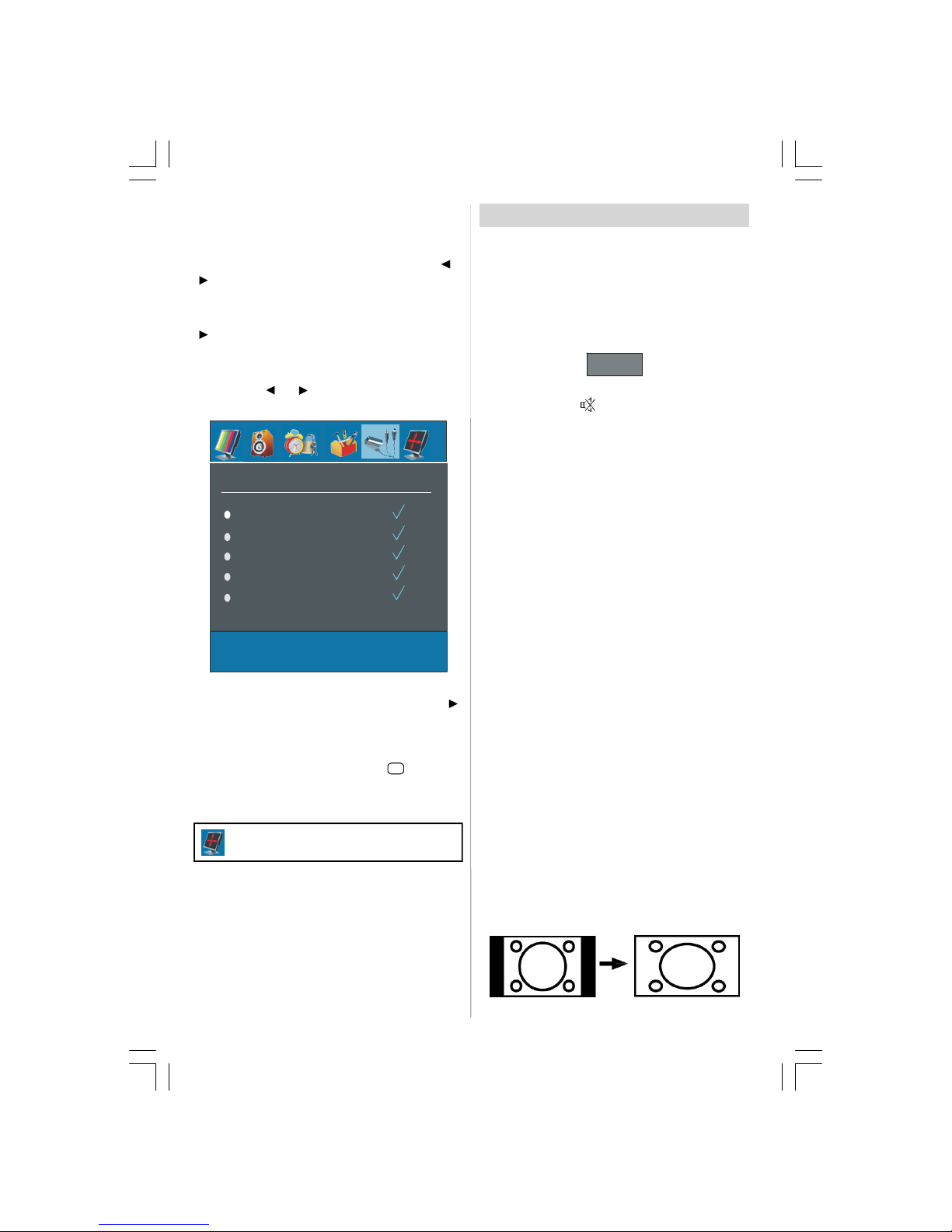

- 10 -
system to PAL, SECAM, PAL 60, NTSC 4,43, NTSC
3,58 or AUTO.
VCR
By pressing

/

select VCR. By pressing “ ” /
“” button, you can set the VCR to ON or OFF..
Store
By pressing

/

button, select Store. Press
“”or“OK”buttontostoretheadjustments.“Stored...”
will be displayed on the screen.
Source menu
By pressing “ ” / “ ” button, select the fifth icon.
Source menu appears on the screen.
SOURCE
TV
EXT-1
EXT-2
EXT-2 S
FAV
In source menu, highlight a source by pressing

/

button and switch to that mode by pressing “ ”
TV, EXT-1, EXT-2, EXT-2 S,FAV, S-VIDEO,HDMIand
YPBPR.
Note: You can mark desired source options by press-
ing OK button. Therefore, when
AV
button is
pressed, only the marked source options will be avail-
able.
Other Features
TV Status
Programme Number,Programme Name,
Sound Indicator and Zoom Mode are displayed
on the screen when a new programme is entered.
Mute Indicator
It is placed in the upper side of the screen when
enabled.
Mute
To cancel mute, there are two alternatives; the first
one is pressing the button and the second one is
increasing the volume level.
AV Modes
By pressing the AV button you can switch your TV to
AV modes (except being in teletext). Pressing this
button consecutively will switch the TV in one of the
optionalAV modes:TV, EXT1, EXT2, EXT2 S, FAV, S-
VIDEO, HDMI or YPBPR.
Personal Preference
BypressingPP button,youmaychangePictureMode
settings.

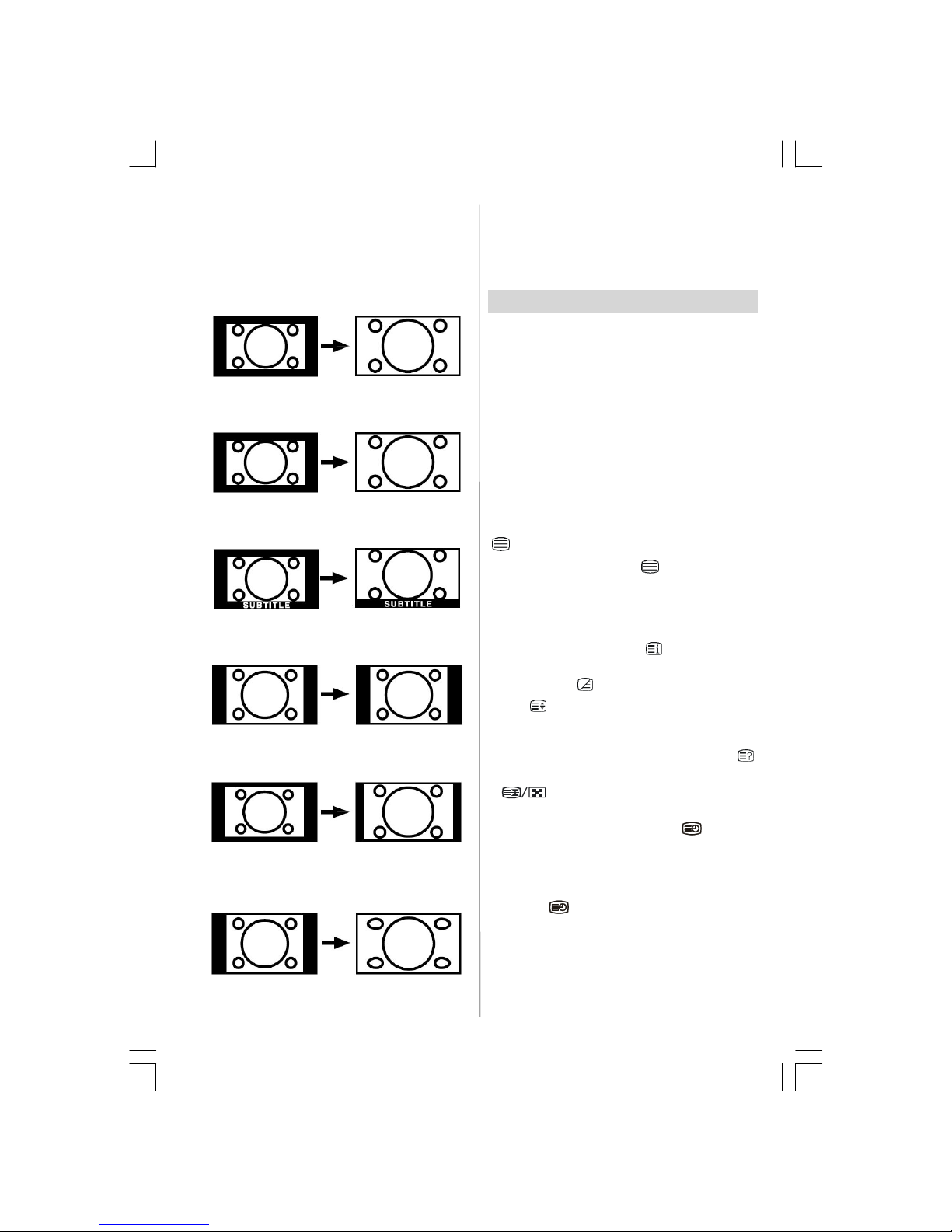

Zoom Modes
Zoom mode can be changed by pressing the WIDE
button. You can change the screen size according to
the picture aspect ratio. Select the optimum one from
the following ZOOM modes.
Note:
• In YPBPR and HDMI modes, while in 720p-1080i
resolutions, only FULL mode is available.
Auto:
When a WSS (Wide Screen Signalling) signal,
which shows the aspect ratio of the picture, is in-
cluded in the broadcast signal or the signal from an
external device, the TV automatically changes the
ZOOM mode according to theWSS signal.
• When the AUTO mode does not function correctly
due to poor WSS signal quality or when you want to
change the ZOOM mode, changeto anotherZOOM
modemanually.
Zoom:
This uniformly stretches the left and right sides of a
normal picture (4:3 aspect ratio) to fill the wide TV
screen.
Note: PC menu will not be active for TV
sets without a PC input.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0510

- 11 -
• For 16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect ratio),
usethe Fullmodeto restorethepictureto itsoriginal
shape.
Cinema:
This zooms up the wide picture (16:9 aspect ratio) to
the full screen.
16:9 Zoom:
This zooms up the wide picture (16:9 aspect ratio) to
the full screen.
Subtitle:
This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.
4:3
Use to view a normal picture (4:3 aspect ratio) as this
is its original shape.
14:9 Zoom:
This zooms up the wide picture (14:9 aspect ratio) to
the upper and lower limits of the screen.
Panoramic:
This stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fill the screen, without
making the picture appear unnatural.
The top and bottom of the picture are slightly cut off.
Freeze Picture
You can freeze the picture on the screen by pressing
the “OK” button.
Note: This feature will be unavailable to be used
while watching YPbPr and HDMI sources.
Teletext
You can display Teletext information on your TV. Each
channel which broadcasts teletext, transmits a page
with information on how to use its teletext system
(usually page 100). Depending on the TV channel,
teletextistransmittedindifferentsystems.Thecolours
used in the options line correspond with the colour
buttons of your remote control.
• Ensure that the TV is receiving a good signal, or
some text errors may occur.
• When four coloured items appear at the bottom of
the text page,Fasttext is available.Fasttext allows
you to access pages quickly and easily.Press the
corresponding coloured button to access the page.
Special Teletext Functions
“ ” To Display a page of text.
The view text services press “ ”. To return normal
viewing press again.Programmes cannotbe changed
until text is cancelled.
• To select a page, press the number buttons or pro-
gram buttons(P+, P-).
• To select index page, press “ ” button.
•To select superimposed over the programme on the
screen, press “ ”.
•Press “ ”oncetoenlargetophalfofthepage,press
again to enlarge the bottom half of the page.Press
again to revert normal size.
• To discoversolutions on quizand games press “ ”
•At times it is convenient to hold a page of text.Press
“” to hold a page. The page will be held on
screen until the button pressed again.
• To select subcode pages press “ ”.Subcode
pages are subsections of long Teletext pages that
can only be displayed on the screen one section at
atime.
• Time information will be displayed on screen after
pressing “ ” button.If the programme does not
have teletext transmission, no information will be
displayed.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0511

- 12 -
• When ” ”buttonis pressed while inteletext mode,
the screen will be splitted into two windows, one
displaying the teletext and the other displaying the
current channel. Press the “ ” button or
“
TV
DTV
”button to exit from teletext.
• To exit text press “ ”.
Note: If the signal becomes insufficient, the teletext
mode will be quitted.
Fastext
YourTV supports the500pageTeletext system. When
the page number of any of the 500 pages in memory
is entered, the system will not search for the re-
quested page; instead it will display the page auto-
matically. If the requested page is not in memory, the
system will search for the requested page number
andsave the 500pages including the requested page
into memory after finding it.
• Press the

button to move the Teletext screen
forward one page at a time.
• Press the

button to move the Teletext screen
backward one page at a time.
For Fastext
The subject-heading for the information may have a
particular colour.
• Press an appropriate RED,GREEN,YELLOW or
BLUE button in order to reach the relevant page
quickly.
TOP text
TOPtextmodeofoperationwillbe activatedautomati-
cally according to the transmission.
• If TOP text transmission is present, colour coded
buttons will appear in status row.
• If TOP text transmission is not present, status row
will not appear.
Thesubject-headingforinformationmaybe locatedin
colored box.
In Top mode the “-P/CH” or “P/CH+” commands will
request the next or previous page respectively. If
TOP text transmission is not available, in case of op-
eration of these commands, wraparound occurs. For
example page 100 appears to be one greater than
page 199.
Connect Peripheral Equipment
High Definition
Your LCD Television is capable of displaying High
Definition pictures from devices such as a High Defi-
nitionSatelliteReceiverorDVDPlayer. Thesedevices
must be connected via the HDMI socket or Compo-
nent Socket. These sockets can accept either 720p
or 1080i signals.
Note: When it is desired to watch HDMI source with a
DVI to HDMI cable; in order to enable audio, Audio
Input (which is located at the left side of the antenna
input) is to be used to get DVI device’s audio signals.
Via The Scart
The TV has 2 Scart sockets. If you want to connect
peripherals (e.g. video, decoder, etc.) which have
Scart sockets to the TV, you can use SCART socket
of the TV.
Note: If an external device is connected via the Scart
sockets, the TV will automatically switch to AV mode.
If both sockets are employed at the sime time, SCART
1 becomes the preferential.
Via Aerial Input
If the device you want to connect does not have a
Scart socket, you should connect it to theAerial input
of the TV.
If the VCR is connected via Aerial input, it is
suggested to use Programme 0.
Decoder
If you are subscribed to cable TV offers, the
organisation will supply you acorresponding decoder
unit to allow the programmes to be unscrambled.
For further information consult your dealer.
Connect a decoder with an aerial socket to
the TV
• Connect the aerial cable.
Connect a decoder without an aerial socket
to the TV
• Connect the decoder to the EXTERNAL socket of
TV with a RCA cable. Through the SCART/RCA
socket of the decoder, you may attain a better dis-
play resolution.
TV And Video Recorder
• Connect the aerial cables.
Better picture quality can be obtained if you also con-
nect a Scart cable to SCART sockets.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0512

- 13 -
Playback NTSC
• Connect NTSC VCR player to a Scart socket of the
TV.
Then, press the “AV” button to select EXT1 or EXT2.
Copy Facility
Source selection for VCR recording.
• Select Feature menu.
• Select SCART 2 Out by pressing

/

button.
• For copying the picture that comes from the tuner,
select SCART 1.
Camera And Camcorder
To Connect To AV Input
Connect your camera or camcorder toAV input of the
TV.
• Connect your equipment to the TV via VIDEO (yel-
low), AUDIO R (red) and AUDIO L (white) inputs.
You must connect the jacks into the input with the
same colour.
To Connect To S-VHS Input
Connect your camera or camcorder S-VHS input of
the TV.
• Connect your equipment to the TV via S-VHS input
and audio inputs of AV inputs by using S-VHS
cables.
Connect The Decoder To The Video
Recorder
Some video recorders have a special Scart socket
for decoder.
• Connect a Scart cable to the Scart socket of your
decoder and to the special Scart socket of your
video recorder. Refer to the booklet of your video
recorder.
Connecting Headphones (optional)
Use the stereo headphone socket of the TV, to con-
nect headphones.
Note: If you want to connect more equipment to your
TV, consult your dealer.)
Tips
Care Of The Screen
Clean the screen with a slightly damp, soft cloth. Do
not use abrasive solvents as they may damage the
TV screen coating layer.
Poor Picture
Have you selected the correct TV system? Is your TV
set or house aerial located too close to non-earthed
audio equipment or neon lights, etc.?
Mountains or high buildings can cause double pic-
tures or ghost images. Sometimes you can improve
the picture quality by changing the direction of the
aerial.
Is the picture or Teletext unrecognisable? Check if
you have entered the correct frequency.
The picture quality may degrade when two peripher-
als are connected to the TV at the same time. In such
a case, disconnect one of the peripherals.
No Picture
Is the aerial connected properly? Are the plugs con-
nected tightly to the aerial socket? Is the aerial cable
damaged? Are suitable plugs used to connect the
aerial? If you are in doubt, consult your dealer.
No Picture means that your TV is not receiving a
transmission. Have you selected the correct button
on the remote control?Try once more.
Sound
You can not hear any sound. Did you perhaps inter-
rupt the sound, pressing the button?
Sound is comingfrom only one of the speakers.Is the
balance set to one extreme? See Sound menu.
Remote Control
Your TV no longer responds to the remote control.
Perhaps the batteries are exhausted. If so you can
still use the local buttons at the bottom of the TV.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0513

Appendix B: Connect Peripheral Equipment
VHF/UHF
75 
Round 75 ohm coaxial cable
Rear of TV
Outdoor Aerial Connection
Appendix A: Aerial Connection
STB
CAUTION
The lightning flashwith arrowheadsymbol, within an equilateral triangle, is intendedto alert the userto
the presence of un-insulated “dangerous voltage” within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
Correct disposal of this Product (Waste Electrical & Electronic Equipment (WEEE)
The crossed out “Wheelie bin” is intended to show that this appliance must not be placed with ordinary
household waste at the end of its useful life. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please keep separate from other household waste and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where you purchased the product, or
their local government office for details of where and how you can take this item for
environmentally safe re-cycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product must not be mixed with other commercial wastes for
disposal
ANT.IN
AUDIO IN
(R)(L)
VIDEO IN
IN
OUT
IN
OUT
HEADPHONE
AUDIO
VIDEO
SATELLITE RECEIVER
ANTENNA
CAMCORDER
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0514

User Help Guide
Should you have problems with this Tv please consult the guide below before calling the Technical Help Line.
SYMPTOM POSSIBLE CAUSE REMEDY
No Picture. Buttons lit
Blue Tv in Standby. Press the Standby button on the Tv or the Remote Control
Aerial not connected. Connect a suitable aerial or cable
connection.
Tv not tuned in. See page 6 or 9 for tuning.
Picture noisy or ghosting Poor aerial signal.
Ensure the aerial and cable is in good
condition. If using an indoor aerial try an
external aerial. Note a Tv is only as good as
the signal it receives
Teletex breaking up or
freezing As above As above
HDMI screen will not
hold picture size. HDMI Signal source determines the picture size Select picture size from HDMI source.
Object blocking I/R signal to Tv Remove objects in I/R signal path.
Poor battery condition Replace batteries every 6 months.
TV not switched on.
DEAD No Power
Screen lit but no picture
(No Signal) on screen.
No Remote Control
functions
Incorrect input selected or
external source not turned on.
Press “Source” button to select required
signal source, and ensure external source is
turned on
Supply not connected to Tv. Ensure the Tv is connected to the mains and
is turned on.
Press the button at the Rear of the Tv
adjacent to the mains input plug.
If you are still having difficulty please call the Technical help line. Ring 01422 263313 (Normal rates apply).
Opening hours Mon-Fri 8 am - 8pm. Sat 9 am - 4pm. Sun 11am - 4pm "Bank holidays as Sun".
Care of the screen. Do not hit or bang the screen. It has over a million pixels which may be damaged by miss-
use. Occasionally one or two pixels may turn on or off fully. This is normal and is not a warranty issue.
To clean the screen, do NOT use solvents or petrol based fluids. Use a soft dry cloth. For stubborn sticky
stains use a damp soft cloth with a dilute detergent.
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0515

- 16 -

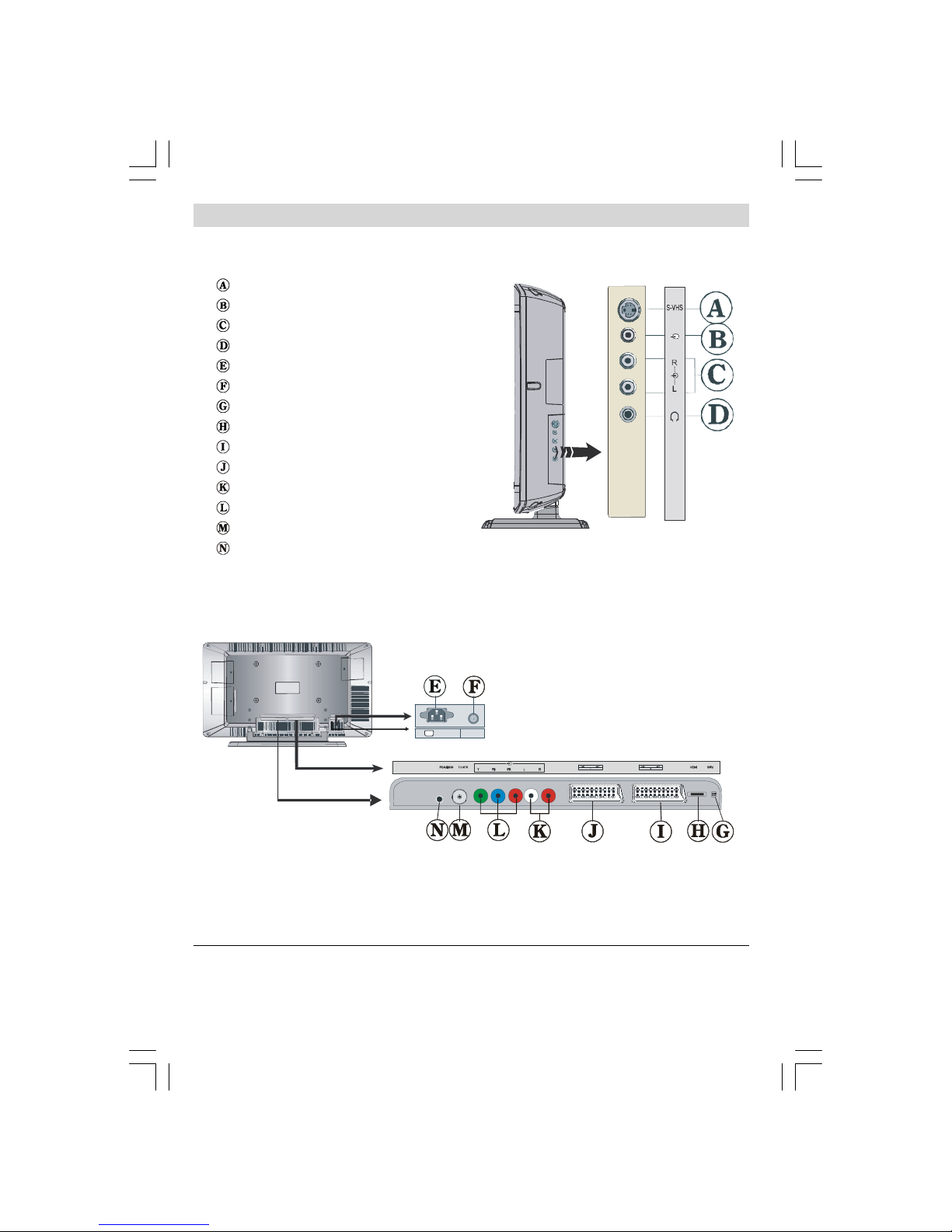

Peripheral Equipment Connections
Note: Because FAV CVBS and SVHS Y are connected parallelly, the picture may blend if the two peripherals are
used at the same time. Likewise, because SVHS C and SCART II R are connected parallelly, the picture may
blend if the two peripherals are used at the same time. Thus these two are not to be used at the same time.
220V-240V
AC~50 Hz
POWER
Entrée S-VHS
Entrée vidéo
Entrées Audio
Casque
Entrée du fil électrique
BoutonMARCHE/ARRÊT
Pour utilisation de service uniquement
EntréeHDMI
SCART2
SCART1
Entrées des éléments audio
Entrées des éléments vidéo (YpBpr)
RF
EntréeaudioPC
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0616

- 17 -
CAUTION
TOPREVENTELECTRICSHOCKDISCONNECTFROMTHEMAINSBEFOREREMOVINGCOVER.NO
USERSERVICEABLEPARTSINSIDE.REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.
SAFETY PRECAUTION
THISEQUIPMENTMUSTBEDISCONNECTEDFROMTHEMAINSWHENNOTINUSE.DONOTALLOW
THISUNITTOBEEXPOSEDTORAINORMOISTURE.
MAINS (AC) OPERATION
The wires in the mains lead are coloured in accordance with the following code :
IMPORTANT
For your safety, if the mains plug needs replacing, proceed as fallows:
Connect the Green/Yellow wire to the Centre Pin (EARTH).
Connect the Blue wire to the (N) terminal (this may be coloured blue).
Connect the Brown wire to the (L) terminal adjacent to the fuse (this may be coloured brown).
This appliance must have a 5A fuse fitted.
Important Instruction
For your own safety read following instruction carefully before attempting to connect this unit to the mains
supply.
BLUE
(Neutral)
BROWN
(Live)
FUSE
GREEN
&
YELLOW
(Earth)
(if there is
earth cable)
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0617

- 18 -
Specifications
TV BROADCASTING
PAL/SECAMB/GD/KK'I/I'L/L'
RECEIVING CHANNELS
VHF(BANDI/III)
UHF(BANDU)
HYPERBAND
CABLE TV (S1-S20/ S21-S41)
NUMBER OF PRESET CHANNELS
100
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
230-240V AC 50 Hz
AUDIO
German+NicamStereo
AUDIO OUTPUT POWER (WRMS.) (%10 THD)
2 x 8
POWER CONSUMPTION (W)
180 W
3 W (Stand-by)
PANEL
16:9 display, 32” Screen Size
DIMENSIONS (mm)
227
105 922 922 562 515 15,0 13,4
D L H
DIMENSIONS (mm)
Weight (kg)
With foot
Without foot
ENG-32720W-1063UK-32 INCH 17MB22-(WO PIP-WO PC)-50108619.P65 27.06.2007, 12:0618
