Trilogy® T2 standalone digital lock

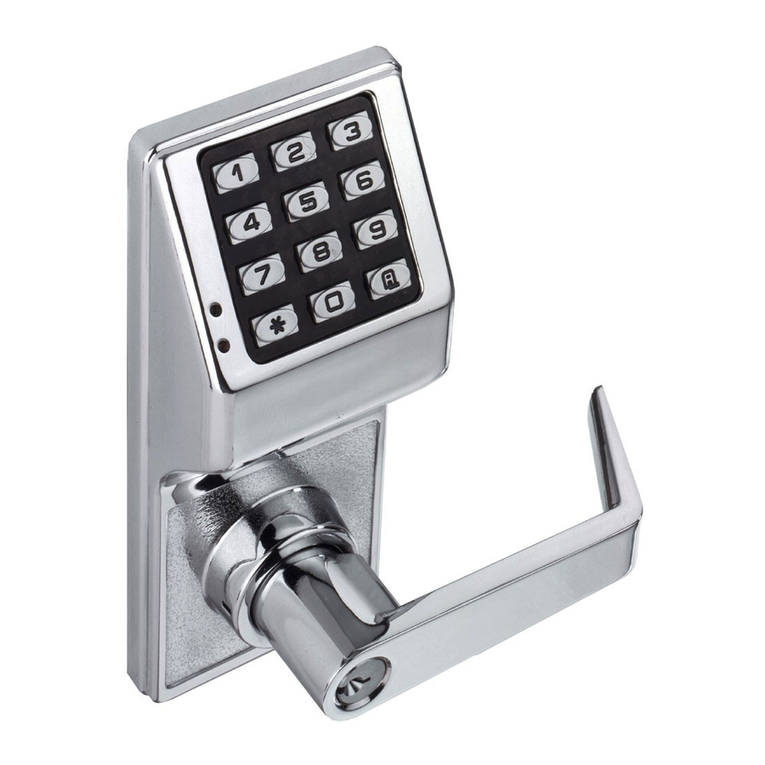

DL2700 Series – Our Most Popular Cylindrical Lock
• Grade 1 Durability – BHMA Grade 1 Lockset with
rugged clutch plus, vandal-proof all metal keypad.
• All IC Core models include a large format key in
knob cylinder, supporting Best, Falcon, Arrow and
KSP. Other interchangeable core preps available:
Yale, Medeco, Sargent, Corbin/Russwin, Schlage
• Multi-level user capability: Master, manager,
emergency, service codes
• Up to 15 different user codes (3-5 digits)
• Individual, group or total user lockout codes
• Non-handed for easy installation and versatility
• 2-wire remote override or key bypass capability
• Passage mode
• Visual and audible entry indicators
• “WP” weatherproof models -31°F to
+151°F (-35°C to +66°F)
• Retrofits knobsets using slightly
modified ANSI A115 Series
Prep
• Battery operated; uses 5 AA
batteries
Trilogy® economical
audit trail lock
DL2800 Cylindrical Lock
• Rugged clutch mechanism
ensures long life & durability
• 150 scheduled events
• 200 user codes: Master, manager,
supervisor and basic users. Also one-
time service code (3-6 digits)
• 1000 event log
• “WP” weatherproof -31° to +151°F (-35° to
+66°C)
• Timed entry allowance from 5-15 seconds
• Temporary Keypad Lockout after 3 unsuccessful
code-entry attempts
• Audit trail with time/date stamp for a printable
record of all electronic activity
• Real time clock; 150 event schedule
• Relay may be programmed to energize when one or
more selected events occur Battery operated; uses
5 AA batteries
Trilogy® T3 advanced digital lock with audit trail
DL3000 Series Audit Trail Cylindrical Lock
Similar features to DL2700 and DL2800 Series, but with:
• 300 user codes: Master, manager, supervisor &
basic users
• 4 programming levels, 4 user groups
• 3, 4, 5 or 6 digit codes, one-time service code
• 1600 event audit trail with time/date stamp for a
printable record of all electronic activity
• Real time clock
• 150 scheduled events (lock/unlock, code disable/
enable)
• 4 Quick schedules of the most common routines
• “WP” weatherproof models -31° to +151°F
Trilogy® privacy/residency
locks
DL4100 Cylindrical Special
Applications PIN Lock
PDL4100 PIN/Prox
Version
Similar to the DL3000, but
with
• 2000 user codes; 500
scheduled events; 40,000
audit trail
< plus >
• Programmable Privacy
feature: Push button
on back of door to
temporarily lock-out
keypad codes
• Occupied and multi-status
LED indicator, flashes when Privacy
session is active.
• Programmable Residency
feature allows users to close
door remaining unlocked (until
manually relocked with prox
device).
Ideal anywhere key-free,
temporary privacy is
required:
• Single-occupancy restrooms
• Dressing rooms
• Hospital on-call/sleeping rooms
• Darkrooms
• Executive offices
• Confidential file rooms
Mortise and Prox Mortise models
of above also available, DL4500 &
PDL4500.
Trilogy prox lock with audit trail
PDL3000 PIN/Prox Cylindrical
• Accepts HID prox cards and keyfobs
• 2000 user codes: Master; manager;
supervisor; basic users (3-6 digits)
• Users are individually programmed
to use a card only, code only, or both
card and code
• Cards can be added via
the lock, card enroller
(AL-PRE) or PC software
• Batch enroll feature allows many cards
to be quickly added withoutPC
• 500 event scheduling
• Program data transferred to lock
via AL-PCI (PC interface) or AL-
DTM2 (data transfer module)
• Up to 40,000 event audit trail
with printed time/date stamped
log of all electronic activity can be extracted from
lock using the AL-IR1 (infrared printer), the AL-DTM2
or AL-PCI
• Quick Passage mode enabled with an authorized
user code and function code (does not require lock
to be in program mode)
Trilogy PL3000 Prox (keypad-less) version of above,
for superior vandal resistance.
Weatherproof 12V/24V digital access keypads
Trilogy DK3000
• Ideal for use with 12V or 24V (AC
or DC) electric door strikes, mag
lock PM1200, PM600 or Alarm Lock
Remote Release Mag Lock Kit.
• Easiest installation in minutes: Wall
mount or single gang box
• Timed egress input allows door to
open for 5, 10 or 15 seconds
• 2 High-current rated 8A relays for entry, alarm zone
shunting or lock release by real-time schedule
• Weatherproof, rugged all-metal 12-button keypad
• 2,000 users, master, manager, supervisor and basic
• 100% Fingertip or PC Programmable with familiar
Trilogy software
• 40,000 Event Audit Trail: Query by PC or Handheld
Printer or DTM2 Module
Digital access keypad with prox reader
Trilogy PDK3000
• Same features as DK3000 above, plus
built-in proximity reader
• Accepts HID cards and keyfobs as well
as digital PIN codes
Trilogy mortise locks all the features
of the T3 DL3000 in a high security
mortise lock
DL3500 Series Mortise PIN Lock
Similar in functionality to T3 DL3000 Series,
plus:
• 300 User codes: Master, manager,
supervisor & basic users
• Weatherproof -31°F to +151°F (-35°C to
+66°C)
• Fingertip or Windows PC-programmable
• Up to 500 scheduled
events and holiday
schedules
• 40,000 event audit trail
• Classroom or deadbolt versions and left or
right handing (field reversible.)
• 11/4” – 11/2” (3.5 cm) mortise cylinder supplied
Trilogy prox mortise lock (not shown)
PDL3500 Series
• As above, but with prox capabilities and 2000 users
TrilogyExit adds audit trail to panic exit bars
Trilogy Exit ETPDL (with prox)
• Eliminates physically “dogging-down” exits by
automatically locking/unlocking them on daily/weekly
schedule
• Fingertip and/or Windows programmable
• 2000 user codes: Master, manager, supervisor and users
• 40,000 audit trail events
• Up to 500 lock/unlock schedules (with time zone support)
• Non-handed; field reversible
• Supports most manufacturers of RIM and RIM IC
cylinders
• Battery operated; uses 5 AA batteries
Also available in keypad PIN model
- ETDL
Windows-based
Trilogy software
DL-WINDOWS
OUTSIDE: Rugged, field-proven
Trilogy PIN/prox lock. (rim cyl.)
INSIDE: Existing panic exit device –
Most major brands supported
PC Programming
port/audit trail
access
Prox/mortise -
Privacy Lock
PDL4500
Curved Regal
handle option
on all Trilogys. Side view

MODEL: DL2700 DL2800 DL3000 DL4100 DL3500 DL4500 ETDL DK3000
Lock Type Cylindrical Cylindrical Cylindrical Cylindrical Mortise Mortise For Panic
Devices
Keypad
Prox Reader
model PDL3000 PDL4100 PDL3500 PDL4500 ETPDL
PDK3000
Users 17 200
DL3000
300;
PDL3000
2000
2000
DL3500
300;
PDL3500
2000
2000 2000 2000
Audit Trails n/a 1000 1600;
40000 40000 40000 40000 40000
40000
Schedules n/a 150 150; 500 500 500 500 500
500
Privacy Yes Yes
Classroom/
Deadbolt CR or DB DB
Weather-
proof
-31 to 151F
WP
version Standard WP version Standard Standard Standard
Standard Standard
Handing Non Non Non Non Field
Reversible
Field
Reversible Non
n/a
Std. Door
Thickness
1-5/8 to
1-7/8”
1-5/8 to
1-7/8”
1-5/8 to
1-7/8”
1-5/8 to
1-7/8”
1-5/8 to
1-7/8”
1-5/8 to
1-7/8”
1-5/8 to
1-7/8”
n/a
Std. Backset 2-3/4” 2-3/4” 2-3/4” 2-3/4” 2-3/4” 2-3/4” n/a
n/a
Cylinder or
IC Prep
key/knob
or 9 ICs
key/knob
or 9 ICs
key/knob
or 9 ICs
key/knob
or 9 ICs
mortise,
incdd
mortise,
incdd
rim cyl.,
incdd
n/a
Finishes
(US)
26, 26D,
3, 5,
10B
26, 26D,
3, 5,
10B
26, 26D,
3, 5,
10B
26, 26D,
3, 5,
10B
26, 26D, 3,
5, 10B
26, 26D, 3,
5, 10B
26, 26D,
3, 5,
10B
26/D, 3,
5, 10B,
MS, MB
345 Bayview Avenue • Amityville, NY • 11701 • USA
1-800-ALA-LOCK • 631-789-4871 • Fax: [phone]
www.alarmlock.com • NASDAQ: NSSC
Trilogy® is a registered trademark of Alarm Lock. © NAPCO, 6/05 WI1419

• Field-proven Trilogy® electronic standalone pushbutton
locks available in cylindrical, mortise, exit trim or narrow
stile (aluminum doors), in five architectural finishes.
• Easily add dependable wireless access control a door at
a time, in an hour, with Grade 1 durability.
• Weatherproof, fingertip or PC programmable. Battery
operated, choice of key override.
• Support up to 2000 PIN codes or use standard HID Prox
ID cards/fobs.
• Multi-level user hierarchy including one-time service
codes, group- or total lock-out codes and easy passage
mode.
• Time-/date-stamped reports of door usage by user,
printable at PC or wireless handheld printer.
• Automatic lock/unlock schedules 24-7, saves manpower
costs.
• HIPAA-compliant access control for securing private
health records, generating audit trail reports.
The leader
in electronic
pushbutton locks

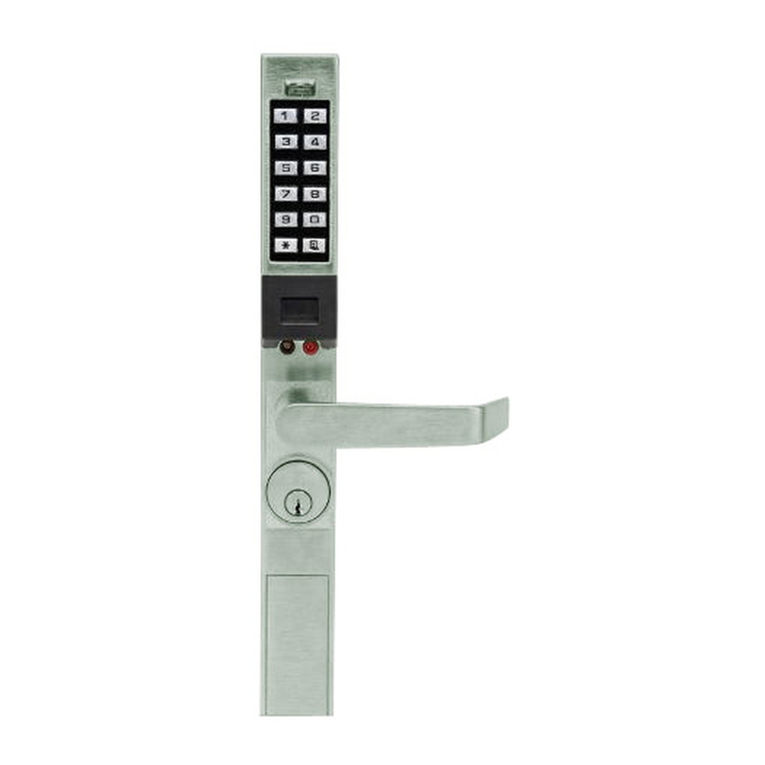

New! Narrow Stile Trilogy® Access Locks
