Schlage L460 User manual

L-Series
Service manual

Contents
5 Introduction
6 Dot charts
6 Changes and additions
7 Lock assembly drawing index
19 Trim assemblies
20 Single dummy trim
21 Double dummy trim
22 L400-Series deadbolt trim
23 Passage latch trim
24 Exit trim
25 Emergency button x turn trim
26 Privacy x turns both sides trim
27 Coin turn outside x turn trim
28 Cylinder x turn trim
29 Double cylinder trim
30 Cylinder outside trim
31 Electrically locked/unlocked both sides trim
32 Active double dummy trim
33 Single dummy with case trim
34 Double dummy with case trim
35 Deadbolt trim
36 Deadbolt with fixed double dummy trim
37 Fixed outside x turn trim
38 Institution deadbolt trim
39 Prison lock trim
40 Hotel with indicator trim
41 L9000 Trim assemblies chart
53 L400 Trim assemblies chart
54 Lock case assemblies
55 L460, L462, L463, L464, L480, L496
56 L9010
57 LM9310, LM9325
58 L9040, L9040 x XL11-446, L9044
59 LV9040, LV9040 x XL11-446, LV9044
60 L9050, L9060, L9070, L9071
61 LV9050, LV9060, LV9070, LV9071
62 LM9350, LM9370, LM9371
63 LMV9350, LMV9370, LMV9371
64 L9056
65 LV9056
66 L9076, L9077
67 LV9076, LV9077
68 L9080
69 LV9080
70 LM9380
71 LMV9380
72 L9080EL, L9080EL-RX
73 LV9080EL
74 L9080EU, L9080EU-RX
75 LV9080EU
76 L9082
77 LV9082
78 L9082EL
79 L9082EU
80 L9110 x XL11-741
81 L9175
82 L9176
83 L9440, L9444
84 LV9440, LV9444
85 L9453
86 LV9453
87 L9456, L9457, L9496
88 LV9456, LV9457, LV9496
89 L9458
90 LV9458
91 L9460, L9462, L9463, L9464
92 L9460 x XL11-635
93 L9460 x XL11-886, L9462 x XL11-886, L9464 x XL11-
886
94 L9465, L9466, L9473
95 L9480, L9485, L9486, L9486 x L583-375
96 LV9480, LV9485, LV9486, LV9486 x L583-375
97 L9482 x XL11-543
98 LV9482 x XL11-543
99 L9485 x XL11-557
100 Lock case assembly compatibility
101 Assembly of lock case parts
103 Trim options
103 Cast or forged levers, standard lever designs
104 Decorative trim
104 Decorative levers
104 Decorative roses
105 M collection levers
105 Danmark stainless steel levers
106 Wrought knob designs
106 Rose trim A or B
107 L escutcheon trim
108 N escutcheon trim
109 Additional trim options
111 Trim assembly parts

iv • Schlage • L-Series service manual
113 Armor fronts
114 Strikes
115 Cylinders
115 How to measure cylinder lengths
115 L-Series, LV-Series cylinder and length requirements
116 Full face cylinders
118 Concealed cylinders
120 Full size interchangeable core cylinders
123 Small format interchangeable core cylinders
125 Blocking and compression rings
126 Special trim options
127 Installation tools and kits
129 Electrically locking
130 Request to exit (RX) feature
130 Latch monitoring
131 Multipoint lock, LM9300 Series
132 Lubrication specifications
133 Door handing
133 Changing the lock hand
133 Changing cylinder turn hand
134 Ordering procedures
135 Finishes
135 Limited warranty

Introduction
Schlage • L-Series service manual • 5
Introduction
This manual contains a complete listing of parts and assemblies for L-Series mortise locks manufactured by Schlage Lock
Company. This edition lists components of L-Series locks manufactured aer June, 2001. All lock case covers are labeled
with the date of manufacture. Example: 8/15/13 = August 15, 2013.
Exploded views of each lock function and trim assembly are provided with accompanying charts to identify parts for
replacement purposes. Exploded views of trim are shown with parts for standard size doors. In addition, this manual
provides lock trim ordering procedures, cylinder length charts by door range, and all auxiliary components of the
L9000/LV9000, LM9300/LMV9300 and L400-Series mortise locks.
Standard features
Certifications L/LV9000: ANSI A156.13, 1994, Series 1000, Grade 1 Operational, Grade 1 Security, UL Listed for 3 hour fire door (except L9076
and L9077). With Interchangeable Core Cylinders: Grade 2 Security L400: ANSI A156.5, 2001, Grade 1, UL Listed for 3 hour fire
door.
Case size L/LV9000 and LM9300/LMV9300: 4M\zn" x 6Z\zn" x 1"; L400: 4M\zn" x 3B\," x 1"
Armor front L/LV9000 and LM9300/LMV9300: 1Z\v" x 8"; L400: 1Z\v" x 5Z>\cx"
Deadbolt 1" Throw stainless steel
Latchbolt C\v" Throw stainless steel with anti-friction tongue
Strike L/LV9000: 1Z\v" x 4M\,", Square corner, 1C\zn" lip, box; L400: 1Z\," x 3B\,", Square corner, box
Backset 2C\v"
Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)*
Door range 1C\v" and up
Keys Two nickel silver cut keys per lock, 6-pin, S123 section*
Items specified in C keyway will be furnished with cylinders keyed 5-pin and with 5-pin keys unless otherwise specified.
NOTE: Locks are furnished with standard features unless otherwise specified.
Strike
1¹⁄₄" (32)
or
1¹⁄₁₆"
(27)
1¹⁄₄"
(32)1³⁄₁₆"
(30)
⁵⁄₈"
(16)
³⁄₈"
(10)
³⁄₈"
(10)
⁵⁄₈"
(16)
³⁄₈"
(10)
⁵⁄₃₂"
(4)
3"
(76) 2⁹⁄₆₄"
(54)
1²³⁄₃₂"
(44)
Cylinder
cut-out
Height
Line
2²³⁄₃₂
"
(69)
¹⁵⁄₁₆"
(24) 1¹⁄₈"
(29)
⁷⁄₃₂"
(6)
1" (25)
Bevel ¹⁄₈" in 2" (3 in 51)
2³⁄₄" (70)
Backset
4⁷⁄₁₆" (113)
⁵⁄₈"
(16) ³⁄₄"
(19)
³⁄₄"
(19)
⁵⁄₈"
(16) Lock
Front
C
L
¹⁷⁄₃₂"
(14)
Mounting
Holes
Knob or Lever
Cut-out
Turn Piece
and
Occupancy
Indicator
3⁵⁵⁄₆₄"
(98)
3"
(76)
4"
(102)
4⁷⁄₈"
(124)
⁷⁄₈"
(22)
⁷⁄₈"
(22)
C
L
³⁄₈"
(10) C
L
4"
(102)
C
L
C
L
3³⁄₈"
(86)
(Standard)
(Optional)

6 • Schlage • L-Series service manual
Changes and additions
Dot charts
• = (1) Part 2 = (2) Parts
Example:
P/N Description
L9110/XL11-741 L9175 L9176 L9177 (disc) L9178 (disc) L9410 (disc) L9440 LV9440 L9444* LV9444* L9453 LV9453 L9456 LV9456 L9457 LV94 57 L9458 LV9458 L9460 L9460/XL11-635 L9460/XL11-886 L9462 L9462/XL11-886 L9463 L9464 L9464/XL11-886 L9465 L9466 L9473 L9480 LV9480 L9482/XL11-543 LV9482/XL11-543 L9485 LV9485 L9485/XL11-557** LV9485/XL11-557 L9486***z LV9486***z L9496 LV9496
30-001 Classic
Mortise
Cylinder
• • • • • 2 2 2 2 • • • 2 2 • • • • 2 • • • 2 2 • • • •
All parts shown in dot charts are standard. Additional options may be available. See current Schlage Commercial Price
Book for available options, pricing and ordering procedures.
Changes and additions
Additions
L-Series trim options
The M Collection decorative lever options are now available with L-Series locks.
M Collection decorative levers:
• Are designed to maintain a custom and consistent look on doors throughout any building, and may be
used across multiple platforms from Schlage and Von Duprin.
• Includes fieen lever designs, with ten designs available in January 2014 and five available in April
2014.
• Are available in either forged brass or cast stainless steel, with A or B rose, or L or N escutcheon.
Refer to "M collection levers" on page 105 for more information.

Lock assembly drawing index
Schlage • L-Series service manual • 7
Lock assembly drawing index
The Lock Assembly Drawing Index provides representations and descriptions of available functions. Page numbers for full
trim and chassis drawings are referenced.
Outside Inside
Eme
rgency Turn
Latchbolt
Co
in Turn
Deadbolt
Thumbturn
C
ylinder Auxiliary
Latch
Electrified
Cylinder
Cylinder T
urn
Occupancy
Indicator
Two-piece Spindle
Solid Spindle
One-piece Outside Spindle
DO NOT DISTURB
RX

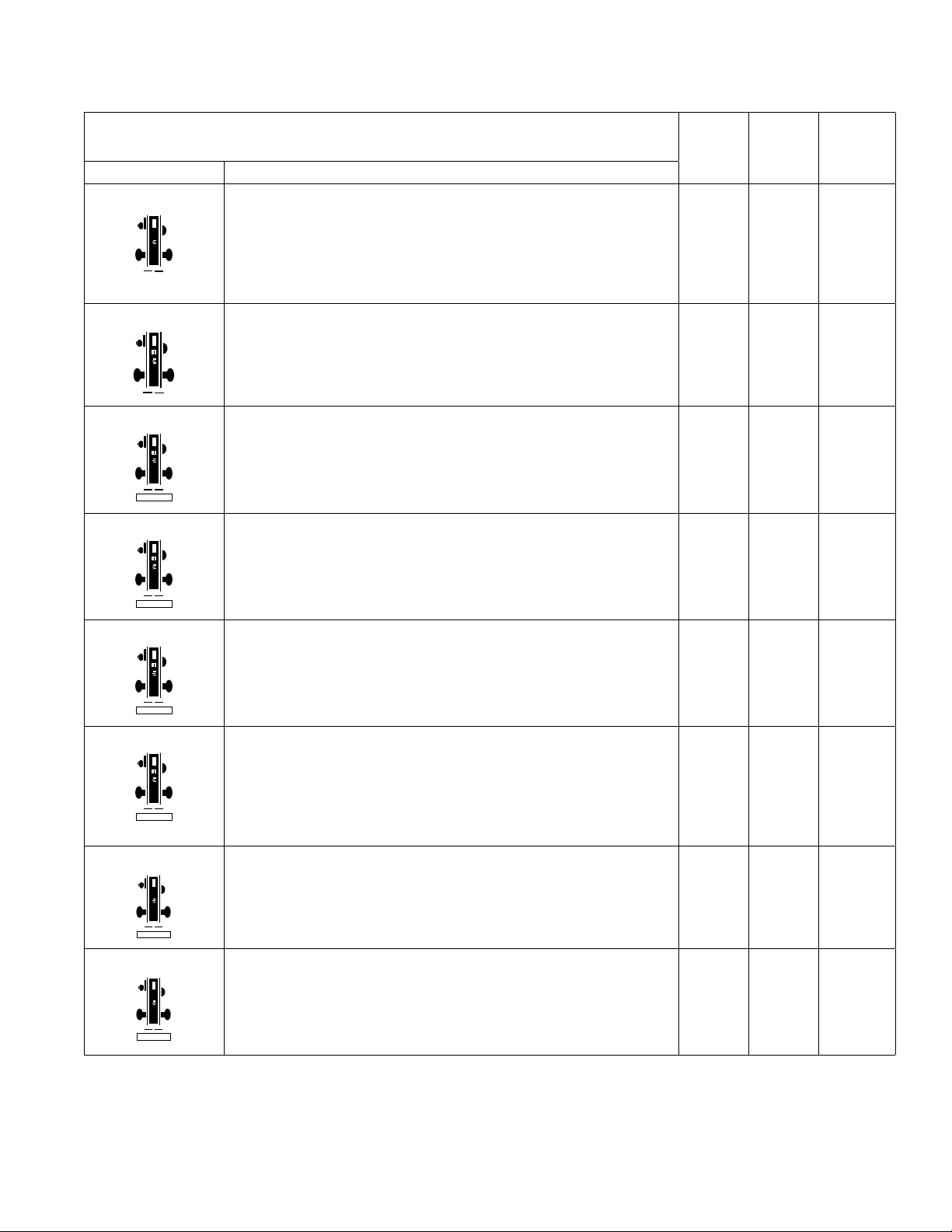

L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L0170 Single dummy trim
Knob/lever on one side is fixed by mounting bar.
20 – –
L0172 Double dummy trim
Knob/lever on both sides is fixed by mounting bar.
21 – –
L9010 F01 Passage latch z
Latchbolt is always retracted by knob/lever from either side.
23 56 L283-131
L9040 F22 Bath/bedroom privacy lock
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn. Turning inside knob/lever or closing door unlocks outside
knob/lever. To unlock from outside, remove emergency button, insert emergency
turn in access hole and rotate.
25 58 L283-132
LV9040 Bath/bedroom privacy lock with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn. Turning inside knob/lever or closing door unlocks outside
knob/lever. To unlock from outside, remove emergency button, insert emergency
turn in access hole and rotate. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked.
25 59 L283-171
Not sold separately as a part.
zAvailable with Request to Exit feature.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.

8 • Schlage • L-Series service manual
Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9040 x XL11-446 Privacy with turns both sides
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside or outside thumbturn. Turning inside knob/lever or closing door unlocks
outside knob/lever. Specify per XL11-446.
25 58 L283-132
LV9040 x XL11-446 Privacy with turns both sides with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside or outside thumbturn. Turning inside knob/lever or closing door unlocks
outside knob/lever. Vandlgard function allows exterior lever to rotate freely down
while remaining securely locked. Specify per XL11-446.
25 59 L283-171
L9044 Privacy with coin turn outside
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn or outside coin turn. Operating inside knob/lever, closing door,
rotating inside thumbturn or outside coin turn unlocks outside knob/lever.
Available in rose trim only. Specify per L283-056 for Torx®screws. (Previously
XL11-868).
27 58 L283-132
LV9044 Privacy with coin turn outside with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
inside thumbturn. Operating inside knob/lever, closing door, rotating inside
thumbturn or outside coin turn unlocks outside knob/lever. Available with rose trim
only. Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked. Specify per L283-056 for Torx� screws.
27 59 L283-171
L9110 x XL11-741 Double dummy with active trim
Knob/lever is always active on both sides. Includes lock case and armor front.
Specify XL11-741 for use on active door, or specify XL11-743 for use on inactive door
(furnished with armor front with cutout to receive deadbolt).
32 – –
L9175 Single dummy with lock case
Inoperable knob/lever on one side. Includes lock case and armor front.
33 81 L283-144
L9176 Double dummy with lock case
Inoperable knob/lever on both sides. Includes lock case and armor front.
34 82 L283-145
L9440 F19 Privacy with deadbolt
Latchbolt is retracted by knob/lever from either side. Deadbolt is thrown or
retracted by inside thumbturn. Throwing deadbolt locks outside knob/lever.
Rotating inside knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. To unlock from outside, remove emergency button,
insert thumbturn in access hole and rotate. (Previously XL11-761).
25 83 L283-062
LV9440 Privacy with deadbolt with Vandlgard�
Latchbolt retracted by knob/lever from either side.Deadbolt is thrown or
retracted by inside thumbturn. Throwing deadbolt locks outside knob/lever.
Rotating inside knob/lever simultaneously retracts deadbolt and latchbolt and
unlocks outside knob/lever. To unlock from outside, remove emergency button,
insert thumbturn in access hole and rotate. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
25 84 L283-181
Not sold separately as a part.
zAvailable with Request to Exit feature.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.

Lock assembly drawing index
Schlage • L-Series service manual • 9
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9444 Privacy with deadbolt and coin turn
Latchbolt is retracted by knob/lever from either side. Deadbolt is thrown or
retracted by inside thumbturn or outside coin turn. Throwing deadbolt locks
outside knob/lever. Rotating inside knob/lever simultaneously retracts deadbolt
and latchbolt and unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose trim only. Specify
per L283-056 for Torx®screws. (Previously XL11-868).
27 83 L283-062
LV9444 Privacy with deadbolt and coin turn with Vandlgard�
Latchbolt is retracted by knob/lever from either side. Deadbolt is thrown or
retracted by inside thumbturn or outside coin turn. Throwing deadbolt locks
outside knob/lever. Rotating inside knob/lever simultaneously retracts deadbolt
and latchbolt and unlocks outside knob/lever. Rotating outside coin turn retracts
deadbolt and unlocks outside knob/lever. Available with rose trim only.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked. Specify per L283-056 for Torx� screws.
27 84 L283-181
Not sold separately as a part.
zAvailable with Request to Exit feature.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9050 F04 Oce and inner entry lock z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. When outside is locked, latchbolt
is retracted by key outside or by knob/lever inside. Outside knob/lever remains
locked until thumbturn is returned to vertical position or unlocked by key.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit.
28 60 L283-133
LV9050 Oce and inner entry lock with Vandlgard�z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. When outside is locked, latchbolt
is retracted by key outside or by knob/lever inside. Outside knob/lever remains
locked until thumbturn is returned to vertical position or unlocked by key.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked.
28 61 L283-170
L9056 L9050 with automatic unlocking z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. Outside knob/lever is unlocked by
key outside or thumbturn. Rotating inside knob/lever simultaneously retracts
latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob/lever is always free for immediate exit.
(Previously XL11-776).
28 64 L283-126
LV9056 LV9050 with automatic unlocking with Vandlgard®z
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. Outside knob/lever is unlocked by
key outside or thumbturn. Rotating inside knob/lever simultaneously retracts
latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt
when door is closed. Inside knob/lever is always free for immediate exit.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked.
28 65 L283-180
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

10 • Schlage • L-Series service manual
Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9060 F09 Apartment entrance lock* z
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key from inside. When locked, latchbolt is retracted by key outside or knob/lever
inside. Auxiliary latch deadlocks when door is closed. Inside knob/lever is always
free for immediate exit.
29 60 L283-133
LV9060 Apartment entrance lock* with Vandlgard�z
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key from inside. When locked, latchbolt is retracted by key outside or knob/lever
inside. Auxiliary latch deadlocks when door is closed. Inside knob/lever is always
free for immediate exit. Vandlgard function allows exterior lever to rotate freely
down while remaining securely locked.
29 61 L283-170
L9070 F05 Classroom lock z
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key. Outside is unlocked by key. Inside knob/lever is always free for immediate
exit. Auxiliary latch deadlocks latchbolt when door is closed.
30 60 L283-133
LV9070 Classroom lock with Vandlgard®z
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key. Outside is unlocked by key. Inside knob/lever is always free for immediate
exit. Auxiliary latch deadlocks latchbolt when door is closed. Vandlgard function
allows exterior lever to rotate freely down while remaining securely locked.
30 61 L283-170
L9071 Classroom Security Lock* z
Latchbolt is retracted by knob/lever from either side unless locked by key from
either side. When locked, latchbolt is retracted by key outside or knob/lever
inside. Inside knob/lever is always free for immediate exit. Auxiliary latch
deadlocks latchbolt when door is closed.
29 60 L283-133
LV9071 Classroom security lock* with Vandlgard�z
Latchbolt is retracted by knob/lever from either side unless locked by key from
either side. When locked, latchbolt is retracted by key outside or knob/lever
inside. Inside knob/lever is always free for immediate exit. Auxiliary latch
deadlocks latchbolt when door is closed. Vandlgard function allows exterior lever
to rotate freely down while remaining securely locked.
29 61 L283-170
L9076 F06 Classroom holdback lock† z
Latchbolt is retracted by knob/lever from either side unless locked by key outside.
When locked, latchbolt is retracted by key outside or knob/lever inside. Inside
knob/lever is always free for immediate exit. Auxiliary latch deadlocks latchbolt
when door is closed. Turn/depress inside knob/lever and turn key 360° for
holdback feature.
30 66 L283-039
LV9076 Classroom holdback lock† with Vandlgard�z
Latchbolt is retracted by knob/lever from either side unless locked by key outside.
When locked, latchbolt is retracted by key outside or knob/lever inside. Inside
lever is always free for immediate exit. Auxiliary latch deadlocks latchbolt when
door is closed. Turn/depress inside knob/lever and turn key 360° for holdback
feature. Vandlgard function allows exterior lever to rotate freely down while
remaining securely locked.
30 67 L283-172
L9077 Classroom security holdback lock† z
Latchbolt is retracted by knob/lever from either side unless locked by key from
either side. When locked, latchbolt is retracted by key outside or knob/lever
inside. Auxiliary latch deadlocks latchbolt when door is closed. Turn/depress
inside knob/lever and turn key 360° for holdback feature.
29 66 L283-039
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

Lock assembly drawing index
Schlage • L-Series service manual • 11
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
LV9077 Classroom security holdback lock† with Vandlgard®z
Latchbolt is retracted by knob/lever from either side unless locked by key from
either side. When locked, latchbolt is retracted by key outside or knob/lever
inside. Auxiliary latch deadlocks latchbolt when door is closed. Turn/depress
inside knob/lever and turn key 360° for holdback feature. Vandlgard function
allows exterior lever to rotate freely down while remaining securely locked.
29 67 L283-172
L9080 F07 Storeroom lock z
Latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
Inside knob/lever is always free for immediate exit.
30 68 L283-134
LV9080 Storeroom Lock with Vandlgard®z
Latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
Inside knob/lever is always free for immediate exit. Vandlgard function allows
exterior lever to rotate freely down while remaining securely locked.
30 69 L283-173
L9080EL Electrically locked (fail safe) z
Outside knob/lever is continuously locked. Latchbolt is retracted by key outside
or by knob/lever inside. Switch or power failure allows outside knob/lever to
retract latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside
knob/lever is always free for immediate exit.
30 72 L283-142
LV9080EL Electrically locked (fail safe) with Vandlgard®z
Outside knob/lever is continuously locked. Latchbolt is retracted by key outside
or by knob/lever inside. Switch or power failure allows outside knob/lever to
retract latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside
knob/lever is always free for immediate exit. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked.
30 73 L283-174
L9080EU Electrically unlocked (fail secure) z
Outside knob/lever is continuously unlocked. Latchbolt is retracted by key
outside or by knob/lever inside. Inside knob/lever is always free for immediate
exit. Auxiliary latch deadlocks latchbolt when door is closed.
30 74 L283-143
LV9080EU Electrically unlocked (fail secure) with Vandlgard�z
Outside knob/lever is continuously unlocked. Latchbolt is retracted by key
outside or by knob/lever inside. Inside knob/lever is always free for immediate
exit. Auxiliary latch deadlocks latchbolt when door is closed. Vandlgard function
allows exterior lever to rotate freely down, while remaining securely locked.
30 74 L283-175
L9080EL-RX Request to exit electrically locked (fail safe)
Same as L9080EL function. In addition, a microswitch
positioned inside the lock case is activated when either inside or outside knob/
lever is rotated. The switch signals the use of that opening to security systems,
allowing a non-disruptive means of immediate exit. Specify L283-263.
(Previously XL11-807)
30 72 L283-142
per
L283-263
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

12 • Schlage • L-Series service manual
Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9080EU-RX Request to exit electrically unlocked (fail secure)
Same as L9080EU function. In addition, a microswitch positioned inside the lock
case is activated when either inside or outside knob/lever is rotated. The switch
signals the use of that opening to security systems, allowing a non-disruptive
means of immediate exit. Specify L283-263. (Previously XL11-807).
30 74 L283-143
per
L283-263
L9082 F30 Institution lock*
Latchbolt is retracted by key on either side. Knob/lever on both sides is always
inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
29 76 L283-146
LV9082 Institution lock* with Vandlgard�
Latchbolt is retracted by key on either side. Inside and outside knob/lever are
always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked.
29 77 L283-182
L9082EL Electrically locked (fail safe) both sides* z
Outside and inside knob/lever are continuously locked. Latchbolt is retracted by
key on either side. Switch or power failure allows inside and outside knob/lever to
retract latchbolt. Auxiliary latch deadlocks latchbolt when door is closed.
(Previously XL11-452).
31 78 L283-085
L9082EU Electrically unlocked (fail secure) both sides* z
Outside and inside knob/lever are continuously unlocked. Latchbolt is retracted
by key on either side. Switch or power failure prevents retraction of latchbolt by
inside and outside knob/lever. (Previously XL11-452).
31 74 L283-086
L9453 F20 Entrance lock z
Latchbolt is retracted by knob/lever from either side unless outside is locked by
20° rotation of thumbturn. Deadbolt is thrown or retracted by 90° rotation of
thumbturn. When locked, key outside or knob/lever inside retracts deadbolt and
latchbolt simultaneously. Outside knob/lever remains locked until thumbturn is
returned to vertical position. Throwing deadbolt automatically locks outside
knob/lever. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/
lever is always free for immediate exit.
28 85 L283-137
LV9453 F20 Entrance lock with Vandlgard�z
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key outside or 20º rotation of thumbturn. Deadbolt is thrown or retracted by 90º
rotation of thumbturn. When locked, key outside or knob/lever inside retracts
deadbolt and latchbolt simultaneously. Outside knob/lever remains locked until
thumbturn is returned to vertical position. Throwing deadbolt automatically locks
outside knob/lever. Auxiliary latch deadlocks latchbolt when door is closed.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked.
28 86 L283-176
L9456 F13 Corridor lock z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
outside or inside thumbturn. Throwing deadbolt locks outside knob/lever. Turning
inside knob/lever simultaneously retracts deadbolt and latchbolt and unlocks
outside knob/lever. Inside knob/lever is always free for immediate exit.
28 87 L283-138
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

Lock assembly drawing index
Schlage • L-Series service manual • 13
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
LV9456 Corridor lock wtih Vandlgard®z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
outside or inside thumbturn. Throwing deadbolt locks outside knob/lever. Turning
inside knob/lever simultaneously retracts deadbolt and latchbolt and unlocks
outside knob/lever. Inside knob/lever is always free for immediate exit.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked.
28 88 L283-177
L9457 F33 Classroom security lock* z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
from either side. Throwing deadbolt locks outside knob/lever. Turning inside
knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside
knob/lever. Inside knob/lever is always free for immediate exit.
29 87 L283-138
LV94 57 Classroom security lock* with Vandlgard�z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
from either side. Throwing deadbolt locks outside knob/lever. Turning inside
knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside
knob/lever. Inside knob/lever is always free for immediate exit. Vandlgard
function allows exterior lever to rotate freely down while remaining securely
locked.
29 88 L283-177
L9458 F34 Classroom security lock* with auxiliary latchz
Latchbolt is operated by knob/lever from either side except when outside is
locked by key from inside or outside. Deadbolt is retracted by key from inside or
outside. Operating inside knob/lever retracts both bolts and unlocks the outside.
Auxiliary latch deadlocks the latchbolt when deadbolt is thrown. Inside lever is
always free for immediate egress.
29 89 L283-310
LV9458 Classroom security lock* with auxiliary latch with Vandlgard�z
Latchbolt is operated by knob/lever from either side except when outside is
locked by key from inside or outside. Deadbolt is retracted by key from inside or
outside. Operating inside knob/lever retracts both bolts and unlocks the outside.
Auxiliary latch deadlocks the latchbolt when deadbolt is thrown. Inside lever is
always free for immediate egress. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked.
29 90 L283-311
L9460 x XL11-635 L9460 with fixed dummy trim
Knob/lever is always fixed on both sides. Deadbolt is operated by key outside or
thumbturn inside. Specify per XL11-635.
35 91 XL11-635
L9460 x XL11-886 Deadbolt with retraction by inside knob/lever
Deadbolt is operated by key outside or thumbturn inside. Rotating inside knob/
lever retracts deadbolt. Outside knob/lever is always fixed. Specify per XL11-886.
36 93 –
L9462 x XL11-886 Double cylinder deadbolt* with retraction by inside knob/lever
Deadbolt is operated by key on either side. Rotating inside knob\lever retracts
deadbolt. Outside knob/lever is always fixed. Specify per XL11-886.
29 93 –
L9464 x XL11-886 Single cylinder deadbolt with retraction by inside knob/lever
Deadbolt is operated by key outside. Rotating inside knob/lever retracts
deadbolt. Outside knob/lever is always fixed. Specify per XL11-886.
30 93 –
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

14 • Schlage • L-Series service manual
Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9465 Closet/storeroom lock
Latchbolt is operated by knob/lever from either side. Deadbolt is operated by key
outside.
30 94 L283-140
L9466 F14 Storeroom/utility room lock*
Latchbolt is operated by knob/lever from either side. Deadbolt is operated by key
from either side.
29 94 L283-140
L9473 F21 Dormitory/bedroom lock
Latchbolt is operated by knob/lever from either side. Deadbolt is operated by key
outside or thumbturn inside.
28 94 L283-140
L9480 Storeroom lock with deadbolt
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always fixed. Deadbolt is operated by key outside or thumbturn inside. Turning
inside knob/lever simultaneously retracts both deadbolt and latchbolt. Auxiliary
latch deadlocks latchbolt when door is closed. Inside knob/lever is always free for
immediate exit. (Previously XL11-591).
37 95 L283-141
LV9480 Storeroom lock with deadbolt with Vandlgard�
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Deadbolt is operated by key outside or thumbturn inside.
Turning inside knob/lever simultaneously retracts both deadbolt and latchbolt.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked. (Previously XL11-591).
37 96 L283-178
L9482 x XL11-543 Institution lock with deadbolt*
Latchbolt is operated by key from either side. Knob/lever on both sides is always
fixed. Deadbolt is operated by key on either side. Auxiliary latch deadlocks
latchbolt when door is closed. Specify per XL11-543.
38 97 –
LV9482 x XL11-543 Institution lock with deadbolt* with Vandlgard�
Latchbolt is operated by key from either side. Inside and outside knob/lever are
always inoperative. Deadbolt is thrown or retracted by key on either side. Auxiliary
latch deadlocks latchbolt when door is closed. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked. Specify per XL11-543.
38 98 –
L9485 Hotel or restroom lock
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always fixed. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown all keys become inoperative except emergency keys. Turning
inside knob/lever simultaneously retracts both deadbolt and latchbolt. Auxiliary
latch deadlocks latchbolt when door is closed.
37 95 L283-141
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

Lock assembly drawing index
Schlage • L-Series service manual • 15
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
LV9485 Hotel or restroom lock with Vandlgard®
Latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown, all keys become inoperative except emergency or display
keys. Turning inside knob/lever simultaneously retracts both deadbolt and
latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Vandlgard
function allows exterior lever to rotate freely down while remaining securely
locked.
37 96 L283-178
L9485 x XL11-557 Prison lock
Latchbolt is operated by key outside or by knob inside.Outside knob is always free
spinning. Inside knob is fixed when deadbolt is thrown. Deadbolt is thrown or
retracted by guard’s key. Prisoner’s key retracts latchbolt. Furnished with
tamper-resistant Torx®screws. Specify per XL11-557.
39 99 –
L9486 F15
DO NOT DISTURB
Hotel lock with “Do not disturb” indicator
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always fixed. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown, “DO NOT DISTURB” plate is displayed. Deadbolt thrown by
inside thumbturn shuts out all keys except emergency keys. Inside knob/lever
simultaneously retracts both deadbolt and latchbolt. Auxiliary latch deadlocks
latchbolt when door is closed.
40 95 L283-141
LV9486
DO NOT DISTURB
Hotel lock with “Do not disturb” indicator with Vandlgard�
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown, “DO NOT DISTURB” plate is displayed. Deadbolt thrown by
inside thumbturn shuts out all keys except emergency keys. Inside knob/lever
simultaneously retracts both deadbolt and latchbolt. Vandlgard function allows
exterior lever to rotate freely down while remaining securely locked.
40 96 L283-178
L9486 x L583-375
OCCUPIED
Hotel lock with “Occupied” indicator
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown, “OCCUPIED” plate is displayed. Deadbolt thrown by inside
thumbturn shuts out all keys except emergency keys. Inside knob/lever
simultaneously retracts both deadbolt and latchbolt. Auxiliary latch deadlocks
latchbolt when door is closed. Specify per L583-375. (Previously XL11-580).
40 95 L283-141
LV9486 x L583-375
OCCUPIED
Hotel lock with “Occupied” indicator with Vandlgard�
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown, “OCCUPIED” plate is displayed. Deadbolt thrown by inside
thumbturn shuts out all keys except emergency keys. Inside knob/lever
simultaneously retracts both deadbolt and latchbolt. Auxiliary latch deadlocks
latchbolt when door is closed. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked. Specify per L583-375.
40 96 L283-178
L9496
DO NOT DISTURB
Privacy lock with “Occupied” indicator z
Latchbolt is operated by knob/lever on either side. Deadbolt is thrown or
retracted by key outside (retraction by key required in the event of an emergency)
or inside thumbturn. Throwing deadbolt locks outside knob/lever and displays
“OCCUPIED” plate. Rotating inside knob/lever simultaneously retracts both
deadbolt and latchbolt and unlocks outside knob/lever. (Previously XL11-885).
40 87 L283-138
LV9496
DO NOT DISTURB
Privacy lock with “Occupied” indicator z
Latchbolt is operated by knob/lever on either side. Deadbolt is thrown or
retracted by key outside (retraction by key required in the event of an emergency)
or inside thumbturn. Throwing deadbolt locks outside knob/lever and displays
“OCCUPIED” plate. Rotating inside knob/lever simultaneously retracts both
deadbolt and latchbolt and unlocks outside knob/lever. Vandlgard function
allows exterior lever to rotate freely down while remaining securely locked.
40 88 L283-178
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
zAvailable with Request to Exit feature.

16 • Schlage • L-Series service manual
Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed L9000-Series deadbolts
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE ANSI Description
L9460 F17 Cylinder by thumbturn lock
Deadbolt is operated by key outside or thumbturn inside.
35 91 L283-139
L9462 F16 Double cylinder lock*
Deadbolt is operated by key on either side.
35 91 L283-139
L9463 F29 Classroom lock
Deadbolt is operated by key on outside. Inside cylinder turn retracts
deadbolt but cannot extend it.
35 91 L283-139
L9464 F18 Cylinder lock
Deadbolt is operated by key on one side. No trim on opposite side.
Available with rose trim only.
35 91 L283-139
Not sold separately as a part.
zAvailable with Request to Exit feature.
LM9300 Multipoint functions
ANSI/ICC 500 for tornadoes
FEMA 320 and FEMA 361 certified for tornadoes
Non-keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE Description
LM9310 Passage latch function multipoint
Latchbolt is always retracted by knob/lever from either side. Auxiliary latch
deadlocks latchbolt when door is closed. Inside and outside knob/lever are always
free for immediate egress. For use with Multipoint lock system only.
23 57 L283-314
LM9325 Exit lock function multipoint
Latchbolt is always retracted by inside knob/lever. No outside trim. Auxiliary latch
deadlocks latchbolt when door is closed. For use with Multipoint lock system only.
24 57 L283-314

Lock assembly drawing index
Schlage • L-Series service manual • 17
LM9300 Multipoint functions
ANSI/ICC 500 for tornadoes
FEMA 320 and FEMA 361 certified for tornadoes
Keyed Locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE Description
LM9350 Oce and inner entry lock function multipoint
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. When outside is locked, latchbolt
is retracted by key and knob/lever outside or by knob/lever inside. Outside knob/
lever remains locked until thumbturn is returned to vertical position or unlocked
by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever
is always free for immediate egress. For use with Multipoint lock system only.
28 62 L283-316
LMV9350 Oce and inner entry lock function multipoint with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is made
inoperative by key outside or inside thumbturn. When outside is locked, latchbolt
is retracted by key and knob/lever outside or by knob/lever inside. Outside knob/
lever remains locked until thumbturn is returned to vertical position or unlocked
by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever
is always free for immediate egress. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked. For use with Multipoint lock
system only.
28 63 L283-317
LM9370 Classroom lock function multipoint
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key. Outside is unlocked by key. When outside is locked, latchbolt is retracted by
key and knob/lever outside or by knob/lever inside. Inside knob/lever is always
free for immediate egress. Auxiliary latch deadlocks latchbolt when door is
closed. For use with Multipoint lock system only.
30 62 L283-316
LMV9370 Classroom lock function multipoint with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless outside is locked by
key. Outside is unlocked by key. When outside is locked, latchbolt is retracted by
key and knob/lever outside or by knob/lever inside. Inside knob/lever is always
free for immediate egress. Auxiliary latch deadlocks latchbolt when door is
closed. Vandlgard function allows exterior lever to rotate freely down while
remaining securely locked. For use with Multipoint lock system only.
30 63 L283-317
LM9371 Classroom security lock* function Multipoint
Latchbolt is retracted by knob/lever from either side unless locked by key from
either side. When outside is locked, latchbolt is retracted by key and knob/lever
outside or knob/lever inside. Inside knob/lever is always free for immediate
egress. Auxiliary latch deadlocks latchbolt when door is closed. Available with
lock indicator on inside per XL11-986. For use with Multipoint lock system only.
29 62 L283-316
LMV9371 Classroom Security Lock* Function Multipoint with Vandlgard�
Latchbolt is retracted by knob/lever from either side unless locked by key from
either side. When outside is locked, latchbolt is retracted by key and knob/lever
outside or knob/lever inside. Inside knob/lever is always free for immediate
egress. Auxiliary latch deadlocks latchbolt when door is closed. Available with
lock indicator on inside per XL11-986. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked. For use with Multipoint lock
system only.
29 63 L283-317
LM9380 Storeroom lock function multipoint
Latchbolt is retracted by outside knob/lever aer key is inserted and rotated
280°, or anytime by inside knob/lever. Outside knob/lever is always inoperative.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate egress. For use with Multipoint lock system only.
30 70 L283-316
LMV9380 Storeroom lock function multipoint with Vandlgard�
Latchbolt is retracted by outside knob/lever aer key is inserted and rotated
280°, or anytime by inside knob/lever. Outside knob/lever is always inoperative.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate egress. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked. For use with Multipoint lock
system only.
30 71 L283-317
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.

18 • Schlage • L-Series service manual
Lock assembly drawing index
L400 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed L400-Series
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE ANSI
L460 E06071 Cylinder by thumbturn lock
Deadbolt is operated by key outside or thumbturn inside.
22 55 L283-099
L462 E06061 Double cylinder lock*
Deadbolt is operated by key on either side.
22 55 L283-099
L463 E06091 Classroom lock
Deadbolt is operated by key on outside. Inside cylinder turn retracts deadbolt but
cannot extend it.
22 55 L283-099
L464 E06081 Cylinder lock
Deadbolt is operated by key on one side. No trim on opposite side. Available with
rose trim only.
22 55 L283-099
L496 Deadbolt with “Occupied” indicator
Deadbolt is operated by key outside or thumbturn inside. Furnished with 09-611
per L583-375 indicator. When deadbolt is thrown “OCCUPIED” plate is
displayed. Available with rose trim only. (Previously XL11-911).
22 55 L283-099
L400 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed L400-Series
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE ANSI Description
L480 F14 Door Bolt
Deadbolt is operated by thumbturn on one side. No trim on opposite side.
22 55 L283-099

20 Single dummy trim
21 Double dummy trim
22 L400-Series deadbolt trim
23 Passage latch trim
24 Exit trim
25 Emergency button x turn trim
26 Privacy x turns both sides trim
27 Coin turn outside x turn trim
28 Cylinder x turn trim
29 Double cylinder trim
30 Cylinder outside trim
31 Electrically locked/unlocked both sides trim
32 Active double dummy trim
33 Single dummy with case trim
34 Double dummy with case trim
35 Deadbolt trim
36 Deadbolt with fixed double dummy trim
37 Fixed outside x turn trim
38 Institution deadbolt trim
39 Prison lock trim
40 Hotel with indicator trim
Trim assemblies

20 • Schlage • L-Series service manual
Trim assemblies
Single dummy trim
L0170
B
C
YII
AA GG
B
S
B
SICC V
GG
AA
HH
C
B
ICC V
Levers
Knobs
22
22
NOTE: Reinforcement required for metal door applications. See Schlage Door Preparation Manual & Template Guide.
