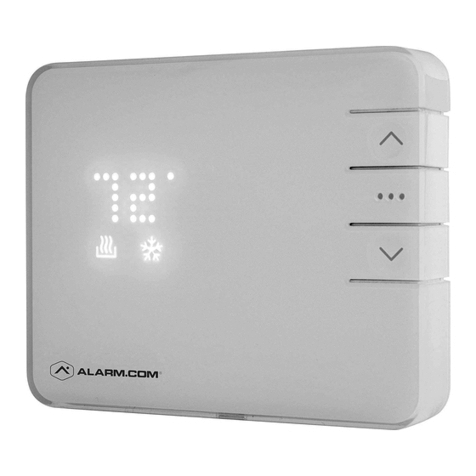

Alarmcom ADC-T2000 User manual

www.alarm.com • 1-877-389-4033
Smart Thermostat
ADC-T2000
Quick
Installation
Guide
Copyright © 2015 Alarm.com. All rights reserved. Alarm.com and the
Alarm.com Logo are registered trademarks of Alarm.com.
www.alarm.com •1-877-389-4033
Pull up your customer’s account
and select the emPower® button.
Click on Z-Wave Devices and
select the Smart Thermostat.
Review and update Installer
settings to configure.
1
2
3
Configure Your Thermostat
Using MobileTech
Use MobileTech to quickly configure your
new Smart Thermostat.
Download MobileTech today!
www.alarm.com/mobiletech
11
12 Congure your system
You must program the thermostat settings
(or run through the online setup wizard)
before putting the thermostat into heating or
cooling mode.
Visit the Alarm.com Dealer Website or use
MobileTech to congure the system parameters.
Dealer Website > Customers > Equipment >
emPower Devices > Congure Device
For more detailed instructions, please visit:
Dealer Website > Support & Sales >
Support Documentation
For questions, please contact
[email protected].
Connect the Thermostat
to the system
Now you can connect the Alarm.com Smart
Thermostat to the Alarm.com home system
using the Z-Wave network.
To pair, make sure the thermostat is in
OFF mode (no mode icons are lit) and press
and hold the DOWN  ) button until you
see the RADIO ( ) icon.

Disconnect the existing
thermostat
Disconnect all wires and remove the
thermostat base.
TIP: Check that all wires are a proper
gauge (18-24 AWG), have approximately
1/8” exposed straight ends, and are in
good condition.
Install the new back plate
If necessary, rst install the optional trim
plate to cover any holes or marks left from
the old thermostat.
Connect the wires
Reconnect the wires and record the new
connections (you may want to take
another picture).
TIP: If you have RH & RC, remove the
black jumper in the lower left corner
of the back plate terminal board with
needle-nose pliers.
5
6
7
RH
RC
Z
W2
W
C
Y
Y2
G
O/B
Jumper On
RH
RC
Z
W2
W
C
Y
Y2
G
O/B
Jumper O
Install the batteries
Attach the Alarm.com
Smart Thermostat
Make sure that any excess wire is
tucked back into the wall and press the
thermostat rmly into the back plate.
Turn the power on
Restore the power at the circuit breaker.
8
9
10
Test the system
Verify that the heating and/or cooling system is
operating properly with the existing thermostat.
CAUTION: If the existing thermostat is labeled
120V or 240V, or has thick wires with wire nuts,
the system is high voltage. Do not install the new
thermostat to a high voltage system.
Turn power off
Turn the heating
and cooling
system off at the
circuit breaker.
Remove the existing
thermostat cover
Label all existing wires
Carefully label each wire with
the provided labels.
TIP: Take a picture
of the existing
wiring before
disconnecting.
1
2
3
4
Continued on back
