Thermostat Operation
Thermostat Quick Reference
Setting the Humidity
Programming
Features
Warranty Information
Page
2-3
4-7
10-16
1
Una version en español de este
manual se puede descargar en la
pagina web de la compañia.
Equipment damage hazard.
Do not operate the cooling
system if the outdoor
temperature is below 50 ˚F
(10 ˚C) to prevent possible
compressor damage.
Caution
Rev. 1821
17-18
19
8-9
TP-S-955WH
Vive Comfort
Toll Free : 888-776-1427
Web: www.vivecomfort.com
Hours of Operation: M-F 9AM - 6PM Eastern
P.O. Box 3377
Springeld, MO 65808-3377

Temperature
Set Time
Next Zone
Clean
Display
Humidity
Thermostat OperationThermostat Operation
LCD Display Glow in the dark light button
Fan Key
System Key
Temperature Setpoint Buttons
See page 4 for details about
this display read out.
The glow in the dark light
button will self illuminate
for several hours after
exposure to ambient light.
This button turns on the
display light when pressed.
Select ON or AUTO. The ON
key will run the fan
continuously. The AUTO key
will cycle the fan on only
when the heating or cooling
system is on. A Note About
Programmable Fan: The
programmable fan feature will run the
fan continuously during any time
period it is programmed to be on. This
is the best way to keep the air
circulated and to eliminate hot & cold
spots in your building.
Selects the operation mode of
your HVAC system. Selecting
HEAT turns on the heat mode.
Selecting COOL turns on the
air conditioning mode.
Selecting OFF turns both
heating and cooling o.
Selecting AUTO will turn the
HEAT or COOL on as needed.
Press the or
buttons to select the
desired room temperature.
Menu Key
Use this key to set up your
programming options.
Refer to page 10 for
instructions.
8
7Humidity Key
Use this key to enter the
target humidity setpoint
screen. Refer to page 8 for
instructions.
Next Zone
Use this key for
programming or to
navigate to multiple zones
if using indoor remote
sensors.
1
2
3
7
8

Thermostat Quick Reference Thermostat Quick Reference
2
3
7
9
1
12
1
3
Indicates the current room temperature
Time and day of the week
REMOTE indicates a remote has control of the system.
System Operation Indicators: The COOL, HEAT or FAN icon will display
when the COOL, HEAT or FAN is on. NOTE: The compressor delay feature is
active if these icons are ashing. The compressor will not turn on until the 5
minute delay has elapsed.
Setpoint: Displays the user selectable setpoint temperature
HOLD is displayed when thermostat program is permanently overriden.
1
2
3
7
9
Low Battery Indicator: Replace batteries when this indicator is shown.
Program Menu Options: Show dierent options during programming.
Period Icons - This thermostat can have 2 or 4 programmable time periods
per day. Icons are displayed for 4 time periods. Occupied and Unoccupied
will display in the text eld for 2 time periods.
8
11
1Humidity: Shows the humidity target setpoint settings and keys.
Clean Display: Pressing CLEAN DISPLAY will allow 30 seconds to clean
the display. The keys will be inoperable during this time. CLEAN will appear
if your contractor has programmed a lter change reminder. Press and hold
CLEAN when lter has been replaced to reset the lter change reminder
timer.
12 Next Zone: This button will appear if optional indoor remotes are
present. By selecting NEXT ZONE you can cycle through each of the zones
set up during the initial installation and programming.
1
3System Information: Shows several dierent informational functions.
11
1
8

Thermostat Quick Reference Thermostat Quick Reference
The low battery indicator is displayed when the AA battery
power is low. If the user fails to replace the battery within 21
days, the screen will only show the low battery indicator but
maintain all functionality. If the user fails to replace the batteries
after an additional 21 days (days 22-42 since rst “low battery”
display) the setpoints will change to 55˚F (Heating) and 85˚F
(Cooling). If the user adjusts the setpoint away from either of
these, it will hold for 4 hours then return to either 55˚F or 85˚F.
After day 63 the batteries must be replaced immediately to
avoid freezing or overheating because the thermostat will shut
the unit o until the batteries are changed.
Important:
Battery Door Information
When the battery icon appears replace your AA
batteries immediately. Failure to do so may result in your
heating & cooling system becoming inoperable.
Freezing or overheating can occur.
Caution:
Insert 2 AA Alkaline batteries
(included). High quality alkaline
batteries are recommended.
Pull the thermostat directly away from the wall to access the
batteries. A rm tug will be required to remove the thermostat from
the subbase mounted on the wall.

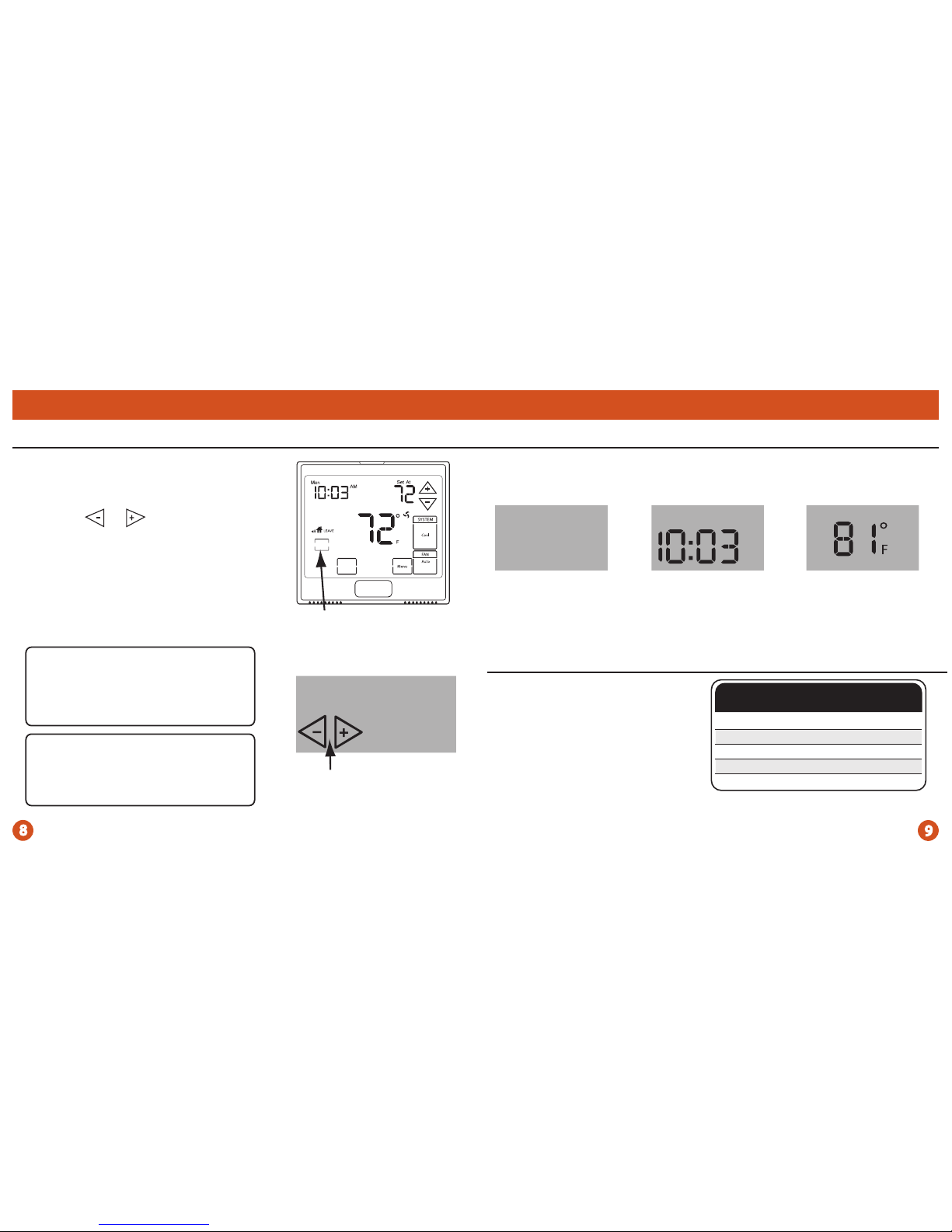

Setting The Humidity Setting The Humidity
Setting The Humidity
Follow the steps below to change your
target humidity setpoint.
Press the humidity button.
Use the or
button to select the target
humidity setpoint.
Press DONE when completed.
Target humidity setpoint keys
Note:
The target humidity setpoint is not
programmable. Unlike temperature,
humidity does not change quickly
and should not be programmed.
Note:
Humidity is only energized during
heat. Dehumidity is only energized
during cool. Heat and cool each have
their own target setpoints.
Ambient Humidity Display
Ambient humidity will ash opposite the day and time. If the optional
outdoor temperature sensor is installed the ambient outdoor temperature
will also cycle in the display.
39 Humidity %
39Humidity % AM
Mon
OUTDOOR
Ambient Humidity Day & Time Outdoor Temperature
Increasing Humidity
The table on the right shows
recommended indoor humidity
levels in relation to outdoor
temperatures during heating
(adding humidity).
Outside
Temperature (0°)
Recommended
Relative Humidity
+20° and above
+10°
0°
-10°
-20°
35% to 40%
30%
25%
20%
15%
Consult your professional HVAC
technician for recommended
settings for your climate.
Humidity Key
Temperature
Set Time
Next Zone
Clean
Display
Humidity

Programming Programming
Set Time
Follow the steps below to set the day of the week and current time:
1. Press the MENU button.
2. Press SET TIME.
3. Day of the week will be ashing. Use the or key to
select the current day of the week.
4. Press Next Step.
5. The current hour is ashing. Use the or key to
select the current hour. When using 12-hour time, make sure
the correct a.m. or p.m. choice is selected.
6. Press Next Step.
7. Minutes are now ashing. Use the or key to
select current minutes.
8. Press DONE when completed.
Set 5+1+1 Program Schedule
You will see a TECHNICIAN SETUP option after the MENU key
is pressed. This TECHNICIAN SETUP key is for installer
conguration and should NOT be changed unless you consult
your professional heating and air conditioning technician.
Important:
1. Select HEAT or COOL with the system key.
Note: You have to program heat and cool each separately.
2. Press the MENU key.
3. Press SET SCHEDULE. Note: Monday-Friday is displayed and the
WAKE or OCCUPIED icon is shown. You are now programming
that time period for the weekday setting.
To customize your 5+1+1 Program schedule, follow these steps:
Weekday:
Additional step if indoor remote sensor is connected.
The master thermostat will either average all sensors (system average)
or only use one sensor for the system ambient temperature (priority).
The default setting is SYSTEM AVERAGE, which means all sensors are
averaged to create the system average ambient temperature reading.
The NEXT ZONE key can be pressed to change the priority. The system
information area of the display shows the priority. For Example: There is
a remote connected and it is named REMOTE 1. If the NEXT ZONE key is
pressed until REMOTE 1 is shown, then the REMOTE 1 ambient
temperature reading will be used exclusively for that time period. All
other sensors will be ignored.
Continued on next page...

Set 7 Day Program Schedule
Programming Programming
A Note About Auto Changeover:
When in Auto you have the ability to switch between auto heat or auto
cool by pressing the system key. This can be done once the current
mode has reached its setpoint. For example: if in auto heat, the heat
setpoint must be satised before the thermostat will allow you to switch
to auto cool. You can switch out of auto by holding down the system
key. To get back into auto, you must toggle the system key to auto.
1. Select HEAT or COOL with the SYSTEM key.
Note: You have to program heat and cool each separately.
2. Press the MENU key.
3. Press SET SCHED. Note: Monday is displayed and the
WAKE or OCCUPIED icon is shown. You are now programming
the WAKE or OCCUPIED time period for that day.
Monday:
4. Use the or key to make your time
selection for the weekday time period.
Note: If you want the fan to run continuously during this time
period, select ON with the FAN key.
5. Then use the or key to make your setpoint selection for
that weekday period.
6. Press Next Step.
7. Repeat steps 4 through 6 that day’s other time periods.
Repeat steps 4 through 6 for Saturday time periods.
Saturday:
Repeat steps 4 through 6 for Sunday time periods.
Sunday:
Additional step if indoor remote sensor is connected.
The master thermostat will either average all sensors (system average)
or only use one sensor for the system ambient temperature (priority).
The default setting is SYSTEM AVERAGE, which means all sensors are
averaged to create the system average ambient temperature reading.
The NEXT ZONE key can be pressed to change the priority. The system
information area of the display shows the priority. For Example: There is
a remote connected and it is named REMOTE 1. If the NEXT ZONE key is
pressed until REMOTE 1 is shown, then the REMOTE 1 ambient
temperature reading will be used exclusively for that time period. All
other sensors will be ignored.
Continued on next page...

Programming Programming
The NEXT ZONE key cycles through all sensors connected to your
wireless system.
SYSTEM AVERAGE shows the average ambient temperature of all
connected sensors.
LOCAL shows the ambient temperature of the thermostat only.
The name of the remote sensor will show and the ambient
temperature for that sensor will be displayed.
For more information please refer to the Indoor Remote Sensor User
Guide.
Next Zone (Only if indoor remote is connected)
4. Use the or key to make your time selection for that days
time period. Note: If you want the fan to run continuously during
this time period, select ON with the FAN key.
5. Then use the or key to make your setpoint selection for
that days time period.
6. Press Next Step.
7. Repeat steps 4 through 6 for that day’s other time periods.
Repeat steps 4 through 7 for the remaining days of the week.
The programmable fan feature will run the fan continuousy during
any time period it is programmed to be on. This is the best way to
keep the air circulated and to eliminate hot & cold spots in your
building.
A Note About Programmable Fan

Programming Features
If appears in the display, then the keypad is locked. All or some of
the keys will not work. Hold the and keys for 3 seconds to
remove the lock. Use the same procedure to lock the display
Keypad Lockout Note: Temporary Hold: The thermostat will display HOLD and Run
Schedule on the bottom of your screen when you press the or
key. If you do nothing, the temperature will remain at this setpoint
temporarily for 4 hours. After this, the program setpoint will then
replace your temporary setpoint.
Permanent Hold: With a temporary hold set, if you press the HOLD
key at the bottom of your screen, you will see HOLD appear next to
the setpoint temperature in the display. The thermostat will now
permanently stay at this setpoint and can be adjusted using the
or keys.
To Return To Program: Press the Run Schedule key at the bottom of
your screen to exit temporary and permanent holds.
Temporary & Permanent Hold Feature

Warranty Information
Warranty Registration
Your new thermostat has a 5 year limited warranty. You must register
your thermostat within 60 days of installation. Without this
registration the warranty period will begin on the date of manufacture.
For warranty issues please contact the HVAC professional that
installed this product. You can register your new thermostat in 2 ways:
Go to the company website, select warranty registration and
ll out a short registration form.
Complete the form below and mail it to the address shown.
Warranty Registration
Complete form and mail to:
Thermostat Warranty Registration
Online
Mail
Features

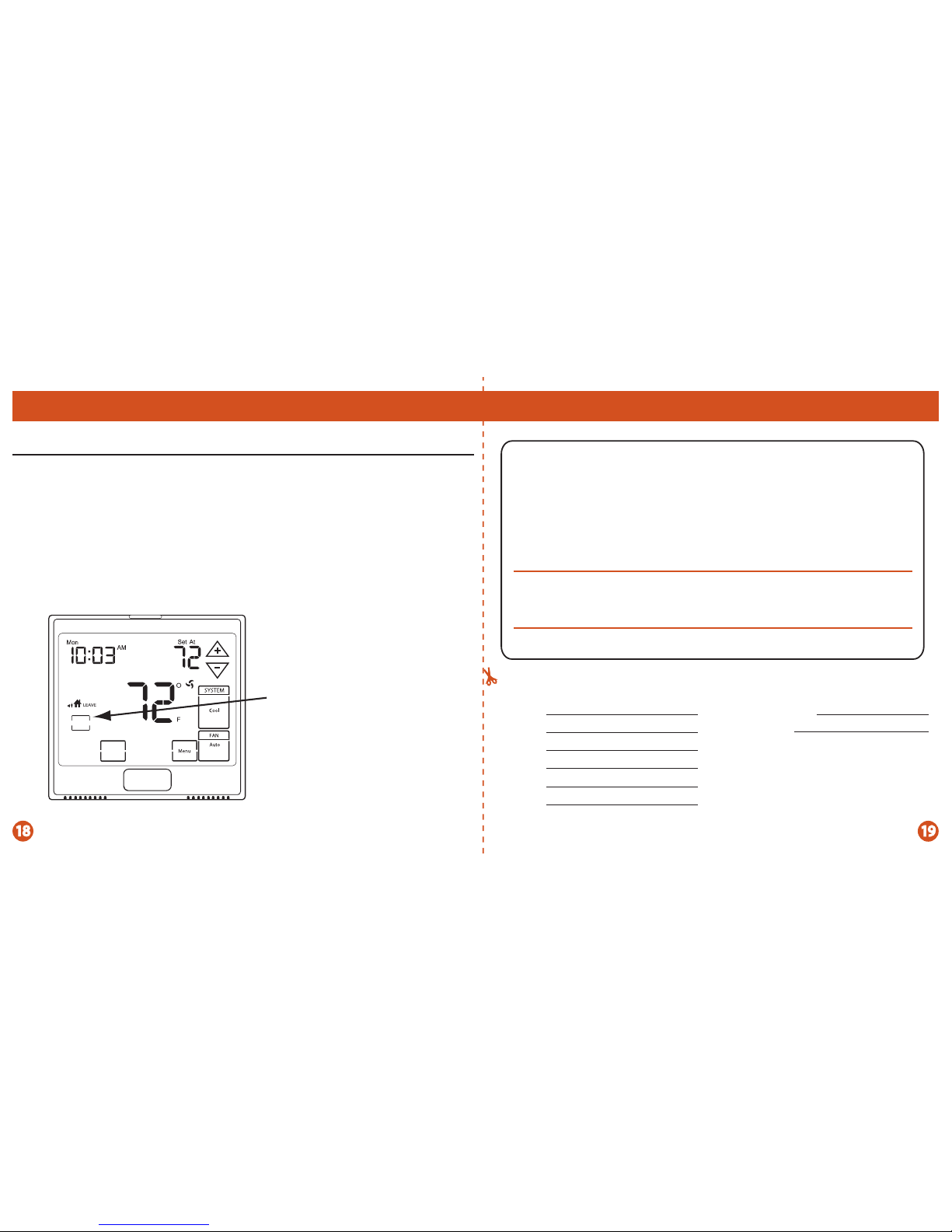

If your HVAC contractor has congured the thermostat to remind
you when the air lter needs changed, you will see a reminder in the
display when your air lter needs to be changed.
Resetting The Filter Change Reminder: When the reminder is
displayed, you should change your air lter and reset the reminder by
pressing the CLEAN key for 3 seconds.
Filter Change & Other Reminders
Hold down CLEAN for
3 seconds, to reset lter
reminder.
Temperature
Set Time
Next Zone
Clean
Display
Humidity
Name:
Address:
City:
State:
Zip:
Thermostat Model:
Date Installed:
Vive Comfort
P.O. Box 3377
Springeld, MO 65808-3377

Cut Out For
Warranty Registration
www.vivecomfort.com
