Alarmtech PSV 2465-12 User manual

© 2016 Alarmtech –www.alarmtech.se 1 / 4 PSV 2465-12 manual 1629en
Power Supplies
24 VDC/6.5 A
Battery 12 Ah/Security grade 3
Instruction manual PSV 2465-12
DESCRIPTION
PSV 2465-12 is an up-to date power supply unit with battery
backup compliant with EN standards. Unit provides all features
required by EN 50131-6:2008, security grade 3.
Distinctive and unique feature of PSV 2465-12 is invented by
Alarmtech ViP mode –Voltage-in-Parallel. Power supply units
with ViP feature can be connected in parallel both (+) and (-) on
one common power bus without a need of additional synchroni-
zation. Connected units will share load on a bus. ViP feature can
be used to build distributed and redundant power systems. It can
be also used to compensate voltage drops on a bus by placing
power supply units in distant bus sections.
Power conversion is based on high frequency SMPS regulator
providing high conversion efficiency. Low losses inside unit pre-
serve batteries from overheating shortening battery life time.
Computerized battery recharging circuit works in constant poten-
tial –limited current mode –the best mode to provide the longest
possible battery life time.
Power unit is equipped with built-in diagnostic system detecting
and signalling mains failure, different battery failures including
end-of-life warning, output faults like low voltage or broken fuse.
APPLICATIONS
Power supply system for 24 V installations
Distributed power supply systems with built-in redundancy
Power supply systems for access control, fire and intruder
alarm installations
MAIN FEATURES
Security grade 3 (EN 50131-6:2008)
Type A –mains supply with rechargeable battery
Total rated output in grade 3:
0.25 A (30 h in battery mode with 12 Ah batteries)
Total rated output in grade 2:
0.74 A (12 h in battery mode with 12 Ah batteries)
Total rated maximal output to installation: 6.0 A
Battery recharging current –0.5 A, providing recharging time
below 24 h
Total current capacity of power unit –27.6V, 6.5 A
ViP (Voltage-in-Parallel) feature increasing reliability and ca-
pacity of power supply systems –power supplies with ViP fea-
ture can be connected in parallel to same bus without need
for additional synchronization
Capable to work with pack of two 12 V/12 Ah sealed lead acid
batteries
Short circuit and overload protection
Detection of no mains supply (EPS fault)
Detection of different battery faults (APS fault) –not con-
nected, low voltage, high internal resistance
Detection of low output voltage (OUT fault)
Detection and LED identification of broken fuses
Detection of power unit failure
Deep discharge protection of battery (DDP)
Remote and local battery testing
Tamper security provided –case opening and pry-off
BLOCK DIAGRAM
EPS –External Power Supply (mains)
APS –Alternative Power Source (battery)
OUT - Output voltage
SAB –Sabotage
SDT –Storage Device (battery) Test
24 VDC Output
230 VAC
Power Supply 24 VDC
+_
12 V battery
12 Ah
Signalling outputs
EPS, APS, OUT, SAB
230 VAC
input
N
L
PE
Power unit
PSV 2465
ViP
output
OUT +
OUT -
BAT +
BAT -
12 V battery
12 Ah
Battery pack
2x 12 V/12 Ah
SDT
input
Fault signalling
outputs
Remote battery
test
Front panel

©2016 Alarmtech –www.alarmtech.se 2 / 4 PSV 2465-12 manual 1629en

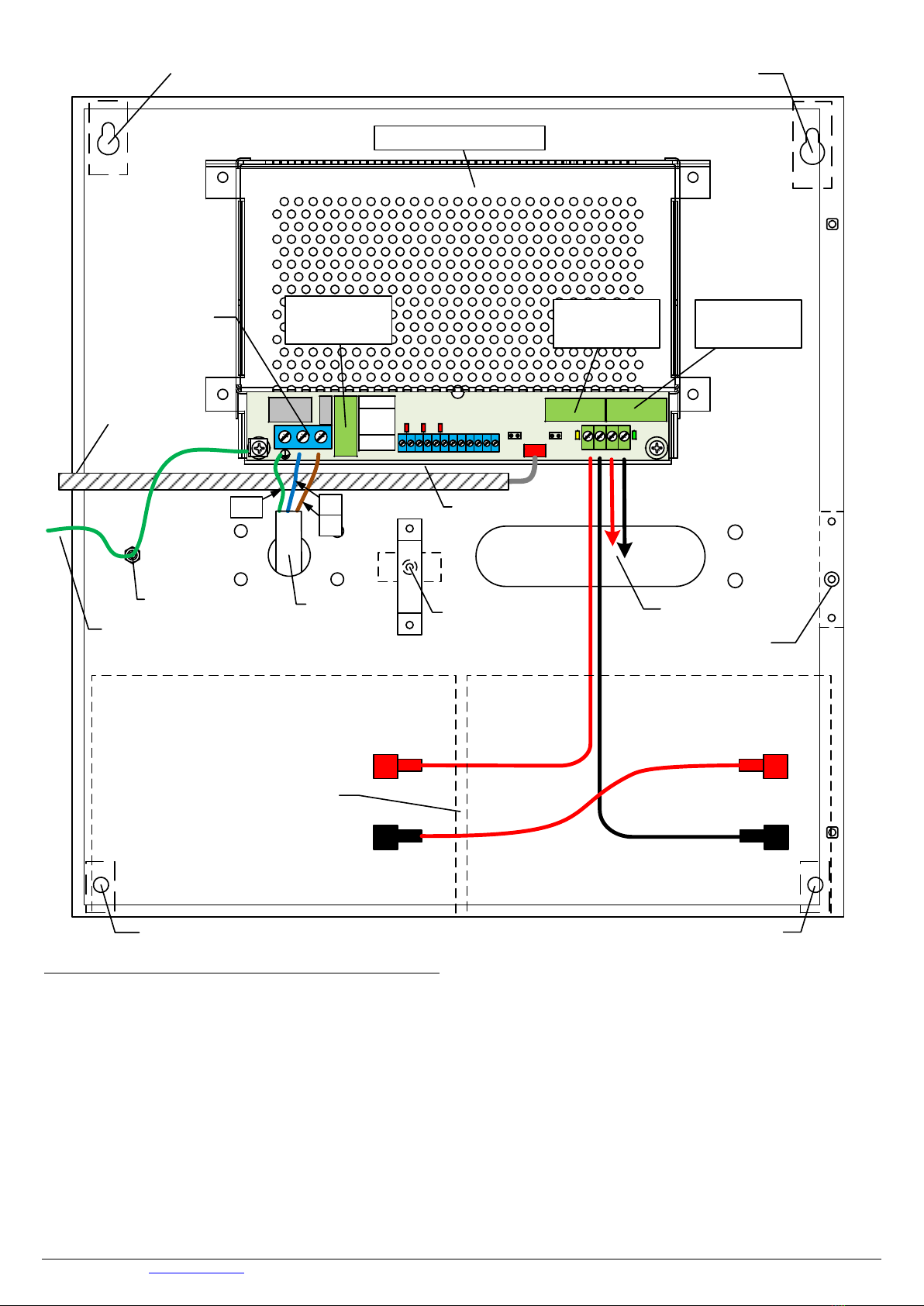

1. INSTALLATION
PSV 2465-12 power supply installation and start-up procedure:
Fix unit in destination place using 4 fixing holes
Place two sealed lead acid batteries 12 V/ 12 Ah in battery
chambers
Make internal connection in battery pack connecting left bat-
tery (-) with right battery (+)
Make connection between right battery (-) and battery con-
nector using black battery cable connected to BAT-
Make connection between left battery (+) and battery con-
nector using red battery cable connected to +BAT
Make appropriate connections between power output and
power receivers
Make required connections between signalling outputs of PSV
2465-12 unit and cooperating units (outputs EPS, APS, OUT,
SAB, input –SDT*)
The socket outlet delivering 230 VAC shall be installed near
the power supply unit and shall be easily accessible
Make sure that cable delivering 230 VAC to power supply is
disconnected from mains
Carry in cable delivering 230 VAC to the unit using separate
mains cable entry on the left side and connect it to 230 VAC
input of PSV 2465 power unit –make sure that PE cable is
connected to PE input
Switch on mains delivering energy to power supply - PSV
2465-12 unit will start automatically delivering power to the
load and monitoring state of PS
EP S AP S OUT SA B SA B -SD T*
SDT STA RT
KI CK -
Alarmtech ViP
F3
N L +BAT - VOUT COM
F2
F1
Power Supply
-
+
Case fixing hole Case fixing hole
Battery chamber for
2 sealed lead acid batteries
12 V/12 Ah
Case fixing hole Case fixing hole
Power output 24 V
Tamper detector I/O cables
Battery fuse:
10 A quick
Output fuse:
6.3 A quick
Mains fuse:
2.5 A slow
+
-
Tamper detector
Mains
cable entry
To display
panel
Case earthing point
To earting connector in lid
Mains
connector
Signalling outputs
PE N
L
Power Unit PSV 2465
PSV-2465
F1: T2.5H250V
F2: F6.3H250 V
F3: F10 H250V
Batte ry rec harg .
current = 0.5 A

©2016 Alarmtech –www.alarmtech.se 3 / 4 PSV 2465-12 manual 1629en
2. TECHNICAL DESCRIPTION
2.1 Front panel
Power supply unit is equipped with front panel showing actual general state of unit. Three LED’s display shows:
Green LED: mains voltage present –unit in EPS mode supplied from mains
Yellow LED: mains voltage missing –unit in APS mode supplied from battery
Red LED: fault detected –quick visual identification and localisation of failure is possible with help of set of diagnostic LED’s
in power unit
2.2 Internal state monitoring functions in power units
All monitored states of PS are displayed with help of LED diodes for quick visual identification. The placement of monitoring LED is
documented in below placed drawings. The meaning of LED colours is following:
Green - normal state, OK
Red - fault detected
Yellow - informative meaning (neutral)
EPS APS OUT SAB SAB -SDT*
SDT START
KICK-
Alarmtech ViP
F3
N L +BAT- VOUT COM
F2
F1
Power Supply
24 V battery pack recharging
Output 24 V
Input AC voltage
To tamper switches
Tamper
fault output
Storage Device Test input (*)
Storage Device Test ground (-)
EPS fault output (isolated)
APS fault output (isolated)
OUT fault output (isolated)
Kick
start
shunt LED yellow: battery
recharging enabled
LED red: APS fault LED red: OUT fault
LED green: output
voltage OK
Battery fuse,
10 A quick
Output fuse,
6.3 A quick
Input fuse, 2.5 A slow
Open: battery circuit enabled
Closed: battery circuit disabled
Closed-to-open: battery test triggered
Front panel / USB link
PSV-2465
F1: T2.5H25 0V
F2: F6.3H25 0V
F3: F10 H 25 0V
Battery recharg.
current = 0.5 A
LED red: EPS fault
230 VAC
Power Supply 24 VDC
+_
230 VAC
Power Supply 24 VDC
+_
230 VAC
Power Supply 24 VDC
+_
230 VAC
Power Supply 24 VDC
+_
Unit state OK
Supplied from mains
Battery OK
Output OK
No faults reported
Missing mains
(EPS output triggered)
Supplied from battery
No other faults
PS supplied from mains
Possible fault detected:
-APS (battery)
-OUT (output)
Missing mains
(EPS output triggered)
Supplied from battery
Possible faults detected:
- APS (battery)
- OUT (output)

©2016 Alarmtech –www.alarmtech.se 4 / 4 PSV 2465-12 manual 1629en
2.3 Jumpers in power units
Power unit is equipped with 2 jumpers placed on PCB:
Kick-start jumper (default position: open)
Momentary shunt
Kick-start of PS from battery (w/o mains)
Open (default)
Deep Discharge Protection (DDP) of battery enabled
Closed
Deep Discharge Protection (DDP) of battery disabled
SDT (Storage Device Test) jumper (default position: open)
Momentary shunt
Battery test trigger (30s test of internal battery circuit resistance)
Open (default)
Battery recharging circuit enabled
Closed
Battery recharging circuit disabled
2.4 Input/output terminals
Input / Output
Marking
Description
Mains input with PE
PE, N. L
230 VAC input
Mains failure signalling
EPS
Potential free NC opto-relay output signalling EPS fault
Battery failure signalling
APS
Potential free NC opto-relay output signalling APS fault
Output failure signalling
OUT
Potential free NC opto-relay output signalling OUT fault
SAB Tamper output/input
SAB, SAB
Potential free NC micro-switch connection points
Storage Device Test trigger
-SDT*
Test triggered by momentary shunt between (-) and (*)
Battery pack connection
+BAT-
(+) and (-) terminals for 2x12 V battery pack connection
Power output
VOUT COM
(+) and (-) terminals for power output
3. TECHNICAL SPECIFICATION
Type of Power Supply acc. to EN 50131-6:2008: type A
Security grade acc. to EN 50131-6:2008: grade 3
Nominal input voltage rating: 230 VAC, 1.25 A with maximal load, 50 Hz
Nominal output voltage: 27.6 V
Minimum output voltage in battery mode: 20.0 V (in APS mode)
Total rated output in grade 3: 0.25 A (30 h in APS mode with 12 Ah batteries)
Total rated output in grade 2: 0.74 A (12 h in APS mode with 12 Ah batteries)
Total maximal output to installation: 6.0 A
Quiescent current consumed by built-in modules in PS: 0.06 A
Maximum output ripple voltage: < 50 mVpp
Battery pack type: two 12 V/12 Ah sealed lead acid batteries in series
Battery recharging method: constant potential –limited current
Maximum battery recharging current: 0.5 A
Time to recharge batteries to 80%: 24 h max
Over-voltage protection trigger level: 34.5 V
Battery pack voltage triggering APS fault: 22 V
Battery pack voltage triggering DDP circuit: 19 V (Deep Discharge Protection level)
Output voltage triggering OUTPUT fault: 18 V
Monitoring outputs: EPS –loss of mains
APS –battery pack low voltage, battery failure, disconnected
OUT –output voltage low, power unit failure
SAB –case tampering
Electrical characteristics of monitoring outputs: - opto-isolated semiconductor relay for EPS, APS, OUT
-micro-switch for case tampering SAB
Logical characteristics of monitoring signals: closed state –monitored condition not present
open state –monitored condition present
Remote battery test input: -SDT* - shunt between terminals (-) and (*) triggers 30 s test
Remote battery test acknowledgement: APS output
Local battery test trigger: SDT jumper, momentary shunt
Automatic battery diagnostics procedure: executed every 10 h automatically
Operating temperature and humidity range: -10 ºC…+55 ºC, RH to 90%, no condensation
Environmental Class acc. to EN 50130-5:1998: class II
Weight without batteries: approx. 3.3 kg
Weight with batteries: approx. 11.4 kg
Dimensions: 345 x 325 x 130 mm (W x H x D)
