ALAT UJI TV110 User manual

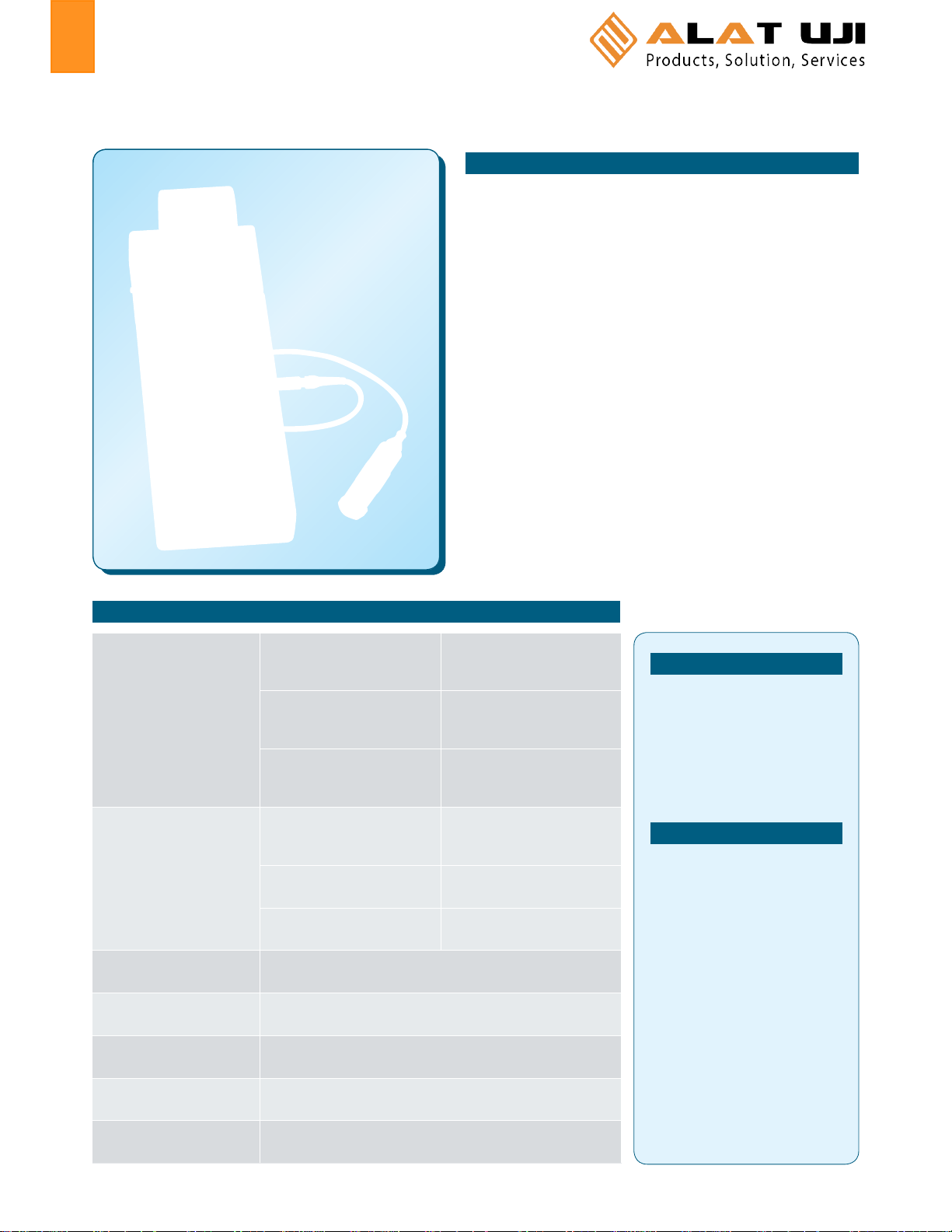

Vibration Tester TV110
●Fast failure detecting of motor, electric fan, pump, air compressor,
machine tools and so on
●Analysis of acceleration, velocity, and displacement
●Large memory of 100 readings and 10 frequency spectrograms
●Hand-held accelerometer probe is available with a removable
magnetic base for connecting with tested parts
●Low battery indication
●Rechargeable battery
●Large LCD display
●
Printer integrated, readings and vibration pattern can be printed out
●Upper and lower limit setting and sound alarm
Testing range
Acceleration 0.1m/s2-199.9 m/s2
(peak value)
Velocity 0.01cm/s-19.99cm/s
(virtual value)
Displacement 0.001mm-1.999mm
(peak to peak value)
Frequency range
Acceleration 10Hz-500Hz, 10Hz-1KHz,
10Hz-10KHz
Velocity 10Hz-500Hz, 10Hz-1KHz
Displacement 10Hz-500Hz
Power Nickel-hydrogen battery
Tolerance ±5%
Working temperature 0℃~40℃
Dimensions (mm) 270×86×47
Weight (g) 650
Standard Delivery
Technical Specication
Features:
●Main unit 1
●Accelerometer probe 1
●Magnetic base 1
●Charger 1
●TIME certificate 1
●Instruction manual 1
●Warranty card 1
●Needle groupware
●Short needle
Optional Accessory

Vibration Tester TV120
●Be widely used in fast inspecting of motor, fan, pump, compressor,
machine tool and inspecting of machine failure
●Low battery indication
●Large memory of 100 readings
●Integrated with printer to print out all the readings of current point
●With function of time and date setting
●With high sensitivity and measuring stability
●Main unit
●Sensor
●Magnetic base
●Charger
●TIME certificate
●Warranty card
●Instruction manual
●Needle groupware
Application Field Motor, compressor, bearing and
other rotating machine
Measuring parameters Acceleration (m/s2), Velocity (cm/s),
Displacement (mm)
Testing range
Acceleration 0.1m/ s2
Velocity 0.01cm/s
Displacement 0.001mm
Error ±5%
Frequency range
Acceleration 0.1 m/ s2~199.9 m/ s2
(peak to peak)
Velocity 0.01cm/s~19.99 cm/s
Displacement 0.001mm~1.999mm (peak value)
Data memory 100 group
Voltage 6V
Charging time 132min
Power
Input: 220v/AC, 50Hz
Output: 12V/DC, 600 mA
Continuous working time ＞16 hours
Temperature 0~40℃
Humidity 90%RH
Dimensions (mm) 230×84×33
Standard Delivery
Optional Accessory
Technical Specication
Features:

Vibration Pen TV200/220/260
●Used for fast failure detecting of motor, electric fan, pump, air
compressor, machine tools and so on
●Compact size, small Weight, easy handling
●Prompt testing of vibration on the workshop machines
●For quick checking of unbalance misalignment, bearings and gears
●Guard against mechanical malfunction
●Holding tested value for 40 seconds
●Automatic switch off after 40 seconds
●TV200 is used specially for velocity testing
●TV220 is used specially for displacement testing
●TV260 is used for testing of acceleration, velocity and displacement
●Main unit 1
●Battery 2
●Protection pocket 1
●TIME certificate 1
●Instruction manual 1
●Warranty card 1
Sensor
Display windows Key
Battery
Battery house
Model TV200 TV220 TV260
Parameters RMS of vibration
velocity (mm/s) Displacement
Acceleration, Velocity, Displacement
Testing range
Velocity:
0.1mm/s~199.9mm/s
Displacement:
0.01mm~1.999mm
(peak~peak)
Acceleration:0.01-199.9m/s2(peak)
Velocity: 0.01-199.9 mm/s (RMS)
Displacement: 0.001-1.999 mm (peak-peak)
Acceleration:10Hz~1kHz
Frequency
range
Velocity:10Hz~1kHz Displacement:
10Hz~500Hz
Velocity: 10Hz~1kHz
Displacement: 10Hz ~ 500Hz
Acceleration:10Hz~1kHz
Tolerance ±5%
Display 31/2digits LCD
Power supply two button batteries (LR44 or SR44)
Battery capacity Approx. 4.5 hours working continuously
Operating
Temperature
0℃~40℃
Humidity <85%
Dimensions (mm) 150×22×18
Weight (g) 55 (including batteries)
Standard Delivery
Technical Specication
Features:

Vibration Tester TV300
●Advanced vibration tester with large measuring range
●Three display modes:
Special mode: displaying acceleration, velocity and displacement
Common mode: displaying one of acceleration, velocity and
displacement
Spectrum mode: displaying vibration spectrum
●Large memory up to 1550 readings and 25 spectrums
●Easy diagnosis: alarm is sounded when vibration go over limit set,
and get into spectrum mode
●Testing results and spectrums can be printed out with optional
micro-printer
●Can be connected with PC by special software for further analyses
of vibration
●Display the FFT spectrum chart
●Main unit 1
●Accelerometer probe 1
●Magnetic base 1
●Charger 1
●Protection pocket 1
●TIME certificate 1
●Instruction manual 1
●Warranty card 1
●Needle groupware
●Long needle
●Printer TA230 (see page Z1)
●Dataview software
Testing range
Acceleration 0.1m/s2-392m/s2(peak value)
Velocity 0.01cm/s-80cm/s (virtual value)
Displacement 0.001mm-18.1mm (peak to peak
value)
Frepuency range
Acceleration 10Hz-200Hz, 10Hz-500Hz, 10Hz-1KHz,
10Hz-10KHz
Velocity 10Hz-1KHz
Displacement 10Hz -500Hz
Power Li-ion rechargeable battery
Display LCD, 320×200 pixels with backlight
Working temperature 0℃- 40℃
Tolerance ±5%
Dimensions (mm) 171×78.5×28
Weight (g) 230
Standard Delivery
Optional Accessory
Technical Specication
Features:

Vibration Tester TV310/320
●TV310 is equipped with low sensitivity probe, suitable for testing
strong vibration signal
●TV320 is equipped with high sensitivity probe, suitable for testing
weak vibration signal
●Two display modes: digital value mode and spectrum mode
●Large memory function:100×100 measured results (100 testing
points, 100 data can be stored in each testing point ) ; 100
Spectrum charts
●Spectrum chart can display in real time
●Easy diagnosis: alarm is sounded when vibration go over limit set ,
and get into spectrum mode
●Testing results and spectrum chart can be printed out when
connected to printer
●300×200 matrix LCD display with backlight
●Compared with TV300, the testing result of TV310/320 is more
accurate and stable especially in low frequency
●Main unit 1
●Protection pocket 1
●Low sensitivity probe
(only for TV310) 1
●High sensitivity probe
(only for TV320) 1
●Power adapter 1
●Magnetic base 1
●Instruction manual 1
●TIME certificate 1
●Warranty card 1
●Needle groupware
●TA230 printer (see page Z1)
●RS232 communication cable
Model TV310 TV320
Measuring
range
Acceleration 1m/s2~392 m/s2(Peak) 0.1m/s2~20 m/s2(Peak)
Velocity 0.1cm/s~80cm/s (RMS) 0.01cm/s~4cm/s (RMS)
Displacement 0.01mm~18.1mm (Peak-Peak) 0.001mm~0.8mm (Peak-Peak)
Frequency
range
Acceleration 10Hz~200Hz, 10Hz~500Hz, 10Hz~1KHz, 10Hz~10KHz
Velocity 10Hz~200Hz, 10Hz~500Hz, 10Hz~1KHz
Displacement 10Hz~500Hz
Accuracy ±5%
Temperature 0℃~40℃
Relative humidity 80%
Dimension (mm) 171×78.5×28
Power Li battery (continuous working 20 hours)
Standard Delivery
Optional Accessory
Technical Specication
Features:
