Alcatel-Lucent 1665 Data Multiplexer Explore
(DMXplore) for Service Providers
Deliver reliable, high-capacity voice and data services directly to customers.
Affordably extend optical networks to the customer premises.
Alcatel-Lucent 1665 Data Multiplexer Explore, (DMXplore) for Service Providers2
Delivers Low-Cost Access to the Network Edge
The Alcatel-Lucent 1665 DMXplore is an ultra-compact SONET multiplexer
designed for fiber to the business and fiber to the curb applications. Its small
size and low power consumption make it a sensible option for delivering low
density DS-1, DS-3, and 10/100 Mbps Fast Ethernet private line connections
to small- and medium-sized customers.
Low cost and compact design can fa-
cilitate new deployment options. The
Alcatel-Lucent 1665 DMXplore system
is designed to extend the SONET
network to small and medium enterprise
customers, at a price point that helps
profitable service generation from day
one. Supported by a common operations
environment in conjunction with the
1665 DMX family of products, element
management is simplified and in-
teroperability is assured.
The Alcatel-Lucent 1665 DMXplore
can be mounted in a cabinet, on a
wall, or even in a rack. It is environ-
mentally hardened and can function
in a variety of places including extreme
temperature environments.
Applications include:
•VoiceandTDMprivateline
•Fiber-to-thecurb
•USPRringsor1+1opticalexten-
sionstotheCPE
Benefits
•Deliverslow-costaccess
to the network edge
•Supportsnetwork
and facility protection
•Offersbigfeatures
in a small footprint
•Providesfullfunctionality
right out of the box
•Helpslowerstart-upcosts
•Allowssimplified
installation
Alcatel-Lucent 1665 Data Multiplexer Explore, (DMXplore) for Service Providers 3
Supports Network and Facility Protection
This product offers both SONET and facility protection, allowing the continuation
of service in the event of a failure. It offers a variety of configurations to deliver
carrier-class services to customers, including:
•Upto16fullyprotectedDS-1sand2DS-3s
•Four10/100MbpsFastEthernetprivatelines
•OC-3orOC-12highspeedinterface
•1+1orUPSRprotection
Circuitpackredundancyinthemain1andmain2slotsoffersfacilityprotection,
traffic restoration, and circuit pack replacement without loss of service. The 1665
DMXplore system can be upgraded in-service to support additional DS-1 and
DS-3interfaces.Plus,theshelfcanbeequippedtoservediversenetworkappli-
cations and a variety of current and evolving network operations needs. These
capabilities extend carrier-class reliability all the way to the network edge.
Figure 1. The 1665 DMXplore offers SONET-quality customer handoff for traditional TDM
applications, providing low-cost access to small and medium businesses.)
1665 DMXplore
1665 DMX
OC-3
DS1
1665 DMXtend
OC-3
OC-12
OC-48-192
OC-3
Alcatel-Lucent 1665 Data Multiplexer Explore, (DMXplore) for Service Providers4
The Alcatel-Lucent 1665 DMXplore
offers many powerful features. The
modestly sized unit transmits voice
and data over a single SONET line,
which avoids costs associated with
more complex network schemes. It
offers a graceful evolution from Fiber
Reachmultiplexers,andiscompatible
withotherSONETcompliantequip-
ment for interoperability with an ex-
isting network. Its design also includes
a data service slot that supports four
10/100 Mbps Fast Ethernet private lines.
Though compact, it offers the same
level of protection as many larger next-
generation network elements, and is
environmentally hardened for Outside
Plant(OSP)applications.Thiscom-
bination is well-suited to a variety of
deployment options — whether it’s to
support the customer at the network
edge,ortodeliverorutilizehigh-quality,
cutting edge, next-generation services
in areas with low end-user density.
Offers Big Features in a Small Footprint
Alcatel-Lucent 1665 Data Multiplexer Explore, (DMXplore) for Service Providers 5
Provides Full Functionality Right out of the Box
The modular design of the system provides a variety of configurations that simplify
operationsandinstallation.Usingthexedoption,apre-provisionedsetofcross-
connections are fully functional right out of the box. This enables fast and inex-
pensive turn-up using very little craft labor or expertise, while providing the high
levelofserviceandprotectionrequiredbymanyonsitemetroapplications.
With the variable option, the cross-connects can be provisioned on-site to meet
customer-specific service needs. Either way, the Alcatel-Lucent 1665 DMXplore
can help support business needs.
Figure 2. The 1665 DMXplore presents high-density, fully protected
SONET in a small footprint.
Alcatel-Lucent 1665 Data Multiplexer Explore, (DMXplore) for Service Providers6
Helps Lower Start-up Costs
UPSRringcapabilityofferedbytheAlcatel-Lucent1665
DMXplore system allows the stacking of multiple nodes at
one location. This helps enable a low cost start-up by providing
the ability to grow incrementally at one location.
Allows simplified installation
The centralized operation of this product is supported by a full set
ofSingle-EndedOperations(SEO),andcontrolandmaintenance
features. Integrated test capabilities and default provisioning
help simplify installation, and basic maintenance tasks can be
performed using faceplate LED displays and controls. Its Craft
InterfaceTerminal(CIT)orremoteOScanprovideaccessto
sophisticated maintenance, provisioning and reporting features.
The Alcatel-Lucent 1665 DMXplore can help cost-effectively
deliver voice and private line services to customer premises where
end-user density would not warrant a larger multiplexer. It offers
anaffordablewayofextendinghigh-qualityservicestosmall-
and medium-sized businesses, thus opening a whole new market
and revenue possibilities for exploration.
Alcatel-Lucent 1665 Data Multiplexer Explore, (DMXplore) for Service Providers 7
1665 DMXplore for Service Providers
Features & Benefits
•Ethernetcapabilitiessupportnext-generationservices,usingtechnologiessuchasGFPandVCAT.
•Circuitpackredundancyallowstrafcrestorationandcircuitpackreplacementwithoutlossofservice.
•Fixedorvariablecross-connectmappingoptionsfacilitateinstallationandturn-up.
•UPSRringcapabilityallowsmultipleprotectednodesonaring.
•FullSONETfunctionalityinasmallfootprint.
•OSIseven-layerprotocolstacksupportsuptoonethousandnetworkelements.
•CraftInterfaceTerminal(CIT)providesaccesstosophisticatedmaintenance,provisioningand
reporting features.
www.alcatel-lucent.com
Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. 1665 DMX, 1665 DMXtend and 1665 DMXplore are registered
trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners. Alcatel-Lucent assumes no responsibility for
the accuracy of the information presented, which is subject to change without notice.
© 2007 Alcatel-Lucent. All rights reserved. WLN1103070916 (11)

Other manuals for Data Multiplexer Explore 1665

4

Other Alcatel-Lucent Multiplexer manuals

Alcatel-Lucent Data Multiplexer Explore 1665 User manual

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 User manual

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent 7330 Installation and operation manual

Alcatel-Lucent

Alcatel-Lucent 7330 Installation and operation manual

Alcatel-Lucent 1645 AMC User manual

Alcatel-Lucent

Alcatel-Lucent 1645 AMC User manual

Alcatel-Lucent 1655 AMU User manual

Alcatel-Lucent

Alcatel-Lucent 1655 AMU User manual

Alcatel-Lucent Data Multiplexer Explore 1665 User manual

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 User manual

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent 3600 MainStreet Operation and maintenance manual

Alcatel-Lucent

Alcatel-Lucent 3600 MainStreet Operation and maintenance manual

Alcatel-Lucent 1643 AMS Technical manual

Alcatel-Lucent

Alcatel-Lucent 1643 AMS Technical manual

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent Data Multiplexer 1665 DMX User manual

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer 1665 DMX User manual

Alcatel-Lucent 1660 User manual

Alcatel-Lucent

Alcatel-Lucent 1660 User manual

Alcatel-Lucent Data Multiplexer Explore 1665 User manual

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 User manual

Alcatel-Lucent 1511 BA User manual

Alcatel-Lucent

Alcatel-Lucent 1511 BA User manual

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent

Alcatel-Lucent 1643 AMS User manual

Alcatel-Lucent 1645 AMC User manual

Alcatel-Lucent

Alcatel-Lucent 1645 AMC User manual

Popular Multiplexer manuals by other brands

Siemens Cerberus Dati Technical manual

Siemens

Siemens Cerberus Dati Technical manual

Keithley 7706 user guide

Keithley

Keithley 7706 user guide

JPI MP1600 user manual

JPI

JPI MP1600 user manual

Beijing Huahuan Electronics H0EL-EthMux V8 user manual

Beijing Huahuan Electronics

Beijing Huahuan Electronics H0EL-EthMux V8 user manual

Quark-Elec QK-A031 Quick start setup guide

Quark-Elec

Quark-Elec QK-A031 Quick start setup guide

Patton electronics 3022 user manual

Patton electronics

Patton electronics 3022 user manual

TC Communications TC8612 user manual

TC Communications

TC Communications TC8612 user manual

DIGITIZE ISODRESSABLE DGM ISO-8L Installation and maintenance manual

DIGITIZE

DIGITIZE ISODRESSABLE DGM ISO-8L Installation and maintenance manual

LXI 60-850 manual

LXI

LXI 60-850 manual

Keithley EXP-16 user guide

Keithley

Keithley EXP-16 user guide

Astronics RACAL INSTRUMENTS 1260-30 manual

Astronics

Astronics RACAL INSTRUMENTS 1260-30 manual

Pickering PXI 40-660 user manual

Pickering

Pickering PXI 40-660 user manual

Patton electronics 3028 Turbo Installation and operator's manual

Patton electronics

Patton electronics 3028 Turbo Installation and operator's manual

PacketLight Networks PL-1000RO 3.3 Installation and configuration manual

PacketLight Networks

PacketLight Networks PL-1000RO 3.3 Installation and configuration manual

Giga-tronics 3000-524 user manual

Giga-tronics

Giga-tronics 3000-524 user manual

Vicon AURORA 2000 quick guide

Vicon

Vicon AURORA 2000 quick guide

Cronyx E1XL user manual

Cronyx

Cronyx E1XL user manual

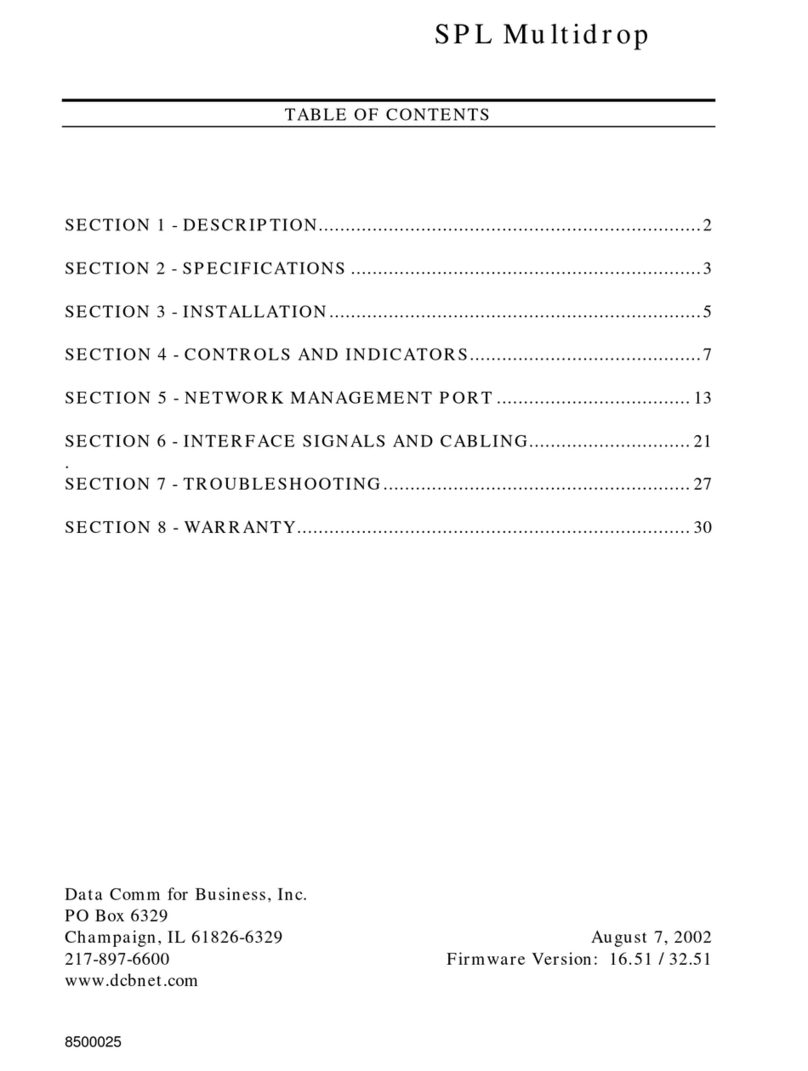

DCB SPL Multidrop manual
