USER MANUAL
MTS Mtalky
F100

3

0
Contents
Contents ..................................................................................................... 0
1. Your mobile............................................................................................... 1
2. Getting started ........................................................................................... 5
3. Basic functions........................................................................................... 8
4. Contacts................................................................................................. 10
5. Recent Calls............................................................................................ 12
6. Messages............................................................................................... 13
7. Settings ................................................................................................. 15
8. Entertainment .......................................................................................... 17
9. Tools..................................................................................................... 18
10. FM Radio.............................................................................................. 19
FAQ......................................................................................................... 19
Safety and use............................................................................................ 21
Friendly reminder:
This user manual applies to the MTalky F100 phone. If there are minor differences in the description or
illustrations between the manual and the actual product，the actual product shall take precedence.
Customers will not be notified separately of any upgraded model of this phone. Please contact our
Customer service.
We reserve the right to revise anytime the contents of this manual without prior notice.
Please use the phone with the charger connected.

1
1. Your mobile
1.1 Accessories
This phone has the following accessories:
Accessories
Quantity
Whip Antenna
1
Coil Cord
1
Cradle
1
Battery Cover
1
Ni-MH Battery Pack
1
Mini USB Charger
1
USB Data Cable
1
CD Rom
1
User Manual
1
Warranty Card
1
1.2 Basic specifications
Item
Specifications
Phone
Size: 200mm[L]×153.8mm[W]×48.7mm[Thickness]
Weight: 574g (Battery included)
Screen resolution
128*64 pixels
Contacts
500 entries
Recent calls
60 entries
Messages
350 entries
Operating temperature
-20℃~55℃
Battery Ni-MH
Capacity: 1200mAh
Talk time: 5 hours(approx.)
Standby time: 220 hours (approx.)
Charging time: 10 hours (approx.)

2
Explanation:
Standby time refers to the time when the phone is in the operating model, which is not used for making
calls or remaining idle. Standby time and call time are both related to the conditions of use, the network
situation and the environment.
1.3 Key pad indications
Number
Item
Function
1
SELECT Key
Enter menu
Confirm an option
2
Navigation Keys
Left: Ring Tone
Right: FM Radio
Up: Messages
Down: Scheduler
3
BACK Key
Contacts List
In Menu: Back/Delete
1
3
2
4
5
6
7
8
9
10
11

3
4
EXIT Key
Power on/Power off
End a call
Back to the idle screen
5
DIAL/REDIAL Key
Recent Calls
Answer/Send a call
6
MUTE Key
Mute/Unmute during the call, the other can hear/
not hear you during the call
7
Volume Key
Change the volume during the call
8
Speaker Key
You can select this key to activate or deactivate
handsfree
9
* Key
When input numbers in standby, holding [*] Key 2
seconds to input P after main number and then
extension number.
10
0 Key
When input numbers in standby, holding [0] Key 2
seconds to input + before the numbers.
When you edit a message, press this key to enter
space.
11
# Key
When input numbers in standby, holding [#] 2
seconds to input T after main numbers and then
extension number.
When you edit one message, press this key to
change the input method.

4
1.4 Main Menu
From the main menu, use the navigation key to select the item you want. After selection,
press the left soft key to confirm.
Contacts
Delete All
Call Setting
Contacts List
Messages
Security
Search
Create
Sound
Add New
Inbox
Phone Information
Groups
Outbox
Entertainment
Speed Dial
Draft
Tools
Contacts Settings
Templates
MTS Info
Recent Calls
Delete Messages
Stopwatch
Missed Calls
Settings
Alarm
Received Calls
Memory Status
Scheduler
Dialed Calls
Settings
Calculator
Call Time
Display
World Time
Last Call
Phone
FM Radio
1.5 Screen Icons
Battery power indicator. More bars indicate a higher power level.
The more bars, the stronger signal
You have received one or more text messages
Indicate the message box is full
Indicate the phone is making a call
You have missed one or more calls
Alarm or schedule has been set
Indicate the phone have set Voice privacy
Indicate the phone is roaming

5
2. Getting started
2.1 Your phone
2.2 Removing and installing the back cover
Whip Antenna
USB Interface
Cradle
Coil Cord
Keypad
Battery Slot
Battery Cover

6

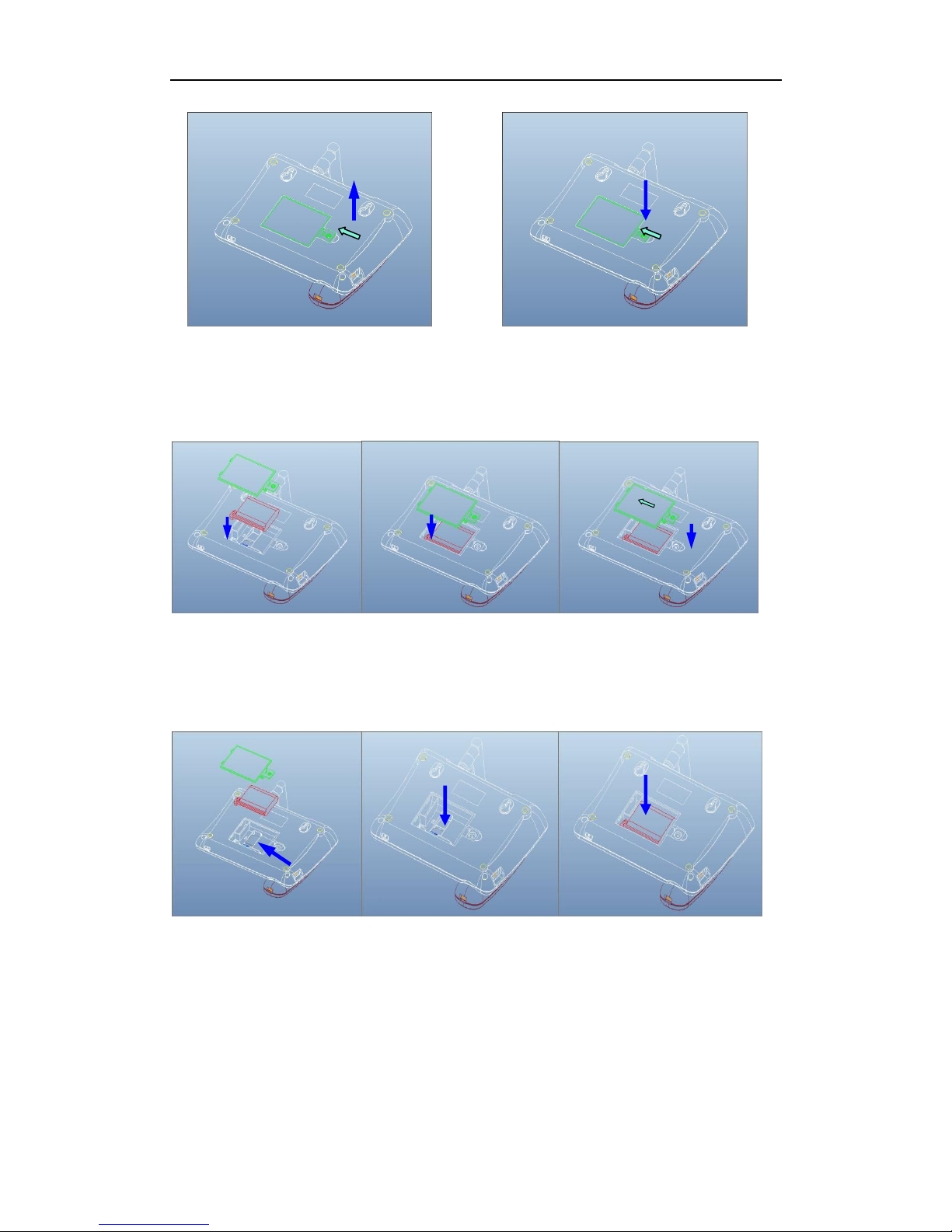

Open the back cover Close the back cover
2.3 Installing and removing the battery
Installing the battery Fixing the battery Closing the back cover
2.4 Installing the UIM Card
Find the card slot Insert the UIM card Install the battery

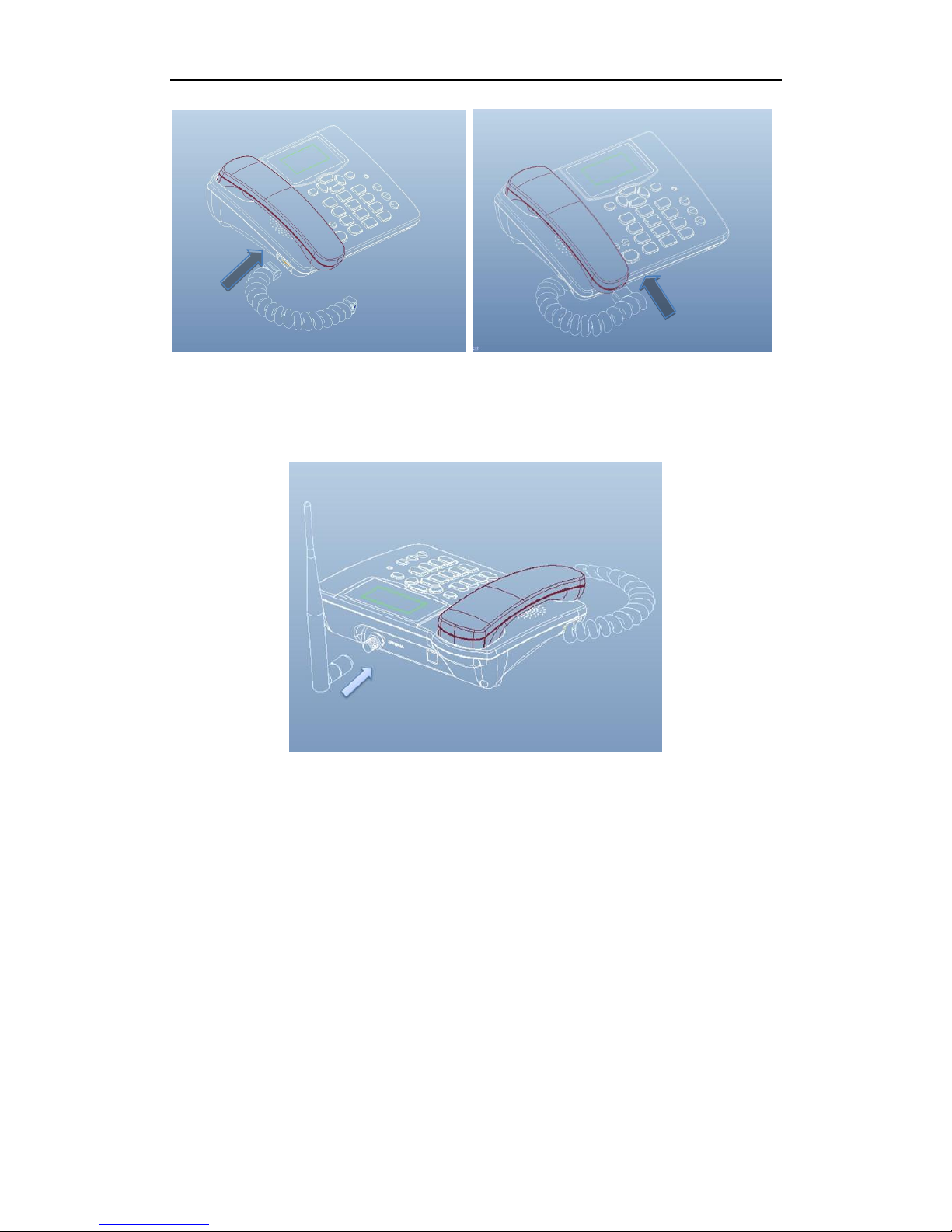

2.5 Installing the Coil Cord

7
Insert the coil cord to the phone body Insert the coil cord to the cradle
2.6 Installing the Whip Antenna
Find the whip antenna interface on the phone body,
then switch the whip antenna to the interface.
2.7 How to charge the phone
There are two ways for you to charge the phone.
2.7.1 Use the Mini USB Charger
Find the charger interface on the phone body, then use the USB data cable to connect the
charger to the charger interface.
2.7.2 Use the computer
Find the charger interface on the phone body, then use the USB data cable to connect the
charger to your computer.

8
Before charging the phone, please make sure that the battery has been installed in your phone
correctly.
2.8 How to use the Wall Hook
3. Basic functions
3.1 Power on/off
When power is sufficient, press and holds the EXIT key to power on. If you have activated

9
a password, you will be prompted to enter it. Normally the phone is ready for use as soon
as you enter the password, please refer to Menu/Settings/Security settings. When the
phone is power on, press and holds the key EXIT to turn it off.
3.2 Making a call
3.2.1 Enter the number directly
In the standby mode, use the number key to enter a phone number, and then press the
Dial/Redial key to make the call.
3.2.2 Dial a number in the Call Memory
In the standby mode, press the Dial/Redial key to access recent calls list, and press send
key again to dial the selected number.
3.2.3 Speed dial
In the standby mode, make a long key press on keys 1 to 9 to speed dial a number. You
also can press the number keys and then press the Dial/Redial key to make a speed dial.
For details regarding speed dial setting. Please refer to “Contacts/Speed dial”.
3.2.4 Emergency call
Enter emergency number, and then press the Dial/Redial key. In any situation, with or
without phone lock activated, your phone can still make an emergency call.
3.3 Functions available during a call
During a call, access the Menu by pressing the Select key.
3.4 Input mode
You may enter letters, numbers and symbols in the Contact, SMS, Note and other menu
functions.
3.4.1 Entering letters
There are three text modes: Abc, En, 123.
Please use the # key to change input modes. Please use * key to change the capital and
small letter.
3.4.2 Entering numbers

10
Press # Key to select the input method 123 to input one number.
3.4.3 Entering symbols
Press and hold * key to enter symbol list.
4. Contacts
The phone can store up to 500 contacts. From the idle screen press the Back key to
display the list of contacts. The contact list can also be accessed through Menu/Contacts.
4.1 Contacts List
Select Menu/Contacts/Contacts List to access the contacts list. Press the Option key for
the following options: View, Edit, Add New, Send Messages, Send Contacts, Copy/ Move
to UIM Card (for phone contacts), Copy/Move to Phone (for UIM card contacts) and
Delete.
View: Check the contact’s detailed information.
Edit: Edit the contact data.
Add New: Add a new contact to Phone/UIM Card
Send Messages: Send a text message to the contact.
Send Contacts: Create a new text message and add the contact details to the content.
Copy to UIM Card/Copy to Phone: Copy a phone contact to UIM card /Copy a UIM card
contact to phone.
Move to UIM Card/Move to Phone: Move a phone contact to UIM card /Move a UIM card
contact to phone.
Delete: Delete the contact details in Contacts.
4.2 Search
Select Menu/Contacts/Search, input contact’s name, you can find out all contacts which
contain the name you input.
4.3 Add New

11
Select Menu/Contacts/Add New, to add a new contact to Phone or UIM Card. If the default
save position is phone memory, you can edit Name, Mobile number, Home number, Office
number, Fax number, E-mail, Address, website address, Memo, Group and Ring Tone.
4.4 Groups
Select Menu/Contacts/Groups to access groups list, Contacts are separated by the
following groups: All, No Group, UIM Card, VIP, Family, Colleague, Friends, Schoolmates
and Business. You can select any group to view all the contacts in that group; you can
also rename the group.
4.5 Speed Dial
Select Menu/Contacts/Speed Dial to set keys 1 to 9 for speed dialing. If the number key
has not been set, press the Select key and select a phone number from Contacts. If the
number key has been set, press the left soft key and the following options will be available:
Add New, Delete.
Add New: You can add a number as speed dial number.
Delete: Delete the speed dial number.
4.6 Contacts Settings
Select Menu/Contacts/Contacts Settings to access contacts settings option. You can see
the following menu: Move Contacts, Copy Contacts, Delete Contacts, Save Location,
View Mode and Memory Status.
Move Contacts: Move all the phone contacts to UIM card or move all the UIM card
contacts to phone.
Copy Contacts: Copy all the phone contacts to UIM card or copy all the UIM card contacts
to phone.
Delete Contacts: Delete batch contacts in phone or delete batch contacts in UIM card or
delete all the contacts in phone and UIM card. You need to enter the phone password if
you select to delete all contacts.
Save Location: Make default position when adding a new contact. You can select: Phone,

12
UIM Card or Select When Save.
View Mode: Select one mode to view contacts list. If you select Phone, you can view only
phone contacts when you open contacts list, and you can view only UIM card contacts if
you select UIM Card.When you select Phone and UIM Card, you can view all the contacts
every time you open contacts list.
Memory Status: View the number of entries stored and check the memory used up for the
contact in the phone memory and UIM card.
5. Recent Calls
From the idle screen, press the Dial/Redial key to display the list of dialed numbers. Press
the left and right keys to toggle between: Dialed Calls, Missed Calls and Received Calls.
In the “Recent Calls” menu you can also access the following options: Missed Calls,
Received Calls, Dialed Calls, Call Time, Last Call and DeleteAll.
5.1 Missed calls, Received calls, Dialed calls
Select Missed calls/ Received calls/ Dialed calls from the Recent Calls menu to access
the submenus of the various call logs. Use the left soft key to access the options such as
View, Edit, Save, Save to Contacts, Send Messages, Send Contacts and Delete.
View: View the details of the record.
Edit: Edit the number before you save it or make the call.
Save: Save the number to the contacts.
Save To Contacts: Save the number to the existed contacts.
Send Messages: Send a text message to the record.
Send Contacts: Create a new text message and add the contact details to the content.
Delete: Delete the record.
5.2 Call time
Select Menu/Recent calls/Call time to display the time record of all Received Calls, Dialed
Calls and All Calls. The call time of all calls can be set to zero any time by resetting the

13
timer.
5.3 Last Call
You can see the details of your last call.
5.4 Delete All
Select Recent Calls/DeleteAll you can clear all Missed Calls, Received Calls, Dialed Calls
and All Calls.
6. Messages
Press upper key or press the Select key to select Messages to access the Messages
menu.
6.1 Create new message
Select Menu/Messages/Create to access the message editing screen. Please refer to
“Input mode” section for instructions on message editing.
In the message editing screen, press the Select key for the following options: Send, Insert
contacts, Templates, Insert emotion Symbol and Settings.
Send: access recipients, you can input up to 100 recipients.
Insert Contacts:Add different contact details from Contacts to a message.
Insert Templates:Add commonly-used terms to a message.
Insert Emotion Symbol: Add an expression to a message.
Settings: Set the send mode, the priority and the delivery report for the message edited.
6.2 Inbox
Select Menu/Messages/Inbox to access the list of messages in this box. Press the left soft
key for the following options: View, Reply, Forward, and Delete, Copy to UIM Card/Copy to
Phone, Move to UIM Card/Move to Phone.
View: Review the contents of the current messages. From the contents, press the left soft

14
key for the following options: Reply, Forward, Delete and Extract details, Copy to UIM
Card/Copy to Phone, Move to UIM Card/Move to Phone.
Reply: Send a message to the sender of the current message.
Forward: Modify the contents of a message and send it.
Delete: Delete a message.
Copy to UIM Card/Copy to Phone: Copy a phone message to UIM card or copy a UIM
card message to phone.
Move to UIM Card/Move to Phone: Move a phone message to UIM card or move a UIM
card message to phone.
6.3 Outbox
Select Menu/ Messages/Outbox to access the list of messages in this box. Press the
Select key for the following options: View, Resend, Forward and Delete. About the
operations, please refer to the related options in the “Inbox”.
6.4 Drafts
Select Menu/ Messages/Drafts to access the list of messages in the drafts box. Press the
Select key for the following options: View, Forward and Delete. About the operations,
please refer to the related options in the “Inbox”.
6.5 Templates
Select Menu/ Messages/Templates to access the list of messages template. Press the
up/down key to select the message you want.
Press the left soft key for the following options: Send, Add, Edit and Delete (Edit and
Delete options will be visible for new templates).
It has 10 message templates in factory reset mode, and you may edit it optionally or add
more templates accordingly.
6.6 Delete message
Select Menu/ Messages/Delete Messages to access delete function. You may delete the

15
messages in Inbox, Outbox, Draft and also clear all the messages.
6.7 Settings
Select Menu/ Messages/Settings to access submenu with below options: Send Option,
Priority, Delivery Reports, Callback Number, Save Location, Message Validity, Auto Delete
and SMS on Call Reject.
Send Option: Choose a default send mode when create and send a new message, such
as send and save, send only or save only.
Priority: Choose the priority sequence such as normal, urgent and emergency.
Delivery Report: You may activate/deactivate this function. The phone will receive the
information message notification that inform message sent or unsent.
Callback Number: You may activate/deactivate this function. When you activate it, you
need to enter the number which you want the receiver to call you back.
Save Location: You can choose the new messages’save position. The options are Phone
and UIM Card.
Message Validity: Choose the validity of message.
Auto delete: You can turn on the function. When the inbox is full, the newest message will
replace the oldest message.
SMS on Call Reject: You may activate/deactivate this function. When you activate it, the
phone will send a SMS to the people you reject to answer his/her phone call. You can edit
the message by choosing Edit Message.
6.8 Memory Status
Select Menu/Messages/Memory Status to check SMS storage status in Phone (Inbox,
Outbox and Draft) and UIM Card.
7. Settings
7.1 Display
You can do some settings following your need. You can customize your phone by setting

16
Brightness and Backlight Time.
Brightness: You can choose the brightness as Light Dark or Normal.
Backlight Time: Set the backlight time - 10 Sec, 30 Sec, 50 Sec, Always On
7.2 Phone
Language: English.
Time Format: Set 12-hour mode and 24-hour mode.
Date Format: Set date format and you may have three options: dd/mm/yy, mm/dd/yy,
yy/mm/dd.
7.3 Call
50 Sec alert: You will hear the alert sound at every 50 seconds during the call if you
activate this function.
Voice Privacy: Activated this feature, voice service will be protected by encoding. You can
choose Standard or Enhanced.
Auto Redial: The cell phone will redial automatically when the call has failed.
DTMF Tone Settings: You can set the DTMF Tone as Normal or Long.
International Code: If you activate this function, international code will be added before the
number when you are dialing. You can choose Automatic or Manual. For the manual, you
can edit the international code by yourself.
Dialing Delay Time: You can set the dialing delay time as 3 Sec, 4 Sec,…7 sec or Off.
Call Forward (requires network support): You can activate the status of call forward to
forward calls to another phone in the following conditions: When Busy, No Reply/Not
reachable, Immediate.
Call Waiting (requires network support): When it is activated, you can pick up or end the
second calling when you are on the phone.
7.4 Security
Select menu/settings/security, then enter the security submenu by inputting the phone
code (default phone code: 0000). You can set entry code for Phone Lock, PIN Setting,
