Alcatel OmniPCX Enterprise 4038 User manual

3DS09166AAAA 01
© 2002. All rights reserved.
Alcatel reserves the right to
alter material or technical
specification of its products
without prior notice.
www.alcatel.com
XG1_GB_20/11 21/11/02 06:44 Page 1

English
XG1_GB_20/11 21/11/02 06:44 Page 2

1
Contents
Use and Safety Precautions p. 3
1.Your telephone p. 7
1.1. Description p. 7
1.2. Keys and Indicators p. 8
2. Getting started p. 11
2.1. Battery and SIM Card p. 11
2.2. Charger p. 13
2.3. Switching your telephone on p. 1
2. . Switching your telephone off p. 1
3. Call p. 15
3.1. Making a call p. 15
3.2. Answering/Ending a call p. 15
3.3. Call your Voice Mail p. 16
3. . Other call options p. 16
3.5. Available options during a call p. 17
XG1_GB_20/11 21/11/02 06:44 Page 1

2
4. he Menu p. 19
.1. Accessing the menu p. 19
.2. Menu structure p. 20
.2.1. Directory p. 2
.2.2. Messages p. 28
.2.3. Audio Profile p. 32
.2. . Settings p. 3
.2.5. Call information p. 38
.2.6. Call Forwarding p. 0
.2.7. Security p. 2
.2.8. Network p. 5
.2.9. Extra p. 6
5. Characters and symbols table p. 51
6.Warranty p. 52
7. roubleshooting p. 56
8. Information p. 60
XG1_GB_20/11 21/11/02 06:44 Page 2

3
Use and Safety Precautions
We recommend that you read this chapter carefully before use. The
manufacturer disclaims any liability for damage which may result as a
consequence of improper use or use contrary to the instructions
contained herein.
• RAFFIC SAFE Y:
Given recent studies, which show that using a mobile telephone while
driving a vehicle constitutes a real risk, even when the hands-free kit is
used (car kit, headset…), drivers are requested to refrain from using their
mobile phone when the vehicle is not parked.
Your mobile phone when powered emits radiation which may interfere
with the vehicle electronic systems such as anti-lock brakes (ABS, airbag).
As a result, you should:
- avoid placing the phone on the dashboard and within an airbag deploying
area.
- connect the phone to an external antenna. The antenna should be
mounted and located away from the driver and passengers or separated
from them by a metal screen (e.g. the car roof).
- check with the car manufacturer that the dashboard is adequately
shielded from mobile phone RF energy.
• CONDI IONS OF USE:
Switch the phone off before boarding an aircraft to avoid prosecution.
Switch the phone off when you are in health care facilities, except in
designated areas. As with many other types of equipment now in regular
use, mobile phones can interfere with other electrical or electronic
devices, or equipment using radio frequency.
XG1_GB_20/11 21/11/02 06:44 Page 3

4
When the phone is switched on, avoid placing it near a medical aid device,
if you carry one, such as a pacemaker, one hearing aid or insulin pump.
When using the phone you should hold it against the ear on the opposite
side to the device, if any.
Do not switch the phone on when you are near gas or flammable liquids.
Strictly obey all signs and instructions posted in a fuel depot, gas station,
or chemical plant, or in any potentially explosive atmosphere. Do not let
small children use the phone without supervision. Do not attempt to open
or repair it yourself. Use only Alcatel batteries, battery chargers, and
accessories that are compatible with your phone model. Alcatel will not
be held responsible if this is not respected. Do not allow your phone to
be exposed to unfavourable environmental conditions (humidity, rain,
infiltration of liquids, dust, sea air, etc). The manufacturer’s recommended
operating temperature range is -10°C to + 55°C. Over 55°C the legibility
of the phone’s display may be impaired, though this is temporary and not
serious.
• BA ERY:
Before removing the battery from your phone, please make sure that the
phone is switched off. Take precautions with the battery and do not
attempt to open the battery (chemical substances may cause burns). Do
not pierce, disassemble nor cause a short-circuit in a battery. Do not burn
or dispose a used battery in household waste or store it at temperatures
above 60°C. Batteries must be disposed of in accordance with locally
applicable environmental legislation. Batteries should not be used for any
other purpose than the one intended. Never use damaged batteries.
XG1_GB_20/11 21/11/02 06:44 Page 4

5
• RADIO WAVES:
Before a phone model is available for sale to the public, compliance with
the International guidelines (ICNIRP) or European Directive 1999/5/EC
(R&TTE) must be shown. The protection of the health and the safety for
the user and any other person constitute an essential element of these
guidelines or this directive.
THIS MOBILE PHONE MEETS THE INTERNATIONAL AND EU
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your mobile phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the limits for exposure to radio-frequency
(RF) energy recommended by International guidelines (ICNIRP) (1) and by
the Council of the European Union (Recommendation 1999/519/EC) (2).
These limits are part of comprehensive guidelines and establish permitted
levels of RF energy for the general population. The guidelines were
developed by independent scientific organisations through periodic and
thorough evaluation of scientific studies. The limits include a substantial
safety margin designed to assure the safety of all persons, regardless of age
and health.
(1) ICNIRP guidelines are applicable in the following areas:
Central America (except Mexico), South & North Africa,
Asia Pacific (except Taiwan, Korea, and Australia).
(2) European recommendation (1999/519/EC) is
applicable in the following areas: Europe, Eastern
Europe, Israel.
!
XG1_GB_20/11 21/11/02 06:44 Page 5

6
The exposure standard for mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit stated in
the International guidelines or recommended by the Council of the
European Union is 2 W/kg (1). Tests for SAR are conducted using
standard operating positions with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the
actual SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a base station antenna, the
lower the power output of the phone.
The highest tested SAR value for this mobile phone for use at the ear and
compliance against the standard is 0,77 W/kg. While there may be
differences between the SAR levels on various phones and at various
positions, they all meet the relevant International guidelines and EU
requirements for RF exposure.
Your telephone is equipped with a built-in antenna. For optimal operation,
you should avoid touching it or degrading it.
(1) The SAR limit for mobile phones used by the public is 2
watts/kilogram (W/kg) averaged over ten grams of body
tissue. The international guidelines or European limit
incorporate a substantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
!
XG1_GB_20/11 21/11/02 06:44 Page 6

7

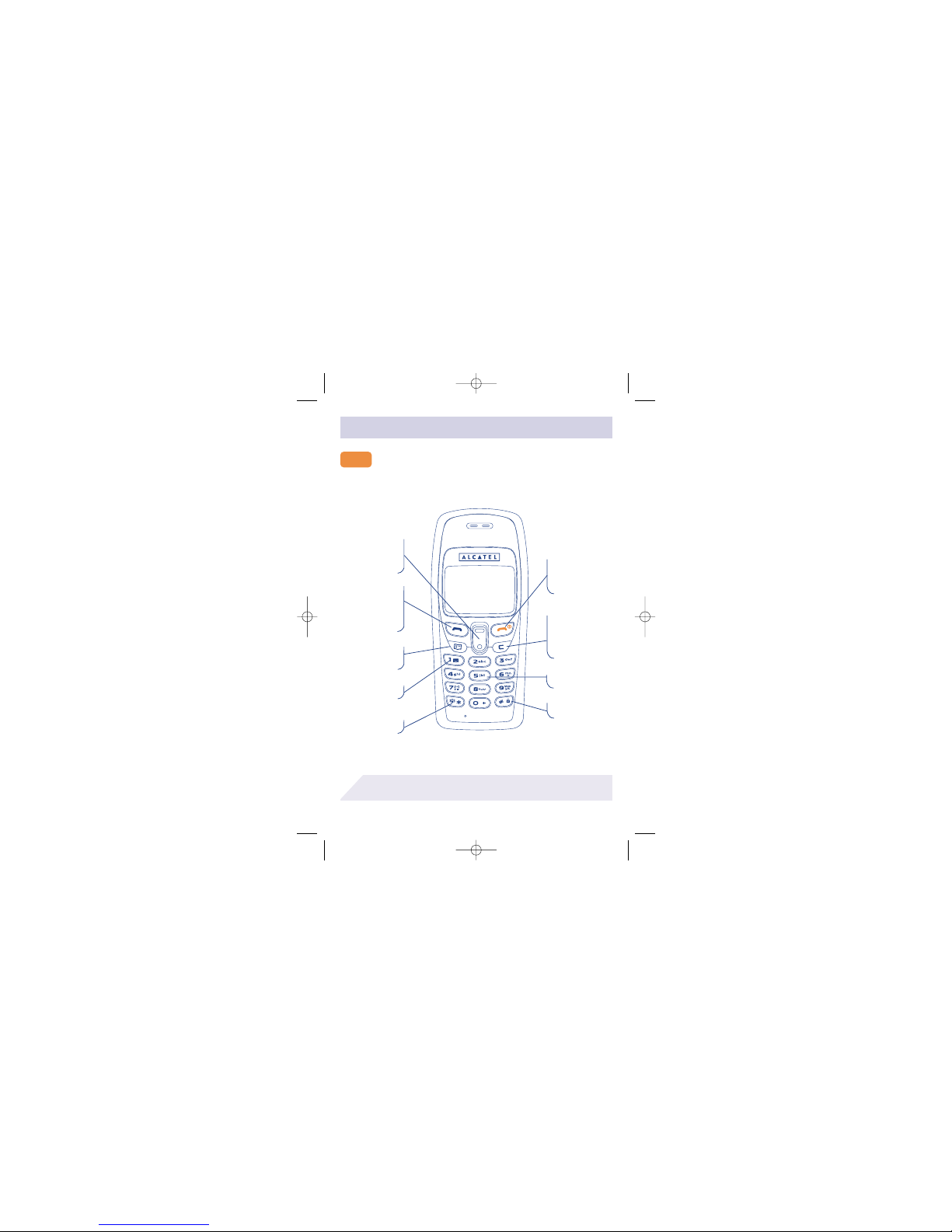

Your telephone 1
1
Description
1.1
Menu
Scroll
Volume
Answer/
Make call
Call Memory
OK
Directory list
Handsfree*
Delete
Cancel
Exit
Mute*
Vibrator*
Switch ON/OFF*
End Call
NO
Keypad lock*
Voice Mail*
Send Message*
* Long keypress.
!
XG1_GB_20/11 21/11/02 06:44 Page 7

8
Function Keys
Answer/make call
OK to validate an option
Call Memory (Redial)
Switch ON/OFF (long keypress)
End call
NO key to refuse an option
Exit
Delete characters
Cancel keypresses
Exit the Menu to go back to stand by mode
During a call (long keypress): activate/deactivate the muting.
Direct access to your Directories (file names classified in
alphabetical order)
During a call, press to access the call options
Access to the Menu
Scroll the options
Volume adjustment
Call your voice mail (long keypress)
You must first enter the number given by the network
operator in “Menu/Messages/Setup”
In idle mode, with a long keypress you have direct access to
“Send Msg.” (Enter text).
Keys and Indicators
1.2
XG1_GB_20/11 21/11/02 06:44 Page 8

9
Press and hold the key to obtain “+” for the international
prefix
Lock/unlock Keypad (long keypress)
Activate/Deactivate (long keypress) the vibrator
Icons and indicators (1)
The following icons will be shown on the display as different functions are
activated.
Battery charge level. The bar scrolls up and down while
charging.
The phone is using a roaming network.
The phone keypad is locked.
Call forward option is activated.
(1) The icons and illustrations in this guide are provided for
information only.
!
XG1_GB_20/11 21/11/02 06:44 Page 9

10
A short message is received.
The message memory is full. To receive new messages, you
must delete some old messages.
Signal strength indicator.
An alarm has been set.
Headset (if supplied) has been inserted.
No ring tone (Silent mode activated).
The vibrator has been activated.
A read message.
An unread message.
A sent message.
An unsent message.
Mute feature is activated.
XG1_GB_20/11 21/11/02 06:44 Page 10

11
Getting started 2
2

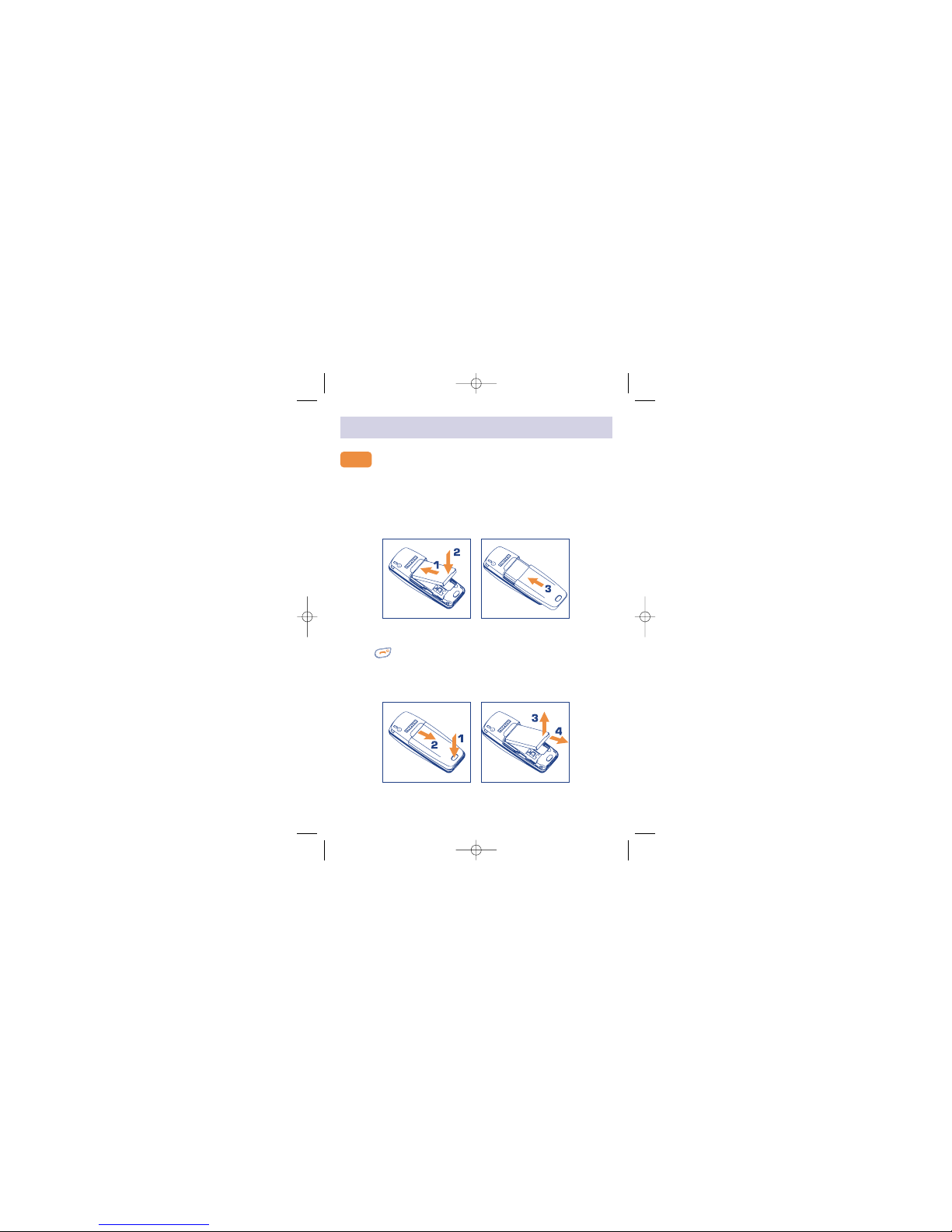

o install the battery
1. Slide the battery into the cradle as shown in the picture and press the
battery down flat.
2. Place the back cover as shown in the picture and slide it into place.
o remove the battery
1. Press to switch off the phone.
2. Press the button and slide the battery cover as shown in the picture.
3. Lift up the battery as shown below.
Battery and SIM Card
2.1
XG1_GB_20/11 21/11/02 06:44 Page 11

12

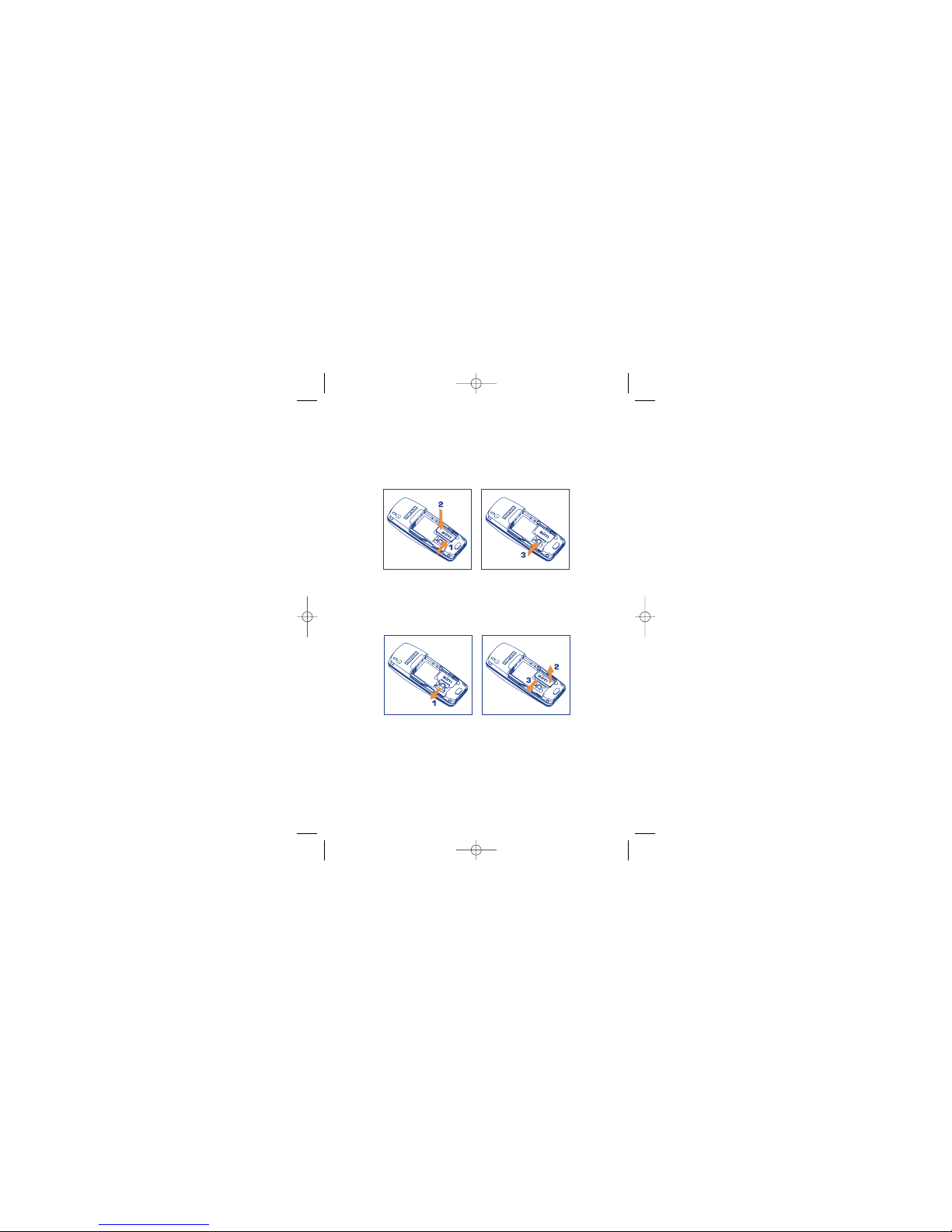

o install the SIM card, make sure that the phone is switched off.
1. Remove the battery (see instructions above).
2. Place the card inside the SIM holder with the golden connectors facing
downwards. Push down the latch to hold the SIM card.
o remove the SIM card
1. Remove the battery (see instructions above).
2. Push the latch to remove the SIM card.
XG1_GB_20/11 21/11/02 06:44 Page 12

13

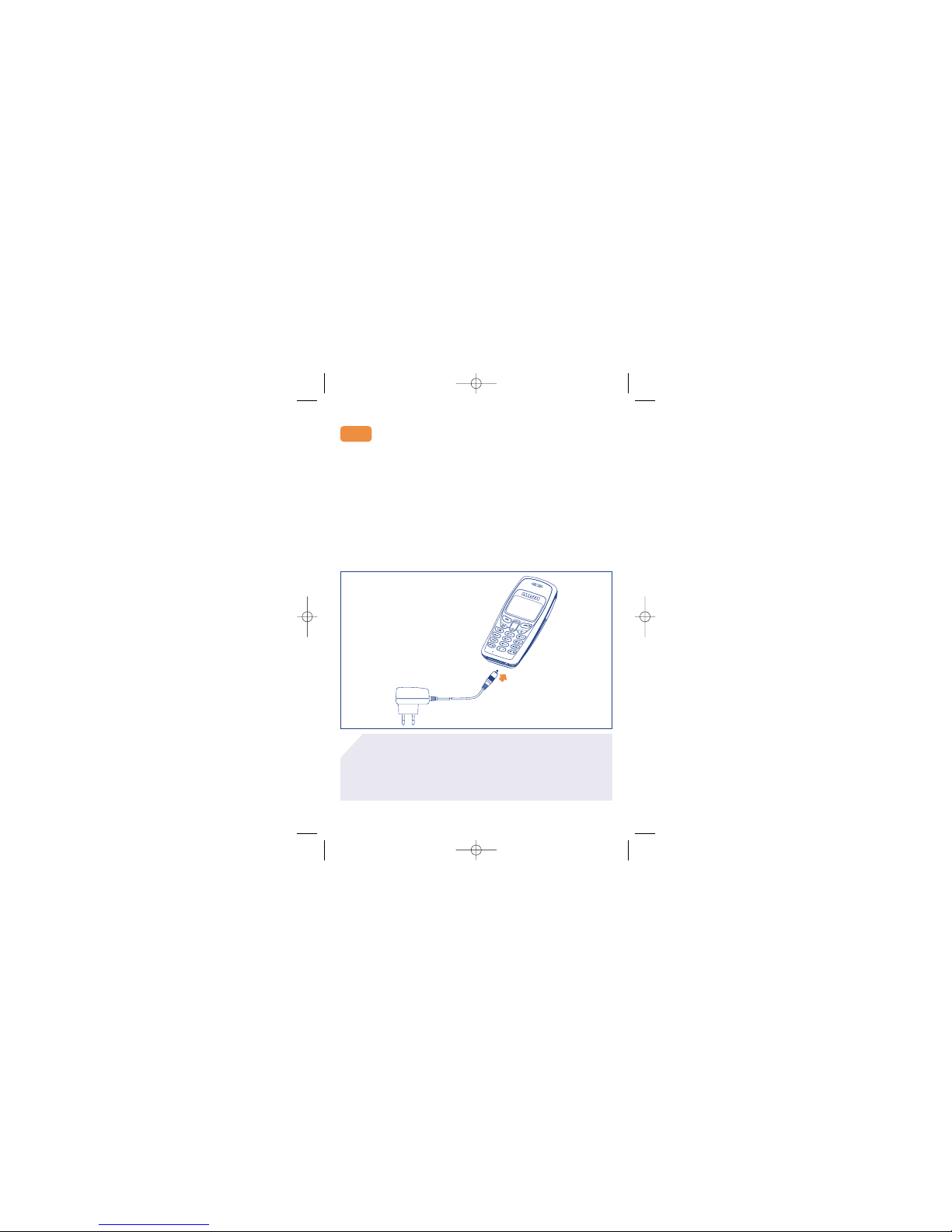

To connect the charger to the phone:
1. Install the battery (see instructions above).
2. Connect the charger to the phone as shown.
3. Be careful not to force the plug into the socket.
. Use ONLY the charger that is supplied with your mobile phone.
5. Do not remove your battery or SIM card while charging.
6. The main socket must be close to the phone and easily accessible.
Charger
2.2
If you are charging an empty battery, the screen will take a
little while before displaying the charging icon.
For optimal functioning of your telephone, we recommend
that you charge the battery once a day.
The chargers designed for your mobile phone meet with the
standard for safety of information technology equipment.
They should be used for this purpose only.
!
XG1_GB_20/11 21/11/02 06:44 Page 13

14
1- Press the key to switch on the phone.
2- When prompted, “Enter PIN code”.
Enter PIN code
SOS
Enter PIN code
****
OK
Switching your telephone on
2.3
3- Key in the PIN code provided with your SIM
card.
- Press .
PIN and PIN2 (4 to 8 digits)
A PIN (Personal Identification Number) code is supplied to
your phone and the SIM card by network providers. With your
SIM card inserted, your PIN code will be required every time
you switch on your phone. If a wrong PIN code is entered
three consecutive times, the phone becomes locked or
disabled. You must ask your network operator for the PUK
code to unlock or re-enable the code. A PIN2 code is used
for other functions, such as Fixed dialing (FDN) and Call
barring.
PUK and PUK2 (8 digits)
To enable a locked PIN code, the PUK (Personal Unblocking
Key) code is required. Check with your network provider
operator for the code.
!
Switching your telephone off
2.4
Press the key from the main screen (long keypress) to switch the
telephone off.
XG1_GB_20/11 21/11/02 06:44 Page 14

15
Call 3
3
Key in the telephone number and the prefix, and press (“Call”).
Or, if you have created contacts in the directory (See Directory menu,
page 2 ), access the phone directory by pressing the key, select the
name or number with , then press (“Call”).
The telephone will vibrate as soon as your correspondent answers your
call.
Making a call
3.1
A ring tone is heard upon receiving a call, press (“Accept”) to
answer it.
Press (“End”) to end the call.
If the “Anykey answer” is activated, press any key to answer the call
except the key.
Answering/Ending a call
3.2
XG1_GB_20/11 21/11/02 06:44 Page 15

16
To access your voice mail to listen to your voice messages.
Press (long keypress)
You must first input your Voice Mail number from “Menu/Messages/Set
up/VoiceMail #”. (See page 29)
Call your Voice Mail ( )
3.3
Emergency Calls (SOS)
If your phone is covered by the network, dial 112 to make an emergency
call or any other number provided by your operator.
Call Memory (Redial)
Press to access the numbers. Use to select the number you
wish to redial. And press the (“Send”) key. (See page 39)
Flash Dial
Press keys to (long keypress) from an idle screen to call
directly the number associated to the key (this is possible if you have
programmed the key in the “Menu/Extra/Keypad/Flash Dial”.
Swap between calls
Press the (“Hold”) key to put a current call on hold while you make
another call. When the second call is connected, press the again
(“Swap”) to switch between the two calls.
Other call options
3.4
XG1_GB_20/11 21/11/02 06:44 Page 16

Available options during a call
3.5
17
Conference Call (1)
Several people can be connected together at one time.
1. The first caller makes the call.
2. Press (“Accept”) to answer the call. A second call arrives, press
the (“Hold”) key to accept the call and put the current call on
hold.
3. Press and press .
. Repeat Step 2 and 3 to allow other callers to be connected.
5. Press (“End”) to end the call.
A call can be connected to any single caller by pressing and
and disconnected by simply pressing and .
To access available options during a call, press .
Volume
Adjust the volume
End active
End a current call
End Hold
End call put on hold
(1) Check the availability of this service with your operator.
!
XG1_GB_20/11 21/11/02 06:44 Page 17

18
End one of Conference (End 1 of Conf)
End one of the conference calls
Handsfree
Activate/deactivate the handsfree mode.
Caution: move the handset away from your ear before activating this
mode because the amplified volume could cause hearing damage.
During a call, you can directly activate the handsfree mode by a long press
on key.
Conference
Add one call to the conference
Names
Access your directory list
Call Memory
Access your call memory
Send Msg
Write and send a short message
Services
Access to your operators’ services (1)
(1) Check the availability of this service with your operator.
!
XG1_GB_20/11 21/11/02 06:44 Page 18
