BH50
Bluetooth Headset
User Guide
Contents
Product Specifications
BH50 Overview
Getting Started
Charging Your Headset
Pairing Your Headset with a Bluetooth Mobile Phone
Using Your Headset
Factory Reset
Troubleshooting
Safety Information
Declaration of Conformity
Guarantee
Product Specifications
Bluetooth Specification: V3.0 with V2.1 EDR features, Class 2
Bluetooth Profiles Supported: Headset & Handsfree

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
Range of Frequency: 2.4GHz spectrum
Nominal Charging Time: Within 30minutes
Talk Time*: Up to 6 hours
Standby Time*: Up to 270 hours
Dimensions: 55 (L) x 16.4 (W) x 9.2 (T) mm
Weight: 8.5 grams
Operating temperature range: -20Ԩto 55Ԩ
Storage temperature range: -30Ԩto 70Ԩ
* may vary due to the user’s habit, different modes of operation, and mobile phone
settings.
BH50 Overview

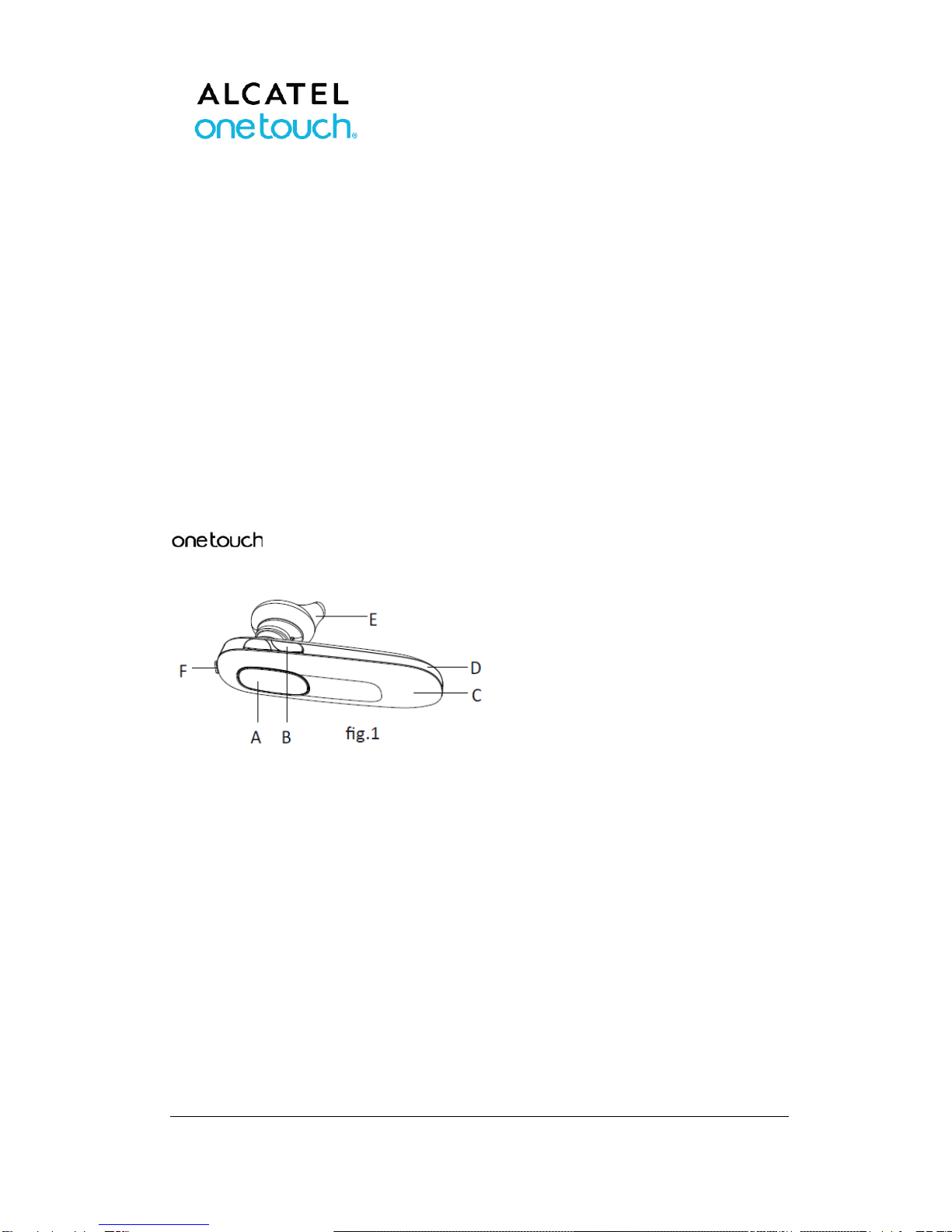

A. Multi-function Button (MFB)
• Power On / Off
• Pair with mobile phone
• Answer / End a call
• Reject / Transfer a call
B. Volume
• Adjust volume
C. Status Indicator
D. Microphone
E. Speaker
F. Micro USB Charging Socket

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
Getting Started
To use your BH50 Bluetooth headset (“headset”), please follow the
steps below:
1. Ensure your headset is fully charged and power on.
2. Pair your charged headset with a Bluetooth-enabled mobile phone.
Charging Your Headset
The headset comes with a built-in rechargeable battery. Prior to using the headset for
the first time, it is recommended to fully charge the battery.
Insert the microUSB tip into the headset’s charging socket (see fig.2) and plug the
charger into the charging socket or USB charging cable into PC/notebook.
Use only the charger / USB charging cable in the package to charge the headset.
Indicator Light
Headset Status Status Indicator Light (fig.1)
‧Standby Mode (Operating)
‧Standby Mode (Out of Range)
‧Off Mode Charging
‧Off Mode Fully Charged
‧Standby Mode Charging
‧Flashing Blue
‧Flashing PURPLE 4 times each 15 sec
until reconnect (after 10mins without
connection, headset turns off)
‧Solid Red
‧Solid Blue
‧Flashing PURPLE with RED LED on

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
‧Standby Mode Fully Charged
‧Low battery
‧Out of battery
‧Flashing Blue
‧Flashing Red
‧The light turns off
♦Charging indication will be delayed for a few seconds if the headset has not been
used for a long time or the battery is drained.
Talk and Standby Time
A fully charged battery can offer up to 6 hours of talk time and up to 270 hours of
standby time. The headset remains in standby mode after being turned on.
Pairing Your Headset with a Bluetooth Mobile Phone
1) Ensure the headset is off.
2) To activate the pairing mode, press and hold the headset’s MFB without releasing
your finger until its status indicator flashes red/blue.
3) Activate your mobile phone’s Bluetooth, search Bluetooth devices, select
“BH50” and enter the passcode “0000”. When the pairing is completed,
the headset’s status indicator will flash blue light rapidly five times.
If the pairing cannot be completed within three minutes after the pairing mode has
been activated, the headset’s status indicator will flash purple 5 times and then turns to
standby mode. Repeat steps 1 to 3 to pair the devices again.
Using your headset
Function Button Audio Status indictor
POWER ON Press and hold the
MFB
a short beep Flashing blue light
3 times
When you turn on your headset for the first time, the headset proceeds into pairing
mode, i.e. the status indicator flashes red and blue alternately, so that you can
immediately pair it with your mobile phone.
POWER OFF Press and hold the
MFB until the
LED turns
red
a long beep Red light for six
seconds and then
the light goes off
Incoming call Ringtone on
earphone
Quick flashing
purple light

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
Answer a call Press the MFB
once
Flashing blue light
End a call Press the MFB
once
Flashing blue light
Adjust Volume Press the volume
control button to
turn volume up or
down
Flashing blue light
Voice Dialing* Press the MFB
once
a short beep Flashing blue light
Say the voice tag as soon as you hear the short beep and you must have recorded the
voice tag into your mobile phone.
Last no. Redial* Double click the
MFB
Flashing blue light
Reject a call* Press and hold the
Volume Key for 2
seconds
a short beep Flashing blue light
Call Transfer
(headset to mobile
phone)*
While speaking,
press and hold the
volume Key for 2
seconds
Flashing blue light
Call Transfer
(mobile phone to
headset)*
While speaking,
press MFB once
Flashing blue light
* Subject to mobile support
Factory Reset
You may reset BH50 to its default settings. Resetting will also remove
the pairing history of your headset with the mobile phone.
1. Keep BH50 in “power on” mode
2. Remove the Bluetooth® connection to BH50on your phone or
other devices
3. Hold the button of “Volume up”, “Volume down” and “MFB” simultaneously

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
4. Headset will restart by flashing blue 3 times then goes into paring mode
automatically.
BH50 Bluetooth headset is designed to work with Alcatel Bluetooth
devices. Due to large variability between different Bluetooth devices from different
manufacturers, interoperability between the headset and non-Alcatel Bluetooth-enabled
products is not guaranteed.
Troubleshooting
I can hear crackling noise.
To receive the best audio quality, it is recommended to wear your headset on the same
side of the body as your mobile phone.
I can't hear anything in my headset.
• Ensure the headset is turned on and is properly charged.
• Ensure the headset is properly paired with the mobile phone.
• Ensure that the mobile phone is connected with the headset – if it does not
connect, either refer to the mobile phone's Bluetooth menu or by pressing the
MFB once (see “Using Your Headset” and “Pairing Your Headset with a
Bluetooth Mobile Phone”).
I can't connect my headset with my mobile phone.
• Ensure your headset is turned off and is properly charged.
• Ensure the headset is properly paired with your mobile phone.
• Ensure your mobile phone’s Bluetooth feature is activated. Please refer to your
mobile phone user guide for specific instruction.
• Ensure the headset is within ten meters range of your mobile phone and there
are no obstructions, such as walls or other electronic devices in between.
If the above steps do not solve your problem, please recharge the headset and remove
your mobile phone’s battery for a while.
Safety Information
• Check and observe local laws regarding the use of a mobile phone and a
headset while driving. If you use the headset while driving, ensure your full
attention and focus. It is your responsibility to drive safely. Consider to pull off
the road before making or answering a call.

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
• Never leave your headset above any air bag deployment area inside your car as
serious injury may result when an air bag deploys.
• Never allow children to play with the headset –small parts may be of
choking hazard.
• Observe all signs and displays that require an electrical device or RF radio
product to be switched off in designated areas. These could include hospitals,
blasting areas, and potentially explosive atmospheres.
• Turn off your headset prior to boarding an aircraft. Do not use your headset
inside an aircraft.
• ‧To prevent damage to your hearing, please do not set the listening volume too
high.
• Do not attempt to modify the headset.
• Do not keep the headset near a wash basin or other wet places.
• Do not use the headset outdoors in the rain.
• Do not use the headset in stormy weather.
• Do not clean the headset while it is being charged. Always disconnect the
charger from the headset before cleaning.
• Do not attempt to force open the built-in battery.
• Only charge the headset’s built-in battery in accordance with the instructions
described in this user guide.
• Excessive sound pressure may harm your hearing.
Declaration of Conformity
Hereby, TCT Mobile Limited, declares that this product is in conformity with the
following essential requirements of Council Directive 1999/5/EC (referred
to as R&TTE Directive): Article 3.1a, 3.1.
Federal Communications Commission (FCC) Statement
BH50 complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s

All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Industry Canada (IC) statement
BH50 complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Guarantee
Your accessory is guaranteed against all manufacturing defects for six (6) months from
the date of purchase shown on your invoice. Nevertheless, if the legal warranty period
in force in your country exceeds six (6) months, the legal warranty alone shall be
applicable.
Hot Line Number: see “TCT Mobile Services” leaflet or go to our Internet site.
On our Internet site (www.alcatel-mobilephones.com), you will find our FAQ
(Frequently Asked Questions) section. You can also contact us by e-mail to ask any
questions you may have.
Alcatel is trademark of Alcatel-Lucent and is used under license by TCT Mobile
