Alcatel Onetouch Pixi 3 User manual

ALCATEL
one touch.
9007X
Quick Start Guide
Thank you for buying ALCATEL ONETOUCH 9007X.We hope
you will enjoy your high-quality communication experience.
You have purchased a product which uses the open source
(http://opensource.org/) programs mtd, msdosfs, netfilter/
iptables and initrd in object code and other open source
programs licensed under the GNU General Public License and
Apache License.
We will provide you with a complete copy of the corresponding
source codes upon request within a period of three years from
the distribution of the product by TCL Communication Ltd.
You may download the source codes from http://sourceforge.
net/projects/alcatel/files/. The provision of the source code is
free of charge from internet.
ALCATEL
English - CIBIBUOALAAA .

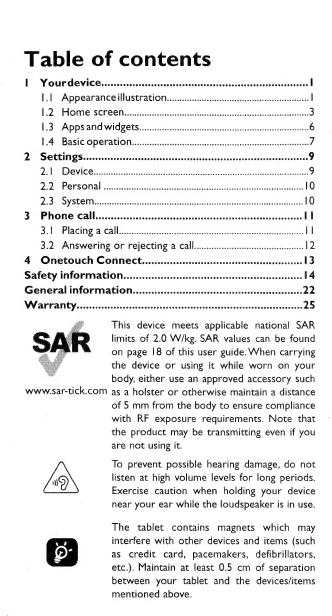

Table of contents
4
YOU GEVICE............ccccccsceseecececesecseccccesscssssscsssssesscsssseseee L
1.1 Appearanceillustration
12: HHOMeE:SCreeii aia dtichensctinubieieti onl dadegintets
1.3 Appsand Widgets............cssscssssssssessssosssssssssssssssssssssesseessseeeses
1.4 Basic Operation... eecssssscscessscsctesssssssscessssssessesecesetsoneensorse 7
:
SECIS S ss iciinitent sce osianetwsecsicatenavetininclanceuaienseee
2.1 Device
2.3 System
PHONG: Calls iasisteiisdisicsiteanseesteertamaienieteeeaiell
Bek Placing a: Call sspsccssessssevessisceiaisanssinciansuabsanorashennenrsnduilya uecietonds VI
3.2 Answering or rejecting a Call... essseenecseeeeneens i2
Onetouch Connect..........cccccsssscersssssersssseesscsssesseree AD
Safety information..........cscccesscsserscssscscssssscssscssecccesseree 1A
General information............ccccccccccsssscscscscssscsenssercssccsee 22
WALANEY <.csesckeescdecsesesedssescgansdeaccseesanaucassceosdnassceeccedeeaceecss 20)
This device meets applicable national SAR
limits of 2.0 W/kg. SAR values can be found
on page 18 of this user guide. When carrying
the device or using it while worn on your
body, either use an approved accessory such
www.sar-tick.com as a holster or otherwise maintain a distance
of 5 mm from the body to ensure compliance
with RF exposure requirements. Note that
the product may be transmitting even if you
are not using it. .
To prevent possible hearing damage, do not
/d\ listen at high volume levels for long periods.
Exercise caution when holding your device
near your ear while the loudspeaker is in use.
The tablet contains magnets which may
interfere with other devices and items (such
& as credit card, pacemakers, defibrillators,
etc.). Maintain at least 0.5 cm of separation
between your tablet and the devices/items
mentioned above.

: Your device
i.1 Appearance illustration
ALCATEL
onetouch
eet

Inserting the micro SIM card & the microSD card
To avoid damage, insert your SIM and microSD card in the correct
direction. Refer to the instructions given below.
Note
Charge the device before using it for the first time. Press and hold
the Power key to turn on the device. After starting up, the Home
screen appears. When the device is low on power, a battery icon will
appear on the screen, indicating that you should charge the device.
Only use the charger recommended by TCL Communication Ltd.
and its affiliates.
This device can't be charged through a USB computer connection.

1.2 Home screen
Your device includes three pages of Home screen giving you
more space to add your own favourite apps, folders, and
widgets for one-touch access. To switch between screens,
sliding your finger to left or right.
1.2.1 Lock/Unlock your screen
Once your device is powered on, it shows a locked screen
interface, which is set as default.
Press and slide up the locked screen to unlock, slide left to
access camera, or slide right to access phone call interface.

1.2.2 Icons on your screen
Status Bar
Gaogle Search Voice Actions
All Apps
Home
Back Recent apps
Google Touch it to access the Google search
Search engine.
Voice Use Voice Actions to watch a video, send
Actions email, set alarm, get directions, etc.
All Apps Touch to show all apps list interface.
Back Go back to the previous menu or screen.
Home Return to the Home screen.
Recent apps | Press to view recent apps.

Touch and drag down the Status bar to open the Quick settings
panel or Notification panel. Touch and drag up to close it.
Notification panel
When there are notifications, touch and drag down the Status
bar to open the Notification panel and read the detailed
information.
‘Touch to switch to the
Quick settings panel.
Touch to clear all event-based
notifications (other ongoing
otifications will remain).
Note: After opening
the Notification panel, you can touch
© switch to the Quick settings
panel, or drag down the Status bar again to access the
Quick settings panel.
Quick settings panel
Touch to close the
Quick settings panel and
Notification panel.
Touch to access Settings,
where you can set more
items.
You can enable or disable functions or change modes by
touching the icons on Quick settings panel.

Note: After touching [%] to close the Quick settings panel
and Notification panel, the en will display the user
information you have set in

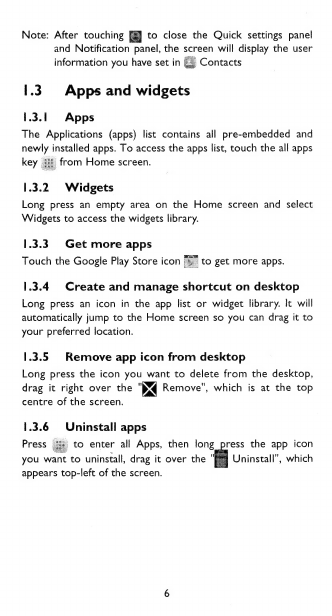

1.3 Apps and widgets
1.3.1 Apps
The Applications (apps) list contains all pre-embedded and
newly installed apps. To access the apps list, touch the all apps
key : from Home screen.
1.3.2 Widgets
Long press an empty area on the Home screen and select
Widgets to access the widgets library.
1.3.3 Get more apps
Touch the Google Play Store icon
to get more apps.
1.3.4 Create and manage shortcut on desktop
Long press an icon in the app list or widget library. It will
automatically jump to the Home screen so you can drag it to
your preferred location.
1.3.5 Remove app icon from desktop
Long press the icon you want to delete from the desktop,
drag it right over the "x Remove", which is at the top
centre of the screen.
1.3.6 Uninstall apps
Press to enter all Apps, then long
you want to uninstall, drag it over the '
appears top-left of the screen.
ess the app icon
Uninstall", which

1.4 Basic operation
1.4.1 Power on your device
Press and hold the Power key until the tablet powers on. It will
take a few seconds before the screen lights up.
1.4.2 Power off your device
* Press and hold the Power key about 3 seconds until
the options appear, select Power off to power off your
device.
* Press and hold the Power key about 10 seconds to shut
down your device.
1.4.3 Stand-by mode
Press Power key once to shut down the screen and the
product enters stand-by mode.
Note: Without operation, the product will enter stand-by
mode automatically. Press Power key once to wake it up.
1.4.4 Connecting to a computer via USB
When connecting your device to computer by USB, you can
transfer files between your device and the computer.
1.4.5 Change your wallpaper
Long press an empty area on the Home screen, then select
WALLPAPERS to set wallpaper.
You can also change your wallpaper from the Settings >
Display > Wallpaper, select an image, then touch Set
wallpaper.

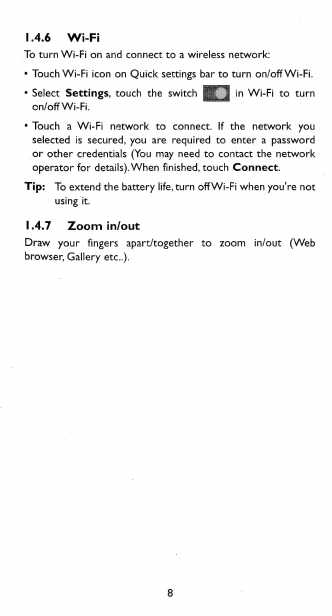

1.4.6 Wi-Fi
To turn Wi-Fi on and connect to a wireless network:
* Touch Wi-Fi icon on Quick settings bar to turn on/off Wi-Fi.
* Select Settings, touch the switch n Wi-Fi to turn
on/off Wi-Fi.
* Touch a Wi-Fi network to connect. If the network you
selected is secured, you are required to enter a password
or other credentials (You may need to contact the network
operator for details). When finished, touch Connect.
Tip: To extend the battery life, turn off Wi-Fi when you're not
using it.
1.4.7 Zoom in/out
Draw your fingers apart/together to zoom in/out (Web
browser, Gallery etc..).

2? Settings
2.1 Device
2.1.1 Sound&notification
You can set Volumes, Touch sounds and Screen locking
sounds to your preference with the Volume up/down key, or
touch Settings > Sound & notification.
2.1.2 Display
Touch Settings > Display, you can see the items:
¢ Brightness Adjust your screen in a comfortable
level brightness.
¢ Adaptive Slide to enable optimise brightness level for
brightness —_ available light.
¢* Wallpaper — Set your wallpaper.
¢ Sleep Set Screensavers time.
* Daydream — Select an animation effect shows in standby
status.
* Font size Select a suitable font size for your tablet.
¢ When device Set to turn the tablet sideways or upright to
is rotated adjust the Onscreen Keyboard orientation.
2.1.3 Storage
Touch Settings > Storage to view the memory using status.
2.1.4 Battery
Touch Settings > Battery to check the battery power and
its service status.
2.1.5 Apps
Touch Setting > APPs to check the APP status.

2.2 Personal
2.2.1 Language & input
Touch Settings > Language & input to view or set system
language and input methods.
* Language Set the system language.
* Keyboard & input Check and select all the input methods
methods installed in the tablet.
2.2.2. Backup & reset
You can back up settings and other data associated with one
or more of your Google accounts. If you need to replace or
factory reset your device, you can restore your data for any
accounts that were previously backed up.
Touch Settings > Backup & reset
Tips: Make sure that all the important data have been backed
up before you run factory data reset, for this function will erase
all apps and data that user installed.
2.3 System
2.3.1 Date & time
Touch Settings > Date & time, to set date, time and format.
2.3.2 About tablet
Touch Settings > About tablet to check legal information,
tablet status and software version, etc.

3 Phone call
3.1 Placing a call
You can make a call with the Call app. There are two methods
to access phone call interface as below:
* Touch and slide to the right on the lock screen to immediately
go into the call interface.
all apps key to enter all apps screen, then select
to access phone call interface.
Touch to display the keyboard. Enter the desired number
from the keyboard directly or select a contact from Contacts
or Recents by sliding or touching tabs, then touch %) to place
the call. The number you entered can be saved to People by
touching Add to Contacts.
To hang up a call, touch
Touch to get
more options.
Touch to show
dial pad.

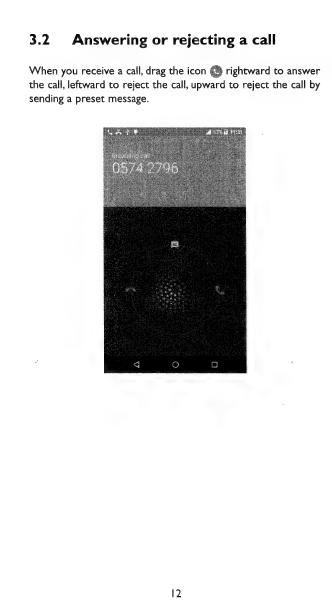

3.2 Answering or rejecting a call
When you receive a call, drag the icon ©} rightward to answer
the call, leftward to reject the call, upward to reject the call by
sending a preset message.

4 Onetouch Connect
By connecting your tablet to your phone, you will be able to
call, access contacts and send messages from your tablet. Follow
below steps to finish the Onetouch Connect connection.
|. Install the Onetouch Connect app on your phone first, then
open this app.
2. Open the Onetouch Connect |, on your tablet and touch
SETUP, then touch SEARCHING to search your phone
to pair.
3. Connected successfully, now you can call ‘ss, access contacts -
4. Also you can share the network from your phone by
touching

Safety information
We recommend that you read this chapter carefully before using
your device. The manufacturer disclaims any liability for damage,
which may result as a consequence of improper use or use contrary
to the instructions contained herein.
¢ TRAFFIC SAFETY
Given that studies show that using a device while driving a vehicle
constitutes a real risk, even when the hands-free kit is used (car kit,
headset...), drivers are requested to refrain from using their device
when the vehicle is not parked.
When driving, do not use your device or headphone to listen
to music or to the radio. Using a headphone can be dangerous
and forbidden in some areas. When switched on, your device
emits electromagnetic waves that can interfere with the vehicle’s
electronic systems such as ABS anti-lock brakes or airbags. To
ensure that there is no problem:
- Do not place your device on top of the dashboard or within an
airbag deployment area,
- Check with your car dealer or the car manufacturer to make sure
that the dashboard is adequately shielded from device RF energy.
¢ CONDITIONS OF USE
You are advised to switch off the device from time to time to
optimize its performance.
Switch the device off before boarding an aircraft.
Switch the device off when you are in healthcare facilities, except
in designated areas. As with many other types of equipment now
in regular use, these devices can interfere with other electrical or
electronic devices, or equipment using radio frequencies.
Switch the device off when you are near gas or flammable liquids.
Strictly obey all signs and instructions posted in a fuel depot,
petrol station, or chemical plant, or in any potentially explosive
atmosphere.
When the device is switched on, it should be kept at least 15 cm
from any medical device such as a pacemaker, a hearing aid or
insulin pump, etc. In particular when using the device, you should
hold it against the ear on the opposite side to the device, if any.
14

To avoid hearing impairment, move the device away from your ear
while using the "hands-free" mode because the amplified volume
might cause hearing damage.
Do not let children use the device and/or play with the device and
accessories without supervision.
Please note that your device is a unibody device, the back cover
and battery are not removable. Do not attempt to disassemble your
device. If you disassemble your device the warranty will not apply.
Also disassembling the device may damage the battery, and may
cause leakage of substances that could create an allergic reaction.
Always handle your device with care and keep it in a clean and
dust-free place.
Do not allow your device to be exposed to adverse weather or
environmental conditions (moisture, humidity, rain, infiltration
of liquids, dust, sea air, etc.). The manufacturer's recommended
operating temperature range is 0°C to +45°C.
At over 45°C the legibility of the device’s display may be impaired,
though this is temporary and not serious.
Do not open, dismantle or attempt to repair your device yourself.
Do not drop, throw or bend your device.
Do not use the device if the glass made screen is damaged, cracked
or broken to avoid any injury.
Do not paint it.
Use only battery chargers and accessories which are recommended
by TCL Communication Ltd. and its affiliates and are compatible
with your device model. TCL Communication Ltd. and its affiliates
disclaim any liability for damage caused by the use of other-chargers
or accessories.
Remember to make back-up copies or keep a written record of all
important information stored in your device.
Some people may suffer epileptic seizures or blackouts when
exposed to flashing lights, or when playing video games. These
seizures or blackouts may occur even if a person never had a
previous seizure or blackout. If you have experienced seizures or
blackouts, or if you have a family history of such occurrences, please
consult your doctor before playing video games on your device or
enabling a flashing-lights feature on your device.
15

Parents should monitor their children’s use of video games or other
features that incorporate flashing lights on the device.
All persons should discontinue use and consult a doctor if any of
the following symptoms occur: convulsion, eye or muscle twitching,
loss of awareness, involuntary movements, or disorientation. To
limit the likelihood of such symptoms, please take the following
safety precautions:
- Take a minimum of a 15-minute break hourly.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while playing,
stop and rest for several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after
playing, stop the game and see a doctor.
When you play games on your device, you may experience
occasional discomfort in your hands, arms, shoulders, neck, or
other parts of your body. Follow the instructions to avoid problems
such as tendinitis, carpal tunnel syndrome, or other musculoskeletal
disorders.
* PRIVACY
Please note that you must respect the laws and regulations in force
in your jurisdiction or other jurisdiction(s) where you will use
your device regarding taking photographs and recording sounds
with your device. Pursuant to such laws and regulations, it may be
strictly forbidden to take photographs and/or to record the voices
of other people or any of their personal attributes, and duplicate
or distribute them, as this may be considered to be an invasion
of privacy. It is the user's sole responsibility to ensure that prior
authorization be obtained, if necessary, in order to record private
or confidential conversations or take a photograph of another
person; the manufacturer, the seller or vendor of your device
(including the operator) disclaim any liability which may result from
the improper use of the device.
« BATTERY
Please note your tablet is a unibody device, the back cover and
battery are not removable. Observe the following precautions
for battery use:
- Do not attempt to open the back cover and replace the inner
rechargeable Li-polymer battery. Please contact the dealer to
replace it.
- Do not attempt to eject, replace and open battery.
- Do not punctuate the back cover of your device.
16

- Do not burn or dispose of your device in household rubbish or
store it at temperature above 50°C.
- Dispose of used batteries according to the instructions. Risk of
explosion if battery replaced by an incorrect type.
This symbol on your device, the battery and the
accessories means that these products must be taken
to collection points at the end of their life:
- Municipal waste disposal centers with specific bins for
MMMM these items of equipment.
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed
of in the environment, so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection
points.
In non-European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into
ordinary bins if your jurisdiction or your region has suitable
recycling and collection facilities; instead they are to be taken to
collection points for them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
« CHARGERS
Mains powered chargers will operate within the temperature range
of: 0°C to 40°C.
The chargers designed for your device meet with the standard for
safety of information technology equipment and office equipment
use. They are also compliant to the eco design directive 2009/125/
EC. Due to different applicable electrical specifications, a charger
you purchased in one jurisdiction may not work in another
jurisdiction. They should be used for this purpose only.
The charger shall be installed near the equipment and shall be
easily accessible.

* RADIO WAVES
Proof of compliance with international standards (ICNIRP) or with
European Directive 1999/5/EC (R&TTE) is required of all mobile phone
models before they can be put on the market. The protection of the
health ‘and safety for the user and any other person is an essential
requirement of these standards or this directive.
THIS DEVICE MEETS INTERNATIONAL. GUIDELINES FOR
EXPOSURE TO RADIO WAVES
Your device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves
(radio frequency electromagnetic fields). recommended by |
international guidelines. The guidelines were developed by
an independent scientific organisation (ICNIRP) and include
a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit
for mobile devices is 2 W/kg. ,
Tests for SAR are conducted using standard operating
positions with the device transmitting at its highest certified
power level in all tested frequency bands. The highest SAR
values under the ICNIRP guidelines for this device model are:
Maximum SAR for this model and conditions under which
it was recorded:
Head SAR LTE Band 3+Wi-Fi 1.485 W/kg
Body-worn LTE Band 3+Wi-Fi 1.734 Wikg
During use, the actual SAR values for this device are usually
well below the values stated above. This is because, for
purposes of system efficiency and to minimize interference
on the network, the operating power of your device is
automatically decreased when full power is not needed. The
lower the power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation
distance of 5 mm. To meet RF exposure guidelines during
body-worn operation, the device should be positioned at least
this distance away from the body.
18
