Alcor Micro AU9382 Product manual

AU9382
USB Flash Disk Controller
Technical Reference Manual
Revision 1.0
© 1997-2003 Alcor Micro Corp.
All Rights Reserved

Copyright Notice
Copyright 1997 - 2003
Alcor Micro Corp.
All Rights Reserved.
Trademark Acknowledgements
The company and product names mentioned in this document may be the trademarks or registered trademarks of their manufacturers.
Disclaimer
Alcor Micro Corp. reserves the right to change this product without prior notice.
Alcor Micro Corp. makes no warranty for the use of its products and bears no responsibility for any error that appear in this document.
Specifications are subject to change without prior notice.
Contact Information:
Web site: http://www.alcormicro.com/
Taiwan
Alcor Micro Corp.
4F-1, No 200 Kang Chien Rd., Nei Hu,
Taipei, Taiwan, R.O.C.
Phone: [phone]
Fax: [phone]
Santa Clara Office Los Angeles Office
2901 Tasman Drive, Suite 206 9400 Seventh St., Bldg. A2
Santa Clara, CA 95054 Rancho Cucamonga, CA 91730
USA USA
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]

TABLE OF CONTENTS i
Table of Contents
1.0 Introduction-------------------------------------------------------------------------------------- 1
1.1 Description---------------------------------------------------------------------------------- 1
1.2 Features-------------------------------------------------------------------------------------- 1
2.0 Application Block Diagram----------------------------------------------------------------- 3
3.0 Pin Assignment-------------------------------------------------------------------------------- 5
4.0 System Architecture and Reference Design----------------------------------------- 7
4.1 AU9382 Block Diagram------------------------------------------------------------------ 7
4.2 Sample Schematics------------------------------------------------------------------------ 8
5.0 Electrical Characteristics------------------------------------------------------------------- 9
5.1 Recommended Operating Conditions------------------------------------------------- 9
5.2 General DC Characteristics ------------------------------------------------------------ 9
5.3 DC Electrical Characteristic for 3.3 volts operation ------------------------------- 9
5.4 Crystal Oscillator Circuit Setup for Characteristics ------------------------------ 10
5.5 ESD Test Results -------------------------------------------------------------------------- 11
5.6 Latch-Up Test Results ------------------------------------------------------------------- 12
6.0 Mechanical Information---------------------------------------------------------------------- 15
7.0 Appendix----------------------------------------------------------------------------------------- 17
7.1 48-PIN LQFP Pin Assignment -------------------------------------------------------------- 17
7.2 Pin Descriptions ----------------------------------------------------------------------------- 18
7.3 Schematics ---------------------------------------------------------------------------------- 20

TABLE OF CONTENTS i

INTRODUCTION 1
1.0 Introduction
1.1 Description
The AU9382 is a highly integrated single chip USB flash disk controller. It provides the most
cost effective bridge between USB enabled PC and NAND type flash memory. AU9382 can
be used as a removable storage disk in enormous data exchange applications between PC,
Macintosh, laptop and workstation. It can also be configured as a bootable disk for system
repairing .
AU9382 works with 2 NAND type flash memory chips with the combination of popular flash
memory types such as 8M, 16M, 32M, 64M and 128M. Additional features include write
protection switch, activity LED and password-protected security .
AU9382 integrates 48MHz PLL, 3.3V regulator, power on reset circuit and a power switch
for flash memory power control.
1.2 Features
 Fully compliant with USB v1.1 specification and USB Device Class Definition for
Mass Storage, Bulk-Transport v1.0
 Work with default driver from Windows ME, Windows 2000, Windows XP, Mac
OS 9.1, and Mac OS X. Windows 98se is supported by vendor driver from Alcor.
 Multiple FIFO implementation for concurrent bus operation
 Supports 2 pieces NAND type Flash memory chips; total capacity reaches to 512 M
byte when working with 2G bit mono dies chip.
 Support mixed different size combination of NAND type flash chips.
 Vendor ID, product ID and strings can be customized by utility software provided by
Alcor Micro
 Can be configured to support dual partitions with dynamic logic disk space
allocation.
 Can be configured as “removable” or “HDD” type disk by utility software as
customers’ requirement.
 Security function supported with password protection
 LED for bus activity monitoring
 Runs at 12MHz, built-in 48 MHz PLL
 Built-in 3.3V regulator
 Built-in power switch and power management circuit to achieve 500uA suspend
current required by USB specification.
 Built-in power on reset circuit

INTRODUCTION 2
 Dedicated DMA engine to ensure highest throughput in read and write
 Packed in 28-pin SSOP form.

2.0 Application Block Diagram
Following is the application diagram of a typical flash disk product with AU9382. By
connecting the flash disk to a desktop or notebook PC through USB bus, AU9382 is
implemented as a bus-powered, full speed USB disk, which can be used as a bridge for data
transfer between Desktop PC and Notebook PC.
PC with USB Host Controller
PC with USB Host Controller
Notebook with USB Host Controller
APPLICATION BLOCK DIAGRAM 3

APPLICATION BLOCK DIAGRAM 4

3.0 Pin Assignment
The AU9382 is packed in 28-pin SSOP form factor. The figure on the following page shows
the signal names for each of the pins on the chip. Accompanying the figure is the table that
describes each of the pin signals.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
Alcor Micro
AU9382
28-pin SSOP
LED
FMWPN
VCC2FM
VCC5V
VCCIO
USB_DM
USB_DP
GNDIO
FMWRN
FMALE
XTAL1
XTAL2
VCCA
GND VCCK
FMCLE
FMCE1N
FMCE2N
FMRDN
FMRBN
FMDATA4
FMDATA5
FMDATA6
FMDATA7
FMDATA0
FMDATA1
FMDATA2
FMDATA3
PIN ASSIGNMENT 5

PIN ASSIGNMENT 6
Table 3-1. Pin Descriptions
Pin No. Pin Name Pin Type Description
1 LED O General Purpose Out, used as activity LED.
2 FMWPN I
Flash memory write protect. Connected to on board flash memory write protect
switch. 0: write protected, 1: no write protection.
3 VCC2FM PWR Flash memory power supply, 3.3V. Connect to Flash Memory Vcc.
4 VCC5V PWR 5V power supply from USB connector.
5 VCCIO PWR
Internally regulated 3.3V power supply output. It is used to pull up USB_DP
externally, as well as being the power supply for VCCK and VCCA.
6 USB_DM I/O USB D-.
7 USB_DP I/O USB D+.
8 GNDIO PWR I/O Ground.
9 FMWRN O Flash Memory Write Enable. 0: write enabled, 1: write disabled.
10 FMALE O Flash Memory Address Latch Enable. 0: address latch closed, 1: address latch open.
11 XTAL1 I Crystal Oscillator Input (12MHz).
12 XTAL2 O Crystal Oscillator Output (12MHz).
13 VCCA PWR Analog 3.3V input.
14 GND PWR Ground.
15 VCCK PWR Core 3.3V Input.
16 FMCLE O
Flash Memory Command Latch Enable. 0: command latch closed, 1: command
latch open.
17 FMCE1N O Flash Memory Chip1 Enable. 0: disable, 1: enable.
18 FMCE2N O Flash Memory Chip2 Enable. 0: disable, 1: enable.
19 FMRDN O Flash Memory Read Enable. 0: read enable, 1: read disable.
20 FMRBN I Flash Memory Ready/Busy. 0: busy, 1: ready.
21 FMDATA4 I/O Flash Memory Data4.
22 FMDATA5 I/O Flash Memory Data5.
23 FMDATA6 I/O Flash Memory Data6.
24 FMDATA7 I/O Flash Memory Data7.
25 FMDATA0 I/O Flash Memory Data0.
26 FMDATA1 I/O Flash Memory Data1.
27 FMDATA2 I/O Flash Memory Data2.
28 FMDATA3 I/O Flash Memory Data3.

4.0 System Architecture and
Reference Design
4.1 AU9382 Block Diagram
Alcor Micro - AU9382 Flash Memory Card Reader Block Diagram
FM control
& FIFO
USB
SIE
USB
Upstream
Port
XCVR
USB
FIFO
3.3 V
Voltage
Regulator
& Power off
3.3 V
RAM
Processor
ROM
12MHz
XTAL
Support up to 2
Flash Memory
Suspend
SYSTEM ARCHITECTURE AND REFERENCE DESIGN 7

4.2 Sample Schematics
FMCE1N
FMALE
FMCLE
FMWRN
A
11Tuesday, May 13, 2003
1.00
Au9382 Flash disk demostration schematics
Size Document Number Rev
Date: Sheet of
R4 330
U1
Au9382 28pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
LED
FMWPN
VCC2FM
VCC5V
VCCIO
USB_DM
USB_DP
GNDIO
FMWRN
FMALE
XTAL1
XTAL2
VCCA
GND VCCK
FMCLE
FMCE1N
FMCE2N
FMRDN
FMRBN
FMDATA4
FMDATA5
FMDATA6
FMDATA7
FMDATA0
FMDATA1
FMDATA2
FMDATA3
R1
1.5K
FMCE2N
U2
K9F5608U0A-YCB0
29
30
31
32
41
42
43
44
6
13
36
12
37
7
8
9
16
17
18
19
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
GND
VSS
VSS
VCC
VCC
R/B
RE
CE
CLE
ALE
WE
WP
FMRBN
C1
1UF
FMDATA[0..7]
XTAL2
VCC2FM
R3
1M
VCC2FM
FMRDN
LED
CB2
0.1UF
FMCLE
J1
1
2
3
4
5
VCC
DATA-
DATA+
GND
FGND1
FMCE2N
FMRDN
XTAL2
CB1
0.1UF
FMCE1N
D1
R2
47K
VCC2FM
FMALE
FMRBN
Disclaimer: This schematic is for reference only.
Alcor Micro Corp. makes no warranty for the use of its
products and bears no responsibility for any error that
appear in this document. Specifications are subject to
change without notice.
C2
1UF
FMWPN
C4 18PF
VCC3.3
FMRBN
FMRDN
VCC2FM
VCC3.3
VCC2FM
FMCLE
XTAL1
SW1
2
1
3
FMWRN
VCC
VCC
VCC3.3
Y1
12MHZ
FMDATA[0..7]
VCC2FM
VCC3.3
FMWPN
C3 18PF
LED
XTAL1
FMWRN
VCC3.3
FMALE
U3
K9F5608U0A-YCB0
29
30
31
32
41
42
43
44
6
13
36
12
37
7
8
9
16
17
18
19
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
GND
VSS
VSS
VCC
VCC
R/B
RE
CE
CLE
ALE
WE
WP
SYSTEM ARCHITECTURE AND REFERENCE DESIGN 8

ELECTRICAL CHARACTERISTICS 9
5.0 Electrical Characteristics
5.1 Recommended Operating Conditions
SYMBOL PARAMETER MIN TYP MAX UNITS
VCC Power Supply 4.75 5 5.25 V
VIN Input Voltage 0 VCC V
TOPR Operating Temperature 0 85 OC
TSTG Storage Temperature -40 125
OC
5.2 General DC Characteristics
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IIL Input low current no pull-up or pull-down -1 1 µA
IIH Input high current no pull-up or pull-down -1 1 µA
IOZ Tri-state leakage current -10 10 µA
CIN Input capacitance 5 ρF
COUT Output capacitance 5 ρF
CBID Bi-directional buffer capacitance 5 ρF
5.3 DC Electrical Characteristics for 3.3 volts operation
SYMBO
L
PARAMETER CONDITIONS MIN TYP MAX UNITS
VIL Input Low Voltage CMOS 0.9 V
VIH Input Hight Voltage CMOS 2.3 V
VOL Output low voltage IOL=4mA, 16mA 0.4 V
VOH Output high voltage IOH=4mA,16mA 2.4 V
RIInput Pull-up/down resistance Vil=0V or Vih=VCC 10k/200k KΩ

ELECTRICAL CHARACTERISTICS 10
5.4 Crystal Oscillator Circuit Setup for Characterization

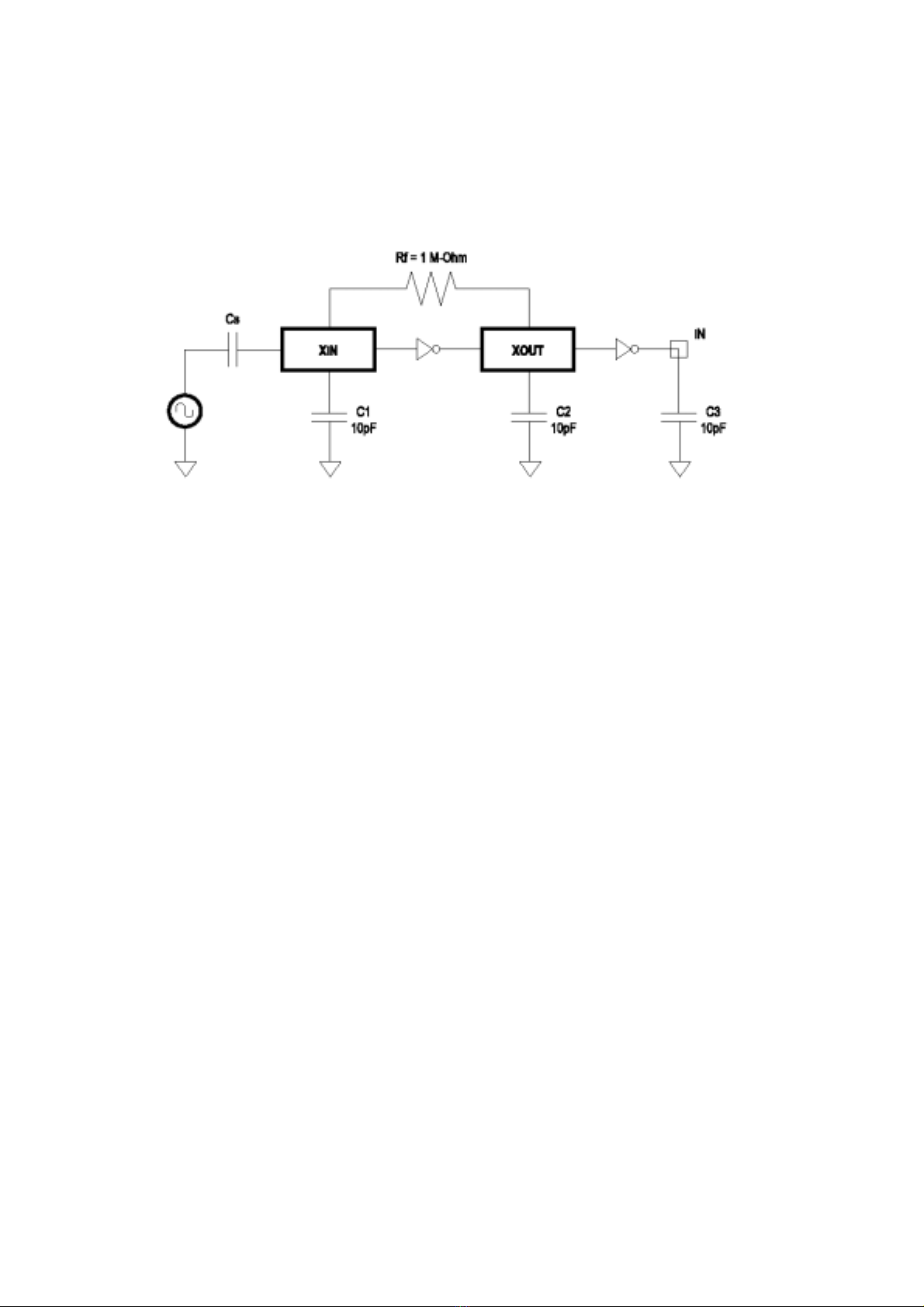

The following setup was used to measure the open loop voltage gain for crystal oscillator
circuits. The feedback resistor serves to bias the circuit at its quiescent operating point and
the AC coupling capacitor, Cs, is much larger than C1 and C2.

ELECTRICAL CHARACTERISTICS 11
5.5 ESD Test Results

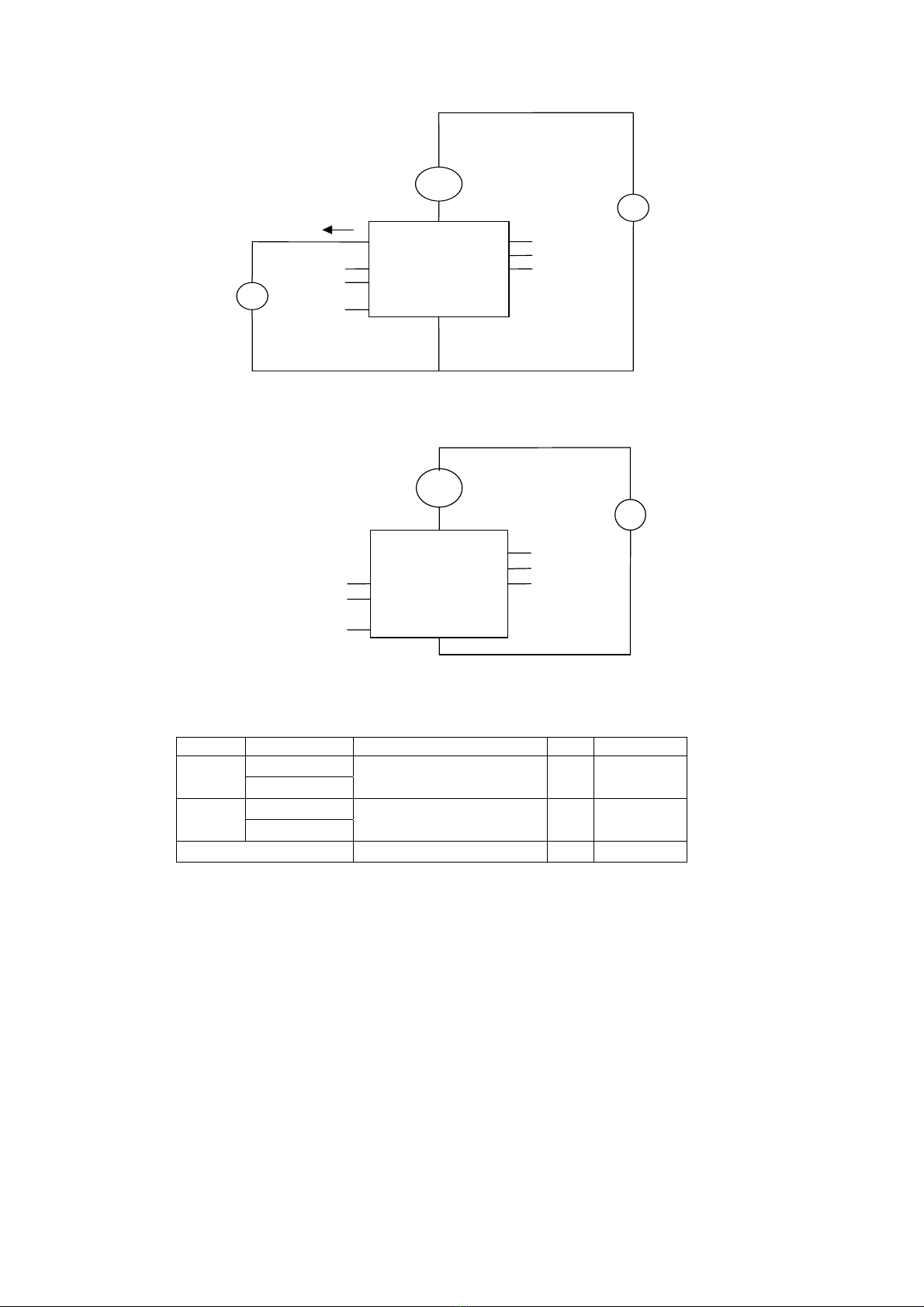

Test Description : ESD Testing was performed on a Zapmaster system using the Human-
Body –Model (HBM) and Machine-Model (MM), according to MIL_STD 883 and EIAJ
IC_121 respectively.
 Human-Body-Model stress devices by sudden application of a high voltage supplied
by a 100 PF capacitor through 1.5 Kohm resistance.
 Machine-Model stresses devices by sudden application of a high voltage supplied by a
200 PF capacitor through very low (0 ohm) resistance
Test circuit & condition
 Zap Interval : 1 second
 Number of Zaps : 3 positive and 3 negative at room temperature
 Critera : I-V Curve Tracing
Model Model S/S TARGET Results
HBM Vdd, Vss, I/C 15 4000V Pass
MM Vdd, Vss, I/C 15 200V Pass

ELECTRICAL CHARACTERISTICS 12
5.6 Latch-Up Test Results
Test Description: Latch-Up testing was performed at room ambient using an
IMCS-4600 system which applies a stepped voltage to one pin per device with
all other pins open except Vdd and Vss which were biased to 5 Volts and
ground respectively.
Testing was started at 5.0 V (Positive) or 0 V(Negative), and the DUT was
biased for 0.5 seconds.
If neither the PUT current supply nor the device current supply reached the
predefined limit (DUT=0 mA , Icc=100 mA), then the voltage was increased
by 0.1 Volts and the pin was tested again.
This procedure was recommended by the JEDEC JC-40.2 CMOS Logic
standardization committee.
Notes:
1. DUT: Device Under Test.
2. PUT: Pin Under Test. Icc Measurement
Vcc
DUT
GND
Pin
under
m
Untested
Output Open
Circuit
Untested
Input Tied
to V supply
+
Trigger
Sourc
e
+
V Su
pp
l
y
1 Source
Test Circuit : Positive Input/ output Overvoltage /Overcurrent

ELECTRICAL CHARACTERISTICS 13
Vcc
DUT
GND
Pin
under
test
mA
Untested
Output Open
Circuit
Untested
Input Tied
to V supply
Trigger
Source
V Supply
+
+
Icc Measurement
Test Circuit : Negative Input/ Output Overvoltage /Overcurrent
1 Source
Vcc
DUT
GND
mA
Untested
Output Open
Circuit
All Input Tied
to V supply
V Supply
+
Icc Measurement
Supply Voltage test
Latch–Up Data
Model Model Voltage (v)/ Current (mA) S/S Results
+Voltage
-
11.0
11.0 5 Pass
+Current
-
200
200 5
Vdd-Vxx 9.0 5 Pass

MECHANICAL INFORMATION 14

MECHANICAL INFORMATION 15
6.0 Mechanical Information
Following diagram shows the dimensions of the AU9382 28-pin SSOP.

MECHANICAL INFORMATION 16
