Alcor AU9320 Product manual

AU9320
USB Compact Flash Card Reader
Technical Reference Manual
Revision 1.0
© 2000-2002 Alcor Micro Corp.
All Rights Reserved

Copyright Notice
Copyright 2000 - 2002
Alcor Micro Corp.
All Rights Reserved.
Trademark Acknowledgements
The company and product names mentioned in this document may be the trademarks or registered trademarks of their manufacturers.
Disclaimer
Alcor Micro Corp. reserves the right to change this product without prior notice.
Alcor Micro Corp. makes no warranty for the use of its products and bears no responsibility for any error that appear in this document.
Specifications are subject to change without prior notice.
Contact Information:
Web site: http://www.alcormicro.com/
Taiwan
Alcor Micro Corp.
4F-1, No 200 Kang Chien Rd., Nei Hu,
Taipei, Taiwan, R.O.C.
Phone: [phone]
Fax: [phone]
Santa Clara Office Los Angeles Office
2901 Tasman Drive, Suite 206 9400 Seventh St., Bldg. A2
Santa Clara, CA 95054 Rancho Cucamonga, CA 91730
USA USA
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]

TABLE OF CONTENTS i
Table of Contents
1.0 Introduction-------------------------------------------------------------------------------------- 1
1.1 Description---------------------------------------------------------------------------------- 1
1.2 Features-------------------------------------------------------------------------------------- 1
2.0 Application Block Diagram----------------------------------------------------------------- 3
3.0 Pin Assignment-------------------------------------------------------------------------------- 5
4.0 System Architecture and Reference Design----------------------------------------- 9
4.1 AU9320 Block Diagram------------------------------------------------------------------ 9
4.2 Sample Schematics------------------------------------------------------------------------ 10
5.0 Electrical Characteristics-------------------------------------------------------------------
11
5.1 Recommended Operating Conditions------------------------------------------------- 11
5.2 General DC Characteristics ------------------------------------------------------------ 11
5.3 DC Electrical Characteristic for 3.3 11
5.4 Crystal Oscillator Circuit Setup for Characteristics ------------------------------ 12
5.5 ESD Test Results -------------------------------------------------------------------------- 13
5.6 Latch-Up Test Results ------------------------------------------------------------------- 17
6.0 Mechanical Information---------------------------------------------------------------------- 23

TABLE OF CONTENTS i
This Page Intentionally Left Blank

INTRODUCTION 1
1.0 Introduction
1.1 Description
The AU9320 is a single chip integrated USB Compact Flash (CF) card reader controller. It
can be used as a removable storage disk in enormous data exchange applications between PC
and PC or PC and various consumer electronic devices.
The AU9320 can read of CF card’s contents created by handheld consumer electronic devices
such as digital camera, MP3 player, PDA and mobile phone.., etc. It provides a faster and
convenient way of data transfer scheme to meet the emerging need of a data exchange center
between PC and various consumer devices. With AU9320, users’ experience will be further
enhanced by the Plug-and-Play nature built into latest operation systems such as Windows XP
and MacOS X.
1.2 Features
 Fully compliant with USB v1.1 specification and USB Device Class Definition for
Mass Storage, Bulk-Transport v1.0
 Fully compliant with Compact Flash (CF) v1.4 Specification.
 Work with default driver from Windows ME, Windows 2000, Windows XP, Mac
OS 9.1, and Mac OS X. Windows 98 is supported by vendor driver from Alcor.
 Ping-pong FIFO implementation for concurrent bus operation
 Support multiple sectors transfer to optimize performance
 LED for bus activity monitoring
 Runs at 12MHz, built-in 48 MHz PLL
 Built-in 3.3V regulator
 64-pin LQFP package

INTRODUCTION 2
This Page Intentionally Left Blank

APPLICATION BLOCK DIAGRAM 3
2.0 Application Block Diagram
Following is the application diagram of a typical flash memory card reader using AU9320. By
connecting the reader to a PC through USB bus, the AU9320 is acting as a bridge between the
flash memory card from digital camera, MP3 player, PDA or mobile phone and PC.
PC with USB Host Controller
USB Flash
Card Reader
Moble Phones
PDA
MP3 Player
Digital Camera
CF Cards
PC

APPLICATION BLOCK DIAGRAM 4
This Page Intentionally Left Blank

PIN ASSIGNMENT 5
3.0 Pin Assignment
The AU9320 is packed in 64-LQFP form factor. The following figure shows signal name for
each pin and the table in the following page describes each pin in detail.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 23 24 25 26 27 28 28 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49505152535455565758596061626364
Reserved
Reserved
GPO6
GPO7
GPI0
GNDO
GNDI
VCCI5V
VCC3V
USB_DM
USB_DP
SUSPEND
TESTE0
Reserved
Reserved
Reserved
Reserved Reserved Reserved Reserved Reserved Reserved
GNDO
VCCO5V
Reserved Reserved Reserved Reserved Reserved Reserved Reserved
TEST1
TEST2
GNDK
VCCK5V
CFD3
CFD4
CFD5
CFD6
CFD7
OEN
IORDN
CFAD9
IOWRN
VCCO5V
GNDO
WEN
CFRESET
CFAD3
WAITN
CFAD2 CFAD1
REGN
CFAD0
CFD0 CFD1 CFD2
CFCDN
RSTN
GND0
VCCO5V
TEST3
XTAL1 XTAL2

PIN ASSIGNMENT 6
Table 3-1. Pin Descriptions
pin Name IO Type Discription
1 RESERVED NC
2 RESERVED NC
3 GPO6 O General Purpose Output
4 GPO7 O General Purpose Output, for LED activity
5 GPI0 I General Purpose I(*1)
6 GNDO PWR
7 GNDI PWR
8 VCCI5V PWR 5V input
9 VCC3V O Regulated 3.3V out
10 USB_DM I/O USB D-
11 USB_DP I/O USB D+
12 SUSPEND O
13 TEST0 I Should connect to GND
14 RESERVED NC
15 RESERVED NC
16 RESERVED NC
17 RESERVED NC
18 RESERVED NC
19 RESERVED NC
20 RESERVED NC
21 RESERVED NC
22 RESERVED NC
23 GNDO PWR
24 VCCO5V PWR
25 RESERVED NC
26 RESERVED NC
27 RESERVED NC
28 RESERVED NC
29 RESERVED NC
30 RESERVED NC
31 RESERVED NC
32 TEST1 I Should connect to GND
33 TEST2 I Should connect to VCC
34 GNDK PWR
35 VCCK5V PWR 5V power supply
36 CFD3 I/O Compact Flash Data 3
37 CFD4 I/O Compact Flash Data 4
38 CFD5 I/O Compact Flash Data 5
39 CFD6 I/O Compact Flash Data 6
40 CFD7 I/O Compact Flash Data 7
41 OEN O Compact Flash output enable
42 IORDN O Compact Flash I/O read signal
43 CFAD9 O Compact Flash address 9
44 IOWRN O Compact Flash I/O write signal
45 VCCO5V PWR 5V power supply

PIN ASSIGNMENT 7
46 GNDO PWR GND
47 WEN O Arribute write enable
48 CFRESET O Compact Flash reset signal
49 CFAD3 O Compact Flash address 3
50 WAITN I Compact Flash wait signal
51 CFAD2 O Compact Flash address 2
52 CFAD1 O Compact Flash address 1
53 REGN O REGN for attribute memory access
54 CFAD0 O Compact Flash address 0
55 CFD0 I/O Compact Flash data 0
56 CFD1 I/O Compact Flash data 1
57 CFD2 I/O Compact Flash data 2
58 CFCDN I Compact Flash card detect
59 RSTN I Hardware reset (Active Low)
60 GNDO PWR 5V Ground out put
61 VCCO5V PWR 5V Vcc out put
62 TEST3 Should connected to GND
63 XTAL1 I Crystal Oscillator Input(12MHz)
64 XTAL2 O Crystal Oscillator Output(12MHz)

PIN ASSIGNMENT 8
This Page Intentionally Left Blank

SYSTEM ARCHITECTURE AND REFERENCE DESIGN 9
4.0 System Architecture and
Reference Design
4.1 AU9320 Block Diagram
Alcor Micro - AU9320 Flash Memory Card Reader Block Diagram
USB
SIE
USB
Upstream
Port
XCVR
USB
FIFO
3.3 V
Voltage
Regulator
3.3 V
RAMProcessor ROM
12MHz
XTAL Reset
CF/IDE control
& FIFO CF/TDE BUS
DMA
Engine

SYSTEM ARCHITECTURE AND REFERENCE DESIGN 10
4.2 Sample Schematics
R8
1M
C12
0.1UF
CFAD1
R4 39
VCCO5V
CFAD3
WEN
U1
AU9320
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32 33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
RESERVED
RESERVED
GPO6
GPO7
GPI0
GNDO
GNDI
VCCI5V
VCC3V
USB_DM
USB_DP
SUSPEND
TESTENO
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
GNDO
VCCO5V
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
CPUTEST1 CPUTEST2
GNDK
VCCK5V
CFD3
CFD4
CFD5
CFD6
CFD7
OEN
IORDN
CFAD9
IOWRN
VCCO5V
GNDO
WEN
CFRESET
CFAD3
WAITN
CFAD2
CFAD1
REGN
CFAD0
CFD0
CFD1
CFD2
CFCDN
RSTN
GNDO
VCCO5V
PLLTEST
XTA L 1
XTA L 2 XTA L 2
GNDI
CFD1
ACTIVITY LED
CFAD0
R5
10K
VCC3.3
VCCI5V
F4
FB
C6
0.1UF
CFD6
A
11Wednesday , January 02, 2002
1.0a
AU9320 USB CF READER DEMO BOARD
Size Document Number Rev
Date: Sheet of
R2 470K
IORDN
GNDK
C10
0.1UF
REGN
GNDO
C8 18PF
VCC
TP
CFD6
GPO7
TP
WAITN
CFD4
XTA L 1
GNDO
F3FB
VCC
VCC
VCC
PLLTEST
R3 39
CFAD1
GNDO
OEN
VCC_UP
R1
1.5K
VCCK5V
CFD7
CFD0
CFD3
VCC_UP
Disclaimer: This schematic is for reference only.
Alcor Micro Corp. makes no warranty for the use of its
products and bears no responsibility for any error that
appear in this document. Specifications are subject to
change without notice.
VCC
CFD4
R7330
CFD0
VCC
CFAD9
IORDN
CFD5
XTA L 2
C1
0.1UF
CFD3
VCCO5V
CFCDN
OEN
CFCDN
VCC
CFD5
CFD7
R6
10K
TESTEN0
CFD1
WEN
VCC
F5
FB
VCC_UP
C7
0.1UF
CFD2
CFAD0
C2
10UF
C9 18PF
B TYPE CONNECTOR
INTRQ
CFAD3
GNDO
RSTN
VCC
CFD2
Y1
12MHZ
C3
1UF
TP
CFAD9
GPO7
JP1
CF CARD SOCKET
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
CFRESET
IOWRN
C5
0.1UF
C11
0.1UF
GNDI
CFAD2
GNDO
F2
FB
F1
FB
J1
1
2
3
4
5
VCC
DATA-
DATA+
GND
FGND1
CFRESET
VCCO5V
GNDO
C4
0.1UF
CFAD2
VCCO5VVCCI5V
VCCK5V
GNDK
XTA L 1
VCCO5V
D1
REGN
WAITN
IOWRN

ELECTRICAL CHARACTERISTICS 11
5.0 Electrical Characteristics
5.1 Recommended Operating Conditions
SYMBOL PARAMETER MIN TYP MAX UNITS
VCC Power Supply 4.75 5 5.25 V
VIN Input Voltage 0 VCC V
TOPR Operating Temperature 0 85 OC
TSTG Storage Temperature -40 125
OC
5.2 General DC Characteristics
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IIL Input low current no pull-up or pull-down -1 1 µA
IIH Input high current no pull-up or pull-down -1 1 µA
IOZ Tri-state leakage current -10 10 µA
CIN Input capacitance 5 ρF
COUT Output capacitance 5 ρF
CBID Bi-directional buffer capacitance 5 ρF
5.3 DC Electrical Characteristics for 3.3 volts operation
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIL Input Low Voltage CMOS 0.9 V
VIH Input Hight Voltage CMOS 2.3 V
VOL Output low voltage IOL=4mA, 16mA 0.4 V
VOH Output high voltage IOH=4mA,16mA 2.4 V
RIInput Pull-up/down resistance Vil=0V or Vih=VCC 10k/200k KΩ

ELECTRICAL CHARACTERISTICS 12

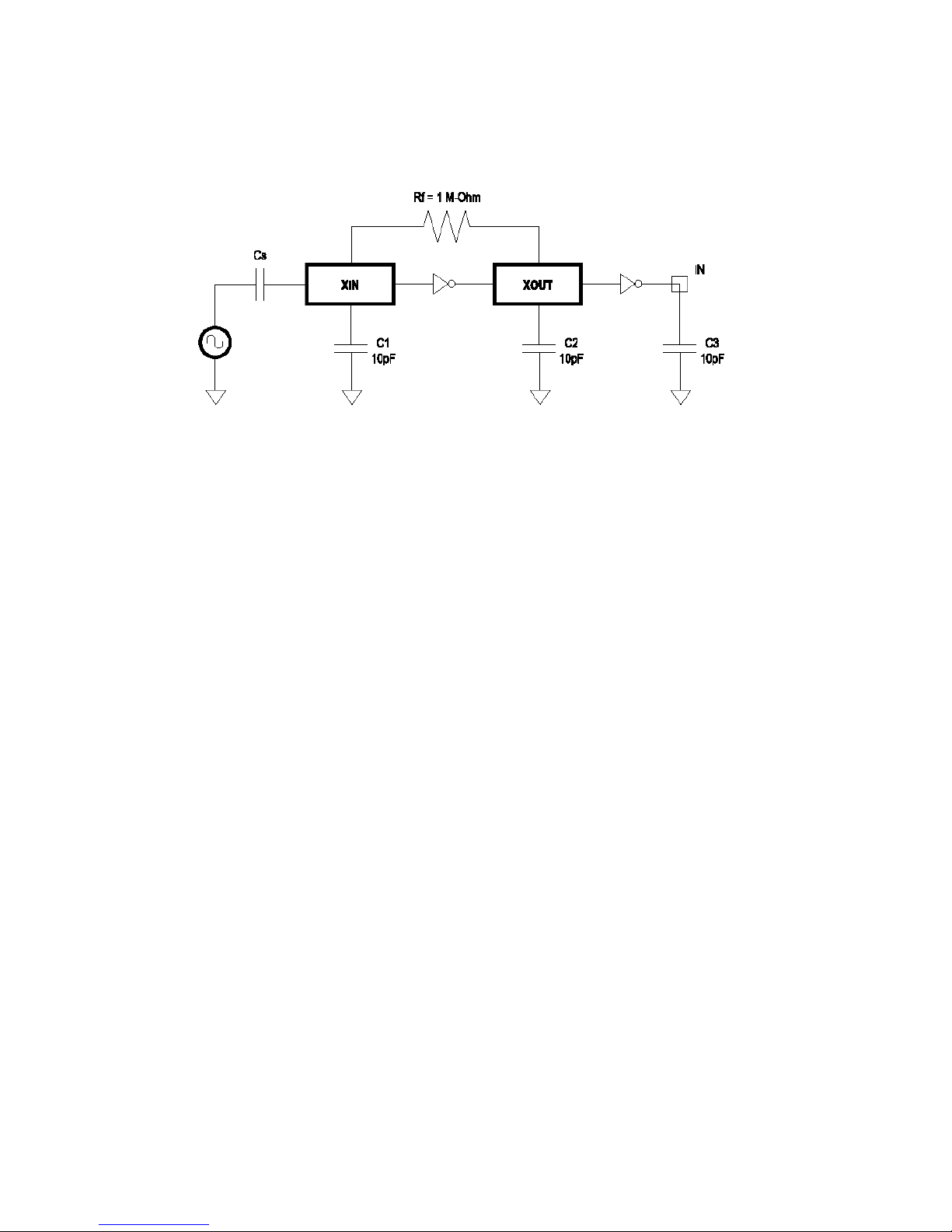

5.4 Crystal Oscillator Circuit Setup for Characterization
The following setup was used to measure the open loop voltage gain for crystal oscillator
circuits. The feedback resistor serves to bias the circuit at its quiescent operating point and
the AC coupling capacitor, Cs, is much larger than C1 and C2.

ELECTRICAL CHARACTERISTICS 13
5.5 ESD Test Results
Test Description : ESD Testing was performed on a Zapmaster system using the Human-
Body –Model (HBM) and Machine-Model (MM), according to MIL_STD 883 and EIAJ
IC_121 respectively.
 Human-Body-Model stress devices by sudden application of a high voltage supplied
by a 100 PF capacitor through 1.5 Kohm resistance.
 Machine-Model stresses devices by sudden application of a high voltage supplied by a
200 PF capacitor through very low (0 ohm) resistance
Test circuit & condition
 Zap Interval : 1 second
 Number of Zaps : 3 positive and 3 negative at room temperature
 Critera : I-V Curve Tracing
Model Model S/S TARGET Results
HBM Vdd, Vss, I/C 15 4000V Pass
MM Vdd, Vss, I/C 15 200V Pass

ELECTRICAL CHARACTERISTICS 14
5.6 Latch-Up Test Results
Test Description: Latch-Up testing was performed at room ambient using an
IMCS-4600 system which applies a stepped voltage to one pin per device with
all other pins open except Vdd and Vss which were biased to 5 Volts and
ground respectively.
Testing was started at 5.0 V (Positive) or 0 V(Negative), and the DUT was
biased for 0.5 seconds.
If neither the PUT current supply nor the device current supply reached the
predefined limit (DUT=0 mA , Icc=100 mA), then the voltage was increased
by 0.1 Volts and the pin was tested again.
This procedure was recommended by the JEDEC JC-40.2 CMOS Logic
standardization committee.
Notes:
1. DUT: Device Under Test.
2. PUT: Pin Under Test.
Vcc
DUT
GND
Pin
under
m
Untested
Output Open
Circuit
Untested
Input Tied
to V supply
Trigger
Source
V Su
pp
l
y
+
+
Icc Measurement
1 Source
Test Circuit : Positive Input/ output Overvoltage /Overcurrent

ELECTRICAL CHARACTERISTICS 15
Vcc
DUT
GND
Pin
under
test
mA
Untested
Output Open
Circuit
Untested
Input Tied
to V supply
Trigger
Source
V Supply
+
+
Icc Measurement
Test Circuit : Negative Input/ Output Overvoltage /Overcurrent
1 Source
Vcc
DUT
GND
mA
Untested
Output Open
Circuit
All Input Tied
to V supply
V Supply
+
Icc Measurement
Supply Voltage test
Latch–Up Data
Model Model Voltage (v)/ Current (mA) S/S Results
+Voltage
-
11.0
11.0 5 Pass
+Current
-
200
200 5
Vdd-Vxx 9.0 5 Pass

ELECTRICAL CHARACTERISTICS 16
This Page Intentionally Left Blank
