Alcovisor Jupiter User manual

MODEL: JUPITER
Instruction Manual

TABLE OF CONTENTS
STRUCTURES……………………………………………………………………… 1
INSTRUMENT FEATURES……………………………………………………….. 2
ICON DESCRIPTION……………………………………………………………… 3
INTRODUCTION ………………………………………………………………….. 4
OPERATING INSTRUCTIONS…………………………………………………… 5
PRINTER…………………………………………………………………………… 9
TOUCH SCREEN CALIBRATION……………………………………………….. 9

P. 1
STRUCTURES
Operator needs to read operation manual and familiar with the
operation before using. Retain the manual for future reference.

P. 2
INSTRUMENT FEATURES
PLEASE REFER TO DIAGRAME ON PAGE 1
1. DISPOSABLE MOUTHPIECE
For sanitary reason, each mouthpiece is individually packed and sealed.
New mouthpiece should be attached to sample port for each test to prevent
any contamination from the previous sample.
2. SAMPLING CUP
Sampling Cup is reusable. Attach sampling cup to the sample port. Do not
touch the sampling cup with the mouth while providing a breath sample.
Remove the sampling cup after use and clean it by alcohol for next use.
3. BUTTON TO REMOVE MOUTHPIECE
For sanitary reason, the mouthpiece can be removed by push the button
underneath the mouthpiece.
4. TOUCH SCREEN DISPLAY
A touch screen display that will display corresponding instructions and alcohol
concentration of the subject being test. Select the icons and buttons on the
screen by using the stylus pen provided.
5. ON/OFF BUTTON
Press and hold the On/Off button to turn on or turn off the device.
6. BATTERY CHARGING
Battery can be charged inside the device. The battery charging indicator
turns red when the battery is charging, when the battery is fully charged, the
indicator turns green.
7. EXTERNAL POWER CONNECTORS
Connectors for 12V car (cigarette) adapter or optional 12V power transformer.
Battery can be charged inside the device.
8. USB connector
Use an USB cable to upload test records stored in the memory and upgrade
the software.

P. 3
ICON DESCRIPTION
1 GPS Indicator 8 GPS
2 Battery Indicator 9 PC Connection
3 Date & Time Indicator 10 Date & Time Setting
4 Standard Test with Input 11 Setting
5 Standard Test without Input 12 Advanced Setting
6 Screening Test 13 Last Calibration Date
7 Test Records 14 Test Record Counter
Previous Screen/Cancel Next Screen/Confirm Main Screen
Print Repeat Test

P. 4
INTRODUCTION
It is a state of the art instrument used to detect Ethyl Alcohol from a valid breath
sample. It uses an electrochemical fuel cell to measure the concentration of
alcohol from the sample of the expired breath from a human subject. If alcohol
is present, a corresponding voltage is generated from the fuel cell, which is
proportional to the alcohol content of the sample provided by a human subject.
This voltage is then sent to the CPU and converted to a subject’s BAC which is
then displayed.
Instrument Features:
1. Test record storage is more than 32,000 entries depending on the length of
the records being stored. Capability of uploading test records for record
keeping.
2. Use disposable mouthpieces or sampling cups to prevent foreign matter from
entering.
3. A hard plastic case is included for storing the device and accessories for easy
transport. When not in use, the device and accessories should be stored in
this plastic case to prevent damage.
4. Ability to run as often as needed. Recovery time between tests on average
is 30 seconds between positive tests.
5. Powered by High-capacity lithium battery. Battery is located behind the
sliding cover on the back of the device. The level of power left in the battery
is indicated on the screen. A cigarette plug adapter is also included for use
by the operator.
6. Storage temperature range is -25°C to 70°C, storage humidity is 15% to 90%,
inappropriate storage of the device will shorten the lifespan of the fuel cell
sensor.

P. 5
OPERATING INSTRUCTIONS
Pre-test Conditions
1. Operating temperature range is -10°C to 50°C. Use within this temperature
range will limit condensation from a subject breath to insure an accurate an
accurate reading from a breath sample.
2. It is recommended that the operator to observe a subject for about 20 minutes
before administering the breath test to insure that nothing is consumed or
expelled from the mouth of the subject. Following this procedure will
eliminate reading from mouth alcohol.
Standard Test with Input
1. Attach a disposable mouthpiece onto the sample port.
2. Input information by a stylus pen.
NOTE: Maximum 16 characters for each input.
3. When displays “Please Blow”, take a deep breath and blow until BEEP tone
stops.
4. Test result displays on the display.
5. Select to print the test result.
6. Select to start another test.
7. If testee did not blow within 30 seconds, tester can select “Refuse” to confirm
the testee refused to do the test; or select “Test Again” to allow testee to do
the test again.
8. If testee failed to give a valid breath sample, tester can select “Discontinue” to
confirm; or select “Test Again” to allow testee to do the test again.
9. A passive test can be performed by select “Passive” during the testee is
blowing.
10. Push the button underneath the mouthpiece to remove the mouthpiece.

P. 6
Standard Test without Input
1. Attach a disposable mouthpiece onto the sample port.
2. Follow steps “3-10” of “Standard Test with Input”.
Screening Test
1. Attach a sampling cup onto the sample port.
2. When displays “Please Blow”, take a deep breath and blow to the sampling
cup until BEEP tone stops.
3. “Alcohol Detected” or “No Alcohol” displays on the display.
4. A passive test can be performed by select “Passive” during the testee is
blowing.
5. Select to start another test.
6. If “Alcohol Present”, use mouthpiece to perform a standard test to obtain an
accurate test result with reading.
NOTE: Screening Test is only used for screening tests, it is to check whether
alcohol is found in the breath sample. An accurate test result can only be
obtained by standard test.
NOTE: Test records of the screen tests cannot be printed nor stored.
GPS
1. Longitude and Latitude of location of the device will be shown.
2. Longitude and Latitude of the test is stored and printed on the printout.
NOTE: GPS system only functioned 5-10 minutes after turn on the device. It
can only receive signal in open area. If there is no GPS signal, the Longitude
and Latitude will not be shown on the printout.

P. 7
Test Record
1. Over 20,000 test records can be stored, depending on the length of the
records.
2. Individual test record can be printed by selecting .
3. Use or to move to the previous or next record.
4. Press On/Off button (right button) to move 10 records forward, and press
Function button (left button) to move 10 records backward.
5. Press On/Off button (right button) and Function button (left button) together to
jump to the record needed.
First: Jump to first Record
End: Jump to end Record
0 00 00: Jump to a specific record, e.g. 0 01 00 means jump to record 100; 1
12 00 means jump to record 11200.
Connect to PC
1. Test records can be downloaded PC for analysis.
2. Connect the device and the PC by a USB cable.
3. Please refer to Database Instruction for downloading the test records.
Date & Time Setting
1. Set correct Date and Time.
2. Select “Update” to confirm.

P. 8
Setting
1. Auto Off
i. Select time limit to turn off the device automatically.
ii. Select to confirm
2. Print
i. Select “Auto Print” to print the result automatically after each test without
selecting “Print”.
ii. Select number of printout copies needed for test result equal to 0 ( =0 )
and exceed 0 ( >0 ).
iii. Select to confirm.
NOTE: If no printout needed for a test result equal to 0, select “0” for
“=0”.
3. Sound
i. Adjust the level of BEEP tone.
First bar: sound level of BEEP tone.
Second bar: length of the BEEP tone.
ii. Select to confirm.
4. Cali
i. When the screen displays “Calibration Needed”, send the device for
calibration.
ii. A password is needed for calibration to ensure calibration is performed
by eligible persons.
iii. Please refer to Calibration Instruction.
Advanced Setting
1. Only legitimated persons are allowed for advanced setting.
2. A Password is needed.
3. Please refer to Advanced Setting Instruction.

P. 9
PRINTER
An attachable built-in thermal printer is used for the device.
INSERT PAPER

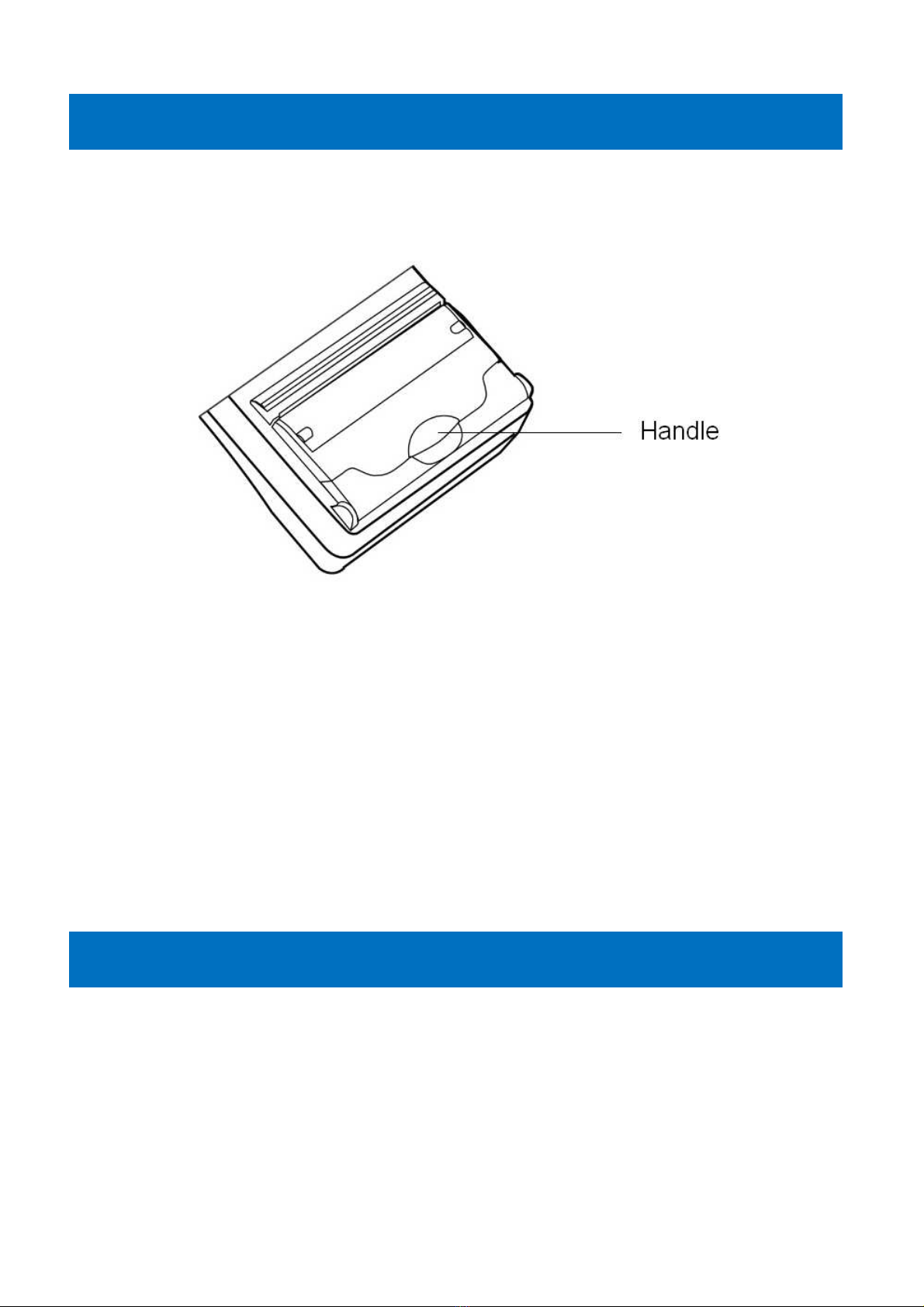

Pull the handle to open the printer cassette and inset thermal paper. When
inserting a new roll of paper, ensure glossy side of the paper is kept close to
dentation.
NOTE: If nothing can be printed, change the side of the paper and try again.
STANDARD TERMAL PAPER SIZE
6cm X 500cm
TOUCH SCREEN CALIBRATION
If the touch screen is not sensitive enough, please calibrate the screen. Press
and hold the On/Off button (right button) and then press the Function button (left
button) immediately. Follow the instruction on the screen to calibrate the
screen.
