INSTRUMENT FEATURES
PLEASE REFER TO DIAGRAMS ON PAGE 2
1. DISPOSABLE MOUTHPIECE
For sanitary reasons each Guth Ultrap mouthpiece is individually packaged and sealed. Anew mouthpiece should
be attached to sample port of the Alcotector for each test to prevent any contamination from the previous sample.
Attach the Guth Ultrap mouthpiece to the sample port of the Alcotector.
2. LCD DISPLAY
A highlighted LCD display that will display correspoding instructions and alcohol concentration of the subject
being tested. Ability to change the contrast of the display for easy readout for the operator depending on lighting
conditions.
3. ENTER BUTTON
Use the ENTER button to manually take a sample if subject is unable to provide a valid sample when MANUAL
TEST is highlighted on the display. The ENTER button is aso used by supervsiors to access various commands
in the menu screen.
4. ON/OFF BUTTON
Press the ON/OFF button to turn the ALCOTECTOR on or off.
5. EXTERNAL POWER CONNECTOR
Connector for 12v car (cigarette) adapter or optional 12vAC power transformer.
6. RS-232 CONNECTOR
Use an RS-232 cable to upload subject tests stored in theAlcotector memory and access supervisory menu
functions.
7. Key Board
Use keyboard to input the character into the Alcotector.
8. Cancel Button
Use keyboard to delete the character you inputted or cancel the action you did.
P. 3

INTRODUCTION
The ALCOTECTOR is a state of the art instrument used to detect Ethyl Alochol from a valid breath sample. The
ALCOTECTOR uses an electrochemical fuel cell to measure the concentreation of alcohol from the sample of ex-
pired breath from a human subject. If alcohol is present, a corresponding voltage is generated from the fuel cell,
which is proportional to the alcohol contect of the sample provided by a human subject. This voltage isthen sent to
the CPU and converted to a subject’s BAC which is then displayed on the display of the ALCOTECTOR.
Instrument Features:
1. Test record storage can be as high as 2000 entries depending on version of software being used. Capability of
uploading subject tests for record keeping.
2. Use of the Guth Ultrap disposable mouthpiece to prevent foreign matter from entering ALCOTECTOR.
3. A hard metal case is included for storage of the Alcotector and accessories for easy transport. When not in use,
the Alcotector should be stored in its metal case to prevent damage from occurring.
4. Ability to run as often as needed. Recovery time between tests on average is 30 seconds between positive tests.
Powered by 4 AA rechargeable batteries. Batteries are located behind sliding cover on the back of the unit. The
Alcotector will indicate battery power by displaying a picture of the battery and level of power left in battery. A cigar
plug adapter is also included for use by the operator.
PRE-TEST CONDITIONS
Operating temperature range of the Alcotector is 0¢J~ 40¢J.Use of the Alcotector within this temperature range will
limit condensation from a subjects breath to insure an accurate reading from a breath sample.
It is recommended that the operator observe the subject for about 20 minutes before administering the breath test
to insure that nothing is consumed or expelled from the mouth of the subject. Following this procedure will eliminate
readings from mouth alcohol.
Eliminate all sources of Radio Frequency interference (i.e. transmitting portable radios; cell phones; etc.) when
conducting a subject test with the Alcotector.
P. 4

OPERATING INSTRUCTIONS (KEYBOARD NOT IN USE)
1. Press “On/Off” button to turn on the Alcotector. Software vision and model
number displayed on screen.
2. Date and time displayed on screen.
3. Alcotector take around ten seconds to charge and “CHARGING” displayed on
screen.
4. When Alcotector displays
“BLOW……, PLEASE”,
connect disposable
mouthpiece to Alcotector
and instruct subject to
take a deep breath and
blow until BEEP tone is
heard.
If no blow
If testee did not blow, user can select “Refuse” and press “Enter” button
to print.
If testee did not blow, user can select “Repeat” and test again.
P. 5

OPERATING INSTRUCTIONS (KEYBOARD NOT IN USE)
6. When alcohol content displayed, user need press “Enter” button to print; at this time the result
saved at same time.
When “<Enter> to print” displayed, user press
“Cancel” button, main menu displayed. See
P.9 for more information.
7.After result printed, user have to turn ofAlcotector. If result cannot be print, “Print Failure!
” displayed. User can find test record at “RECOR” function, and print again.
P. 6

KEYBOARD
To activate “Keyboard” see P. 9.

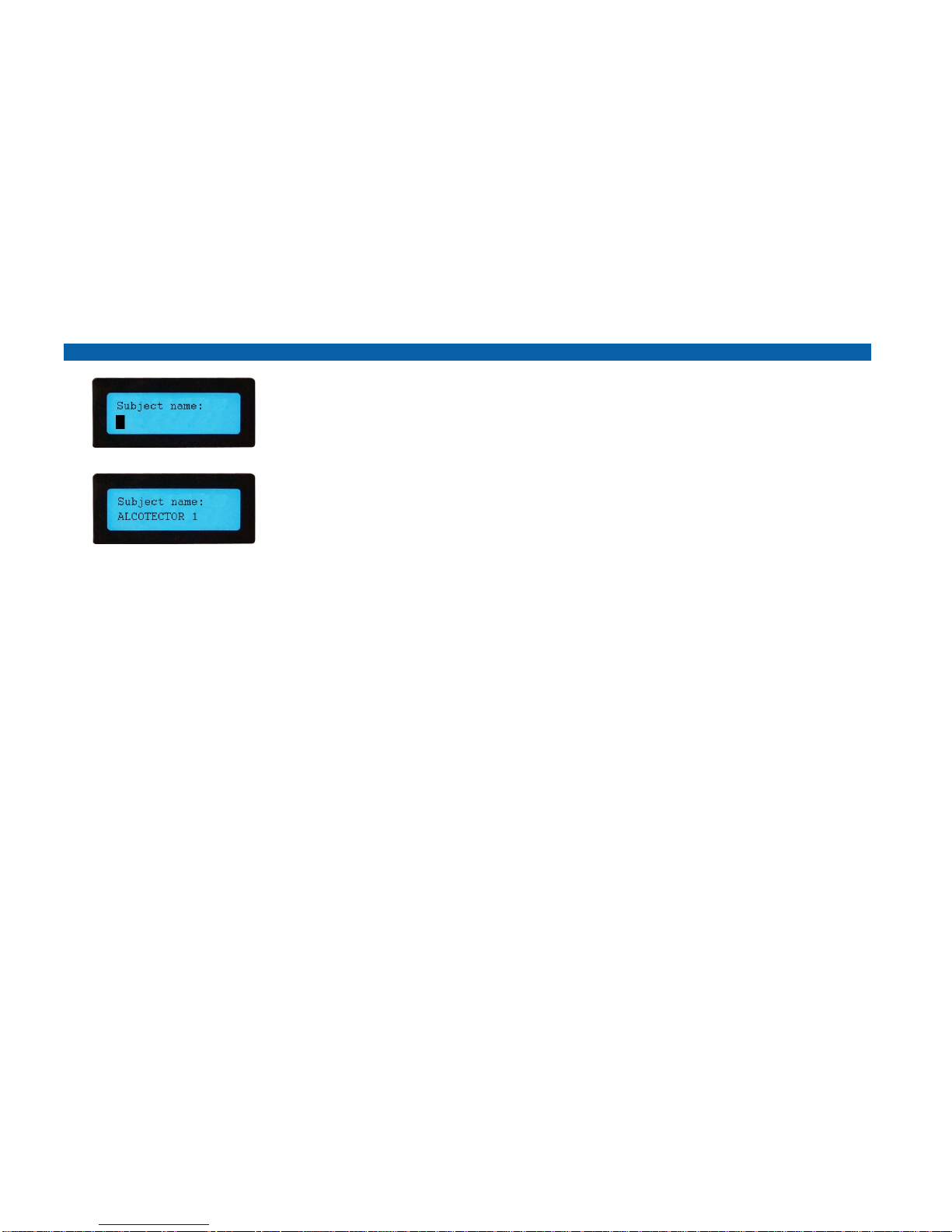

When “Keyboard” has been activated, use should see the following screen after turn on the
Alcotector.
To input letter and number:
“A” = press number 2 two times
“L” = press number 5 four times
“ “ = press number 1 two times
“1” = press number 1 one time
To cencel input letter or number, just press “Cencel” button.
P. 7

OTHER MENU FUNCTIONS
To access supervisory functions, the C2H5OH must be turned off. Press and hold the “Right Rolling” button while turning the BAC-100
on. After several seconds, the menu screen will appear on the display. To access a menu option, simply press the FUNCTION button
until the function you want to perform is highlighted and press the ENTER button. A description of the menu functions is provided
below.
Date Clock Battery level
RECORD
BAC-100 will display all data from all subject tests. Use left or right rolling button on keypad to display previous or later test records.
When finished reviewing records, press cancel to return to main menu.
Record number
Concentration of the result
Driving licence/Badge number
Record date
Record time
Car/vehicle number
Other recorded information not showing
on the record screen.
P. 8

OTHER MENU FUNCTIONS
SAVE

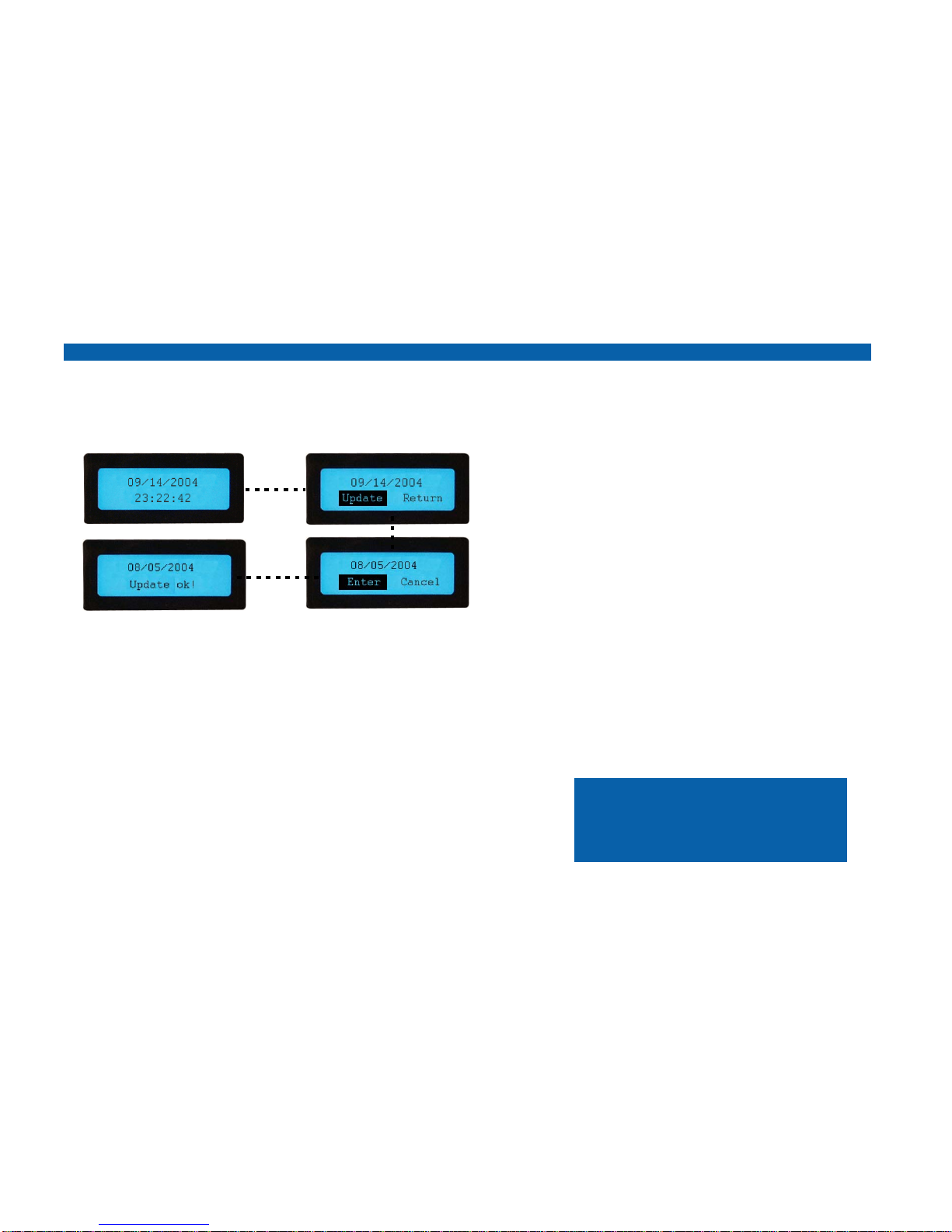

Using the RS-232 cable you can upload subject tests from the BAC-100 using available software to a spreadsheet on your computer.
To update the time, press the ENTER button.
Highlight update and press the enter button.
Press the FUNCTION button to move the high-
lighted cursor to the number you want to change.
Using the keypad displayed on your computer,
change the date and time. When you are
finished, press the ENTER button and display will
show “Update OK”.
TIME
SETUP
There are 4 options under the “SETUP” menu and can be selected by using the “FUNCTION” button to highlight the desired option.
1. ALERT CONC change the tone depending on the concentration level detected by the BAC-100.
2. PRINT COPIESDoes not apply to the WAT unit as no printer is used.
3. CONTRAST use this option to change the contrast of the display.
4. KEYBOARDuse or no use keyboard.
P. 9
For use of SETUP functions, please see
“Master User Manual” or contact your local
agaent.

PRINTER
Build-in pinter is a patent technologic patent by Well Company.
CAUTION! Please use 4 pieces rechargeable batteries. Batteries capacity
no less than 2100 mAh. Customer can buy a high quality rechargeable
battery on www.well-co.com. The rechargeable batteries that power the
Alcotector or printer must be disposed of properly and may need to be
recycled. Refer to your battery’s label for battery type. Contact your local
recycling centre for proper disposal methods. Never dispose of batteries in
a fire because they may explode.
CHANGE PAPER
To change paper, pull the handle. When insert a new roll of paper, make sure glossy side of paper is keep close to
dentation.
BATTERY LIFE
Four full charged 1800mAh rechargeable batteries can print around 30 meters paper. When battery power is under
the standard output power, the printer indicating lamp signal three flash a train.
