Alde Compact 3020 HE User manual

Operating Instructions – Alde Compact 3020 HE

2
Operating instructions 3
Checking the heating system before use 3
The first time the heating system is started 3
Turning the boiler on and o 4
Standby 4
Settings menu 4
Activated functions 7
Tools menu 8
Service menu 11
Troubleshooting 11
Error messages 12
Resetting 12
Activation of installed functions 13
Care and maintenance 14
Important information 16
Warranty 16
Cable connection between boiler and control panel 17
Install an Alde Compact 3020 High Eciency together
with Truma AC and obtain fully automatic climate control
(ACC).
The panel already supports the automatic climate control
function.
The automatic climate control functions together with
Truma AC:
- Aventa comfort
- Aventa eco
- Saphir comfort RC
- Saphir compact (serial no. > 23091001)
Saphir compact needs a Truma adapter 40090-69300

3
GB
OPERATING INSTRUCTIONS FOR ALDE COMPACT 3020 HIGH EFFICIENCY
1. CHECKING THE HEATING SYSTEM BEFORE USE
• Check the glycol fluid level in the expansion tank: the level should be approx. 1 cm above the min. line
when the system is cold. Ensure that the system is properly bled before it is put into operation.
Warning! The boiler must not be started if there is no glycol fluid in the system.
Warning! Do not mix dierent types of glycol; this can lead to coagulation of the glycol fluid.For more
information on the glycol fluid, see section 12.
• Check that the flue is kept free of snow and ice, as induction air enters the boiler via the flue when
operated on LPG. Also check that other objects are not obstructing or disrupting flue gases and sup-
ply air at the flu. Tip! A flue extension (part no. 3000 320) is recommended for the roof flue for camping
in winter.
Warning!The boiler must not be allowed to run on LPG in an enclosed space such as a
garage or similar. Make sure also that the flue does not exit in an enclosed space, e.g.
under an awning, as this can lead to a risk of carbon monoxide poisoning.
• Check the air circulation. Make sure there are no obstructions preventing air circulation (convection).
In order to exploit the water-borne heating to the full, it is important that air can circulate freely under
bunks, and behind backrests and wall-mounted cabinets. If the vehicle has a fitted carpet, ensure that
the carpet does not obstruct the air supply to the convectors. It is just as important that cushions and
blankets do not obstruct and prevent the flow of air behind backrests.
2. THE FIRST TIME THE HEATING SYSTEM IS STARTED
• Hot water heater: Always flush the water heater before using for the first time or if it has not been
used for a long period. Then fill the water heater with water – see the separate instructions for the
vehicle. The boiler can equally well be used without any freshwater in the heater.
NB. Hot water from the boiler is not intended as drinking water or for preparing food.
NB. Freshwater in the heater should always be drained when there is risk of frost or there is
a risk of the boiler freezing.
The warranty does not cover frost damage.A frost guard can be installed to reduce the risk
of freezing (part no. 3010 430 and 3010 431).
NB.Remember that the water in the water heater may be hot.
• Carry out a check as in section 1 (Checking the heating system before use).
• Start the boiler as described in section 3.
• Select language, this appears when the panel is started for the first time, see section 7:1 point 22.
• Check that the right accessories have a checkmark next to them in the list of installed functions, see
section 11.
• Set the clock, see section 7:1 point 4.
• Set the desired operating mode (gas and/or electric) and the desired interior temperature, see
sections 5:1, 5:3 and 5:4.
The LPG boiler and electric elements can be operated simultaneously, but this should be avoided in
newly filled systems.
NB. The boiler uses no more power than is needed, even if it is set for both 3kW electricity and gas.
Please read these instructions carefully before using the boiler for the first time.
For installation guidelines, see the separate instructions. These instructions are approved for
the Alde Compact 3020 boiler fitted in vehicles in accordance with CE 0402 no. SC0653-13 and
have the E5 mark for installation in vehicles in accordance with R122 and R10. Installation and
repairs may only be carried out by a specialist. Always comply with national regulations.
This appliance may be used by children from the age of 8, persons with reduced physical or
mental capacities or persons lacking in experience and knowledge provided they have been
instructed in safe use of the system and understand the risks involved.
Children should not be allowed to play with the appliance. Children must not be allowed to per-
form cleaning and maintenance unless supervised.
CO

4
3. TURNING THE BOILER ON AND OFF
5. SETTINGS MENU
Launch the settings menu by pressing the MENU button. The backlighting comes on and those functions
that can be set are displayed. Settings that you make are automatically saved after 10 seconds. The con-
trol panel will go to standby automatically after 30 seconds if the screen has not been touched.
1. To start the boiler, press the On/
O button and the start-up display
appears. The boiler starts with the
last selected settings.
2. To switch o the boiler, press the
On/O button.
3020
High Efficiency
4. STANDBY
NB. The screen goes out when it enters standby mode if the background lighting is set at dark, but comes
on if the screen is touched. See settings under section 7:1 point 8.
A. Clock. The clock shows the day and
time (if activated). To set the clock,
see under section 7:1 point 4.
B. *Outdoor temperature.
C. Indoor temperature.
D. Circulation pump. The symbol is
displayed when the pump is in
operation.
E. Automatic start of the boiler.
The symbol is displayed when the
function is activated in accordance
with section 7:1 point 18.
F. Day auto. The symbol is displayed
when the function is activated.
G. *LPG bottle full/empty. The sym-
bol is displayed when the sensor
on DuoControl is connected and
activated. If EisEX is installed,
the symbols for the mode set are
displayed along with the bottle
symbol:
Snowflake = EisEX on
Sun = EisEX o
H. Night auto. The symbol is displayed
when the function is activated.
I. High altitude mode. The symbol
flashes if the high altitude mode is
activated.
NB. If an additional hot water tank
(*Alde Flow part no. 3020 160) is installed
and the panel is in more hot water
mode, the symbol below is displayed
instead of the high altitude symbol.
J. 230 volt. The symbol is displayed
when 230 V is connected to the
boiler.
K. On/O button. Main switch for
boiler.
L. MENU button. Button for settings
menu.
The control panel and the
boiler are switched o.
The control panel and the
boiler are switched on.
22°C
6°C
Fri 18.30
D
C
A
KL
I
B
E F G H J
1 kW
+22°C
22°C
6°C
Fri 18.30
For activated functions, see section 6.
For the tools menu, see section 7.
The control panel in standby mode.
The control panel showing the settings menu.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

5
GB
5:1 SET THE DESIRED TEMPERATURE
The temperature can be set between +5°C and +30°C, inclusive, in increments of 0.5°C.
NB. If night or day auto is activated (see section 7:1 point 1 and 2) it is not possible to make temperature
adjustments. The plus and minus symbols are then grey.
1. The temperature displayed is the temperature which is currently set.
2. Increase the temperature by pressing the ”+” button. Reduce the tem-
perature by pressing the ”-” button.
3. The settings are now complete and the boiler will work at the set
temperature.
5:2 DOMESTIC HOT WATER
The boiler is fitted with a built-in hot water heater which can hold approximately 8.5 litres. The boiler can
equally well be used without there being any freshwater in the heater. There are three dierent settings
for hot water: no hot water, normal operation and more hot water.
1 kW
+22°C
+22°C
1 kW
1 kW
+22°C
1 kW
+22°C
1. No domestic hot water. If domestic hot water is not needed, press the
”-” button (symbol becomes empty).
NB. If night or day auto is activated, see section 7:1 points 1 and 2,
and where hot water is turned o, it is not possible to make hot water
adjustments. The plus and minus symbols are then grey.
2. Normal operation. If there is freshwater in the heater and control of
domestic hot water is required,
press the “+” button (the symbol will then show half-shaded).
NB. If the pump operation function has been set to Cont., see section 7:1
point 17, this option cannot be selected.
Info! When hot water only is required, during the summer for instance,
or when there is no requirement for hot water, no settings need to be
made; the boiler looks after this function automatically.
NB. As the hot water and glycol fluid in the boiler are heated
simultaneously, the hot water can be very hot when a high level of
heating is required.
3. More hot water. If you need more hot water, the water temperature can
be temporarily increased to around 70°C. Press the “+” button so that the
symbol shows fully shaded (black). The boiler returns to normal operation
after 30 minutes. Once you have selected more hot water, the circulation
pump stops.
NB. If the pump operation function is set to Cont., see section 7:1 point 17,
then the continuous pump operation function is turned o for 30 minu-
tes, before then returning to continuous pump operation.
NB. If an additional hot water tank (*Alde Flow part no. 3020 161) is installed and
the panel is in more hot water mode, the hot water function can then be in
operation for longer than 30 minutes.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

6
5:5 *FULLY AUTOMATIC CLIMATE CONTROL (ACC)
If a Truma AC is connected up to the Alde, then the ACC button is visible and it is possible to control ACC from
the panel. This function makes it possible to have fully automated climate control for both heating, cooling and
hot water. The button is not visible if 230 V is connected from the AC. With an outside temperature sensor (part
no. 3010 299) fitted, ACC function is improved: operation of the AC is modified in line with the outdoor temperature.
1. Start gas operation by pressing the LPG flame symbol. The LPG
symbol is activated and changes colour to green.
2. The settings are now complete and the boiler will work at the set
temperature.
3. To switch o gas operation, press the LPG flame symbol. It will
now change to blue.
1 kW
+22°C
1. Set the desired temperature.
2. Press the blue ACC button, the
button turns green (see fig. 2) and
the ACC function is switched on,
but is not necessarily in operation.
If gas and/or electricity is switched
on, AC and the boiler work to de-
liver the temperature set, regard-
less of whether heat or cooling is
needed in the vehicle. To turn o
the ACC function, press the ACC
button and it becomes blue.
3. To turn AC lighting o and
on, press the button rapidly.
When the button is kept
pressed in, the light changes
from dark to light and then
back (light to dark) and so
on in 10 brightness levels.
When the button is relea-
sed it stays at the current
brightness. This button is
only visible when AC* is con-
nected.
5:4 HEATING WITH GAS
Proceed as follows to activate heating with gas. A priority can be set when selecting both electricity and
gas, see section 7:1 point 3.
1. Use the + or - button to switch
on the electric heating and toggle between the various power
modes (O, 1 kW, 2 kW or 3 kW) The set value will be displayed
on the screen. The activated mode is indicated by the + button
changing colour to green. If a *load monitor is installed and set,
the boiler will not use more electricity than it is capable of even if
3 kW is selected.
2. The settings are now complete and the boiler is working at the set
temperature.
3. To switch o electrical operation, use the - button to toggle to O.
1 kW
+22°C
The remote control for AC can be
used in this mode.
NB. Temperature sensors that are
used when fully automatic climate
control is in operation must be
positioned so that they are influ-
enced equally by the heat from
the Alde heating system and the
air from the AC. In certain cases it
can be an advantage to use Alde’s
temperature sensor (part no. 3010
638) .
1 kW
+22°C
ACC
1 kW
+22°C
ACC
1 kW
+22°C
ACC
Figure 1 Figure 2 Figure 3
5:3 HEATING WITH ELECTRICITY
Proceed as follows to activate heating with electricity. The more power (wattage) you select, the quicker
heating will take. A priority can be set when selecting both electricity and gas, see section 7:1 point 3.
The boiler uses no more power than is needed, even if it is set for 3kW.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

7
GB
6. ACTIVATED FUNCTIONS A
Activated functions (see figure 2) can be accessed by pressing the A symbol (see figure 1). This screen
shows the various functions that are activated. The respective function that is activated can be accessed
from here and new settings can be made.
NB.The A symbol is only visible if one of the functions shown below is activated and/or installed.
Below is a description of the dierent symbols in the Activated Functions menu.
For more detailed description, see section 7.
Night auto is activated. However, it does
not have to be within the time/day setting.
Automatic start of the boiler is activated.
However, it does not have to be within the
time setting.
* This function is used if *Alde Smart Con-
trol (part no. 3020 057) is installed to control
the boiler via a Smart Phone.
* Displayed if one or two external room
sensors are connected.
Circulation pump in continuous operation.
NB. This function limits the supply of hot
water, particularly when there is a low hea-
ting requirement).
Day auto is activated. However, it does not
have to be within the time/day setting.
* The boiler is set to be started with Exter-
nal start but has not necessarily been
activated.
* Load monitor is connected and set to
limited current.
* Booster is on.
High altitude mode is activated.
* EisEx is installed but not necessarily tur-
ned on.
* DuoControl or DuoComfort is installed
and connected to Alde Compact 3020 HE
* Timer for engine heater is set but not
necessarily within the set time/day.
* Underfloor heating is in operation.
1 kW
+22°C Activated Functions
A
Figure 1 Figure 2
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

8
7:1 TOOLS MENU – FUNCTIONS
The following tools are available from the tools menu.
A grey function button means the function has not been installed and/or activated in ”Installed Accesso-
ries”, see section 11.
4. Clock
The clock must be set if engine heater
start, night and/or day auto and
automatic start are to work.
If 12 V power is lost, the clock will
stop and will no longer be displayed.
Installing *battery backup will prevent
this happening (part no. 3010 420).
5. Return
To return to the previous menu, press
this symbol.
6. *Setting room sensor
Select which temperature sensor is to
be active. Here you can select whether
the sensor located in the daytime living
area, the sleeping accommodation
or in the panel is to be active. If Auto
is selected, the sensor in the panel is
active and will automatically switch to a
room sensor (sofa and/or bed) if one of
these is connected. If two room sensors
are connected, it will be the one for the
daytime living area that is active (sofa).

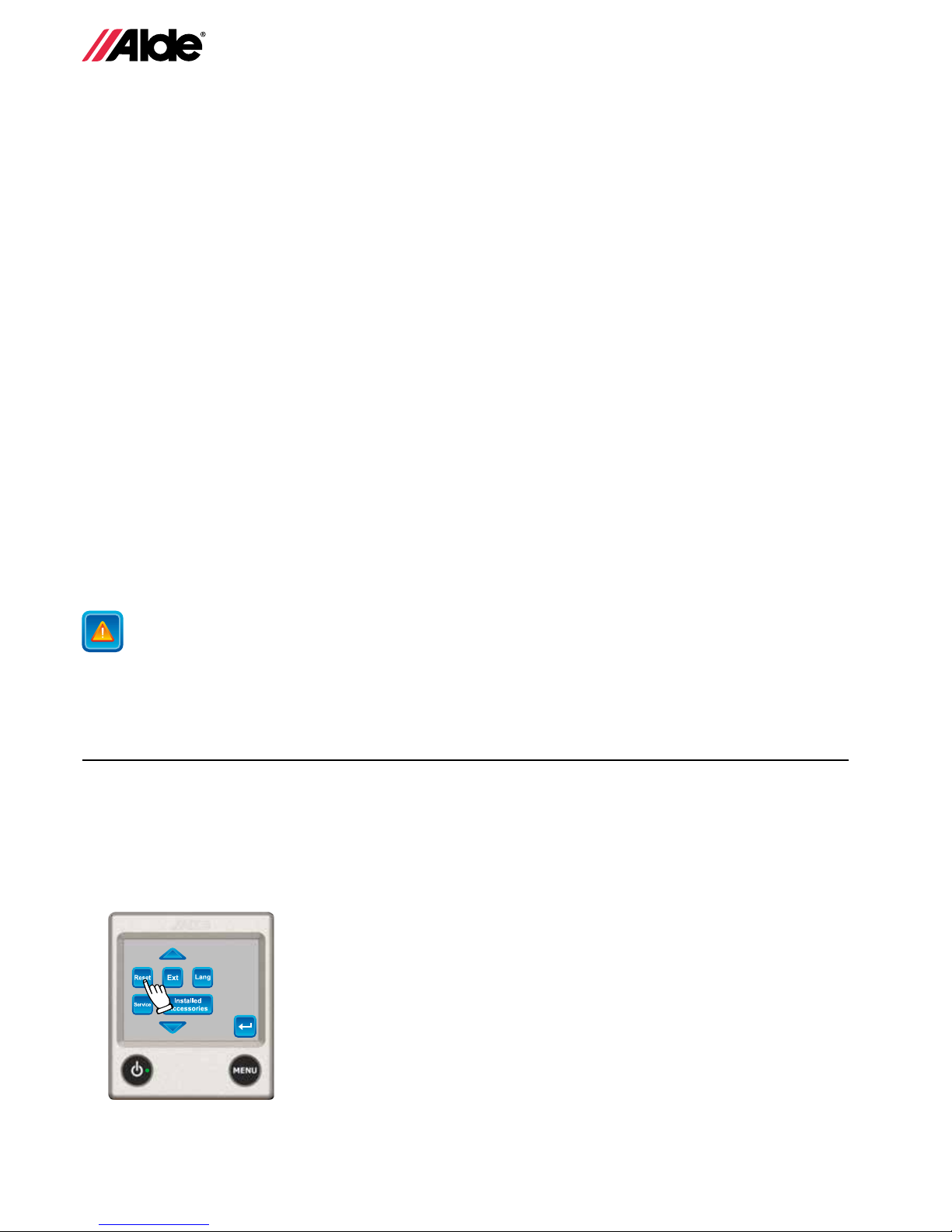

7. TOOLS MENU
The tools menu can be accessed from the settings menu.
1. The control panel showing the settings menu.
Press the tool symbol to access the tools menu
1 kW
+22°C
1. Night auto
Automatically changes certain functions
during the night. You can select whether
this is to take place every night or a spe-
cific night each week. The functions that
can be changed are:
• Temperature
• *Change to temperature sensor in
sleeping accommodation area.
• Invert display
• Turn o the domestic hot water
• *AC in quiet mode
2. Day auto
Automatically changes certain functions,
e.g. if you are away for a while during the
day. Select that it takes place every day or
a specific day each week. The functions
that can be changed during the day are:
• Temperature
• Turn o the domestic hot water
3. Prio setting
With this function you can choose to prio-
ritise (select) electricity or gas as the main
alternative.
Settings
43
8
1
7
2
56
Settings
9
13
10 11
12
Settings
14
19 17
1615
18
Settings
20
24 23
2221
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

9
GB
7. Arrow symbols
Toggle between the various tool fields by
using the up/down arrow symbols. Leave
the tools menu using the MENU button or
the return button.
8. Background lighting
Standby can be set in three dierent
modes, Dark, Light and Invert.
Dark : Turns o background lighting.
Press the screen or the menu button
when standby is activated and the screen
comes on, but returns to dark after 30
seconds if the panel is not touched.
Bright:Background lighting in standby
mode.
Invert:Inverted background lighting in
standby mode.
Standby is activated automatically after
30 seconds if the panel is not touched.
Brightness can be adjusted in three steps
(1-3).
9. *EisEX, 12 V defroster for gas regulator
This is a small heating element that pre-
vents ice forming in the regulator in
winter (for Mono Control CS, DuoCon-
trol CS, DuoControl and DuoComfort). If
DuoControl CS or DuoControl is installed
and connected, symbols will be displayed
together with the gas bottle symbol in
the standby menu to show what has been
selected.
Snowflake = EisEX ON
Sun = EisEX OFF
10. *Load monitor
The function prevents overload of the
fuses on 230 V. If the total current con-
sumption of the vehicle exceeds the set
value, the electrical output of the boiler
will be reduced automatically. This also
applies to Truma Comfort AC if connec-
ted to the Alde 3020. Due to voltage fluc-
tuations and tolerances, dierent regula-
tion levels can be selected (5-17 A). If the
fuse blows repeatedly, choose a lower
setting.
NB.For ACC to function with the load
monitor, ACC must be on from the panel
and not via the remote control.
11. *Booster
Control of booster in two dierent
speeds. Fan start and stop is controlled
from the boiler. If the boiler’s circulation
pump starts up, the fan on the booster
will as well. When the circulation pump
stops, the fan will continue to run for
another six minutes. It will then stop
unless the circulation pump has started
up again.
12. *Underfloor heating
The function governs the underfloor
heating pump’s operation in intervals,
which means that the underfloor hea-
ting pump is in operation for 5 min
and is then o for 5 min when heat is
required.
Mode: Make sure Delay or Cont. is
activated; in these two modes, under-
floor heating is switched on. In O
mode underfloor heating is o.NB. In
Cont. mode it can get hotter in the
vehicle than desired, as the heat con-
trol is disabled!
Delay:The underfloor heating pump
is on for a certain period after the
boiler’s circulation pump has stopped,
this Delay can be set at 15 min, 30 min
or 120min.
13. *Engine heater
The function makes it possible to use
the heating system to heat up the eng-
ine in a motorhome, bus etc.
Engine heater start: Press the button
marked O; the text will change to On
and the button will turn green. Then
set the required starting time and day.
Engine heating starts at the set time
and day. The engine heater then runs
for 60 minutes before stopping auto-
matically.
NB.The clock in the panel must be set
for the function to work.
14. Automatic temperature increase
The boiler will start at 02.00 in the
morning (if the clock is set) and run
as indicated for ”More hot water” for
30 minutes (see section 5:2). This is to
reduce the risk of legionella.
15. Oset (temperature adjustment)
If the temperature that is displayed in
the panel does not correspond to the
actual temperature, it can be adjusted
by ±5°C in the panel. Applies also to
display of external temperature.
16. High altitude mode
The function should only be used if
the boiler will be powered by LPG at a
height above 1000 m above sea level.
NB. For LPG operation at high altitude,
use propane to obtain stable com-
bustion. NB. Variations in operating
conditions at high altitudes can mean
that the boiler always achieves stage 1
output, but not always stage 2 on LPG
operation.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

10
17. Circulation pump settings
Pump selection: Choice of pump.
*12 V pump. Variable adjustment of
pump capacity is achieved using a
potentiometer on the rear of the pump
(1-5); normal mode is 2, which works in
most cases. Mounted on the boiler.
*PWM controlled 12 V pump. This is a
variable speed controlled pump that
can be set to five dierent modes
(levels 1-5) via the panel; normal mode
is 2, which works in most cases.
Mounted on the boiler.
*Extra 12 V pump, often located in the
expansion tank.
Pump settings:
Cont: The pump is in constant opera-
tion.
NB. This function limits the supply of
hot water, particularly when there is a
low
heating requirement.
Therm: The pump is controlled by the
room sensor. This is the normal mode
for heat and hot water.
18. Automatic boiler start
Starting the boiler at a certain time/
on a certain day. The boiler will be on
every week during the time set, until
the function is deactivated. For auto-
matic start to function, the boiler must
be turned o.
19. Sound
Audible signals in various situations:
• Turn the button sound on and o.
• Audible signal on reaching hot
water temperature when Alde Flow*
is installed and more hot water is
selected.
• Audible signal on ”Gas Failure”.
• Audible signal on LPG bottle chan
geover if a DuoControl* isinstalled
and activated in ”Installed Accesso
ries”, see section 11.
20. Reset
Pressing Reset resets the panel to its
factory settings.
NB. Settings made in installed fun-
ctions are not deleted.
21. External start
The function is used when starting
the boiler from outside. When exter-
nal start has been activated the panel
must be turned o. External start has
three modes, O, Ext and 230 V. In the
O mode, the function is turned o.
*Ext. The function is used when star-
ting the boiler through an external sig-
nal. When the Ext. function has been
activated, the control panel must be
turned o, but 12V should be connec-
ted. The parameters/functions that the
boiler is to have when it starts must
be set before turning o the control
panel.
NB.Using this function requires instal-
lation of an accessory that can use
external start.230 V. The function is
used to start the boiler by connecting
230 V to the vehicle.
When the 230 V function has been
activated the control panel must be
turned o, but
12 V should be connected. The para-
meters/functions that the boiler is to
have when it starts must be set before
turning o the control panel (230 V
connected). Certain vehicles can be
equipped with an individual solution
(*winter connection).
22. Language
Switch between dierent langu-
ages. Available languages are English,
French and German.
However, the service menu is only avai-
lable in English(see section 8).
23. Installed functions
The accessories that are installed are
activated here (see section 11).
24. Service menu.
This contains the following, amongst
others:
Glycol temperature
Domestic hot water temperature
12 V power to the boiler
To exit the tools menu, press Return or
Menu.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

11
GB
8. SERVICE MENU
The Service menu is accessed by pressing Service (see fig. 1). The function shows the values from the
boiler on the screen (fig. 2 and 3). The values are updated every second.
9. TROUBLESHOOTING
Always start by checking any error messages.
If a fault occurs in the system, the cause will be shown on the display. This is only displayed when the control
panel is in standby mode.
The boiler will not start on gas
• No LPG?
• Is the main tap fully open?
• Check that the type of LPG used is suitable for the prevailing outdoor temperature. Using butane is unsui-
table at temperatures lower than +10°C. Use propane instead.
• Check that the fuse for the boiler has not blown.
• Check that power at 12 V is being supplied to the boiler (> 11 V); the current voltage can be read o from
the
service menu.
• Check that the exhaust hose is secured properly between the boiler and flue and that it is not damaged or
blocked with dirt, condensation or water. NB. The exhaust hose consists of two hoses, an inner one and an
outer one.
• Check there is nothing obstructing/blocking the path of the exhaust gases at the flue.
• Check for correct gas pressure. This can be done by starting all hobs on the gas cooker and then starting
the boiler on gas operation. If there is a reduction in flame on the cooker, the gas pressure is incorrect.
• If the boiler has not been operated for some time, or if the LPG cylinder is new, it may take longer than
normal to light the boiler. Try to restart the boiler.
• If none of the above helps, contact a service workshop
The electric element is not working
• Check that the fuse for the boiler has not blown.
• Check that power at 12 V is being supplied to the boiler (> 11 V); the current voltage can be read o from
the
service menu.
• Check that 230 V really is being supplied to the boiler. Long and/or flimsy connection cables result in gre-
ater voltage drop and the voltage sometimes being lower under certain conditions.
• Check that the output level selected on the panel is high enough, see section 5:3.
• Check that the load monitor* (where present) has been correctly installed.
• If none of the above helps, contact a service workshop
Poor heat or none at all (circulation in the heating system)
• Check that the symbol for the circulation pump is visible in the standby menu when heating is required,
see section 4.
• Check that the circulation pump is working.
• Check that the correct circulation pump is activated in ”Installed Accessories”, see section 11.
• Check that the heating system has been bled.
*ACC not working satisfactorily
• Ensure that the temperature sensor that is used reacts eectively to the room temperature for both hea-
ting and cooling. To increase sensitivity, a more open temperature sensor can be used (part no. 3010 638).
• With an outside temperature sensor (part no. 3010 299) fitted, ACC function is improved: if the outdoor
temperature is too low, the AC should not run at all.
Settings Service
Water Temp: 55° C
Glycol Temp: 80° C
Fan rotation: 0RPM
Current: 0.0A
Overheat: Deact
Figure 1 Figure 2
Service
Ext Switch: deact
PCB Temp: 20° C
Boiler: XXXX
Panel: XXXX
Figure 3
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

12
9:1 ERROR MESSAGES
Low battery: If the vehicle has a battery voltage of less than 10.8 V, the boiler will stop. This is reset auto-
matically once the voltage reaches 11 V. If the voltage becomes lower, various error messages may also
occur. These are not genuine faults. Ensure that the boiler has the right voltage.
Fan restarts: Incorrect fan speed. New start attempt is made. Repeated faults results in Fan failure.If Fan
failure recurs after resetting, contact a dealer. If Fan restarts is displayed, no action is necessary.
Gas failure: The boiler has not managed to ignite the LPG flame. Ensure that gas is available.
Overheat red fail: Overheat protection (red cable) tripped. This fault can arise if the boiler is run at high
power at the same time as there are air pockets in the heating system, the heating system should then be
bled properly.
If the fault remains, contact a dealer.
Overheat blue fail: Overheat protection (blue cable) tripped.
Overheat PCB: The boiler’s circuit board has overheat protection. If this gets too hot, the protection is
tripped. Allow the boiler to cool down before resetting.
* Window open: A window is open and the boiler stops running on gas. Gas operation of the boiler will
restart once the window is closed. Electrical operation continues to function.
Heater not found: There is a connection fault between the boiler and the control panel.
3rd party C. fail: Communication fault between Alde’s panel and Alde Smart Control*.
Panel failure: Fault on the panel.
No match Heater/Panel: The circuit board in the boiler is not intended for the AldeCompact3020 HE
and will not work with the 3020 HE panel.
Red connection fail: Problem with the red cable or red ports. There is no communication with the 3020
heater, AC or iNet.
Yellow connection fail: Problem with the cable between the Alde panel and the CI master panel or its ports.
iNet connection fail: Cannot find the INet box. Probably a problem with iNet. In the event
of ”INet connection fail”, this button is displayed. Pressing the button will remove the error.
Heater not found: Cannot find the 3020 heater. Most probably a problem with the heater’s circuit board.
To reset some of the errors and restart, switch o the boiler from the panel, disconnect 230 V to the
vehicle and disconnect 12 V from the boiler.
Settings
10. RESETTING
Pressing Reset resets the panel to its factory settings. After resetting, the panel will be set as follows:
Boiler – O mode; electrical operation – 1 kW; LPG heating – On mode; indoor temperature – 22°C. Other
functions are switched o.
NB. The functions that are checked under Installed functions (see section 11) will not be aected by a
reset. A reset will also cancel error messages in the error log.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

13
GB
Inst Acc
Optional pump
Third party Panel
Load Monitor
Settings
Figure 1
Figure 2
Inst Acc
Main Remot 12V
Main Manual 12V
Inst Acc
Duo Control
Booster
EisEx
Inst Acc
Alde Flow
Underfloor Heating Pump
Engine Pre-Heat Pump
Figure 3 Figure 4 Figure 5
The relevant box must be checked if
you have:
Connected an external panel or Alde
Smart Control (part no. 3020 057).
Connected an extra 12 V pump, often
located in the expansion tank.
Connected a load monitor.
Connected a 12 V pump that can be
variably adjusted via a potentiometer
knob.
Connected a PWM controlled 12 V
pump that has variable speed control
and is set from the panel.
Connected a booster.
Connected a gas bottle changer
(DuoComfort or DuoControl).
Connected a defroster (EisEx).
Connected a 12 V pump to the under-
floor heating.
Connected an additional hot water
tank to increase the hot water capa-
city and also obtain continuous hot
water
(part no. 3020 160).
Connected a 12 V pump for heating
the vehicle’s engine through the Alde
heating system.
11. ACTIVATION OF INSTALLED FUNCTIONS
The first time you use the heating system, check that the right accessories/functions are activated.
This also applies when you supplement the heating system with accessories/functions.
Activate accessories/functions by pressing on Installed Accessories, (see figure 1) and checking the box
of the respective function/accessory to activate.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

14
12. CARE AND MAINTENANCE
• Checking and changing glycol mixture. Regularly check the heating system’s fluid level in the expansion tank.
With the heating system cold, the level should be about 1 cm above the minimum mark. The heating system
should be filled with a fluid mixture made up from distilled water and ethylene glycol. For best results, use
high-quality ready-mixed ethylene glycol (with inhibitors) intended for use in aluminium heating systems.
The proportions when using concentrated ethylene glycol are 60% distilled water (or water that is free of
salts) and 40% ethylene glycol. If the heating system is likely to be exposed to temperatures below -25°C, the
ethylene glycol content must be increased, but should not exceed 50%. The ethylene glycol mixture should
be changed every other year, as certain properties such as corrosion protection deteriorate over time. If Alde
Premium Antifreeze is used, the interval for changing the mixture can be extended to five years under normal
operating conditions. If the fluid level is too low, the ethylene glycol content must be checked before topping
up. This is to prevent excessive concentration of ethylene glycol in the mixture. When topping up, use the
same quality of ethylene glycol mixture as is already in the system, alternatively use Alde Premium Antifreeze,
which is compatible with most ethylene glycol brands on the market.
NB. Any vessels used for handling or mixing the liquid must be spotlessly clean. This is to prevent the growth
of bacteria and corrosion in the system. The boiler must not be started if there is no glycol fluid in the system.
• Filling with glycol fluid. The system is filled through the expansion tank, either manually or using the Alde
filling pump (1900811), which both tops up and bleeds the system. For manual filling, unfasten the circulation
pump nut (R) and then lift the pump *(S) out of the tank. Slowly pour the ethylene glycol mixture into the
tank.
Bleed the system. Top up with more fluid if the level has fallen after bleeding. Bleed a newly filled heating
system regularly during the first days it is in operation.
• Checking the LPG system. The LPG system should be checked regularly by a specialist, who will ensure that
there are no leaks from connections or hoses. LPG hoses should be changed as indicated on the date stamp,
as they tend to dry out and crack, and are liable to leak as a result. For increased safety, we recommend fit-
ting an Alde leak detector, type 4071, as close as possible to the reducing regulator.
• Emptying the hot water heater. The boiler is fitted with a built-in hot water heater which can hold approxi-
mately 8.5 litres of freshwater. The hot water heater can produce around 12 litres of 40°C water per half-hour
(at a cold water temperature of 10°C). If the electric elements are used instead of gas for heating the water
heater, the capacity is slightly reduced. Always renew the air cushion in the water heater after 10 days of use.
This can be done by opening the safety/drain valve on the boiler for a few seconds.
For emptying specially-adapted boilers, as well as the vehicle’s general freshwater system, please refer to the
manufacturer’s instructions.
NB. The hot water heater should always be drained down completely when there is a risk of frost
and when the vehicle is not in use. The warranty does not cover frost damage.
NB. Remember that the water in the water heater may be hot.
Draining the water heater using the combined safety/drain valve: (see page 15)
• Switch o the freshwater pump.
• Open all water taps.
• Then open the safety/drain valve by raising the yellow lever (M) to a vertical position, or by turning the knob
(K) 180°. The heater will now drain directly below the vehicle through the safety/drain valve hose. Check that
all the water is emptied out (about 7-10 litres). Leave the valve in the open position until the next time the
heater is used.
NB. Check that the automatic non-return valve (N) is open and is allowing air to enter the heater when it is
being drained, and that the hose is not blocked.
• Bleeding the system. Depending on how the pipes have been fitted, air pockets may form when the system
is filled with glycol fluid. If the pipes only warm up a metre or so from the boiler, even though the circulation
pump is operating, this is a symptom of air trapped in the system. In a newly filled system, small air bubbles
can form in the expansion tank, resulting in a gurgling sound. Switch o the circulation pump for a few sec-
onds to allow the bubbles to disappear.
Bleed as follows: If a bleed screw is fitted to the outgoing pipe of the boiler, open this screw and leave it open
until fluid starts coming out. If the boiler is equipped with an automatic air bleed valve, bleeding the boiler
takes place automatically. Start the LPG boiler. The circulation pump should be switched o. Open the re-
maining bleed screws in the system (please refer to the instruction manual of the vehicle for their locations).
Leave the bleed screws open until glycol fluid starts coming out of them, and then close them. Start the cir-
culation pump and let it run for a while. See if the pipes and radiators are heating up around the vehicle.
If this does not help, you can try the following method:Single-axle caravan: Switch o the circulation pump.
Tilt the caravan forwards. Leave it in this position for a few minutes to allow the air to travel upwards in the
system. Open the bleed screw located at the highest point. Leave it open until glycol fluid comes out. Pro-
ceed in the same manner but with the caravan tilted backwards. Then position the caravan horizontally and
start the circulation pump. See if the pipes and radiators are heating up around the vehicle.
Motorhome or twin-axle caravan: For these, the easiest way to bleed the system is to park the vehicle on
sloping ground or to raise one end of the vehicle using a jack. Bleed the system as described above.
NB. Ensure that the system is bled properly. Use the air bleed valves that are located throughout the system.
Risk of overheating if the system is not properly bled.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

15
GB
Closed Open M
Opening automatic
safety valve/drain valve
K
Opening manual
safety valve/drain valve
R
S
Fluid level
N
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

16
13. IMPORTANT INFORMATION
• Always switch o the 12 V main switch for the boiler when the vehicle is not in use.
• When washing the vehicle, do not spray water directly towards the flue.
• When camping in winter conditions, ensure the flue and exhaust air valves are kept clear of snow and ice.
• The vehicle may be heated even if the hot water heater is not filled with freshwater.
• The LPG boiler and electric elements may be operated simultaneously.
• Always renew the air cushion in the water heater after 10 days of use so as to create a new air cushion.
This can
be done by opening the safety/drain valve on the boiler for a few seconds.
The air cushion allows expansion to take place and protects the boiler against pressure impacts from
the freshwater pump.
• Always drain the hot water heater of freshwater when there is a risk of frost and when the
vehicle is not being used, otherwise there is a risk of serious frost damage.
• The LPG boiler must not be in operation when refuelling the vehicle or when filling
a fixed LPG tank.
• Never allow the heating system to stand empty of glycol fluid.
• The ethylene glycol mixture should be changed every other year, as certain properties such as corro-
sion protection deteriorate over time.
If Alde Premium Antifreeze is used, the interval for changing the mixture can be extended to five years
under normal operating conditions.
Omitting to change the fluid can result in frost damage, corrosion, bacterial growth and/or overheating.
• Sterilisation fluids for freshwater can cause harmful corrosion to the stainless structure of the boiler.
Always read the data label on additives that are used and make sure the system is flushed of all addi-
tives before you use the boiler.
• Hard water is water that has a high dissolved-mineral content, particularly calcium. If the boiler is used
in a hard water area for longer periods, install a water filter.
Hard water can lead to a build-up of lime scale that can reduce the functionality of the system.
NB. Close the main LPG valve in the following situations.
• When the vehicle is not intended to be used.
• The national legislation of the country you are in may require you to close the main LPG tap when the
vehicle is in trac.
• When repairing the boiler.
• When a leak in the LPG system is suspected.
14. WARRANTY
Conditions for Alde’s warranty undertaking
1. The warranty period is 2 years from initial date of registration of the vehicle. For spare parts, 1 year’s
warranty applies from purchase date.
2. Claims for defective products must be made at the retailer dealer that sold the vehicle/product.
3. Proof of purchase must be provided for a claim under warranty to be valid.
4. Any claim must be made within a reasonable time (two months maximum) after the defect is discovered.
NB. The warranty only covers material- or manufacturing defects provided that Alde’s installation instruc-
tions and directions for use have been followed, as well as the guidelines and handling requirements spe-
cified therein.
NB. The warranty does not cover frost damage, incorrect installation, incorrectly dimensioned installation,
air in the system or contaminated gas or water. Nor does the warranty extend to corrosion as a conse-
quence of inferior glycol fluid.
NB. Only original parts from Alde are to be used as spare parts.
Compensation is not paid for expenses for loss of use of vehicle, fuel, telephone, hotel etc., nor for loss of
time or lost income/revenue.
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

17
GB
15. CABLE CONNECTION COMPACT 3020 HE AND CONTROL PANEL 3020 HE
Connect accessories to the boiler and control panel as shown in the diagram below.
NB. Do not clamp 12 V cables or sensor cables together with 230 V cables.Do not position the cables
close to one another. If the cables are bundled together, there is a greater risk of malfunction during ope-
ration.
Control panel rear
*Truma AC and iNet are connected
to the TIN Bus port.
Circuit board on Compact 3020 HE boiler
Optional board for Compact 3020 HE Mechanical panel 3010 214
* The automatic climate control functions with:
- Truma Aventa comfort
- Truma Aventa eco
- Truma Saphir comfort RC
- Saphir compact (serial no. > 23091001)
Saphir compact needs a Truma adapter 40090-69300
3020
+
Battery Back-up (3V DC)
Remote Sensor 1
Remote Sensor 2
Sofa
Bed
Heater
CI Bus
External panel
Fuse 3,15 A
12 V DC
12 V
pump
Control panel
Tin bus
Option board/
Mechanical panel
External
start
Window
sensor
Load
monitor
Outdoor
sensor
D
E
I
F
OUT 12V DC
CONNECTED TO HEATER
FUSE 3,15 A ALDE FLOW EIS EX HEATER 12 V DC
+
-
Functions marked with a (*) are accessories, which are not installed on all vehicles, refer to the vehicle
manufacturer’s instructions.

Alde International Systems AB
Box 11066 • S-291 11 Färlöv • Sweden
Tel: [phone]
[email protected] • www.alde.se
V-3020 05 Rev1712, 2017-04-19
