ALDI Ferrex CQB180D-1 Product information sheet

Great care has gone into the manufacture of this product and it should there-
fore provide you with years of good service when used properly. In the event
of product failure within its intended use over the course of the first 3 years af-
ter date of purchase, we will remedy the problem as quickly as possible once
it has been brought to our attention. In the unlikely event of such an
occurrence, or if you require any information about the product, please con-
tact us via our helpline support services, details of which are to be found both
in this manual and on the product itself.
PRODUCED IN CHINA FOR:
ALDI STORES LTD. PO BOX 26, ATHERSTONE
WARWICKSHIRE, CV9 2SH.
GB
Visit us at www.aldi.com
AFTER SALES SUPPORT 90352
GB
[email protected]
MODEL:
CQB180D-1 03/2020
[phone]
3
YEAR
WARRANTY
User Manual
PORTABLE COMPRESSOR
Original User Manual

Overview
2
6
1
2
3
5
4
15 14
17
19
16
18
20
A
7

BB
C
20
Overview
3

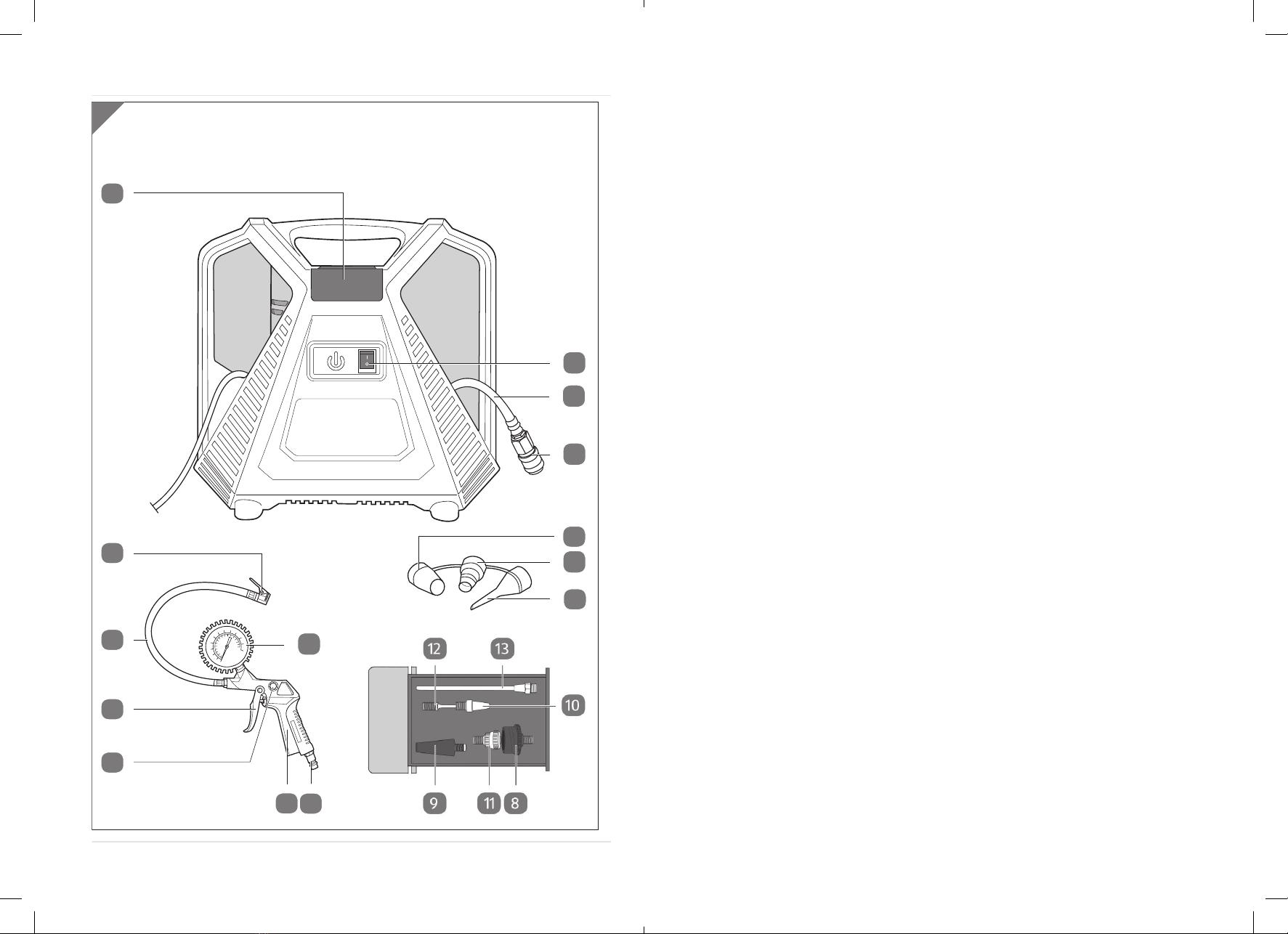

Package contents/device parts
1On/Off switch
2Compressed air hose
3Quick coupling
4Screw-on valve adapter
5Bleed adapter
68 mm adapter
7Manometer
8Nozzle adapter
9Thick conical universal adapter
10 Thin conical universal adapter
11 Express valve adapter
12 Ball needle
13 Blow-out adapter
14 Compressed air connector plug
15 Pneumatic gun
16 Drain valve
17 Trigger switch
18 Pneumatic gun hose
19 Quick-release with lever
20 Accessory compartment
Package contents/device parts
4

Table of content
Overview..................................................................................................................2
Package contents/device parts.............................................................................. 4
General information................................................................................................6
Reading and storing the user manual............................................................................6
Explanation of symbols.....................................................................................................6
Safety.......................................................................................................................8
Proper use...........................................................................................................................8
Residual risks......................................................................................................................8
Safety notices....................................................................................................................10
Safety instructions for the compressor..........................................................................13
Checking the compressor and package contents.................................................18
Operation............................................................................................................... 18
Opening and closing the accessory compartment.....................................................20
Connecting and disconnecting the pneumatic gun.................................................. 20
Switching the compressor on and off............................................................................21
Inflating..............................................................................................................................21
Use as a blow-out gun.....................................................................................................23
Cleaning................................................................................................................. 23
Replacing the mains connection line............................................................................25
Storage...................................................................................................................25
Troubleshooting.................................................................................................... 26
Technical data........................................................................................................ 27
Disposal..................................................................................................................27
Disposing of packaging...................................................................................................27
Dispose of old electrical device......................................................................................28
Table of content
5

General information
Reading and storing the user manual
This user manual accompanies this portable compressor. It contains
important information about commissioning and handling. For improved
readability, the portable compressor will be referred to only as the
“compressor” below.
Before using the compressor, read the user manual carefully. This particularly applies
for the safety notes. Failure to heed this user manual may result in severe injury or
damage to the compressor.
Applicable local and national legislation concerning the use of this product must be
complied with.
Store the user manual for future use. If you pass the compressor on to third parties,
please be absolutely sure to include this user manual.
This user manual is also available via the service address specified on the warranty
card.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the
compressor or on the packaging.
WARNING! This signal symbol/word denotes a hazard with
an average risk level that could lead to death or
severe injury if it is not avoided.
CAUTION! This signal symbol/word denotes a hazard with a
low risk level that could lead to mild or moderate
injury if it is not avoided.
NOTE! This signal word provides a warning about
potential material damage.
This symbol provides you with useful additional information on
handling and use.
Declaration of conformity (see chapter “Declaration of conformity”):
Products marked with this symbol meet all the applicable Community
regulations of the European Economic Area.
General information
6

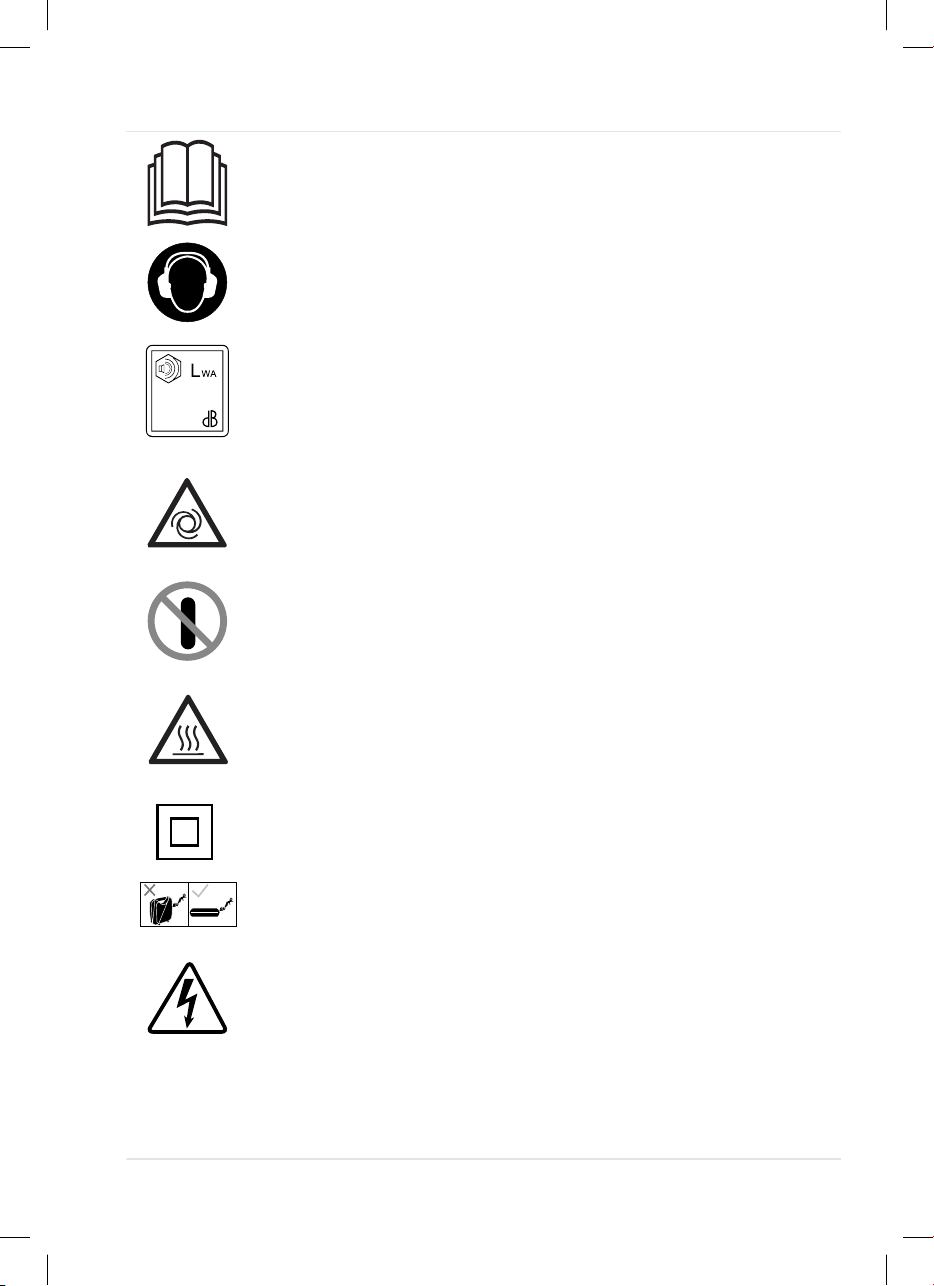

Read the operating manual.
Wear hearing protection.
95
The guaranteed sound power level LwA is 95 dB.
Warning: The compressor may start without warning
Do not leave the compressor on while performing maintenance.
Warning of hot parts. The surfaces of the compressor may heat up
during operation.
This symbol identifies devices that belong to the protection class II.
Attention! Do not leave the appliance standing upright when in use.
As a result of the strong vibrations when using it, it could fall over and
damage objects in the vicinity.
This symbol warns of a risk of electrical shock.
General information
7

Safety
Proper use
The compressor serves to produce compressed air for inflating
car tyres, bicycle tyres, air mattresses, sports balls, rubber
dinghies etc. using the enclosed adapters.
The compressor is not designed to be used commercially, in the
trades or for industrial applications; it is only designed for private
users for hobby and DIY projects.
The compressor may only be used in accordance with its
intended purpose. Any other kind of use is prohibited! The
compressor is not a children’s toy.
Proper use also includes compliance with the safety notes,
assembly instructions and operating notes in the user manual.
The manufacturer and vendor cannot accept liability for damage
caused by improper or incorrect use.
Only accessories that are suitable for the compressor may be
used.
Persons who operate the compressor and perform maintenance
must be familiar with it and be advised of possible risks.
Furthermore, every aspect of applicable accident prevention
guidelines must be exactly adhered to.
Other general guidelines relating to occupational medicine and
safety must be observed. Modifications to the compressor rule
out any liability of the manufacturer for resulting damages.
Any other applications are expressly prohibited and are deemed
improper use.
Residual risks
Despite proper use, inconspicuous residual risks cannot be
completely ruled out.
Safety
8

The following risks may arise due to the nature of the
compressor:
- Hearing loss in the event of failure to use the required ear
protection.
WARNING! When using power tools, the following basic safety
measures must be taken in order to provide protection against
electric shocks, risk of injury and fire.
Read all these notes before using the power tool and keep the
safety notes in a safe place. Failure to follow the safety
instructions and guidance may result in an electric shock, fire
and/or severe injury.
The user manual and, in particular, the safety notes must be
carefully read and adhered to by each user before beginning
work.
Work on this device may only be performed by persons who have
been instructed in how to use the compressor and who have
been advised on the associated risks.
The manufacturer of the compressor is not liable for damages
caused by the compressor or damages to the compressor in the
event of:
- improper handling or improper use,
-failure to comply with the user manual,
- repairs by a third party, unauthorised specialist workshops,
- installation and replacement of non-original replacement
parts,
- failures of the electrical system due to failure to comply with
electrical guidelines and provisions.
In addition to the safety guidelines in this user manual, please be
absolutely sure to observe the regulations for operating the
compressor that are in force in your country.
Safety
9

In addition to the safety notes in this user manual and the special
regulations for your country, the generally recognised technical
rules for operating this compressor must be observed.
Safety notices
Attention! When using this compressor, the following
general safety measures must be taken in order to provide
protection against electric shocks, risks of injury and fire.
Read and take note of these instructions before you use the
device.
1. Keep your work area orderly.
•Disorganisation in your work area poses a risk of accident.
2. Take any environmental factors into account.
• Do not expose the compressor to rain.
• Do not operate the compressor in wet or damp rooms.
•Ensure that the work area is well lit.
• Do not use the compressor if there is a risk of fire or
explosion.
3. Protect yourself against electrical shock.
• Avoid contact between your body and earthed parts (e.g.
pipes, radiators, electric stoves, cooling units).
4. Keep other persons away.
• Do not allow other persons, particularly children, to touch
the compressor or cable. Keep them away from your work
area.
5. Store the compressor in a safe area.
• The unused compressor should be stored in a dry, locked
room out of the reach of children.
Safety
10

6. Do not overload your compressor.
• It works better and more safely within the specified power
range.
7. Wear suitable work clothing.
•Do not wear any loose-fitting clothing or jewellery as it
could be caught by moving parts.
•It is recommended that you wear firm footwear when
working outdoors.
• If you have long hair, wear a hair net.
8. Use protective equipment.
•Wear protective goggles.
• Use a breathing mask when performing dusty work.
9. Do not use the cable for purposes other than the intended
one.
•Do not use the cord to pull the plug out of the socket.
Protect the cable from heat, oil and sharp edges.
10. Take good care of your compressor.
• Keep your compressor clean to ensure that you can work
safely and effectively.
• Follow the maintenance guidelines.
• Check the connector cable and the plug of the compressor
regularly and have it replaced by a qualified professional
in case of damage.
• Check the extension cords regularly and replace them if
they are damaged.
• Keep the handles dry, clean and free of oil and grease.
11. Pull out the mains plug.
• When not using the compressor, before performing
maintenance and when changing tools.
Safety
11

12. Avoid accidental start-up.
• Ensure that the switch is off when inserting the plug in the
socket.
13. Use an extension cord when working outdoors.
•When outside, only use an extension cord that is approved
for such use and which is labelled accordingly.
14. Remain attentive.
•Pay attention to what you are doing. Approach work in a
reasonable manner. Do not use the compressor if you are
distracted, tired or under the influence of drugs, alcohol or
medication.
15. Check the compressor for any damages.
• Before you use the compressor, the protective devices or
easily damaged parts must be carefully checked for
functioning properly and as intended.
• Check to make sure that moving parts are fully functional,
that they are not jammed and that the parts are not
damaged. All parts must be properly mounted and fulfil
conditions to ensure proper operation of the compressor.
• Damaged protective devices and parts must be properly
repaired or replaced by an authorised workshop to the
extent not otherwise specified in the user manual.
• Damaged switches must be replaced by a customer service
workshop.
• Do not use any power tools if the switch cannot be turned
on and off.
16. WARNING!
• For your own safety, only use accessories and auxiliary
equipment specified in the user manual or recommended
or specified by the manufacturer. Using insertion tools or
Safety
12

accessories other than those specified in the user manual
or recommended in the catalogue may pose a personal
risk of injury for you.
17. Have your power tool repaired by an electrical technician.
•This power tool complies with applicable safety
regulations. Repairs may only be performed by an
electrician who uses original replacement parts;
otherwise, there is a risk of accident for the operator.
18. Noise.
• Wear ear protection when using the compressor.
19. Replacement of the connector cable.
• If the connector cable is damaged, it must be replaced by
the manufacturer or an electrician to avoid risks.
Safety instructions for the compressor
WARNING! For your own safety, only operate the compressor
after you have read the safety instructions.
WARNING!
Danger of explosion!
Operating the compressor in an unsuitable location without
adequate ventilation, at an unsuitable ambient temperature or
in a room where dust, acids, vapours or flammable gases are
present poses a risk of explosion.
- The compressor must not be operated or stored in a room
where there are dusts, acids, vapours or flammable gases. It
could explode.
- Keep flammable substances away from the compressor.
- Only operate the compressor at an ambient temperature of at
least +5 °C and no more than +40 °C. Starting the motor at
temperatures below +5 °C poses a risk due to stiffness.
Safety
13

- Make sure that the ambient temperature in an enclosed
working environ ment does not exceed +25 °C to ensure that
the compressor continues to function properly when
continuously and completely filled with air.
-Only operate the compressor in well ventilated rooms.
- Do not spray water or flammable liquids on the compressor.
WARNING!
Risk of injury!
The compressor is under pressure during operation and in an
unvented state. Pressure may be released if the compressor is
damaged, connections have been separated or if unsuitable or
damaged lines are used. There is a risk of injury.
- A compressor must not be used if it exhibits defects that pose
a risk to the operators or third parties.
- Check the compressor for rust and damage before each use.
Never operate the compressor if it is damaged or deformed. If
you identify damage, contact our After Sales Support at the
service address indicated on the warranty card immediately.
- Do not separate any connections while the compressor is in a
pressurised state.
- Never create holes or welded seams on the compressor and
never change its shape.
- Make sure that the compressed air tank is always vented
before separating the connections, connecting or removing
pneumatic tools.
- Move the On/Off switch (pressure monitor) to the “0” (OFF)
position once the compressor has been switched off.
- Make sure that you only use pneumatic lines for compressed
air that are suitable for at least 150 % of the maximum
pressure produced by the compressor.
Safety
14

- Use a compressed air hose with a hose safety catch if you are
working with pressures of 7 bar or more.
- Do not use the compressor if the hose or the hose connections
have any leaks or are damaged.
-Do not attempt to repair damaged lines; instead, replace
them.
- Make sure that the hose clamps are always securely
tightened. Loose or damaged hose clamps could allow air to
leak uncontrollably.
WARNING!
Risk of electric shock!
A faulty electrical installation, excessive mains voltage or
moisture may result in an electric shock.
- Only connect the compressor if the mains voltage of the
socket corresponds to the operating voltage as indicated on
the machine’s rating plate.
- Only connect the compressor to an easily accessible socket so
that you can quickly disconnect it from the power supply in
the event of a fault.
-Do not use any adapter plugs with earthed (grounded) power
tools. Plugs that have not been modified and sockets with the
proper fit reduce the risk of an electric shock.
- Lay the mains cord out in such a way that it does not pose a
tripping hazard.
- Do not kink the mains cord and do not lay it over sharp edges.
- Do not carry the compressor by the mains cord and do not
hang it up by the mains cord.
- Before transport and before performing cleaning or
maintenance, always pull the mains plug out of the socket.
- Do not use the compressor if the mains cord or the mains plug
is damaged. Have an authorised specialist workshop replace
Safety
15

the damaged part with an original part. To do so, contact the
After Sales Support at the service address indicated on the
warranty card.
- Always pull the mains plug out of the socket when you are not
using the device.
- If you are working outdoors, use a fault current (FI) protection
switch with a release current of no more than 30 mA to
connect the compressor.
- Do not use the compressor if it is damp or in a damp
environment.
- With respect to outdoor use, only use an extension cord which
is approved for outdoor use.
- Switch the compressor off each time before you transport it
and pull the mains plug.
- Operate the compressor with a residual current device (RCD)
with a maximum release current of no more than 30 mA. Use
of a residual current device (RCD) reduces the risk of electric
shock.
WARNING!
Risk of burns!
The compactor and the lines of the compressor become hot
during operation. You could burn yourself on them.
- Do not touch the compactor and the lines during operation to
avoid burn injuries.
-Be careful when working.
Safety
16

WARNING!
Risk of injury!
The compressed air jet, which you generate with the compressor,
has a high pressure. Improper use of the compressor or the
compressed air jet poses a risk of injury!
- Do not point the compressor or the accessories at persons,
objects or animals to prevent severe injury to persons.
- Do not point the compressed air jet at persons or animals and
do not use it to clean clothing that is being worn.
- Do not insert hands or objects through the compressor’s
protective grates.
- Keep children and animals away from the functional area of
the compressor.
- When separating the hose coupling, hold the coupling
element firmly with your hand to prevent injury caused by the
hose lashing back.
- Wear protective goggles when working with the blow-out
gun. Debris and parts that are blown away pose a risk of
injury.
- Avoid exhaust air coming into contact with your eyes. Exhaust
air from the compressor may contain water, oil, metal particles
and contaminants from the compressor. This could cause
injury to health.
WARNING!
Risk of injury!
There is a risk of injury if the compressor starts up uncontrollably.
- Be careful when setting down the compressor.
- Never lay the compressor on the On/Off switch. Otherwise, the
compressor could accidentally switch on.
Safety
17

NOTE!
Risk of damage!
Improper handling of the compressor may result in damage to
the compressor.
- Do not insert any objects in the compressor.
Checking the compressor and package contents
WARNING!
Risk of swallowing and choking!
Children must not play with plastic bags, wrappers and small
parts. There is a risk of being swallowed and suffocation.
- Keep children away from the compressor, small parts and the
packaging material.
- The compressor is not a children’s toy.
1. Carefully take the compressor out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the compressor or the accessories exhibit damage. If this is the
case, do not use the compressor. Contact the manufacturer at the service
address given on the warranty card.
4. As far as possible, store the packaging until the warranty period has expired.
Operation
NOTE!
Risk of damage!
The compressor is not suitable for continuous operation. The
compressor will overheat if operated continuously for an
excessive amount of time or if overloaded. It could be damaged
as a result.
- Never operate the compressor for longer than 10 minutes at a
time.
Safety
18

- The compressor may only be operated with the rated input
power for 15% of the operating time, that is, for 1.5 minutes.
The compressor will cool off the rest of the time.
- Switch the compressor off after no more than 10 minutes of
continuous operation and let it cool off for at least 10 minutes.
- Do not exceed the permissible power range of compressor. Do
not inflate any lorry, tractor or other large tyres.
NOTE!
Risk of damage!
Operating the compressor with long feed lines, extension cords
or cable drums could cause a voltage drop and prevent the
motor from starting.
- If possible, do not use any long feed lines, extension cords or
cable drums.
- An undersized air pressure system can affect the efficiency of
your device.
NOTE!
Risk of damage!
The compressor will vibrate during operation. If you set up the
compressor in an unsuitable location, you could damage it.
- Place the compressor on an easily accessible, level, dry and
sufficiently stable work surface. Do not place the compressor
on the edge of the work surface.
- During operation, always place the compressor on the
underside.
- Do not place the compressor on or near hot surfaces.
- Set the compressor up in a location with dry and clean air. Do
not use it in wet rooms and in areas where work is performed
with spraying water or in the rain.
Operation
19

Opening and closing the accessory compartment
1. Place or lay the compressor on a suitable work surface, so that the side with the
On/OFF switch 1faces upward (see Fig. A).
2. Open the accessory compartment 20 , by pulling it out of the duct as far as
possible in an upwards direction (see Fig. C).
3. Place the accessory compartment on the carrying handle of the compressor.
4. Remove the valve adaptor(s) 8910 11 13 and the ball needles 12 from
the accessory compartment.
5. Lift the accessory compartment so that it is vertical.
6. Slide the accessory compartment into the ducts on the compressor to close it
again.
Connecting and disconnecting the pneumatic gun
CAUTION!
Risk of injury!
If the compressed air hose with the quick coupling recoils
uncontrollably when it is disconnected from the pneumatic gun,
it could thrash around and you could injure yourself.
- Firmly hold the quick coupling in your hand when
disconnecting it from the pneumatic gun.
Connecting the pneumatic gun
Before operang the compressor, you must aach the pneumac gun with the
manometer and, if necessary, an adapter nozzle. To do so, proceed as follows:
1. Make sure that the compressor has been switched off.
2. Insert the compressed air connector plug 14 of the pneumatic gun 15 into the
quick coupling 3until it audibly locks into place (see Fig. B).
The sleeve of the quick coupling will automatically spring forward.
3. If you prefer, fit the nozzle adapter 8and one of the enclosed adapters on the
quick-release with lever 19 as described in the chapter “Inflating”.
You can now switch the compressor on as described in the chapter “Switching the
compressor on and off”.
Disconnecting the pneumatic gun
1. Make sure that the compressor has been switched off.
Operation
20
