ALDI LIGHTWAY BMSL1233 User manual

®
BATTERY SPOTLIGHT
User Manual
ID: #05007
m
y
h
a
n
s
e
c
o
n
t
r
o
l
.
c
o
m
M
A
N
U
A
L
D
E
V
E
L
O
P
E
D
I
N
G
E
R
M
A
N
Y
User-friendly
Manual

Dok./Rev.-Nr. 196771_20181128
Contents
Overview ......................................................................... 3
Use.................................................................................... 4
Package contents/device parts ..................................... 5
General information ....................................................... 6
Reading and storing the user manual........................... 6
Explanation of symbols .................................................... 6
Safety............................................................................... 8
Proper use........................................................................... 8
Safety instructions............................................................. 9
Start-up ..........................................................................15
Checking the spotlight and package contents ........... 15
Inserting batteries............................................................16
Choosing an installation location.................................. 17
Assembly ........................................................................18
Mounting the spotlight....................................................18
Operation .......................................................................19
Choosing a sensor area ................................................... 19
Choosing a lighting duration ......................................... 19
Choosing the sensitivity ................................................. 20
Adjusting the spotlight heads....................................... 20
Switching the spotlight on and off............................... 21
Troubleshooting ............................................................ 21
Cleaning..........................................................................23
Storage ...........................................................................23
Technical data ............................................................... 24
Declaration of conformity .............................................25
Disposal ..........................................................................25
Disposing of the packaging ............................................25
Disposing of the spotlight ...............................................26

3
A1
2
3
4
2
5
6
7
8

4
B
C
9 10 11
12
13
1,5 - 2 m
140°
10 m ± 1 m

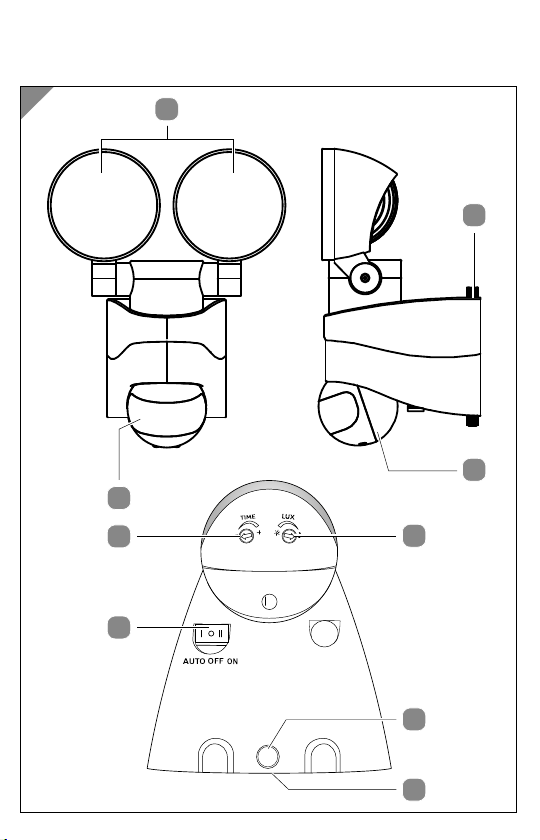

Package contents/device parts
5
Package contents/device parts
1Spotlight head, 2×
2Fixing screw, 2×
3Sensor housing
4Sensitivity controller
5Rear panel
6Power switch
7Controller for the lighting duration
8Motion sensor
9Battery compartment cover
10 Battery compartment latch, 2×
11 Battery compartment
12 Screw, 2×
13 Dowel, 2×
The pack contents include
four 1.5V batteries of type C-LR14.

General information
6
General information
Reading and storing the user manual
This user manual accompanies this battery spotlight
(referred to below as the “spotlight”). It contains
important information on start-up and handling.
Before using the spotlight, read the user manual carefully. This
particularly applies to the safety instructions. Failure to heed
this user manual may result in severe injury or damage to the
spotlight.
The user manual is based on the standards and rules in force
in the European Union. When abroad, you must also observe
country-specific guidelines and laws.
Store the user manual for future use. If you pass the spotlight
on to third parties, please be absolutely sure to include this
user manual.
Explanation of symbols
The following symbols and signal words are used in this user
manual, on the spotlight or on the packaging.
WARNING!
This signal symbol/word designates a hazard with moderate
degree of risk which may lead to death or severe injury if not
avoided.

General information
7
CAUTION!
This signal symbol/word designates a hazard with low risk
that, if not avoided, may result in minor or moderate injury.
NOTICE!
This signal word warns against potential damages to property.
This symbol provides you with useful additional
information about start-up or operation.
Declaration of conformity (see chapter
“Declaration of conformity”): Products marked
with this symbol meet all applicable Community
regulations for the European Economic Area.
----1m The minimum distance to objects to be lit is 1m.
IP44
The spotlight’s type of protection is IP44. This
means it is protected against splashing water
and against ingress of solid foreign objects with a
diameter of more than 1mm.
The spotlight is not dimmable and must not be
operated with an external dimmer.

Safety
8
This symbol identifies electric devices
corresponding to protection class III. This means
the spotlight operates at low voltage and is
operated with a safety extra low voltage (SELV).
Safety
Proper use
The spotlight is designed as a fixed installation in a location
protected against rain and is intended only for temporary
lighting outdoors, e.g. to light corridors, garages or pathways
and as a deterrent against burglary. Do not use it for indoor
lighting or for accent lighting.
Only use the spotlight as described in this user manual. Any
other use is considered improper and may result in damage to
property.
The product is suitable for extreme temperatures under –20 °C.
The manufacturer or vendor accepts no liability for damage
caused by improper or incorrect use.

Safety
9
Safety instructions
WARNING!
Risk of explosion and fire!
Improper handling of the spotlight can
cause an explosion or a fire.
− Keep children away from the spotlight.
− Before start-up, remove all protective films.
− Keep the spotlight away from water,
other liquids, open flames and hot
surfaces.
− Do not hang any objects over the
spotlight and do not cover it. Maintain
a distance of 1m between the spotlight
and easily flammable materials.
− Do not continue to use the spotlight if it
exhibits damage. Only replace damaged
parts with corresponding original spare
parts.
− Do not open the housing and do not
make any modifications to the spotlight.
Have only qualified professionals
perform repairs.

Safety
10
− Do not position the spotlight over
bathtubs, sinks or other objects filled
with water.
− Never charge non-rechargeable
batteries.
− Protect the batteries against mechanical
damage.
− Do not throw batteries into fire. They
could explode or release toxic vapours.
− Do not expose batteries to unrestricted
sunshine or heat. Increased risk of
leaking!
− Do not take batteries apart and do not
short-circuit them. Danger of explosion!
− Never short circuit the supply terminals.
Avoid allowing them to come into
contact with metallic objects.
− If necessary, clean the battery and
device contacts before inserting the
batteries.
− Make sure that the polarity is correct
when inserting the batteries.
− Only use batteries of the same type.
− Do not use used and new batteries
