ALEDDRA KL-B01 User manual

Website: www.aleddra.com
Phone: [phone]
Technical Support: [email protected]
Introduction
About This Product ............................................ 2
Safety Precautions ......................................... 3
Name of the Parts .......................................... 5
Settings ………................................................... 6
How to Install .................................................. 9
Maintenance ................................................... 10
Troubleshooting ............................................. 13
Specifications .................................................. 14

Introduction
The Sanitizing de-Odorization LED Lamp adopts
photocatalyst technology and provides deodorization
and sterilization for indoor use. It helps reducing
airborne germs and minimizes household odors caused
by bacteria, pets and cooking fumes.
What is photocatalyst technology?
When light is irradiated on the photocatalyst layer, a
strong oxidation effect will be produced. By utilizing
the strong oxidation ability of the photocatalyst, the
odor and harmful substances in the air will be
decomposed.

Recommended Mounting Areas:
• Your home or apartment
• Senior and assisted living facilities
• Hospital patient rooms and bathrooms
• Waiting room in both medical and dental offices
• General offices spaces
• Classrooms and day care facilities
• Restaurants and bars
• Public restrooms
• Elevators
Safety Precautions
Please read and follow the safety precautions before
using this product.
Please use it with 100V-240V AC power
The base (E26) of this product must be firmly
connected to the lamp holder.
Clean the dust between the base and lamp
holder regularly.
Follow the cleaning instruction; be sure to
turn off the power (turn off the wall switch).
Do not operate without the photocatalyst
filter.

Do not use on equipment or circuits with
dimming function.
Do not use on emergency lighting equipment,
guidance light equipment, mercury lamp or
HID lamp equipment.
Do not install or disassemble the lamp with
wet hands.
Do not install the product on a broken or
fragile lamp holder.
Do not cover the lamp with paper, cloth or
flammable materials.
Do not disassemble, modify or repair the main
unit.
Do not put liquid such as water into the air
inlet or air outlet.
Do not block the air inlet or air outlet when
the product is in operation.
Do not use in places where steam is
generated, such as a humidifier. It will affect
or shorten the life of the photocatalyst filter.
Do not use within the reach of infants.
Not for outdoor use.
Do not use in the following places:
- Places where sprays and chemicals are used
- Places with flammable and explosive gases
- Places that subject to have direct sunlight or
extreme heat or cold

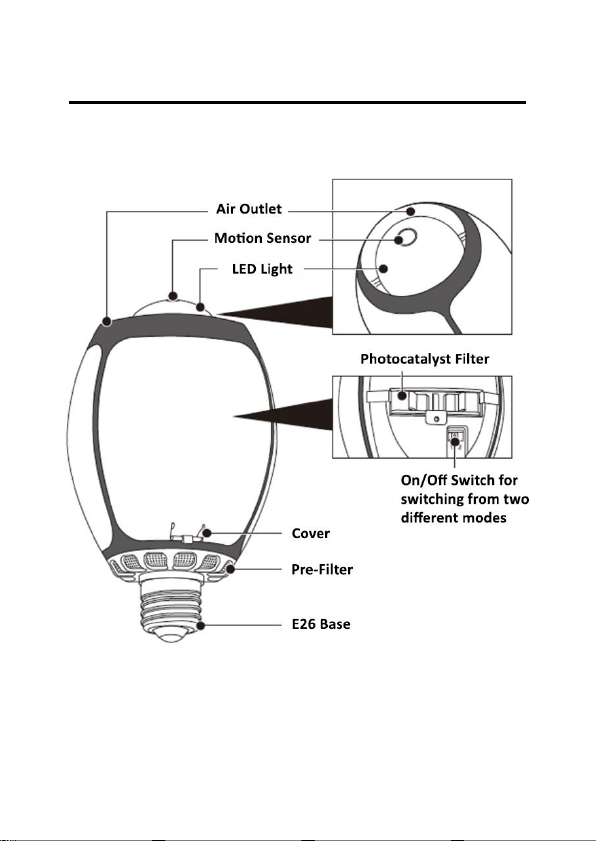

Name of the Parts

Settings
Sanitizing de-Odorization LED Lamp has two modes:
Motion Sensor Mode
Manual Mode
Before usage, please determine which mode would be
applicable in your area. The default setting is Motion
Sensor Mode.
Motion Sensor Mode
When the movement of a person is detected, the LED
light will be on automatically. When there is no motion
detected, the light will be off after 3 minutes.
Deodorizing and sterilizing functions will still remain in
operation.

Manual Mode
The LED light is turned on / off by the wall switch.
When the LED light is on, the deodorizing and
sterilizing functions will be activated at the same time.
When the LED light is turned off by the wall switch, all
the functions of the lamp will be shut off.
The motion sensor range:

How to switch between two modes:

How to Install
Hold the bottom of the main unit and plug it into the
E26 socket.
Be sure to turn off the wall switch during installation.
Be careful not to over tighten the lamp.
Do not install in places where the Pre-filter will be
hidden, such as downlights.

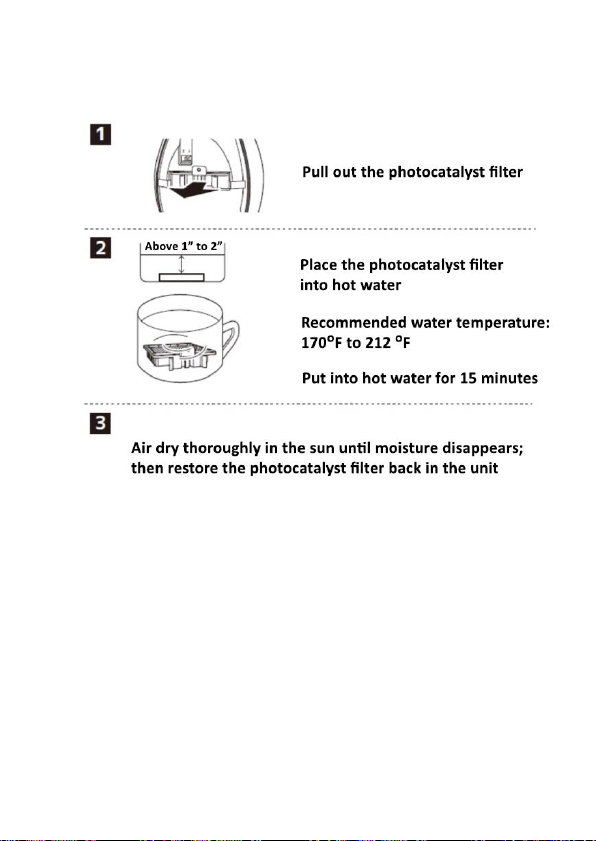

Maintenance
This product is a device that collects bad odor
components throughout the room, improves the
indoor air quality. If the photocatalyst filter have odors
or an insulator attached, the deodorizing and
disinfecting effect will be reduced. In this case, clean
the photocatalyst filter properly.
Pre-Filter: Clean every 3 months

Photocatalyst Filter: Clean every 6 months

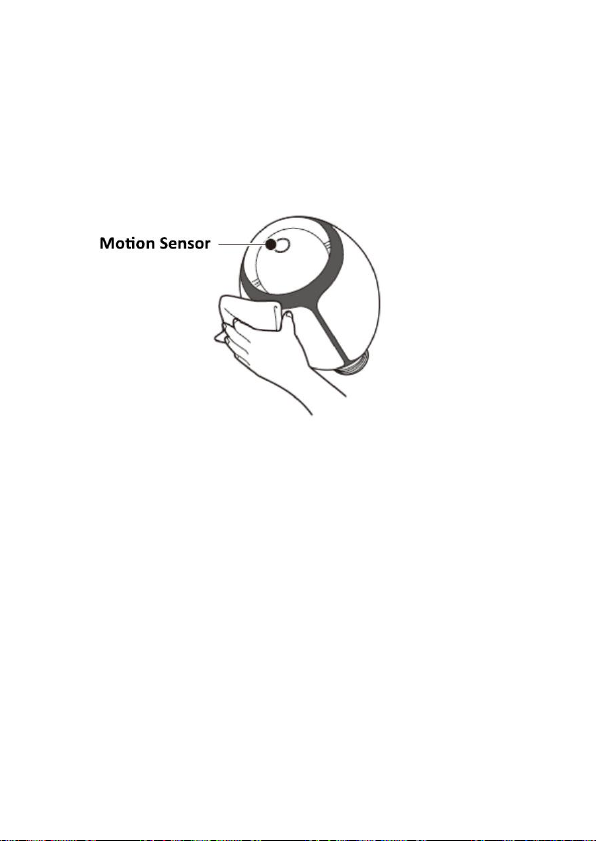

Housing (Air Outlet / LED Light / Motion Sensor /
Lamp Holder)
Use a soft and dry cloth to remove dirt.
Note:
1. Do not use detergent, soap, chemicals or oil to clean
the photocatalyst filter.
2. Do not use brush to clean the photocatalyst filter.
3. The color of the photocatalyst filter may change;
however, this will not affect the filter’s performance.
4. This is our recommendation guide. Maintenance
timeframe depends on the use of environment.

Troubleshooting
Situations
Please Check:
Personnel has left
the room but the
light is still on
The light will keep operating for
three minutes since motion was
detected.
The light was off
when the
personnel is still
in the room
When there’s no motion detected,
the LED light will be off. It depends
on the speed of movement, the
direction of approach, clothing
and body temperature.
When no one is in
the room, the
lamp is still
operating
When there is no motion
detected, the LED light will be off
after 3 minutes. Deodorizing and
sterilizing functions will still
remain in operation.
LED light is not on
and the fan is not
operating
- Please make sure the installation
is correct.
- Wall switch is ON.
- Please make sure the motion
sensor is not covered by dirt. Use a
soft and dry cloth to remove dirt.
LED is not as
bright as usual
This could be due to the service
life of the lamp. Please contact our
support team.

Cannot reduce
bad odors
- Please make sure the wall switch
is set to “ON”
- If the photocatalyst filter have
odors or an insulator attached, the
deodorizing and disinfecting effect
will be reduced. In this case, clean
the photocatalyst filter properly.
Specifications
Product Name
Sanitizing de-Odorization
LED Lamp
Model #
KL-B01
Wattage
10W
Power Requirement
100-240VAC at 50/60Hz
Color Temperature
2700K
Light Output
485 lm
Cover Area
30 sq. ft.
Dimensions
6.02" x 3.62"
Weight
0.34kg
Warranty
2-year
