Alfa Network AFSG-2242 User manual

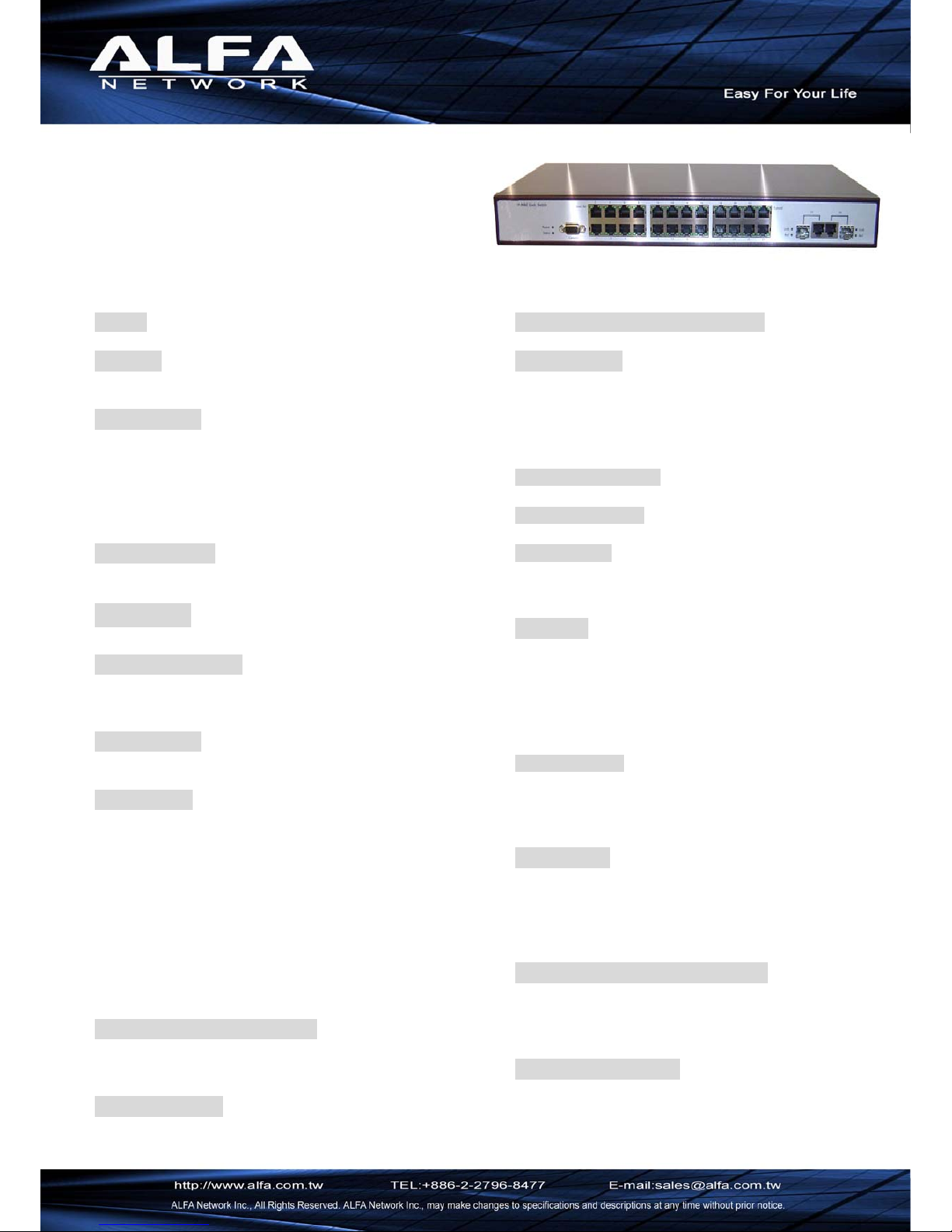

AFSG-2242
IP-MAC Lock Switch
Speed
zIP-MAC exchange transmission rate up to 9.6 Gbps
Memory
zPacket buffering:32 Mbps
zSupports store and forward
Management
zSupports Telnet
zSupports SSH
zSupports remote control function
zSNMP V1/V2c/V3
zRS-232 Local Console setting Cisco Like(CLI)
zWeb management interface
Physical Ports
z24 RJ-45 10/100Base-T ports
z2 Gigabit 1000 Base port
Supports:
IP/ MAC / Port / VLAN Auto Learning
Quality of Service
zL2/L3/L4Traffic Castigation/ Priority Management
zCos(Class of Service) by IEEE802.1 p4 priority
queues control
Performance
zMAC address:8K
zPhysical address can be sat automatically or manually
L2 Features
zIP-MAC-Port-VLAN Lock Rule:200
zFull-duplex mode on port 25 and 26 when working the
Gigabit speed
zPort Mirroring: Supports Mirror function per port
zSpanning Tree: Supports 802.1d STP,802.1w RSTP
zBroadcast storm control
zSupports VLAN
zSupport IEEE802.1Q VLAN
zSupport Tag
zSupport unTag VLAN
zSupport LLDP
Provides Link Aggregation
zSupport Up to 8 port in one trunk
zUp to 13 trunk group
zSupport 802.3ad (LACP)
IP Management
zDHCP server
zSupport Static IP
Event/ Error Log Management
zSupports Dump Log
Management
RMON
zSupports MIBII
zSupports RMON MIB
zSupports Bring MIB
zSupports Private MIB
Management System
zSupports SNMP
Firmware Upgrade
zProvides TFTP
Maintenance
zProvides backup
zProvides recovery
I/O Ports
z24 RJ-45 10/100 Base-T ports
zRS-232c
zDB-9 Console Port
z1000 base- SX or 1000 base LX, or 1000 base-T
zMDI/ MID-X
zSupports auto judgment per port
IEEE Standards
zIEEE802.3
zIEEE802.3u
zIEEE802.3z
zIEEE802.3x(Full-duplex flow control)
Mechanical
zDimensions:258mm x 444mm x 44mm(19” rack
mount standard)
zLED indicators : Port, Uplink, System, Stack/
Master
zWeight: 3.3KG
Electromagnetic Compatibility
zCE Mark
zFCC Class A
zRoHS
Power Requirement
zNormal Input Voltages: 100-240 V
zInput Frequency: 47-63Hz

About IP-MAC Lock Switch Special function
zAdopt the latest ASIC chip, handle effect doubly
The complete hardware type handles the function of IP- MAC Lock.
zSupport Chinese and English two kinds of management interfaces
Founding exchanger Chinese turns management interface, managing more diversified.
zLearn on-line IP/ MAC/ Port/ VLAN information automatically
Don't need to pursue a pen to key-in IP/ MAC data, can be opened by automatic lieutenant
general legal user of the learning detailed list to allow detailed list.
zCan the single wharf choose the IP– MAC Lock or Mapping function
Information personnel's going to work time can choose Lock function, the public holiday can
start Mapping function, let lightly loose loosen management network!
zThe bandwidth limits
Accurate bandwidth restriction, minimum limit unit: 64 kbps.
zLayer 2 ~ Layer 4 ACL
The whole hardware type ACL controls.
zVLAN advantage
Support 4094 sets of VLANs, can set 4094 sets of VLANs once.
zDHCP Client
Can aim at a fixed wharf the DHCP function of the start static state, the user can obtain same
IP every time through the DHCP function.
zDHCP Server Filter
Can expel other illegal DHCP Servers to equip, avoid IP issue's conflict influencing a network
to use normally.
zHave a distant place management function
The IP canned carry on a distant place management through the Web method, and canned limit
ten sets of particular IP on-line a management, been not allowed can't on-line.

When the User Changes IP:
The AFSG-2242 can lock him , even change to return to correct IP still can't on-line , having to
be relieved by the MIS personnel to target just can recover an on-line.
When the User Changes MAC:
The AFSGG-2242 can lock him , even change to return to correct MAC still can't on-line ,
having to be relieved by the MIS personnel to target just can recover an on-line.
When the User Changes Link Port :
The AFSG-2242 can lock him , even change to return to correct Link Port still can't on-line ,
having to be relieved by the MIS personnel to target just can recover an on-line.
About Source Lock
When act against the user of policy is locked by the AFSG-2242, one of his discharge is to can't
carry other users through the AFSG-2242 influence LAN
Other switches can only lock destination , Only AFSG-2242 can lock source to carry.

When the Content SQR runs into IP-MAC Lock Control
It is provided Email, WebMail, Web, IM, P2 P, FTP by the Content SQR..Wait for an application
layer auditor management with safe content, in addition to blockading a dangerous
communication content, match again target function after stopping network on-line and then can
loosen to guard against lightly up the IP-MAC Lock Control not appropriate usage network
resource, reduce loss risk.

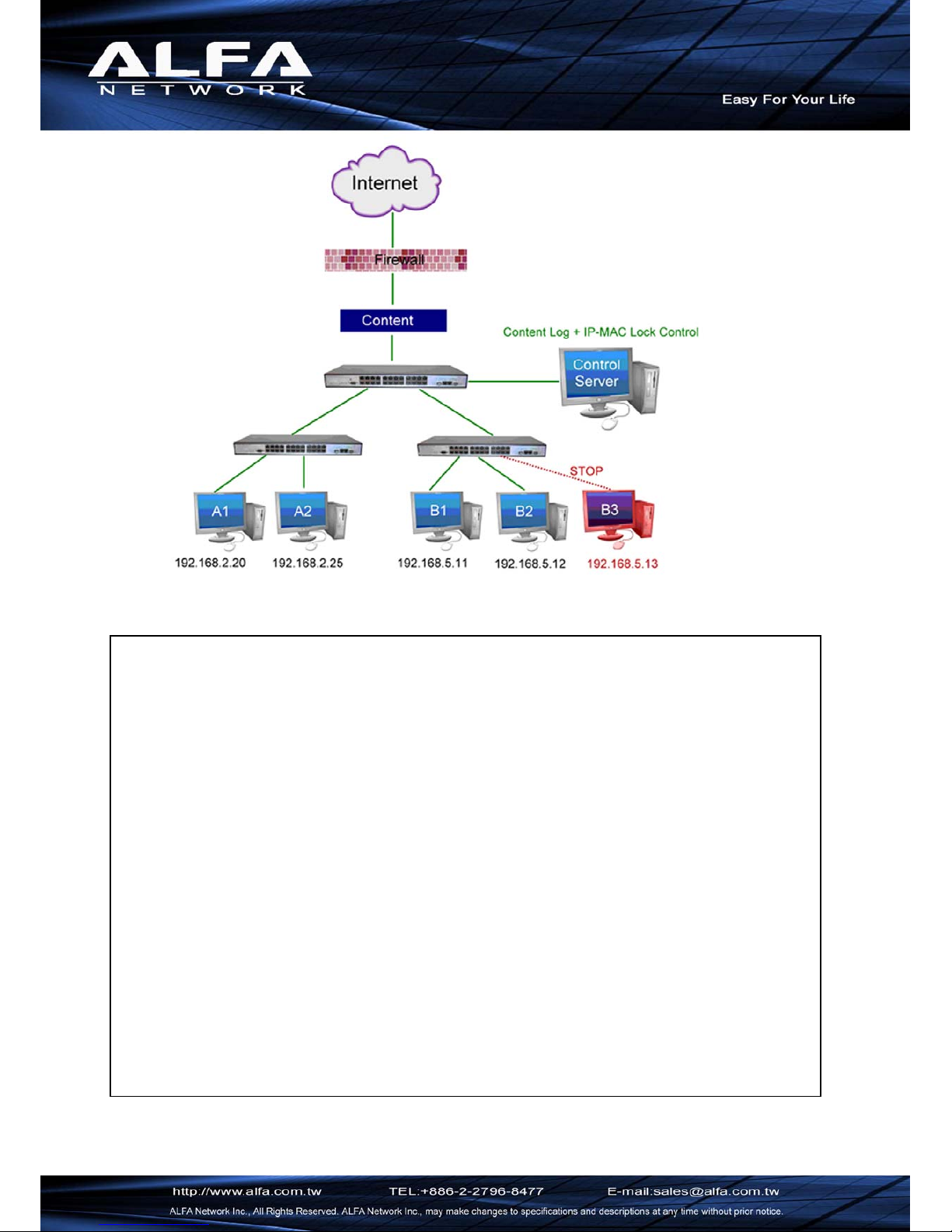

Above diagram is example:
B3 users find after detecting filter through the Content SQR user in addition to discharge
abnormality, the WebMail still clips to bring the company important information to deliver to
other places, violating the rules in really and seriously behavior, the SQR of the Content will will
violate the rules to record notice Control Server at this time, after descend to attain blockader
instruction the Lock Control is to the IP-MAC, the IP of B3:192.168.5.13 Locks(the lock live),
immediately and compulsory stop usage network, reach directly commanding defensive
management.

Auto-adaptive IP-MAC control
Found to brush a card control IP a start exclusively, make use of the IP-MAC Lock Control
function, control IP usage appearance strictly, the not afraid network permits phenomenon easily
any further, observant and conscientious person private again how imitate a legality, the status still
keeps escaping however the IP-MAC Lock Control of tight control, ignore is be on business, ask
for leave to still keep going off work, don't enter office not to brush to go through card, the IP is
locked forever of, any ones all can't steal!
Lock function most the Jing is tight to control with the usage, don't need to worry IP or MAC to be
copied, a thin card makes the office more safe.
This function needs to match appropriation to brush card machine, can choose card to respond, the
fingerprint respond, the lines of the palm respond and the vein detect.
★This series function the patent application is medium currently.

All Control
Place the IP-MAC Lock Switch to carry in the network limit, all computer users can accept
the IP-MAC Lock Control to control directly, can set the user as the IP-MAC Lock by port, in
addition to direct restriction the user change IP or MAC to set, can also limit an usage of
linking the wharf, once when the user changes conjunction wharf without authorization, the
IP-MAC Lock Control function will will violate the rules immediately the lock live.
When certain user suffers the IP-MAC Lock Control, the function locks compulsory, that
user's sealing to wrap is to can't pass the IP-MAC lock Switch to then influence other users,
this series product's lying in the target for targeting with other Switches' biggest dissimilarities
is a source to carry(Source), not destination(Disconnection), so can insure LAN of clean
empty.
This type configures a fit demand to control the unit usage of user strictly.
