Alfalaval TE67G Series User manual

Installation Manual 5850-026
TE91K020-EN2
Alfa Laval Temperature Transmitter
Safety instructions
This instrument is built and tested according to the current EU-direc-
tives and packed in technically safe condition. In order to maintain this
condition and to ensure safe operation, the user must follow the hints
and warnings given in this instruction.
During the installation the valid national rules have to be observed.
Ignoring the warnings may lead to severe personal injury or substantial
damage to property.
The product must be operated by trained staff. Correct and safe
operation of this equipment is dependent on proper transport, storage,
installation and operation.
All electrical wiring must conform to local standards. In order to prevent
stray electrical radiation, we recommend twisted and shielded input
cables, as also to keep power supply cables separated from the input
cables. The connection must be made according to the connecting
diagrams.
Before switching on the power supply take care that other equipment
is not affected. Ensure that the supply voltage and the conditions in the
environment comply with the specification of the device.
Before switching off the supply voltage check the possible effects on
other equipment and the processing system.
Electrical Installation
Mounting example of a Alfa Laval Temperature Transmitter
Please refer to the relevant Alfa Laval Temperature Transmitter manual
(page 3 in this document).
4...20 mA (+)
4...20 mA (-)
1
2
2 1
RTD
Alfa Laval Temperatur Transmitter with Alfa Laval Transmitter
M12 plug
TE67Gxxxxxxxxx
R
74 - 03

Installation Manual 5850-026
TE91K020-EN2
Mounting of 3-A Marked Products
Max. ± 85°
Max. ± 175°
5)
1)
2) 3)
4)
Installation of 3-A marked products:
1) Use only a 3-A marked counter part.
2) The inspection hole should be visible and drained.
3) Mount the instrument in a self drained position.
4) Level the inner surface of the pipe with the counter part.
5) Weldings should be grinded to Ra= 0.4 / Ra= 0.8
The 3-A mark is valid only when the product is mounted in a 3-A
marked counter part and installed according to the installation manual.
Use also a 3-A marked O-ring or gasket if relevant.The 3-A marked
products conforms to the 3-A Sanitary Standard criteria. Materials and
surfaces fulfill the FDA demands and follow the EHEDG guidelines
regarding design, materials and finishing.
EPDM gaskets supplied with 3-A marked products are conform to
Sanitary Standard Class I (8% milk fat max.)
Alfa Laval Temperatur 2211 Power supply
Transmitter
24 Vdc
4...20 mA
- +
+ -
3 4
1 2
2 1
3
RTD 230 Vac
- +
45
6
Application
Safety instructions
This instrument is built and tested according to the current
EU-directives and packed in technically safe condition. In order
to maintain this condition and to ensure safe operation, the user
must follow the hints and warnings given in this instruction.
During the installation the valid national rules have to be
observed. Ignoring the warnings may lead to severe personal
injury or substantial damage to property.
The product must be operated by trained staff. Correct and safe
operation of this equipment is dependent on proper transport,
storage, installation and operation.
All electrical wiring must conform to local standards. In order to
prevent stray electrical radiation, we recommend twisted and
shielded input cables, as also to keep power supply cables
separated from the input cables. The connection must be made
according to the connecting diagrams.
Alfa Laval Universal Transmitter
Before switching on the power supply take care that other
equipment is not affected. Ensure that the supply voltage and
the conditions in the environment comply with the specification
of the device.
Before switching off the supply voltage check the possible effects
on other equipment and the processing system.
WARNING
For electrical installation and commissioning of explosion
protected devices, the data given in the conformity certificate as
also the local regulations for installation of electrical apparatus
within explosion protected areas must be considered. The intrin-
sically safe versions can be mounted in the explosion hazarded
area according to its specification only connected to a certified
intrinsically safe supply loop with the corresponding electrical
values.

Installation Manual 5850-026
TE91K020-EN2

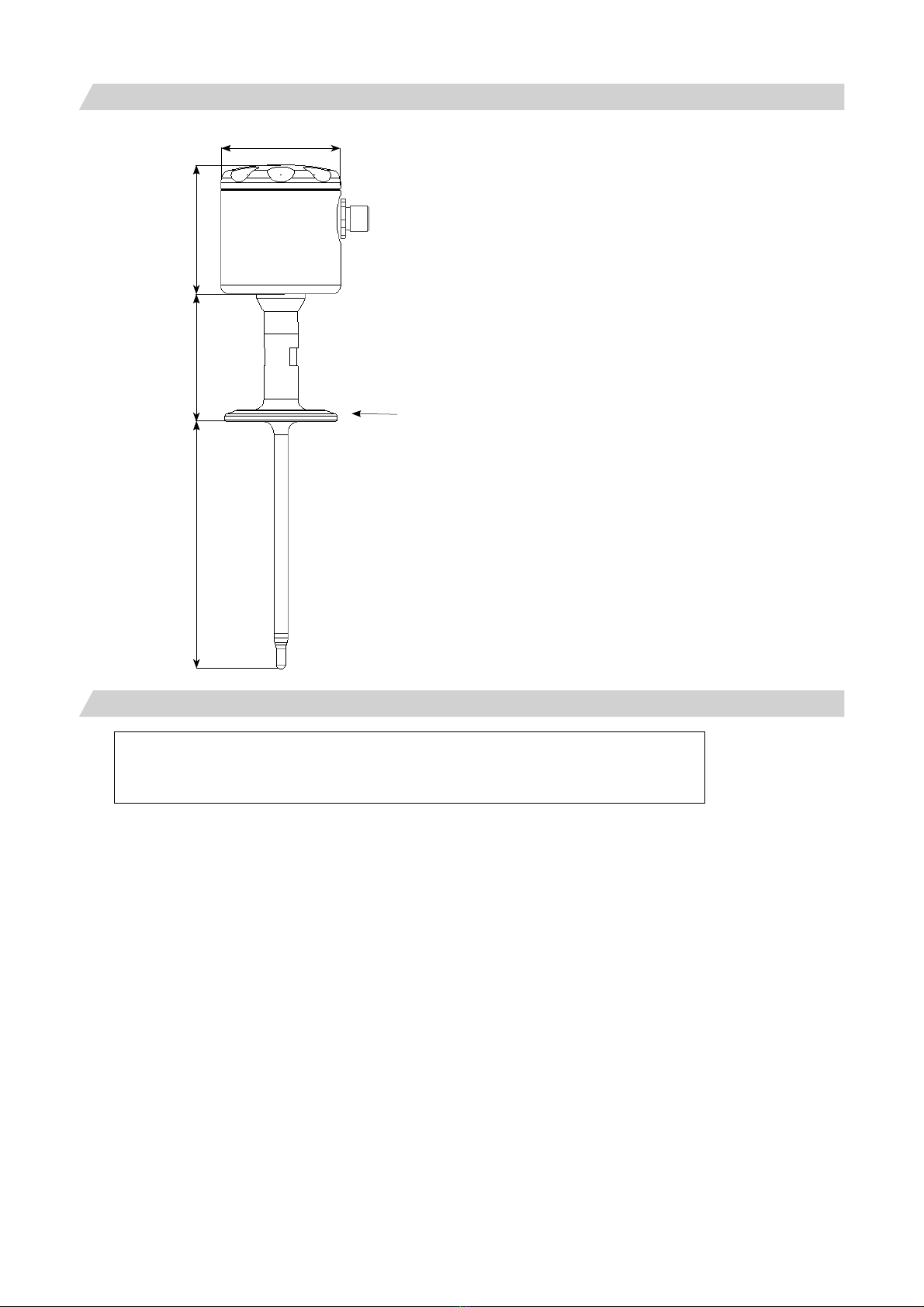

Dimensinal Drawing
DN38 Clamp
Ø55
L
64
58
How to contact Alfa Laval Tank Equipment A/S
For further information please feel free to contact:
Alfa Laval Tank Equipment A/S
Baldershoej 19
P.O. Box 1149
2635 Ishoej
Denmark
Phone no.: [phone]
Fax no.: [phone]
www.alfalaval.com
Contact details for all countries are continually updated on our websites.
Note: The illustrations and specifications contained in this manual were effective at the date of printing. However,
as continuous improvements are our policy, we reserve the right to alter or modify any unit specification on any
product without prior notice or any obligation.
Reservation and contact infomation
© 2010 Alfa Laval Corporate AB
This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and
thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws.
Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any
form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed
permission of Alfa Laval Corporate AB. Alfa Laval Corporate AB will enforce its rights related to this document to the fullest extent
of the law, including the seeking of criminal prosecution.

Installation Manual 5850-026
TE91K020-EN2
Temperature transmitter, clamp DN38 (ISO2852)/ClampDN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67G111051630 Span: 0 to 150°C, sensor length: 50 mm, sensor tip ø6 mm
TE67G111101630 Span: 0 to 150°C, sensor length: 100 mm, sensor tip ø6 mm
TE67G111151630 Span: 0 to 150°C, sensor length: 150 mm, sensor tip ø6 mm
TE67G111201630 Span: 0 to 150°C, sensor length: 200mm, sensor tip ø6 mm
TE67G111251630 Span: 0 to 150°C, sensor length: 250mm, sensor tip ø6 mm
TE67G111301630 Span: 0 to 150°C, sensor length: 300 mm, sensor tip ø6 mm
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67G411051630 Span: -20 to 150°C, sensor length: 50 mm, sensor tip ø6 mm
TE67G411101630 Span: -20 to 150°C, sensor length: 100 mm, sensor tip ø6 mm
TE67G411151630 Span: -20 to 150°C, sensor length: 150 mm, sensor tip ø6 mm
TE67G411201630 Span: -20 to 150°C, sensor length: 200 mm, sensor tip ø6 mm
TE67G111251630 Span: -20 to 150°C, sensor length: 250 mm, sensor tip ø6 mm
TE67G411301630 Span: -20 to 150°C, sensor length: 300 mm, sensor tip ø6 mm
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67GA11051630 Span: -10 to 100°C, sensor length: 50 mm, sensor tip ø6 mm
TE67GA11101630 Span: -10 to 100°C, sensor length: 100 mm, sensor tip ø6 mm
TE67GA11151630 Span: -10 to 100°C, sensor length: 150 mm, sensor tip ø6 mm
TE67GA11201630 Span: -10 to 100°C, sensor length: 200 mm, sensor tip ø6 mm
TE67GA11251630 Span: -10 to 100°C, sensor length: 250 mm, sensor tip ø6 mm
TE67GA11301630 Span: -10 to 100°C, sensor length: 300 mm, sensor tip ø6 mm
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67G211051630 Span: 0 to 150°C, sensor length: 50 mm, sensor tip ø4 mm
TE67G211101630 Span: 0 to 150°C, sensor length: 100 mm, sensor tip ø4 mm
TE67G211151630 Span: 0 to 150°C, sensor length: 150 mm, sensor tip ø4 mm
TE67G211201630 Span: 0 to 150°C, sensor length: 200 mm, sensor tip ø4 mm
TE67G211251630 Span: 0 to 150°C, sensor length: 250 mm, sensor tip ø4 mm
TE67G211301630 Span: 0 to 150°C, sensor length: 300 mm, sensor tip ø4 mm
Item Number Overview

Installation Manual 5850-026
TE91K020-EN2
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67G511051630 Span: -20 to 150°C, sensor length: 50 mm, sensor tip ø4 mm
TE67G511101630 Span: -20 to 150°C, sensor length: 100 mm, sensor tip ø4 mm
TE67G511151630 Span: -20 to 150°C, sensor length: 150 mm, sensor tip ø4 mm
TE67G511201630 Span: -20 to 150°C, sensor length: 200 mm, sensor tip ø4 mm
TE67G511201630 Span: -20 to 150°C, sensor length: 250 mm, sensor tip ø4 mm
TE67G511301630 Span: -20 to 150°C, sensor length: 300 mm, sensor tip ø4 mm
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67GB11051630 Span: -10 to 100°C, sensor length: 50 mm, sensor tip ø4 mm
TE67GB11101630 Span: -10 to 100°C, sensor length: 100 mm, sensor tip ø4 mm
TE67GB11151630 Span: -10 to 100°C, sensor length: 150 mm, sensor tip ø4 mm
TE67GB11201630 Span: -10 to 100°C, sensor length: 200 mm, sensor tip ø4 mm
TE67GB11251630 Span: -10 to 100°C, sensor length: 250 mm, sensor tip ø4 mm
TE67GB11301630 Span: -10 to 100°C, sensor length: 300 mm, sensor tip ø4 mm
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67G311051630 Span: 0 to 150°C, sensor length: 50 mm, sensor tip ø3 mm
TE67G311101630 Span: 0 to 150°C, sensor length: 100 mm, sensor tip ø3 mm
TE67G311151630 Span: 0 to 150°C, sensor length: 150 mm, sensor tip ø3 mm
TE67G311201630 Span: 0 to 150°C, sensor length: 200 mm, sensor tip ø3 mm
TE67G311251630 Span: 0 to 150°C, sensor length: 250 mm, sensor tip ø3 mm
TE67G311301630 Span: 0 to 150°C, sensor length: 300 mm, sensor tip ø3 mm
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67G611051630 Span: -20 to 150°C, sensor length: 50 mm, sensor tip ø3 mm
TE67G611101630 Span: -20 to 150°C, sensor length: 100 mm, sensor tip ø3 mm
TE67G611151630 Span: -20 to 150°C, sensor length: 150 mm, sensor tip ø3 mm
TE67G611201630 Span: -20 to 150°C, sensor length: 200 mm, sensor tip ø3 mm
TE67G611251630 Span: -20 to 150°C, sensor length: 250 mm, sensor tip ø3 mm
TE67G611301630 Span: -20 to 150°C, sensor length: 300 mm, sensor tip ø3 mm

Installation Manual 5850-026
TE91K020-EN2
Temperature transmitter, clamp DN38 (ISO2852)/Clamp DN40 (DIN32676) with M12 electrical connection, 4-20 mA output
Item no. Description
TE67GC11051630 Span: -10 to 100°C, sensor length: 50 mm, sensor tip ø3 mm
TE67GC11101630 Span: -10 to 100°C, sensor length: 100 mm, sensor tip ø3 mm
TE67GC11151630 Span: -10 to 100°C, sensor length: 150 mm, sensor tip ø3 mm
TE67GC11201630 Span: -10 to 100°C, sensor length: 200 mm, sensor tip ø3 mm
TE67GC11251630 Span: -10 to 100°C, sensor length: 250 mm, sensor tip ø3 mm
TE67GC11301630 Span: -10 to 100°C, sensor length: 300 mm, sensor tip ø3 mm
Available add-ons
TE67Gxxxxxxxx1 with Calibration Certificate
TE67Gxxxxxxxx2 with 3.1 Certificate
TE67Gxxxxxxxx4 with 3-A Documentation
58 50-026 B1 / UK This data sheet may only be reproduced in full.
