ALFIX MOBILE SCAFFOLD TOWER ALUFIX 200 Operator's manual

ALFIX MOBILE SCAFFOLD TOWER ALUFIX 200
SALE OF:
—Working and safety scaolds
—Mobile scaold towers
—Temporary roofs
—Chimney scaolds
—Accessories
LEASING OF:
—Working and safety scaolds
—Temporary roofs
INSTRUCTIONS
FOR ASSEMBLY
AND USE
ALFIX GmbH
Langhennersdorfer Straße 15
D-09603 Großschirma
Phone: [phone] / 800-100
eMail: info@alx-systems.com
www.alx-systems.com

Instructions for Assembly and Use ALFIX MOBILE SCAFFOLD TOWER ALUFIX 200
2
The data specied herein is for
information only. Misprints and
errors in article numbers and
article descriptions excepted.
All dimensions and weights are
guideline values. Subject to
technical modication. Protec-
ted by copyright. Any reproduc-
tion, either in whole or in part,
requires the prior written con-
sent of the publisher.
With the publication of these
Instructions for Assembly and
Use, any previous version beco-
mes invalid.
Instructions for Assembly and
Use ALFIX Mobile Scaold Tower
ALUFIX 200 published by ALFIX.
Edition: February 2021
1. Preface p. 3
2. General instructions p. 4
2.1
2.2
2.3
2.4
2.5
Use
Inspection and maintenance
Warranty
Intended use
General notes
p.
p.
p.
p.
p.
4
4
5
5
5
3. Assembly p. 6
4. Technical details p. 7

3
Instructions for Assembly and Use ALFIX MOBIULE SCAFFOLD TOWER ALUFIX 200
1. Preface
Dear ALFIX customers,
with the „ALFIX Mobile Scaold Tower ALUFIX 200“, you have pur-
chased a convenient mobile tower (mobile working platform) which
oers enough maneuvering space and space to move material and
tools.
Please follow these „Instructions for Assembly and Use“ during as-
sembly, use and dismantling to ensure safe working!
Read this manual carefully. Always keep it with you when assembling,
using or dismantling the scaolding and provide it to the scaolding
erector. It explains in detail all necessary steps and safety measures in
the correct order.
The gures shown herein help exemplify the respective working steps.
If you wish to deviate from these „Instructions for Assembly and
Use“, or if you have questions regarding our „ALFIX Mobile Scaold
Tower ALUFIX 200“, please contact us. We are happy to oer advice.
Sincerely, ALFIX GmbH
ALFIX GmbH
Langhennersdorfer Straße 15
D - 09603 Großschirma
Phone: [phone] / 800-100
Fax: [phone] / 800-199
eMail: info@alx-systems.com
Website:
www.alx-systems.com

Instructions for Assembly and Use ALFIX MOBILE SCAFFOLD TOWER ALUFIX 200
4
2. General instructions
2.1 Use
1. Do not assemble, disassemble and use the mobile working platform in open spaces
in winds stronger than 6 on the Beaufort scale.
2. Avoid horizontal and vertical loads that can cause an imbalance and lead to the mo-
bile working platform overturning.
3. Do not move, li or relocate the mobile working platform with a crane, forkli or
similar equipment.
4. Do not move the mobile working platform when there are persons or loose objects on
the platform.
5. Unlock the castor wheel brakes to move the mobile working platform.
6. Lock the castor wheel brakes when the mobile working platform is relocated.
2.2 Inspection and maintenance
1. Scaolding components must be handled and transported carefully to avoid damage.
2. Always check the components for any visible signs of damage.
3. Always inspect the connections, joints, fasteners, and the like to ensure they func-
tion properly and are not dirty.
4. Damaged components must be replaced, sent to the manufacturer for repair or de-
stroyed.
CAUTION
• Do not deviate from these Instructions for Assembly and Use!
• Structural modications to the mobile working platform may only be carried out by the manufac-
turer!
• All gures in these Instructions for Assembly and Use are provided by way of example!

5
Instructions for Assembly and Use ALFIX MOBIULE SCAFFOLD TOWER ALUFIX 200
2. General instructions
2.3 Warranty
The scope and period of warranty are specied in the manufacturer’s
terms of delivery and payment.
2.4 Intended use
The scaolds mentioned in these Instructions for Assembly and
Use may only be used in accordance with the requirements of DIN
EN 1004 and the assembly congurations of these Instructions for
Assembly and Use.
Any use of the scaolds specied in these Instructions for Assembly
and Use for purposes other than those specied therein is deemed
to be improper use under the Product Safety Act [ProdSG] (as of 1
August 1997).
This also applies to the disregard of norms and guidelines referred to
in these Instructions for Assembly and Use.
2.5 General notes
The ALUFIX 200 Mobile Scaold Tower comprises a basic scaold
made of aluminium, which can be folded to save space, greatly
facilitating transport to and from the building site.
Height adjustment by raising or lowering the tower at intervals of 11
cm is possible.This can be done by disconnecting the tubes using the
tube linchpins, allowing for perfect working heights when carrying
out ceiling work, for installations, or other construction works.
Only access the dierent levels by means of separate ladders!
Structural stability is ensured due to the centric load application via
the locked castor wheels.

Instructions for Assembly and Use ALFIX MOBILE SCAFFOLD TOWER ALUFIX 200
6
3. Assembly
Prior to assembly, make sure all components and tools
or equipment necessary for assembling the mobile working
platform are available at the construction site and inspect
all components for proper condition. Only use undamaged,
original ALFIX parts of the ALFIX Mobile Scaold Tower ALUFIX
200 (OEM parts). Damaged or faulty scaolding components
must not be used.
Access the platform via a shelf ladder.

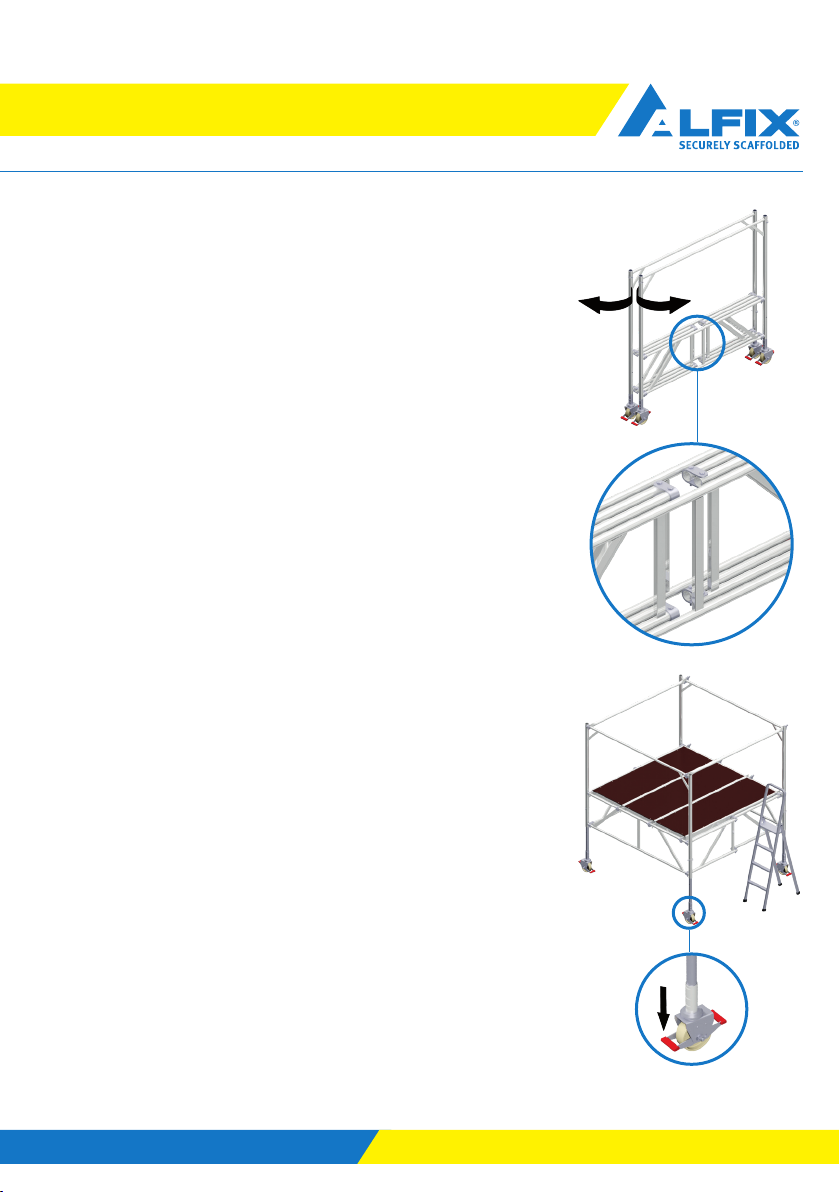

Unfold the basic scaold unit, lock the locking mechanism
into position on both sides. Lock the castor wheels by pressing
down the brake lever.

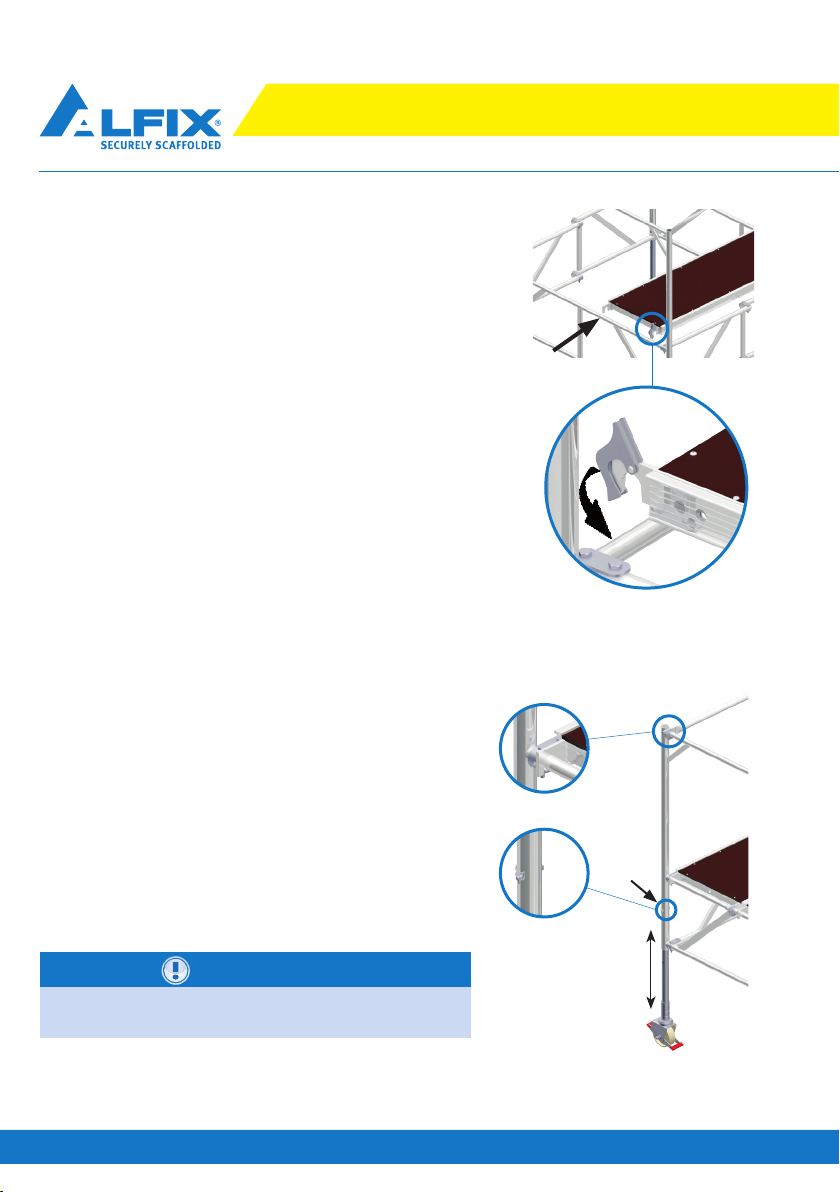

Fit the platform decks without trapdoor and the
longitudinal ledgers. Start by tting the longitudinal ledgers
with the upper end onto a cross brace of the ALUFIX 200 basic
scaold unit and pull the longitudinal ledger towards you until
the hook locks into position and the safety lock (latch securing
system) automatically closes. Fit the longitudinal ledgers as
closely to the vertical tube as possible.
Height adjustment can be achieved by unlocking the tube
linchpin and moving the castor wheel with tube (ALUFIX 200
accessory) up or downwards in the basic scaold unit.
The mobile working platform is disassembled in the
reverse order of assembly .
2.
1.
4.
5.
3.
CAUTION
All gures related to the working steps in these Instructions
for Assembly and Use are provided by way of example!
6.

7
Instructions for Assembly and Use ALFIX MOBIULE SCAFFOLD TOWER ALUFIX 200
4. Technical details
Platform dimensions: 1.80 x 1.80 m
Scaold dimensions: 2.04 x 1.87 m
Load-bearing capacity: 2.0 kN/m2
Working height: 2.85 - 3.75 m
Tower height: 1.89 - 2.79 m
Platform height: 0.85 - 1.75 m
Weight: 81.7 kg
Article number Quantity
Basic unit components
Platform without hatch access 30 00 002 3
Basic unit incl. 4 castor 30 00 200 1
Instructions for Erection and Use 1
Accessories
Castor with tube 30 00 201 4
Longitudinal ledger 30 08 620 2
