Alicat Scientific M User manual

Download the full manual: Alicat.com/manuals
Annual Calibration • Troubleshooting • Questions:
[phone] • [e-mail]
+0.00 +0.00
+13.49 +22.73
CCM SCCM MENU
PSIA ¤C TARE
FLOW
A ir
Mass Flow
SCCM
+0.00
I/O Port
(shape varies)
DC
In
Light
Switch
Controls Display
Flow
Body
Process
Connections
Mounting
Holes
Mass Flow Meter
Quick Start Guide
Models M, MS, MW, MQ

1 2 3

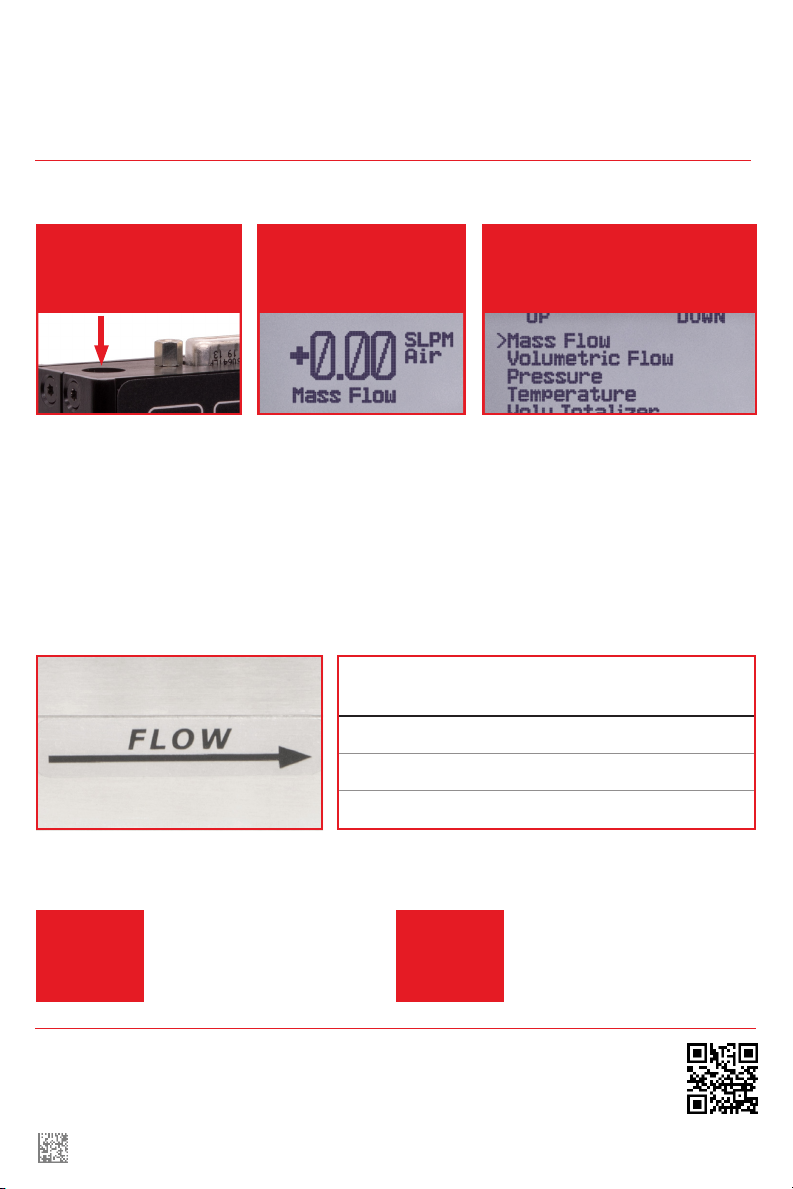

Get Started:
This box includes:
• Alicat device
• NIST traceable calibration certificate
• Optional accessories
(cables, power adapters, filters)
Power
The power supply
input is on top. Most
devices require
12–24Vdc and 40mA.
See Power and Signal
Connections in the
manual for details.
You’re Ready to Connect:
Model
Series Maximum line pressure Maximum dierential pressure
M, MS 145  75 
MW 45  10 
MQ 305  75 
Gas and Units
Select your gas: Use
MENU → BASIC CONFIG → GAS .
Ensure the proper units are
selected. Press the button next
to the parameter you want to
change on the main screen,
then SET DEVICE ENG UNITS.
4Ensure the flow path is the
same direction as the flow
arrow shown on your unit.
DOC-MANUAL-M-QUICK-IN
Rev   2020-07-28
Download the full manual: Alicat.com/manuals
Annual Calibration • Troubleshooting • Questions:
[phone] • [e-mail]
Tare
Before installing
the device into your
process, press the
TARE FLOW button
on the main screen.
This will zero out
(tare) your unit.
5
Verify the requirements for
pressure above, and connect
the device to your process.
