Alien DSD105 User manual

The new Alien Digital Video Recorder
Operations Manual
Models DSD105 DSD108 DSD116
Version 4.0
4/8/16 Channel Real Time DVR
Networkable
Mobile Phone Monitoring
IntelligentSecurityandFireLtd

2
Table of Contents Page
Welcome 4
Important Safeguards and Warnings 4
1. Features 5
Local functions 5
2. Installation 6
2.1 Checking the DVR and its Accessories 6
2.2 HDD Installation 6
2.3 Rear Panel Description 7
2.3.1 DSD105 7
2.3.2 DSD108 8
External Alarm In/Out 9
2.3.3 DSD116 Rear View 10
3. Operational Instructions 11
3.1 Front Panel 11
3.2 IR Controller 13
3.3 Menu Description 15
3.3.1 Menu Items 15
3.3.2 Menu Operation 16
4. Basic Operation Guide 17
4.1 Username and Password 17
4.2 PTZ Control 19
4.3 Manual Record 21
4.4 Playback 22
4.5 Backup Recorded Files 24
4.6 Shutdown DVR 26
5. Parameter Setup Guide 27
5.1 Administrator and Password 27
5.2 Add and Delete User 28
5.3 Device ID 31
5.4 Video Output Standard 32
5.5 OSD Setup 32
5.6 Camera Input Adjustment –Camera Settings 34
5.7 Camera Input Adjustment –Mask Area Setup 34
5.8 View Tampering Alarm 35
5.9 Video Loss Alarm 36
5.10 Motion Detection Alarm 37
5.11 Preview Properties 39
5.12 Recording Setup 40
5.13 External Alarm Input and Relay Output 42
IntelligentSecurityandFireLtd

3
5.14 Network Parameters 47
5.15 PTZ 49
6. Utilities 52
6.1 Default Parameters 52
6.2 Firmware 53
6.3 Hard Disk 54
6.4 Alarm Out 55
6.5 Reboot 55
6.6 Power Off 55
6.7 View Log 55
6.8 System Information 57
7. Firmware Upgrade 58
7.1 FTP Server Setup 58
7.2 Upgrade Mode 60
8. Web HTTP Operation 61
8.1 Network Connection 61
8.1.1 Login and Logout 61
9. Networking a Digital Video Recorder 62
9.1 Configure the DVR to operate with a modem router 62
9.2 For Beginners 63
9.2.1 How do I set my PC to obtain an IP address
automatically? 64
9.2.2 How do I set my PC’s IP address Manually? 64
9.2.3 How do I find out my PC’s IP address? 64
9.2.4 How do I use Ping to test a Connection to my
DVR? 64
9.2.5 How do I configure a Router for Remote
Access? 65
9.2.6 How do I find the On-Line Support? 65
9.3 Option 1: Connect a DVR directly to a single PC 66
9.4 Option 2: Connect a DVR to a switch or hub 67
9.5 Option 3: Connecting for Internet Access 68
9.6 Network Cable Connections 69
Appendix A Hard Disk Capacity Information 70
Appendix B Recording Timetable 71
Appendix C Quick Help Guide 73
Appendix D Specifications 75
IntelligentSecurityandFireLtd

4
Welcome
Thank you for purchasing our DVR!
This operating manual is designed to be a reference tool for the installation and
operation of your system.
Here you can find information about this series DVR features and functions, as well
as a detailed menu tree.
Before installation and operation please read the following safeguards and warnings
carefully!
Important Safeguards and Warnings
1 Electrical Safety
The installation and operation should conform to local electrical safety codes.
2 Transportation Security
Avoid placing equipment on top of this DVR and do not subject the unit to strong
vibration or water during transportation, storage and installation.
3 Installation
Always install the unit in an upright position. Handle with due care.
Do not apply power to the DVR before completing the installation.
Do not place objects on the DVR or restrict air flow to this DVR.
4 Qualified Engineers Needed
Only entrust examination and repair work by qualified service engineers.
We are not liable for any problems caused by unauthorised modifications or attempted
repair.
5 Environment
The DVR should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances etc.
Note: Note that the manufacturer of this product reserves the right to make
modifications to the DVR and/or these instructions without prior notice.
IntelligentSecurityandFireLtd

5
1 Features
This DVR range uses the embedded MCU and realtime operating system
combining the most advanced technology in the information industry. It incorporates
video and audio encoding and decoding, hard disk record and TCP/IP. The firmware
is installed in the flash drive and is very stable and reliable.
The DVR has both the features of a digital video recorder and a digital video
server. It works as a standalone unit or can be incorporated into a powerful
surveillance network, suitable for use in banks, telecommunication, transportation,
warehouse, clubs and public houses etc.
Compression
Supports video loop, CIF and QCIF resolution, multi area motion detection, OSD and
changeable OSD position, LOGO and changeable LOGO position.
Local functions
Record
Supports multiple record type, including realtime, manual record, motion detection,
external alarm, motion&alarm, motion/alarm.
Supports 1 SATA Hard Drive, FAT32 file system, HDD SMART technology, cycle
or non cycle record, backup of recorded files and clips.
Supports USB memory, USB HDD, USB CD-R/W, USB DVD-R/W, IDE CD-R/W
and IDE DVD-R/W.
Preview and Playback
Supports analogue monitor and VGA output, multiple preview modes, sensitive area
mask, camera alarm block, single channel playback by file or time and displays local
record status.
PTZ
Supports numerous PTZ protocols, presets, sequence and cruise.
Alarms
Supports exception alarm, motion detection alarm, external alarm etc.
Others
Supports IR control and multi-level user management.
Network
Supports TCP, UDP, RTP, Multicast for network preview and PPPoE for broadband.
Supports remote parameter setup, can send alarm information to remote centre,
network control PTZ, network record live stream, network download and play back
recorded files in DVR and remotely upgrade firmware.
IntelligentSecurityandFireLtd

6
2. Installation
2.1 Checking the DVR and its Accessories
When you receive the product, check that all the items are included in your package.
There is a list in the package.
2.2 HDD Installation
The DVR is not fitted with a Hard Drive unless purchased separately. The size of
the Hard Drive can be calculated according to the total capacity required. A table is
supplied at the end of this manual
.
This DVR uses one SATA Hard Drive up to a maximum of 1 Tb.
First remove DVR case top.
Fit hard drive to base plate with screws.
Connect SATA data cable correctly and then power cable. Ensure cables are fitted
tightly.
Refit DVR case top and power up unit.
Ensure HDD is formatted before use. Details can be found in this manual.
IntelligentSecurityandFireLtd

7
2.3 Rear Panel Description
2.3.1 DSD105
This section provides information about the rear panel. When you install this series
DVR for the first time, please refer to this part first.
No. Function Description
1USB Port not functional
2Video Inputs 4 Channels standard BNC
3Video Output Monitor 1 BNC Video Out
4 Video Output Monitor 2 BNC Video Out
5Audio Input 1 channel RCA (1.0v p~p, 75 ohm)
6Audio Output 1 channel RCA (1.0v p~p, 75 ohm)
7LAN interface Network Connection
8VGA Interface VGA Display
9Alarm Relay 1 alarm output
10 Ground Alarm ground
11 RS485 RS485 connections for PTZ telemetry
T+ and T- connect to the PTZ camera as these are RS485
transmit.
R+ and R- are RS485 receive connections from a keypad.
12 Alarm In 4 Alarms connections and 2 ground
13 12vDC Connection of 12vDC power supply
14 Power Switch Switch power on/off
IntelligentSecurityandFireLtd

8
2.3.2 DSD108
No. Function Description
1Video Loop Out Video loop through 1 ~ 8.
D connector to 8 x BNCs lead supplied.
2 Video Inputs 8 Channels standard BNC
3Video Output Monitor 1 BNC Video Out
4Video Output Monitor 2 BNC Video Out (Aux Spot)
5Audio Input 4 channels RCA (1.0v p~p, 75 ohm)
6Audio Output 1 channel RCA (1.0v p~p, 75 ohm)
7VGA Interface VGA Display 15 way D connector
8RS232 RS232 9 way D connector
9LAN interface Network Connection
10 RS485 RS485 connections for PTZ telemetry.
T+ and T- connect to the PTZ camera as these are RS485
transmit. R+ and R- are RS485 receive connections from a
keypad. See diagram following.
11 Alarms In/Out Alarms in 16 Alarms Out 4. See diagram following.
12 12vDC Connection of 12vDC power supply
13 Power Switch Switch power on/off
1
2
3
4
5 6
97 8 10 11 12
13
IntelligentSecurityandFireLtd

9
External Alarm In/Out Connection and RS485 connections
Alarm Input Port:
16 : Alarm Inputs.
G (GND): Connect GND
Alarm Output Port:
4 : Relay Outputs
G (GND): Connect GND
Alarm Output Connection
Please note the usage of jumper JJ1. If you use DC, either connection is okay. It is
suggested that you use 12vDC at less than 1 Amp. If you use AC, ensure the jumper is
opened. There are jumpers on the mainboard corresponding with each alarm output. The
default is closed.
WARNING: IF YOU USE AC FOR RELAY OUTPUT, ENSURE THE
RELEVANT JUMPER IS OPENED.
RS485 Connect telemetry RS485 from PTZ to transmit terminals T+ and T-.
If using a keypad and this DVR connect keypad to receive terminals R+ and R-.
Note that do not set motion detect in DVR for any PTZ channel.
1 ~ 12
IntelligentSecurityandFireLtd

10

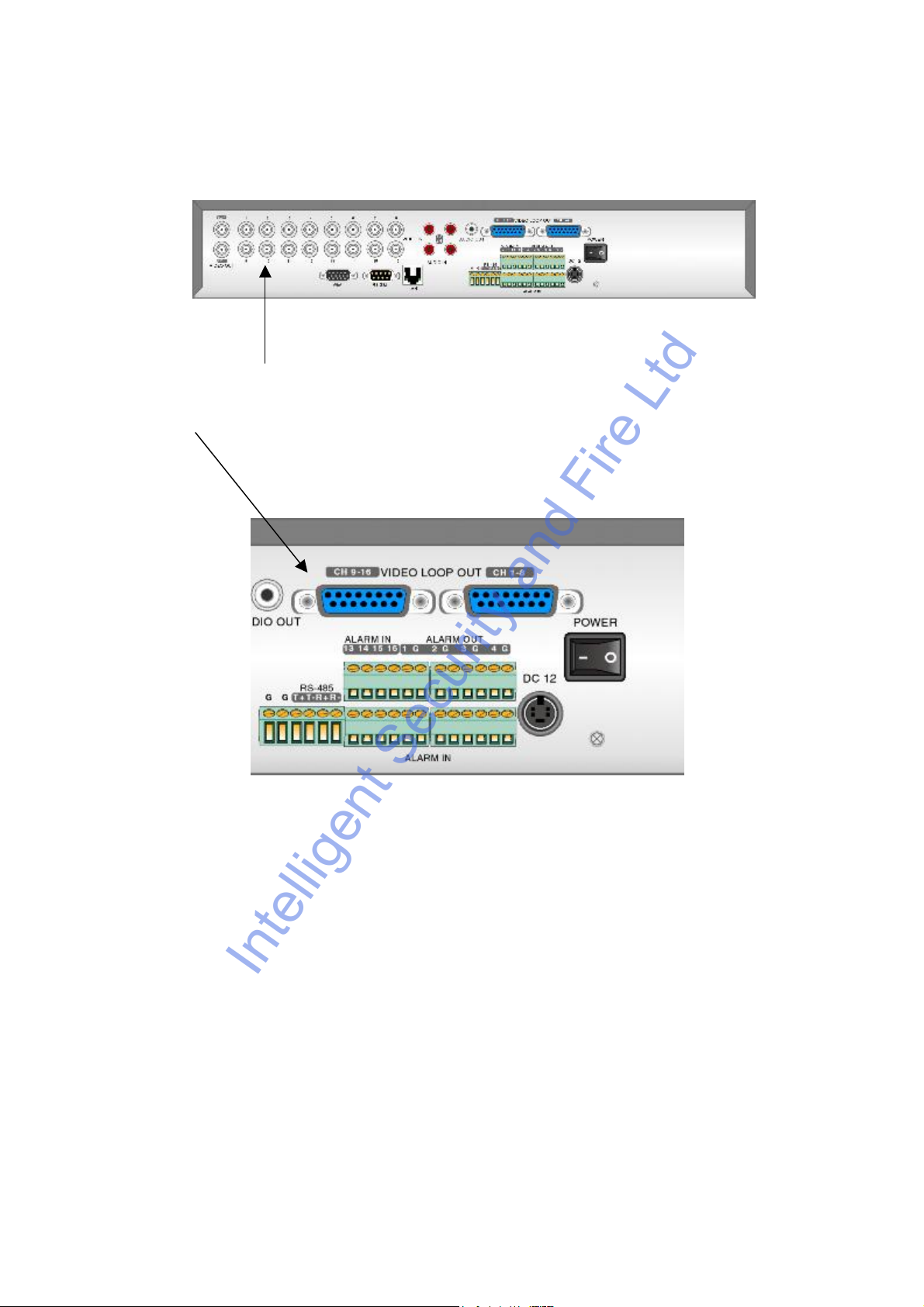

2.3.3 DSD116 REAR VIEW
The DSD116 rear view is similar to the DSD108 except that it has 8 additional Video Input
connections and an additional 15 way D connector for video loop through for channels 9 ~
16.
Two D connectors with 8 BNCs leads are supplied with the DVR for the 16 channel loop
throughs.
IntelligentSecurityandFireLtd

11
3. Operational Instructions
3.1 Front Panel
3
IntelligentSecurityandFireLtd

12
NOTE: SHIFT button is used to switch between numeric keys and function keys
IntelligentSecurityandFireLtd

13
IntelligentSecurityandFireLtd

14

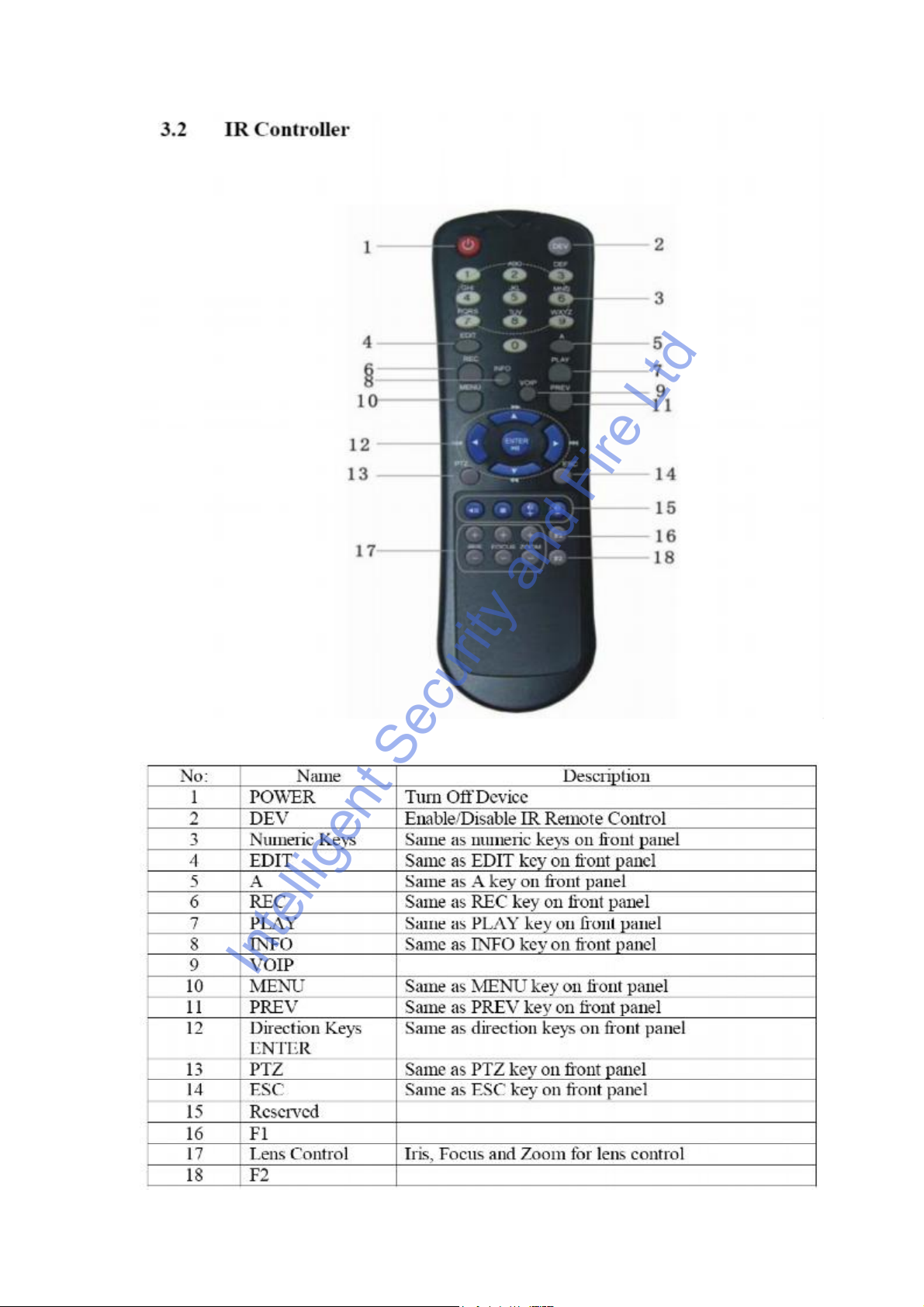

Loading the batteries in IR Controller
1. Remove battery cover.
2. Insert battery ensuring polarity correct.
3. Replace battery cover.
Start the IR Controller
Aim the IR Controller at the front of the DVR standing a few feet from the unit.
Press DEV key and input the DVR I.D (default is 255 but can be changed in the
Display Menu and then press ENTER key. Check that the IR Status light is displaying
Green). Note that in some models the DVR I.D default may be set to 88.
Stop the IR Controller
When the IR status is on, press the DEV key again to turn off the IR Controller. The
status lamp will now switch off and the IR Controller will not operate the DVR.
Switching the DVR off
When the IR Controller status is on, press the POWER key for several seconds and
the DVR will power off.
Troubleshooting the IR Controller
If the IR Controller does not operate the DVR then check the following items:
1. Check battery connections
2. Check battery charge
3. Check there is nothing covering the DVR IR sensor.
4. Check I.D in Display menu to see what has been set as default. Use this I.D to setup
IR Controller or change the value in the Display menu and use that by pressing DEV
key, entering I.D and pressing the ENTER key on the IR Controller.
5. Check that the IR Status light on the front of the DVR is displaying Green.
IntelligentSecurityandFireLtd

15
IntelligentSecurityandFireLtd

16
3.3.2 Menu Operation
How to enter menu mode
Press MENU key to enter DVR Main menu
Press PLAY key to enter Playback menu
Press REC key to enter Manual Record menu
Press PTZ key to enter PTZ control interface.
Special Note: You must input username and password. The default username is
admin and the password is 12345.
Main Menu Description
The small rectangular frame allows the user to move to the required menu option. To
move, use the or keys on the Control Key Direction Unit (CKDU).
When you have selected the required icon press Enter (this is the center key on the
CKDU).
IntelligentSecurityandFireLtd

17
4. Basic Operation Guide
4.1 Username and Password
This DVR is supplied with a default user of admin and password of 12345
You cannot change the admin username but the password can be modified.
The Login dialogue box is shown below:
Press right arrow key to enter password box.
To enter default password select 12345 and then press the Enter button.
Note that you can select a different password using numerics or alpha by pressing
the A key. For alpha you will need to select the correct letter similar to a mobile
phone text message. If there is an alarm sounded the username and password are not
matched. After three error attempts the DVR will enter Preview mode.
To modify the password you must access the User menu.
IntelligentSecurityandFireLtd

18
To add a new user and password press the Add button and enter username. Now enter
the Password and verify by re-entering password.
SPECIAL NOTE: Please refer to section 5 regarding the setting of access rights. If
these rights are not set then new users will not be able to operate this DVR.
IntelligentSecurityandFireLtd

19
4.2 PTZ Control
In preview mode press PTZ key and in login mode select username and password.
You can now enter the PTZ control interface. Note that the user must have the PTZ
control rights set.
In menu mode press the PTZ menu..
There is a PTZ Control prompt in the PTZ control interface. The displayed camera
name details the name of the camera you are controlling.
Select Channel
In PTZ control mode you can press the numeric keys to select a channel. If DVR has
less than 10 channels, press one numeric key to select. For example to select camera
2 press the 2 key. If the DVR has 10 or more channels you must press two numeric
keys to select channel number. For example for camera 2 you must select keys 0 and
2 simultaneously and for camera 12, select numeric keys 1 and 2.
PTZ Control Keys
Direction keys
Zoom keys ZOOM+ ZOOM-
Focus keys FOCUS+ FOCUS-
Iris keys IRIS+ IRIS-
Adjust Preset keys REC/SHOT
Auto Control key PLAY/AUTO
Wiper Control key WIPER/MENU
Light Control key LIGHT/F1
Auxiliary Control AUX/F2
IntelligentSecurityandFireLtd

20
Adjust Preset Number
In PTZ control mode, press the REC/SHOT key, and then press the preset number
(three numeric keys) and the relevant preset can be selected. Press REC/SHOT key
again and change the preset number. When you exit PTZ control mode, the camera
will stay at the current position.
Note: The PTZ preset number is set already. Please refer to PTZ menu for preset setup
instructions. Firmware version 1.4 upwards can support up to 28 presets.
Start/Stop auto in PTZ control mode
In PTZ control mode press PLAY/AUTO key to start PTZ auto function. Press
PLAY/AUTO key again to stop. When PTZ is in auto mode and you exit this mode
the PTZ will continue to auto function. You must enter the PTZ control mode again
and press the PLAY/AUTO key to stop.
Exit PTZ control mode
Press ESC or ENTER to exit and return to preview mode.
IntelligentSecurityandFireLtd
