AlienPro ALPHA-ILDA User manual

alienpro.com.mx
MANUAL DE USUARIO
ALPHA - ILDA

5
www.alienpro.com.mx
1.Power Supply: AC 127V,60Hz
2.Rated Power: 50W
3.Laser Power:Red:250mw/638nm;Green:100mw/532nm;Blue:500mw/445nm
4.Working Mode: Sound Active/ Auto-play/DMX512/Master-Slave/PC
5.Control Signal: DMX512 Signal
6.DMX Control Channels: 16Channels
7.Scanner System: 15k scanner
8.Operating Temperature: -1º--35º
9.Storage Temperature: -10º--60º
10.Warm-Up Time :<15 min
11.Laser Classification: 3b
12.Modulation: TTL
13.Net Weight:3.4KG
14.Gross Weight:4.2KG
15.Packing Size:42.5x32x19.5cm
Technical Specifications
This device has left our premises in absolutely perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruc-
tions and warning notes written in this user manual.
We cannot be made liable for damages caused by incorrect installations and unskilled operation!
Declaration
Warranty Card
This product is made of high -brightness transistor. We will provide 1 year
warranty under the condition that user has operated the light n ormally and
lifetime service. We won't provide warranty if the damage is caused by
artificial or force majeure event. Cost of fittings should be charged by user if
product need maintenance after 1 year .Please cut this warranty card and
shipped it along with the product to our factory when applying for warranty.
Product
：
Purchasing date
：
Code of invoice
：
Warranty date: From To
User’s name
：
Add
：
Company
：
Tel
：

Thank you for purchasing this product. To optimize the performance of this product,prior to
use,please read these operating instructions carefully to familiarise yourself with the basic operation
of this unit.Please keep the manual in safe price for future reference.
This unit has been tested at our factory before being shipped to you, there is no assembly required.
Once after received this product , please take and put carefully. And check cautiously that whether
the product was damaged or not during the transportation.
1
www.alienpro.com.mx
Please check if the following parts are included:
1 x Laser Light
1 x Power cable
1 x User manual
Danger Laser Radiation!
Avoid direct eye exposure!
Laser radiation can cause eye damage or skin damage
All protective measures for a safe operation of this laser must be applied.
1. Please check the voltage whether is the same with the one showed on the equipment or not.
2. It must ask for the technical person and set the light safety when installation. And let the light
beam at the suitable angle.
3. When install this equipment please make sure there's no flammable surfaces (decorated things,
etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls.
4. Please make sure that there's no other equipment or decorating materials obstructed the
exhaust fan and the vent-pipe.
5. Products should be install immobility.
6. In case of safety, it's very important that to connect the earth with line.
Checking Parts
Foreword
Caution
Installation
1.Please do not open the bottom cover yourself without permission.Operate it accord the user
manual. Call the technician when the machine breaks down.
2.Please do not see the laser beam directly to avoid any damage.
3.Before connect or disconnect the power, please adjust the luminance of the laser diode to the
least to avoid any damage to the laser diode.
4.This unit should be keep dry, do not use in the rain and dusty environment. It can be use in the
outdoor with the water-proof cover protector.
5. Set the light immobility and try to avoid strong shake or hit.
6.Prevent dust into the equipment to avoid problems.
7.Please keep that there's no other equipment or decorating materials obstructed the exhaust fan
and the vent-pipe when the equipment was working.
Attention
Maintenance should be performed every 15-day period, by using a sponge which is dipped with
alcohol, rather than wet cloth or other chemical liquid, to clean the mirror.
Always disconnect from the mains when the device is not in use or before cleaning it.
Maintenance
Power must be disconnected before maintenance or repair. Do not look at the light source directly
To prevent or reduce the risk of electrical shock or fire.do not expose this unit to high tempera-
ture/rain or moisture.
Note:
Don't separate laser machine from laser power and repair them by yourself , otherwise no good
repair service will be supplied.
Warning
4
www.alienpro.com.mx
Channel Instruction
CH11 Vertical
stretch
0~64
65~127
128~255
Horizontal stretch(Manual adjust)
Horizontal stretch(Auto adjust)
Horizontal stretch speed (8 grade)
CH12 Pattern
Size
0~2
3~127
128~169
170~211
212~255
Original size
Pattern size from small to big ( 127
grade)
Pattern dynamic zoon from small to
big (41 grade)
Pattern dynamic zoom from big to
small (41 grade)
Pattern dynamic cycle zoom ( 41
grade)
CH13 Slow
Drawing
0~3
4~255
No function
Slow drawing speed (16 grade)
CH14
Scanning
Speed
0~2
3~255
Default scanning speed (value:6)
252 grade scanning speed
CH15
Color
Speed
0~255 256 grade(slow to fast)
CH16
Strobe
Speed
0~255
9 grade strobe speed
（
0-255
）
/31=0~8(0 grade no flash)

2
www.alienpro.com.mx
3
www.alienpro.com.mx
Attention

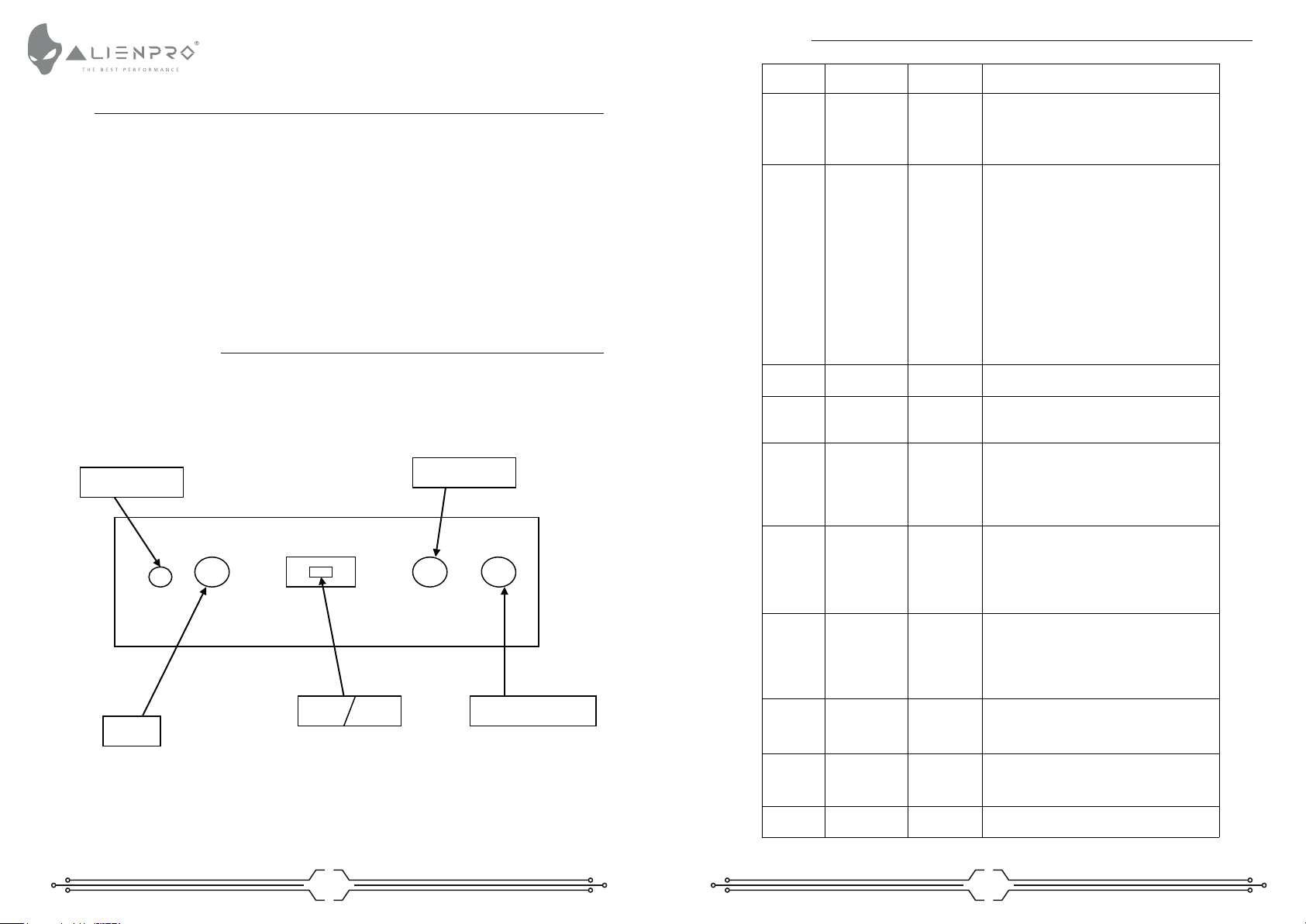

Display Function Instruction
8.Before connect power, check the plug is immobility or not, power line should be connect well.
9.Please do not open or close the equipment frequently that's to avoid any affect to the life span of
the laser diode, and try the best to avoid the long time working.
10.Due to the characteristic of the laser diode, after four hours working, it should be close at least 25
minutes until the laser diode cooling then work again.
11.Don't touch the light or draw the power line when your hand was wet. And do not pull the
electronic power line.
12.Maintain the distance at least 3M above from the equipment to the object.
13.This equipment does not have any parts can repair for the users, please do not open the equip-
ment.
14.When the laser diode became dim or damaged please contact the dealer timely.
15.When you want to retransfer the products,you'd better use the original package to shockproof.
1. Press "Esc" once or more, you can choose the control mode-Sound active,auto-play,dmx 512.
2. "Up''--Scrolls through menu options in ascending order
3. "Down"--Scrolls through menu options in descending order
4. "REST''--Save the current options.It will keep the same situation when it put power again.
If we did not put DMX signal to the light and turn switch to "Auto", the laser will be in auto-play
mode.or put the switch to "sound",it will play sound programme.
When have DMX signal,and put potentiometer in "off",it will be controlled by DMX512.
Adjust sensitivity
Mic
Sound Auto
Write programme
Adjust play speed
Channel Instruction
Channel Function Value Details
CH1
Control
Mode
0~63
64~127
128~191
192~255
Close light
Sound Active
Auto-Play
DMX Control(Manual adjust)
CH2 Color
0~20
21~41
42~62
63~83
84~104
105~125
126~146
147~167
168~188
189~209
210~230
231~251
252~255
No function
Original color
Red
Yellow
Green
Cyan
Blue
Purple
White
Auto-change color randomly
Auto-change single color randomly
Seven color change
Dotting effect
CH3
Select
Pattern
0~255 32 Patterns（0-255）/8=0~31
CH4
Select
Pattern
Group
0~255 4 Pattern groups（0-255）/64=0~3
CH5
Horizontal
Rotate
0~127
128~191
192~255
Horizontal rotation
（
0~360 degree
）
Horizontal clockwise rotation speed
（8 grade）
Horizontal counter - clockwise
rotation speed
（
8 grade
）
CH6
Vertical
Rotate
0~127
128~191
192~255
Vertical rotation
（
0~360 degree
）
Vertical clockwise rotation speed （8
grade）
Vertical counter - clockwise rotation
speed （8 grade）
CH7
Centre
Rotate
0~127
128~191
192~255
Centre rotation
（
0~360 degree
）
Centre clockwise rotation speed （8
grade）
Centre counter - clockwise rotation
speed
（
8 grade
）
CH8 Horizontal
Move
0~127
128~255
Horizontal move
Horizontal movement speed (8 grade)
CH9 Vertical
Move
0~127
128~255
Vertical move
Vertical movement speed(8 grade)
CH10
Horizontal
Stretch
0~64
65~127
Horizontal stretch(Manual adjust)
Horizontal stretch(Auto adjust)
