ALKOTA 210 User manual

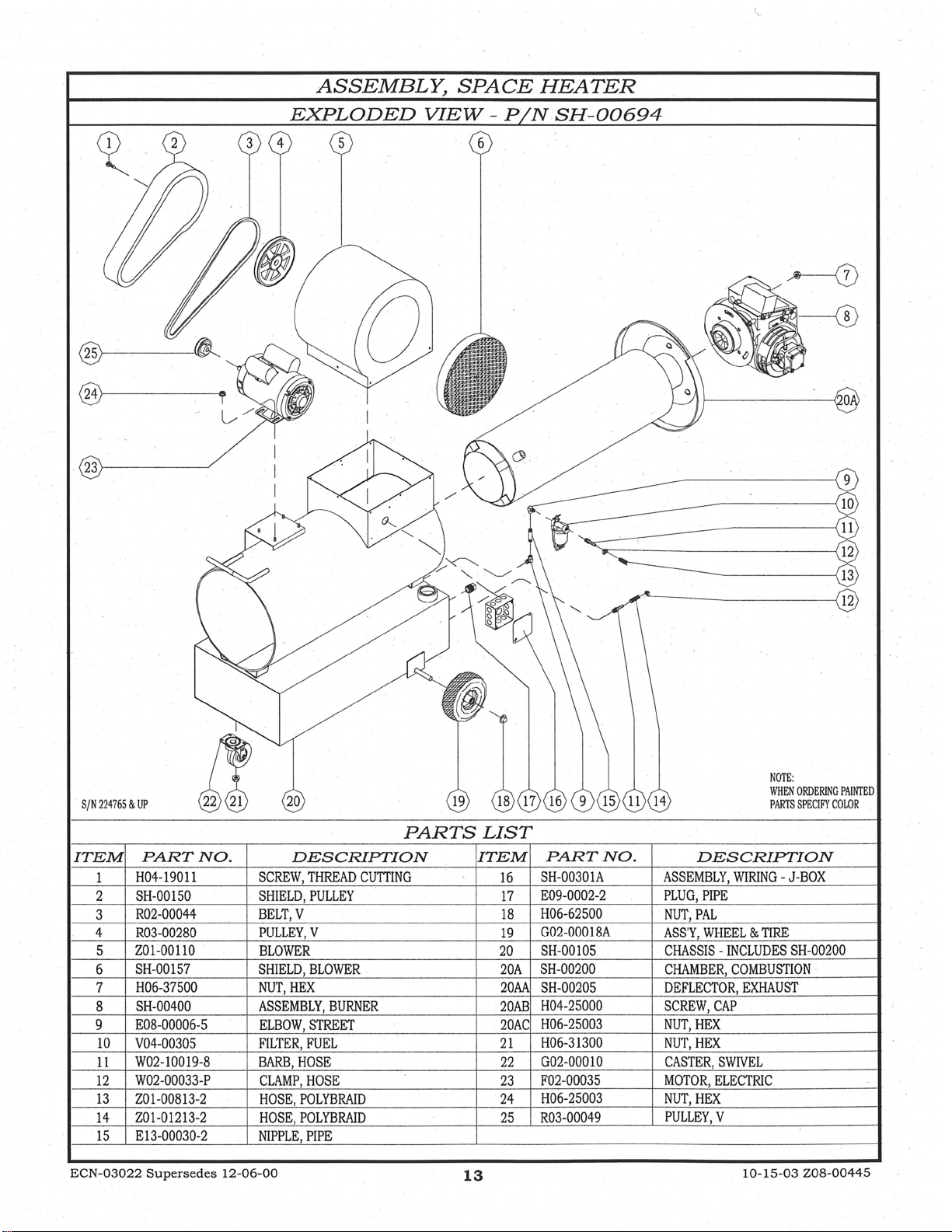

MODEL 210 SPACE HEATER
SPECIFICATIONS
10-25-05 Z08-02953
MACHINE SPECIFICATIONS
PERFORMANCE
CAPACITY................................210, 000 BTU/HR / 59,920 KCAL/HR
CONTINUOUS OPERATION BEFORE REFUEL ........... 7.5 HOURS
TEMPERATURE LIMIT ............. OPEN @ 140°F - CLOSED @180°F
HEATED AIR ....................................................................... 1930 CFM
COMBUSTION SMOKE/BACHARACH SCALE ...#1 OR #2 SMOKE
CARBON MONOXIDE ALLOWED .......................................... 0.01%
GENERAL
WEIGHT (DRY) ........................................................ 215 LBS / 98 KG
DIMESIONS .................................................... L 42” X W 21” X H 47”
FUEL TANK CAPACITY .............................15 GALLON / 57 LITERS
COMBUSTION CHAMBER ................................ STAINLESS STEEL
FUEL FILTER ELEMENT................................... P/N V04-0000305-01
TIRE & RIM ...............................................................P/N G02-00018A
PULLEY, FAN ..............................................................P/N R03-00280
BELT, FAN .................................................................. P/N R02-00044
FAN ............................................................................. P/N Z01-00110
ELECTRICAL
VOLTAGE .................................................................. 115V 1PH 60HZ
HIGH LIMIT SWITCH .................................................. P/N F04-00862
TOGGLE SWITCH - 20AMP ...................................... P/N F04-00699
POWER CORDSET ..................................................... P/N F04-00110
THERMOSTAT ............................................................ P/N F04-00831
CONTROL,HIGHLIMIT...............................................P/NF04-00832
CURRENT ............................................................................. 28 AMPS
BURNER
NAME BRAND ........................................................... WAYNE HOME
BURNER ............................................................... P/N V00-173127
BURNER TYPE......................................... PRESSURE ATOMIZING
FUEL TYPE.....................................KEROSENE, #1 OR #2 DIESEL
FUEL PRESSURE...................................................120 PSI / 8 BAR
FUEL NOZZLE................(1.50 90DA DEGREE A) P/N V1.50 90DA
FUEL CONSUMPTION............................... 1.68 GPHR / 6.36 LPHR
FUEL PUMP...................................(DAN FOSS) P/N V-100714-001
MOTOR HORSEPOWER.........................................................1/7 HP
MOTOR SPEED.................................................................3450 RPM
FAN MOTOR
MOTOR VOLTAGE .............................................. 115V 1PH 50/60HZ
MOTOR ........................................................................ P/N F02-00035
MOTOR PULLEY ................................................... P/N R03-00049
MOTOR SPEED .................................................................. 1530 RPM
CURRENT .................................................................. 115V 60HZ 1PH
Supersedes 12-03-03 Z08-02953

SPACE HEATER
12-03-03 Z08-00443Supersedes 10-00 Z08-00443 2
MACHINE UNPACKING
ALL CLEANERS ARE CAREFULLY INSPECTED
AND CARTONED TO PROTECT AGAINST
SHIPPING DAMAGE. IF THERE IS DAMAGE OR
MISSING PARTS, THE TRANSPORTATION
COMPANY AGENT SHOULD MAKE A NOTATION
TO THAT EFFECT ON THE BILL. REFER TO THE
PARTS LIST IN THIS MANUAL AND ADVISE WHAT
PARTS ARE MISSING OR DAMAGED. IF
AVAILABLE, GIVE THE INVOICE NUMBER ON
ALL ORDER BILLS. THIS PROCEDURE WILL
ENABLE NEEDED PARTS TO BE SHIPPED
QUICKLY.
THANK YOU for selecting our product. READ ALL
Installation, Operation, and Maintenance
instructions before operating the machine
NOTE: Refer to CLEANER MODEL for SERIAL
NUMBER location
NOTE: Dimensions are in in inches unless
otherwise noted
IMPORTANT SAFETY
INSTRUCTIONS
The safety alert symbol is used to identify
safety information about hazards that can result
in personal injury.
A signal word (DANGER, WARNING, or
CAUTION) is used with the alert symbol to
indicate the likelihood and the potential severity
of injury. In addition, a hazard symbol may be
used to represent the type of hazard
DANGER indicates a hazard which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazard which, if
not avoided, could result in death or serious
injury.
CAUTION indicates a hazard which, if
not avoided, might result in minor or
moderate injury.
CAUTION, when used without the alert
symbol, indicates a situation that could result
in damage to the equipment.
GENERAL SAFETY
1. Before operating this machine, read and
observe all safety, unpacking, and operating
instructions. Failure to comply with these
instructions could create a hazardous
situation.
2. The operator of this equipment should not
operate this equipment when fatigued or under
influence of alcohol or drugs.
3. The operator of this equipment should be
thoroughly familiar with its operation and
controls.
4. All installations must conform to all applicable
local codes. Contact your electrician, plumber,
utility company or seller for details.
5. If a fuel leak is found, DO NOT OPERATE THE
MACHINE. Shut off the motor and repair.
6. Do not operate the machine if any mechanical
failure is noted or suspected.
7. Disconnect the power before performing any
maintenance or repair on this machine.
8. Before starting the heater, survey the area for
possible hazards and correct before proceeding.
DANGER HOT DISCHARGES
AND SURFACES may be produced.
9. During normal operation of this machine, hot
discharges and hot surfaces may be produced.
Avoid burns by being aware of these areas and
staying clear of them during and
immediately after equipment operation.
10. DO NOT DIRECT THE EXHAUST TOWARD
ANY COMBUSTIBLE OR HEAT SENSITIVE
SURFACE. KEEP AT LEAST 10 FEET AWAY.
11. DO NOT start the burner unless a good flow
of air is coming from the heater.
WARNING: OPEN FLAME:Do not operate
this machine in an area with
combustible materials. A suitable fire
extinguisher should be available in the
operating area.
SAFETY, INSTALLATION, AND OPERATION

DANGER: CARBON
MONOXIDE HAZARD
WARNING: This machine emits carbon
monoxide, a deadly gas, and must be vented
if used in an enclosed area. Improper venting
can cause poor combustion, delayed ignition,
and could result in death or serious injury.
MECHANICAL SAFETY
1. All guards, shields, and covers must be in place
to prevent accidental contact with hazardous
parts.
2. Drive belts must be inspected and tightened
periodically to operate at optimum levels
3. Inspect machine for damaged or worn
components and repair or replace to avoid
potential hazards. Do not operate the
machine if any mechanical failure is noted or
suspected.
ELECTRICAL SAFETY
1. This machine must be electrically grounded.
Failure to have the machine grounded may
result in the operator being electrically shocked
and even death.
2. Do not plug-in or un-plug machine with wet
hands.
3. Keep power cords and connections (connectors)
out of water.
4. If an extension cord must be used to operate
this machine, it should be as short as
possible. The extension cord must be properly
sized and fitted with a grounding type plug and
receptacle.
5. All wiring and electrical connections should
comply with the National Electrical Code (NEC)
and with local codes and practices.
6. Fuses or circuit breakers should be compatible
with machine requirements. (See ELECTRICAL
section of MODEL SPECIFICATIONS for power
requirements.)
7.High voltage may be present within this
machine. Servicing should only be
performed by properly trained personnel.
FUEL SAFETY
DANGER: To avoid possible injury, fire, or
explosion, please read and follow these
instructions.
1. Use only Kerosene, #1 or #2 fuel oil, or #1
Diesel. The use of incorrect fuel may result in
fire or explosion and severe injury to the
operator.
WARNING: DO NOT USE GASOLINE,
CRANKCASE DRAININGS, OR OIL
CONTAINING GASOLINE OR SOLVENTS.
AVERTISSEMENT: NE PAS UTILISER
D’ESSENCE DE PRODUITS DE VIDANGE NI
D’HUILE CONTENANT DE L’ESSENCE OU
DES SOLVANTS
2. Fuel burning equipment must have proper
ventilation for cooling, combustion air, and
exhausting of combustion products.
3. Personnel trained in and familiar with the type
of equipment being serviced should only
perform adjustments to fuel burning
equipment.
4. Do not refuel machine while it is running or
hot. Allow it to cool sufficiently to prevent
ignition of any spilled fuel. Clean up any spilled
fuel before resuming operation.
SAVE THESE SAFETY
INSTRUCTIONS
12-03-03 Z08-00443ASupersedes 09-00 Z08-00443A 3

INSTALLATION
1. LOCATION: This machine should be installed
by only qualified technicians. The machine
should be set upon a solid level surface where
it will not be affected by strong winds, rain, or
snow. Install the machine considering the
direction of the exhaust. DO NOT DIRECT
EXHAUST TOWARD ANY COMBUSTIBLE OR
HEAT SENSITIVE MATERIAL. Install the
machine considering . locations of electrical
connections, venting, and maintenance. All
wiring and electrical connections should
comply with the National Electrical Code (NEC)
and with local codes and practices. Use the
chart on the next page for your cord selection.
2. LOCAL CODES: Installation and servicing
must only be performed by qualified personnel
and must conform to local codes and
ordinances.
WARNING: ELECTRIC
SHOCK HAZARD
3. ELECTRICAL: Connect the machine to an
electrically grounded circuit that is fuse or
circuit breaker protected. Do not use any type
of adapter. If the correct type of receptacle is
not available, have one installed by a qualified
electrician.The circuit must match that
specified in the ELECTRICAL section under
MODEL SPECIFICATIONS.
4. EXTENSION CORD: The use of an extension
cord that has undersize wire compared to the
amp draw of your machine will adversely limit
the starting load carrying abilities of the motor
and machines performance. Use only 3-wire
extension cords that have 3-prong plugs and
3-pole cord connectors that accept the plug
from the product. Use only extension cords
that are intended for outdoor use. These
extension cords are identified by a marking
“Acceptable for use with outdoor appliances;
store indoors while not in use.” Use only
extension cords having an electrical rating not
less than the rating of the product. Do not use
damaged extension cords. Use an extension
cord in good repair free of frays or cracks in
the outer covering. Do not abuse extension cord
and do not yank on any cord to disconnect.
Keep cord away from heat and sharp edges.
Always disconnect the extension cord from the
receptacle before disconnecting the product
from the extension cord.
WARNING: To reduce risk of electrocution,
keep all connections dry and off the ground.
Do not touch plug with wet hands.
CHART FIGURES ARE BASED ON NOT
MORE THAN 100 FOOT
(Based on Ambient Temperature of 86°F (30°C).
*Use Amp Draw indicated the same or higher than
your machine output
EXAMPLE: Machine Amp Draw 51, use 55 (2
Conductor).
The thermostat type of cord shall be C, PD, E, EO,
EN, S, SO, SRD, SJ, SJO, SV, SVO, SP.
The thermoset plastic types shall be ET, ETT,
ETLB, ETP, ST, STO, SRDT, SJT, SJTO, SVT,
SVTO, and SPT.B
5.FIRE HAZARD: Keep combustible materials
away from gas machines. DO NOT allow lint
or dust collect in the burner area.
6. FUEL SUPPLY: This machine must have a fuel
supply as specified in the FUEL sectio of the
MODEL SPECIFICATIONS.
7. COLD WEATHER: As the weather becomes
colder, fuel becomes thicker and may become
so viscous that the fuel will not flow properly.
12-03-03 Z08-0443BSupersedes 10-00 Z08-00443B 4
COPPER
WIRE SIZE
MINIMUM
AWG
MACHINE AMP
DRAW*
3 CONDUCTOR
WIRES
MACHINE AMP
DRAW*
2 CONDUCTOR
WIRES
16 10 13
15 -- --
14 15 18
12 20 25
10 25 30
835 40
645 55
460 70
280 95

As viscosity increases, the thicker oil can cause
delayed ignition, poor spray patterns, and
rumbling fires. As moisture will quickly
destroy fuel pumps, make certain that tank
openings are secure and moisture cannot
enter. In cold weather areas, frost build up will
occur in fuel tanks. As the weather warms it
turns to condensate, and the water will be in
the tank. Keep the tank clear of water, as
moisture reaching the fuel pump will cause
rust, and the pump will bind. A full fuel tank
will lessen condensation build up.
OPERATING
INSTRUCTIONS
PRE START-UP
The first time the machine is operated, after
repairs have been made, or if the machine has set
for a period of time (30 days or more) follow the
following procedures.
1. Check the tension of the belt per instructions
in MACHINE MAINTENANCE.
2.Read and observe all items in “SAFETY” and
“INSTALLATION”.
3. The high limit safety switch is designed to turn
off the burner if the blower fails. Adjust the
high limit safety switch to 125°F.
START-UP
1.Refer to the MAINTENANCE SCHEDULE for
any maintenance to be performed before
operation.
WARNING: ELECTRIC
SHOCK HAZARD
2. ELECTRICAL: Connect the machine to an
electrically grounded circuit that is fused or
circuit breaker protected. Do not use any type
of adapter. If the correct type of receptacle is
not available, have one installed by a qualified
electrician.
3. BELT (if so equipped): Make sure belt tension
and condition is as specified in
MAINTENANCE.
4.FUEL FILTER: Inspect fuel filter for
evidence of water contaminants.
5. FUEL: Use only Kerosene, #1 or #2 fuel oil, or
#1 Diesel. The use of incorrect fuel may result
in fire or explosion and severe injury to the
operator.
6. FUEL QUANTITY: Make sure the fuel supply
is sufficient to complete the job. See the
GENERAL section of MODEL
SPECIFICATIONS for the fuel tank capacity.
7.TEMPERATURE CONTROL: Adjust the
temperature control to the desired
temperature. (if so equipped)
8.HIGH LIMIT SWITCH: The high limit safety
switch is designed to turn off the burner if the
blower fails. Adjust the high limit safety.
DANGER: DO NOT operate in a confined
area. Indications of inadequate ventilation
are headache, dizziness, burning eyes and
nose, nausea, dry mouth, or sore throat.
9.Adjust the temperature control to desired
temperature. (if so equipped)
CAUTION: DO NOT DIRECT EXHAUST TOWARD
ANY COMBUSTIBLE OR HEAT SENSITIVE
SURFACE SUCH AS BUILDING MATERIALS,
PAPER, PLASTICS, OR CARDBOARD. KEEP
AT LEAST TEN FEET AWAY FROM SUCH
ITEMS
WARNING: DO NOT OPERATE IN SUCH
AREAS CONTAINING VOLATILE OR
AIRBORNE COMBUSTIBLES. OTHER
PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNERS, DUST
PARTICLES, OR UNKNOWN CHEMICALS
10.Turn the fan switch to the on position.
Do not start the burner unless a good flow of air
is coming from the heater.
12-03-03 Z08-00443CSupersedes 10-00 Z08-00443C 5

12-03-03 Z08-00443D
6
CAUTION: Do not run the machine with the
burner switch in the on position when the
fuel tank is empty. This will cause damage to
the fuel pump and void warranty.
11.Select temperature (if so equipped)
12.Turn the burner switch to the on position.
SHUT-DOWN
1. Turn the burner switch to the off position.
2. After cool air is coming from the end of the
heater, turn the blower switch to the off
position.
3. Disconnect from the electrical supply.
MAINTENANCE SCHEDULE
DAILY
FUEL LEVEL:
Check and add as needed using a filter
screened equipped funnel.
BELTS: -
Cracks or fraying.
Belt Tension

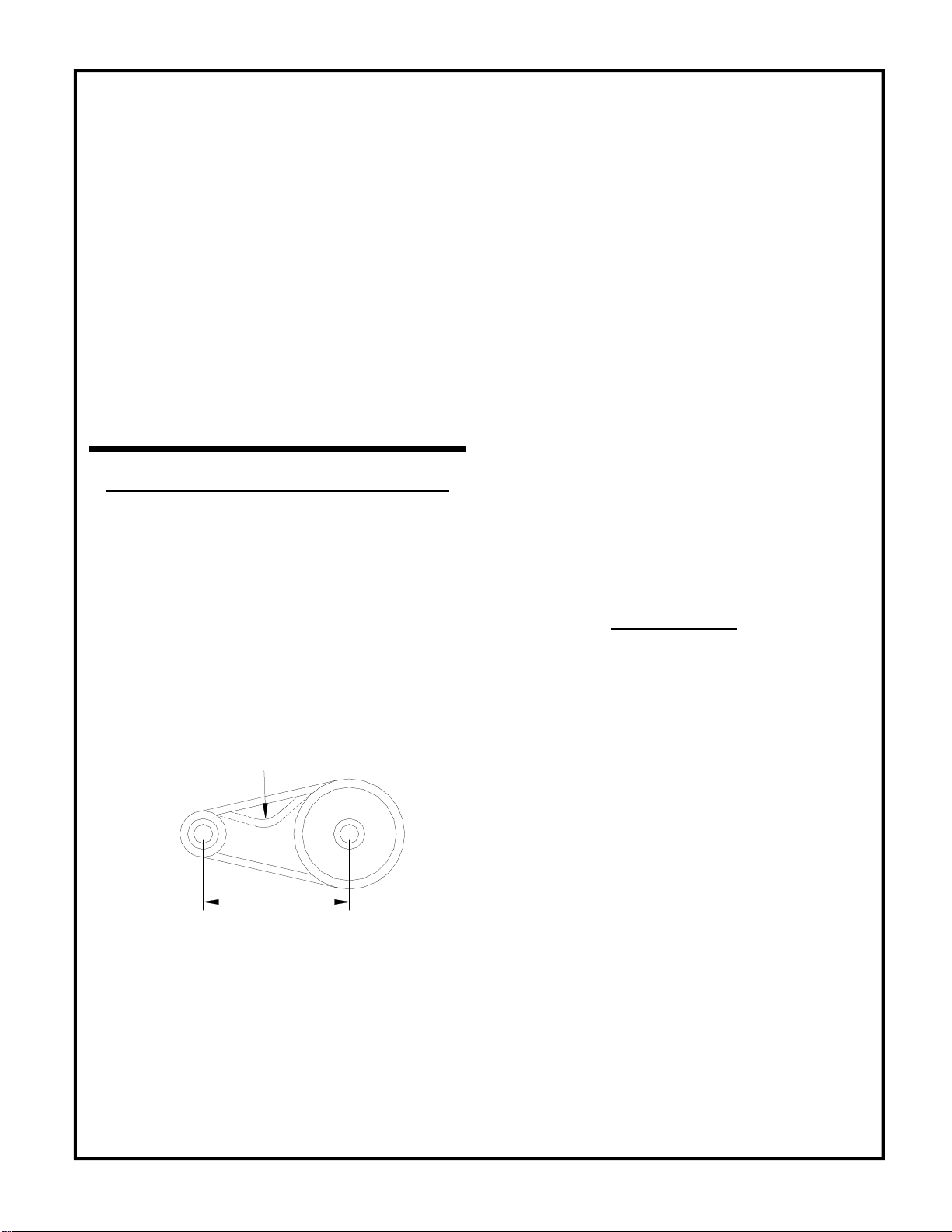

1. Deflection for each inch of span between
pulley centers with a 6-pound force applied in
the middle of the span.
EXAMPLE: A 6-pound force applied at the
middle of an 8 inch span should produce a
deflection of 8/64 inch or 1/8 inch.
2. Belts can be tightened or loosened by
loosening the nuts holding the motor to the
motor mount. Then move motor tightening or
loosing the belt. Retighten the motor nuts after
the desired tension is reached.
FILTER, FUEL:
If contaminants are present see FUEL
FILTER insert.
Remove and Replace fuel filter per FUEL
FILTER insert.
50 HOURS
BELT TENSION:
Belt Tension.
100 HOURS
FILTER, FUEL - ELEMENT:
FUEL FILTER ELEMENT- Remove & replace
per FUEL FILTER page.
STORAGE
1. FUEL TANK—Drain and flush the tank with
clean fuel oil. DO NOT use gasoline or water.
To prevent rusting from condensation, refill the
tank with the fuel specified using a filter screen
equipped funnel.
2. BLOWER—Clean each season as needed
DEFLECTION
SPAN

OIL BURNER MAINTENANCE
OIL FIRED CLEANERS
08-05-03 Z08-00062
ECN-02981 Supersedes 06-05-01 Z08-00062
AIR BAND ADJUSTMENT
NOTE: The air band adjustment on this burner
has been preset at the factory (elevation
approximately 1400 feet). On equipment installed
where elevation is substantially different, the air
band(s) must be readjusted.
1. Loosen the cap screw retaining the air bands.
2. Move the air bands as indicated below with
the machine in operation.
NOTE: The air band should be set so the
exhaust gives the smoke spot specified in the
GENERAL section of the MACHINE
SPECIFICATIONS on a Shell-Bacharach scale.
If a smoke tester is not
available, a smoky
exhaust, oily odor, or
sweet smell indicates
insufficient air while eye-
burning fumes indicate
too much air.
3. Tighten the cap screw
retaining the air bands.
FUEL PUMP FILTER
SUNDSTRAND PUMP
1. Shut off fuel supply.
2. Loosen the 4 screws holding the cover to the
fuel pump housing.
3. Take cover and cover gasket off and pull
strainer off of pump housing.
4. Clean out any dirt remaining in the bottom of
strainer cover. If there is evidence of rust
inside of the unit, be sure to remove water in
supply tank and fuel filter.
5. Turn on fuel supply. Failure to do so will result
in fuel pump damage.
DANFOSS PUMP
1. Shut off fuel supply.
2. Loosen the 2 screws with 7/64 allen wrench
one turn.
3. Turn cover counter clockwise and pull strainer
and cover off of pump housing.
4. Clean out any dirt remaining in the bottom of
strainer cover. If there is evidence of rust
inside of the unit, be sure to remove water in
supply tank and fuel filter.
5. Reinstall reverse of removal.
6. Turn on fuel supply.
TRANSFORMER TEST
1. Remove burner junction box cover.
2. Turn on burner and make sure ignition
transformer is receiving rated voltage.
3. Turn off burner.
4. Loosen screw and swing transformer away from
burner gun assembly.
5. Turn on burner.
6. Short the high voltage terminals.
CAUTION: Use screwdriver with a well
insulated handle to avoid shock.
7. Open gap by drawing screwdriver away from
one electrode while touching the other.
8. The spark should jump between 5/8 inches
and 3/4 inches, if it doesn’t jump, replace
the transformer.
9. Turn burner off.
10.Partially close transformer. Check if buss bars
align and contact transformer electrodes. If
buss bars do not contact, see Buss Bar
Alignment.
11.Close transformer, reposition retainer clip and
tighten screw.
PART NUMBER
V00-99004
PART NUMBER
V00-14283-2
PART NUMBER
V00-14283-5

OIL BURNER MAINTENANCE
OIL FIRED CLEANERS
07-11-03 Z08-00062A
BUSS BAR ALIGNMENT
1.With burner off, loosen screw and swing the
transformer away from burner gun assembly.
2. Inspect the buss bars and transformer
electrodes for pitting or corrosion.
3. Partially close the transformer. Check if the
buss bars contact and are in alignment with
transformer electrodes.
4. Proper adjustment is obtained by gently
bending the buss bars until they spring
against, parallel, and are in full contact with
the transformer electrodes.
5. With buss bars aligned, carefully close and
fasten the transformer.

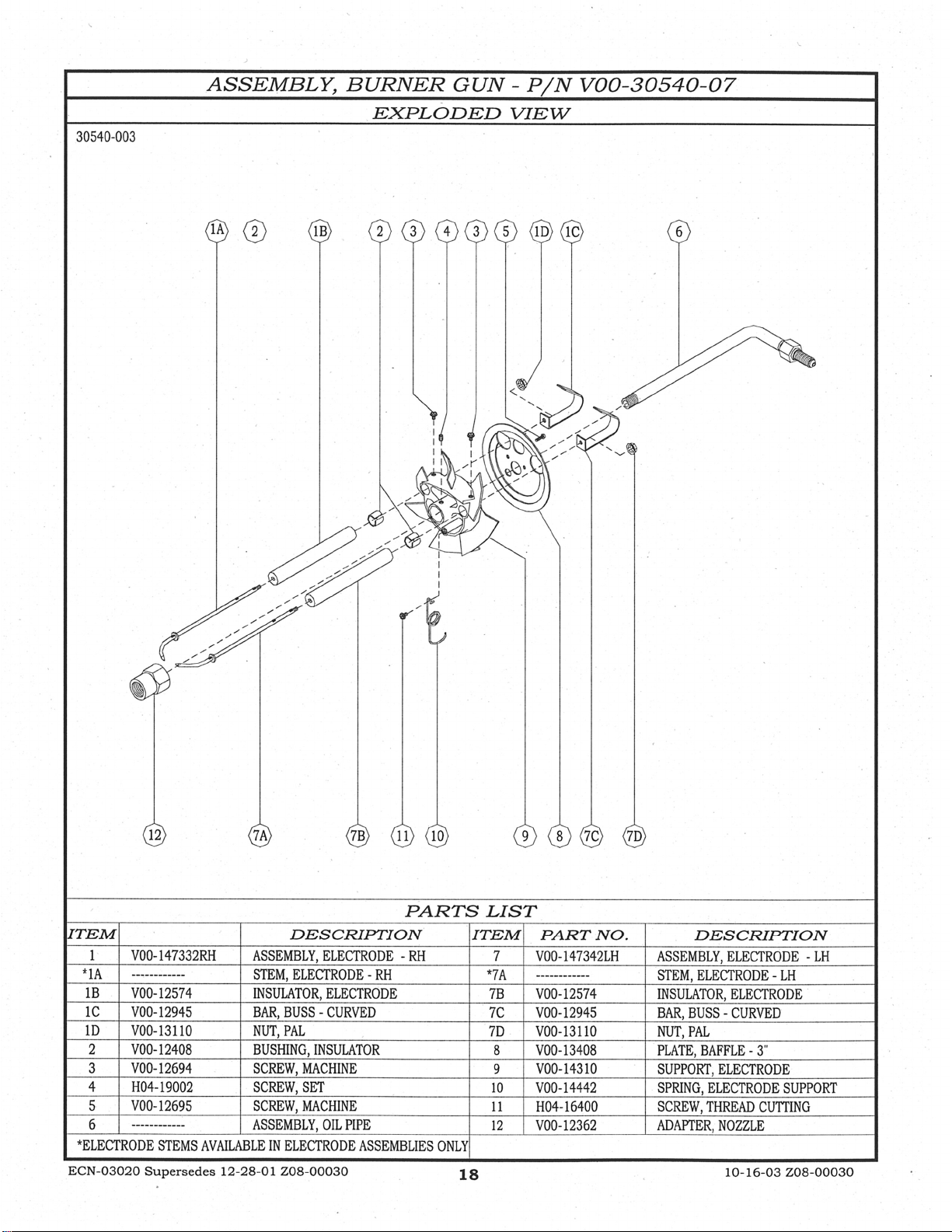

BURNER GUN REMOVAL
& INSTALLATION
1. Disconnect the fuel line from the burner gun
assembly oil line fitting. Loosen the other end
of the line and swing line out of the way.
2. Remove the retaining nut.
3. Loosen screw and swing transformer away from
burner gun assembly.
4. Carefully remove the burner gun assembly.
A. Check and replace electrode insulators if
cracked.
B. Clean burnt buss bars.
C. Clean carbon off electrodes.
D. Clean carbon off oil nozzle. (Use caution
not to scratch face of nozzle or orifice.)
E. Check for a loose oil nozzle. NOTE:
Check with dealer and/or replace nozzle
with proper nozzle.
5. Gently replace burner gun assembly in air
tube. CAUTION: Do not force. Forcing will
cause electrode misalignment
6. Reinstall the retaining nut.
Reinstall the oil line making sure both ends
are tight.
7. Partially close transformer. Check if buss bars
align and contact the transformer electrodes.
If buss bars do not contact, see Buss Bar
Alignment.
8. Close transformer, reposition retainer and
tighten screw.
ACCESSORIES
Z01-00095 – Fuel Nozzle Changing Wrench
Z01-00092 – Fuel Pump Wrench (Sundstrand)
Z01-00093 – Solenoid Wrench (ASCO)

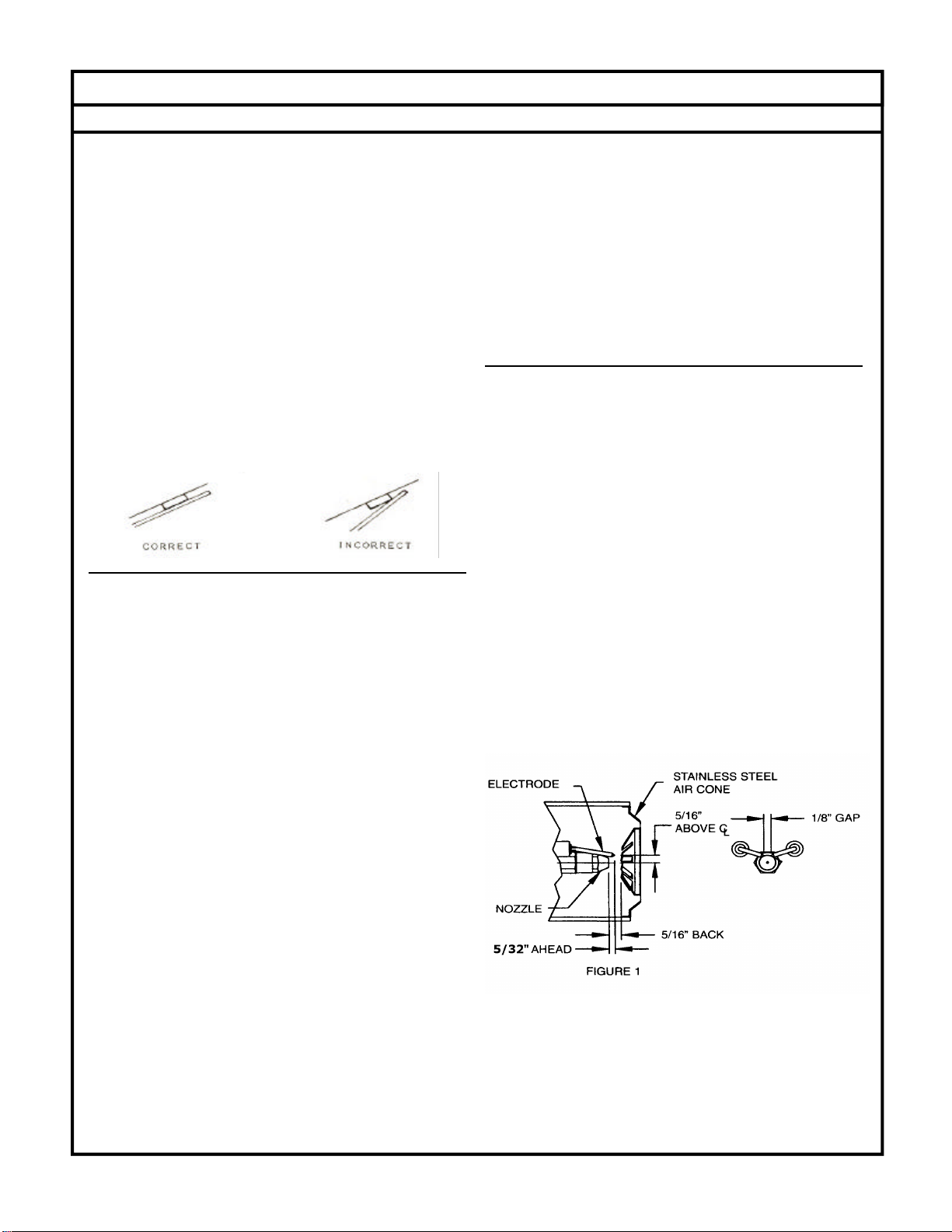

ELECTRODE ASSEMBLY ADJUSTMENT
1.Loosen screws holding electrode assemblies.
2. Raise electrode tips 5/32 inches above
surface plane or end of oil nozzle.
3. Place each electrode tip 5/16 inches from
center of spray nozzle hole, maintaining
previous measurement.
4. Spread electrode tips to 1/8-inch gap
maintaining previous measurements.
5. When the proper measurements are obtained,
gently tighten screws that hold electrode
assembly in place. CAUTION: Do not over
tighten, as this will cause the electrode
insulator to fail.
ECN-02981 Supersedes 06-05-01 Z08-00062A 16

OIL FIRED BURNER TROUBLESHOOTING
07-15-03 Z08-00191
ECN-02981 Supersedes 08-00 Z08-00191
TROUBLE POSSIBLE CAUSE REMEDY
1. Burner will not
ignite.
A. Electrodes out of alignment.
B. Electrode insulator failure.
C. Water flow switch not closing.
D. Vacuum switch not closing.
E. Temperature control switch not
closing.
F. Fuel solenoid valve not opening.
G. Weak transformer.
H. Faulty cad cell (if equipped).
I. Faulty primary control (if
equipped).
J. Burner motor thermal protector
locked out.
K. Wiring.
L. Burner switch.
M. Pump pressure.
N. Venting.
0. Sooting.
P. No fuel
A. See "ADJUSTING ELECTRODE
ASSEMBLY" in BURNER
MAINTENANCE SECTION.
B. Remove and replace if there are
breaks, cracks, or spark trails.
C. Adjust, repair, or replace switch.
D. Adjust, repair or replace switch.
E. Adjust or replace the TEMPERATURE
CONTROL.
F. Clean, repair, or replace solenoid.
G. Clean and check transformer
terminals. Check transformer for
spark per "TRANSFORMER TEST" in
BURNER MAINTENANCE SECTION.
H. Clean and test cad cell, replace if
required.
I. Replace primary control.
J. See "Burner motor thermal protector
locked out.
K. All wire contacts are to be clean and
tight. Wire should not be cracked or
frayed.
L. Test switch operation. Remove and
replace as necessary.
M. See "Low fuel pressure".
N. A downdraft will cause delayed
ignition. Soot deposits on the coil and
burner can interrupt air flow, and
cause shorting of the electrodes. Clean
as required.
O. Soot deposits on the coil and burner
can interrupt air flow, and cause
shorting of the electrodes. Clean as
required.
P. See "No fuel."
2. No fuel A.Clogged fuel filter.
B. Fuel leak.
C. Kinked or collapsed fuel line.
D. Low fuel pressure.
E. Faulty burner oil pump.
F. Air leak in intake lines.
G. Clogged burner nozzle
A. Remove and replace filter per FUEL
FILTER SECTION.
B. Repair as necessary.
C. Remove and replace fuel line.
D. See "Low fuel pressure".
E. Adjust pressure or replace.
F. Tighten all fittings.
G. Remove and replace (Do not clean).
3. Low fuel pressure A. Clogged fuel filter.
B. Clogged fuel pump filter
screen.
C. Fuel oil too viscous.
D. Air leaks in intake lines.
E. Kinked or collapsed fuel line.
F. Burner shaft coupling slipping.
G. Fuel Nozzle worn.
H. Faulty oil pump
A. Remove and replace filter per FUEL
FILTER page.
B. Remove pump cover and clean strainer
using a brush and clean fuel oil, diesel
oil or kerosene.
C. Operate a lighter oil or in warmer area.
D. Tighten all fittings.
E. Remove and replace.
F. Remove and replace.
G. Remove and replace with specified
nozzle on BURNER ASSEMBLY.
H. Remove and replace.
21

OIL BURNER TROUBLESHOOTING
07-15-03 Z08-00192
ECN-02981 Supersedes 09-00 Z08-00192
TROUBLE POSSIBLE CAUSE REMEDY
4. Pulsating pressure A. Partially clogged fuel pump
strainer or filter.
B. Air leaking around fuel pump
cover.
A. Remove and replace strainer per FUEL
PUMP FILTER in OIL BURNER
MAINTNANCE Section.
B. Check fuel pump cover screws for
tightness and damaged gasket.
5. Unit smokes A. Improper fuel.
B. Air to burner insufficient.
C. Fuel nozzle interior loose.
D. Water in fuel.
E. Gun out of alignment.
A. Refuel with FUEL specified on
MACHINE SPECIFICATIONS.
B. See AIR BAND ADJUSTMENT in OIL
BURNER MAINTENANCE section.
C. Replace nozzle.
D. Inspect fuel filter for water presence.
E. Bend oil pipe to center burner nozzle.
6. Burner motor
thermal protector
kicked out.
A. Low voltage.
B. Fuel too viscous.
C. Fuel pump defective.
D. Motor defective.
A. Voltage must match those specified in
the BURNER section of MACHINE
SPECIFICATIONS section.
B. Operate in warmer conditions or with
fuel adapted to cold weather
conditions.
C. Check that fuel pump turns freely.
D. Call service technician or take motor to
repair/warranty station.
7. Delayed ignition
(rumbling, noisy
starts)
A. Dirty or damaged electrodes.
B. Air adjustment open too far.
C. Poor fuel spray pattern.
D. Incorrect electrode setting.
E. Weak transformer
A. Clean or replace.
B. Readjust per AIR BAND ADJUSTMENT
in OIL BURNER MAINTENANCE
section.
C. Remove and replace with fuel nozzle
specified in BURNER ASSEMBLY.
D. Readjust per ADJUSTING
ELECTRODE ASSEMBLY in OIL
BURNER MAINTENANCE section.
E. See TRANSFORMER CHECK on OIL
BURNER MAINTENANCE section
8. Burner does not
electrically come on
A. Burner motor reset button
tripped.
B. High limit temp control reset
tripped if so equipped.
A. Reset if necessary.
CAUTION: Do not keep hitting the "reset
button" if you have oil pressure you
are just filling the burner combustion
chamber with oil and if ignited will
cause an explosion.
B. Reset if necessary.
22

MAXIMUM PRESSURE..................100 PSI / 7 BAR
D. Tighten star nut
E. Remove and replace filter bowl retainer
A. Remove and replace valve assembly
B. Tighten valve stem nut
C. Remove and replace valve assembly
E. Remove and replace valve stem
D. Lightly file smooth
assembly and filter housing
1. Fuel leaking around
valve stem
3. Air leaking into system
(Air bubbles in bowl
during operation)
A. Rough stem
B. Loose valve stem nut
C. Valve stem packing
deteriorated
D. Burr on casting
E. Valve stem threads
stripped
A. Deteriorated gasket
B. Housing cracked
C. Bowl rim cracked,
nicked, or scratched
D. Star nut loose
E. Star nut's threads
stripped out
F. Gasket missing
A. Loose valve assembly
B. Cracked component
C. Loose filter bowl C. Tighten star nut on fuel bowl retainer
WEIGHT.........................................12 OZ / 340 GM
MAXIMUM FILTRATION.......................25 MICRONS
and gasket
B. Inspect filter bowl, filter housing,
C. Remove and replace bowl
F. Replace gasket
MAXIMUM FLOW.......................60 GPH / 230 LPH
INLET AND OUTLET PORT SIZE..................1/4 NPT
MAXIMUM TEMPERATURE..............212°F / 100°C
B. Remove and replace housing
A. Remove and replace gasket
2. Fuel bowl leaking
A. Tighten valve assembly nut slightly
12-04-00 Z08-00021SECN-02397 Supersedes 03-86 Z08-00021 19

back in place and tightening star nut.
11. Open valve assembly and check for leaks.
NOTE: Foul smelling diesel fuel is an indication of
micro biological contamination. A change in fuel
source is recommended. Always carry spare elements
as one thankful of contaminated fuel will plug filter
elements prematurely.
NOTE: Intervals stated are for normal operating
conditions. The intervals suggested may be shortened
(or lengthened) as determined by the presence
(or absence) of the indicated condition.
1. Close valve (ITEM 1) by turning clockwise.
2. Loosen star nut while supporting bowl and swing
retainer (ITEM 10) to the side freeing bowl and its
components.
GASKETS:
A. Inspect for deterioration or
tearing.
B. Remove and replace.
BOWL:
Inspect rim and bowl to insure it
is free of nicks, cracks, or
scratches.
FILTER ELEMENT:
A. Inspect for damage or
deterioration.
B. Remove and replace.
FUEL BOWL:
A. If contaminants are found,
check more frequently.
B. If no contaminates are found,
check less frequently.
3. Remove element (ITEM 6) and clean by using a
soft brush and naphtha or clean fuel.
4. Inspect element for damage or deterioration.
5. Inspect the rim of the bowl (ITEM 8) to insure it is
free of nicks and scratches.
6. Remove the gasket (ITEM 4) and screen (ITEM 3).
7. Clean and inspect gasket and screen.
8. Reinstall gasket and screen.
9. After cleaning bowl, reinstall spring (ITEM 7) and
element.
10. Reinstall bowl and components swinging retainer
12-01-00 Z08-00021ECN-02397 Supersedes 03-86 Z08-00021 20
