Allen + Roth 3317FM-33-202 User manual

1
ITEM #3747828
ELECTRIC FIREPLACE
MEDIA MANTEL
MODEL #3317FM-33-202
Español p. 25
ALLEN + ROTH and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You could also contact us at [email protected] or visit www.lowespartsplus.com.
SM21324
welcoming • sophisticated • inspiring

2
TABLE OF CONTENTS
Package Contents ............................................................................................................................... 3
Hardware Contents.............................................................................................................................. 4
Safety Information ............................................................................................................................... 4
Preparation.......................................................................................................................................... 8
Assembly Instructions.......................................................................................................................... 8
Change Door Panels (Optional) ........................................................................................................ 18
Operating Instructions ....................................................................................................................... 19
Care And Maintenance...................................................................................................................... 21
Troubleshooting................................................................................................................................. 22
One-Year Limited Warranty ............................................................................................................... 23
Replacement Parts List ..................................................................................................................... 24

3
PACKAGE CONTENTS
S
R
A
B
C
E
G
N
P
O
Q
M
L
L
I
J
J
I
H
K
DF
PART DESCRIPTION QUANTITY
ATop 1
B Center Panel 1
C Left Middle Wall 1
D Right Middle Wall 1
E Left Outer Wall 1
F Right Outer Wall 1
G Left Door (with hinges) 1
HRight Door (with hinges) 1
I Shelf 2
J Back Panel 2
PART DESCRIPTION QUANTITY
K Base 1
L Wood Door Panel 2
M Fireplace Brick Wall 1
NFireplace Brick Bottom
Wall 1
O Fireplace Glass Front 1
PFront Trim 1
Q Fire Log 1
R Fireplace Grate 1
SRemote Control
(Battery Inside) 1

4
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
AA BB CC DD EE HHFF GG
PART DESCRIPTION QUANTITY
AA Long Bolt 24
BB Washer 24
CC Wooden Dowel 20
DD Back Panel Screw 20
EE Shelf Pin 8
FF L-Bracket 2
GG Screw 6
HH Touch-up Pen 1
SAFETY INFORMATION
Please read and understand this entire manual before
attempting to assemble, operate or install the product.
This equipment has been tested and found to comply
with the limits for Class B digital devices, pursuant to
Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. The equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on. The
user is encouraged to try and correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
the receiver
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received,
including interference that may cause undesired
operation.

5
SAFETY INFORMATION (CONTINUED)
Modifications not approved by the party responsible
for compliance could void user’s authority to operate
the equipment.
This Class B digital apparatus complies with Canadian
ICES-003.
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the
following:
DANGER
• To reduce the risk of electrical shock, ensure the
product is stable, and avoid tipping.
• Read all instructions before installing or using this
heater.
• If the information in this manual is not followed
exactly, an electric shock or fire may result causing
property damage, personal injury or loss of life.
• ALWAYS unplug this appliance/furnishing from the
electrical outlet before cleaning or servicing.
• This product is intended to fit most plasma and
LCD televisions (up to 76 inches and weighing
a maximum of 130 pounds). Using this item with
loads heavier than the stated maximum can result
in tipping and/or instability, which can result in injury
or even death.
WARNING
• This appliance is hot when in use. To avoid burns,
DO NOT let bare skin touch hot surfaces. Keep
combustible material, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet
from this appliance and keep them away from the
sides and rear.
• Extreme caution is necessary when any heater
is used by or near children or individuals with
disabilities and whenever the fireplace is left
operating and unattended.
• DO NOT run cord under carpeting. DO NOT cover
cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances.
Arrange cord away from traffic areas and where it
will not be tripped over.
• DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock or fire, or damage the appliance.
• This appliance has hot and arcing or sparking parts
inside. DO NOT use it in areas where gasoline,
paint or flammable vapors or liquids are used or
stored. This fireplace should not be used as a
drying rack for clothing. Christmas stockings or
decorations should not be hung in the area of it.
• Use this appliance only as described in the manual.
Any other use is NOT recommended by the
manufacturer and may cause fire, electric shock or
injury to persons.
• Reduce the risk of burns, fire, electrical shock, or
injury to persons:
• Unplug from outlet before putting on or taking off
parts.
• Close supervision is necessary when this furnishing
is used by, or near children, invalids, or disabled
persons.
• Use this furnishing only for its intended use
as described in these instructions. DO NOT
use attachments not recommended by the
manufacturer.
• Keep the cord away from heated surfaces.
• Never operate the furnishing with the air openings
blocked. Keep the air openings free of lint, hair, and
other debris.
• Never drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products
are being used or where oxygen is being
administered.
• To disconnect, turn all controls to the off position,
then remove plug from outlet.
• Each surface intended to support a load shall have
a corresponding statement in the use instructions
specifying the maximum intended load for that
surface in pounds (kilograms).
• Risk of electric shock-connect this furnishing to
a properly grounded outlet only. See Grounding
Instructions.

6
SAFETY INFORMATION (CONTINUED)
• To avoid electric shock, fire, or injury, review the
assembly instruction to confirm that the appropriate
critical components and accessories are being used
with the furnishing.
• Death or serious injury may occur when children
climb on audio and/or video equipment furniture. A
remote control or toys placed on the furnishing may
encourage a child to climb on the furnishing and as
a result the furnishing may tip over on to the child.
• Relocating audio and/or video equipment to
furniture not specifically designed to support audio
and/or video equipment may result in death or
serious injury due to the furnishing collapsing or
overturning onto a child.
CAUTION
• DO NOT operate any heater with a damaged
cord or plug or after the heater malfunctions. DO
NOT operate any heater if it has been dropped
or damaged in any manner. Disconnect power
at service panel and have heater inspected by a
reputable electrician before reusing.
• Any repairs to this fireplace should be carried out by
a qualified service person.
• Under no circumstances should this fireplace be
modified. Parts having to be removed for servicing
must be replaced prior to operating this fireplace
again.
• Household use only.
• DO NOT use outdoors.
• “WARNING – Death or serious injury may occur
when children climb on audio and/or video
equipment furniture. A remote control or toys placed
on the furnishing may encourage a child to climb on
the furnishing and as a result the furnishing may tip
over on to the child”.
• “WARNING – Relocating audio and/or video
equipment to furniture not specifically designed to
support audio and/or video equipment may result
in death or serious injury due to the furnishing
collapsing or overturning onto a child”.
• This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. NEVER
place heater where it may fall into a bathtub or other
water container.
• To disconnect this appliance, turn controls to the
OFF position, then remove plug from outlet.
• ONLY connect to properly grounded outlets.
• This appliance, when installed, must be electrically
grounded in accordance with local codes, with the
current CSA C22.1 Canadian Electrical Code or
follow U.S.A. Installations, follow local codes and
the National Electrical Code, ANSI/NFPA N0.70.
• To prevent a possible fire, DO NOT block air intakes
or exhaust in any manner. DO NOT use on soft
surfaces, like a bed, where opening may become
blocked.
• The heaters MUST NOT be located immediately
below a socket-outlet.
• ALWAYS plug heaters directly into a wall outlet /
receptacle. NEVER use with an extension cord or
re-loadable power tap (outlet / power strip).
• DO NOT slide insert on top of wood to avoid
scratching wood surface.
• DO NOT place any object on top of the insert or
block the air intakes / vents as this can cause the
unit to overheat and could cause a fire.

7
SAFETY INFORMATION (CONTINUED)
Electrical Connection
• A 15-Amp, 120-volt, 60 Hz circuit with a properly
grounded outlet is required. Preferably, the fireplace
will be on a dedicated circuit as other appliances
on the same circuit may cause the circuit breaker
to trip or the fuse to blow when the heater is in
operation. The unit comes standard with 6-ft. three-
wire cord, exiting from the rear of the fireplace. DO
NOT exceed the current rating of the current tap.
Grounding Instructions
• This heater is for use on 120 volt. The cord has a
plug as shown below. See illustration or grounding
instruction. An adapter as shown at C is available
for connecting three-blade grounding type plugs
to two-slot receptacles. The green grounding plug
extending from the adapter must be connected to
a permanent ground such as a properly grounded
outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
A B C
Grounding Pin
Grounding Means
Metal
Screw
Cover of
Grounding
Box
Adapter
SAVE THESE INSTRUCTIONS

8
PREPARATION
Before beginning assembly of product, make
sure all parts are present. Compare parts with
package contents list and hardware contents list.
If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 50 minutes
Tools Required for Assembly (not included):
Phillips screwdriver
ASSEMBLY INSTRUCTIONS
1. Insert two wooden dowels (CC) into each side
of base (K). Place left middle wall (C) and right
middle wall (D) onto base (K).
Hardware Used
CC Wooden Dowel x 4
1
CC
C
D
K
1
1
2. Insert two wooden dowels (CC) into each side
of center panel (B).
Hardware Used
CC Wooden Dowel x 4
2
CC
B

9
ASSEMBLY INSTRUCTIONS (CONTINUED)

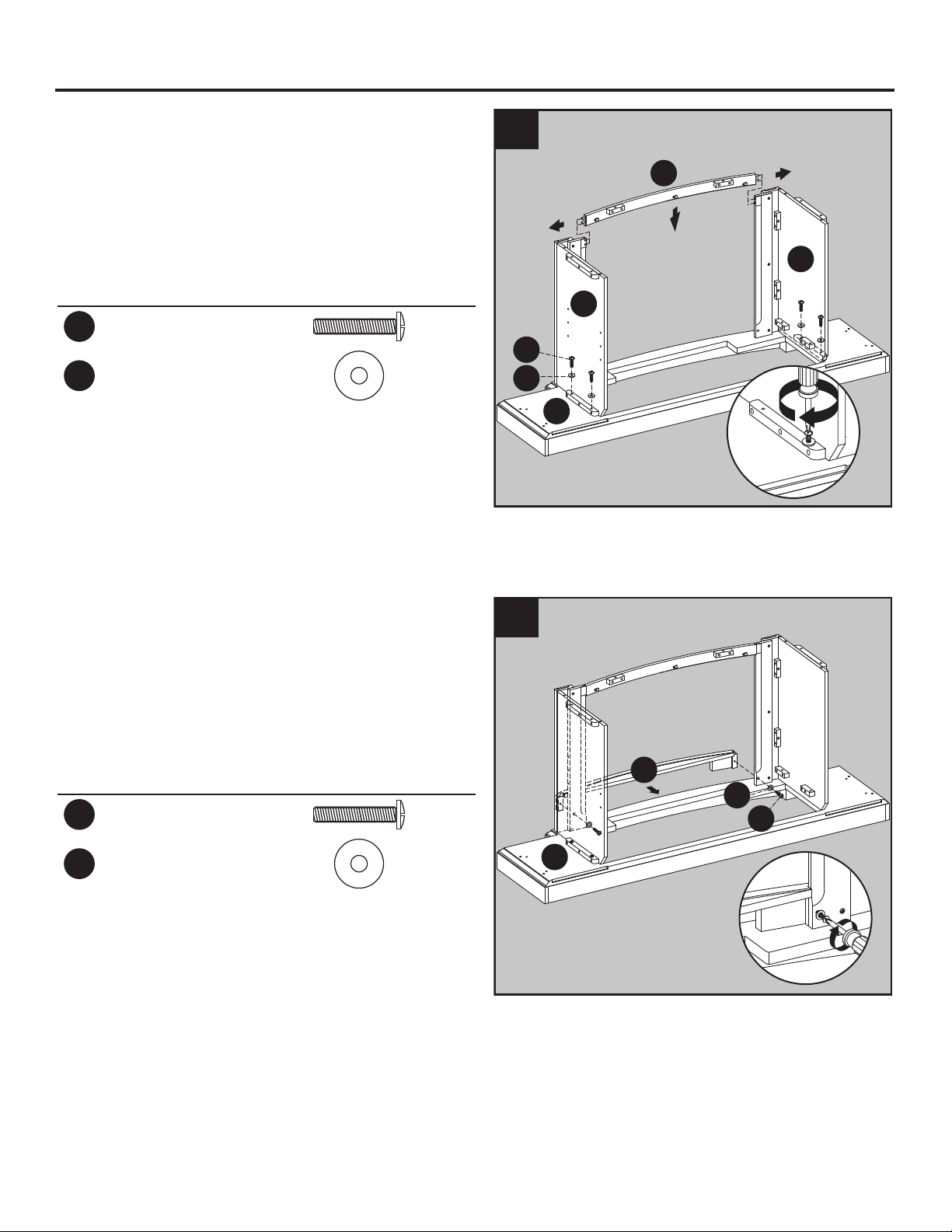

3. Align the dowels in center panel (B) to left
middle wall (C) and right middle wall (D). Insert
dowels into predrilled holes and press tight.
Securing the left middle wall (C) and right
middle wall (D) with four washers (BB) and four
long bolts (AA).
Hardware Used
AA Long Bolt x 4
BB Washer x 4
3
D
C
B
K
AA
BB
2
4. Place front trim (P) onto base (K), secure with
two washers (BB) and two long bolts (AA).
Hardware Used
AA Long Bolt x 2
BB Washer x 2
4
2
P
AA
K
BB
1

10
ASSEMBLY INSTRUCTIONS (CONTINUED)

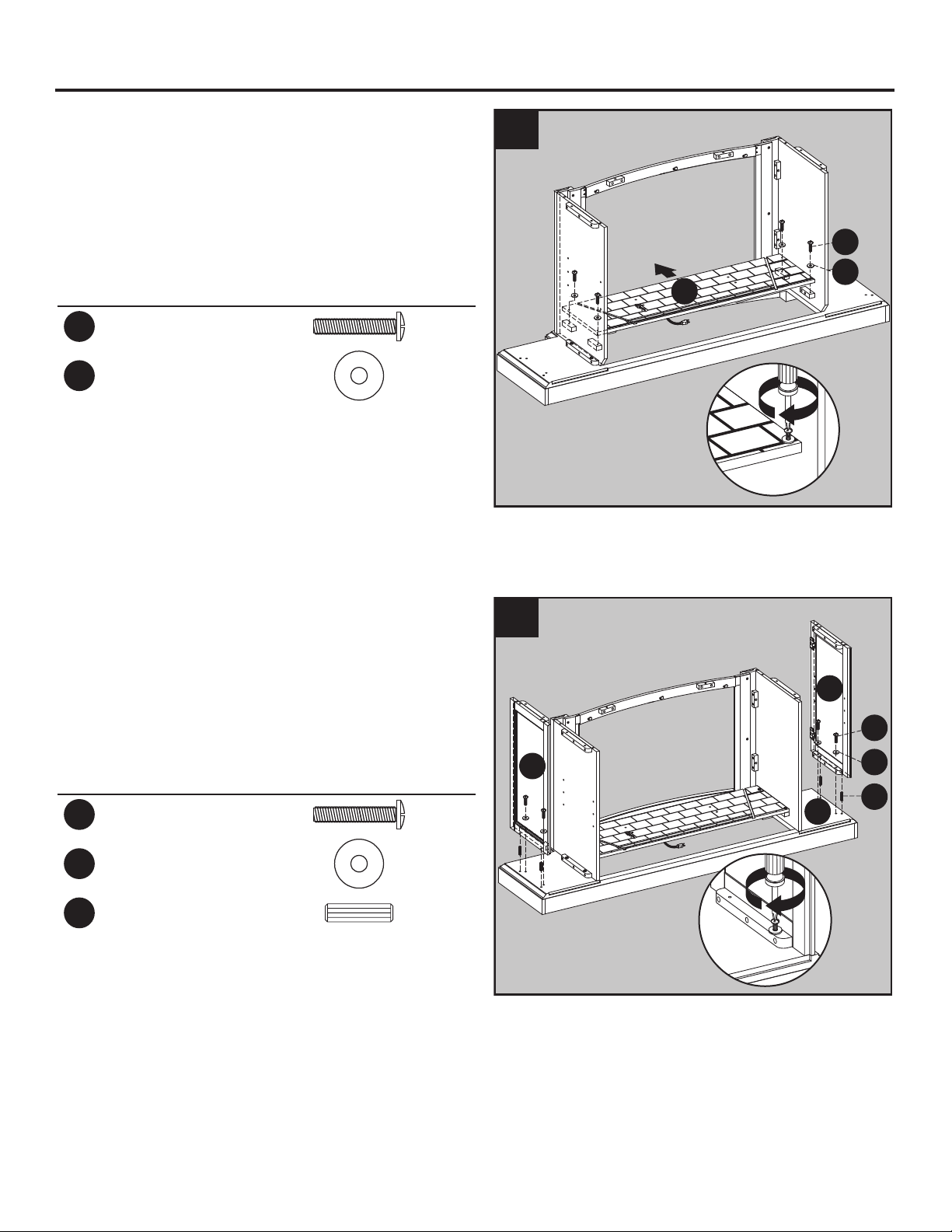

5. Place fireplace brick bottom wall (N) onto base
(K), secure with four washers (BB) and four
long bolts (AA).
Hardware Used
AA Long Bolt x 4
BB Washer x 4
5
AA
BB
1
N
2
6. Insert two wooden dowels (CC) into outer holes
on right side of base (K). Attach right outer wall
(F), securing with two washers (BB) and two
long bolts (AA).
Repeat for left outer wall (E).
Hardware Used
AA Long Bolt x 4
BB Washer x 4
CC Wooden Dowel x 4
6
F
E
AA
BB
CC
K

11
ASSEMBLY INSTRUCTIONS (CONTINUED)

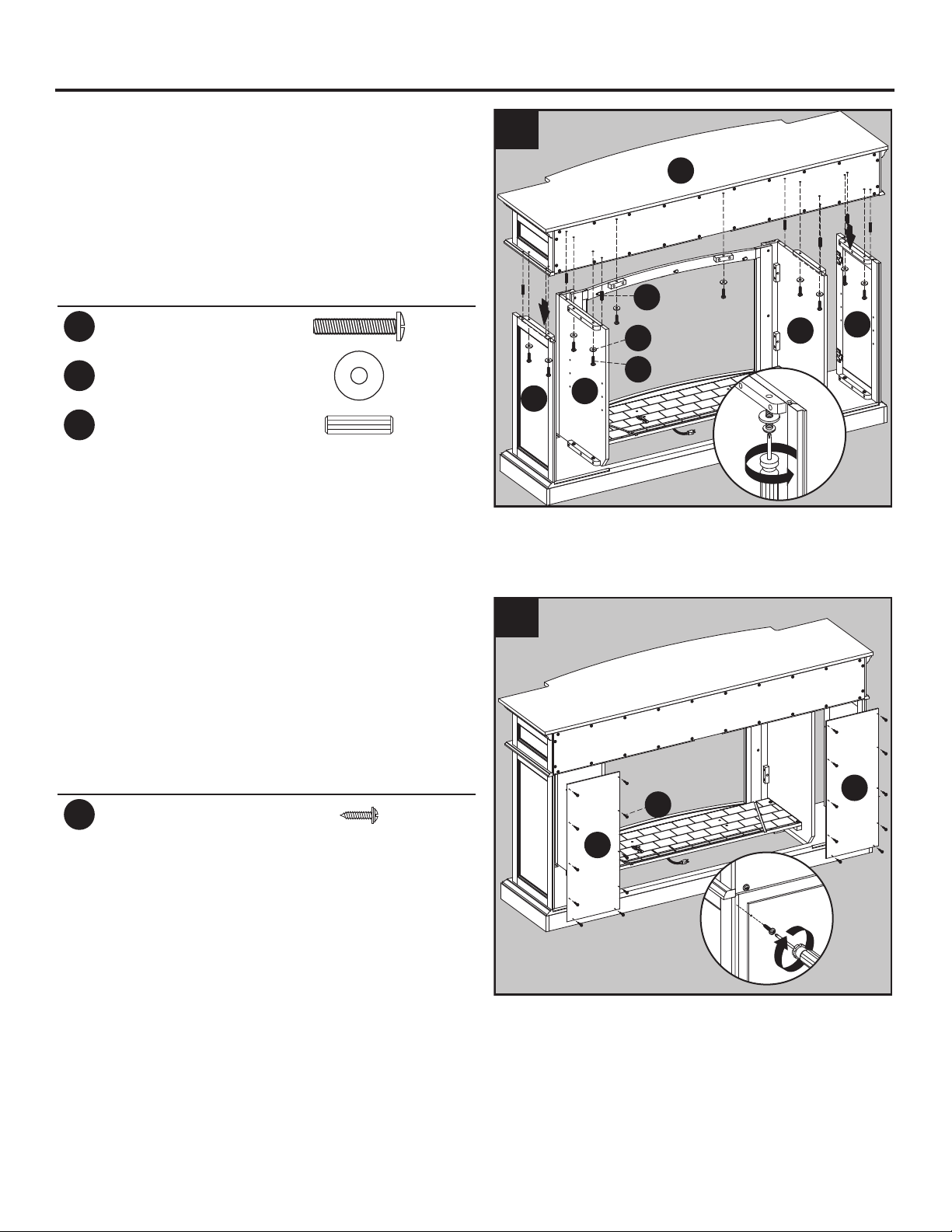

7. Insert two wooden dowels (CC) into the top
outer holes on left outer wall (E), left middle
wall (C), right middle wall (D) and right outer
wall (F). Attach top (A), securing from
underneath with ten washers (BB) and ten long
bolts (AA).
Hardware Used
AA Long Bolt x 10
BB Washer x 10
CC Wooden Dowel x 8
7
A
1
1
FD
CE
CC
BB
AA
2
8. From behind the assembly, attach back panel
(J) to shelving areas using back panel screws
(DD).
Repeat for remaining back panel (J).
Hardware Used
DD Back Panel Screws x 20
8
J
J
DD
2

12
ASSEMBLY INSTRUCTIONS (CONTINUED)
9. Attach the fireplace glass front (O), lowering it
into the front groove on front trim (P). Secure
the Glass by turning the pre-assembled plastic
knobs.
9
1
O
2
10. Place the fireplace grate (R) by matching the
bottom pins into the holes on the fireplace
brick bottom wall (N).
10
R
N

13
ASSEMBLY INSTRUCTIONS (CONTINUED)
11. Remove the film from the adhesive on the top
of the fireplace grate (R) and place the fire log
(Q) on the center of the fireplace grate (R).
Attach the USB cable from the heater into the
USB port behind the fireplace grate (R).
R
Q
2
11
1
3
12. Screw two L-bracket (FF) onto the fireplace
brick wall (M) using four screws (GG).
Hardware Used
FF L-Bracket x 2
GG Screw x 4
12
GG
FF
M

14
ASSEMBLY INSTRUCTIONS (CONTINUED)

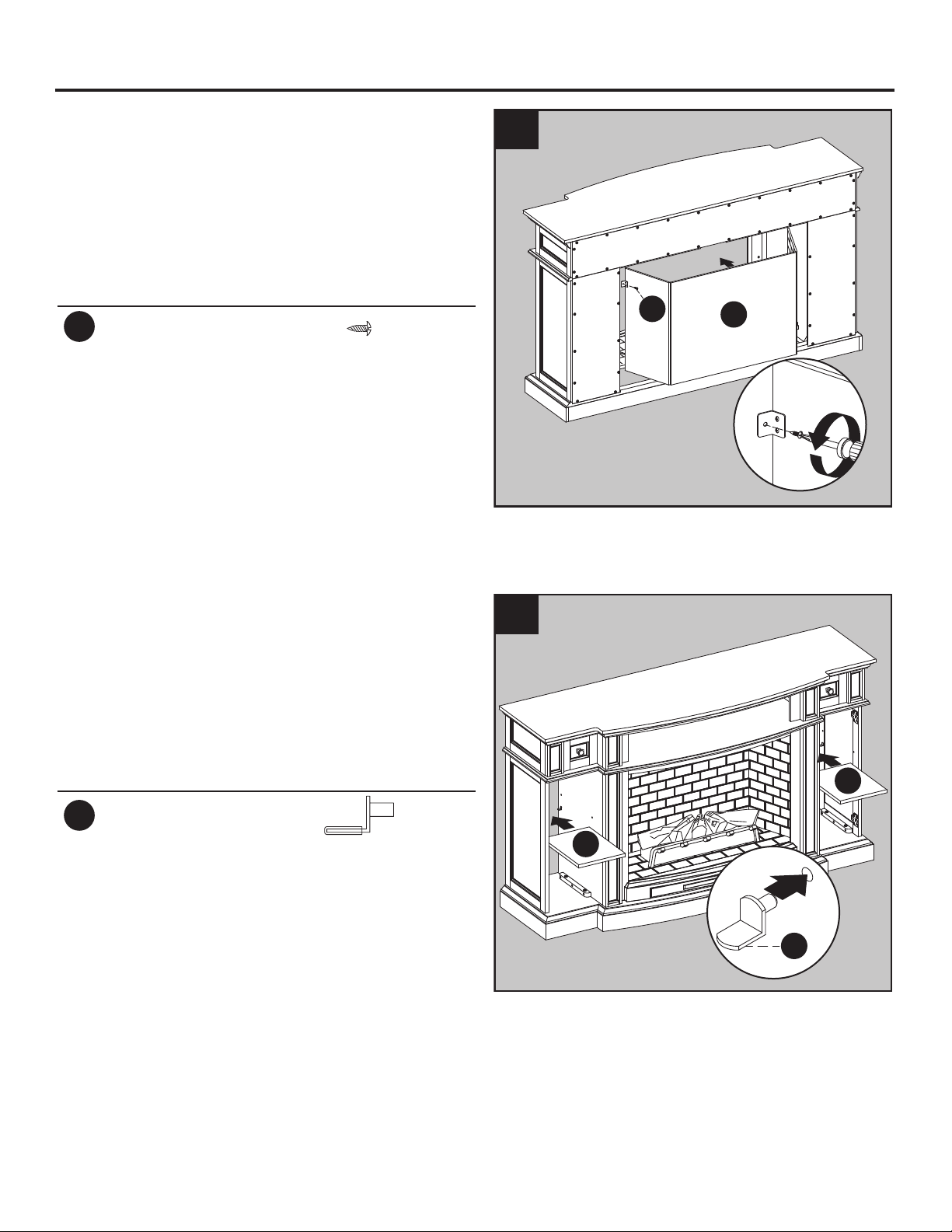

13. Insert the fireplace brick wall (M) into the
mantel, slotting it into the grooves on base
(K). Secure it by using two screws (GG) into
the L-bracket (FF).
Hardware Used
GG Screw x 2
13
M
GG
1
2
14. Insert shelf pins (EE) at desired height,
ensuring they are level. Place shelf (I) on top
of shelf pins (EE).
Repeat for remaining the shelf (I).
Hardware Used
EE Shelf Pin x 8
14
I
2
I
2
1
EE

15
ASSEMBLY INSTRUCTIONS (CONTINUED)
15. Install the doors
I. Loosen the screws on the hinge arms and plates pre-attached on the walls (E and F).
II.Pick up left door (G) and attach it to left outer wall (E) by engaging both door hinges
simultaneously. Please follow the steps below to combine the door hinges together.
i. Extend both hinge arms on the left door (G) to open position.
ii. Insert the “J” hooks beneath the hinge arms into the lugs on mounting plates pre-attached
on left outer wall (E).
iii. Press lightly on the end of both hinge arms to engage the catch.
iv. To remove the hinge arms from the mounting plates, press gently in the release lever on the
back of hinge arms.
III.Once assembled, go back and fully tighten all screws.
IV.Repeat the same procedure to attach the other right door (H) at the opposite side.
V. Open and close the doors to make sure they are aligned and shut correctly. If necessary,
adjust the screws for a good fit.
15
Release lever
I/F
(i)
“J” hook
(ii) (iii)
I
II
III
G
H
E
F

16
ASSEMBLY INSTRUCTIONS (CONTINUED)
16. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
Assembly is now complete. With the help of another person, move the assembly to the final
desired location. Once in final position you may plug the heater into the power outlet.
16
2
2
22
1
1
b
a
1
a
3
c
1
c
3
2
2
17. Remove drawer preassembled in top (A) by
fully extending drawer. Locate black plastic
levers on metal glide tracks at left and right
sides of drawer box. To disengage drawer box
from glides, simultaneously push down on
right plastic lever and up on left plastic lever
while gently pulling out drawer.
1
17
2
33
2

17
ASSEMBLY INSTRUCTIONS (CONTINUED)

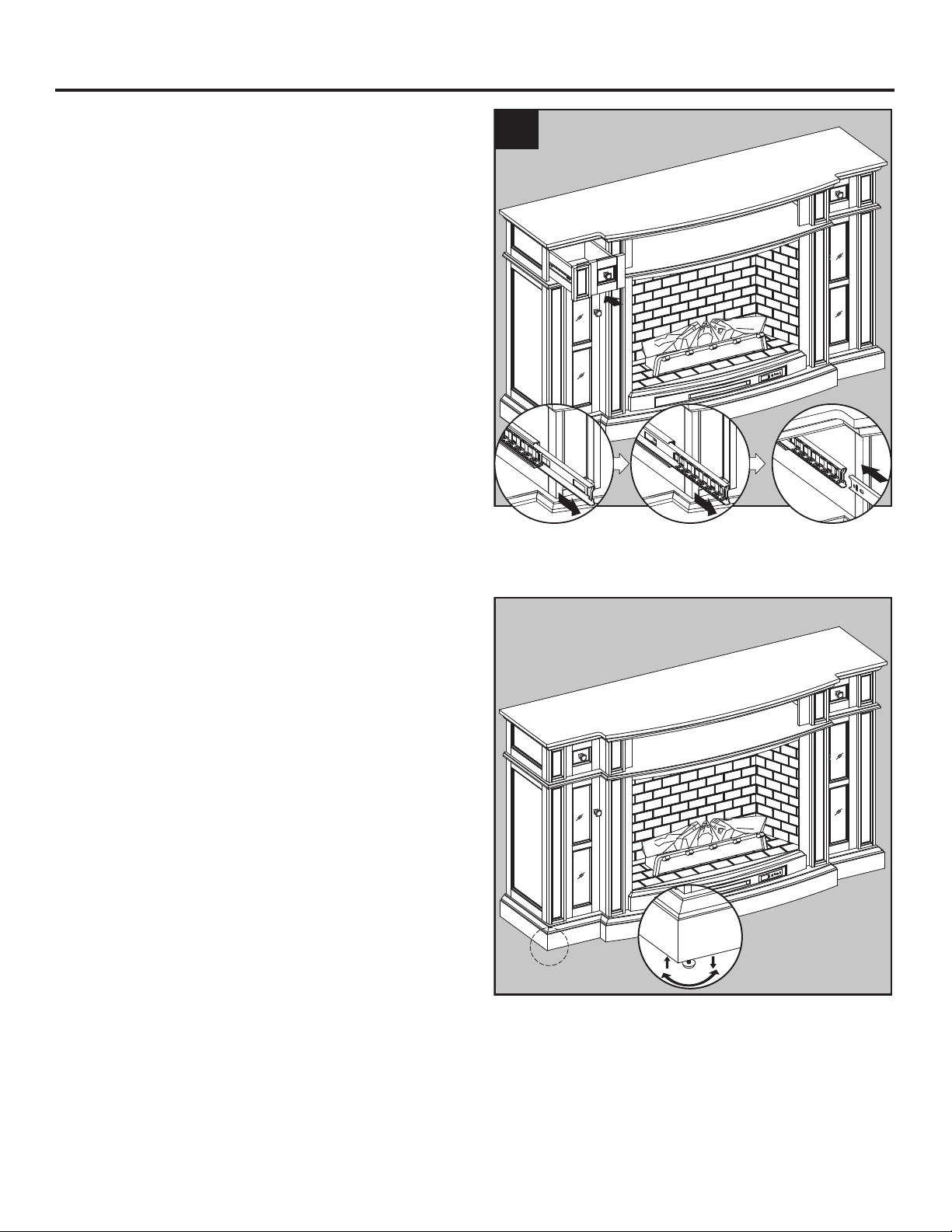

18. To reinstall drawer, slide glide roller (on track
inside top) to front of top (A). Carefully align
drawer box glide track (attached to sides
of drawer box) with glide track (attached to
inside of top). Making sure drawer is aligned
and centered onto glides, gently push drawer.
Keep drawer box centered and straight.
CAUTION: DO NOT force drawer or damage
to glide may occur. If drawer does not slide
in with ease, remove and try again from the
start.
18
1 2
3
NOTE: Use the pre-assembled levelers on the
base of the fireplace to level the unit. Twist the
levelers counterclockwisewise to increase the
height, twist the clockwise to decrease the height.

18
CHANGE DOOR PANELS (OPTIONAL)
The pre-installed glass door panels can be switched out with the included wood door panels (L).
1. Remove the silicone trim along the outer edges of the glass panel on the inside of the door. Start
at a corner and pull to remove the four pieces. Be careful not to damage the silicone trim as it will
be used to secure the new panel.
2. Remove the glass panel from the door frame, then insert the included wood door panel (L).
3. Using your finger press the silicone trim back into place. Move around the outer edge of the
panels until all four sides are secure.
1
2
3
2
1
3
4
L
3
2
1
4

19
OPERATING INSTRUCTIONS
Control Panel Remote Control
To use the remote control, first remove
the plastic tab by gently pulling it out of
remote control.
Controls and Display
The control panel will display the heater setting when the unit power is turned ON. Whichever control icon
you press will display the current setting of the corresponding function. Press the control icon again to adjust
the setting. Following adjustment of any setting(s), the unit will resume to display the heater setting after 5
seconds.
Power Function
• When the unit is plugged-in but not in use, F or C will illuminate to indicate that it is in stand-by
mode.
• Press the POWER ICON to turn the main power to the unit ON or OFF.
• When the unit is powered ON, the control panel will display the heater setting to indicate the unit
has power.
• Functions stored in memory will resume at the last setting.
• When the unit is powered OFF, the fan will continue to blow for a 40 second cool-down cycle prior
to shutting down (a countdown will be displayed).
Flame Brightness Function
• Press the FLAME BRIGHTNESS ICON to display the current flame brightness setting.
• Press the FLAME BRIGHTNESS ICON again to scroll down through the flame brightness settings:
5, 4, 3, 2, 1, OF (OFF).
Flame Speed Function
• Press the FLAME SPEED ICON to display the current flame speed setting.
• Press the FLAME SPEED ICON again to scroll down through the flame speed settings: 5, 4, 3, 2, 1.

20
OPERATING INSTRUCTIONS (CONTINUED)
Heater Function
• Press the HEATER ICON to display the current heater setting.
• Press the HEATER ICON again to scroll down through the heater settings.
Note: Long-hold the icon to quickly scroll through settings.
• Set the heater to “HI” (High) to have the heater run continually.
• Set the heater to “OF” (OFF) to use the flame functions without heat.
• This heater has a thermostat sensor to control the ambient temperature in the surrounding area
of the fireplace. The heater will cycle ON and OFF to maintain the selected temperature. The
thermostat setting range is 90ºF (43°C) to 65°F (18°C).
Note: This may not exactly match the room thermostat reading as their sensors are located in
different areas.
• Hold down the FLAME SPEED ICON for 10 seconds to toggle between Fahrenheit and Celsius. “F”
or “C” will be displayed on the control panel (°F/°C can only be toggled from the control panel and
will not work if using the remote control).
• See HEATER OVERRIDE section to disengage the heater.
Sleep Timer Function (Remote Control Only)
• The Sleep TIMER function will set a countdown to shut down the unit’s main power.
• Press the TIMER ICON to display the current Sleep Timer setting.
• Press the TIMER ICON again to scroll through the timer settings, which are: 30 (minutes), 1H, 2H,
3H, 4H, 5H, 6H, 7H, 8H, 9H, OF (OFF).
• When the timer reaches zero, it will turn OFF the main power and will maintain all the settings in
memory.
HEATER OVERRIDE
The power to the heater can be disengaged to prevent the heater from being accidentally or unintentionally
powered on. This feature is primarily added to help prevent children from powering on the heater when it is not
desired.
Note: The heater override can only be set from the control panel and will not work if using the remote control.
• First turn the main power OFF. Press the POWER ICON; as the heater setting display is flashing, press the
POWER ICON again and long-hold 20 seconds. The E3 symbol will display to indicate that the heater is
now disengaged.
• Note: The Flame and Timer functions will operate normally. Only the heater is disengaged.
• Repeat the same process to re-engage the heater function. The E3 symbol will change back to display the
heater setting when the heater is re-engaged.
MEMORY FUNCTION
• This unit has a memory function that allows you to turn off the MAIN POWER and retains all the other
function settings (excluding the SLEEP TIMER function).
