Allen + Roth FG-BKV32CHFP User manual

ANS Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
1
BAR TABLE
ITEM #0871274
MODEL #FG-BKV32CHFP
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.
Español p. 18
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
welcoming • sophisticated • inspiring
allen + roth® is a registered trademark
of LF, LLC. All Rights Reserved.
AB17730

2
SAFETY INFORMATION
TABLE OF CONTENTS
SPECIFICATIONS
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
Using it in an enclosed space can kill you.
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away
from the appliance and
immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline, or other
flammable vapors and liquids, in the vicinity
of this or any other appliance. An
LP-cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating, and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING: For Outdoor Use Only.
Please read and understand this entire manual before attempting to assemble, operate or install the
product. Save these instructions for future use.
SAFETY INFORMATION 2................................................................................................................
PACKAGE CONTENTS 5..................................................................................................................
HARDWARE CONTENTS 6...............................................................................................................
PREPARATION 6...............................................................................................................................
ASSEMBLY INSTRUCTIONS 7.........................................................................................................
11OPERATING INSTRUCTIONS ......................................................................................................
CARE AND MAINTENANCE .........................................................................................................14
TROUBLESHOOTING ...................................................................................................................15
WARRANTY...................................................................................................................................16
REPLACEMENT PARTS LIST 17........................................................................................................

SAFETY INFORMATION
3
The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1●NFPA 54; National Fuel Gas Code; Natural Gas and
Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, CSA B149.2,
as applicable.
The appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 PSI (3.5 kPa).
The maximum inlet gas supply pressure is 250 PSI.
The appliance area must be kept clear and free from combustible materials, gasoline, and other
flammable vapors and liquids.
Do not use this appliance if any part has been underwater. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control that has been underwater.
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung from the appliance or placed on
or near the appliance.
Any guard or other protective device removed for servicing the appliance shall be
replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartment,
burners, and circulating air passageways of the appliance are kept clean.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 in. water column.
DO NOT burn solid fuels in this appliance.
This outdoor gas appliance is for Outdoor Use ONLY.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or
boats.
This outdoor appliance is not for use on wood decks or other flammable surfaces.
Before each use of this gas appliance, open the door and inspect the hose. If there is evidence of
excessive abrasion or wear or if the hose is damaged, the hose assembly must be replaced prior
to the appliance being put into operation. Use only the replacement hose assembly specified in
this manual. Make sure to leak test.
Before each use of this gas appliance, inspect the burner. The burner must be replaced prior to
the appliance being put into operation if it is evident that the burner is damaged. Use only the
replacement burner specified in this manual.
Make sure to properly locate the gas hose including locating the hose out of pathways where
people may trip over it or in areas where the hose may be subject to accidental damage.
Keep the fuel supply hose away from any heated surface.
Never use this appliance closer than 10 ft. from anything flammable, including houses or
overhead tree branches.
Never use gasoline, kerosene, or any other liquid fuel to start a fire.
Always maintain a safe distance from the fire.
Always supervise children around the fire.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.

SAFETY INFORMATION
SPECIFICATIONS
SAFETY INFORMATION ABOUT PROPANE (LP) GAS
4
Never leave a fire unattended.
The appliance is hot during and after use. Always allow ample cooling time before touching or
moving.
24.
25.
The LP-gas supply cylinder to be used must be constructed and marked in accordance with the
U.S. Deparment of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable.
The LP-gas supply cylinder to be used must have a listed overfilling prevention device.
The LP-gas supply cylinder to be used must have a cylinder connection device compatible with
the connection for the appliance.
A self-contained LP-gas cylinder for use with this appliance must have a capacity of 20 Ibs.
(height: approximately 18 in.; tank body diameter: approximately 12 in.; base diameter:
approximately 8 in.).
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder used must include a collar to protect the cylinder valve.
This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed space.
When this appliance is not in use, the gas must be turned off at the supply cylinder.
Storage of this appliance indoors is permissible only if the cylinder is disconnected and removed
from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of children.
Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored
in a building, garage or anyother enclosed areas.
This appliance is certified by CSA (Canadian Standards Association) to ANS Z21.97/CSA
2.41-2014, Outdoor Decorative Gas Appliances.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Rated Heat Input (Liquid Propane )
Propane Regulator Pressure
40,000 BTU/hr
11 inches water column
Clearance to combustible surfaces Sides: 24 in. (610mm), Top: 72 in. (1,829mm)
Standard 20 Ib. tank
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH
FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
For more information go to: www.P65Warnings.ca.gov.
ADVERTENCIA: LOS COMBUSTIBLES USADOS EN EQUIPOS
PARA LICUAR GAS PROPANO, ASÍ COMO LOS PRODUCTOS DE SU
COMBUSTIÓN, PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS,
ENTRE ELLAS EL BENCENO, QUE EL ESTADO DE CALIFORNIA
RECONOCE COMO CAUSA DE CÁNCERYDE MALFORMACIONES
CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información, visite www.P65Warnings.ca.gov

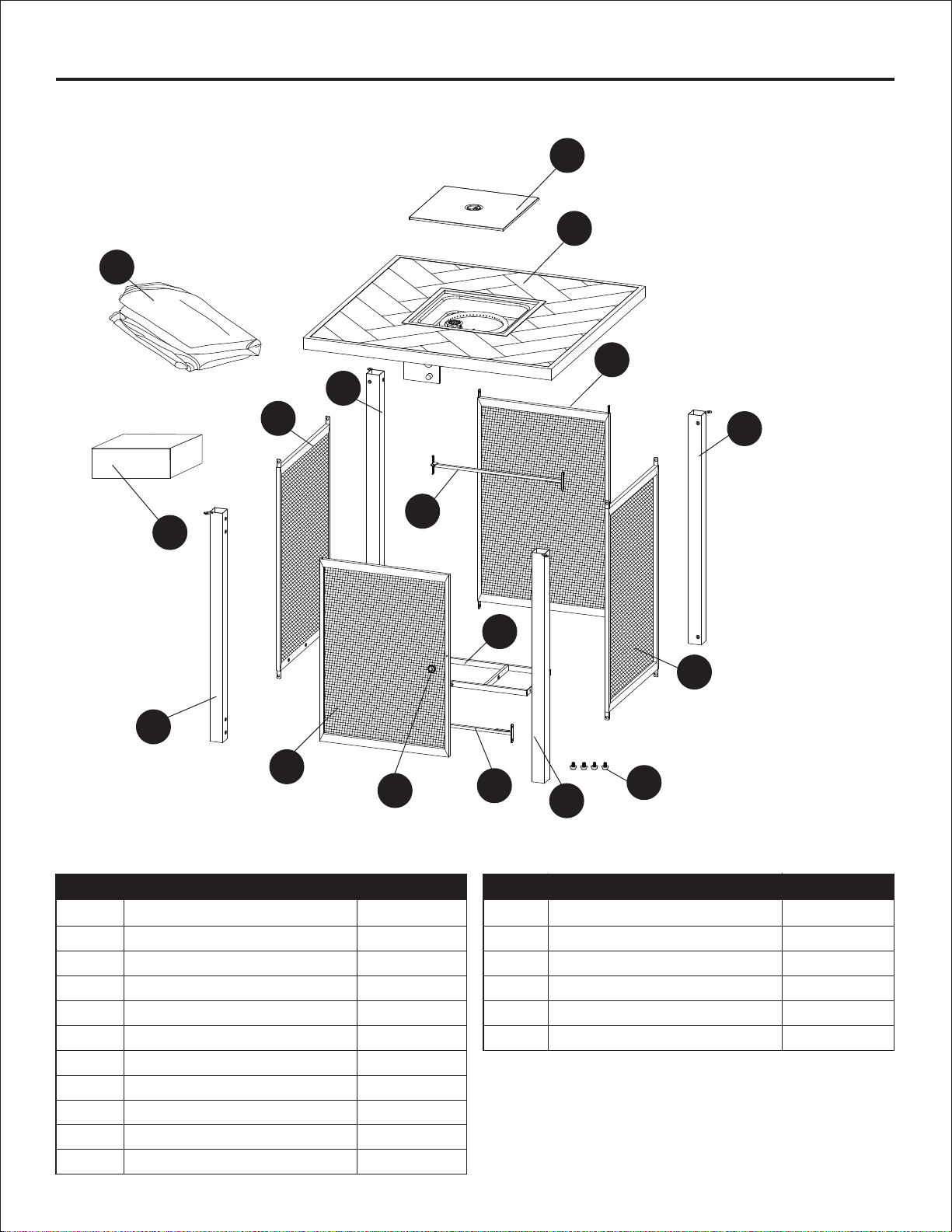

PACKAGE CONTENTS
5
PART DESCRIPTION QUANTITY
A Table top assembly 1
B Door 1
C Left panel 1
D Back panel 1
E Right panel 1
F Front-right leg 1
G Front-left leg 1
H Back-left leg 1
I Back-right leg 1
J Upper beam 1
K Bottom beam 1
L Gas cylinder support 1
M Foot glider 4
N Weather cover 1
O Door handle 1
P Lid 1
Q Lava rocks (6.6 lb.-bag) 1
PART DESCRIPTION QUANTITY
P
N
Q
A
D
I
E
M
F
K
O
B
G
L
J
C
H

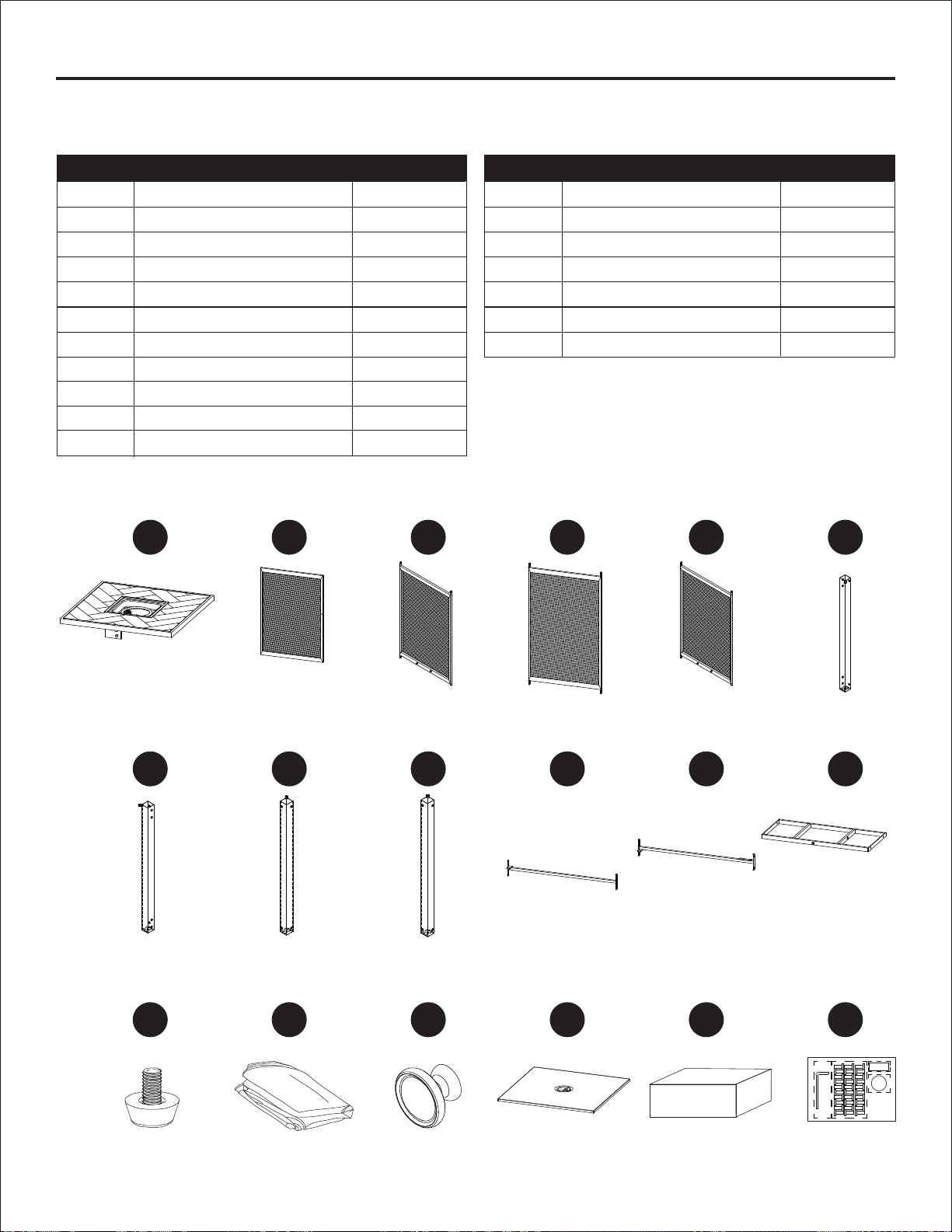

HARDWARE CONTENTS
6
M6 x 15 mm
Bolt
Qty. 30
M6 Washer
Qty. 30
AA BB
Hex screwdriver
Qty. 1
M4 x 25 mm
Bolt
Qty. 1
CC DD
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 25 minutes
Tools Required for Assembly (not included): Phillips screwdriver.
PREPARATION

ASSEMBLY INSTRUCTIONS
7
1
Attach left panel (C) to front-left leg (G) and
back-left leg (H) with bolts (AA) and washers
(BB) using hex screwdriver (CC).
NOTE: Do not tighten bolts completely until
assembly is complete.
Hardware Used
AA x 4
M6 x 15 mm Bolt
BB x 4
M6 Washer
CC x 1
Hex screwdriver
1.
GH
CC
AA
BB
C
Hardware Used
AA x 4
M6 x 15 mm Bolt
BB x 4
M6 Washer
CC x 1
Hex screwdriver D
I
H
CC
AA
BB
2
Attach back panel (D) to back-left leg (H) and
back-right leg (I) with bolts (AA) and washers
(BB) using hex screwdriver (CC).
NOTE: Do not tighten bolts completely until
assembly is complete.
2.
Hardware Used
AA x 4
M6 x 15 mm Bolt
BB x 4
M6 Washer
CC x 1
Hex screwdriver
3
I
E
F
CC
AA
BB
Attach right panel (E) to front-right leg (F) and
back-right leg (I) with bolts (AA) and washers
(BB) using hex screwdriver (CC).
NOTE: Do not tighten bolts completely until
assembly is complete.
3.

ASSEMBLY INSTRUCTIONS
8
Hardware Used
AA x 8
M6 x 15 mm Bolt
BB x 8
M6 Washer
CC x 1
Hex screwdriver
5CC
AA
BB
G
F
K
J
Attach upper beam (J) and bottom beam (K) to
front-left leg (G) and front-right leg (F) with bolts
(AA) and washers (BB) using hex screwdriver
(CC).
NOTE: Do not tighten bolts completely until
assembly is complete.
5.
Hardware Used
AA x 2
M6 x 15 mm Bolt
BB x 2
M6 Washer
CC x 1
Hex screwdriver
6
CC
AA
BB
BK
J
Attach door (B) to upper beam (J) and bottom
beam (K) with bolts (AA) and washers (BB) using
hex screwdriver (CC).
NOTE: Do not tighten bolts completely until
assembly is complete.
6.
Hardware Used
AA x 4
M6 x 15 mm Bolt
BB x 4
M6 Washer
CC x 1
Hex screwdriver
4
E
L
C
CC
AA
BB
Attach gas cylinder support (L) to left panel (C)
and right panel (E) with bolts (AA) and washers
(BB) using hex screwdriver (CC).
NOTE: Do not tighten bolts completely until
assembly is complete.
4.

ASSEMBLY INSTRUCTIONS
9
8CC
AA
BB
A
9
Qpilot box
Hardware Used
AA x 4
M6 x 15 mm Bolt
BB x 4
M6 Washer
CC x 1
Hex screwdriver
Hardware Used
DD x 1
M4 x 25 mm Bolt
WARNING
Keep children away during assembly, as this item
contains lava rocks, which are small pieces and
can be swallowed by children.
Place lava rocks (Q) around the burner, then
remove the label from the pilot box. A gas fire pit
requires 6.6 lbs. of lava rocks.
NOTE: DO NOT completely cover the burner
element or block the pilot box with the lava rocks.
During first use, preheat the lava rocks for 15
minutes to burn out the impurities and air in the
natural lava rocks to prevent from popping out.
9.
7
O
DD
O
Attach door handle (O) with bolt (DD), then use
Phillips screwdriver (not included) to screw
tightly.
7.
Place table top assembly (A) on a non-abrasive
flat surface to prevent scratching. Attach base
assembly to table top assembly (A) with bolts
(AA) and washers (BB) using hex screwdriver
(CC). Make sure the control panel is towards the
door (B).
NOTE: Tighten all bolts completely.
8.
control panel
B

ASSEMBLY INSTRUCTIONS
10
N
11
10
Place the lid (P) onto the fire bowl when not in
use to protect it from the elements or when fire
pit is cooled COMPLETELY after use.
NOTE: Allow 30 minutes after use for fire pit to
cooldown before placing the lid to prevent
scalding.
10.
Cover the fire pit with weather cover (N) when
not in use to protect it from the elements or when
fire pit is cooled COMPLETELY after use.
11.
P

OPERATING INSTRUCTIONS
GAS CYLINDER INSTALLATIONS
11
3
Secure the gas cylinder by tightening the bolts
found on the gas cylinder support (L) clockwise
so that the gas cylinder cannot move from side to
side or fall down. Close the door (B).
3.
2
black handle
Connect the regulator. Screw the black handle
clockwise to tighten, turn the black handle
counterclockwise to remove. The hose must
point down. The knob on the control panel is
turned all the way to the “OFF” position when the
fire pit is NOT in use.
2.
1
Open the door (B) and place the gas cylinder
(not included) into gas cylinder support (L).
1.
L
B
L
Bbolt

OPERATING INSTRUCTIONS
CHECKING FOR LEAKS
12
Always perform the leak test as described before lighting this appliance or each time the cylinder
is connected for use.
Do not smoke or allow other sources of ignition in the area while conducting a leak test.
Conduct the leak test outdoors in a well-ventilated area.
Do not use matches, lighters or a flame to check for leaks.
Do not use this appliance until any and all leaks are corrected. If you are unable to stop a leak,
disconnect the propane supply. Call a gas appliance service shop or your local propane gas
supplier.
1. Make 2 - 3 oz. of leak solution by mixing one part liquid dishwashing detergent and three parts
water.
2. Apply several drops of solution where the cylinder attaches to the regulator and inspect the
solution at the connection looking for bubbles. If NO bubbles appear, the connection is secure. If
bubbles appear, the connection has a leak. Disconnect the regulator and reconnect, then
perform another leak check. If you continue to see bubbles after several attempts, the cylinder
valve is defective and should be returned to the cylinder’s supplier.
3. Apply several drops of solution where gas valve attaches to the bellows, where the gas valve
attaches to hose, and where the inlet tube attaches to the bellows. If NO bubbles appear, the
connections are secure. If bubbles appear, the connection has a leak. Disconnect and
reconnect, then perform another leak check. If you continue to see bubbles after several
attempts, the part is defective and needs to be replaced.
gas cylinder regulator gas valve
gas valve hose inlet tube bellows
bellows
WARNING

13
OPERATING INSTRUCTIONS
CAUTION
Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor
module located on the control panel to access the battery compartment. The ignitor module requires
one AAA size battery. BATTERY IS NOT INCLUDED.
CAUTION
1. Push in the gas control knob slightly and turn to “OFF”.
2. Turn the gas control knob to “ON/MIN”.
3. Push in the gas control knob all the way in and hold. Continue to press the ignition button for 15
seconds.
4. If the burner does not light in 15 seconds, release the knob and it will pop back out. Wait 5
minutes before attempting to light the burner again. Repeat the above process.
Please observe proper polarity and use the correct battery type when placing or replacing the
battery. Improper installation could result in ignition failure.
Please remove the battery if consumed or if product is to be left unused for a long period of time.
For your safety, read and follow the Lighting Instructions in this manual and on the Rating Plate
on the appliance.
IMPROPER LIGHTING PROCEDURES COULD RESULT IN A FIRE HAZARD OR EXPLOSION
HAZARD OR PROPERTY DAMAGE, INJURY OR LOSS OF LIFE.
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the way
4. If the burner does not light in 15
1. Push in gas control knob slightly and turn to “OFF”.
TO TURN OFF GAS
INSTRUCCIONES DE ENCENDIDO
PARA CERRAR EL GAS
1. Presione ligeramente la perilla de control del gas y gírela a la
2. Gire la perilla de control del gas a “ENC/MÍN” (encendido/mínimo).
3. Presione la perilla de control del gas hasta el fondo y mantenga presionada.
4. Si el quemador no se enciende en 15 segundos, suelte la perilla y esta
encender el quemador nuevamente, repita los pasos 1 al 3.
1. Presion ligeramente la perilla de control del gas y gírela a la
turn to “OFF”.
and hold. Continue to press the
ignition button for 15 seconds.
seconds, release the knob and it will
pop back out. Wait 5 minutes before attempting
to light the burner again, repeat step 1 to 3.
posición “APG” (apagado).
Siga presionando el botón de encendido durante 15 segundos.
volverá a su posición hacia afuera. Espere 5 minutos antes de intentar
posición “APG” (apagado)
OFF (APG.)
MAX
(MÁX.)
1 AAA
1.5V
IGNITOR
( Encendedor )
ON/MIN
(ENC./MÍN.)
BATTERY INSTALLATION
LIGHTING INSTRUCTIONS

OPERATING INSTRUCTION
CARE AND MAINTENANCE
14

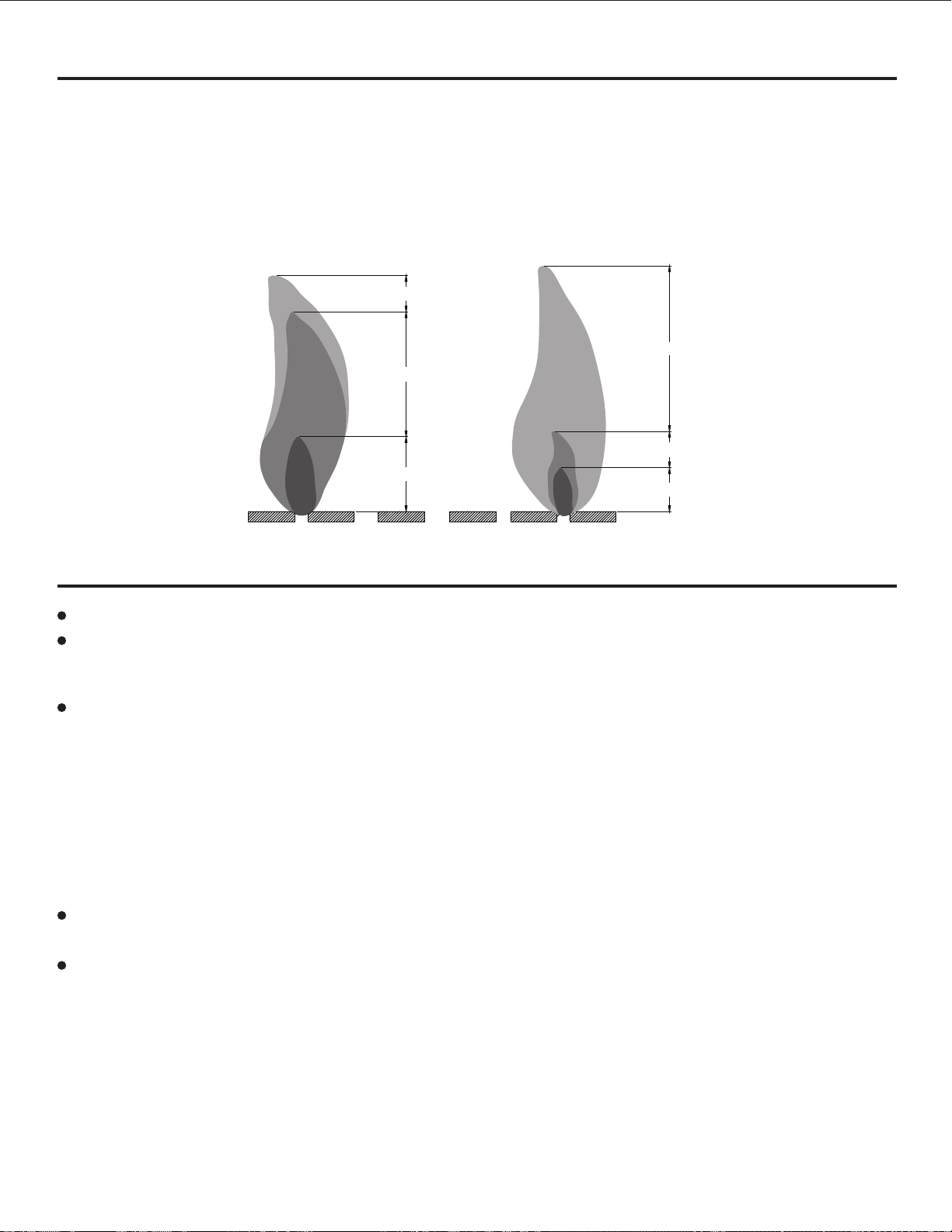

Observe flame height when lit. The burner will display blue and yellow flames. These flames should
be a blue/yellow color between 1 - 2 in. height. These flames should not be yellow or produce thick
smoke. This would indicate an obstruction of airflow through the burners. The flames should be blue
with straight yellow tops.
Yellow
Yellow
Light Blue
Light Blue
Blue Blue
Good Bad
Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
While cleaning the fire pit, make sure to keep the area around the burner dry at all times. DO
NOT submerge the control valve assembly. If the gas control is submerged in water, DO NOT
use it. It must be replaced.
Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean.
Signs of possible blockage include:
(1). Gas odor with extreme yellow tipping of flame.
(2). Fire pit does NOT reach the desired temperature.
(3). Fire pit flame is excessively uneven.
(4). Fire pit makes popping noises.
(5). Spiders and insects can nest in burner or orifice. This dangerous condition can damage fire
pit and render it unsafe for use. Clean burner holes by using a heavy-duty pipe clearer.
Compressed air may help clear away small particles.
Carbon deposits may create a fire hazard. Clean burner with warm soapy water if any carbon
deposits develop.
Cover your fire pit with an outdoor weather cover when not in use to protect it from the elements.
NOTE: Always allow fire pit to cool COMPLETELY before you cover the fire pit with an outdoor
weather cover or you attempt service or maintenance.
CHECKING FOR FLAMES

1. The gas pressure is low.
2. The cylinder is less than 1/4 full.
1. Turn the cylinder valve off and
replace the cylinder. Check the
burner ports for blockage.
2. Use a full gas cylinder.
15
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The burner will not
ignite.
The burner flame
is too low.
Carbon build-up
and/or thick black
smoke is present.
1. The gas cylinder is frosted over.
2. The openings are blocked.
3. The control knob is not in the “ON”
position.
4. There may be too many lava rocks
covering the burner bowl or small pieces
may be blocking the burner ports.
1. There is dirt or film on the reflector and
burner screen.
2. The burner is blocked.
1. Wait until gas cylinder warms up
and becomes unfrosted.
2. Clear the blockage.
3. Turn the control knob to the “ON”
position.
4. Remove a portion of the lava rocks.
Make sure the lava rocks just cover
the upper surface of the burner.
1. Clean the reflector and burner
screen.
2. Remove any blockage and clean
the burner inside and outside.

16
WARRANTY
Firepits
Burner, steel fire pit bowl, all mechanical parts and fittings to control panel and burner
assembly, and all fire pit tops that are not cast aluminum are warranted for a period of one
(1) year from original date of purchase, against defects in material and or workmanship.
Rust is not covered.
Frames
Frames are warranted to be free from defects in materials and workmanship for a period of
three (3) years. Damage to frames or welds due to improper assembly or exposure to water
and sub-freezing temperatures, is not covered. Breakage that is a result of product being
dropped, acts of God, acts of war, etc., are not covered.
Finish
The finish on the metal is warranted against peeling, cracking, or blistering for a period of
two (2) years provided the product has not been scratched or abraded. Scratches and chips
resulting from normal wear and tear are not covered. Fading resulting from exposure to
elements is not covered. Stains as a result of chemical spills and certain food items are not
covered.
Warranty Exclusions
Failure caused by unreasonable or abusive use. Firepits that were clearance items, display
models or items purchased in an "as is" condition, freight damage, firepit damaged by acts of
nature, vandalism, fire, abuse, lack of proper care and maintenance, or improper assembly;
straps and normal fading or discoloration from exposure to elements, oils, spills, fluids or
chemicals; Table top against breakage; hardware against corrosion or rusting; buckling or
splitting of tubing resulting from exposure to water and freezing temperatures; glass table
tops, purchased or replacement parts; plastics. Also excluded: loss of use of time and or
inconvenience, money, travel, packaging or any other consequential or incidental damages.
In no event shall Foremost Groups Inc. responsibility exceed the value of the replacement
product. Warranty is to the original purchaser when items are purchased from one of our
authorized retailers and is not transferable. All warranty claims must be submitted with a
dated register receipt within the warranty period. Should replacement of the warranted item
be unavailable, Foremost Groups Inc. reserves the right to substitute items of our choice
similar in style, color and quality. For quality control purposes and verification, we reserve
the right to request photographs of the damage item(s). The terms of this warranty are
subject to change without notice.

17
REPLACEMENT PARTS LIST
PART DESCRIPTION PART #
A Table top assembly NV-TTA
B Door NV-D
C Left panel NV-LP
D Back panel NV-BP
E Right panel NV-RP
F Front-right leg NV-FRL
G Front-left leg NV-FLL
H Back-left leg NV-BLL
I Back-right leg NV-BRL
J Upper beam NV-UB
K Bottom beam NV-BB
PART DESCRIPTION PART #
L Gas cylinder support NV-GCS
M Foot glider NV-FG
N Weather cover NV-WC
O Door handle NV-DH
P Lid NV-L
Q Lava rock NV-LR
R Hardware pack NV-HP
For replacement, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST,
Monday - Friday.
A B C
D
E F
G H I
J
K L
R
M N O
P
Q
Printed in China

18
ANS Z21.97/CSA 2.41-2014
#08
#
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
66-439-9800 de lunes a viernes de 8 a.m. a 8pm., hora
estándar del Este.
welcoming • sophisticated • inspiring

19
INFORMACIÓN DE SEGURIDAD
ÍNDICE
PELIGRO PELIGRO DE MONÓXIDO DE CARBONO
Este electrodoméstico puede producir
monóxido de carbono, el cual es inodoro.
Nunca use este electrodoméstico en
espacios cerrados, como dentro de
remolques, carpas, automóviles o casas.
Su uso en espacios cerrados puede ser
fatal.
Cierre el suministro de gas hacia el
electrodoméstico.
Apague cualquier llama expuesta.
Si el olor persiste, manténgase
alejado del electrodoméstico y llame
de inmediato a su proveedor de gas o
al departamento de bomberos.
ADVERTENCIA
No almacene, ni use gasolina ni otros
vapores o líquidos inflamables cerca de
este ni de ningún otro electrodoméstico. No
deben almacenarse cilindros de PL que no
estén conectados para su uso cerca de este
ni de ningún otro electrodoméstico
ADVERTENCIA
La instalación, el ajuste, la alteración, la
reparación o el mantenimiento inadecuados
pueden producir lesiones o daños a la
propiedad. Lea con detenimiento las
instrucciones de instalación, operación y
mantenimiento antes de instalar o reparar este
equipo.
ADVERTENCIA: Solo para uso en
exteriores.
Lea y comprenda por completo este manual antes de intentar ensamblar, usar o instalar el
producto. Guarde estas instrucciones para uso posterior.
INFORMACIÓN DE SEGURIDAD ................................................................................................... 20
CONTENIDO DEL PAQUETE ......................................................................................................... 22
ADITAMENTOS .............................................................................................................................. 23
PREPARACIÓN............................................................................................................................... 23
INSTRUCCIONES DE ENSAMBLAJE ............................................................................................24
INSTRUCCIONES DE FUNCIONAMIENTO ...................................................................................29
CUIDADO Y MANTENIMIENTO......................................................................................................31
SOLUCIÓN DE PROBLEMAS.........................................................................................................32
GARANTÍA......................................................................................................................................33
LISTA DE PIEZAS DE REPUESTO................................................................................................34
PELIGRO
Si percibe olor a gas:

INFORMACIÓN DE SEGURIDAD
20
La instalación debe cumplir con los códigos locales o, de no haberlos, con el Código Nacional de Gas,
ANSI Z223.1●NFPA 54; el Código Nacional de Gas; el Código lde Instalación de Gas Natural y Propano,
CSA B149.1; o el Código de Manipulación y Almacenamiento de Propano, CSA B149.2, según
corresponda.
Este electrodoméstico se debe desconectar del sistema de tuberías de suministro de gas cerrando la
válvula de cierre manual individual durante cualquier prueba de presión de dicho sistema a presiones
iguales o inferiores a 1/2 PSI (3,5 kPa).
La presión máxima de suministro de gas de entrada es de 250 PSI.
El electrodoméstico debe ubicarse lejos de materiales combustibles, gasolina y otros vapores o líquidos
inflamables.
No utilice este electrodoméstico si alguna de sus piezas estuvo sumergida en agua. Llame de inmediato a
un técnico en mantenimiento calificado a fin de que inspeccione el electrodoméstico y reemplace cualquier
pieza del sistema de control y cualquier control de gas que haya estado bajo agua.
Tanto niños como adultos deben estar informados sobre los peligros de las altas temperaturas de
la superficie y deben permanecer alejados para evitar quemaduras o que se encienda la ropa
Es necesario supervisar cuidadosamente a los niños pequeños cuando se encuentren cerca del
electrodoméstico.
No se debe colgar ni colocar sobre el electrodoméstico o cerca de este ropa ni otros materiales
inflamables.
Se debe volver a colocar cualquier protector u otro dispositivo de protección que se haya retirado
para realizarle mantenimiento al electrodoméstico antes de hacerlo funcionar.
Solo una persona calificada debe realizar la instalación y reparación del electrodoméstico. Una
persona de servicio calificada debe inspeccionar el electrodoméstico antes de cada uso y al
menos una vez al año. Es posible que se requiera una limpieza más frecuente, según sea
necesario. Es esencial que mantenga limpio el compartimiento del control, los quemadores y los
pasajes de circulación de aire del electrodoméstico.
PRECAUCIÓN: use solamente el regulador de presión de gas propano que incluye este electrodoméstico.
El regulador está ajustado para una presión de salida de 279,4 mm de columna de agua.
NO queme combustibles sólidos en el electrodoméstico.
Este electrodoméstico a gas para exteriores es SOLO para uso en exteriores.
Este aparato a gas para exteriores no está diseñado para instalarse en vehículos recreativos ni en botes.
Este electrodoméstico para exteriores no es para uso en terrazas de madera ni ninguna otra superficie
inflamable.
Antes de cada uso de este electrodoméstico de gas, abra la puerta e inspeccione la manguera. Si hay
pruebas de abrasión o desgaste excesivos o si la manguera está dañada, reemplace el ensamble de la
manguera antes de hacer funcionar el electrodoméstico. Use solo los ensambles de manguera de
repuesto especificados en este manual. Asegúrese de realizar la prueba de fugas.
Antes de cada uso de este electrodoméstico de gas, inspeccione el quemador. Si existen pruebas de
daños en el quemador, deberá reemplazarlo antes de utilizar el electrodoméstico. Use solo el quemador
de repuesto especificado en este manual.
Asegúrese de ubicar correctamente la manguera de gas, alejada de sendas donde las personas puedan
tropezarse o de áreas en las que la manguera pueda producir daños accidentales.
Mantenga la manguera de suministro de combustible alejada de superficies calientes.
Nunca use este electrodoméstico a menos de 3 metros de ningún material inflamable, incluidas casas o
ramas de árboles altos.
Nunca utilice gasolina, queroseno ni otro combustible líquido para encender el fuego.
Siempre manténgase a una distancia segura del fuego.
Siempre supervise a los niños cuando se encuentren cerca del fuego.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
