allgood Modric 2490 User manual

DO NOT install this product in areas where the
following may be present or occur:
• Corrosive or flammable gases, liquids or vapours.
• Ambient temperatures higher than 40ºC or less
than -5ºC.
• Possible obstructions which would hinder the
access or removal of the hand dryer.
IMPORTANT
Read these instructions before
commencing with the installation.
P.04 P.01
Safety and guidance notes
A. All wiring to be in accordance with
the current I.E.E. Regulations, or the
appropriate standards of your
country and MUST be installed by a
suitably qualified person.
B. The Hand Dryer should be provided
with a local isolator switch capable
of disconnecting all poles, having a
contact separation of at least 3mm.
C. Ensure that mains supply (Voltage,
Frequency, and Phase) complies
with the rating label.
D. The Hand Dryer should only be used
in conjunction with fixed wiring.
E. The Hand Dryer should not be
used where it is liable to be subject
to direct water spray for prolonged
periods of time.
F. This appliance can be used by
children aged 8 and above and
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children should be supervised to
ensure that they do not play with
the appliance.Cleaning and user
maintenance shall not be made by
children without supervision.
H. Stationary appliances not fitted with
means for disconnection from the
supply mains having a contact
separation in all poles that provide
full disconnection under over
voltage category III, the instructions
state that means for disconnection
must be incorporated in the fixed
wiring in accordance with the
wiring rules.
IMPORTANT
After installation or servicing, units must be checked,
and only left when electrically and mechanically safe.
3Servicing instructions
The minimum service period for the
2490 panel should be every 3 months
or more frequent intervals as experience
dictates:
1. Isolate the Hand Dryer unit from the
electricity supply before servicing.

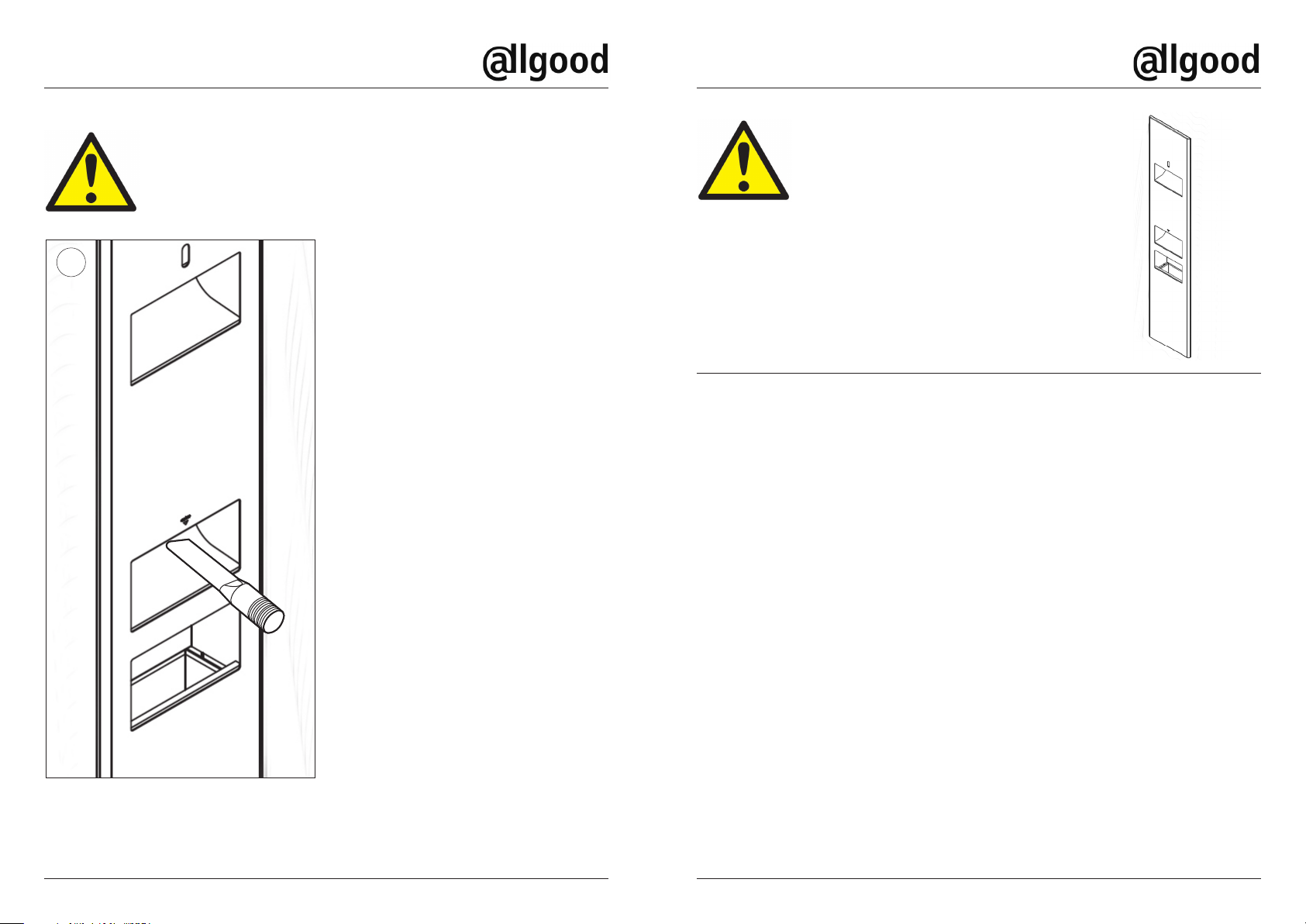

2. Remove dust, fluff and any other
build up of foreign matter from
inlet and outlet grille areas
(Illustration 3).
ORIGINAL FIXING INSTRUCTIONS
Modric 2490 flush mounted hand dryer, paper towel and bin
ORIGINAL FIXING INSTRUCTIONS
Modric 2490 flush mounted hand dryer, paper towel and bin
Allgood plc, 63-83 Brearley Street, Birmingham, B19 3NT www.allgood.co.ukAllgood plc, 63-83 Brearley Street, Birmingham, B19 3NT www.allgood.co.uk

P.02 P.03
ORIGINAL FIXING INSTRUCTIONS
Modric 2490 flush mounted hand dryer, paper towel and bin
ORIGINAL FIXING INSTRUCTIONS
Modric 2490 flush mounted hand dryer, paper towel and bin
Wiring instructions
Always ensure that the installation
conforms to the current edition of
the I.E.E. wiring regulations, BS 7671
(UK) or the appropriate standards in
your country. Ensure that the unit is
separately fused with a suitably rated
fuse and that it is connected to the
supply with a double pole isolating
switch having a contact separation
of at least 3mm. Care should be taken
that single insulated conductors
cannot come into contact with the
mounting surface.
Mounting instructions
The aperture required in the wall to
mount the 2490 unit is 1583mm
(H) x 318mm (W) x 105mm (D), see
Illustration 1. The distance from finished
floor level to the bottom of the aperture
is as follows::-
• Male washrooms 340mm
• Female washrooms 290mm
• Disabled washrooms 190mm
WARNING
The hand dryer MUST be isolated from the power
supply during installation or maintenance.
IMPORTANT
After installation or servicing, units must be checked,
and only left when electrically and mechanically safe.
To install the 2490 unit please follow
the steps below and outlined in
Illustration 2:
1. Create an aperture in the wall to
the dimensions outlined in the
Mounting Instructions (Page 2).
2. Unattach the fascia of the 2490
unit by unclicking the back of the
4 hinges positioned in the right
hand side of the back box.
3. Offer the back box into the aperture
in the wall and fix it in place
through the holes on the side and
back of the back box.
4. Unscrew the cover of the hand dryer
and connect the wiring to the unit
as outlined in the Wiring
Instructions (Page 2).
5. Locate the hand dryer cover back
on to the unit and reattach the
fascia by re-clicking the hinges
back in to position.
6. Close the fascia panel and using the
2450K key provided, lock the panel
closed via the lock positioned in
the hand dryer chute.
12
1583
318
