Rinnai RDT-600 User manual

MODEL：RDT-600 RDT-400
GAS TUMBLE DRYER
OPERATING INSTRUCTIONS
RD60-132.indd!"1 09.9.17,3:19:30AM

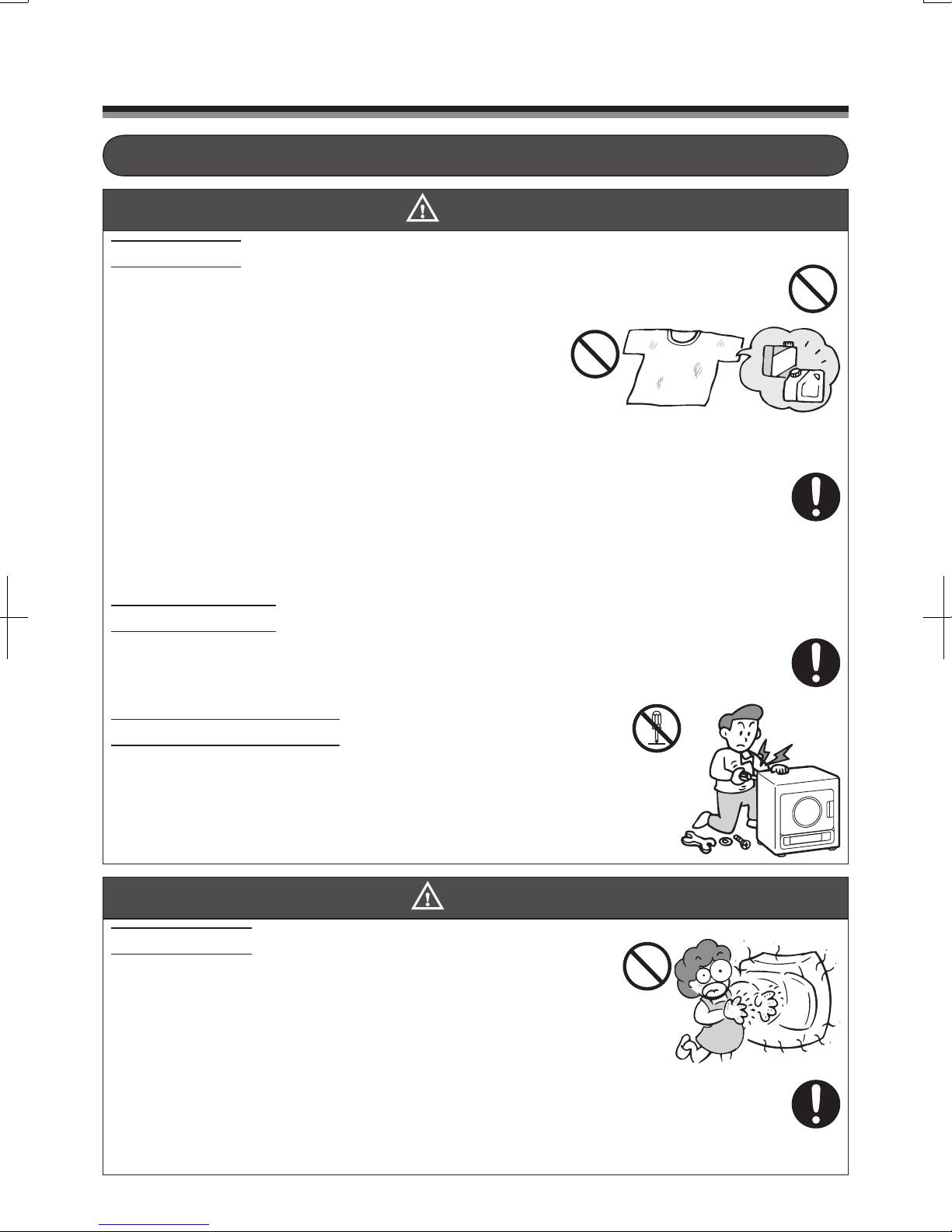

− 1 −
Caution
Warning
Attention on safety
Caution on Use
Fire Prevention
• Don’t put or use volatile and flammable goods like spray, benzene and gasoline close to
the dryer during operation.
•Don’t dry clothes which are stuck with oil, petrol,
dry-cleaning liquid and perm liquid with the dryer.
※Oil oxidation heat may cause spontaneous ignition and
inflammation of clothes.
•Confirm flammable things like a lighter and matches are not inside pockets . This may
cause fire.
•Don’t dry clothes or materials contain flammable substances like polyfoam, polyurethane
etc. User should pay attention to the clothes label.
Care for Ventilation
•A lot of fresh air is required for complete combustion of gas. Don’t use the dryer in a
closed room.
Dismantlement Prohibition
• Don’t disassemble, maintain and convert the dryer by unauthorised
personnel.
Caution for Burn
•Don’t take clothes out until the operation finishes completely. It
may cause burn injury due to high temperature around the drum
during the operation.
• In case unusual stop occurs during drying, open the door and let the temperature inside
the drum cools down before taking the clothes out from the dryer. If the clothes are taken
out immediately, burn injury may be caused.
RD60-132.indd1 09.9.17,3:19:32AM

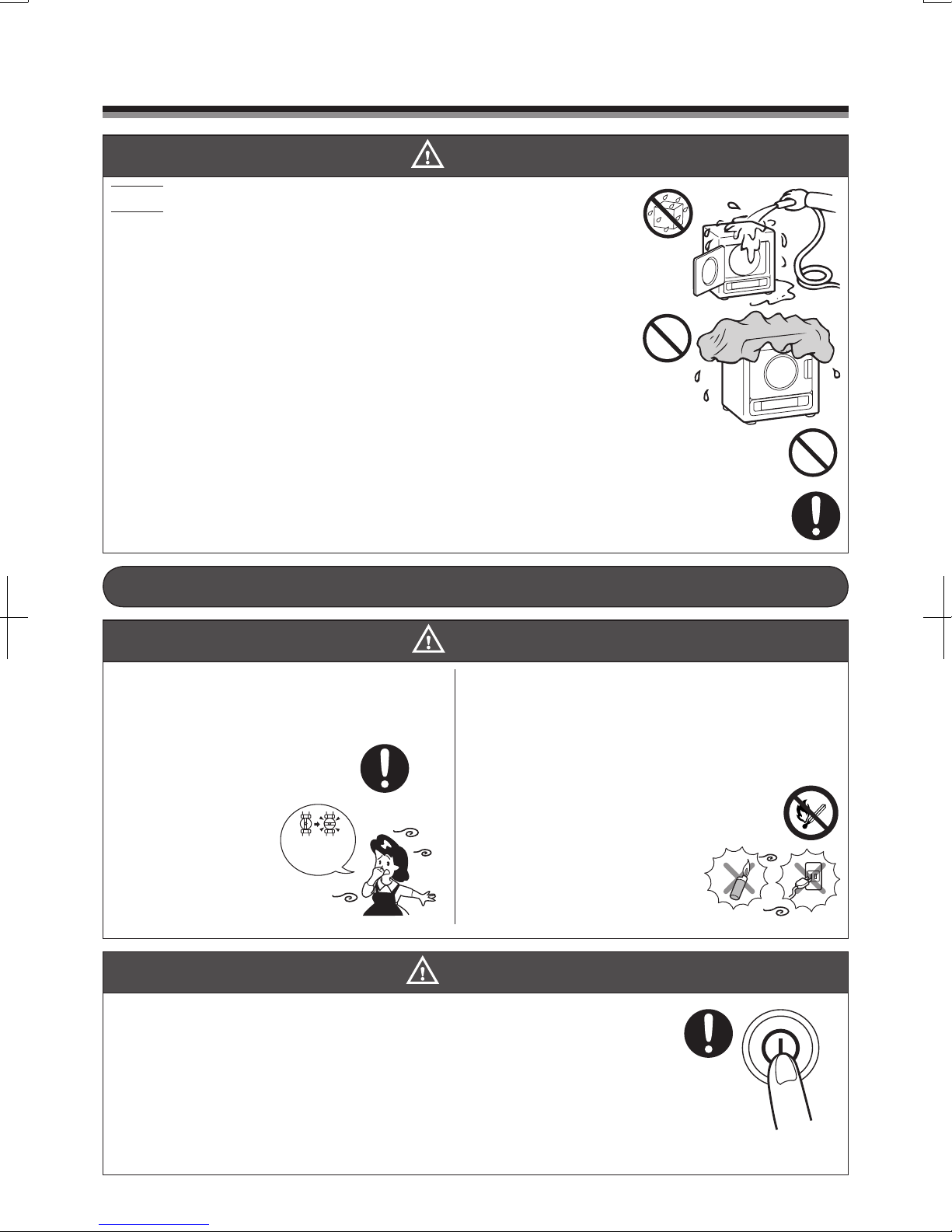

− 2 −
Warning
Danger
Caution
Attention on safety
Usage
•Don’t spray water on and wash the dryer body and drum. Fire may
occur due to electrical shock, electric leakage and short circuit.
•Don’t cover the dryer with blankets and clothes. Fires and
unexpected accidents may occur.
•Don’t use the dryer other than the purpose of drying clothes. It may cause fires and
unexpected accidents.
• Remove metallic powders and things from clothes as electrical shock may be resulted.
Procedures at Unusual Case
• When a gas leak is noticed:
1.Stop use immediately
2.Close the gas valve
3.Open windows
and doors
• Never do the following during a gas leak:
- Do not ignite fire
- Do not turn on or off any electrical appliance
- Do not insert/remove power plugs
- Do not use nearby telephones and mobile
telephones
- Do not use fire to find source of gas leak
- Do not press nearby door bells located
on the same floor
- Do not reopen the gas valve
until gas is no longer leaking
Gas may ignite from fire/sparks,
causing a fire as a result.
Close the
gas valve!
•In case of unusual combustion, bad smell and unusual sound or
earthquakes and fires etc. during the operation, stay calm and turn the
power switch off. If the dryer is continuously operating under the same
condition, explosion and fire may occur.
Turn off the Power switch.
RD60-132.indd2 09.9.17,3:19:35AM

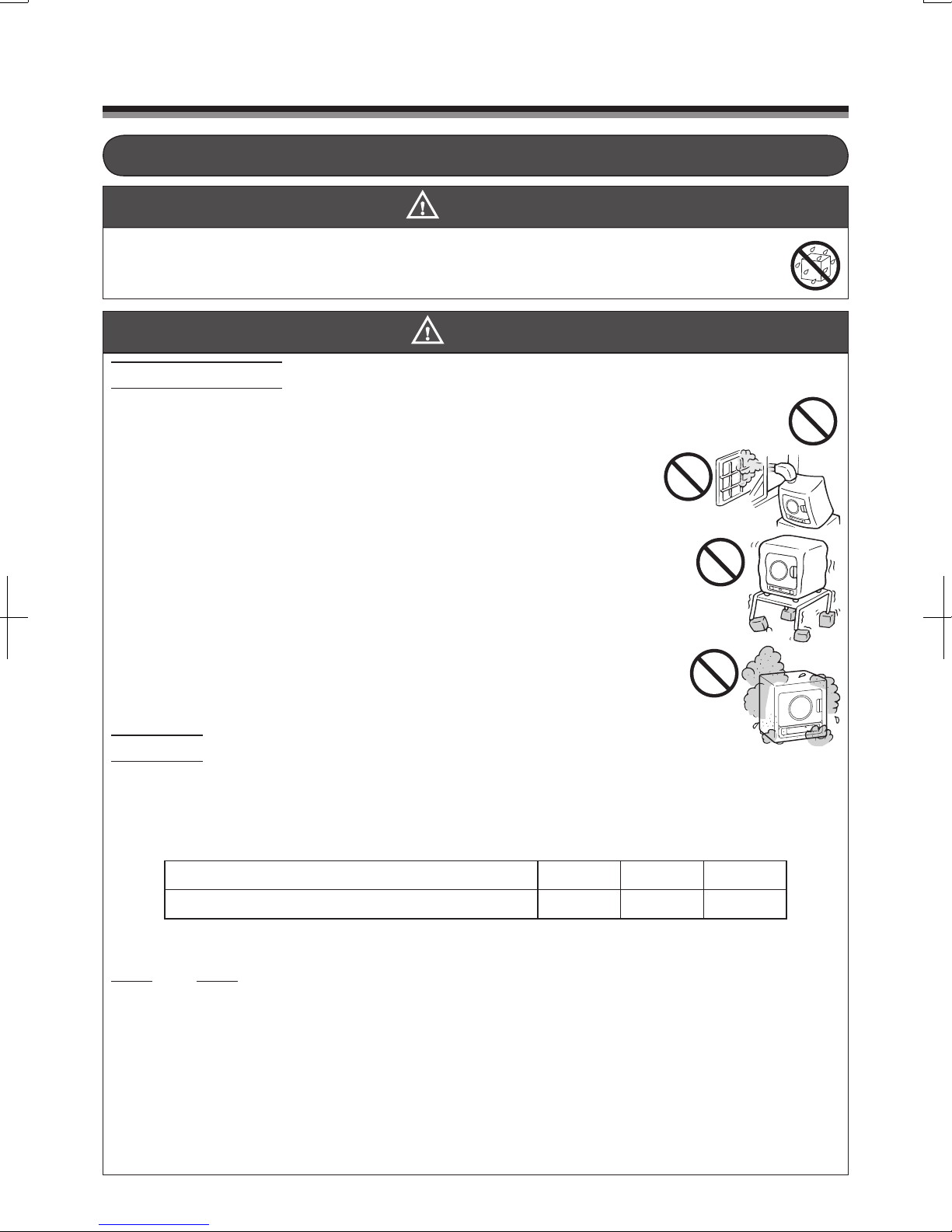

− 3 −
Caution
Warning
Attention on safety
Caution on Installation
•Don't install in bathroom, highly humid place or place exposed to a rainstorm. It might
cause an electric shock, electric leakage or a fire.
Installation Position
•Don’t put dangerous things, flower and pets nearby gas dryer. Flowers and pets may
die due to the exhaust gas and steam come out from the humidity duct.
• Don’t install dryer at places which affect other residents.
• Choose the place which can support the weight of dryer and will not amplify
noise and vibration which may damage building structure and create noise.
•Don’t use it at place where a lot of lint dust exist, which may cause
damages to dryer.
Ventilation
(i) For safe operation, the room in which the dryer is placed must be well ventilated. This includes
an openable window or equivalent#which must be opened during use.
(ii) If no humidity duct (venting hose) is fitting, the room shall be provided with air vents which
communicate directly with outside air and are sized in accordance with the following table:
Room Volume (m3) < 5 5 – 10 > 10
Minimum permanent opening free area (cm2) 100 50*Nil
(iii) If humidity duct is connected, air vent is not necessary.
Note
# Alternative acceptable forms of opening include adjustable louver, hinged panel or other means of ventilation that open
directly to outside air.
*If the room has a door which opens directly to outside, no permanent opening is required.
RD60-132.indd3 09.9.17,3:19:38AM

− 4 −
Usual Care
Warning
Caution
Attention on safety
Humidity Duct Installation
•For optimal function of the machine, the length of dia. 80mm humidity duct is recommended not
to exceed 6m and 1 bend. Reduce 2m when adding one bend.
•Maximum allowable length is 11m and 1 bend (equivalent to 5m and 4 bends) for dia. 80mm
humidity duct. Reduce 2m when adding one bend. Under this condition, the machine still
functions safely and normally, however, the drying time and the frequency of lint filter cleaning
may increase.
Caution for Children
•Don’t let children use the dryer alone or place it at location
reachable by children. This may cause burning or electrical
shock if misused.
Installation Place
• Don’t install the dryer at unstable place which may cause accident by falling off.
•Don’t install the dryer under a shelf or place with falling off objects which may damage
the dryer.
•Don’t use the dryer at place which need dehumidification since the exhaust flue
contains moisture.
•Don’t install the dryer on the electrical carpet or hot water mat which will cause
accident.
•Install the dryer with enough distance from the flammable objects such as furniture,
wall and shelf etc. Confirm
RD60-132.indd4 09.9.17,3:19:41AM

− 5 −
Attention on safety
Usual Care
General Home Appliances
• Dryer is for domestic use only. Do not use for commercial application. It may shorten the
life time.
Cautions for Drying
•Neither add extra clothes nor open the door during drying. Clothes may become
unevenly dry.
• Don’t put heavy things or hang down the door by children. It may cause
damages.
• In case of a power failure during operation, restart the dryer after the power is resumed.
How to handle clothes
•Too much clothes cause uneven drying and trouble. In case the spin-dry clothes are
over-loading into the dryer, divide them into 2 batches and dry separately.
• Wet clothes kept inside the dryer may cause corrosion and trouble due to the moisture.
•Don’t dry the glued clothes which may cause blocking at the filter. Use the glued spray
after drying.
•Enough spin dry by washing machine is required before using the dryer. If not
properly dehydrated, the drying time may take longer, and result in damages to
the dryer and leakage of electricity.
•When using chlorine bleach on clothes, they should be fully rinse before drying. If the
chlorine bleach remains, it may cause damages.
• Clothes stuck between front door and dryer drum may cause trouble to the drum turning and this
is dangerous.
Enough Dehydration
RD60-132.indd5 09.9.17,3:19:42AM

− 6 −
1Quick Drying
High speed, powerful gas heated drying. Drying
time is reduced by 1/2 compared with electric
dryer.
3 Operation Cycle
Choose the operation cycle according to type of
clothes.
FUNCTIONS & FEATURES
The domestic
gas dryer is
economical and
easy to use. Please
experience its
various functions
and features.
4
4kg Loading Capacity & Compactness (RDT-400)
Easy installation at narrow
space.
2
Soften Finished by Easy Operation
Convenient automatic system. Just press a start
button, the dryer stops automatically after drying
is completed. Heated by gas makes clothes
soften finished.
6 kg Loading Large Capacity (RDT-600)
Powerful drying for 6kg of
clothes (dry clothes weight).
Main Features
Indicate the remaining time in accordance with the clothes volume at 2 minutes
after the operation starts. ( the remaining time is reduced for every 5 minutes.)
In case of the delicate cycle, it does not indicate the remaining time for a while.
All the time displayed is only estimated time and there is some difference with the
actual finishing time.
The remaining time may not be indicated properly if the filter clean lamp is on.
Indication of the remaining time
RD60-132.indd6 09.9.17,3:19:44AM

− 7 −

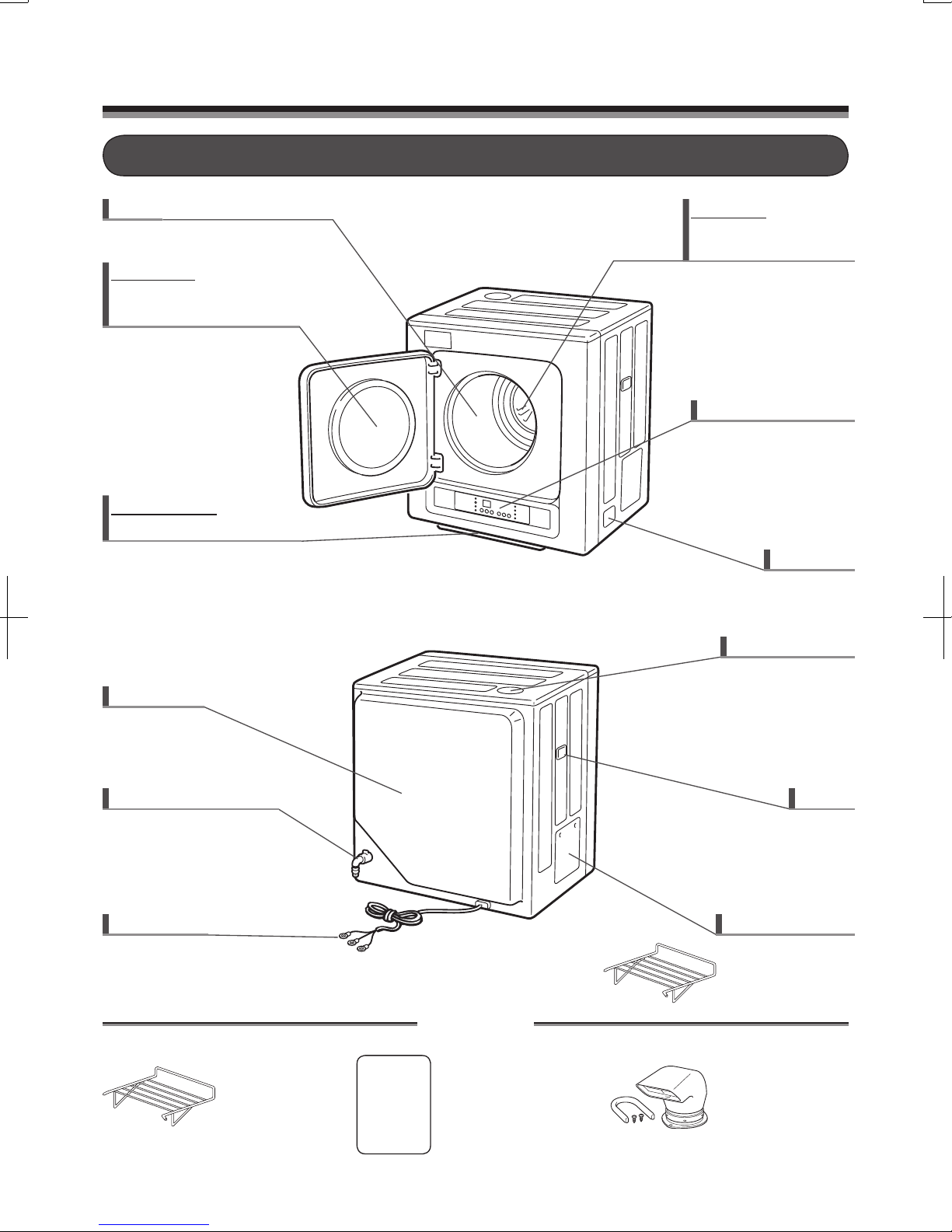

PART NAMES
BODY
ACCESSORY
Plastic Cover×3pcs
Used when changing
door opening
direction
Drum
Air Inlet Filter
protects the burner from lint
Back Cover
Gas Inlet Connection
Power Cord
Lint Filter
stops the lint from being
blown from the dryer
Operation Indicator
Data Plate
Discharge Duct
Handle
Inspection Door
Front Door
compatible to open from left
or right
Shoes Rack×1Exhaust
Humidity
Top Assy
RD60-132.indd7 09.9.17,3:19:46AM

− 8 −
PART NAMES

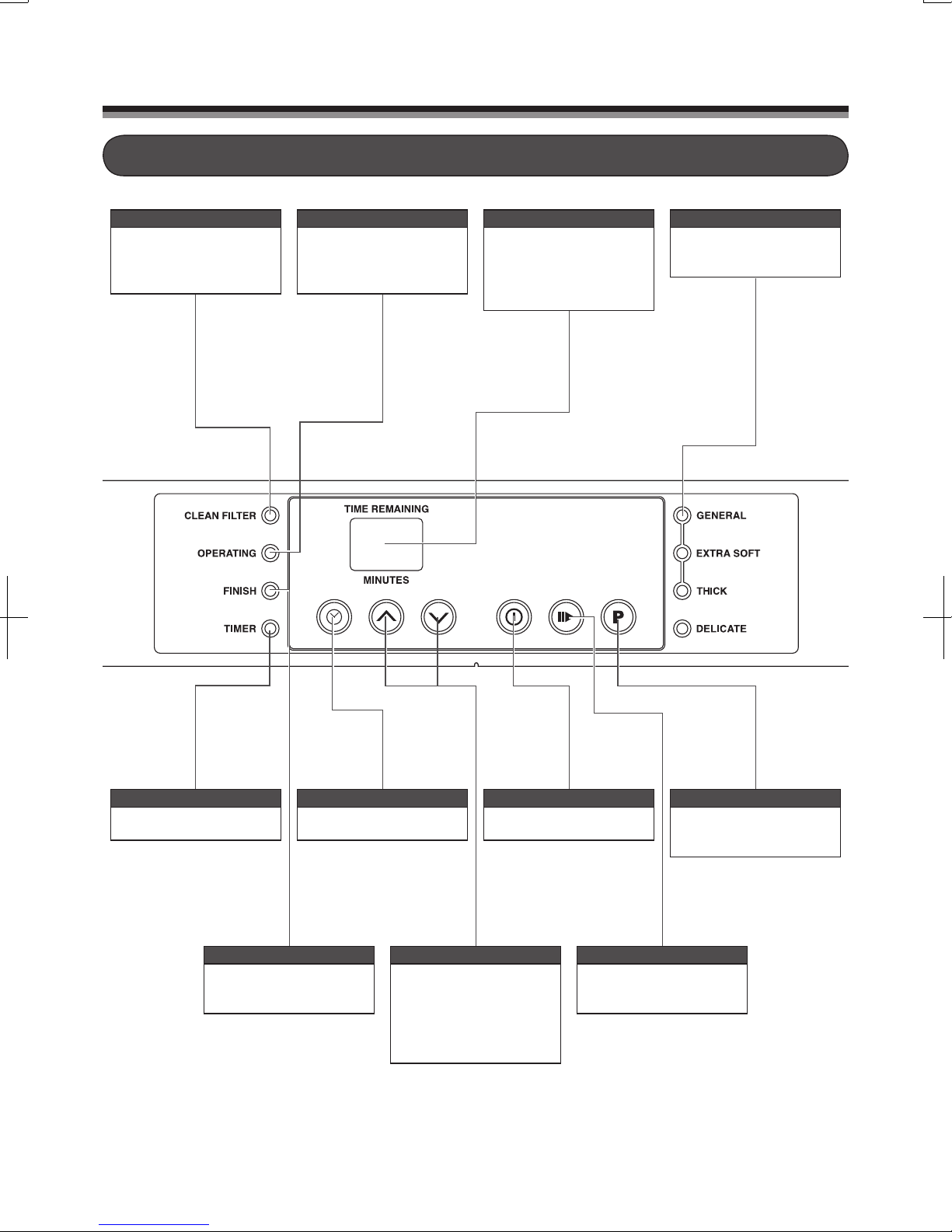

OPERATION INDICATOR PANEL
“Clear Filter” Lamp
Red lamp is on when too much lint is
accumulated on the lint filter inside
the drum.
(for details, please refer to page 21)
“Operation/Combustion” Lamp
The green lamp is on during
operation.
The red lamp is on during combustion.
(for details, please refer to page 9)
Digital Indicator
Indicate the drying remaining time.
It also indicates the operation
details of the safety device in case of
unusual conditions.
(for details, please refer to page 6)
“Operation Cycle” Lamp
The green lamp is on when the
operation cycle is selected. The lamp
flashes during operation.
“Timer” Lamp
The green lamp is on when the timer
cycle is selected.
“Timer Cycle” Switch
This switch is used to select the timer
cycle.
“Power ” Switch
This switch is power ON/OFF Switch.
(for details, please refer to page 9)
“Program” Switch
This switch is used for the operation
cycle change.
(for details, please refer to page 11)
“Finish” Lamp
The green lamp is on when drying is
completed.(for details, please refer to
page 10)
“Timer Set” Switch
This switch is used for timer setting
for timer operation.
This can be set from 5 minutes
to ※60 minutes. The dryer then
operates for only the set time.
(for details, please refer to page 12)
“Start / Pause” Switch
This switch is used to start or pause
the operation. Dryer operation can be
resumed by pressing this switch.
※RDT-600 can set up to 80 minutes.
RD60-132.indd8 09.9.17,3:19:48AM

− 9 −
HOW TO USE
1
Separate Clothes for Drying
Separate clothes according to operation cycle or drying style. (for details, please refer to page
11)
Confirm whether the clothes can be dried or not by the dryer. (for details, please refer to page
16)
2
Open the front door and put clothes into the dryer
Close the front door after placing spin-dried clothes one by one.
( Don’t open/close the front door roughly)
If spin-dried clothes are not put in one by one, they may be tangled or rumpled.
Ensure clothes are separately placed.
Check if the filter is fixed on the right position before putting clothes into the dryer.
3Close the front door and press the power switch
“GENERAL” + “EXTRA SOFT” lamp is ON.
4

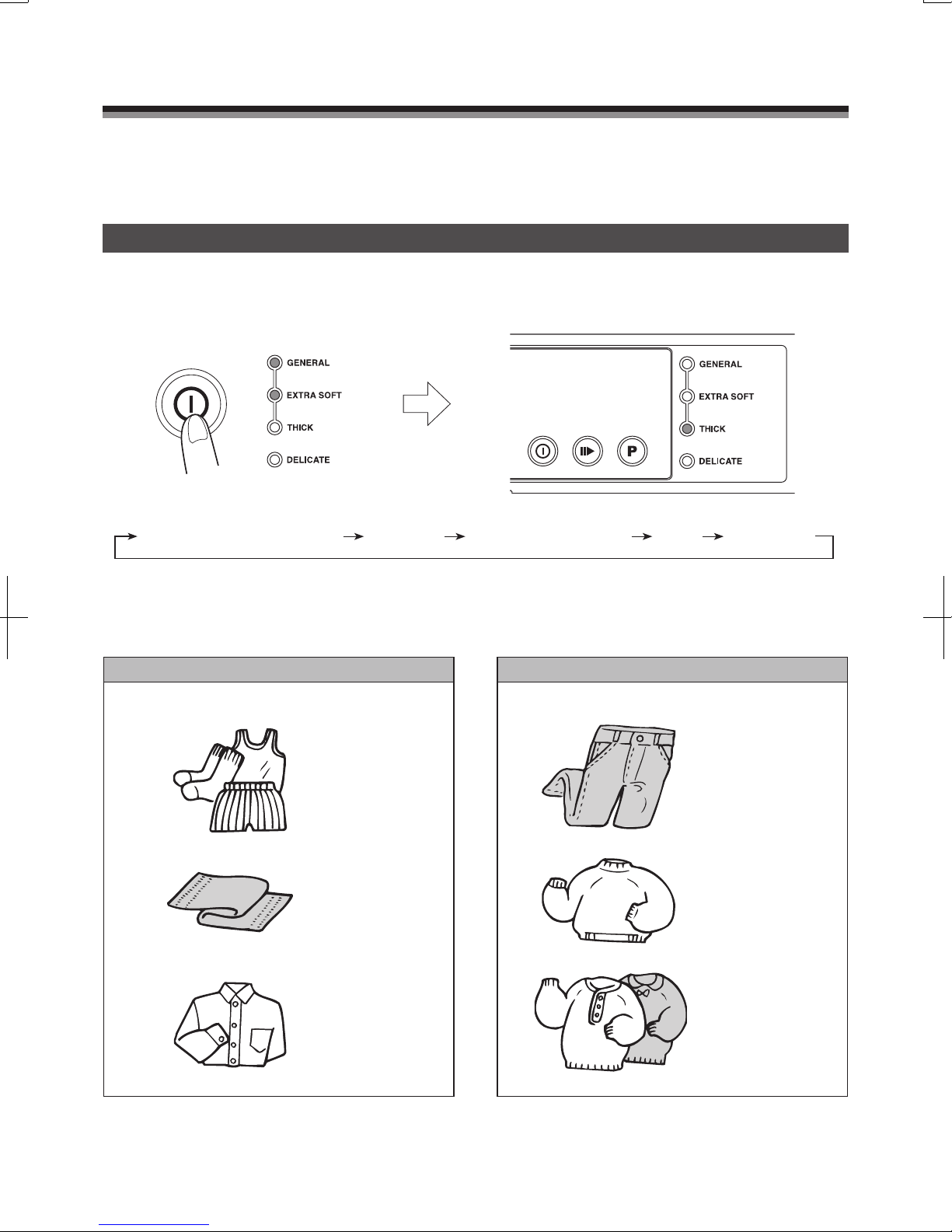

Choose the Operation Cycle for clothes
Identify the kinds of clothes, and then determine the operation cycle. (for details, please refer
to page 11)
In case the operation cycle is not chosen, it is operated with “GENERAL” + “EXTRA SOFT”
cycle automatically. The operation cycle can be changed during operation. ( Note : The
remaining time is also changed.)
RD60-132.indd9 09.9.17,3:19:50AM

− 10 −
HOW TO USE
5
Press the “Start/Pause” Switch
The selected cycle lamp is on, together with the “operation/combustion” lamp. The
operation/combustion lamp changes from green to red after ignition, which takes 5 to 10
seconds. (The “operation/combustion” lamp may change to the green colour during operation
from time to time and this is normal.)
6
Drying is finished when the buzzer sounds. Take clothes out from the dryer.
Drying is finished when the buzzer sounds 3 times. If the
operation cycle of “General”, “Thick” or “Delicate” was chosen,
the “Finish” lamp will start to flash. It indicate the dryer is entered
into “Soft” operation automatically, (if the operation cycle of
“General” + “Extra Soft” or “Thick” + “Extra Soft” was chose,
then “Finish” lamp is on) the dryer will intermit drum operation
(12 second every 4 minutes) and send air so that clothes can
be kept softly, for a period of 32 minutes since the dryer has
finished. The “Finish” lamp becomes “On” when the “Soft”
operation is completed, it will keep alight until the front door is opened, the “Finish” lamp will
then turn off and the dryer will auto power-off after 10 minutes.
Open the front door and the “Soft” operation is automatically completed.
Ensure the “operation/combustion” lamp becomes green colour before taking clothes out from
the dryer.
You may notice a build up of static electricity in the clothes when you remove them from the
dryer. (for static electric protection, please refer to page 17 “How to use properly”)
RD60-132.indd10 09.9.17,3:19:51AM

− 11 −
THICK
Thick clothes which cannot get dried easily
Winter season’s
underwears
Sweat shirts
Jeans
Choice of the Operation Cycle
This dryer is operated automatically after sensing the clothes volume and drying
conditions by the microcomputer. (except the timer cycle) Choose the best
operation from the thick to the delicate cycle to match the clothes.
Press the power switch, the “GENERAL” + “EXTRA SOFT” cycle is chosen every time
automatically. When you want to choose another cycle, you can do so by pressing the program
switch on the indicator panel.
Press the program switch every time and then the cycle is changed.
GENERAL+EXTRA SOFT GENERAL THICK+EXTRA SOFT THICK DELICATE
•You can choose the timer cycle by pressing the “Timer Cycle” switch. (However, only the
“GENERAL” or “DELICATE” cycle can be chosen then.)
Select the Operation Cycle
GENERAL
Ordinary clothes often washed
Shirts
Towels
Underwear
RD60-132.indd11 09.9.17,3:19:53AM

− 12 −
Choice of the Operation Cycle
Press the power switch and then choose the “Timer” cycle by the timer switch. In case of pressing
the timer switch, the “TIMER” + “GENERAL”cycle lamp lights. Re-press the timer cycle switch and
the “TIMER” + “DELICATE” lamp becomes on. Press the timer cycle switch every time to change
the cycle.
DELICATE
Thin clothes made of synthetics etc (please read page 15 “How to use properly”)
At the delicate cycle, clothes can be dried softly with half of the normal heating
value.
The remaining time may not be indicated for a while due to the humidity of
clothes.
TIMER
When you choose the timer cycle, it will show “20” minutes on the digital indicator. You can set the
time by the timer set switch 「」「 」. (remark : previous setting time is shown as default at
next operation.)
Automatically stop after the operation time completed regardless of drying
conditions.
The timer can be set from 5 min. to ※60 min. ( note : set 5 – 30 min. at an interval of 5 minutes and
30 – ※60 min. at an interval of 10 minutes.)
※RDT-600 can be set up to 80 min.
GENERAL DELICATE
RD60-132.indd12 09.9.17,3:19:54AM

− 13 −
Choice of the Operation Cycle
Set “Extra Soft”
What is “EXTRA SOFT” ?
If choose the “EXTRA SOFT” cycle together with “GENERAL”
or “THICK” cycle, the dryer will intermit drum operation (12
seconds every 4 minutes ) and send air so that clothes can
be kept softly, for a period of 120 minutes since the drying has
finished.
Open the front door and the “EXTRA SOFT” cycle is
automatically completed.
Why choose “EXTRA SOFT” ?
When forecast the clothes cannot remove from the dryer
promptly after the drying operation was completed or require
to wait a quite long time to do so, chose the “EXTRA SOFT”
cycle can reduce the wrinkle to be formed at the clothes and it
can also be kept softly, so it is recommended to use this cycle to
extend the “Soft” operation time.
There is no gas consumption during the automatic “SOFT” and
“EXTRA SOFT” operation.
To warm underwear & pajama,
GENERAL + 10 minutes
The “GENERAL” timer cycle is operated with the normal heating value.
The “DELICATE” timer cycle is operated with half the normal heating value.
Press the program switch if you want to cancel the timer cycle.
RD60-132.indd13 09.9.17,3:19:57AM

− 14 −
Choice of the Operation Cycle
The above table shows the approximate values based on a room temperature of 20℃and clothes
spin-dried for about 5 minutes by auto-washing machine.
Set “General”
For drying towels, the volume after drying is about 1.5 times of normal clothes. Please take into
consideration.
Even for usual clothes, if too many clothes are put into the dryer, the drying time is much longer and
the drying becomes uneven.
Notice
Drying time will be longer under the following conditions :
• Insufficient dehydration. • Lint filter being blocked.
• Low surrounding temperature. • Insufficient ventilation inside the room.
RDT-600
TYPES OF CLOTHES WEIGHT/PC DRYING VOLUME DRYING TIME
Shirt (Mix Spinning) About 200g About 25 pcs About 55 min.
Working Wear(Mix Spinning) About 800g About 7 sets About 60 min.
Napkin (Cotton) About 60g About 65 pcs About 60 min.
Pajamas (Mix Spinning) About 500g About 12 sets About 60 min.
Towel (Cotton) About 80g About 50 pcs About 60 min.
RDT-400
TYPES OF CLOTHES WEIGHT/PC DRYING VOLUME DRYING TIME
Shirt (Mix Spinning) About 200g About 17 pcs About 65 min.
Working Wear(Mix Spinning) About 800g About 5 sets About 60 min.
Napkin (Cotton) About 60g About 50 pcs About 60 min.
Pajamas (Mix Spinning) About 500g About 8 sets About 70 min.
Towel (Cotton) About 80g About 35 pcs About 60 min.
RD60-132.indd14 09.9.17,3:19:58AM

− 15 −

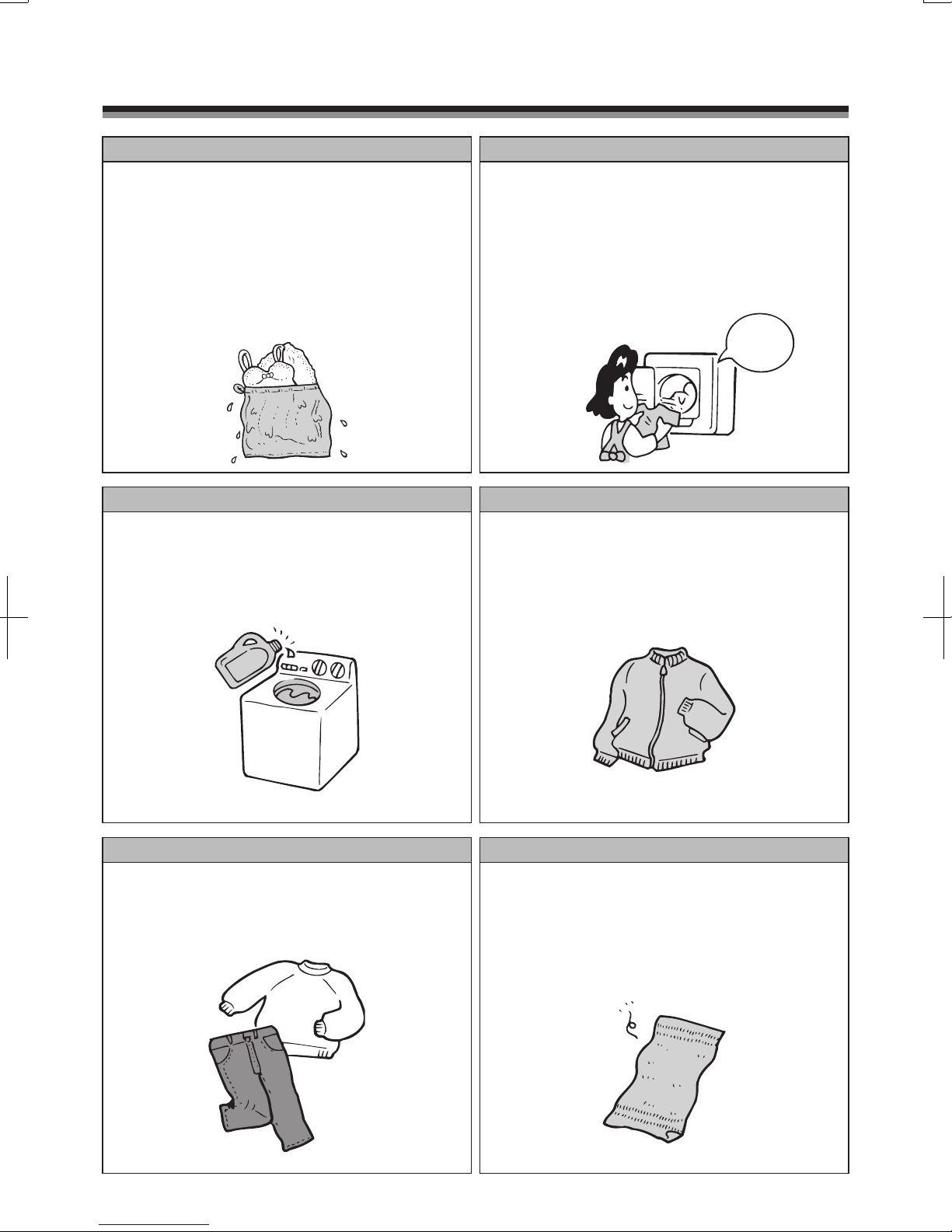

Reduce uneven drying and rumple
• Smooth down clothes and put into the dryer one by
one .
• Volume of clothes is about 70 – 80% of standard
drying volume.
• In case of small volume, some towels can be put
together for drying.
• In case of mixing thick and thin clothes, choose the
“Thick” cycle.
How to use properly
Use the “Delicate” cycle
Reduce static electricity
•Put the frayed clothes, nylon stockings and etc into
the delicate bag as optional.
•Don’t use the “General” cycle for nylon stockings.
•Use the fabric softener at washing.
Clothes with a zipper, a hook and etc.
Thick clothes like jeans and trainer etc. Clothes with lots of lint
• Dry clothes after zipping up and turning them inside
out.
•Choose the “Thick” cycle and reduce drying volume. • Dry new towels separately. Synthetics clothes easily
catch lint.
70–80%
RD60-132.indd15 09.9.17,3:20:00AM

− 16 −

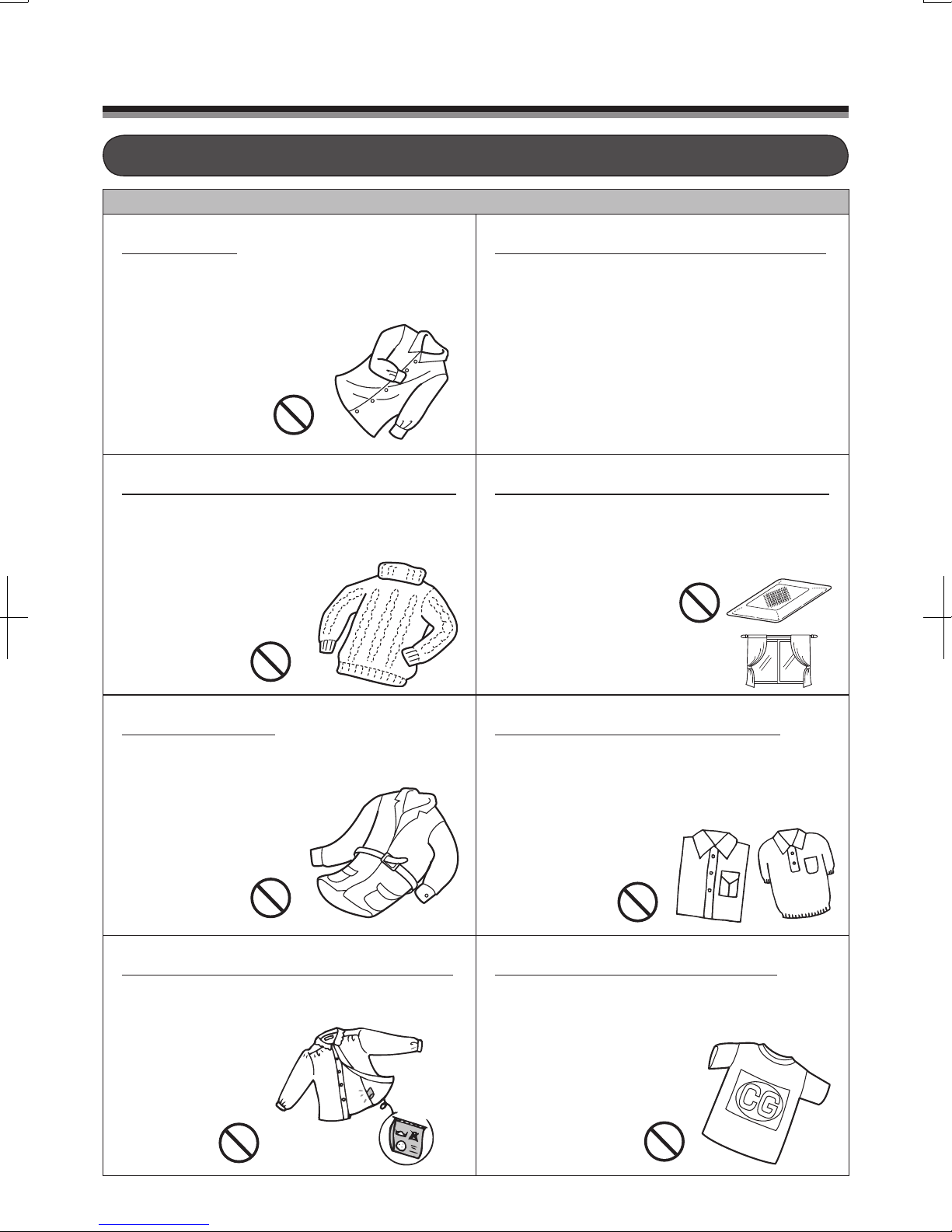

How to use properly
Damage of clothes itself
Silk articles
May result in colour change and deformation.
Clothes with Indication of avoiding “Tumble drying”
“Tumble Drying” means that clothes are dried
in the rotating drum of tumble dryer.
Woolen and Woolen mixture articles
May result in shrinkage and colour change.
Clothes which are easily damage or flammable for heat
Clothes made of or contain Poly-urethane / Polyfoam
Lace knit articles (e.g. curtain etc.)
Bedding covers with lace
Leather articles
May result in deformation
Clothes which are shrinkable
Hemp and Regenerated fiber (e.g. rayon)
clothes
Knitted clothes
Clothes with labels of sun-dried, natural dry Clothes with printed emblems by an iron
Heat may detach the emblem and peel off
the glue.
Clothes which are unsuitable for drying (Don’t put such materials into the dryer)
RD60-132.indd16 09.9.17,3:20:02AM

− 17 −
How to use properly

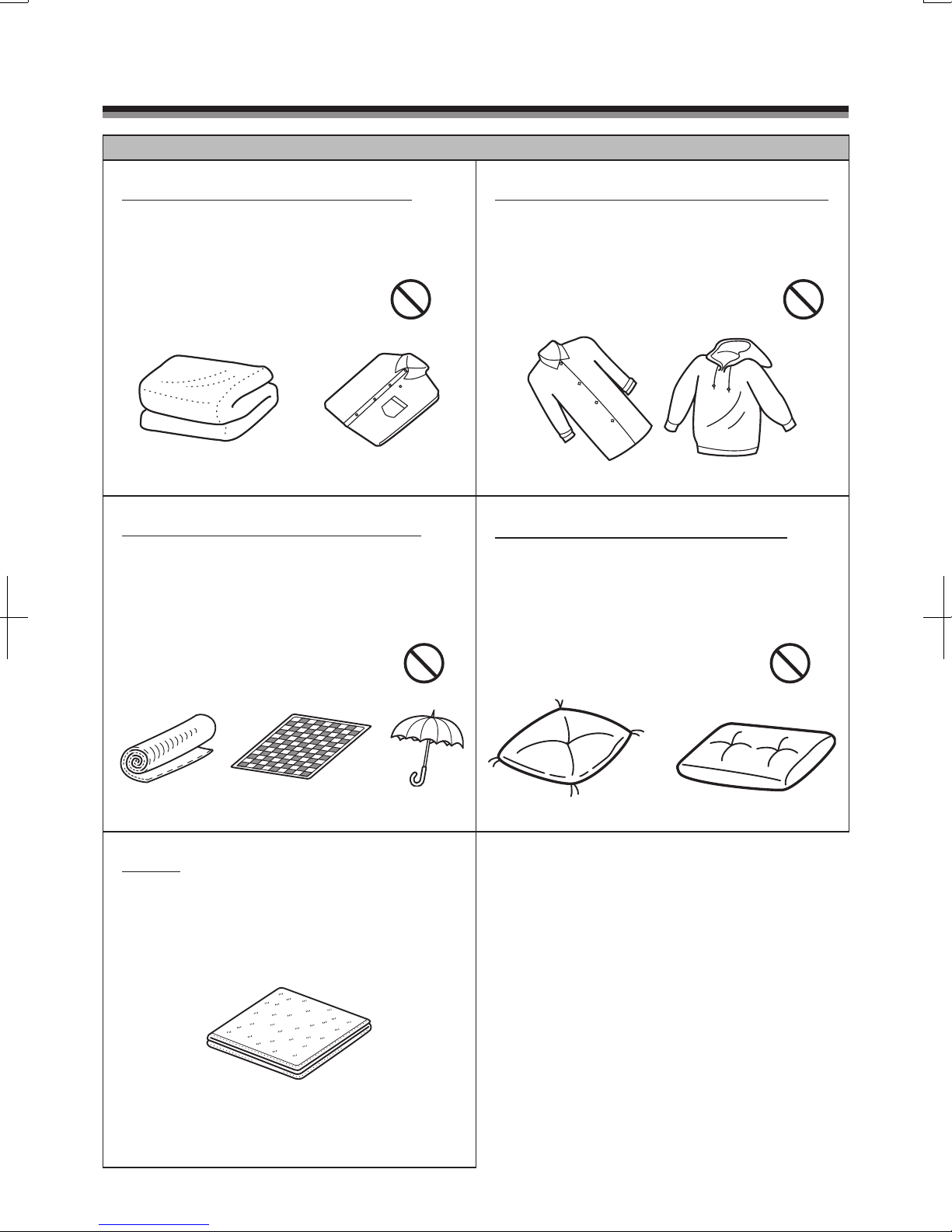

The following things may cause damage to the dryer:
Mattresses and glued clothes
May cause trouble of filter blockage.
Clothes which are thin and not well breathable
(Raincoat & Windbreaker etc. )
May cause trouble of filter blockage.
Necessities other than clothes
Mat, carpet, umbrella, wig and fragile article
etc.
Cushions with cotton stuffing
May cause trouble of filter blockage.
Quilts
May cause trouble of filter blockage.
RD60-132.indd17 09.9.17,3:20:04AM

− 18 −
MEASURES WHEN THE SAFETY DEVICE IS OPERATED
This appliance displays information when the safety device is operated. If the dryer
stops during operation, check whether the safety device is operated or not. When
the “CLEAN FILTER” lamp lights together with the failure display, it means the
filter is blocked. The dryer is not unusual when the “CLEAN FILTER” lamp lights
during operation. Clean the filter after operation. When the safety device is on, the
indicator flashes and the buzzer sounds 5 times. (Indication flash is stopped when
power is switched off)
Indication for the
Safety Device
Operating
(Lamp flashing)
Cause Measures
Lint Filter or Back Filter is
blocked by lint.
Clean Filter and restart after
10 mins
Gas valve is not opened.
After Inspection, re-operate.
Gas hose is not connected
properly.
Gas valve is not opened fully. After Inspection, re-operate.
Lack of oxygen inside room. Need to ventilate fully and then
re-operate.
Lint Filter or Back Filter is blocked
by lint.
Clean Filter and restart after 10
mins.
Lint Filter or Back Filter is blocked
by lint.
Discharged Duct is blocked.
Too much clothes.
Trouble in the electric system.
Clean Filter and restart after 10
mins.
In case “32” is re-indicated, need
to repair.
Call for repair.
Lack of oxygen for combustion.
Lint Filter or Back Filter is blocked
by lint.
Clean Filter and restart after 10
mins.
In case “90” is re-indicated, need
to repair.
Call for repair.
Numbers other
than the above
numbers.
Need to repair.
Call for repair.
All lamps light
OFF.
Trouble in the electric system. Need to repair.
Call for repair.
Trouble for over-heat.
RD60-132.indd18 09.9.17,3:20:04AM

− 19 −
Any troubles ?
Check the following items again before calling to repair
No operation
Whether the gas cock is fully opened or not ?
Whether fuse or breaker is cut or not ?
Whether power failure happens or not ?
Whether the “Power” switch & “Start/Pause” switch are pressed or not ?
Whether the front door is closed completely ?
The drying time is longer and do not dry well
Whether the “Clean Filter” lamp lights or not ?
Whether clothes are too much or not ?
Whether clothes are spin-dried enough ?
Whether the front door has been opened during operation ?
Whether clothes are added during operation ?
Whether the discharged duct is blocked or not ?
Whether thick items are not operated in “Thick” cycle ?
RD60-132.indd19 09.9.17,3:20:07AM
