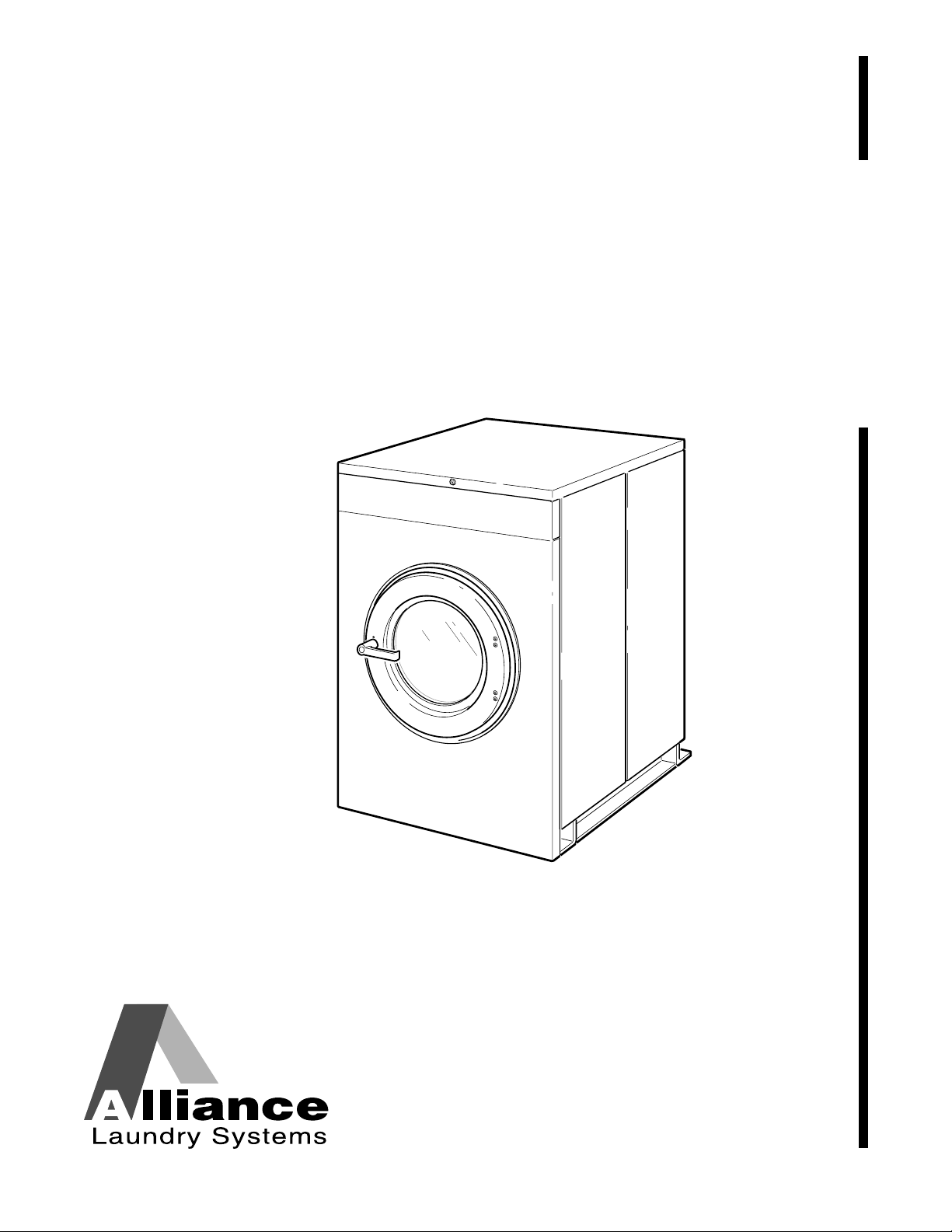

Alliance Laundry Systems Washer-Extractor User manual

Installation
www.comlaundry.com
Washer-Extractors
Cabinet Hardmount
Refer to Page 5 for Model Identification
CHM166C
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. F232135R6
June 2005
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2005, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F232135 1
Table of
Contents
Safety Information.............................................................................. 3
Explanation of Safety Messages........................................................... 3
Important Safety Instructions ............................................................... 3
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Delivery Inspection............................................................................... 6
Nameplate Location.............................................................................. 6
Replacement Parts ................................................................................ 8
Customer Service.................................................................................. 8
Remove After Shipment (OPL Models Only)...................................... 8
Specifications and Dimensions........................................................... 9
Gap Setting for Vibration Switch
(Variable-Speed and Fixed-Speed Models) ................................... 12
Installation........................................................................................... 23
Dimensional Clearances ....................................................................... 23
Machine Foundation ............................................................................. 24
Machine Anchoring .............................................................................. 27
Direct-to-Finished-Floor Installation............................................... 27
Mounting Bolt Template Part Numbers
(Without Elevated Base Frame) ......................................................... 30
Mounting Bolt Hole Locations (Without Elevated Base Frames)........ 31
Mounting Bolt Hole Locations (Without Elevated Base Frames)........ 32
Mounting Bolt Hole Locations (With Elevated Base Frames)............. 33
Mounting Bolt Hole Locations (With Elevated Base Frames)............. 34
Elevated Base Frame Installation..................................................... 35
Concrete Foundation Installation..................................................... 37
Drain Connection.................................................................................. 40
Water Connection Requirements.......................................................... 42
Electrical Installation Requirements..................................................... 43
Input Voltage Requirements ............................................................ 43
Circuit Breakers ............................................................................... 43
Connection Specifications ............................................................... 44
Grounding ........................................................................................ 44
Phase Adder ..................................................................................... 44
Thermal Overload Protector ............................................................ 44
Troubleshooting ............................................................................... 50
Steam Requirements (Steam Heat Option Only).................................. 50
Supply Dispensing (OPL Machines Only) ........................................... 51
Connection of External Liquid Supplies.......................................... 51
Control Function Test........................................................................... 54

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2F232135
Notes

3
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

Safety Information
F232135
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
16. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
19. Replace worn power cords and/or loose plugs.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT
bypass the loading door switch by permitting the
washer to operate with the loading door open.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied by the textile manufacturer.
24. Never operate the washer with any guards and/or
panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: Underloading can cause out-of-balance
conditions that can shorten life of machine.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

5
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these
models:
HC18MD2 HC25NR2 HC35SN2 HC60ACV HC80NRV SC25MD2 SC40AY2 SC60BNF UC20VN2
HC18MN2 HC25NX2 HC35VC2 HC60AL2 HC80NXV SC25ML2 SC40BC2 SC60BX2 UC25MN2
HC18MX2 HC25SN2 HC35VX2 HC60ALF HC80VCV SC25MN2 SC40BL2 SC60BXF UC27MN2
HC18NC2 HC25VC2 HC40AC2 HC60ALV HC80VNV SC25MX2 SC40BN2 SC60BY2 UC27PN2
HC18NR2 HC25VX2 HC40ACV HC60AX2 HC80VXV SC25MY2 SC40BX2 SC60BYF UC27VN2
HC18NX2 HC27MD2 HC40AL2 HC60AXF HC125BYV SC25NC2 SC40BY2 SC60MD2 UC27VNV
HC18SN2 HC27MN2 HC40ALV HC60AXV NC18NP2 SC25NR2 SC40MD2 SC60ML2 UC30BN2
HC18VC2 HC27MX2 HC40AX2 HC60AY2 NC27NP2 SC25NX2 SC40ML2 SC60MN2 UC30ML2
HC18VX2 HC27NC2 HC40AXV HC60AYF NC80NPV SC27MD2 SC40MN2 SC60MX2 UC30MN2
HC20AC2 HC27NR2 HC40AY2 HC60AYV SC125BYV SC27MN2 SC40MX2 SC60MY2 UC30MX2
HC20ACV HC27NX2 HC40AYV HC60BC2 SC125VNV SC27MX2 SC40MY2 SC60NC2 UC30PN2
HC20AL2 HC27SN2 HC40BC2 HC60BCF SC18MD2 SC27NC2 SC40NC2 SC60NCF UC30VN2
HC20ALV HC27VC2 HC40BL2 HC60BL2 SC18MN2 SC27NR2 SC40NR2 SC60NR2 UC35MD2
HC20AX2 HC27VX2 HC40BN2 HC60BLF SC18MX2 SC27NX2 SC40NX2 SC60NX2 UC35MN2
HC20AXV HC30AC2 HC40BX2 HC60BN2 SC18NC2 SC27VN2 SC40VN2 SC60NXF UC35PN2
HC20AY2 HC30ACV HC40BY2 HC60BNF SC18NR2 SC30AC2 SC40VNV SC60VN2 UC35VN2
HC20AYV HC30AL2 HC40MD2 HC60BX2 SC18NX2 SC30AL2 SC50BC2 SC60VNF UC35VNV
HC20BC2 HC30ALV HC40ML2 HC60BXF SC18VN2 SC30AY2 SC50BL2 SC60VNV UC40BN2
HC20BL2 HC30AX2 HC40MN2 HC60BY2 SC20AC2 SC30AX2 SC50BN2 SC80ACV UC40MN2
HC20BN2 HC30AXV HC40MX2 HC60BYF SC20AL2 SC30BC2 SC50BX2 SC80ALV UC40PN2
HC20BX2 HC30AY2 HC40MY2 HC60MD2 SC20AX2 SC30BL2 SC50BY2 SC80AXV UC40VN2
HC20BY2 HC30AYV HC40NC2 HC60ML2 SC20AY2 SC30BN2 SC50MD2 SC80AYV UC40VNV
HC20MD2 HC30BC2 HC40NR2 HC60MN2 SC20BC2 SC30BX2 SC50ML2 SC80BCV UC50BN2
HC20ML2 HC30BL2 HC40NX2 HC60MX2 SC20BL2 SC30BY2 SC50MN2 SC80BLV UC50MN2
HC20MN2 HC30BN2 HC40SN2 HC60MY2 SC20BN2 SC30MD2 SC50MX2 SC80BNV UC50PN2
HC20MX2 HC30BX2 HC40VC2 HC60NC2 SC20BX2 SC30ML2 SC50MY2 SC80BXV UC50VN2
HC20MY2 HC30BY2 HC40VX2 HC60NCF SC20BY2 SC30MN2 SC50NC2 SC80BYV UC50VNV
HC20SN2 HC30MD2 HC50BC2 HC60NR2 SC20MD2 SC30MX2 SC50NR2 SC80NCV UC60BN2
HC20VC2 HC30ML2 HC50BL2 HC60NX2 SC20ML2 SC30MY2 SC50NX2 SC80NRV UC60BNF
HC20VX2 HC30MN2 HC50BN2 HC60PN2 SC20MN2 SC30NC2 SC50VN2 SC80NXV UC60MN2
HC25AC2 HC30MX2 HC50BX2 HC60SN2 SC20MX2 SC30NR2 SC50VNV SC80NYV UC60PN2
HC25AL2 HC30MY2 HC50BY2 HC60VC2 SC20MY2 SC30NX2 SC60AC2 SC80VNV UC60VN2
HC25AX2 HC30NC2 HC50MD2 HC60VX2 SC20NC2 SC30VN2 SC60ACF UC125VNV UC60VNF
HC25AY2 HC30NR2 HC50ML2 HC80ACV SC20NR2 SC35MD2 SC60AL2 UC18MN2 UC60VNV
HC25BC2 HC30NX2 HC50MN2 HC80ALV SC20NX2 SC35MN2 SC60ALF UC18MX2 UC80BNV
HC25BL2 HC30SN2 HC50MX2 HC80AXV SC20VN2 SC35MX2 SC60AX2 UC18PN2 UC80VNV
HC25BX2 HC30VC2 HC50MY2 HC80AYV SC25AC2 SC35NC2 SC60AXF UC18VN2
HC25BY2 HC30VX2 HC50NC2 HC80BCV SC25AL2 SC35NR2 SC60AY2 UC18VNV
HC25MD2 HC35MD2 HC50NR2 HC80BLV SC25AX2 SC35NX2 SC60AYF UC20BN2
HC25ML2 HC35MN2 HC50NX2 HC80BNV SC25AY2 SC35VN2 SC60BC2 UC20MD2
HC25MN2 HC35MX2 HC50SN2 HC80BXV SC25BC2 SC35VNV SC60BCF UC20ML2
HC25MX2 HC35NC2 HC50VC2 HC80BYV SC25BL2 SC40AC2 SC60BL2 UC20MN2
HC25MY2 HC35NR2 HC50VX2 HC80NCF SC25BX2 SC40AL2 SC60BLF UC20MX2
HC25NC2 HC35NX2 HC60AC2 HC80NCV SC25BY2 SC40AX2 SC60BN2 UC20PN2

Introduction
F232135
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
This manual is designed as a guide to the installation
of the Cabinet Hardmount Washer-Extractor.
NOTE: All information, illustrations, and
specifications contained in this manual are based
on the latest product information available at the
time of printing. We reserve the right to make
changes at any time without notice.
Delivery Inspection
Upon delivery, visually inspect crate, protective cover,
and unit for any visible shipping damage. If the crate,
protective cover, or unit is damaged or signs of
possible damage are evident, have the carrier note the
condition on the shipping papers before the shipping
receipt is signed, or advise the carrier of the condition
as soon as it is discovered.
Remove the crate and protective cover as soon after
delivery as possible. If any damage is discovered upon
removal of the crate and/or protective cover, advise the
carrier and file a written claim immediately.
Nameplate Location
The nameplate is located at the rear of the machine and
inside door. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance. Refer to Figure 1.
Figure 1
CHM167R
1Nameplate
CHM167R
1

Introduction
7
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
* Denotes Brand
Figure 2
Model Number Familiarization Guide
Sample Model Number: *C40AC2OU60001
*C Model Number Prefix
40 Washer-Extractor Capacity (pounds dry weight of laundry)
AType of Electrical Control
CActuation (C = Coin drop)
2Washer-Extractor Speed Capability (2 = 2 speed)
OElectrical Characteristics
U6 Design Series
0001 Option Identification (varies from machine to machine)
CHM2008N
CHM2008N
*C40AC2OU60001
00000000000
500000
208 – 240
60 3 3
0
18
3
60
N/A N/A
470
7
EXAMPLE OF NAMEPLATE

Introduction
F232135
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Replacement Parts
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call [phone], Ripon,
Wisconsin U.S.A.
Remove After Shipment (OPL
Models Only)
A yellow retainer has been inserted in the door locks
of all cabinet hardmount on-premise laundry washer-
extractors to prevent the door from locking during
shipment. Remove the yellow retainer during
installation by pulling it off.
NOTE: Once retainer is removed, machine must be
powered to unlock door.
A tag has been attached to the washer-extractor’s door
handle as a reminder that the retainer must be removed
before operation. Refer to Figure 3.
Figure 3
CFS503N
Remove Yellow Retainer
Before Starting Machine.
Note: A Retainer has been
inserted to prevent the door from
locking during shipment.

9
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
2 Speed Models
Specification 18, 20 25 27, 30 35 40 50 60
Overall Dimensions
Overall width, in. (mm) 26
(660)
26
(660)
29
(737)
30-1/8
(765)
30-5/8
(778)
34-1/16
(865)
34-1/16
(865)
Overall height, in. (mm) 42-7/8
(1089)
45
(1143)
45-7/8
(1165)
47-1/4
(1200)
47-7/8
(1216)
50-13/16
(1291)
50-13/16
(1291)
Overall depth, in. (mm) 29-13/16
(757)
33-7/8
(860)
34-13/16
(884)
38-1/2
(978)
40-3/16
(1021)
41-13/16
(1087)
42-13/16
(1087)
Weight and Shipping Information
Net weight, lbs. (kg) 390
(177)
435
(198)
498
(226)
650
(295)
706
(321)
820
(373)
826
(375)
Domestic shipping weight,
lbs. (kg)
428
(194)
470
(214)
545
(245)
680
(309)
744
(338)
875
(398)
881
(400)
Domestic shipping
volume, ft3(m3)
28
(0.8)
33
(0.9)
35
(1.0)
39
(1.09)
42.6
(1.19)
53
(1.5)
53
(1.5)
Export shipping weight
lbs. (kg)
480
(218)
530
(241)
588
(267)
760
(345)
846
(385)
1020
(464)
1027
(466)
Export shipping volume,
ft3(m3)
30.1
(0.86)
36.7
(1.03)
39.6
(1.11)
47.1
(1.32)
54.1
(1.51)
58.7
(1.67)
58.7
(1.67)
Wash Cylinder Information
Cylinder diameter,
in. (mm)
21
(533)
21
(533)
24
(610)
26-1/4
(667)
26-1/4
(667)
30
(762)
30
(762)
Cylinder depth, in. (mm) 13-3/4
(349)
18-3/4
(476)
16
(406)
18-3/8
(467)
20-1/4
(514)
20
(508)
22
(559)
Cylinder volume, ft3(l) 2.76
(78.1)
3.76
(106.5)
4.19
(118.6)
5.76
(163.1)
6.34
(180)
8.18
(231.6)
9.00
(255)
Perforation size, in. (mm) 0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
Perforation open area, % 17 17 23 17 17.5 18 18

Specifications and Dimensions
F232135
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2 Speed Models (Continued)
Specification 18, 20 25 27, 30 35 40 50 60
Door Opening Information
Door opening diameter,
in. (mm) 12
(305)
12
(305)
14-11/32
(364)
14-11/32
(364)
16-1/4
(413)
16-1/4
(413)
16-1/4
(413)
Height of door bottom above
floor, in. (mm) 14-3/8
(365)
14-3/8
(365)
14
(356)
16
(406)
14-1/2
(368)
13-1/2
(343)
13-1/2
(343)
Power Consumption
Average power used per cycle,
kW-hr
0.20 0.25 0.25 0.30 0.34 0.42 0.61
Average HVAC load, Btu/hr 425 400 400 510 510 700 700
Drive Train Information
Number of motors in drive
train
1111111
Wash/reverse power, HP (kW) 0.18
(0.13)
0.25
(0.19)
0.25
(0.19)
0.40
(0.30)
0.40
(0.30)
0.55
(0.41)
0.55
(0.41)
High extract power, HP (kW) 1.0
(0.746)
1.4
(1.04)
1.4
(1.04)
1.8
(1.3)
1.8
(1.3)
2.7
(2.01)
2.7
(2.01)
Cylinder Speeds
Wash/reversespeed,RPM53554747474444
High extract speed, RPM 525 540 480 470 470 450 450
Centrifugal Force Data
Wash/reverse centrifugal
force, Gs
0.85 0.90 0.75 0.82 0.82 0.825 0.825
High extract centrifugal force,
Gs
82.1 86.8 78.4 82.3 82.3 86.3 86.3

Specifications and Dimensions
11
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2 Speed Models (Continued)
Specification 18/20 25 27, 30 35 40 50 60
Balance Detection
Vibration switch installed N/A N/A N/A N/A N/A N/A N/A
Direct Steam Heating (Optional)
Steam inlet connection size,
in. (mm)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
1/2
(13)
Numberofsteaminlets 1111111
Steam required to raise
bath water temperature
10°F (6°C)
LOW 1.05 (0.75) 1.4 (1.01) 1.44 (1.03) 2.06 (1.48) 2.09 (1.51) 2.76 (1.99) 2.76 (1.99)
HIGH 1.4 (1.01) 1.59 (1.15) 1.91 (1.37) 2.69 (1.94) 2.84 (2.04) 3.59 (2.59) 3.59 (2.59)
Average steam use per cycle,
bhp (kg)
0.71
(11.1)
0.87
(13.6)
0.97
(15.2)
1.4
(21.6)
1.43
(22.4)
1.84
(28.9)
1.84
(28.9)
Electrical Heating (Optional)
Total electrical heating capacity,
kW
7.8 7.8 7.8 15.6 15.6 23.4 23.4
Electricalheatingelements 3336399
Electrical heat element size, kW 2.6 2.6 2.6 2.6 5.2 2.6 2.6

Specifications and Dimensions
F232135
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Gap Setting for Vibration Switch (Variable-
Speed and Fixed-Speed Models)
After the machine has been properly installed, the
vibration switch gap must be measured before
conducting the Control Function Test. Locate the gap
found between the vibration switch and the machine
structure. Refer to Figures 4, 5, 6, 7and 8. To check
the gap setting of the switch, proceed as follows:
1. Remove the front panel on 18-50 models.
Remove the rear panel on 60-80 models. Remove
the top cover on the 125 model. The switch can
be seen inside the bottom right corner of the A-
frame, mounted on a bracket. Refer to Figures 4,
5, 6, 7and 8.
2. Measure the gap distance when the switch is in
both the open and closed positions. The
specifications should be at the minimum switch
gap setting when the switch is open and at the
maximum switch gap setting when the switch is
closed. If these distances are not correct, adjust
the balance switch to these specifications.
NOTE: The standard position of the switch is open,
or non-tripped.
3. Tighten nuts on switch extension after adjusting
the gap. Measure the gap distance to verify
accurate setting.
18, 20 27, 30 35 40 50 60 80 125
Switch gap setting*,
in. (mm)
0.015-0.025
(0.38-0.64)
0.025-0.035
(0.64-0.89)
0.030-0.040
(0.76-1.02)
0.020-0.030
(0.51-0.64)
0.025-0.035
(0.64-0.89)
0.013-0.015
(0.20-0.25)
0.009-0.011
(0.23-0.28)
0.006-0.008
(0.15-0.20)
* Gap setting should be made with “GO-NO-GO” type feeler gauge. Lower value must not trip switch. Upper value must trip switch.
Table 1

Specifications and Dimensions
13
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
For 18, 20, 25, 27, 30 and 35 Pound
Capacity Machines
Figure 4
CHM1995N
1Sump 3Vibration Switch
2Gap Distance 4Switch Extension
CHM1995N
1
2
3
4

Specifications and Dimensions
F232135
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
For 40 and 50 Pound Capacity Variable-Speed
and Fixed-Speed Machines
Figure 5
CHM2000N
1Sump 3Vibration Switch
2Gap Distance 4Switch Extension
1
2
3
4
3
4

Specifications and Dimensions
15
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
For 60 Pound Capacity Variable-Speed and
Fixed-Speed Machines
Figure 6
CHM1999N
1Lower Bracket 4Balance Bolt
2Upper Bracket 5Lock Nut
3Vibration Switch 6Gap Distance
CHM1999N
6
2
2
4
3
5
1

Specifications and Dimensions
F232135
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
For 80 Pound Capacity Machines
Figure 7
CHM1998N
1Switch Extension 3Vibration Switch
2Gap Distance
CAB1998N
1
2
3

Specifications and Dimensions
17
F232135 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
For 125 Pound Capacity Machines
Figure 8
CHM1993N
1Vibration Switch 3Switch Extension
2Gap Distance
1
2
3

Specifications and Dimensions
F232135
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Variable-Speed and Fixed-Speed Models
Specification 20 30 35 40 50 60 80 125
Overall Dimensions
Overall width, in. (mm) 26
(660)
29
(737)
30-1/8
(765)
30-5/8
(778)
34-1/16
(865)
34-1/16
(865)
41-1/2
(1054)
48
(1219)
Overall height, in. (mm) 42-7/8
(1089)
45-7/8
(1165)
47-1/4
(1200)
47-7/8
(1216)
50-13/16
(1291)
50-13/16
(1291)
56
(1422)
70-1/2
(1791)
Overall depth, in. (mm) 29-13/16
(757)
34-13/16
(884)
38-1/2
(978)
40-3/16
(1021)
42-13/16
(1087)
42-13/16
(1087)
51-5/8
(1311)
56-3/4
(1441)
Weight and Shipping Information
Net weight, lbs. (kg) 386
(175)
498
(226)
621
(282)
706
(321)
767
(348)
773
(350)
1406
(633)
2346
(1066)
Domestic shipping weight, lbs. (kg) 424
(191)
545
(245)
670
(301)
744
(338)
818
(371)
824
(373)
1456
(655)
2421
(1098)
Domestic shipping volume, ft3(m3)28
(0.8)
35
(1.0)
39
(1.09)
42.6
(1.19)
53
(1.5)
53
(1.5)
97
(2.7)
153
(4.3)
Export shipping weight, lbs. (kg) 476
(215)
588
(267)
731
(332)
846
(385)
967
(439)
1020
(463)
1506
(678)
2701
(1225)
Export shipping volume, ft3(m3)30.1
(0.86)
39.6
(1.11)
47.1
(1.32)
54.1
(1.51)
58.7
(1.67)
58.7
(1.67)
109.5
(3.1)
173
(4.8)
Wash Cylinder Information
Cylinder diameter, in. (mm) 21
(533)
24
(610)
26-1/4
(667)
26-1/4
(667)
30
(762)
30
(762)
36
(914)
42
(1060)
Cylinder depth, in. (mm) 13-3/4
(349)
16
(406)
18-3/8
(467)
20-1/4
(514)
20
(508)
22
(559)
22
(559)
24
(609)
Cylinder volume, ft3(l) 2.76
(78.1)
4.19
(118)
5.76
(163.1)
6.34
(180)
8.18
(232)
9.00
(255)
12.96
(367)
19.24
(545)
Perforation size, in. (mm) 0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
0.188
(4.76)
Perforationopenarea,% 17231717.518182717
Door Opening Information
Door opening size, in. (mm) 12
(305)
14-11/32
(364)
14-11/32
(364)
16-1/4
(413)
16-1/4
(413)
16-1/4
(413)
18-1/2
(470)
20
(508)
Height of door bottom above floor, in. (mm) 14-3/8
(365)
14
(356)
16
(406)
14-1/2
(368)
13-1/2
(343)
13-1/2
(343)
17-3/4
(451)
29
(737)
Power Consumption
Average power used per cycle, kW-hr 0.05 0.07 0.20 0.34 0.37 0.21 0.40 0.60
Average HVAC load, Btu/hr 400 450 510 510 750 750 950 1200
