Alliance Laundry Systems HF18VNV User manual

Washer-Extractor
Cabinet Freestanding
Variable-Speed
Instructions for
Operating and Programming
the V-Series Microcomputer
Model Numbers
HF18VNV SF18VNV UF18PNV
HF25VNV SF25VNV UF25PNV
Part No. F232072R3
September 1998
Operation/Programming
NOTA: El manual en
español aparece después
del manual en inglés.

F232072 1
Table of Contents
Operation/Programming
Safety
Key to Symbols . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Decal Locations. . . . . . . . . . . . . . . . . . . 5
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . 6
Safe Operating Environment . . . . . . . . . . . . . . 7
Environmental Conditions . . . . . . . . . . . . . 7
Machine Location . . . . . . . . . . . . . . . . . . . . 8
Input and Output Services . . . . . . . . . . . . . 8
AC Inverter Drive . . . . . . . . . . . . . . . . . . . . 9
Misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation
Customer Service . . . . . . . . . . . . . . . . . . . . . . . 11
Machine Familiarization Guide . . . . . . . . . . . . 11
Theory of Operation . . . . . . . . . . . . . . . . . . . . 13
V-Computer . . . . . . . . . . . . . . . . . . . . . . . . . 13

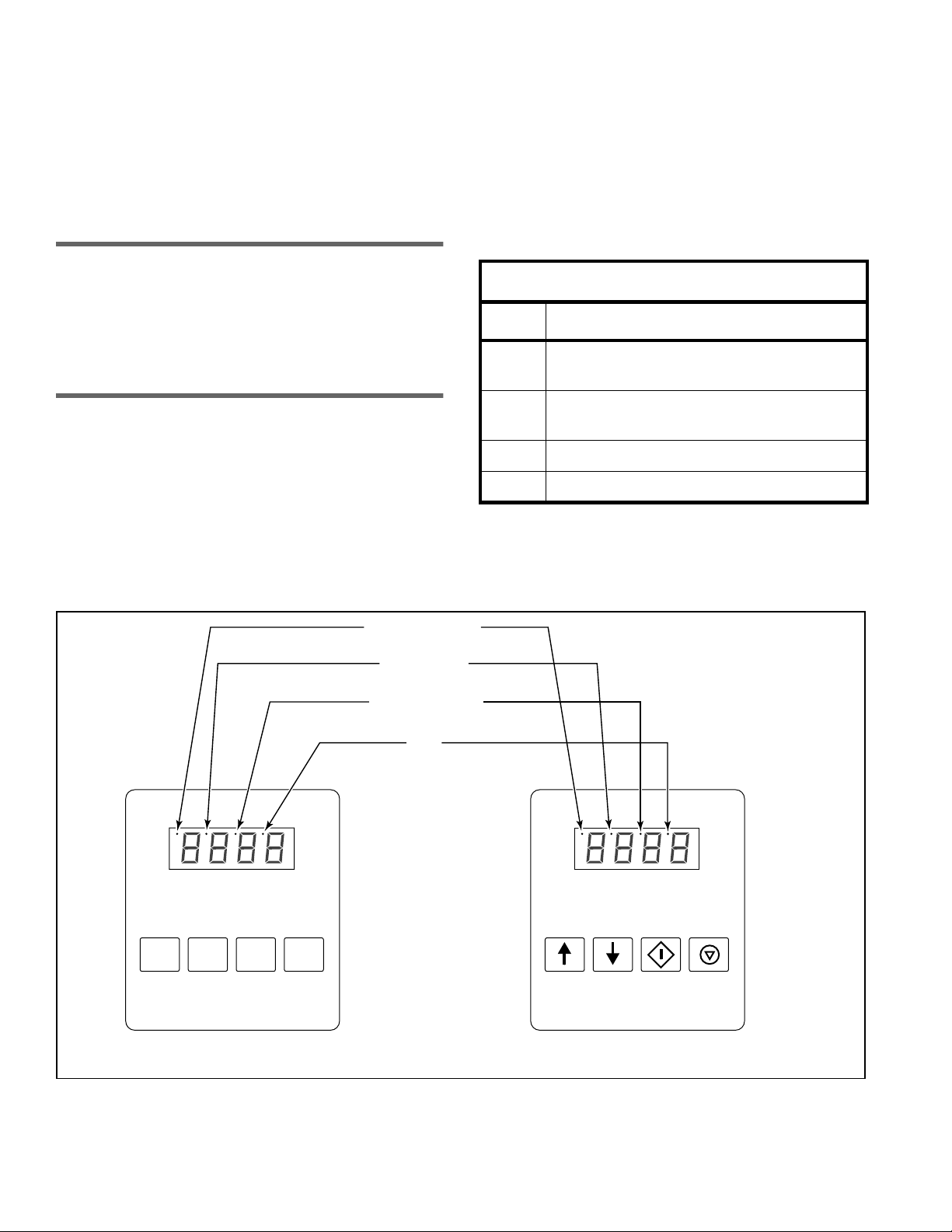

Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Conditions Monitored by the Computer . . . 15
Display Indications . . . . . . . . . . . . . . . . . . . 16
Start-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Opening Door . . . . . . . . . . . . . . . . . . . . . . . . . 17
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Supply Dispenser . . . . . . . . . . . . . . . . . . . . . . . 18
Cycle Selection . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cycle Execution . . . . . . . . . . . . . . . . . . . . . . . . 18
Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Test Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Stop Routine . . . . . . . . . . . . . . . . . . . . . . . . 20
Balance Detection. . . . . . . . . . . . . . . . . . . . . . . 20
Overtravel Limit Switch . . . . . . . . . . . . . . . . . . 21
Programming
Key Functions in Programming Mode . . . . . . 23
Setup Mode. . . . . . . . . . . . . . . . . . . . . . . . . 23
Degrees Displayed in Fahrenheit
or Celsius . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Auxiliary Heat . . . . . . . . . . . . . . . . . . . . . . 24
Supply 5 or Auxiliary Fill. . . . . . . . . . . . . . 24
Temperature-Controlled Fill. . . . . . . . . . . . 24
Automatic Cool-Down . . . . . . . . . . . . . . . . 25
Cycle Count . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cycle Programming. . . . . . . . . . . . . . . . . . . . . 25
Cycle Options. . . . . . . . . . . . . . . . . . . . . . . 25
Agitation Action. . . . . . . . . . . . . . . . . . . . . 25
Agitation Speed . . . . . . . . . . . . . . . . . . . . . 26
Recirculation Pump . . . . . . . . . . . . . . . . . . 26
Segment Programming . . . . . . . . . . . . . . . . 26
Test Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Chemical Injection Supply System . . . . . . . . . 31
Cycle Segment Charts . . . . . . . . . . . . . . . . . . . 32
V-Computer Cycle Charts . . . . . . . . . . . . . . . . 36
Cycle Programming Worksheet. . . . . . . . . . . . 42

2F232072
© Copyright 2000, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.

F232072 3
Section 1
Safety
Anyone operating or servicing this machine must
follow the safety rules in this manual. Particular
attention must be paid to the DANGER, WARNING,
and CAUTION blocks which appear throughout the
manual.
The following warnings are general examples that
apply to this machine. Warnings specific to a
particular operation will appear in the manual with
the discussion of that operation.
Be careful around the open door, particularly
when loading from a level below the door.
Impact with door edges can cause personal
injury.
CAUTION
SW025
Dangerous voltages are present in the
electrical control box(es) and at the motor
terminals. Onlyqualified personnel familiar with
electrical test procedures, test equipment, and
safety precautions should attempt adjustments
and troubleshooting. Disconnect power from
the machine before removing the control box
cover, and before attempting any service
procedures.
WARNING
SW005
Death or serious injury can result if children
become trapped in the machine. Do not allow
children to play on or around this machine. Do
not leave children unattended while the
machine door is open.
DANGER
SW001
This machine must be installed, adjusted, and
serviced by qualified electrical maintenance
personnel familiar with the construction and
operation of this type of machinery. They must
also be familiar with the potential hazards
involved. Failure to observe this warning may
result in personal injury and/or equipment
damage, and may void the warranty.
WARNING
SW004

Safety
4F232072
Key To Symbols
The lightning flash and arrowhead within the
triangle is a warning sign indicating the presence of
dangerous voltage.
The exclamation point within the triangle is a
warning sign indicating important instructions
concerning the machine and possibly dangerous
conditions.
This warning symbol indicates the presence of
potentially dangerous drive mechanisms within the
machine. Guards should always be in place when
the machine is in operation.
This warning symbol indicates the presence of
possibly dangerous chemicals. Proper precautions
should be taken when handling corrosive or caustic
materials.
This warning symbol indicates the presence of hot
surfaces that could cause serious burns. Stainless
steel and steam lines can become extremely hot and
should not be touched.
This warning symbol indicates the presence of
possibly dangerous pinch-points. Moving
mechanical parts can crush and/or sever body parts.
Ensure that the machine is installed on a level
floor of sufficient strength and that the
recommended clearances for inspection and
maintenance are provided. Never allow the
inspection and maintenance space to be
blocked.
CAUTION
SW020
Never touch internal or external steam pipes,
connections, or components. These surfaces
can be extremely hot and will cause severe
burns. The steam must be turned off and the
pipe, connections, and components allowed to
cool before the pipe can be touched.
WARNING
SW014

F232072 5
Safety
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals could result in injury to the operator or service technician.
Figure 1
81968R1
81968R1
R069RE3A

Safety
6F232072
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the factory
immediately.
Use factory-authorized spare parts to avoid safety
hazards.
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing
or illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation
of the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and
attempt to start the machine. The machine
should not start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is
in progress. The door should not open.
If the door lock and interlock are not
functioning properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
NEVER insert hands or objects into basket
until it has completely stopped. Doing so could
result in serious injury.
WARNING
SW012
Never operate the machine with a bypassed or
disconnected out-of-balance switch. Operating
the machine with severe out-of-balance loads
could result in personal injury and serious
equipment damage.
WARNING
SW010

F232072 7
Safety
Safe Operating Environment
Safe operation requires an appropriate operating
environment for both the operator and the machine.
If questions regarding safety arise, contact the
factory immediately.
Environmental Conditions
l Ambient Temperature .Water in the machine
will freeze at temperatures of 32°F (0°C) or
below.
Temperatures above 120°F (50°C) will result in
more frequent motor overheating and, in some
cases, malfunction or premature damage to
solid state devices that are used in some
models. Special cooling devices may be
necessary.
Water pressure switches are affected by
increases and decreases in temperature. Every
25°F (10°C) change in temperature will have a
1% effect on the water level.
l Humidity . Relative humidity above 90% may
cause the machine’s electronics or motors to
malfunction or may trip the ground fault
interrupter. Corrosion problems may occur on
some metal components in the machine.
If the relative humidity is below 30%, belts and
rubber hoses may eventually develop dry rot.
This condition can result in hose leaks, which
may cause safety hazards external to the
machine in conjunction with adjacent electrical
equipment.
l Ventilation . The need for make-up air openings
for such laundry room accessories as dryers,
ironers, water heaters, etc., must be evaluated
periodically. Louvers, screens, or other
separating devices may reduce the available air
opening significantly.
l Radio Frequency Emissions .A filter is
available for machines in installations where
floor space is shared with equipment sensitive
to radio frequency emissions.
l Elevation .If the machine is to be operated at
elevations of over 3,280 feet (1,000 meters)
above sea level, pay special attention to water
levels and electronic settings (particularly
temperature) or desired results may not be
achieved.
l Chemicals . Keep stainless steel surfaces free of
chemical residues.
l Water Damage .Do not spray the machine with
water. Short circuiting and serious damage may
result. Repair immediately all seepage due to
worn or damaged gaskets, etc.
Do not place volatile or flammable fluids in any
machine. Do not clean the machine with
volatile or flammable fluids such as acetone,
lacquer thinners, enamel reducers, carbon
tetrachloride, gasoline, benzene, naptha, etc.
Doing so could result in serious personal injury
and/or damage to the machine.
DANGER
SW002

Safety
8F232072
Safe Operating Environment
(Continued)
Machine Location
l Foundation . The concrete floor must be of
sufficient strength and thickness to handle the
floor loads generated by the high extract speeds
of the machine.
l Service/Maintenance Space .Provide sufficient
space to allow comfortable performance of
service procedures and routine preventive
maintenance.
This is especially important in connection with
machines equipped with an AC inverter drive.
Consult installation instructions for specific details.
Input and Output Services
l Water Pressure . Best performance will be
realized if water is provided at a pressure of
30 – 85 psi (2.0 – 5.7 bar). Although the
machine will function properly at lower
pressure, increased fill times will occur. Water
pressure higher than 100 psi (6.7 bar) may
result in damage to machine plumbing.
Component failure(s) and personal injury could
result.
l Steam Heat (Optional) Pressure .Best
performance will be realized if steam is
provided at a pressure of 30 – 80 psi (2.0 – 5.4
bar). Steam pressure higher than 125 psi (8.5
bar) may result in damage to steam components
and may cause personal injury.
For machines equipped with optional steam
heat, install piping in accordance with approved
commercial steam practices. Failure to install
the supplied steam filter may void the warranty.
l Compressed Air . For machines requiring
compressed air service, best performance will
be realized if air is provided at a pressure of
80 – 100 psi (5.4 – 6.7 bar). Large capacity
machines could experience door seal failure if
compressed air service is interrupted.
l Drainage System .Provide drain lines or
troughs large enough to accommodate the total
number of gallons that could be dumped if all
machines on the site drained at the same time
from the highest attainable level. If troughs are
used, they should be covered to support light
foot traffic.
l Power. For personal safety and for proper
operation, the machine must be grounded in
accordance with state and local codes. The
ground connection must be to a proven earth
ground, not to conduit or water pipes. Do not
use fuses in place of the circuit breaker. An
easy-access cutoff switch should also be
provided.
Replace all panels that are removed to perform
service and maintenance procedures. Do not
operate the machine with missing guards or
with broken or missing parts. Do not bypass
any safety devices.
CAUTION
SW019

F232072 9
Safety
Always disconnect power and water supplies before
a service technician performs any service
procedure. Where applicable, steam and/or
compressed air supplies should also be
disconnected before service is performed.
AC Inverter Drive
Machines equipped with the AC inverter drive
require special attention with regard to the
operating environment.
l An especially dusty or linty environment will
require more frequent cleaning of the AC
inverter drive cooling fan filter and of the AC
inverter drive itself.
l Power line fluctuations from sources such as
uninterruptible power supplies (UPS) can
adversely affect machines equipped with the AC
inverter drive. Proper suppression devices
should be utilized on the incoming power to the
machine to avoid problems.
l A clean power supply free from voltage spikes
and surges is absolutely essential for machines
equipped with the AC inverter drive. Nonlinear
inconsistencies (peaks and valleys) in the power
supply can cause the AC inverter drive to
generate nuisance errors.
If voltage is above 230V for 200V installations
or above 440V for 400V installations, a
buckboost transformer is recommended. If
voltage is above 240 or 480, a buckboost
transformer is required.
l Sufficient space to perform service procedures
and routine preventive maintenance is especially
important for machines equipped with the AC
inverter drive.
Misuse
Never use this machine for any purpose other than
washing fabric.
l Never wash petroleum-soaked rags in the
machine. This could result in an explosion.
l Never wash machine parts or automotive parts
in the machine. This could result in serious
damage to the basket.
l Never allow children to play on or around this
machine. Death or serious injury can result if
children become trapped in the machine. Do not
leave children unattended while the machine
door is open. These cautions apply to animals
as well.
Ensure that a ground wire from a proven earth
ground is connected to the ground lug near the
input power block on this machine. Without
proper grounding, personal injury from electric
shock could occur and machine malfunctions
may be evident.
WARNING
SW008

Safety
10 F232072
Notes

F232072 11
Section 2
Operation
This manual is designed as a guide to operating and
programming the 18-pound and 25-pound capacity
cabinet freestanding washer-extractors equipped
with the V-computer and AC inverter drive. The
models covered by this manual are designed for use
in on-premises laundries.
Keep the manuals, installation instructions, and the
wiring diagrams which accompany the machine in a
safe place for ready reference. They have been
included with the machine at no charge. Additional
copies are available at a nominal charge.
Note: Read this manual thoroughly before
attempting to operate the machine or program the
microcomputer.
Note: Do not use this manual in conjunction with
earlier model computer-controlled machines. Do
not use technical literature intended for earlier
models when operating this machine.
Note: All information, illustrations, and
specifications contained in this manual are based on
the latest product information available at the time
of printing. We reserve the right to make changes at
any time without notice.
Customer Service
If literature or replacement parts are required,
contact the source from whom the machine was
purchased or contact Alliance Laundry Systems
LLC at [phone] for the name and address of
the nearest authorized parts distributor.
For technical assistance, call any of the following
numbers:
[phone]
[phone]
Marianna, Florida
[phone]
Ripon, Wisconsin
A record of each machine is on file with the
manufacturer. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance.
Machine Familiarization Guide
The machine familiarization guide in Figure 2
provides front and rear views of the washer-
extractor and identifies the major operational
features of the machine.

Operation
12 F232072
Figure 2
Supply Dispenser
Top Cover Control Panel
V-Computer Keypad
Emergency
Stop Button
Door Glass
Base Frame
Inner
Front
Panel
Front View
Door
Handle
Door
Outer
Front
Panel
Door
Unlock
Button
Door Unlock
Switch
Power
Connection
AC Drive Cooling
Fan Filter Cold Water Inlet
Hot Water Inlet
Steam
Inlet
(Optional)
Vacuum
Breaker
Vent
Base
Frame
Rear Panel
Drain Outlet
B007RE3A
Rear View

F232072 13
Operation
Theory of Operation
The design of the machine emphasizes performance
reliability and long service life. The cylinder, shell,
and main body panels are fabricated of stainless
steel.
The machine uses one motor to drive the cylinder
via a V-belt drive in all speeds.
A door-lock system prevents opening of the
stainless steel door when water is in the machine. It
also prevents operation of the machine when the
door is open.
An electrically operated drain valve is used to retain
the water and wash solution in the machine during
the wash and fill steps. The drain valve closes when
power is applied and opens when power is removed,
allowing the machine to drain in the event of a
power failure.
The cylinder is designed with lifters or ribs that lift
the garments from the wash solution when the
cylinder rotates at slow speed and allow the
garments to tumble back into the solution. The
cylinder is perforated, allowing the water to pass
through and drain from within during the wash
process and extract.
Electrical controls for the machine are housed in a
separate enclosure located underneath the top cover
of the machine.
The machine uses an AC inverter drive control
which provides six motor speeds using a single
motor. The solid state output board converts motor
logic from the V-computer to the correct signals for
the AC inverter drive.
The AC inverter drive uses special balance detection
software in conjunction with the V-computer to
prevent out-of-balance conditions. When the AC
drive detects an unbalanced load at the end of a
drain step, the computer will make up to seven
attempts to balance the load. As a fail-safe measure,
an overtravel limit switch is installed between the
frame and the sump, stopping the AC drive when
tripped.
The operator can select from among 30 cycles, 16
of which are preprogrammed at the factory. On
export models, 10 cycles are preprogrammed at the
factory. A special permanent test cycle can be
selected to verify proper operation of the machine.
Electronic sensing of load balancing is utilized to
attempt to optimize load balance prior to extract.
The machine is equipped with five hose barbs on
the rear of the machine to facilitate connection to an
external chemical supply system. A terminal strip in
the input power junction box provides control
signals for an external chemical supply system.
V-Computer
The V-computer control is a programmable solid-
state control capable of storing and running up to 30
cycles. A detailed description of these cycles can be
found in the Programming section of this manual
under V-Computer Standard OPL Cycles and
V-Computer Export OPL Cycles.
If this machine’s computer has been equipped with
special preprogrammed cycles, a separate insert
listing these cycles has been included in the
resealable plastic bag which contained this manual.

Operation
14 F232072
Theory of Operation (Continued)
Note: Never turn the power off while the computer
mode switch is in the PROGRAM position. Such
action will disorder portions of the programmed
data, necessitating reprogramming of some or all of
the existing cycles. Always return the mode switch
to RUN position before turning the power off.
Keypad
Operation of the V-computer control is performed
with a 4-key touch keypad and LED display located
on the front of the machine. See Figure 3 for
domestic and international versions of the keypad.
The following table describes the function of the
individual keys when the machine is in RUN mode.
Figure 3
Keypad
Key Description
Up Used in cycle selection; pressing this key moves
among cycles from smaller to greater.
Down Used in cycle selection; pressing this key moves
among cycles from greater to smaller.
Start Used to start a cycle.
Stop Used to stop a cycle.
Up Down Start Stop
R076RE3A
Medium Water
Level
High Water
Level
Out-of-Balance
Condition
Domestic International
Low
Water
Level

F232072 15
Operation
Conditions Monitored by the Computer
l Door – The computer continuously monitors the
open/locked status of the door. If it detects that
the door is open during a wash cycle, it
immediately aborts the cycle and executes the
stop routine.
l Power – If power is interrupted long enough for
the computer to go off, after the power is
restored, the display briefly flashes “Hold” to
indicate the interruption. The door unlock will
be disabled to keep the door from being opened
while the basket is still turning.
l Balance – The computer monitors the balance
signal provided by the AC drive during drain
steps. It will attempt to distribute the load seven
(7) times. The dot at the top of the leftmost
display digit will light following the final
unsuccessful attempt.
l Water level – The computer attempts to
maintain the water level programmed for the fill
preceding the agitation step. If the level falls
below the programmed level, the computer will
stop the time countdown and re-energize the fill
valves until the level is restored.
l Water level in a heat step – In order for the
computer to energize the heat output, there must
be at least a low water level in the machine. If
this minimum level is not detected, the heat
output will be turned off until the required level
is restored.
l Temperature probe problem – If the
temperature sensor fails when prompted for
degrees Fahrenheit, the computer flashes “tSFL”
in PROGRAM mode rather than showing the
temperature. If the temperature sensor fails
when prompted for degrees Celsius, the display
will read “-17C” rather than showing the
temperature.
The following table, entitled “Display Indications,”
lists the various displays and what they mean. The
operator should become familiar with these
computer displays.

Operation
16 F232072
Display Indications
Display Meaning Display Meaning
FP1 Program identification code (ROM). This is an
example only. Med Medium water level
Hold Wait...power has just been turned on. HI High water level
CY Cycle (followed by two-digit number) SUP1 Supply 1
tESt/CYC* Test cycle selected. SUP2 Supply 2
FAr Degrees Fahrenheit SUP3 Supply 3
CEL Degrees Celsius SUP4 Supply 4
Heat Auxiliary heat enabled. SUP5 Supply 5 (SETUP option)
noHt Auxiliary heat disabled. SUP6 Supply 6 (supply 1 and 5)
tFIL Temperature-controlled fill enabled. SUP7 Supply 7 (supply 3 and 4)
ntFL Temperature-controlled fill disabled. SLo/For Gentle wash speed, forward direction
CooL Automatic cool-down enabled. SLo/rEv Gentle wash speed, reverse direction
noCL Automatic cool-down disabled. norM/For Normal wash speed, forward direction
Ag 1 Agitation 1 selected (90% agitation). norM/rEv Normal wash speed, reverse direction
Ag 2 Agitation 2 selected (33% agitation). drAI Drain enabled.
Ag 3 Agitation 3 selected (10% agitation). nodr Drain disabled.
Ag 4 Agitation 4 selected (6.7% agitation). dISt Distribution (load balancing before extract)
AgSn Agitation speed normal SPIn/tIME* Reads “SPIn” for one second, then “tIME”
followed by time for spin.
AgSL Agitation speed low
PMP Pump output enabled (future use only). SPn1 Lowest of three spins
nPMP Pump output disabled (future use only). SPn2 Middle of three spins
PrE Prewash segment (1st of 11 segments) SPn3 Highest of three spins
UASH Wash segment (2nd of 11 segments) STOP Stop routine
FIL1 First fill (3rd of 11 segments) SdLY Spin coast delay
FIL2 Second fill (4th of 11 segments) donE Cycle and stop routine have ended.
FIL3 Third fill (5th of 11 segments) dFLt Drive fault detected.
FIL4 Fourth fill (6th of 11 segments) door Door not properly closed.
FIL5 Fifth fill (7th of 11 segments) bAL/FAIL* Balancing routine failed during test cycle after
10 attempts to balance load.
FIL6 Sixth fill (8th of 11 segments)
FIL7 Seventh fill (9th of 11 segments) FILL/STOP* Programmed water level not reached after 30
minutes.
FIL8 Eighth fill (10th of 11 segments)
FIL9 Ninth fill (11 of 11 segments) FULL The computer detects low water level or higher
when none should be present.
CFIL Cold fill
bFIL Warm fill (both hot and cold) rotA Computer detects possible rotation of motor
when there should be none.
HFIL Hot fill
AFIL Auxiliary fill (SETUP option) tSFL Temperature sensor failure or temperature out of
range.
Lo Low water level
*Display indications separated by a slash represent a flashing display.

F232072 17
Operation
Start-Up
Turn on the main power source (circuit breaker or
cut-off switch on the wall).
An identification code will appear for
approximately five seconds. Then the display will
flash “hold” briefly.
The display will then read “CY” followed by a two-
digit cycle number (01 – 30) to indicate that a cycle
can be selected. This display will be shown at all
times that power is on between cycles, indicating
that the door-unlock solenoid will function if the
door-unlock button is pressed. The machine is then
ready for loading and unloading.
Opening Door
Press and hold the door-unlock button on the left
side of the control panel. Press the round button on
the door handle and turn the door handle downward.
Loading
Load the machine to full capacity whenever
possible, but do not exceed the rated dry-weight
capacity of the machine if the fabric to be washed is
quite dense, closely woven, and heavily soiled.
Overloading can result in an inferior wash. The
operator may need to experiment to determine load
size based on fabric content, soil content, and level
of cleanliness required.
Partial loads are a waste of energy, water, and
chemicals, and cause greater machine wear than full
loads. Partial loads also increase the possibility of a
severe out-of-balance condition.
When loading is complete, ensure that all fabric is
inside the basket. Then close and lock the door by
rotating the door handle counterclockwise until the
door handle pushbutton pops out. The machine
should not start or run unless the door is both closed
and locked.
Note: When washing items which may disintegrate,
such as mop heads or sponges, use laundry net bags
to prevent drain blockage.
Be careful around the open door, particularly
when loading from a level below the door. Impact
with door edges can cause personal injury.
CAUTION
SW025
Never operate the machine with a bypassed or
disconnected balance system. Operating the
machine with severe out-of-balance loads could
result in personal injury and serious equipment
damage.
WARNING
SW039
Check the door safety interlock daily before the
machine is placed in operation.
CAUTION
SW024

Operation
18 F232072
Supply Dispenser
The 18-pound and 25-pound capacity freestanding
models are equipped with a three-compartment
polypropylene supply dispenser. The supply
dispenser is mounted at the left top of the machine
as seen from the front. Both liquid and powder
supplies may be added by raising the flexible cover
of the dispenser.
Cycle Selection
Note: Press keys at their centers just hard enough to
activate them.
Press the Up or Down key until the desired cycle
number is displayed. Press the Start key to start the
cycle. For a more detailed description of the
preprogrammed cycles, see the cycle charts at the
end of the Programming section.
If the computer detects that the door is not properly
closed when the Start key is pressed, the display
will read “door” until the door is closed and locked.
Press Start again to begin the desired cycle.
Cycle Execution
A cycle can be stopped at any time by pressing the
Stop key. The machine will go to the stop routine.
When the routine is complete, the door may be
unlocked.
To display the temperature of the water while a
cycle is running, press the Up key. To display the
number of the cycle in progress, press the Start key.
Note: The computer does not count down the
remaining cycle time during fills, drains,
cool-down, or prior to first achieving the
programmed heat temperature when heating. The
computer resumes counting down cycle time once
the programmed fill level is reached, when the
machine has drained, and after a programmed heat
temperature is reached.
Each of the 30 cycles consists of 11 segments:
Prewash, Wash, and Fills 1 – 9. A description of the
various steps in a cycle segment follows:
Fill
After the Start key is pressed, the door locks, the
drain closes, and the machine begins filling to the
programmed level. Each programmed segment
begins with a fill. The display counts down the
remaining cycle time in minutes and seconds while
the cycle is running.
If a supply is programmed in a step, the supply
dispenser will flush during the fill of that segment.
If the machine is connected to an external chemical
supply system, the programmed supply will begin
10 seconds into the fill. The supply will remain on
until the programmed water level is reached, or
until 60 seconds have elapsed, whichever happens
first.
If agitation options 1 or 2 are selected for the cycle
program, the cylinder will rotate slowly during the
fill step. If agitation options 3 or 4 are selected for
the cycle program, the cylinder will not rotate
during the fill step. See the Agitation Options table
for more information.

F232072 19
Operation
If the computer does not receive a signal that water
level has been attained within 30 minutes, it will
alternately flash “STOP” and “FILL” and sound the
on-board beeper for ten seconds. It will then initiate
the stop routine.
Wash
As soon as water level is reached (and any
programmed temperature is reached), the displayed
time begins counting down at one-second intervals.
Agitation is active during this portion of the
segment. There are four different agitation actions
available. See the following table for more
information.
If the segment contains a heat step, the machine
begins heating after the water has reached the
programmed level.
Note: If the water does not reach the programmed
temperature in 40 minutes, the computer progresses
to the wash step.
Drain
If the cycle program segment calls for a drain, the
drain valve will open after the programmed segment
time has elapsed. If a spin step follows a drain step,
the cylinder will turn counterclockwise (forward) at
wash speed while in the drain step.
If the cycle program segment does not call for a
drain, the computer moves to the next segment of
the cycle program. If the segment is at the end of a
cycle program, the computer goes into the stop
routine.
If the cycle program segment does not call for a
spin, the cylinder will continue to agitate
throughout the drain step. When the drain has
completed, the computer moves to the next segment
of the cycle program. If the segment is at the end of
a cycle program, the computer goes into the stop
routine.
Note: The machine should drain in 30 seconds. If
the machine fails to drain, contact a qualified
service technician.
Agitation Action Options
Display Description Percentage
Ag 1
27 seconds forward,
3 seconds pause,
27 seconds reverse,
3 seconds pause
90%
Ag 2
10 seconds forward,
20 seconds pause,
10 seconds reverse,
20 seconds pause
33%
Ag 3
3 seconds forward,
27 seconds pause,
3 seconds reverse,
27 seconds pause
10%
Ag 4
4 seconds forward,
56 seconds pause,
4 seconds reverse,
56 seconds pause
6.7%
