ALLIED MEDICAL AML20505 User manual

Armrest tube x2
Backrest tube x1
Seat support tube x2
Bucket support plate x2
Bag of hex nuts, wing nuts & washers
Instructions
Parts included:

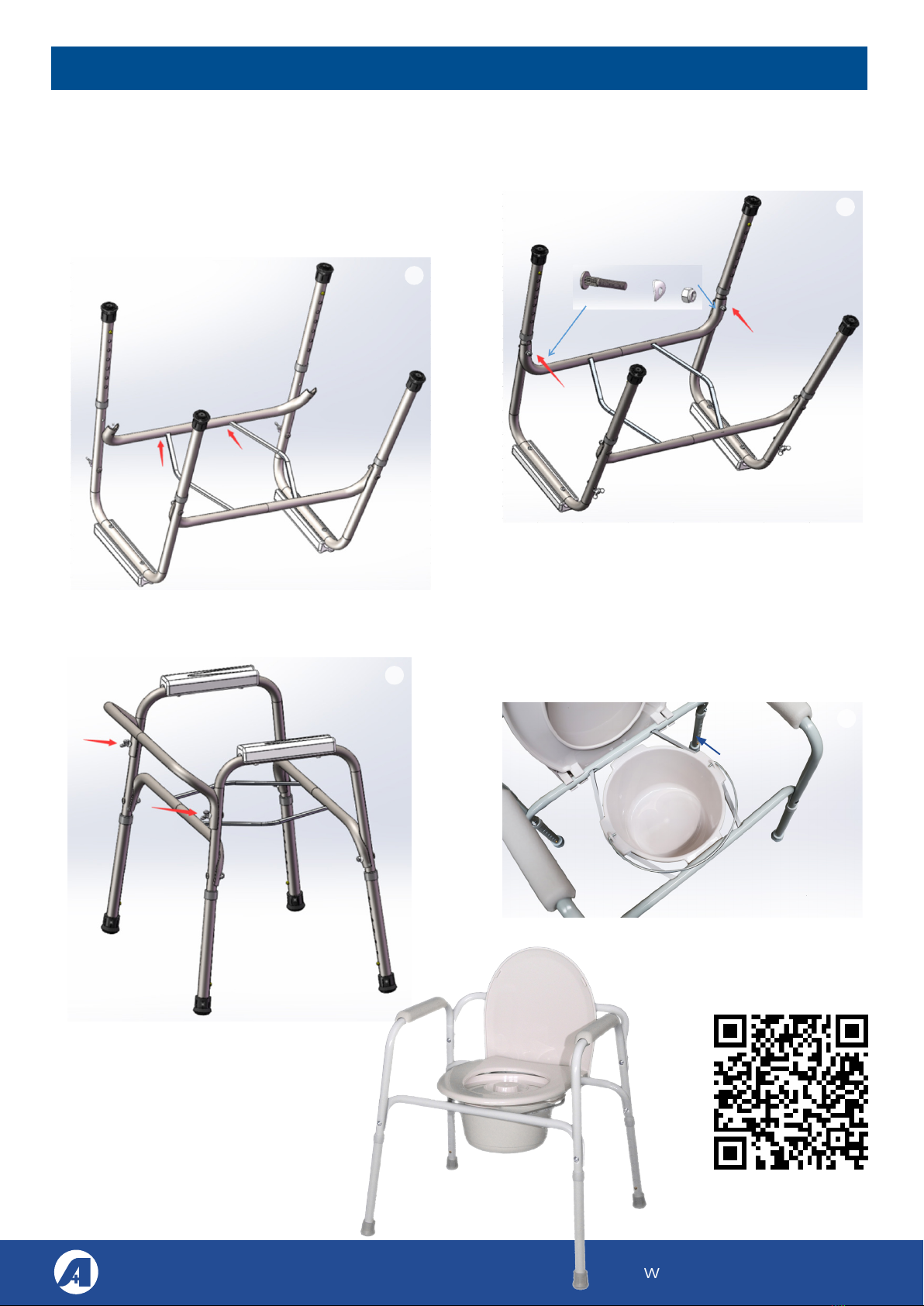

1. Assemble one of the seat support tubes to the
armrest tubes using screws (already inserted,
remove plastic sleeves), hex nuts and washers.
Tighten with a spanner.
Assembly Instructions
AML20505 - 3 in 1 Commode Chair
a
a
Spanner to tighten screws
Tools required:
2. Put both bucket support plates into the oval
holes on the seat support tube with the grooved
sides facing up towards the toilet seat.
Seat and lid (not pictured) x1
Bucket and splash guard (not pictured) x1
b
b
c
c
d
d
e
e
1 2

5. Fix the backrest tube onto the armrest tube by
using wing nuts and washers.
5
www.alliedmedical.co.nz
AML20505 - 3 in 1 Commode Chair
7. Snap the seat and lid onto the
rear support tube.
3. Then place the other seat support tube at an
angle to easily insert the bucket support plate
into the other side of the oval holes. Again
screwing into place.
Note: Having someone help hold the seat
support tubes may make this step easier.
3
4. Turn the seat support tube so that it fits into the
armrest tube, then screw it into place using wing
nuts and washers.
4
Bucket handle
facing forward.
6. Put the bucket onto the pail support plate with
the handle facing forward. This is important for
stability and to stop the bucket handle lifting
the seat and lid o.
6
View the instruction
video on YouTube
www.youtube.com/
watch?v=enYtgA_NuY8
