Cobi Rehab 0130-071-000 User manual

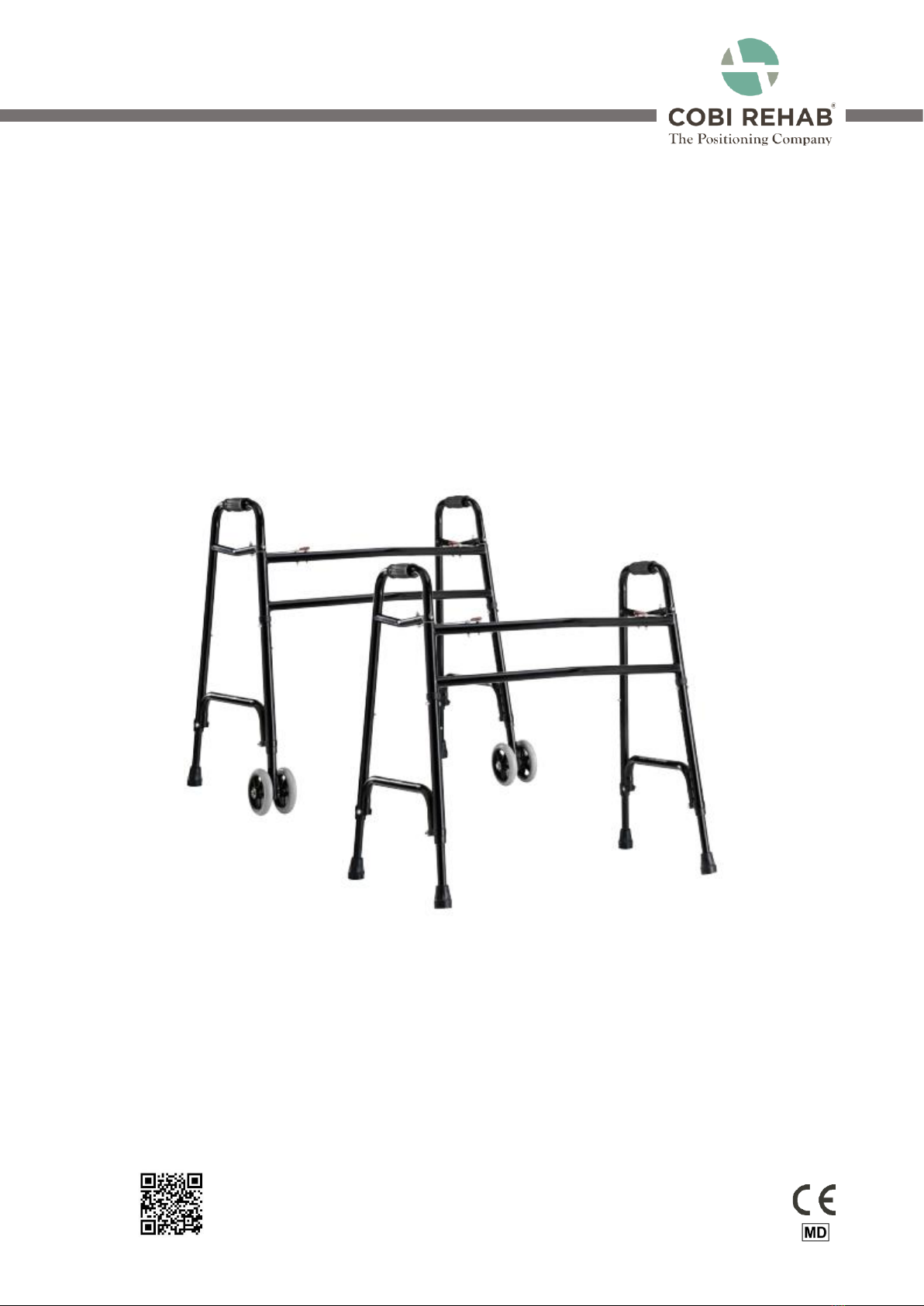

Bariatric Walking Frame
Strong and functional walker developed for the bariatric user.
Walking Frame is intended for users weighing up to 270 kg.
Cobi Rehab and Cobi Rehab’s suppliers comply with UN conventions on
child and forced labor and ILO 029, C132 and C182.
USER MANUAL
Scan or click the QR code and find
the product on the Danish AssistData.

| 2021-05 User manual Walking Frame
2
Table of content
1. Safety .................................................................................................................................................................................................3
2. Symbols ...........................................................................................................................................................................................4
5. Settings ............................................................................................................................................................................................5
4. Use .....................................................................................................................................................................................................5
3. General .............................................................................................................................................................................................5
6. Long-term storage......................................................................................................................................................................6
7. Cleaning and maintenance ......................................................................................................................................................6
8. Disposal............................................................................................................................................................................................6
9. Warranty .........................................................................................................................................................................................7
10. Specifications ..............................................................................................................................................................................8
11. Ordering ..........................................................................................................................................................................................8

| 2021-05 User manual Walking Frame
3
WARNING
Do not use the Walking Frame without prior thorough instructions by
trained staff or by persons who have received instructions in the use of
the Walking Frame. Improper operation may cause injury to the user.
If the Walking Frame is used by persons weighing more than the
maximum user weight, the risk of damaging the Walking Frame
increases.
Carefully study these instructions before using the Walking Frame. Pay
attention to Safety Instructions indicated by a warning triangle .
Cobi Rehab accepts no responsibility for damage caused to the product
nor for personal injury caused by improper installation, assembly or use
of the Walking Frame.
Contact Cobi Rehab immediately in case of damaged or missing parts.
Never use your own spare parts.
SAFETY INSTRUCTIONS
Walking Frame can be damaged if used by a user weighing more than
270kg.
Walking Frame must not be used until the height adjustment clips and
release mechanism buttons are fully pressed into place. The inner tube
may come loose if the clip is not fitted correctly, which means that the
inner tube can slide down into the outer tube.
Always make sure that all legs are the same height.
Do not use this walker in pools, showers, or other water environments,
as this could result in corrosion of parts that lead to damage to the
walker.
Always avoid using Walking Frame on soft, slippery, or moving surfaces,
uneven paths, or stairs.
Rubber bumper must be mounted on the frame. Replace them if worn.
Clips and release mechanism buttons must be inspected and replaced if
necessary.
Lack of maintenance may damage the product, shorten the life, or
affect the performance of the Walking Frame.
Always remember to disinfect Walking Frame when transferred to a
new user. This is done to avoid cross-contamination and infections.
1. Safety

| 2021-05 User manual Walking Frame
4
The following symbols are used in this user manual
and/or on the product label.
Caution!
Declaration of conformity, Medical Device
Regulation, EU 2017/745
Cobi Catalogue number
Serial number
Date of manufacture
Manufacturer
Medical device
Body weight
Consult instructions for use
CE-Label on the product is located on the frame.
See example of label below.
2. Symbols

| 2021-05 User manual Walking Frame
5
Walking Frame is intended to provide support,
stability and safety while walking indoors for a
user weighing up to 270 kg.
Walking Frame can tip or sustain damage if
used by a user weighing more than 270 kg.
Do not use the walker in pools, showers, or
other water environments, as this could result in
corrosion of parts leading to damages on the
walker.
Always avoid using Walking Frame on soft,
slippery, or moving surfaces, uneven paths, or
stairs.
Always, consult a therapist before assigning a
Walking Frame to a user.
Contraindications
The user of Walking Frame must have physical
and cognitive resources to operate the walker in a
safe manner.
Walking Frame is a foldable walking aid, available
in two widths, either with ferrules or with two
massive wheels in front. With two wheels in front
the Walking Frame is easy to walk and roll across
the floor.
The two rear legs ensure that Walking Frame
does not roll away if the user loses balance.
The frame is made of light metal, but the strong
construction and the angled legs make it very
stable.
Adjusting leg height
1. Adjust the height by pushing the clip in and
pulling the inner tube.
2. Make sure all legs are the same height.
3. When desired height is reached, lock legs into
place by aligning buttons into proper holes. Make
sure that the clip is pressed completely into place.
How to unfold Walking Frame
1. Grasp one of the handgrips and pull it away
from the centre of the walker.
2. Repeat with the other handgrip. Push the
handgrips away from each other until the button
release mechanism clicks into place.
How to fold Walking Frame
1. Push downward the button release mechanisms
and hold.
2. While holding buttons down, grab nearest
handgrip and push towards the centre of the
walker. Repeat for the other handgrip.
Make sure that the surface is even for an easier
walk.
Rubber ferrules must be mounted on the frame.
Replace them if worn.
This user manual contains important information
about the use of Walking Frame and the target
group for the Walking Frame. It also includes a
wide range of specifications on Walking Frame.
The most recent version of this user guide can be
found on our website. Check if the version you are
reading now is the most recent.
If you need a user manual that is written in a
larger font size, the guide is available in PDF
format at cobirehab.com, which can be scaled up
to the required font size.
You can always contact Cobi Rehab on + 45 7025
2522 or [e-mail] if you want more
information about Walking Frame.
Cobi Rehab reserves the right to change the
product specifications without providing prior
notice.
The UDI number of the walker appears on the
label, which is located on the side of the frame.
Product safety notices and product recalls can be
viewed on the website.
https://www.cobirehab.com/kunde-hos-
cobi/vigtig-produktinformation/
5. Settings
4. Use
3. General

| 2021-05 User manual Walking Frame
6
Walking Frame should be stored at temperatures
between -10°- 50°C.
Walking Frame can be cleaned with water and
ordinary detergent.
Disinfection
Walking Frame can be disinfected with ethanol
70-85% or a chlorine product 1000-1200 ppm.
Always remember to disinfect Walking Frame
when transferred to a new user. This is done to
avoid cross-contamination and infections.
Local cleaning and disinfection procedures must
always be followed.
Clips and release mechanism buttons must be
inspected and replaced if necessary.
Failure to inspect the clips and release
mechanism buttons
may cause malfunction.
Products that can no longer be used are to be
disposed of in a sustainable way.
Please contact the relevant authorities for
information on proper disposal.
Recycling
Parts of Walking Frame can be reused. Contact
Cobi Rehab for more information.
8. Disposal
7. Cleaning and maintenance
6. Long-term storage

| 2021-05 User manual Walking Frame
7
When delivered, the Walking Frame is free from
defects. Should there, contrary to all inspections,
be any defects or damage to the Walking Frame,
contrary to all inspections, please contact Cobi
Rehab immediately.
The Walking Frame is covered by a 1-year
warranty from the date of purchase. The invoice
serves as warranty certificate.
The warranty does not apply to:
- products whose serial number, batch number
etc. have been removed or considerably damaged
- products that have been repaired by
unauthorized staff
- normal wear and tear, for example cleaning,
adjustment, lubrication and update of equipment
or parts.
The warranty is void if Cobi Rehab assesses that
the Walking Frame has been used for purposes
other than its intended use, for example, if its
weight capacity is exceeded.
In case of incorrect use, both service and spare
parts will be invoiced.
The warranty described above is the only valid
warranty.
Cobi Rehab may not be held liable for damages of
any kind.
Lack of maintenance can damage the product,
shorten the life, or affect the performance of the
Walking Frame.
9. Warranty
Report any incidents related to the use of Walking
Frame to Cobi Rehab.
9.1 Unintended event
After the expected service life, it is important that
an overall assessment of the product is made
before continued use.
After the expected service life, Cobi Rehab
cannot guarantee the suitability and safety of the
product, as Cobi Rehab has no control over how
the product is used and wear and tear.
The overall assessment of the product must be
carried out by qualified professionals, and as a
minimum, consideration must be given to how the
product has been used, the condition of the
product and its components.
Cobi Rehab can always make such an assessment.
9.2 After the expiry of expected service life

| 2021-05 User manual Walking Frame
8
Maximum user weight
270 kg
Height adjustable in 2.5 cm intervals
760-1001 mm
Weight
3 kg
Total length
500 mm
Total width
740/840 mm
Inside width
540/640 mm
Handgrips
TPR
Material
Powder coated light metal
Foldable
Yes
Wheels
Massive
ISO - classification
ISO 12 06 03 - 06
Expected product service life
7 years
Risk class
I
UDI-DI
5740000100991/5740000101004/5740000101011/
5740000101028
Basic UDI
5740000100002MW
The surface temperature of the Walking Frame can increase or decrease when exposed to external
sources of heat or cold.
Model
Width cm
Length cm
Item number
Walking Frame
without wheels
74
50
0130-071-000
Walking Frame
without wheels
84
50
0130-081-000
Walking Frame
with wheels
74
50
0130-074-000
Walking Frame
with wheels
84
50
0130-084-000
10. Specifications
11. Ordering

| 2021-05 User manual Walking Frame
9
MANUFACTURER
Cobi Rehab
Fuglebækvej 1D
DK-2770 Kastrup
Denmark
[phone]
cobirehab.com
