Allied Telesis AT-6101GP User manual

613-001673 Rev B
AT-6101GP
Power over Ethernet Injector
AT-6101GP PoE Injector
Installation Guide

Copyright ©2012 Allied Telesis, Inc.
All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names,
logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document without prior
written notice. The information provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be liable for
any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related
to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the
possibility of such damages.

3
Electrical Safety and Emissions
Standards
This product meets the following standards.
RFI Emissions
FCC Class B, CISPR 22 Class B, EN55022 Class B, VCCI Class B,
C-TICK
Immunity
EN55024
Electrical Safety
UL 60950-1 (CULUS), EN60950 (TUV), CE
U.S. Federal Communications Commission
Declaration of Conformity
Manufacturer Name: Allied Telesis, Inc.
Declares that the product: PoE Ethernet Injector
Model Numbers: AT-6101GP
This product complies with FCC Part 15B, Class B Limits:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
must not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Radiated Energy
Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions, may cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your
authority to operate this equipment under Federal Communications Commission rules.
Industry Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Chapter :
4
Translated Safety Statements
Important: The indicates that a translation of the safety statement is available in a PDF
document titled “Translated Safety Statements” posted on the Allied Telesis website at
www.alliedtelesis.com.

1
Preface .............................................................................................................................................................. 7
Document Conventions................................................................................................................................ 8
Allied Telesis Contact Information................................................................................................................ 9
Chapter 1: Overview ..................................................................................................................................... 11
Features..................................................................................................................................................... 12
AT-6101GP PoE Injector ..................................................................................................................... 12
10/100/1000 Mbps Twisted Pair Ports................................................................................................. 12
LEDs.................................................................................................................................................... 12
Installation Options .............................................................................................................................. 12
Wiring Configuration ............................................................................................................................ 12
Maximum Distance .............................................................................................................................. 12
Cable Requirements............................................................................................................................ 13
Port Pinouts ......................................................................................................................................... 13
Hardware Description................................................................................................................................. 14
LEDs .......................................................................................................................................................... 15
Chapter 2: Installation .................................................................................................................................. 17
Reviewing Safety Precautions ................................................................................................................... 18
Choosing a Site for the AT-6101GP PoE Injector ...................................................................................... 20
Unpacking the AT-6101GP PoE Injector.................................................................................................... 21
Installation Procedures............................................................................................................................... 22
Table Top Installation .......................................................................................................................... 22
Wall Installation ................................................................................................................................... 22
Ethernet Cable Installation .................................................................................................................. 23
AC Power Cord Installation ................................................................................................................. 24
Chapter 3: Troubleshooting ........................................................................................................................ 25
Technical Specifications ............................................................................................................................... 27
Physical Specifications............................................................................................................................... 27
Environmental Specifications ..................................................................................................................... 27
Power Specifications.................................................................................................................................. 27
Certifications .............................................................................................................................................. 28
RJ-45 Twisted Pair Port Pinouts ................................................................................................................ 28
Table of Contents

Contents
2

3
List of Figures
Figure 1. AT-6101GP PoE Injector ......................................................................................................................................14
Figure 2. AC Power Input Connector...................................................................................................................................14
Figure 3. AT-6101GP LEDs.................................................................................................................................................15
Figure 4. AT-6101GP PoE Injector Items ............................................................................................................................21
Figure 5. Marking the Screw Hole Locations.......................................................................................................................22
Figure 6. Securing the AT-6101GP PoE Injector to the Wall...............................................................................................23
Figure 7. Connecting Ethernet Cables.................................................................................................................................23
Figure 8. Connecting AC Power Cord for Table Top Installation.........................................................................................24
Figure 9. Connecting AC Power Cord for Wall Installation ..................................................................................................24
Figure 10. RJ-45 Socket Pin Layout (Front View) ...............................................................................................................28

Figures
4

5
Table 1. Twisted Pair Cable for the 10/100/1000Base-T Ports ..........................................................................................13
Table 2. 10/100Base-TX Port LEDs ..................................................................................................................................15
Table 3. Physical Specifications .........................................................................................................................................27
Table 4. Environmental Specifications ................................................................................................................................27
Table 5. Power Specifications ............................................................................................................................................27
Table 6. Certifications .........................................................................................................................................................28
Table 7. Pin Signals for 10 and 100 Mbps ..........................................................................................................................28
Table 8. Pin Signals for 1000 Mbps ....................................................................................................................................29
List of Tables

Tables
6

7
Preface
This guide contains the installation instructions for the AT-6101 PoE
Injector Installation Guide. This preface contains the following sections:
❒“Document Conventions” on page 8
❒“Allied Telesis Contact Information” on page 9

Preface
8
Document Conventions
This document uses the following conventions:
Note
Notes provide additional information.
Caution
Cautions inform you that performing or omitting a specific action
may result in equipment damage or loss of data.
Warning
Warnings inform you that performing or omitting a specific action
may result in bodily injury.

AT-6101 PoE Injector Installation Guide
9
Allied Telesis Contact Information
If you need assistance with this product, you may contact Allied Telesis
technical support by going to the Support & Services section of the Allied
Telesis web site at www.alliedtelesis.com/support. You can find links for
the following services on this page:
❒24/7 Online Support - Enter our interactive support
center to search for answers to your questions in our
knowledge database, check support tickets, learn
about RMAs, and contact Allied Telesis technical
experts.
❒USA and EMEA phone support - Select the phone
number that best fits your location and customer type.
❒Hardware warranty information - Learn about Allied
Telesis warranties and register your product online.
❒Replacement Services - Submit a Return Merchandise
Authorization (RMA) request via our interactive support
center.
❒Documentation - View the most recent installation
guides, user guides, software release notes, white
papers and data sheets for your product.
❒Software Updates - Download the latest software
releases for your product.
For sales or corporate contact information, go to
www.alliedtelesis.com/purchase and select your region.

Preface
10

11
Chapter 1
Overview
This chapter contains the following sections:
“Features” on page 12
“Hardware Description” on page 14
“LEDs” on page 15

Chapter 1: Overview
12
Features
Here are the features of this product:
AT-6101GP PoE
Injector
The major features of the AT-6101GP PoE Injector are:
Power over Ethernet Injector for
10/100/1000BaseT
Remote power feeding
Overload and short circuit protection
Mixes Ethernet and power into RJ-45 port
Delivers power up to 100 meters
Light weight and compact size
Plug-and-Play
10/100/1000 Mbps Twisted Pair Ports
Power over Ethernet output power of 55V @ 0.6A
IEEE802.3at compliant
10/100/1000
Mbps Twisted
Pair Ports
The AT-6101GP PoE Injector features two ports that are:
10Base-T, 100Base-TX, and 1000Base-T compliant
RJ-45 connectors
LEDs The AT-6101GP PoE Injector has the following LEDs:
AC Power
Feeding Power
Installation
Options
The AT-6101GP PoE Injector may be installed in the following ways:
Desk or tabletop
Wall mounting
Wiring
Configuration
The wiring configuration between the ports on the AT-6101GP are a
straight-through connections.
Maximum
Distance
Each port has a maximum operating distance of 100 meters (328 feet).

AT-6101 PoE Injector Installation Guide
13
Cable
Requirements
The cable requirements of the ports are given in Table 1.
Port Pinouts Refer to Table 7 on page 28 for the port pinouts of the
10/100Base-TX/1000Base-T twisted pair ports.
Table 1. Twisted Pair Cable for the 10/100/1000Base-T Ports
Cable Type 10Mbps 100Mbps 1000Mbps
Standard TIA/EIA 568-B-
compliant Category 3 shielded
or unshielded cabling with 100
ohm impedance and a
frequency of 16 MHz.
Yes Yes No
Standard TIA/EIA 568-A-
compliant Category 5 or TIA/
EIA 568-B-compliant Enhanced
Category 5 (Cat 5e) shielded or
unshielded cabling with 100
ohm impedance and a
frequency of 100 MHz.
Yes Yes Yes
Standard TIA/EIA 568-B-
compliant Category 6 or 6a
shielded cabling.
Yes Yes Yes

Chapter 1: Overview
14
Hardware Description
The AT-6101GP PoE Injector is shown in Figure 1.
Figure 1. AT-6101GP PoE Injector
DATA IN Port: This port, shown in Figure 1, in is an RJ-45 Ethernet
connector where data is received and transmitted through the
AT-6101GP PoE Injector.
DATA OUT Port: This port, shown in Figure 1, is an RJ-45 Ethernet
connector where data is received and transmitted through the
AT-6101GP PoE Injector and provides PoE power along with the
Ethernet data to a PoE device.
AC Power Input Connector: This connector, shown in Figure 2,
connects the AC power source to the AT-6101GP PoE Injector.
Figure 2. AC Power Input Connector

AT-6101 PoE Injector Installation Guide
15
LEDs

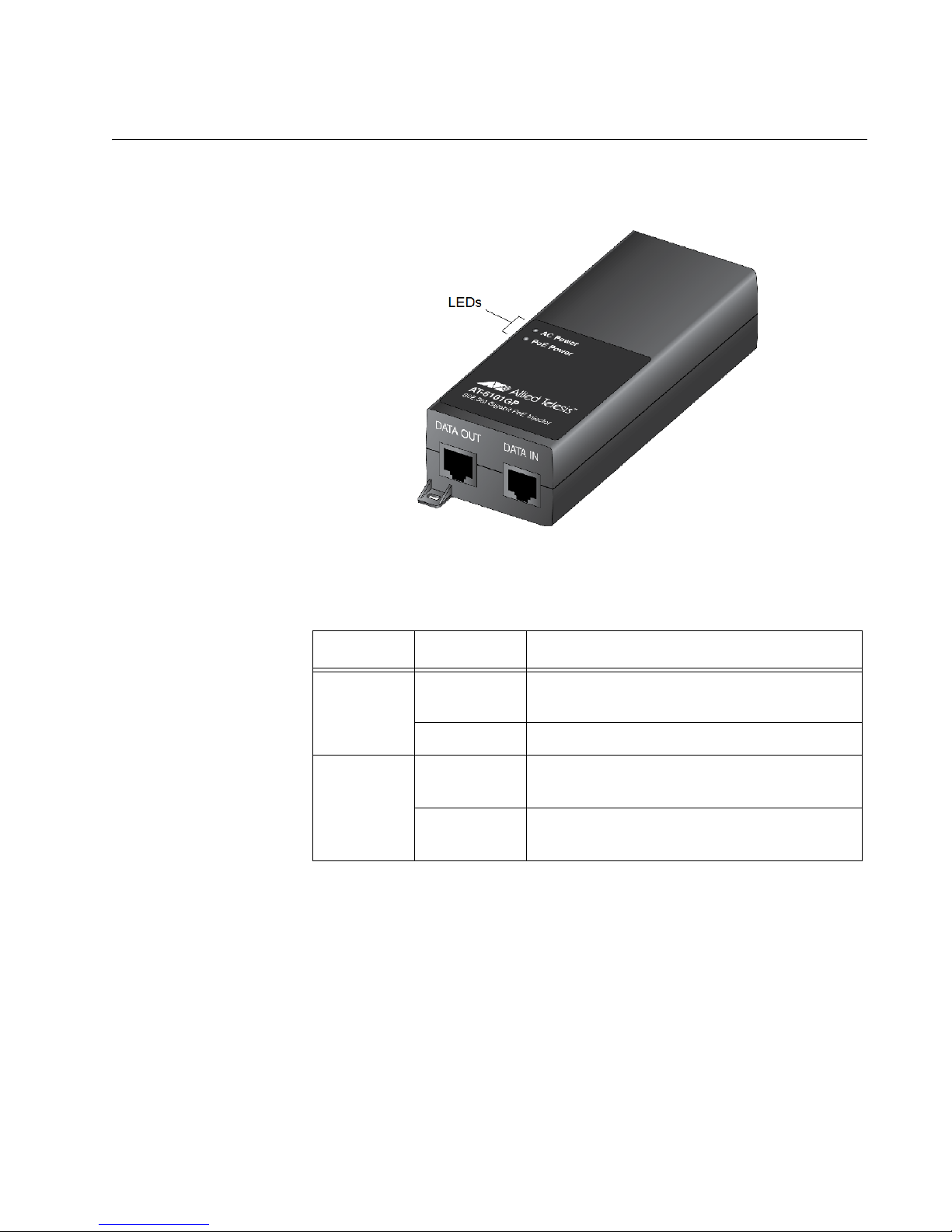

The LEDs of the AT-6101GP PoE Injector are shown in Figure 3 and
described in Table 2.
Figure 3. AT-6101GP LEDs
Table 2. 10/100Base-TX Port LEDs
LED State Description
AC Power
Off No AC power is being provided to the
unit.
Solid Green AC power is being provided to the unit.
PoE
Power
Off The port is not providing PoE power to the
DATA OUT port.
Solid Green The port is providing PoE power to the
DATA OUT port.

Chapter 1: Overview
16
