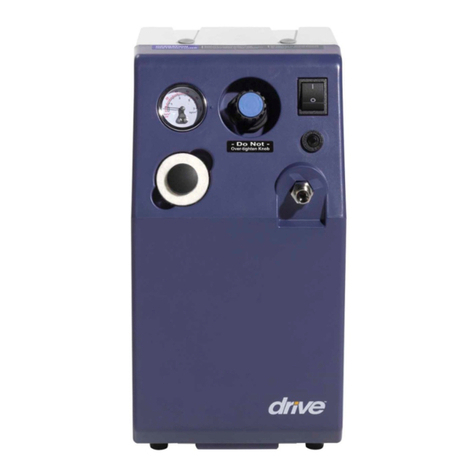

Allied Timeter PCS-414 Installation and operating instructions

D-182 REV. L
4/18
28 LPM at 20 PSIG
5

2

3

WARNING !
•DO NOT USE THIS COMPRESSOR IN THE PRESENCE OF FLAMMABLE ANESTHETICS.
•NEVER TRY TO PUT OXYGEN INTO THE COMPRESSOR. THE COMPONENTS ARE NOT APPROVED FOR
OXYGEN SERVICE.
•REFER ALL REPAIRS TO QUALIFIED SERVICE PERSONNEL.
CAUTION !
•DO NOT use the PCS-414 with blenders, respirators or other respiratory equipment that requires dry air without
optional air cooler.
•When making attachments to the outlet DO NOT use wrenches or excessive force. This can cause damage to
internal fittings and tubing.
•DO NOT lubricate any part of the compressor with oil, grease or petroleum products. If these substances come
in contact with the diaphragm, they can adversely affect the service life of the compressor.
•DO NOT substitute parts. Such substitutions can cause premature product failure and may void warranty.
II. UNPACKING INSTRUCTIONS
A. Unpack and inspect for shipping damage.
B. Before operating the compressor, remove the (4) shipping bolts from the bottom of the unit. This will
allow the compressor to hang freely inside the cabinet. Retain the (4) shipping bolts for future shipping of
the PCS-414.
C. Uncoil the power cord and plug the appliance connector into the back of the PCS-414 compressor.
You can now plug it into a receptacle marked “Hospital Grade”.
D. Turn the power switch on and verify that the unit functions properly.
4

3
1
2
4
5
5

6
T16771 115 Volt, 60 Hz Compressor Assembly
TZ70 Cooling Coil and Condensation Trap
01-90-3669 Handle
T16751 Pump Seal Kit
T15729 Pressure Gauge
T15730 Power Switch
T14622 115 Volt Replacement Fan Assembly (2014)
T14626 115 Volt Replacement Fan Assembly
T15731 Rubber Foot For Cabinet
T611-308 Suspension Spring
T14780 Cabinet Inlet Filter
T15732 Pressure Regulator
T16314 Repair kit for Pressure Regulator (Norgren #V06-121-NNKA)
T16313 Repair kit for Pressure Regulator (Monnier #91-196)
T16315 Replacement internal felt filter, package of 4
T911-004 Plastic Tubing ¼ in O.D.
T16778 Pop-off Valve
T16484 Fuse, 8.0 amp, 250 VAC (10 pieces)
T16752 Pump Bearing Kit

BLUE BLUE
[BLACK]
BROWN [WHITE]
BROWN
