Allis Communications GSM900 User manual
Data Sheet
GSM900 2G Booster Kit
Installation Guide
Allis Communications Co., Ltd.
10-3 Fl., No. 31-1, Lane 169, Kang-Ning St., Hsi-Chih City, Taipei Hsien, Taiwan, R.O.C.
www.alliscom.com.tw
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
1/10
Copyright
◎ All trademarks mentioned in this manual are the property of Allis Communications Co., Ltd.
(hereinafter “Allis Communications”).
◎ All parts of this product, including the accessories and software, are the property of Allis
Communications and shall not be reproduced, copied, excerpted or translated without prior
approval of Allis Communications.
Warranty
◎ The warranty period shall be 12 months commencing on the date of purchase. It shall be determined
based on the provision of invoice or receipt issued upon purchase or the barcode on the host
machine in case of failure to provide such documents.
◎ The warranty service is merely applicable to consumers who purchase the products of Allis
Communications through legal sales channels with invoices.
◎ The date of shipment corresponding to the serial number of the warranty barcode is recorded at the
Quality Assurance Department of Allis Communications. If the goods returned by the customer can
be inquired based on the serial number of the barcode only, the date shall be determined primarily
based on the records of Allis Communications, to which the consumer shall not raise any objection.
◎ Determination criteria for product replacement: In the event of any malfunction not due to
man-made damages within 7 days after purchasing the product, the consumer may replace with a
new product by presenting such proof of purchase as invoice or receipt. Any request for
replacement with a new product must be made with complete accessories and original package
(excluding the plastic wrap) within 7 days in a timely manner; otherwise, the faulty product will be
repaired only. The consumer may replace the product directly with the dealer or the manufacturer.
Declaration
◎ Please read carefully this manual before using the product.
◎ This user’s manual and product do not contain any warranty, statement of position or other
implication. In case of any direct or indirect loss of data (for instance, from the SIM card or any
memory, etc), income loss or termination of business arising from the use of this manual or any
product information mentioned in it, Allis Communications and its employees shall not be held
liable in any manner.
◎ Product specifications and information mentioned in this manual are for reference only and are
subject to change without prior notice.
◎ Allis Communications is not obligated to assume responsibility for any error existing in all parts of
this user’s manual, including the hardware and software, in any manner.
◎ In case of any new specification or firmware update of the product, the user’s manual will be
updated accordingly. Please visit the website of Allis Communications at www.alliscom.com.tw for
downloading.
◎ This product will not be covered within the scope of warranty and service of Allis Communications
upon occurrence of the following events:
1. The product is returned to the manufacturer with vague serial number, re-affixed/falsified
product serial number barcode or damaged barcode so that the warranty period cannot be
identified.
2. The product fails or is damaged due to natural disasters, such as, earthquakes or lightning
strikes, abnormal voltage, or environmental factors.
3. The product is dismantled, modified or replaced with parts and components other than
those of the original manufacturer by the consumer itself or by a repair shop not authorized
by the original manufacturer.
4. The product is damaged due to operations not in compliance with this user’s manual or
man-made improper use, including, but not limited to the following: soaked in water due to
improper placement, corroded, dropped, compressed or exposed to the environment with
abnormal temperature or humidity.
5. Consumables inside and outside the body of the product, for instance, battery, earphone,
and etc.
6. Paid accessories apart from the body of the product, for instance, paper carton, manual,
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
2/10
and etc.
Contact information of Allis Communication
Address: 10F-3 No. 31-1, Lane 169, Kang-Ning St., Hsi-Chih City, Taipei Hsien, Taiwan,
R.O.C.
Tel: 886-2-26952378
Fax: 886-2-26957078
Website: www.alliscom.com.tw
E-Mail: [email protected]
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
3/10
I. GSM900 (2G) Signal Booster.....................................................................4
II. Description of Components........................................................................4
III. Installation Procedures and Caution ..........................................................5
IV. Post-Installation Examination and Troubleshooting...................................7
V. Specification of Booster..............................................................................7
VI. Dimensions.................................................................................................8
VII. Compatible Mobile Networks................................................................... 10
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
4/10
I. GSM900 (2G) Signal Booster
This Signal Booster Kit, developed for GSM900 (2G), serves the purpose to boost GSM900
signal and improve the reception in weak signal area. More power signal strength means
better voice quality and faster data transfer speed. This Kit is suitable for a room of 142-213
square feet (13.2- 19.8 m2). As the signal is boosted on a small margin, there is no need to
worry about signal interference with other systems.
It can be used in the following situations:
1. Indoor 2G Wireless Internet Connection
For GSM900, indoor 2G signal coverage is usually insufficient. The installation of this Kit
can help improve signaling while increasing data transfer speed.
2. Deep Inside Office Buildings
Most office buildings contain thick concrete walls that may weaken signals when they
penetrate the walls. This Kit can boost signaling.
II. Description of Components
1. PA400 Receiver/Transmitter Antenna
This directional antenna is a high-performance linear-polarized antenna. Its main function is
to transmit and receive radio signal. It can be installed outdoors or beside a window, with
the antenna standing perpendicular to the ground and facing the base station (signal
source). The metal hook can be used to mount the antenna onto a wall or place it on a flat
surface.
2. PA300 Receiver/Transmitter Antenna
This omni-directional antenna is a high-performance linear-polarized antenna. Its main
function is to transmit and receive radio signal. It should be attached to the AMPC1 booster
and placed near the receivers (mobile phone, 2G network card).
PA300 – nearby the receiver PA400 –
facing the base station PA400 –fastening bracket
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
5/10
3. Main unit ofAMPC1
The GSM900 signal booster can boost dual-link signal by 40dB and uses avoltage of
5-12V. It also has a power indicator to show if the power supply is working normally and a
signal strength indicator of the 2G signals. The metal hook supplied with the main unit can
be used to mount the unit onto the wall or place it on a flat surface.
AMPC1 AMPC1MetalHook
4. Adapter The power adapter for the booster needs an input voltage of 100 - 240V and an
output voltage of 5V (with Mini USB connector)
Adapter RF cable(RG174) USB switch cable
5. RF cable This 5-meter RF cable is used to connect PA400 and AMPC1.
6. USB switch cable This USB cable is used to connect AMPC1 and computer without
power adapter. (USB voltage is 5V)
III. Installation Procedures and Caution
1. Assembly
First, connect AMPC1 to PA400 (using the RF cable) and PA300, and make sure the Mini
USB connector is connected to supply power to the unit. Refer to the picture below.
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
6/10
2. PA400Antenna Installation and Mounting
In a situation where the direction of the base station is known, face to the base station. If
not so, please refer to the status of the signal strength indicator and turn towards where the
signal is stronger. The PA400 can be placed on a table or mounted onto a wall using the
metal hook attached with fastening bracket. Please note that signal strength indicator can
only show the direction of the source of the strongest 2G signal without being able to
distinguish which one of the Telecommunications service providers sends the strongest
signal. APMC1 and PA400 must be set apart from each other at a distance of 1 meter or
above with the PA400 put back against AMPC1 to avoid signal interference.
3. AMPC1+PA300 Main Unit Installation and Mounting
The main unit can be placed nearby the user's 2G mobile phone or network card. The main
unit can be placed on a table or mounted onto a piece of glass or a wall using the metal
hook attached with a double-coated tape. Please note that the signal coverage of the main
unit is not fixed; it varies directly with the signal strength the PA400 receives from the base
station.
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
7/10
IV. Post-Installation Examination and Troubleshooting
Check by following the steps below after the installation:
1. Check if there is GSM900 (2G) signal from outside, and if the outdoor antenna's signal is
stable. The outdoor antenna must face either the base station or the signal source. If the
received signal is still weak after the installation, try to adjust the antenna angle of PA400
and check if the indicator of the AMPC1 works normally.
2. If the strength of the received signal is constant, it means this Kit is functioning properly. A
weak signal means insufficient or saturated AMPC1 that requires some adjustment by
increasing or decreasing the AMPC1. In a situation where the 80% of the indoor signal can
be received, the increase of this Kit will not boost the signal obviously. It will even cause
interference and/or decrease the signal quality. In a situation where only 20% of the indoor
signal is received, a tremendous improvement of signaling quality can be expected by
using this Kit .
V. Specification of Booster
AMPC1 Specification
Electrical Specifications
Frequency Uplink: 890~915MHz Downlink: 935~960MHz
Bandwidth Uplink:25MHz Downlink: 25MHz
P1dB -40dBm
Input power Absolute Max. -5dBm
Output power Max. 18dBm
Gain Typ. Uplink: 40dB, Downlink: 40dB
Noise Figure Max. 10dB
Impedance 50Ω
DC Voltage DC 5~12V Absolute Max. 16V
DC Current Max. 300mA @ 5V
Mechanical Specifications
Weight (Without Cable) 75 grams max.
Size 79 mm. X 66 mm X 21 mm
RF Connector Uplink: SMB JACK, Downlink: SMA Jack
DC Connector Mini USB
Label ACC Label
Housing Material ABS
Environmental Specifications
Working Temperature -30°C<T<+80°C
Storage Temperature -40°C<T<+85°C
Note: Specifications subject to change without notice.
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
8/10

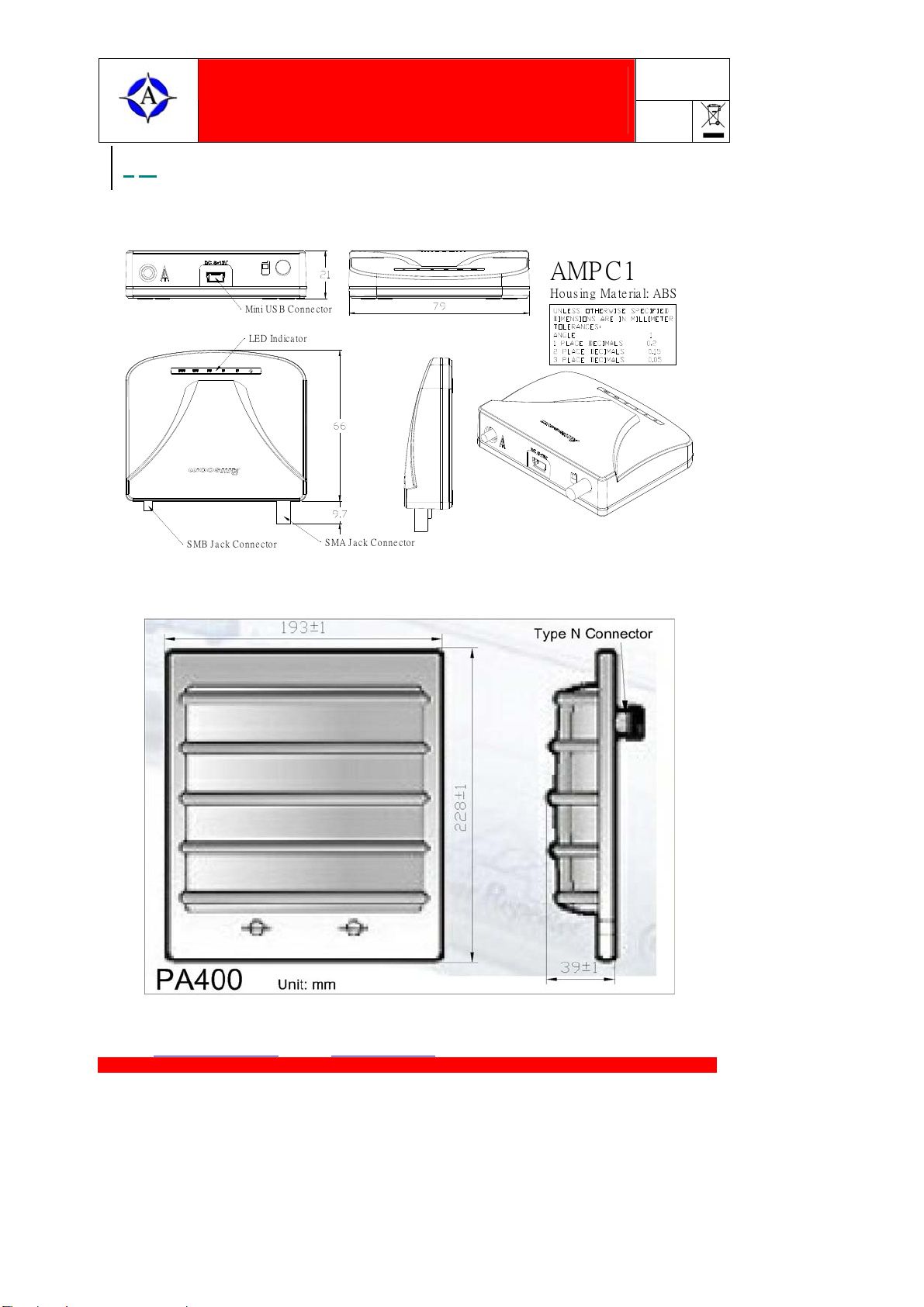

VI. Dimensions
S
M
B
J
a
c
k
C
o
n
n
e
c
t
o
r
S
M
A
J
a
c
k
C
o
n
n
e
c
t
o
r
M
i
n
i
U
S
B
C
o
n
n
e
c
t
o
r
L
E
D
I
n
d
i
c
a
t
o
r
A
M
P
C
1
H
o
u
s
i
n
g
M
a
t
e
r
i
a
l
:
A
B
S
± °
±
±
±
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
9/10
RoHS
Compliant
Allis Communications Co., Ltd.
GSM900 (2G) Booster Kit 11/2010
10/10
VII. Compatible Mobile Networks
Option Model System Modulation Country/Telecommunications
service providers Frequency Range Memo
China-China Unicom
UL:1940MHz-1955MHz
DL:2130MHz -2145MHz
Taiwan-Chunghwa Telecom/Far
Eastone Telecom/ Taiwan
Mobile Co. /Vibo Telecom
Japan-NTT Docomo/ Softbank/
E Mobile
AMPE1 3G WCDMA2100
Germany-T Mobile/ Vodafone
UL：1920 - 1980 MHz
DL：2110 - 2170 MHz
Downlink
14.4M
Uplink 5.75M
(bit/s)
3G TD-SCDMA
China-China Mobile 1880~1920MHz
2010~2025MHz Downlink
2.8M
Uplink 128K
(bit/s)
3G WCDMA1700
USA UL:1710~1755MHz
DL:2110~2155MHz
3G WCDMA1900
USA UL:1850~1910MHz
DL:1930~1990MHz
3G CDMA2000
(EV-DO) Taiwan-Asia Pacific Telecom UL:815~849 MHz
DL:860~894 MHz Downlink 3.1M
Uplink 1.8M
(bit/s)
2G CDMA2000
China-China Telecom
UL：825-835MHz
885-915MHz (Additional
frequency)
DL：870-880MHz
930-960MHz (Additional
frequency)
2G GSM850
USA
South America UL:824 - 849MHz
DL:869 - 894MHz
China-China Mobile
UL:890-909MHz
DL:935-954MHz
China-China Unicom
UL:909-915MHz
DL:954-960MHz
V AMPC1 2G GSM900
Taiwan
UL:890 - 915MHz
DL:935 - 960MHz
2G GSM1800
Taiwan UL:1710 - 1785MHz
DL:1805 - 1880MHz
2G GSM1900
USA UL:1850 - 1910MHz
DL:1930 - 1990MHz
*For your reference only!
刪除: Vodafone
Table of contents
