ALLO STM User manual

Quick Installation
Guide
SIP THREAT MANAGER
(aSTM)
Revision 2.0

Table of Contents
Overview...................................................................................................................1
Deployment Considerations....................................................................................2
Initial Setup & Configuration...................................................................................4
Accessing the WebUI...............................................................................................5

STM- Introduction
1
Quick Installation Guide V2.0
www.allo.com
Overview
Congratulations on your purchase of the Shield STM appliance to protect your SIP based
PBX, VOIP Gateway deployments. This Quick Start Guide describes the steps involved in
setting up the Shield STM Appliance.
Package Content
The STM Appliance package includes the following,
¾1 STM Appliance
¾1 USB Power Adapter
¾1 Serial Console Cable
¾2 Ethernet Cables
Appliance Hardware
The appliance hardware comes with 1 fast Ethernet LAN interface and 1 fast Ethernet WAN
interface. An additional USB port has been provided for adding the secondary USB storage
that will be used by the appliance for archiving the security alerts. The factory reset button is
located next to the USB Power socket.
Notification LEDs (On the Front Panel of the STM)

STM- Introduction
2
Quick Installation Guide V2.0
www.allo.com
STM Rear View:
Deployment Considerations
The STM has been made to protect the SIP based PBX/Gateway Servers against SIP based
network threats and anomalies. Thus it is recommended to deploy the STM along with the
PBX/Gateway deployment as given in the following scenarios based on what is applicable in
the user’s setup.
Scenario 1

STM- Introduction
3
Quick Installation Guide V2.0
www.allo.com

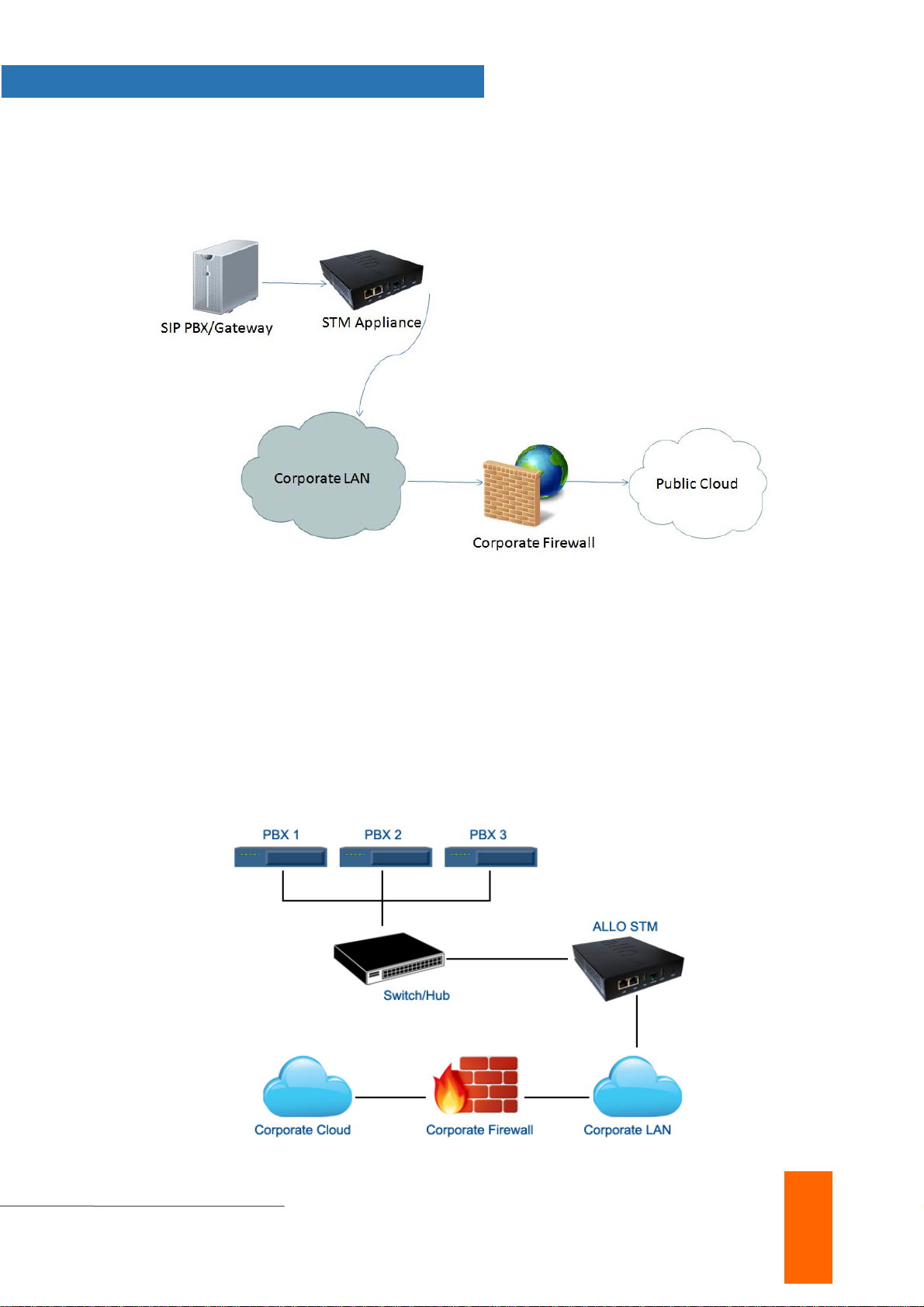

Scenario 2
In the case of PBX deployed in the LAN Setup, the following setup is recommended as it
would help to protect against the threats from both Internal Network as well as the threats
from the Public Cloud penetrated the Non SIP aware Corporate Firewall.
Scenario 3
In the case of multiple IPPBX/ VOIP Gateways are deployed in the LAN Setup, the
following setup is recommended as it would help to protect against the threats from both
Internal Network as well as the threats from the Public Cloud penetrated the Non SIP aware
Corporate Firewall.

STM Appliance 1.0
4
Quick Installation Guide V2.0
www.allo.com
Initial Setup & Configuration
1. Unpack the items from the box
2. Check that you have all the items listed in the package content.
3. Connect the appliance to the power socket using the USB power cable.
4. Connect the LAN port of the STM to the PBX/VOIP Gateway.
5. Connect the WAN port of the STM to the untrusted/public network.
6. The device will take about a minute to come up & will be fully functional with the default
configuration.
Note:
Some of the PBX/Gateway devices may have an exclusive LAN/Mgmt Interface for device
management purpose other than the Data Interface (also referred as WAN/Public Interface).
In such cases LAN port of the STM should be connected to the Data Interface (aka
WAN/Public Interface).
The device operates as transparent bridging firewall with Deep Packet Inspection enabled
on the SIP traffic. By default, the appliance has been made to acquire the IP Address via
DHCP.
The device has been made to be fully functional with the default configuration. However if
the user needs to tune the device settings & the DPI policies, He/She can tune the
configuration via the Device WebUI.
The device also provides the command line interface accessible via SSH, which will allow
configuring the basic settings and viewing device status.
Management Access Login Credentials
Web GUI admin/admin
SSH CLI admin/stmadmin
Management Vlan IP 192.168.100.1/255.255.255.0

STM Appliance 1.0
5
Quick Installation Guide V2.0
www.allo.com
Accessing the WebUI
The user can connect to the device via management vlan to access WebUI during initial
setup. The management vlan configured on the device, is accessible via the LAN/WAN ports
& is made assigned with the default ip address ‘192.168.100.1’
Use the procedure given below to access the WebUI,
1. Connect the LAN port of the STM to a PC.
2. Assign the IP Address 192.168.100.2 to the PC. Set the Netmask as 255.255.255.0.
Now you can access the device from the browser using the URL as given below
https://<192.168.100.1>
Note:
The WebUI has been made accessible only via HTTPS. The Device WebUI Server has been
made to use Self signed PKI Certificate, Thus the browser will prompt to accept the self
signed certificate generated by the device on accessing the WebUI.
The recommended browser for accessing STM WebUI is Mozilla Firefox.
Configure the STM Device IP Address from the “Device Settings” Page as per your local
network range. Verify the IP address set to STM from the dashboard page. Once the user
assigns the STM Device IP Address successfully, he can access the device using that IP
address further.
Now he can disconnect the PC and connect the LAN Port to the PBX/PBX Network that
needs to be protected.
Note:
The UI allows the administrator to configure the management vlan ip address. In case if the
user has changed the management vlan ip address, he needs to assign the corresponding
network address to his PC for the management access subsequently.

STM Appliance 1.0
6
Quick Installation Guide V2.0
www.allo.com

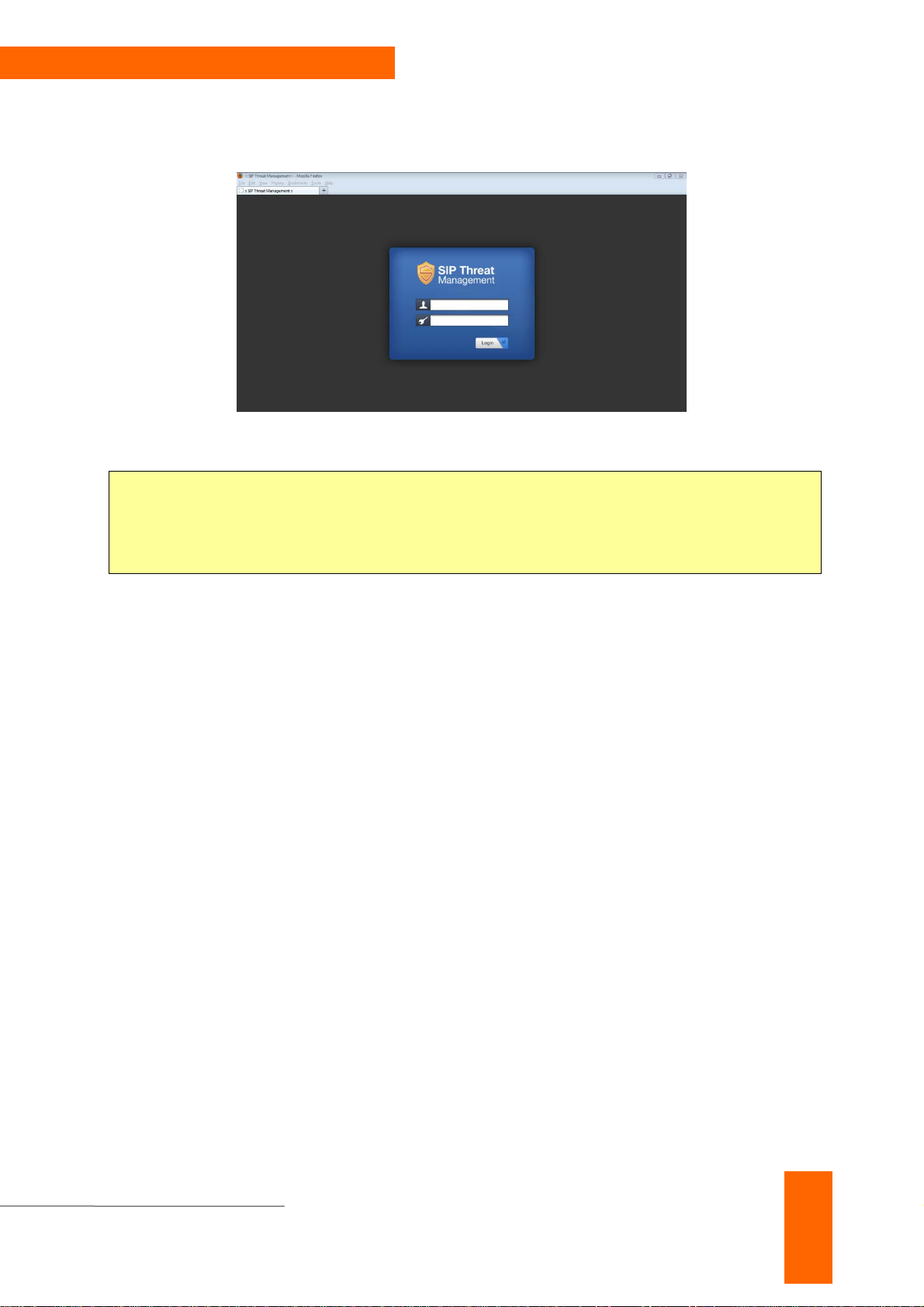

On launching the STM WebUI, the web application will prompt enter the administrator
credentials to login.
Note:
The WebUI has been made accessible only via HTTPS.
The recommended browser for accessing STM WebUI is Mozilla Firefox.
THE FULL VERSION MANUAL WILL PROVIDE YOU DETAILED INSTRUCTIONS
ABOUT THE FULL FEATURE SET OF THE SIP THREAT MANAGER
THANK YOU!
