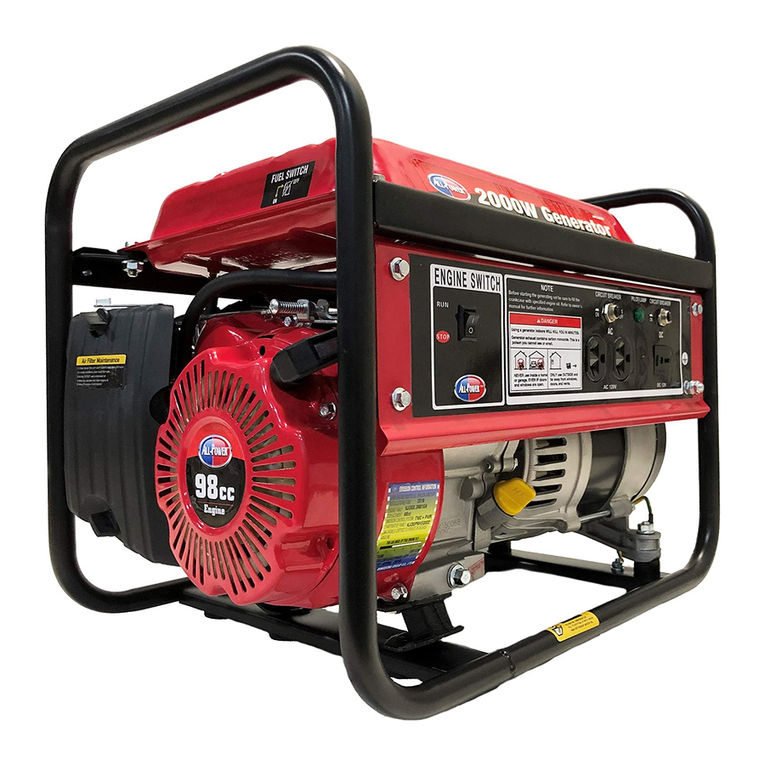

ALLPOWER APG3014G User manual

Warning To Reduce The Risk Of Injury, User Must
Read And Understand Instruction Manual.
www.jdna.com

DANGER
Carbon Monoxide
Carbon Monoxide
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous
gas you cannot see or smell. If you can smell the generator exhaust, you are
breathing CO. But even If you cannot smell the exhaust, you could be breathing
CO.
other partly
enclosed areas. Deadly levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors does NOT supply enough fresh air.
doors, and
vents. These openings can pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the home. ALWAYS
use a battery-powered or battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AWAY. See a doctor. You could have carbon
monoxide poisoning.
Distributed by:
JD North America, Corp.
www.jdna.com

2000 WATT GENERATOR
1
CONTENTS
SAFETY PRECAUTIONS .......................................................................2
CONTROL FUNCTION .......................................................................3
PRE-OPERATION CHECKS ...................................................................5
OPERATION ...........................................................................................6
OIL SENSER ..........................................................................................9
PERIODIC MAINTENANCE ...................................................................10
TROUBLE SHOOTING ..........................................................................12
STORAGE ..............................................................................................14
COMPLIANCE ........................................................................................14
SPECIFICATIONS ..................................................................................15
SYMBO .....................................................................................................16
WARRANTY ..............................................................................................17
PARTS LISTING ......................................................................................19

OWNER’S MANUAL
2
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY
BEFORE OPERATING.
1. SAFETY PRECAUTIONS
1) EXHAUST FUMES ARE POISONOUS
- Never operate the machine in a closed area or it may cause
unconsciousness and death within a short time.Operate the engine in a
well ventilated area.
2) FUEL IS HIGHLY FLAMMABLE AND POISONOUS
- Always turn off the engine when refueling.
Never refuel while smoking or in the vicinity of an open flame.
Take care not to spill any fuel on the engine or muffler when refueling.
- If you sallow any fuel,inhale fuel vapor,or allow any to get in your eyes,
see your doctor immediately. If an fuel spills on your skin or clothing,
immediately wash with soap and water and change your clothes.
- When operating or transporting the machine,be sure it is kept upright.If it
tilts,fuel may leak from the carburetor or fuel tank.
3) ENGINE AND MUFFLER MAY BE HOT
- Put the machine in a place where pedestrians or children are not likely to
touch the machine.
- Avoid placing any flammable materials near the exhaust outlet during
operation.
- Keep the machine away at least 1 m(3 ft) from buildings or other equipment,
or the engine may overheat.
- Avoid operating the engine with a dust cover.
WARING:

2000 WATT GENERATOR
3
NOTE:
4) ELECTRIC SHOCK PREVENTION
- Never operate the engine in rain or snow.
- Never touch the machine with wet hands or electrical shock will occur.
- Be sure to ground (earth) the generator.
- Use ground (earth) lead of sufficient current
capacity. Ground (earth) lead Diameter :
0.12mm(0.005 in)
- Some types of generators have no ground bolts,
so do not operate the machine in rain or snow!
While the machine is operating, don’t touch it with wet hands!
5) CONNECTION NOTES
- Avoid connecting the generator to commercial power outlet.
- Avoid connecting the generator in parallel with any other generator.
6) BATTERY
- No smoking while handing the battery.
- The battery emits flammable hydrogen gas,which can explode if exposed
to electric arcing or open flame.
- Keep the area well-ventilated and keep open flames/sparks away when
handing the battery.
2. CONTROL FUNCTION
1) ENGINE SWITCH
The engine switch controls the ignition system.

OWNER’S MANUAL
4
“ON” ( “ENGINE SWITCH” on “RUN” position)
Ignition circuit is switched on.
The engine can be started.
“OFF”(”ENGINE SWITCH” on “STOP” position)
Ignition circuit is switched off.
The engine will not run.
2) AC PROTECTOR
The AC breaker turns off automatically when the load exceeds the
generator rated output.
CAUTION:
Reduce the load to within specified
generator rated output if the protector
turn off !
3) COMPONENTS
ENGINE SWITCH
AC PROTECTOR
1. Fuel tank
2. Fuel tank cap
3. AC socket
4. Ground terminal
5. AC proctector
6. Pilot lamp
7. Oil filter cap
8. Oil drain plug
9. Engine switch
10. Starter
11. Air filter cover
12. Muffler
13. Spark plug
14. Choke lever
12
3
4
5
6
12 13
14
7
8
9
10
11

2000 WATT GENERATOR
5
3. PRE-OPERATION CHECKS
NOTE:
Pre-OPERATION checks should be made each time the generator is used.
1) CHECK ENGINE FUEL
- Check fuel level with the tank cap removed.
- If fuel level is low,refill with unleaded
automotive gasoline.
- Be sure to use the fuel filter on the fuel filter
neck.
- Recommended fuel: unleaded gasoline
WARNING:
- DO NOT refill tank while engine is running or hot.
- Close fuel cock before refueling with fuel.
- Be careful not to admit dust ,dirt,water or other foreign objects info fuel.
- Wipe off spilt fuel thoroughly before starting engine.
- Keep open flames away.
2) CHECK ENGINE OIL
- Before checking or refilling oil,be sure the
generator is put on a stable and level
surface with engine stopped.
- Fuel level is below the lower level line,refill
with suitable oil to upper level line. Do not
screw in the oil filler cap when checking
oil level.

OWNER’S MANUAL
6
- Recommended engine oil: SAE 30
10W-30
3) GROUND ( Earth )
Makee sure to ground (earth) the generator.
4. OPERATION
NOTE:
The generator has been shipped without
engine oil. Fill with oil or it will not start.
WARNING:
Before starting the machine, you must check
the oil level, or the engine can be damaged !
1) STARTING THE ENGINE
NOTE:
- Before starting the engine, do not connect the electric apparatus to the
generator.
1. Turn the fuel cock to “ ON ”.
2. Turn the engine switch to “ ON ”.
3. Turn the choke level to the “ CLOSE ” position. Not necessary if the
engine is warm.
4. Pull the starter handle slowly until resistance is felt. This is the
compression point. Return the handle to its original position and pull
swiftly. Do not fully pull out the rope. After starting allow the starter
handle ro return to its original position while still holding the handle.
0oC 25oC
32oF 80oF
C SAE 10W B SAE #20 A SAE #30
or 10W-30 or 10W-30 or 10W-10
or 10W 40 or 10W-40 or 10W-40
OIL INLET

2000 WATT GENERATOR
7
5. Warm up the engine.
6. Turn the choke level back to the operating position.
7. Warm up the engine without a load for a few minutes.
2) USING ELECTRIC POWER
1. AC PROTECTOR
(a) Check the pilot lamp for proper voltage.
(b) Turn off the switch of the electrical appliances before connecting to the
generator.
(c) Insert the plugs of the electrical appliances into the receptacle.
CAUTION:
- Be sure the electric apparatus is turned off before plugging in.
- Be sure the total load is within generator rated output.
- Be sure the socket load current is within socket rated current.
NOTE:
When the circuit breaker no-fuse breaker turns off during operation，
the generator is overloaded

OWNER’S MANUAL
8
3）STOPPING THE ENGINE
1. Turn off the power switch of the
electric apparatus or unplug the
cord from receptacle of the generator.
2. Turn the engine switch to “STOP”.
3. Turn the fuel cock lever to “OFF”.

2000 WATT GENERATOR
9
5. OIL SENSOR
- The oil sensor detects the fall in oil in the crankcase and automatically
stops the engine when the oil level falls down below the safety limit.
- When the engine stops antomatically, check the oil level.
- If the engine can not start by usual starting procedures, check the oil level.

2000 WATT GENERATOR
6. PERIODIC MAINTENANCE
1) MAINTENANCE CHART
Regular maintenance is most important for the best performance and safe
operation.
10
First
5 Hours
REGULAR SERVICE
PERIOD
ITEM
Engine Oil Check Level
Change Oil
Clean
Replace
Check(w/wout)
Check-adjust
Check-adjust
Check-adjust
Replace After every 300 Hrs.
Clean
Clean
Clean
Clean
Change
Spark Arrester
Spark Plug
Finger Guard
Sediment Cup
Area Around Muffler
And Controls
Change Gear Reduction
Oil (If equipped)
Valve Clearqance
Idle Speed
Fuel Tank & Filter
• Fuel tube should be check or replace every 2 years.
• Combustion chamber should be cleaned by your servicing dealer every 500Hrs.
Air Filter
Pre-cleaner
Every
8 Hours
or Each use
Every
25 Hours
or Annually
Every
50 Hours
or Annually
Every
100 Hours
Annually

OWNER’S MANUAL
11
2) ENGINE OIL REPLACEMENT
3) AIR FILTER
1. Place the machine on a level surface
and warm up the engine for several
minutes. Then stop the engine.
2. Remove the oil filler cap.
3. Place an oil pan under the engine.
Remove the oil drain plug so that the
oil can be completely drained.
4. Check the oil drain plug, gasket, oil filler
cap and O-ring. If damaged replace.
5. Add engine oil to the upper level.
6. Reinstall the oil drain plug.
Maintaining an air cleaner in proper condition
is very important.
Dirt induced through improperly installed,
improperly serviced or inadequate elements
damages and wears out engines.
Keep the element always clean.
1. Take out the air cleaner, clean it well in
kerosenee and dry it.
BE SURE NO FOREIGN MATERIAL
ENTERS THE CRANKCASE.
CAUTION:
0oC 25oC
32oF 80oF
C SAE 10W B SAE #20 A SAE #30
or 10W-30 or 10W-30 or 10W-10
or 10W 40 or 10W-40 or 10W-40

2000 WATT GENERATOR
12
2. After wetting the element by clean engine oil , squeeze it tight by hand.
3. Lastly , put the element in the case and install it securely.
The engine should never run without the element; excessive piston and/or
cylinder may wear.
4) MUFFLER
The engine and muffler will be very hot after the engine has been run.
Avoid toughing the engine and muffler while they are still hot with any part
of your body or clothing during inspection or repair.
1. Remove the muffler from the engine.
2. Clean the carbon deposits out of the
muffler using a wire brush.
3. Check the muffler , Replace it if damaged.
4. Install the muffler to the engine.
7. TROUBLE SHOOTING
1) Engine fails to start
1. Fuel system
No fuel supplied to combustion chamber.
- No fuel in tank-Supply fuel
- Clogged fuel line-Clean fuel line.
- Foreign matter in fuel cock-Clean fuel or if closed , open it.
- Clogged carburetor-Clean carburetor
CAUTION:
WARNING:

OWNER’S MANUAL
2) No electricity is generated at receptacle
1. AC protector
Check to make sure the AC protector is in the position.
2. Appliance
Check whether the appliance has been connected to the generator
when the engine is starting. Disconnect the appliance from receptacle.
3. Control box
Check wire leads in control box for loose connections.
Secure connections if necessary.
2. Engine oil system Insufficient
- Oil level is low-Add engine oil.
3. Electrical system
Poor spark
- Spark plug dirty with carbon or wet-
Remove carbon or wipe spark plug dry.
- Faulty ignition system-Consult dealer.
4. Compression insufficient
- Worn out piston and cylinder-Consult
dealer.
- Loose cylinder head nuts-Tighten nuts
properly
- Damaged gasket-Replace gasket.
5. Choke lever
- If the choke lever is not in proper position, set it to close position.
(After the engine runs , set the choke lever to open position.)
13

2000 WATT GENERATOR
8. STORAGE
1. AC protector
Check to make sure the AC protector is in the position.
2. Appliance
Check whether the appliance has been connected to the generator
when the engine is starting. Disconnect the appliance from receptacle.
3. Control box
Check wire leads in control box for loose connections.
Secure connections if necessary.
14
9. COMPLIANCE
You should get a Certificate of EPA while you purchased the product.

OWNER’S MANUAL
10. SPECIFICATIOIN
AC electrical
Current Output 120V @ 11.6A 60Hz
Continuous/rated Wattage 1400W
Peak Wattage 2000W
Outlet 2-120V receptacles
Gasoline engine
Type 4-cycle OHV air-cooled
recoil start
Displacement 98cc
Oil Capacity 0.42 quart (0.4liter)
EPA Approved yes
Fuel
Type Unleaded gasoline
Capacity 1.32 gallons
Running Time 9 hours/half load (approx.)
Weight
Approximate Weight 54.56 lbs
15

2000 WATT GENERATOR
16
11. SYMBOL
symbol Parts name symbol Parts name
ENG. Engine OS Oil senser
SP Spark plug SC Auxiliary winding
FC Filed winding V
V oltmeter
MC AC winding C Capacitor
AC BR. AC circult breaker ST.MC Stator winding
DI rectifier T.C.I T.C.1 UNIT
SYMBOL WIRE COLOUR SYMBOL WIRE COLOUR
Y/G Yellow/green BR Brown
Y Yellow O Orange
R Red O/G Orange/Green
B Black BL Blue

OWNER’S MANUAL
17
12. Limited Warranty
JD North America warrants to the original purchaser who uses the product in a consumer
application (personal, residential or household usage) that all products covered under this
warranty are free from defects in material and workmanship for 2 years or 300 hours whichever
comes first (1-year parts and labor and following 1 year parts only) from the date of purchase.
All products covered by this limited warranty which are used in commercial applications
(i.e. income producing) are warranted to be free of defects in material and workmanship for 90
days from the date of original purchase. Products covered under this warranty include air
compressors, air tools, service parts, pressure washers and generators.
An individual or entity that purchases the product from whatever source with the intent to resell the
product is an unauthorized reseller ("unauthorized dealer").
Please note this Limited Warranty does not apply to floor models or "demos" (except as specifically
provided herein) or to products sold by unauthorized dealers, including without limitation, unauthorized
resellers on third party websites, including, without limitation, Craigslist, eBay, Amazon, etc.
Unauthorized dealers are not "original purchasers" for the purpose of this Limited Warranty.
If purchaser is not the original purchaser of this product, purchaser takes the product "AS IS,"
"with all faults" and without warranty. If the purchase of this product was not directly from JDNA,
proof of purchase will be required to demonstrate that purchaser is the original purchaser and the
product was purchased from an authorized dealer, and eligible to make a valid claim under this
limited warrant
Service
y.
Purchaser
JD North America
JD North America
JD North America
JD North America

2000 WATT GENERATOR
18
JD North America
JD North America
