ALLPOWER APGG12000GLCS User manual

www.jdna.com
DUAL-FUEL GENERATOR
12000 WATT GASOLINE / 9000 WATT PROPANE
Please read and save these instructions.
APGG12000GLCS

12000W Dual-Fuel Generator
Topi c Page
3
5
Limitations and Exclusions
7
Battery, CO Sensor 16
Assembly 17
Spark Plug Service 25

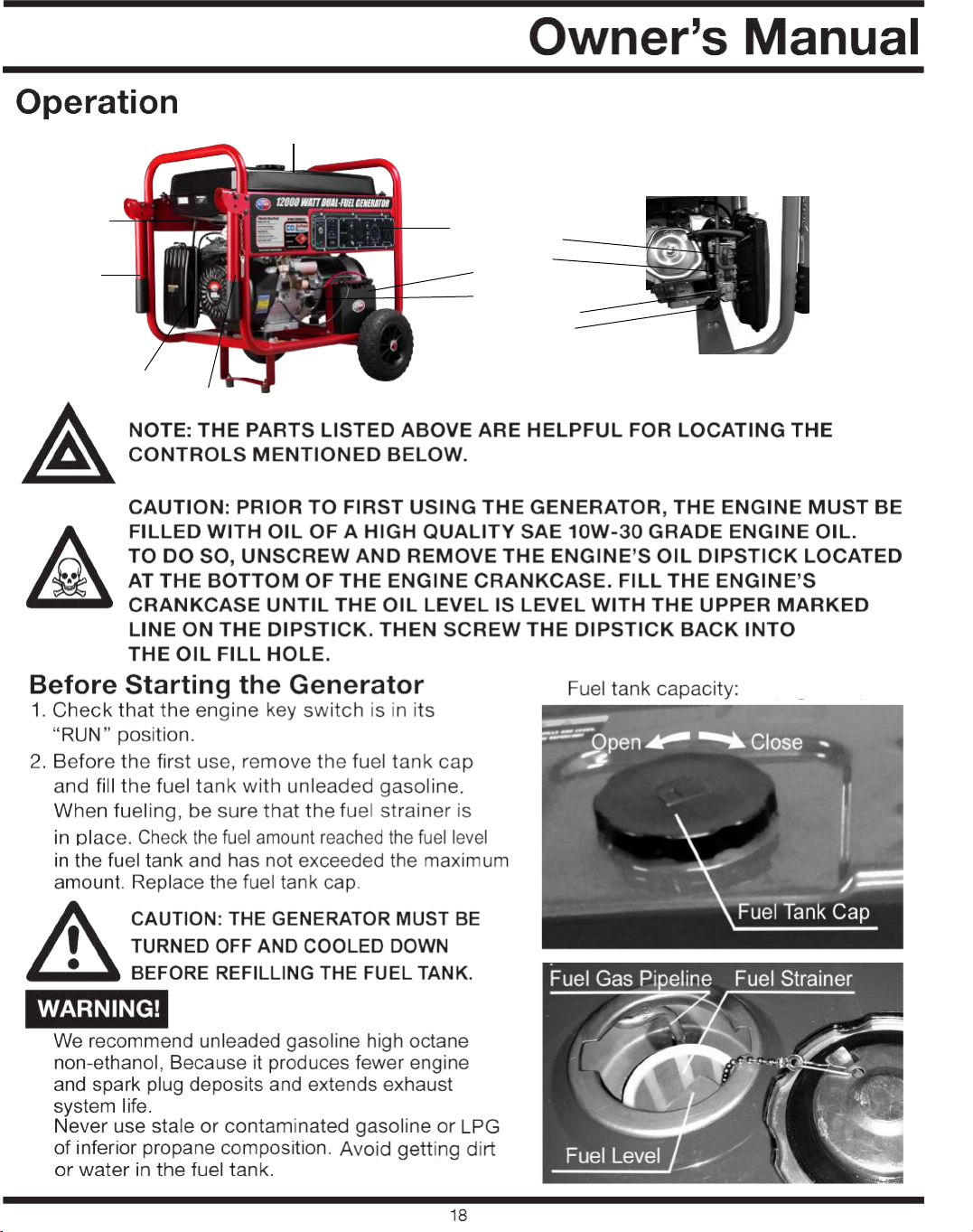

Operation 18
Inspection, Cleaning, Maintenance and Storage 26
Installation 32
Specifications 34
2
altitude kit
altitude kit
ytnarraWdetimiL
6senilediuGytefaS
snoituacerPlareneG
53gnitsiLstraPlareneG

JD North America warrants to the original purchaser who uses the product in a consumer
application (personal, residential or household usage) that all products covered under this
warranty are free from defects in material and workmanship for 2 years or 300 hours whichever
comes first (1-year parts and labor and following 1 year parts only) from the date of purchase.
All products covered by this limited warranty which are used in commercial applications
(i.e. income producing) are warranted to be free of defects in material and workmanship for 90
days from the date of original purchase. Products covered under this warranty include air
compressors, air tools, service parts, pressure washers and generators.
An individual or entity that purchases the product from whatever source with the intent to resell the
product is an unauthorized reseller ("unauthorized dealer").
Please note this Limited Warranty does not apply to floor models or "demos" (except as specifically
provided herein) or to products sold by unauthorized dealers, including without limitation, unauthorized
resellers on third party websites, including, without limitation, Craigslist, eBay, Amazon, etc.
Unauthorized dealers are not "original purchasers" for the purpose of this Limited Warranty.
If purchaser is not the original purchaser of this product, purchaser takes the product "AS IS,"
"with all faults" and without warranty. If the purchase of this product was not directly from JDNA,
proof of purchase will be required to demonstrate that purchaser is the original purchaser and the
product was purchased from an authorized dealer, and eligible to make a valid claim under this
limited warrant
Service
y.
Purchaser
JD North America
JD North America
JD North America
JD North America
12000W Dual-Fuel Generator

12000W Dual-Fuel Generator
4
JD North America
JD North America

5
12000W Dual-Fuel Generator
This Limited Warranty shall not apply to:
1. Bent or broken crankshaft or resultant damage caused by vibration related to
a bent or broken crankshaft. Also, damage caused by loose engine mounting bolts
or improper or imbalanced accessories or blades mounted to the crankshaft.
2. Repairs required because of prolonged storage including damage caused by old
or contaminated fuel in the fuel tank, fuel lines or carburetor, sticky valves or corrosion
and rust of engine parts.
3. Repair required due to overheating. (Most often caused by overloaded or clogged
or damaged or missing flywheel, fan, inlet air passages, cooling fans or air shrouds.)
4. Dirt or grit related wear caused by improper air cleaner maintenance (most often
resulting in worn piston, piston rings, cylinders, valves, valveguides, carburetor or
other internal components).
5. Broken or scored parts caused by low oil level, dirty or improper grade of oil.
6. Engine tune-ups and normal maintenance service including, but not limited to,
valve adjustment,normal replacement of service items, fuel and lubricating oil, etc.
7. Any engine which has been subject to negligence, misuse, accident, mis-application
or over-speeding.
8. Any engine that has been installed, repaired, or altered by anyone in a manner
which in JDNA’s sole judgment adversely affects its performance or reliability.
9. Any engine which has been fitted with or repaired with parts or components not
manufactured or approved by JDNA which in JDNA’s sole judgment adversely affects
its performance or reliability.
10. Instances when normal use has exhausted the life of a component or an engine,
including but not limited to using as a sole source of power.
Limitations and exclusions

6
Owner’s Manual
Safety Guidelines - Definitions
This manual contains important information that you need to know and
understand in order to protect YOUR SAFETY and to PREVENT
EQUIPMENT PROBLEMS. The following symbols help you recognize this
information. Please read the manual and pay attention to these sections.
Save These Important Safety Instructions!
Read and understand all of these safety instructions. Be
sure to retain them f or future use.
WARNING! WARNINGS INDICATE A CERTAINTY OR STRONG
POSSIBILITY OF PERSONAL INJURY OR DEATH IF
INSTRUCTIONS ARE NOT FOLLOWED.
CAUTION: CAUTIONS INDICATE A POSSIBILITY OF
EQUIPMENT DAMAGE IF INSTRUCTIONS ARE NOT
FOLLOWED.
NOTE: NOTES GIVE HELPFUL INFORMATION
WARNING! IM PROPER OPERATION OR M AINTENANCE
OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY
AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL
WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING
THIS EQUIPMENT. WHEN USING AIR TOOLS, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF PERSONAL INJURY.

7
12000W Dual-Fuel Generator
Fuel and Oil
This product requires oil and fuel. Attempting to start the engine without oil will ruin
the engine and void the warranty. Work in well ventilated area. Keep cigarettes,
flames or sparks away from the work area or where gasoline is stored.
WARNING! GASOLINE AND PROPANE ARE EXTREMELY FLAMMABLE AND
ARE EXPLOSIVE UNDER CERTAIN CONDITIONS.
KEEP OUT OF REACH OF CHILDREN.
•Gasoline and propane fuel and fumes are flammable and potentially explosive. Use proper fuel
storage and handling procedures. Always have multiple ABC class fire extinguishers nearby.
WARNING! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN
SEVERE IN JURY OR DEATH.
WARNING! THE EXHAUST CONTAINS POISONOUS CARBON MONOXIDE
GAS THAT CAN CAUSE LOSS OF CONSCIOUSNESS AND MAY LEAD TO
DEATH.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN ALSO
RESULT IN DAMAGE TO THE TOOL AND/OR THE ITEM YOU ARE WORKING
ON.
DANGER
CARBON MONOXIDE
General Precautions
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot
see or smell. If you can smell the generator exhaust, you are breathing CO. But even If you
cannot smell the exhaust, you could be breathing CO.
Even when you use a generator correctly, CO may leak into the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air
RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.
•Keep the generator and surrounding area clean at all times.
• Never use a generator inside your home, basement, or garage or less than 20 feet from
any window, door, or vent.
• When using a generator, use a battery-powered or battery backup CO detector in your home.

Owner’s Manual
8
General Precautions (cont’d)
Fuel and Oil (cont’d)
• Do not smoke or allow sparks, flames or other sources of ignition around the engine and fuel
tank. Fuel vapors are explosive.
• Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and
connections to avoid sparking or arcing. These events could ignite fumes or vapors.
• Do not refill the fuel tank or replace the propane cylinder while the engine is running or while the
engine is still hot. Do not operate the generator with known leaks in the fuel system
• Excessive buildup of unburned fuel gases in the exhaust system can create a potentially
explosive condition. This buildup can occur after repeated failed start attempts, valve testing, or
hot engine shutdown. If this occurs, open exhaust system drain plugs, if equipped, and allow the
gases to dissipate before attempting to restart the generator.
• Use only engine manufacturer recommended fuel and oil.
Hot Components
WARNING! ENGINE AND EXHAUST SYSTEM PARTS BECOME VERY
HOT AND REMAIN HOT FOR SOME TIME AFTER THE ENGINE IS RUN. WEAR
INSULATED GLOVES OR WAIT UNTIL THE ENGINE AND EXHAUST SYSTEM
HAVE COOLED BEFORE HANDLING THESE PARTS.
Power Output
This generator is not designed to power sensitive electronic equipment (including computers
and medical devices) without the addition of an approved line conditioner, which is sold separately.
CAUTION: ATTEMPTING TO POWER SENSITIVE ELECTRONIC EQUIPMENT
WITHOUT THE USE OF AN APPROVED LINE CONDITIONER MAY CAUSE
DAMAGE TO THE EQUIPMENT. JD NORTH AMERICA IS NOT RESPONSIBLE
FOR ANY DIRECT OR INDIRECT DAMAGE CAUSED BY FAILURE TO USE AN
APPROVED LINE CONDITIONER.
• Gasoline or oil spills must be cleaned up immediately. Dispose of fluids and cleaning materials as per
any local, state,or federal codes and regulations. Store oily rags in a covered metal container. If Propane
is leaking, the valve must be closed immediately. Check for leaks and deal with them immediately.
• Never store fuel or other flammable materials near the generator.
Fuel:
Fuel capacity is 6.6 gallons(25 L). Use regular
Please change oil types on weather conditions.
unleaded gasoline with a minium octane rating of 90.
Use only an approved propane cylinder equipped and
supplied inlet pipe with LPG regulator.
Oil:
Oil capacity is 1.16 qt (1.1 L)

9
12000W Dual-Fuel Generator
General Precautions (cont’d)
Work Area
•Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
•Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Generators create sparks which may ignite the dust or fumes.
•Keep bystanders, children, and visitors away while operating a generator. Provide barriers or
shields as needed.
Electrical Safety
•Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs.
•Grounding provides a low-resistance path to carry electricity away from the
user in the event of an electrical malfunction.
•Double insulated tools are equipped with a polarized plug where one blade is wider than the
other. This plug fits in a polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet.
Do not change the plug in any way. Double insulation eliminates the need for the three-wire
grounded power cord and grounded power supply system.
•Do not expose generator to rain or wet conditions. Water entering a generator will increase the
risk of electric shock.
•Do not abuse the power cord. Keep power cords away from heat, oil, sharp edges, or moving
parts. Replace damaged power cords immediately. Damaged power cords increase the risk of
electric shock.
•When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”.
These extension cords are rated for outdoor use, and reduce the risk of electric shock.

10
Owner’s Manual
General Precautions (cont’d)
Electrical Safety (cont’d)
• All connections and conduits from the generator to the load must only be installed by trained and
licensed electricians, and in compliance with all relevant local, state, and federal electrical
codes and standards, and other regulations where applicable.
• The generator must be earth-grounded for fixed installations in accordance with all relevant
electrical codes and standards before operation.
• Do not attempt to connect or disconnect load connections while standing in water or on wet or
soggy ground.
• Do not touch electrically energized parts of the generator and interconnecting cables or
conductors with any part of the body or with any non-insulated conductive object.
• Connect the generator only to a load or electrical system (120 volt) that is compatible with the
electrical characteristics and rated capacities of the generator.
• Before servicing equipment powered by the generator, disconnect the equipment from its power
input.
• Keep all electrical equipment clean and dry. Replace any wiring where the insulation is cracked,
cut abraded or otherwise degraded. Replace terminals that are worn, discolored, or corroded.
Keep terminals clean and tight.
• Insulate all connections and disconnected wires.
• Guard against electric shock. Prevent body contact with grounded surfaces such as pipes,
radiators, ranges, and refrigerator enclosures.
Personal Safety
• Stay alert. Watch what you are doing, and use common sense when operating a generator. Do
not use generator while tired or under the influence of drugs, alcohol, or medication. A moment
of inattention while operating generators may result in serious personal injury.
• Contain all hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry or long hair can be caught in moving parts.

12000W Dual-Fuel Generator
General Precautions (cont’d)
Personal Safety (cont’d)
•Avoid accidental starting. Make sure the power switch is in its “OFF” position, and disconnect
the spark plug wire when not in use.
•Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is
left attached to a rotating part of the generator may result in personal injury.
•Do not overreach. Keep proper footing and balance at all times.
•Use safety equipment. Always wear eye protection. Wear ANSI approved safety impact eye
goggles. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
•Do not force the generator. Use the correct generator for your application. The correct generator
will do the job better and safer at the rate for which it is designed.
•Do not use the generator if the power switch does not turn it on or off. Any generator that cannot
be controlled with the power switch is dangerous and must be replaced.
Generator Use and Care
Make sure the power switch is in its “OFF” position and disconnect the spark plug wire before
making any adjustment, changing accessories, or storing the generator. Such preventive safety
measures reduce the risk of starting the generator accidentally.
Store idle generators out of reach of children and other untrained persons. Generators are
dangerous in the hands of untrained users.
Maintain generators with care. Do not use damaged generator. Tag damaged generators “Do not
use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that
may affect the generator’s operation. If damaged, have the generator serviced before using. Many
accidents are caused by poorly maintained generators.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one generator may become hazardous when used on another generator.
11

Owner’s Manual
General Precautions (cont’d)
Servicing
Maintain labels and name plates on the generator and engine. These carry important information.
If unreadable or missing, contact our service center toll free at 888-896-6881 immediately for a
replacement.
Generator service must be performed only by a qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a generator, use only identical replacement parts. Follow all appropriate
instructions in this manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
Heart Pacemakers
WARNING! PEOPLE WITH PACEMAKERS SHOULD CONSULT THEIR
PHYSICIAN(S) BEFORE USING THIS PRODUCT. ELECTROMAGNETIC
FIELDS IN CLOSE PROXIMITY TO A HEART PACEMAKER COULD CAUSE
INTERFERENCE TO OR FAILURE OF THE PACEMAKER.
Installation
• Ensure installation meets all applicable safety, and local and national electrical codes. Have
installation performed by a qualified, licensed electrician and building contractor.
• All electrical work, including the earth-ground connection, should be completed by a licensed
electrician.
• Any separate fuel storage or generator supply facility must be built or installed in full compliance
with all relevant local, state, and federal regulations.
12

13
12000W Dual-Fuel Generator
General Precautions (cont’d)
Installation (cont’d)
•If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It
should not be run outdoors without protection to the generator and wiring conduit.
•The generator weighs 220 lbs (approx). Two or more people should assist when moving or lifting
this product. Never lift the generator using the engine or alternator lifting lugs. Connect lifting
equipment to the frame of the generator.
•Before lifting the generator, ensure the lift rigging and supporting structure are in good
condition, and are rated to lift such a load.
•Keep all personnel away from the suspended generator during relocating process.
•The supporting floor/ground surface should be level and strong enough to safely hold the weight
of the generator. If the floor/grounded surface is not level, strong cross members should be
placed under the full length of the generator frame at its low side.
•For trailer installation, the generator should be mounted on the center point of the trailer, over
the wheels. The trailer must be capable of supporting the weight of the generator and all
contents (tools, etc.)
•Install sound-and weather-proofing only when it is not raining or snowing to avoid trapping
moisture within the generator’s area.
Mechanical
•Always make sure the power switch is in its “OFF” position. Disconnect the spark plug wire, and
allow the engine to completely cool before carrying out maintenance.
•Check for damaged parts. Before using the generator, any part that appears damaged should
be carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment and binding of moving parts, any broken parts or mounting fixtures, and any
other condition that may affect proper operation.
•The generator is designed with guards for protection from moving parts. In any case, care must
still be taken to protect personnel and equipment from other mechanical hazards when working
around the generator.

Owner’s Manual
General Precautions (cont’d)
Mechanical (cont’d)
• Do not operate the generator with safety guards removed. While the generator is running, do not
attempttoreacharoundthesafetyguardformaintenanceoranyotherreason.
•K
eephands,arms,longhair,looseclothing,andjewelryawayfrommovingparts.Beawarethat
when engine parts are moving fast they cannot be seen clearly.
•K
eepaccessdoorsonenclosuresclosedandlockedwhenaccessisnotrequired.
• When working on or around the generator always wear protective clothing including ANSI
approvedsafetygloves,safetyeyegoggles,andsafetyhat.
•D
onotalteroradjustanypartofthegeneratorthatisassembledandsuppliedbythe
manufacturer.
• Always follow and complete scheduled engine and generator maintenance.
Chemicals
•A
voidcontactwithhotfuel,oil,exhaustfumes,andhotsolidsurfaces.
•A
voidbodycontactwithfuels,oils,andlubricants used in the generator. If swallowed, seek
medical treatment immediately. Do not induce vomiting if fuel is swallowed. For skin contact,
immediately wash with soap and water. For eye contact, immediately flush eyes with clean water
and seek medical attention.
Noise
• Prolonged exposure to noise levels above 68 DBA is hazardous to hearing. Always wear ANSI
approved ear protection when operating or working around the generator when it is running.
14

12000W Dual-Fuel Generator
General Precautions (cont’d)
Extension Cord
If an extension cord (not included) is used, make sure to use only UL approved cords having the
correct gauge and length according to the following table:
Cord LengthsNameplate Amps (@ full load)
0 - 5 16 16 12 12
5.1 - 8 16 14 10 -
8.1 - 12 14 12 - -
12.1 - 15 12 10 - -
15 - 20 10 10 - -
15
0 ft.- 50 ft. 50 ft.-100 ft. 100 ft.-150 ft. 150 ft.-200 ft.
AWG AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG

Owner’s Manual
16
Battery
T
Carbon Monoxide (CO) Shutdown System
o start generator electrically you will need have the battery installed correctly.
This requires a 12v 18ah lawn tractor battery with the following dimensions: The
dimensions are Wx7.5” Dx5” Hx7” (including terminals).
A rated cranking amperage of 200. Terminals are regular, not reversed.
Photos below demonstrate battery plate attachment.
CO Sensor
CO Sensor automatically shuts down the engine when harmful levels of carbon
monoxide accumulate around the generator or a CO fault occurs. After
s
Carbon Monoxide presence is no longer detected.
hutdown, the CO indicator light will blink for at least five minutes or until
CO DOES NOT replace carbon monoxide alarms. Install battery-powered
carbon monoxide alarm(s) in your home. Don’t run generator in enclosed areas.
Sensor
Sensor
Sensor

12000W Dual-Fuel Generator
17
Assembly
Unpacking
1. Remove the generator and loose parts box from the carton.
2. Compare the accessory with the inventory list below.
Loose Parts (Wheel kit and handle)
Check all loose parts against the following list. Contact your dealer toll free at 888.896.6881
if any of the loose parts shown are not included with your generator
Hardware Check:
Your Hardware Kit should include:
1) Two Handles with bolts, nuts, pin with chain and brackets
2) One axle shaft with bolts and nuts
3) Four washers
4) Two cotter pins
5) One generator leg with bolts and nuts
6) Two wheels
2
5
14
3
6

Carburator
Change-over Switch
Inlet connector
Evaporative Tube
Fuel tank
Choke lever
Handle
Control Panel
Battery
Oil dipstick
Air filter
Recoil Start
25L (6.6 gallons)

19
Gasoline Starting.
1、Move the GAS-LPG switch clockwise
to the vertical position.
2
3、
、
P
Put the circuit breaker to “OFF” position.
Disconnect any electric devices.
ut the key switch on the “RUN” positi on.
The engine switch enables and disables the ignition system.
STOP: To stop the engine
RUN: To run the engine
START: To Start the engine
4. Turn the fuel valve clockwise to
the “ON” position.
12000W Dual-Fuel Generator
5. To start a cold engine, move the choke lever to the
CLOSED position. To restart a warm engine, leave the
choke lever in the OPEN position.
The choke lever opens and closes the choke valve in
the carburetor.
The CLOSED position enriches the fuel mixture from
starting a cold engine.
The OPEN position provides the correct fuel mixture
for operation after starting, and fo r restarting a warm
engine.

20
7. If
1. Move the GAS-LPG switch counter
-clockwise to the horizontal position.
2. Attach the LPG Supply hose to the LPG cylinder
and the other end to the inlet connector .
the choke has been moved to the “OPEN” position
to start the engine, gradually move it to the “CLOSE”
position as the engine warms up.
8. Push the circuit breakers to “ON” position.
Owner’s Manual
6. oTo
To
Holding this position longer can damage the starter
solenoid and void its warranty.
Propane Starting
perate the Recoil Start:
Pull the starter grip lightly until you feel resistance,
then pull briskly. Return the starter grip gently.
Pulling the starter grip operates the recoil start to
crank the engine
operate the Electric start:
Push and hold the engine switch on the “START”
position for 3~5s and crank the engine.
Starter Grip
