ALMAC BiBi 850 HE User manual

Date
Body
Edition
00
18-01-2016
ET team snc
01
31052016
ALMAC
02
08082016
ALMAC
BiBi 850 HE
USE AND MAINTENANCE MANUAL
ORIGINAL INSTRUCTIONS
Prior to commissioning the machine read carefully
this Use and Maintenance Manual
Mobile Elevating Work Platform

1
Table of contents
Chap. 1 General information
1.1 Documentation supplied
1.2 Manual data
1.2.1 Recipients
1.3 Ownership of information
1.4 Identification data of the manufacturer
1.5 M.E.W.P. identification data
1.6 Performances
1.7 EC Declaration of Conformity
1.8. Warranty
1.8.1 Request for interventions during warranty period and relative procedure
1.9 Customer service
1.9.1 Request for assistance and repairs
1.10 Use of the manual
1.11 Intended use and improper use
1.11.1 Intended use
1.11.2 Improper uses
1.11.3 Cases that relieve the manufacturer from liability
Chap. 2 Information regarding safety
2.1 Notification of commissioning and routine inspections
2.2 Fitness of the personnel
2.3 Indicator plates
2.3.1 Instruction plates
2.3.2 Warning, command, danger, identification, instruction signs
2.3.3 Meanings of the sign pictograms
2.4 Provisions and vetoes
2.5 Transport and loading
2.6 Inspections before use
2.7 Inspections during use
2.8 Precautions when work terminates or is interrupted
2.9 Safety regulations during maintenance
2.10 Personal protection devices (PPE)

2
Chap. 3 Machine description
3.1 Structure of the machine
3.1.1 Main parts of the machine
3.2 Operator interface
3.2.1 Indicator lights and controls of the push-button
3.2.2 Ground controls
3.3 Safety devices
3.3.1 Crush-preventing device
3.3.2 Permitted inclination monitoring device
3.3.3 Hydraulic pressure limiting devices
3.3.4 Power cut-out devices
3.3.5 Hydraulic failure safety devices
3.3.6 Lifted load limiting device
Chap. 4 Instructions for use
4.1 Preliminary operations
4.1.1 Ground fitness for permitted inclination
4.1.2 Action of the wind
4.1.3 Basket access
4.1.4 Expanding the basket
4.1.5 Fuel level check
4.1.6 Engine oil level check
4.1.7 Electric motor start up
4.1.8 Folding the railings
4.2 Machine operation
4.2.1 Drive and steering
4.2.2 Stabilizing the platform
4.2.3 Basket ascent/descent
4.2.4 Manual warning buzzer
4.3 Ground control using the remote push-button
4.4 Use of ground controls
4.5 Machine shut-down
4.5.1 Normal shut-down
4.5.2 Emergency shut-down
4.6 220 V electrical socket
4.7 Storage compartment

3
Chap. 5 Emergency procedure
5.1 Emergency manual descent
5.2 Transport of the machine in an emergency
Chap. 6 Maintenance
6.1 General maintenance
6.2 Checking and tightening screws, bolts, nuts, plug ring nuts
6.3 Visual and structural inspection
6.4 Deformation of tubes and cables
6.5 Greasing of articulations and runners
6.6 Hydraulic tank oil level inspection
6.7 Hydraulic tank oil changes
6.8 Inspection of lift circuit pressure relief valve operation
6.9 Battery
6.9.1 General recommendations
6.9.2 Maintenance
6.9.3 Recharging
6.10 Hydraulic filter replacement
6.10.1 Discharge filter replacement
6.10.2 Return filter replacement
6.11 Inspection of inclinometer operation
6.12 Inspection of position inclinometer operation
6.13 Electrical insulation monitoring device operation test
6.14 Manual emergency device operation test
6.15 Motor oil inspection and changing
6.16 Air filter cleaning and replacement
6.17 Spark plug inspection and replacement
6.18 Track inspection and tensioning
6.19 Track inspection and replacement
6.20 Track reduction gear oil level inspection
6.21 How to clean the machine
6.22 Refuelling
Chap. 7 Scrapping
7.1 Scrapping

4
Attachments
➢Ann. 1 - Declaration of conformity (facsimile)
➢Ann. 2 Report register
➢Ann. 3 Property transfers
➢Ann. 4 Hydraulic diagram
➢Ann. 5 Circuit diagram

5
Chapter 1
General information

6
1.1 Documentation supplied
•CE Declaration of conformity
•Instruction Manual (this manual)
•Wiring diagrams and hydraulic layouts
•Report register
1.2 Details of Manual
•Instruction manual for Elevating work platform
•Version: BIBI 850-HE
Note: Some of the photos and illustrations may not refer specifically to the version of the machine in your possession, but
provide indications concerning the purpose for which they have been included.
1.2.1 Recipients
• User
• Maintenance technician
Warning: the servicing personnel must be properly trained and experienced.
CAREFULLY READ this manual before performing any operation on the machine. If in doubt, do not
improvise. Call the assistance service.

7
1.3 Ownership of information
This document contains confidential information. All rights reserved.
This manual may be neither partially nor totally duplicated without the prior written authorization of
ALMAC s.r.l.
This document may only be used by the customer to whom the manual has been supplied along with
the machine, and only for the purpose of use and maintenance of the machine to which the manual
refers.
ALMAC s.r.l. hereby declares that the information in this manual was congruent with the technical and
safety specifications of the machine to which the manual refers. The manufacturer declines all liability
for direct or indirect damage to persons, things or animals deriving from use of the machine in
conditions differing from those envisaged.
ALMAC s.r.l. reserves the right to make changes or improvements, without prior notice, to the
documentary material and to the machines, including marketed machines of the same model as that to
which this manual refers but with a different serial number.
The information contained in this manual refer in particular to the machine specified in 1.6
Identification data of the M.E.W.P. and related documentation.
1.4 MANUFACTURER'S IDENTIFICATION DATA
ALMAC S.r.l.
Viale Ruggeri 6/A
42016 –Guastalla (RE) - Italy
Tel. +39 0522-1495846
VAT No. and Tax Code 02559800350

8
1.5 M.E.W.P. identification data
The machine named BIBI 850-HE is defined according to technical standards in force (ref. EN UNI
EN 280:2015), as:
➢Mobile Elevating Work Platform (MEWP), belonging to group A, type 1 (point 1.4-EN 280)
Meanings:
•GROUP A: Mobile elevating work platforms where the vertical projection of the centre of the
platform area in all platform configurations at the maximum chassis inclination specified by the
manufacturer is always inside the tipping lines.
•TYPE 1: mobile elevating work platforms in which the translation is only allowed with the
MEWP in its transport configuration
Identification plate
Refer to the data on the identification plate for an exact identification of the MEWP.
Elevating work platform
BIBI 850-HE
2018
ALM-000529
1700
6.3
250
2
90
12.5
1 / 2
40
104

9
1.6 Performances
H
I
A
B
L
F
E
C
G

10
Characteristic dimensions
Bibi 850-HE
Length
A
2.52 m
Length
with the basket expanded
Amax
2.65 m
Maximum width
B
1.24 m
Transport height
C
2.41 m
Transport height with the sidewalls folded
E
1.90 m
Basket length (min-max)
F
1.39 –2.23 m
Basket width
G
0.80 m
Min height of floor surface
Hmin
1.43 m
Minimum work height
Imin
3.43 m
Min height of floor surface
Hmax
5.89 m
Maximum work height
Imax
7.89 m
Track min - max
L
0.80 m –1.12 m
Technical data
Bibi 850-HE
Load capacity
kg
250
Number of operators in basket
2
Lifting time
s
31
Lowering time
s
35 / 40
Hydraulic pressure
bar
200
Oil tank capacity
l
20
Climb angle
°
25
Max side gradient
°
20
Max longitudinal gradient
°
14
Max driving speed
km/h
2.0
Overall weight
kg
1700
Max wind force
m/s
12.5
Battery voltage and capacity
V/ Ah
12 /50
Battery weight
kg
15
Sound power Lw
dBA
103
Sound level at operator position Lp (indoor industrial
environment)
dBA
84.5 ± 2.6
Sound level at operator position Lp (outdoor environment on
asphalt)
dBA
79.5 ± 2.6
Max peak level Lppeak
dBC
106.0
Vibrations transmitted to hand / arm system (operator hand rest)
m/s2
< 2.5

11
Technical data
Bibi 850-HE
Whole-body vibration (platform-measured on flat ground)
m/s2
0.52 ± 0.10 *
Vibrations transmitted to hand / arm system (operator hand rest)
m/s2
0.59 ± 0.12 **
* values refer to platform raised (operating height)
*** values refer to platform at the transport height limit
Standard equipment
Proportional electrohydraulic controls
Internal combustion engine (Honda GX 270)
Electric Motor 220 V/ 50 Hz
Electrical starter in basket
Electronic accelerator
Electronic tilt control
Electronic overload control
Electronic anti-shearing protection
Electronic hour-counter
Harness anchorage points
Anchorage points and accessories for lifting-lowering
Warning buzzer
Engine specifications
GX-270
Dry weight
25.8 kg
Type of engine
The single-cylinder engine OHV with
horizontal shaft, Otto cycle, 4-stroke, 25°
inclined cylinder forced air cooling, cast iron
cylinders
Swept volume
270 cm3
Net power
6.3 kW (8.4 HP) / 3 600 rpm
Net torque
19.1 Nm / 1.94 kgfm / 2 500 rpm
Q.ty engine oil
1.1 L
Fuel tank capacity
5.3 L
Cooling
Forced air

12
Engine specifications
Electrical
Dry weight
14 kg
Installed power
2.2 kW
Torque
10.2 Nm
Rpm
1400
Supply
220 V / 50 Hz
IEC Size
90

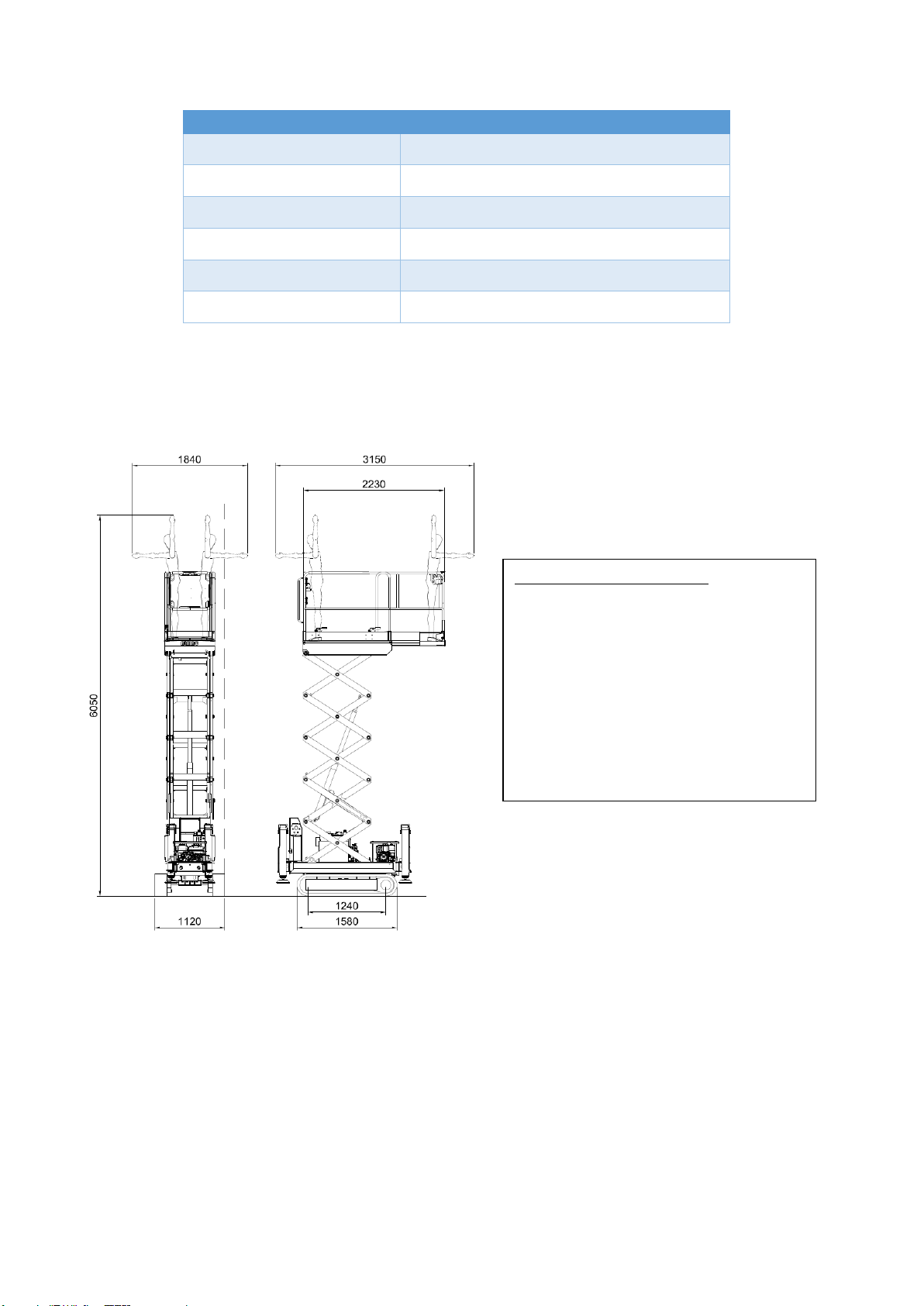

REDUCED work position:
h-operation= 6050 mm
h-floor surface= 4050 mm
Chassis expanded
No. of stabilizers
Inclination angle: max= ± 2°

13
MAXIMUM work position:
h-operation= 7900 mm
h-floor surface= 5900 mm
Stabilizers engaged and lifted
Inclination angle: max= ± 1°

14
1.7 CE Declaration of Conformity
See facsimile of CE declaration of conformity enclosed with this manual.
The machine described in this manual complies with the following standards:
▪Directive 2006/42/EC –Machinery Directive that amends Directive 95/16/EC
▪Legislative Decree D.Lgs 17/2010 –Implementation of Machinery Directive 2006/42/EC
▪UNI EN 280:2015 - Mobile elevating work platforms - Design calculations - Stability criteria -
Construction - Safety - Examinations and tests
▪UNI EN 349:2008 –Minimum gaps to avoid crushing of parts of the human body
▪EN ISO 12100:2010 Safety of machinery -General principles for design - Risk assessment and
reduction
All parts available on the market and “partly completed machinery” installed in platform BIBI 850-HE
conform to the aforementioned Directives and those that specifically govern the product.
1.8 Warranty
ALMAC S.r.l. guarantees the equipment it manufactures and undertakes to replace, free of charge and within
theshortest possible time, those parts that, in its opinion, possess manufacturing and/or material defects.
Work under warranty must only be performed by workshops authorized by ALMAC S.r.l. and only
when the Customer is up to date with the payments.
The Customer will not be entitled to work under guarantee unless he consigns the equipment for repair
within 30 days from the date of the first complaint, to be made in writing.
With the exception of fraud or gross negligence, ALMAC S.r.l. is relieved of all liability towards the
Customer for damage deriving from flaws/defects in the traded equipment.
The warranty with which the Customer is provided becomes void if modifications are made to the
machines without prior written authorization from ALMAC S.r.l. or should the Customer make
incorrect/improper use of the machines.
1.8.1 Request for interventions during warranty period and
formalities
ALMAC S.r.l. must be notified of requests for spare parts or technical interventions under
guarantee as soon as a defect is discovered.
Always indicate the type of machine and its serial number when requesting spare parts under
guarantee or technical interventions under guarantee. This information is given on the
identification plate of the equipment.

15
1.9 Customer service
As far as the optimum use of the machine and extraordinary maintenance are concerned, this manual
does not replace the expertise of the Technical Assistance sent by ALMAC S.r.l. (refer also to Chapter
6 Maintenance).
1.9.1 Request for assistance and repairs
To request ALMAC S.r.l. specialized Assistance Service, the Customer may contact:
ALMAC S.r.l.
Via Caduti Sul Lavoro 1
46019 - Viadana (MN) Italy
Phone. +39-0375 83 35 27
In case of intervention request, specify the machine version and serial number; the data are
indicated on the identification plate fixed to the machine.
1.10 Use of the manual
Note: Keep this manual in an accessible place known to all users (operators and maintenance workers).
Note: This manual must be kept in a protected place inside the compartment provided in the basket so that it can
be easily accessed for consultation throughout the entire technical life of the machine.
Note: If this manual is lost or damaged, a new copy must be ordered from the manufacturer. Specify the serial
number of the machine (given on the relative identification plate) when requesting a new copy of the manual.
The manufacturer undertakes to provide a new copy.
Note: When selling used equipment, this manual and the related attachments must be handed and the
manufacturer must be informed as regards the new owner (see Appendix 3 - Transfer of Ownership)
Read carefully Chapter 1 General Information, Chapter 2 Safety information, Chapter 3 Description of the Machine and
Performance, Chapter 4 Operating instructions, Chapter 5 Emergency Procedures.
Always consult the relative chapter when using, servicing the machine or when it is demolished.

16
1.11 Intended use and improper use
1.11.1 Intended use
The M.E.W.P. BIBI 850-HE described in this manual is a self-propelled elevating work
platform designed to lift personnel and equipment for performing the following jobs:
•professional gardening and general work
•installation of systems and equipment
•cleaning
•painting and paint removal
The max capacity for model BIBI 850-HE is 250 kg. Consider the following:
➢2 (two) persons each weighing 80 kg
➢90 kg of equipment
An electronic control system prevents the basket from lifting to any position when the load
exceeds approx. 20% of the rated load given in the technical specifications.
The platform was designed and built to be driven only from the console in the basket.
The push-button is of the removable type and can only be used by the operator to control
the platform exclusively in transport position.
The controls on the ground on the rear side are for EMERGENCY use or
MAINTENANCE by qualified personnel.
The MEWP has been designed for the lifting at different heights of persons only, to carry
out the operations allowed within the platform. THEREFORE IT IS NOT INTENDED
TO TRANSFER OF WORKERS BETWEEN DIFFERENT LEVELS OR FOR
GETTING OF THE WORK PLATFORM WHEN POSITIONED AT A HEIGHT.
Warning: NEVER exceed the machine's established maximum capacity.
Warning: It is FORBIDDEN to transport large slabs or materials since this could increase wind resistance to a
considerable extent and cause the machine to tip over.
Warning: It is FORBIDDEN to apply horizontal loads to the platform when the machine is on the move (e.g.
the operators on board must not pull ropes or cables…)
Warning: It is FORBIDDEN to use the machine for towing other equipment or vehicles.
Warning: the machine is designed for being driven within public or private areas. It is not designed for road
circulation
Warning: The machine IS NOT PREARRANGED FOR OPERATION IN ATEX CLASSIFIED
ATMOSPHERES

17
ALL LOADS must be positioned inside the basket. NEVER LIFT LOADS HANGING FROM THE PLATFORM or from
the lifting structure.
If the machine is used in places open to the public or in construction sites where persons may transit or remain in the vicinity,
the WORK AREA MUST BE CORDONED OFF in a suitable way (e.g. chains and posts).
1.11.2 Improper uses
Any other use not specifically indicated in 1.11.1 Intended use.
!The improper uses established for this MEWP include lifting and lowering persons
to/from different storeys within space (typical use of elevators).
!It is forbidden to drive the platform to the ground using the remote push-button with
an operator present in the basket.
The platform was designed and built to be driven only from the push-button positioned in
the basket. The controls on the ground on the rear side are for EMERGENCY use or
MAINTENANCE by qualified personnel.
The push-button is of the removable type and can only be used by the operator to control
the platform exclusively in transport position.
1.11.3 Cases that relieve the manufacturer from liability
The manufacturer declines all liability in the following cases:
oUse not indicated in this manual
oImproper use of the machine or its use by untrained personnel
oUse that fails to comply with the specific standards
oLack of scheduled maintenance
oUnauthorized changes or interventions
oRemoval of seals
oUse of non-original replacement parts
oTotal or partial failure to comply with the instructions
oFailure to perform the Routine Inspections required by the laws in force

18
Chapter 2
Safety information

19
2.1 Notification of commissioning and routine inspections
The work equipment indicated in Annex VII to Legislative decree D.Lgs 81/2008 and successive
amendments must be subjected to REGISTRATION and ROUTINE INSPECTIONS by the competent
authorities, i.e. INAIL, the National Institute for Insurance Against Industrial Accidents (former
ISPESL, Higher Institute for Prevention in the Workplace), the Local Health Authority and other public
and private bodies established by the criteria laid down in Ministerial decree DM 11/04/2011.
a) +The User or Employer must notify Commissioning to the territorially competent National Institute
for Insurance Against Industrial Accidents (INAIL) for the purpose of registering the platform.
b) Once the platform has been registered, ROUTINE INSPECTIONS must begin. The FIRST of these
is performed by INAIL within 45 days (since 21 August 2013) from the date on which the platform
is put into service.
c) The successive inspections, to be carried out at the frequency indicated in Annex VII to Legislative
Decree D.Lgs 81/2008, are carried out by the Local Health Departments (ASL) or, when permitted
by the regional laws, by ARPA (Regional Agency for the Protection of the Environment) or by
Public or Private undertakings, as freely decided by the Employer or User and in accordance with
the established formalities.
Attached are a few EXAMPLES of "notice of commissioning" and "routine inspections". Users should
check them each time in the www.inail.it portal, according to the installation site in question.
2.2 Fitness of the personnel
The operators in charge with using the machine must be properly trained, informed, instructed on how
to use the machine in safe conditions and must possess a training certificate issued in accordance with
the legislation in force at the time of use*.
The operators who use the machine must be over 18 years of age and be recognized as psychophysically
fit for the task in question. The following requirements must be ascertained before the operators are
allowed to drive the machine:
•sight and hearing in good conditions
•absence of changes induced by use of alcohol or drugs
•psychological equilibrium, absence of depression or stress
Operators who use the machine for professional purposes must undergo health surveillance as required
by Legislative decree D.Lgs 81/2008 and successive amendments, particularly with regard to alcohol
addiction and alcohol concentration tests.
*The law that currently governs health control and surveillance of workers is the Provision of the State-Regions
Permanent Conference of 16 March 2006.
Table of contents
Other ALMAC Scissor Lift manuals
Popular Scissor Lift manuals by other brands

Oshkosh Corporation
Oshkosh Corporation JLG 3394RT Operation and safety manual

ATN
ATN CX 12 Operator's and safety manual

Celexon
Celexon PL2000 installation manual

WERTHER INTERNATIONAL
WERTHER INTERNATIONAL SATURNUS 50R Original instructions

Oshkosh
Oshkosh JLG ES2646 Operation & safety manual

Skyjack
Skyjack SJ6826 RT Operation manual

Oshkosh Corporation
Oshkosh Corporation JLG 530LRT Operation and safety manual

Oshkosh Corporation
Oshkosh Corporation JLG 400RTS Operation & safety manual

Astra
Astra miniLIFT CLASSIC user manual

B-TEC
B-TEC Carry Operating Manual and Test Log Book

jcb
jcb Access Series quick start guide

Atlas
Atlas 12AWFSL Installation & operation manual
