ALMAC BiBi 850-BL User manual

Date
Body
Edition 00 26-05-2015 ET team snc
BiBi 850-BL
USE AND MAINTENANCE MANUAL
ORIGINAL
INSTRUCTIONS
Please read this user manual carefully before using the machine.
Bi-levelling Mobile Elevating Work

BIBI 850-BL Use and maintenance manual Rev.00 1
Table of contents
Chap. 1 General information
1.1 Documentation supplied 5
1.2 Details of the manual 5
1.2.1 Recipients 5
1.3 Ownership of the information 6
1.4 Manufacturer's identification data 6
1.5 MEWP identification data 7
1.6 Performance 8
1.7 CE Declaration of conformity 12
1.8 Warranty 12
1.8.1 Request for interventions during warranty period and formalities. 12
1.9 Assistance 13
1.9.1 Request for assistance and repairs 13
1.10 Use of the manual 13
1.11 Intended use and improper uses 14
1.11.1 Intended use 14
1.11.2 Improper uses 15
1.11.3 Cases that relieve the manufacturer from liability 15
Chap. 2 Safety information
2.1 Notification of commissioning and routine inspections 16
2.2 Fitness of the personnel 16
2.3 Indicator plates 18
2.3.1 Instruction plates 18
2.3.2 Warning, command, danger, identification and instruction signs 20
2.3.3 Meanings of the sign pictograms 23
2.4 Provisions and prohibitions 24
2.5 Transport and loading 25
2.6 Inspections before use 28
2.7 Inspections during use 29
2.8 Precautions when work terminates or is interrupted 31
2.9 Safety regulations during maintenance 32
2.10 Personal Protective Equipment (PPE) 34

BIBI 850-BL Use and maintenance manual Rev.00 2
Chap. 3 Machine description
3.1 Structure of the machine 36
3.1.1 Main parts of the machine 40
3.2 Operator interface 41
3.2.1 Pushbutton panel lights and controls 41
3.2.2 Ground controls 43
3.3 Safety devices 44
3.3.1 Anti-crushing device 44
3.3.2 Permitted inclination monitoring device 45
3.3.3 Hydraulic pressure limiting devices 46
3.3.4 Power (electric) cut-out devices 47
3.3.5 Hydraulic failure safety devices 48
3.3.6 Lifted load limiting device 50
Chap. 4 Instructions for use
4.1 Preliminary operations 51
4.1.1 Ground fitness for permitted inclination 51
4.1.2 Action of the wind 53
4.1.3 Basket access 54
4.1.4 Basket extension 55
4.1.5 Starting 56
4.1.6 Emergency starting 57
4.1.7 Electric motor starting 57
4.2 Machine operation 59
4.2.1 Drive and steering 59
4.2.2 Platform levelling 62
4.2.3 Basket ascent/descent 66
4.2.4 Manual warning buzzer 66
4.2.5 Timer. 67
4.2.6 Easy-Drive System (ED-S). 67
4.2.7 Direct-Control System (DC-S). 68
4.3 Ground control with mobile pushbutton panel 68
4.4 Use of ground controls 69
4.5 Stopping the machine 70
4.5.1 Normal stopping 70
4.5.2 Emergency stop 71

BIBI 850-BL Use and maintenance manual Rev.00 3
4.6 220 V electrical socket 72
4.7 Storage compartment and documents 73
Chap. 5 Emergency procedures
5.1 Emergency manual descent 74
5.2 Transport of the machine in an emergency 74
Chap. 6 Maintenance
6.1 General maintenance 76
6.2 Checking and tightening screws, bolts, nuts, plug ring nuts 78
6.3 Visual and structural inspection 79
6.4 Damage to tubes and cables 79
6.5 Greasing of articulations and runners 80
6.6 Hydraulic tank oil level inspection 80
6.7 Hydraulic tank oil changes 81
6.8 Inspection of lift circuit pressure relief valve operation 82
6.9 Battery 83
6.9.1 General recommendations 83
6.9.2 Maintenance 84
6.9.3 Recharging 84
6.10 Hydraulic filter replacement 86
6.10.1 Discharge filter replacement 86
6.10.2 Return filter replacement 87
6.11 Inspection of inclinometer operation 88
6.12 Microswitch operation test 90
6.13 Electrical insulation monitoring device operation test 92
6.14 Manual emergency device operation test 93
6.15 Engine oil inspection and changing 94
6.16 Air filter cleaning and replacement 95
6.17 Spark plug inspection and replacement 97
6.18 Track inspection and tensioning 98
6.19 Track inspection and replacement 99
6.20 Track reduction gear oil level inspection 104
6.21 How to clean the machine 107
6.22 Refuelling 107

BIBI 850-BL Use and maintenance manual Rev.00 4
Chap. 7 Demolition
7.1 Demolition 109
Appendices
 App. 1 - Declaration of conformity (facsimile)
 App. 2 Report register
 App. 3 Property transfers
 App. 4 Hydraulic diagram
 App. 5 Circuit diagram

BIBI 850-BL Use and maintenance manual Rev.00 5
Chapter 1 General information
1.1 Documentation supplied.
 CE Declaration of conformity
 Instruction Manual (this manual)
 Wiring diagrams and hydraulic layouts
 Report register
1.2 Details of the Manual
 Instruction manual Elevating work platform
 Model: BIBI 850-BL
 Revision: 00
Note: Some of the photos and illustrations may not refer specifically to the version of the machine in your possession, but
provide indications concerning the purpose for which they have been included.
1.2.1 Recipients
• User
• Maintenance technician
Attention: the servicing personnel must be properly trained and experienced.
CAREFULLY READ this manual before performing any operation on the machine. If in doubt, do not
improvise. Call the assistance service.

BIBI 850-BL Use and maintenance manual Rev.00 6
1.3 Ownership of the information
This document contains confidential information. All rights are reserved.
This manual may be neither partially nor totally duplicated without the prior written authorization of
ALMAC s.r.l.
This document may only be used by the customer to whom the manual has been supplied along with
the machine, and only for the purpose of use and maintenance of the machine to which the manual
refers.
ALMAC s.r.l. hereby declares that the information in this manual is congruent with the technical and
safety specifications of the machine to which the manual refers. The manufacturer declines all liability
for direct or indirect damage to persons, things or animals deriving from use of the machine in
conditions differing from those envisaged.
ALMAC s.r.l. reserves the right to make changes or improvements, without prior notice, to the
documentary material and to the machines, including marketed machines of the same model as that to
which this manual refers but with a different serial number.
The information contained in this manual refers in particular to the equipment specified in 1.6 MEWP
identification data and the related documentation
1.4 MANUFACTURER'S IDENTIFICATION DATA
ALMAC S.r.l.
Viale Ruggeri 6/A
42016 – Guastalla (RE) - Italy
email: [email protected]
Tel. [phone]
VAT No. and Tax Code 02559800350

BIBI 850-BL Use and maintenance manual Rev.00 7
1.5 MEWP identification data
The machine named BIBI 850-BL is defined according to current technical standards (ref. UNI EN
280:2013) as:
 Mobile Elevating Work Platform (MEWP), belonging to group B, type 3 (point 1.4-EN
280)
Meanings:
GROUP B: All mobile elevating work platforms that differ from those in "Group A" (mobile elevating
work platforms in which the vertical projection of the centre of the platform area in all
configurations of the platform at maximum inclination of the frame as specified by the
manufacturer is always within the tipping lines).
TYPE 3: MEWPs in which movement with the platform lifted is controlled by a command post
in the basket.
Identification plate
Refer to the data on the identification plate for an exact identification of the MEWP.
Elevating work platform
BIBI 850-BL 2015
ALM
-000062
1990
6.8
250
2
90
12.5
15
40
104

BIBI 850-BL Use and maintenance manual Rev.00 8
1.6 Performance
Characteristic dimensions BIBI 850-BL
Length A 1.93 m
Length
with basket extended Amax 2.59 m
Maximum width B 1.50 m
Transport height
with basket - wide track C 2.33 m
Transport height
with basket - narrow track D 2.82 m
Transport height
without basket E 1.62 m
Basket length F 1.35 m
Basket width G 0.74 m
Min height of floor surface Hmin 1.22 m
Minimum work height Imin 3.22 m
Min height of floor surface Hmax 5.90 m
Maximum work height Imax 7.90 m
Min-max track L 1.30 m – 1.50 m
A
B
C
E
F
G
D
H I
L

BIBI 850-BL Use and maintenance manual Rev.00 9
Technical data BIBI 850-BL
Capacity kg 250
Number of operators in basket 2
Lifting time s 15
Lowering time s 20
Hydraulic pressure bar 200
Oil tank capacity l 20
Climb angle ° 25
Max side gradient ° 15
Max length gradient ° 20 / 16
Driving speed km/h 2.0
Overall weight kg 1990
Max wind force m/s 12.5
Battery voltage and capacity V/ Ah 12 /50
Battery weight kg 15
Sound power Lw dBA 103
Sound level at operator position Lp (indoor industrial area) dBA 84.5 ± 2.6
Sound level at operator position Lp (outdoor area on asphalt) dBA 79.5 ± 2.6
Max peak level Lp peak dBC 106.0
Hand/arm vibration (operator hand rest) m/s2 < 2.5
Entire body vibrations (platform-measured on flat ground) m/s2 0.52 ± 0.10 *
Hand/arm vibration (operator hand rest) m/s2 0.59 ± 0.12 **
* values refer to platform lifted (working height) **values refer to platform at the transport height limit
Standard equipment
Proportional electrohydraulic controls
Internal combustion engine (Honda iGX-390)
Electric Motor 220 V/ 50 Hz
Electrical starter in basket
Electronic accelerator
Electronic tilt control
Overload control
Electronic anti-shearing protection
Electronic hour-counter
Harness anchorage points
Anchorage points and accessories for lifting-transport
Warning buzzer

BIBI 850-BL Use and maintenance manual Rev.00 10
Engine
specifications
iGX-390
Dry weight 31.7 kg
Type of engine 4-stroke, overhead valves, single-
cylinder with automatic accelerator
Displacement 389 cm3
Net power 8.7 kW at 3600 rpm
Net torque 26.5 N·m at 2500 rpm
Q.ty engine oil 1.1 L
Fuel tank capacity 6.1 L
Cooling Forced air
Engine
specifications
Electrical
Dry weight 14 kg
Power 2.2 kW
Torque 10.2 Nm
Rpm 1400
Power supply 220 V / 50 Hz
IEC Size 90

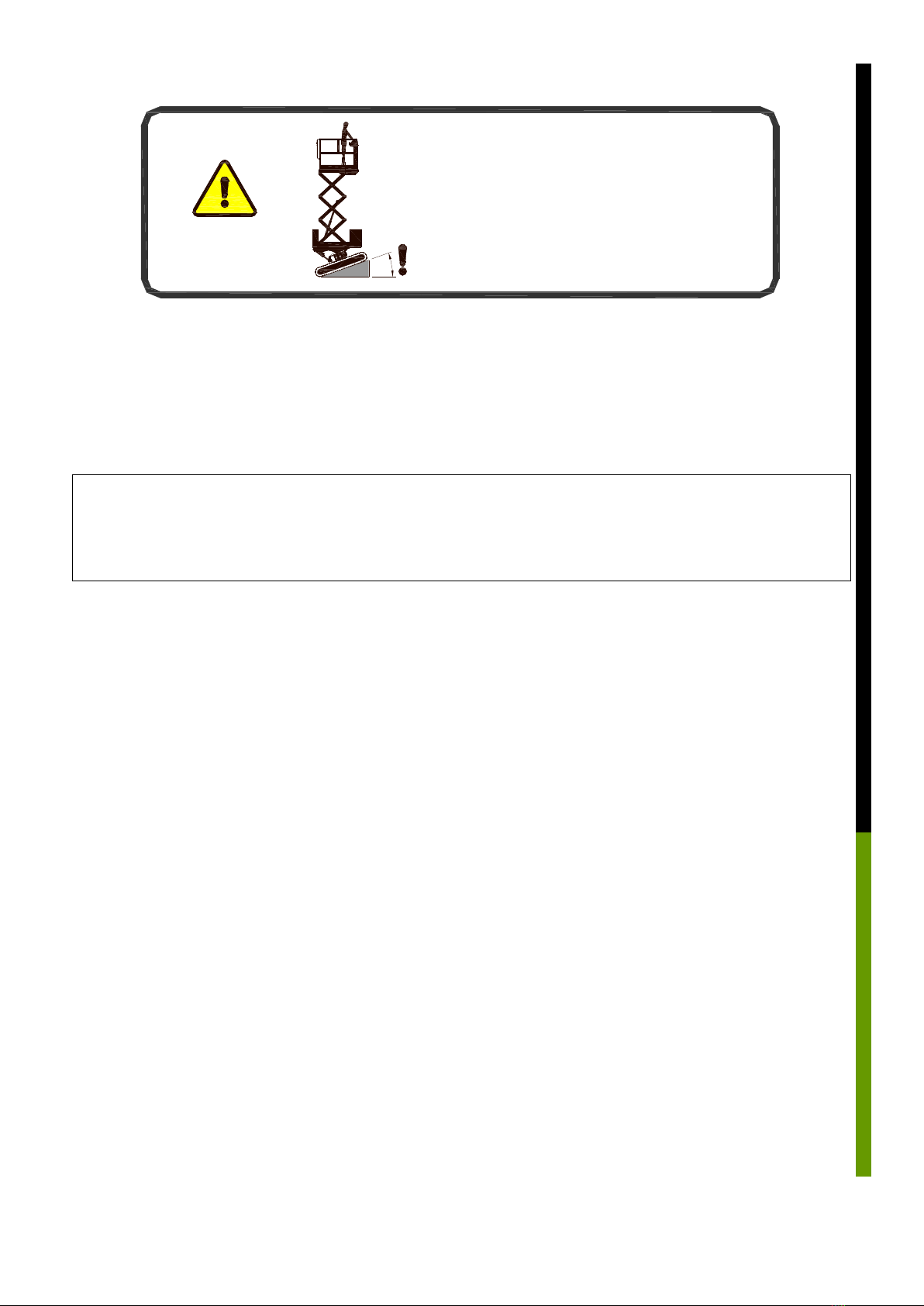

Maximum allowed incline

BIBI 850-BL Use and maintenance manual Rev.00 11
Maximum allowed transport height
(manual levelling and movement speed adjustment is allowed)
Maximum lateral incline for moving at height
(maximum work height 6.4 m)
2 m
4 m

BIBI 850-BL Use and maintenance manual Rev.00 12
1.7 CE Declaration of Conformity
See facsimile of CE declaration of conformity enclosed with this manual.
The machine described in this manual complies with the following standards:
▪ Directive 2006/42/EC – Machinery Directive that amends Directive 95/16/EC
▪ Legislative Decree 17/2010 – Implementation of Machinery Directive 2006/42/EC related to
the machine
▪ UNI EN 280:2013 - Mobile elevating work platforms - Design calculations - Stability criteria -
Construction - Safety - Examinations and tests
▪ UNI EN 349:2008 – Minimum gaps to avoid crushing of parts of the human body
▪ EN ISO 12100:2010 Safety of machinery -General principles for design - Risk assessment and reduction
All parts available on the market and “partly completed machinery” installed in platform BIBI 850-BL
conform to the aforementioned Directives and those that specifically govern the product.
1.8 Warranty
ALMAC S.r.l. guarantees the equipment it manufactures and undertakes to replace, free of charge and within
the shortest possible time, those parts that, in its opinion, possess manufacturing and/or material defects.
The machines are guaranteed for a period of 12 months from the date of delivery.
Work under warranty must only be performed by workshops authorized by ALMAC S.r.l. and only
when the Customer is up to date with the payments.
Consignment of the equipment for the required work and its successive collection after the repairs have
been made are at the Customer's care and expense. The Customer will not be entitled to work under
guarantee unless he consigns the equipment for repair within 30 days from the date of the first
complaint, to be made in writing.
With the exception of fraud or gross negligence, ALMAC S.r.l. is relieved of all liability towards the
Customer for damage deriving from flaws/defects in the traded equipment.
The warranty with which the Customer is provided becomes void if modifications are made to the
machines without prior written authorization from ALMAC S.r.l. or should the Customer make
incorrect/improper use of the machines.
The seller must in any case be notified of flaws/defects discovered in such terms within and no later
than 8 days from their discovery under penalty of forfeiture of the warranty itself.
1.8.1 Request for interventions during warranty period and
formalities
ALMAC S.r.l. must be notified of requests for spare parts or technical interventions under
guarantee as soon as a defect is discovered.
Always indicate the type of machine and its serial number when requesting spare parts under
guarantee or technical interventions under guarantee. This information is given on the
equipment identification plate.

BIBI 850-BL Use and maintenance manual Rev.00 13
1.9 Assistance
As far as the optimum use of the machine and extraordinary maintenance are concerned, this manual
does not replace the experience of the Technical Assistance sent by ALMAC S.r.l. (also refer to Chapter
6 Maintenance).
1.9.1 Request for assistance and repairs
To request ALMAC S.r.l. specialized Assistance Service, the Customer may contact:
ALMAC S.r.l.
Viale Ruggeri 6/A
42016 – Guastalla (RE) - Italy
email: [email protected]
Tel. [phone]
When requesting assistance interventions, always indicate the model of the machine and its
serial number: this data is given on the identification plate.
1.10 Use of the manual
Note: Keep this manual in an accessible place known to all users (operators and maintenance workers).
Note: This manual must be kept in a protected place inside the compartment provided in the basket so that it can
be easily accessed for consultation throughout the entire technical life of the machine.
Note: If this manual is lost or damaged, a new copy must be ordered from the manufacturer. Specify the serial
number of the machine (given on the relative identification plate) when requesting a new copy of the manual.
The manufacturer undertakes to provide a new copy.
Note: When selling used equipment, this manual and the related attachments must be included and the
manufacturer must be informed of the new owner (see Appendix 3 - Transfer of Ownership)
Read carefully Chapter 1 General Information, Chapter 2 Safety information, Chapter 3 Description of the Machine and
Performance, Chapter 4 Operating instructions, Chapter 5 Emergency Procedures.
Always consult the relative chapter when using, servicing the machine or when it is demolished.

BIBI 850-BL Use and maintenance manual Rev.00 14
1.11 Intended use and improper uses
1.11.1 Intended use
The BIBI 850-BL MEWP described in this manual is a self-propelled elevating work platform
designed to lift personnel and equipment for performing the following jobs:
 professional gardening and general work
 installation of systems and equipment
 cleaning
 painting and paint removal
The max capacity for model BIBI 850-BL is 250 kg. Consider the following:
 2 (two) persons each weighing 80 kg
 90 kg of equipment
An electronic control system prevents the basket from lifting to any position when the load
exceeds approx. 30% of the rated load given in the technical specifications.
The platform was designed and built to be driven only from the console in the basket.
The pushbutton control panel is removable and can only be used by the operator to drive
the platform only in the TRANSPORT position.
The controls on the ground on the rear side are for EMERGENCY use or
MAINTENANCE by qualified personnel.
Attention: NEVER exceed the machine's established maximum capacity.
Attention: It is FORBIDDEN to transport large slabs or materials since this could increase wind resistance to
a considerable extent and cause the machine to tip over.
Attention: It is FORBIDDEN to apply horizontal loads to the platform when the machine is on the move (e.g.
the operators on board must not pull ropes or cables…)
Attention: It is FORBIDDEN to use the machine for towing other equipment or vehicles.
Attention: the machine is designed for being driven around within public or private areas. It is not designed
for road circulation.
Attention: the machine is NOT EQUIPPED TO WORK IN ATEX ATMOSPHERES

BIBI 850-BL Use and maintenance manual Rev.00 15
ALL LOADS must be positioned inside the basket. NEVER EVER LIFT LOADS HANGING FROM THE PLATFORM
or from the lifting structure.
If the machine is used in places open to the public or in construction sites where persons may transit or remain in the vicinity,
the WORK AREA MUST BE CORDONED OFF in a suitable way (e.g. chains and posts).
1.11.2 Improper uses
Any other use not specifically indicated in 1.11.1 Intended use.
! The improper uses established for this MEWP include lifting and lowering persons
to/from different storeys within space (typical use of elevators).
! It is also forbidden to drive the platform on the ground using the mobile pushbutton
panel with an operator in the basket.
The platform was designed and built to be driven only from the console in the basket. The
controls on the ground on the rear side are for EMERGENCY use or MAINTENANCE by
qualified personnel.
The pushbutton control panel is removable and can only be used by the operator to drive
the platform only in the TRANSPORT position.
1.11.3 Cases that relieve the manufacturer from liability
The manufacturer declines all liability in the following cases:
o Use not indicated in this manual
o Improper use of the machine or its use by untrained personnel
o Use that fails to comply with the specific standards
o Lack of scheduled maintenance;
o Unauthorized changes or interventions;
o Removal of seals
o Use of non-original replacement parts
o Total or partial failure to comply with the instructions
o Failure to perform the Routine Inspections required by the laws in force

BIBI 850-BL Use and maintenance manual Rev.00 16
Chapter 2 Safety information
2.1 Notification of commissioning and routine inspections
The work equipment indicated in Annex VII to Legislative decree 81/2008 and successive amendments
must be subjected to REGISTRATION and ROUTINE INSPECTIONS by the competent authorities,
i.e. INAIL, the National Institute for Insurance Against Industrial Accidents (former ISPESL, Higher
Institute for Prevention in the Workplace), the Local Health Authority and other public and private
bodies established by the criteria laid down in Ministerial decree DM 11/04/2011.
a) The User or Employer must notify Commissioning to the territorially competent National Institute
for Insurance Against Industrial Accidents (INAIL) for the purpose of registering the platform.
b) Once the platform has been registered, ROUTINE INSPECTIONS must begin. The FIRST of these
is performed by INAIL within 45 days (since 21 August 2013) from the date on which the platform
is put into service.
c) The successive inspections, to be carried out at the frequency indicated in Annex VII to Legislative
Decree 81/2008, are carried out by the Local Health Departments (ASL) or, when permitted by the
regional laws, by ARPA (Regional Agency for the Protection of the Environment) or by Public or
Private undertakings, as freely decided by the Employer or User and in accordance with the
established formalities.
Attached are a few EXAMPLES of "notice of commissioning" and "routine inspections". Users should
check them each time in the www.inail.it portal, according to the installation site in question.
2.2 Fitness of the personnel
The operators who use the machine must be properly trained, informed, instructed on how to use the
machine in safe conditions and must possess a training certificate issued in accordance with the laws
in force at the time of use*.
The operators who use the machine must be over 18 years of age and be recognized as psychophysically
fit for the task in question. The following requirements must be ascertained before the operators are
allowed to drive the machine:
 sight and hearing in good conditions
 absence of changes induced by use of alcohol or drugs
 psychological equilibrium, absence of depression or stress
Operators who use the machine for professional purposes must undergo health surveillance as required
by Legislative decree 81/2008 and successive amendments, particularly with regard to alcohol
addiction and alcohol concentration tests.
*The law that currently governs health control and surveillance of workers is the Provision of the State-Regions
Permanent Conference of 16 March 2006.

BIBI 850-BL Use and maintenance manual Rev.00 17
Note: ALMAC S.r.l. declines all liability for damage to persons, animals and things deriving from:
1. failure to comply with the safety regulations
2. use of the machine by unqualified operators
3. failure to comply with the recommendations in the documentation supplied
Extract from the Italian Laws currently in force: State-Regions Agreement of 22 February 2012, published on 12
March in the Official Gazette
Mobile elevating work platforms Mobile machine designed to move persons to their
work stations, in which they perform their tasks
from the work platform; meaning that the persons
enter and leave the work platform by means of a
defined access position, that consists of at least
one work platform with controls, an extensible
structure and a frame.
Legal
struct.
Tech.
struct.
Pract. struct.
Mobile elevating work
platforms 1 3
4 - on stabilizers
5 - without stabilizers
6 - with and without stabilizers.
TOTAL=
MEWP
8 h

BIBI 850-BL Use and maintenance manual Rev.00 18
2.3 Indicator plates
The following sign plates are affixed to the machine:
 Identification (see par. 1.5)
 Instructions
 Command/prohibition sign plates
 Attention
 Danger
2.3.1 Instruction plates
Data plate with maximum capacity indication

BIBI 850-BL Use and maintenance manual Rev.00 19
Plate with danger indication for inclined movement on slippery ground
Note: The inclinations listed on the plate above refer to those LIMITS that cannot be exceeded with
the machine. Almac s.r.l. has equipped the BIBI 850-BL with an electronic monitoring system that
prevents machine movements exceeding the maximum inclinations allowed in order to ensure the
essential parameters that establish safety in lifting machines like this one: stability.
DANGER
DO NOT TRANSLATE AT HEIGHT
ON WEAK, MUDDY, FROZEN,
SLIPPERY GROUNDS OR CLOSE
TO HOLES, MOATS, DRAINS OR
CRACKS THAT OPEN UP TO
EMPTY SPACES. EN
