Almot 08880893 User manual

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail]
08880893
CONTROL UNIT FOR 1 MOTOR 24 VOLT
ITALIANO
Versione 1 31.03.2015
MANUAL INSTRUCTION

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail]
WARNING: READ CAREFULLY THE FOLLOWING SAFETY INDICATIONS BEFORE TO START THE INSTALLATION OF
THIS DEVICE; THEY ARE USEFUL TO PREVENT ANY ELECTRICAL CONTACT, INJURY AND OTHER PROBLEMS. KEEP
THIS MANUAL FOR OTHER CONSULTATIONS.
 The control units for the Vasistas are intended exclusively to the control of the weather for the automac
movement of the windows. The use for applicaons which are dierent from the ones indicated must be au-
thorized by the manufacturer, aer the technical test of the applicaon.
 Aer having removed the packaging, check that the device is intact. Plasc bags, styrofoam, small metallic
components as nails, clips, etc. have to be kept out of reach of children, because they might be dangerous.
 Before to connect the device, verify that the electrical supply that you use, has the same features indicated in
the label with the technical infos, applied on the device.
 The installaon of the device has to be made according to the instrucons of the manufacturer. Non-
compliance with these rules can compromise the safety.
 The implementaon of the electrical installaon of voltage supply has to be made according to the current
rules.
 To avoid any danger of injuries or death caused by the voltage supply, before implemenng any operaon of
wiring or regulaon, turn o the voltage from the supply line.
 To assure an eecve separaon from the net we suggest to install a momentary bipolar switch (buon) ap-
proved. At the beginning of the command line a general omnipolar switch of supply with input of the contact
of at least 3,5 mm, must be installed.
 It is necessary to use material of connecon t to guarantee an isolaon according to the actual normave on
the electric safety.
 Don’t clean or wash the device with solvent or jets of water. Do not immerse into water.
 Warning: in case of damage or malfuncon, turn o the device from the general switch and call a qualied
technician.
 Every repair have to be implemented only by qualied sta in an help centre authorized by the manufacturer.
 Before implemenng any operaon of cleaning or maintenance, be sure to disconnect the device from the
net. For further safety we suggest to remove the electrical connecon.
 Request always and exclusively the use of original replacements. The non-compliance with this rule could
compromise the safety and undo the benets of the warranty applied on the device.
 In case of problems or doubts during the intallaon of the funconing, address to your retailer of
trust or directly to the manufacturer.
1.0 INSTRUCTIONS FOR THE SAFETY
2.0 WASTE DISPOSAL
This product is integral part of the automaon, and therefore you/he/she must be digests together with it.
As for the operaons of installaon, also at the end of the life of this product, the operaons of dismantlement
must be perform from personal qualied.
This product is constuted by various types of materials: some can be recycled, others must be digest. Inform you
on the systems of recycling or disposal ancipated from the in force rules on your territory, for this category of pro-
duct.
Aenon! Some parts of the product can contain pollung or dangerous substances that, if dispersed in
the environment, you/they could provoke harmful eects on the same environment and on the human
health.
As pointed out by the side symbol, it is forbidden to throw this product in the domesc refusals. To per-
form therefore her "separate harvest" for the disposal, according to the ancipated methods from the in
force rules on your territory, or to redeliver the product to the seller in the moment of the purchase of a
new equivalent product.
Aenon! The in force rules to local level can foresee heavy sancons in case of unauthorized disposal of
this product.

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail] 1

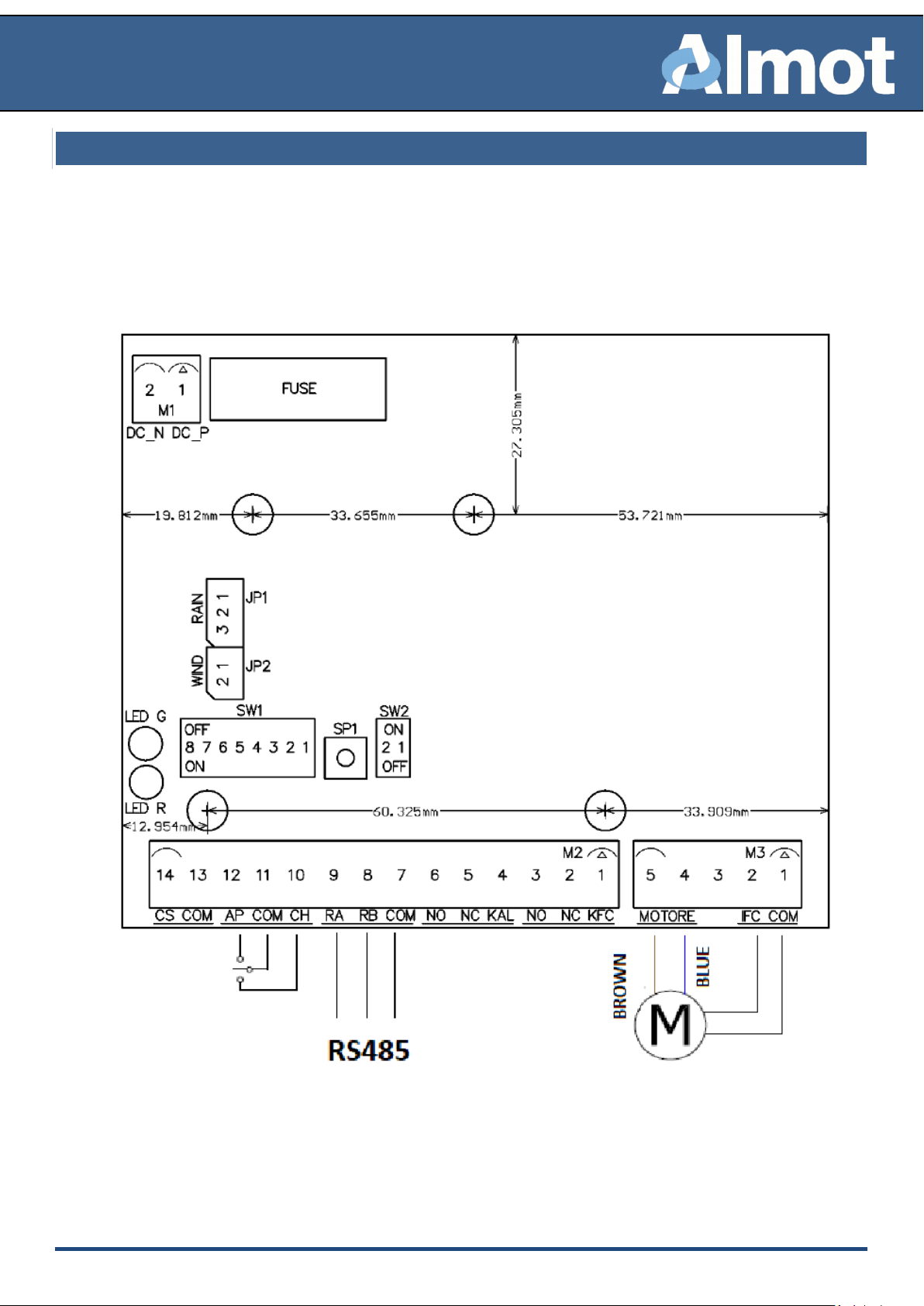

3.0 WIRING DIAGRAM

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail] 2
3.1 TECHNICAL CHARACTERISTICS
DESCRIPTION RANGE UNIT
Supply voltage 24 Vac
Input current 6Aac
Rated Frequency 50/60 Hz
Electrical characteriscs
DESCRIPTION RANGE
Operang temperature - 30°C ÷ + 70°C
Storage temperature - 40°C ÷ + 85°C
Protecon degree IP 20
Cable cross secon, min / max 0,5 / 2,5 mm²
Electrical characteriscs
DESCRIPTION NORMS
EMC Direcve 89/336/EEC
Low Voltage 93/68/EEC
Safety of informaon Technology Equipment, including Electrical Business
Equipment EN60950
EMC Generic Immunity Standard (Industrial) EN61000-6-2
EMC Generic Emission Standard (Industrial) EN61000-6-4
Cercaons and Compliance

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail] 3
3.2 CONNECTORS
DC_P AC power supply
For DC version posive wire
24 Vac, 6 A, 50/60 Hz
24 Vdc, 6 A
1
DC_N AC power supply
For DC version negave wire
24 Vac, 6 A, 50/60 Hz
0 V
2
OP Open command input 12
CO Common 0 V 11
CL Close command input 10
M1: POWER SUPPLY
M2: INPUTS AND OUTPUTS
RA RS485, A line 9
RB RS485, B line 8
CO RS485, commom 0 V 7
NO Alarm relay: N.O. contact 6
NC Alarm relay: N.C. contact 5
KAL Alarm relay: Common contact 4
NO FC relay: N.O. contact 3
NC FC relay: N.C. contact 2
KFC FC relay: Common contact 1
M3: MOTORS
MOT Motor power supply 24Vdc 5
MOT Motor power supply 24Vdc 4
- 3
IFC Limit switch: input signal 2
COM Limit switch: common 0 V 1
JP1: RAIN SENSOR
12Vo Sensor power supply 12 Vdc, 150 mA 1
RAIN Rain sensor input 2
COM Sensor common 0 V 3
JP1: RAIN SENSOR
1WIND Wind sensor input
2COM Sensor common 0 V

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail] 4
4.0 PRODUCT DESCRIPTION
This document describes the funconality af a card used for the menagement of a 24 Vdc motor for ope-
ning and closing a window.
There are four versions of the device summarized in table nr. 1.
CURRENT SENSOR TYPE DESCRIPTION
HIGH CURRENT SENSORS See chapter 5.
LOW CURRENT SENSORS See chapter 5.
Table nr. 1: Device versions
4.1 REPORTS
The device manages many kinds of led light ashes summarized in picture 1
4.2 ALARM RESET
The device comunicates outdoors it’s status with two led: red and green, the buzzer and the KAL relay.
Alarms and faults can be reset in any of following ways.
1. To MOD-bus sending the right command (table nr. 10).
2. Pushing the buon on the board. In this case the rst me pushing the buon silenced the buzzer
and the second one reset the alarms.
3. By dosing the AP input the buzzer turns o and the alarms reset.
WARNING: if the cause of the alarm or the faut have not been removed it will arise again in a few se-
cond.
Picture 1:

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail] 5
5.0 SENSORS VERSION
Aer a short inial test, marked by alternate blinking of the Leds and by two short buzzer rings, the device
is ready awaing for commands for the management of a 24Vdc motor for opening and closing a window.
The motor is controlled at the opening and closing depending on the condion of the AP and CH inputs or
the remote controller keys.
The opening of the motor stops in about 90 seconds; the closing stops when the IFC limit switch indicates
the closed window status or aer about 90 seconds. The KFC relay replicates the IFC input's status.
If the device detects a wind speed greater then the threshold or the rain sensor is acve the device goes in
the alarm state closing the window. When the alarm condion is removed the device exit the alarm state
aer 8 minutes going into normal operaon.
Table 3: Acons Thresolds
DESCRIPTION Conn. M2:
4,5,6 KALL Buzzer Green LED Red LED
Wind alarm Acve OFF OFF FLASH 1
Rain Alarm Acve OFF OFF SLOW
Normal operaon Resng OFF ON OFF
SW1 Wind threshold
87
OFF OFF > 5 km/h
OFF ON > 15 km/h
ON OFF > 25 km/h
ON ON > 35 km/h
Table 2: Dip-switch SW1 sengs
SW1
Alarm me-out
6
OFF Fixed, 8 minutes
ON
Aer 10 seconds
the commands are
enabled
SW1 Remote controller
Keys
5
OFF No acon
ON The OPEN and
CLOSE commands
reverse
The device communicates outdoors it's status with two Leds: red and green, the buzzer and the KAL relay
as summarized in Table 3 and described in picture 1.

S.G. Eleronica S.r.l - Via E. Ferrari , 28 - 30037 Scorzè (VE) Italy - Tel [phone] Fax [phone] - www.almot.it - [e-mail] 5
6.0 PROGRAMMATION OF THE FIRST TX MASTER REMOTELY (NO TX IN THE MEMORY)
1) Power the control unit. 2) The buzzer of the
control unit will emit a
prolunged sound.
3) Within seconds push
the buon STOP of the
transmier to memorized.
4) The buzzer of the con-
trol unit will emit an inter-
mient sound.
5) POGRAMMING DONE.
1) Aer the control unit is
powered, push the
buon P1 for 3 seconds
and release
2) the buzzer of the
control unit will emit a
prolunged sound
3) Within seconds push
the buon STOP of the
transmier to memorized.
4) The buzzer of the con-
trol unit will emit an inter-
mient sound.
5) POGRAMMING (OR
RESET) DONE
6.1 MEMORIZATION OF A TX FROM A 893 CONTROL UNIT
BEEEEEEP
BEEEEEEP BEP-BEP-BEP
BEP-BEP-BEP
6.3 TOTAL RESET
1) When the control unit is powered
push and keep pressed the buon
P1, the buzzer will emit a long sound.
1) Keep pressed the buon P1 unl
you hear the intermient sound of
the buzzer. Release the buon P1
3) TOTAL RESET DONE
BEP-BEP-BEP
BEEEEEEP
6.2 MEMORIZATION (OR RESET) OF A TX FROM A TRANSMITTER MASTER
1) push and keep pres-
sed the hidde buon on
the back transmier al-
ready memorized
2) the buzzer of the
control unit will emit a
prolunged sound
3) Within seconds push
the buon STOP of the
transmier to memorized.
4) The buzzer of the con-
trol unit will emit an inter-
mient sound.
5) POGRAMMING (OR
RESET) DONE
BEP-BEP-BEP
N.B.: this operaon delated the transmier it is already memorized, the buzzer conrmed with prolunged sound (point 4)
BEEEEEEP
