ALORAIR MaxFireDry 200 User manual

MaxFireDry 200
Portable Heater
OWNER’S MANUAL
Electric Heat Drying System
Specifications subject to change without notice.
AlorAir Solutions INC.

We standard equipped with 4 x length (25 feet) power cord for you, if you
need a longer power cord, you can buy (50 feet) power cord from the
dealer or designated network.
ln order to avoid overheating, do not cover the heater.
Do not turn on the machine or try to enter through the grille with the power
on.
The risk of electric shock, do not use overload sockets or extension
cables. Check the power rating before use.
In order to provide continuous protection against the risk of electric shock,
you can only connect sockets with grounding.
Make sure you have read and understood this manual before
operating the machine.
Check whether there is any damage on the outside of the machine
before operation. If there is any damage, please contact customer
service.
Do not let children or patients operate.
WARNING!
Electric Heat Drying System

CATALOGUE
Electric Heat Drying System
01
02
04
06
07
12
13
14
Matters Needing Attention
Overview
Accessories and Maintenance
Service Section
LCD Display Instructions
Wiring Diagram
Troubleshooting
Warranty and After-sale

MATTERS NEEDING ATTENTION
Electric Heat Drying System
01

OVERVIEW
PARAMETERS
Power
120VAC 60Hz,
1 Phase Heater Circuits (up to 4)
Heating Unit PTC thermistor wire
Maximum Heat 20,000 BTUs
Maximum Setting Temperature
Air Volume 250 CFM
Filter MERV-8
Pipeline Import and export-8 inch flexible
pipe (aluminum conduit).
Width 12.6” 17”
Height 12.6” 17.8”
Depth 26.2” 30.5”
Weight 34.6 pounds 42 pounds
SIZE SPECIFICATION
Without Packing With Packing
Electric Heat Drying System
02

HOW TO WORK
The power cord is plugged into socket # 1, the main control system of the
device is power on and starts to operate, as shown in figure:
Connect the controller data cable to the
EXTERNAL CONTROL GONNECTOR
socket to switch on the controller for
external temperature detection and
control, as shown in figure.
When the equipment is not in use, please
shut down the operating system (POWER
button) first, then disconnect the rocker
switch, and then pull out the plug from the
socket, as shown in figure.
Electric Heat Drying System
03
1.
2.
3.

PRODUCT FEATURES
Timing Off
Blackout Memory Room temperature detection
Button Led Display
Fault Judgment
Cycle Mode
Overheating power cut-off protection
Wired Remote Control High energy efficiency
Stackable
Fire-proof and flame-retardant material
for shell
DETAILS OF ACCESSORIES
Name
Filter
External Controller
Power Connection Line
Specification Manual
Straps (stainless Steel)
Specification
8.9 x 8.7 x 0.6 in MERV-8
1
2
EXTERNAL PIPE
MaxFireDry 200 can be connected to the inlet, outlet or both to accommodate 8
"flexible pipes. When choosing flexible pipes, keep in mind the expected outlet
temperature. The air temperature usually increases by 50 to 80 degrees Fahrenheit.
Increasing the pipe will reduce the airflow, which will cause the outlet temperature to
rise again."
Air intake ducts can be ordered from the factory,need to be purchased separately.
Note: aluminum conduit is strongly recommended as it can effectively
avoid fire.
Electric Heat Drying System
04
ACCESSORIES AND MAINTENANCE

MAINTAIN
Max Fire Dry 200 is equipped with standard MERV-8 high efficiency filter.
Before replacing the filter, you can usually clean it once with a vacuum cleaner.
Using a dirty or clogged filter to operate the Max Fire Dry 200 will reduce the output of
the air flow and eventually cause the heating element to turn off. Installing a clean filter
or removing obstacles to restore airflow will make the heating element work again.
It must be checked regularly.
Replacement filters can be ordered from the factory or purchased locally, if any.
!Warning: do not operate this machine without a filter or using an
inefficient filter.
Do not operate the machine without the upper cover installed. The
presence of high pressure may cause the heater to burn out.
!Warning: repairing MaxFireDry 200 alone can cause health hazards
and can lead to death, serious personal injury or property damage. Only
qualified maintenance personnel can carry out maintenance operations.
Electric Heat Drying System
05

SERVICE SECTION

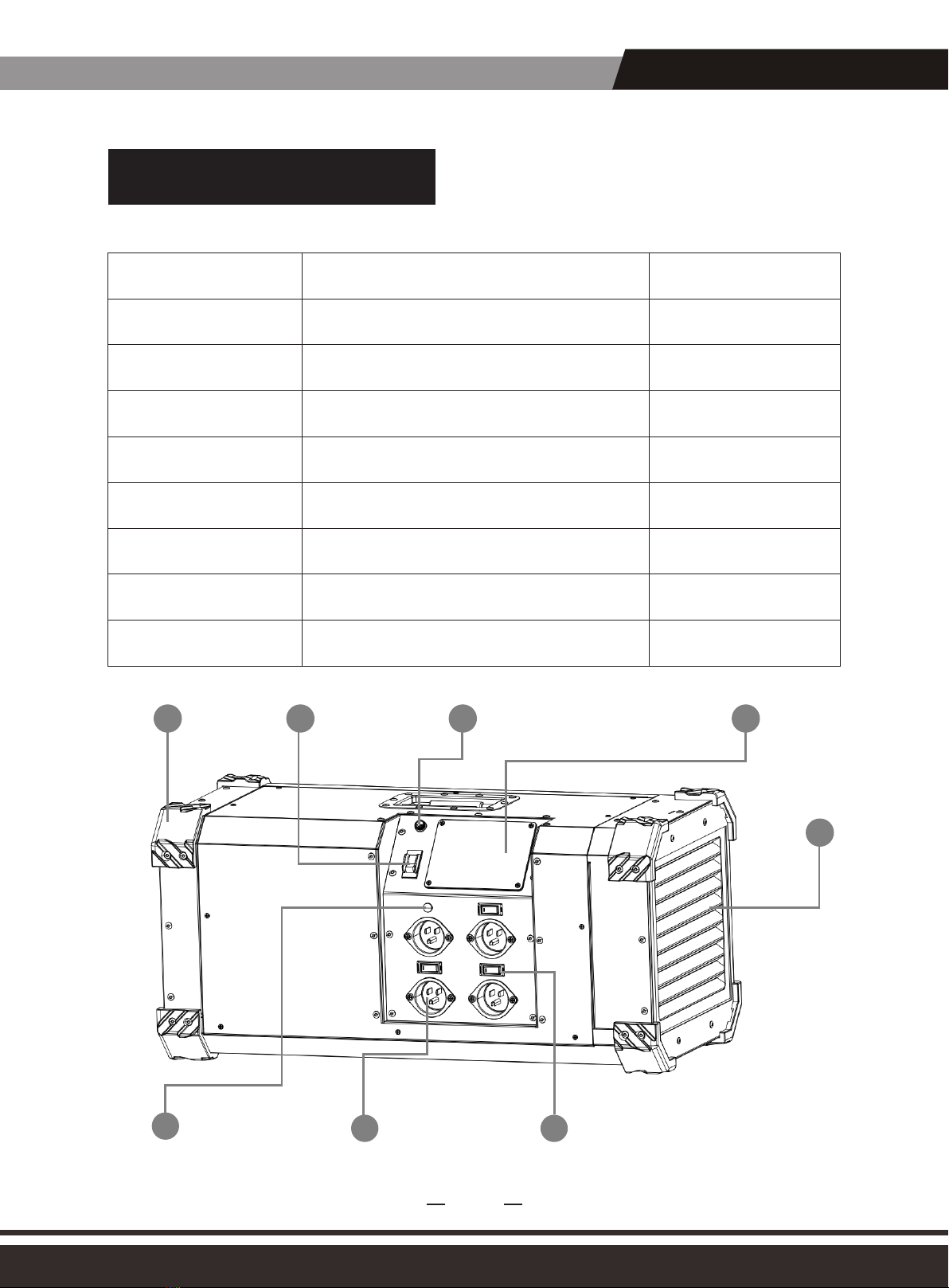

Serial Number Specification
Foot Pad
Main Switch
External Controller Socket
Display Screen
MERV-8 Filter Net
Indicator Light
Socket
Overload Switch
Number
1
3
2
4
5
6
7
8
8
1
1
1
1
1
4
3
1234
5
678
Electric Heat Drying System
06

DETAILED EXPLANATION OF EACH REGION
Button to switch on and off: switch between boot and shutdown
with each press; the device will shut down after 15 seconds after
shutdown.
Menu button: adjust the page every time you press the menu
button (Home Page "temperature Unit Settings Interface"
temperature Settings Interface "run time Settings Interface"Loop
Settings Interface" home page).
Add button: increase the number each time you press.
Less button: reduce parameters each time you press.
MAIN INTERFACE FUNCTION
The temperature setting range is between 32 °F-120 °F (0 °C ~ 50 °C), each button "ADD"
rises 3 °F (1 °C), each button "LESS" rises 3 °F (1 °C), long time can continuously adjust the
parameters.
When you press "ADD" < 32 °F (0 °C), display "OFF" to turn off this function; press "ADD" to
adjust to 176 °F (80 °C).
When you press "LESS" > 176 °F (80 °C), display "OFF" to turn off this function; press "LESS"
to adjust to 32 °F (0 °C).

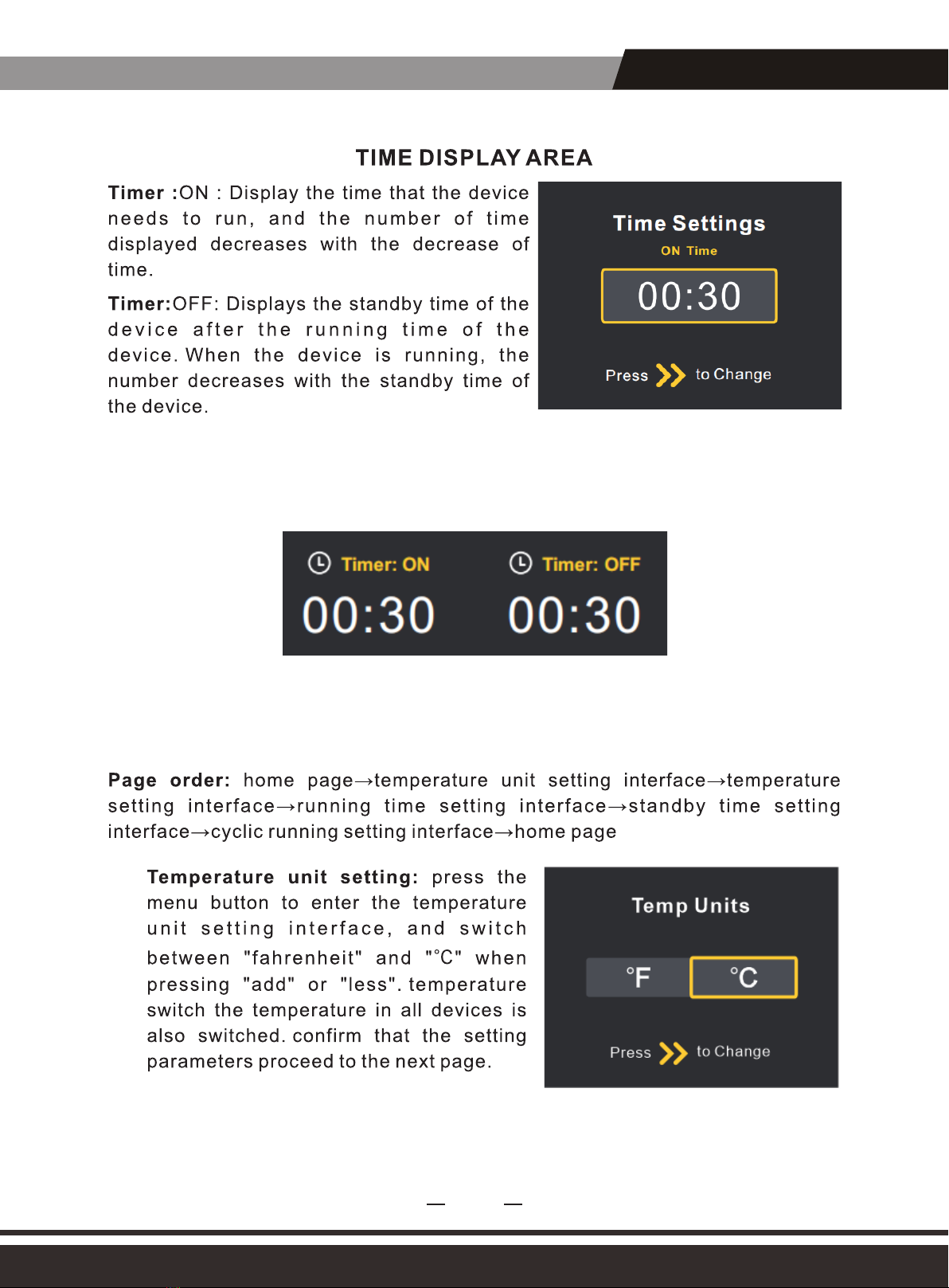

Time Display
Area
Electric Heat Drying System
07
POWER
MENU
ADD
LESS
1
2
3
4
5

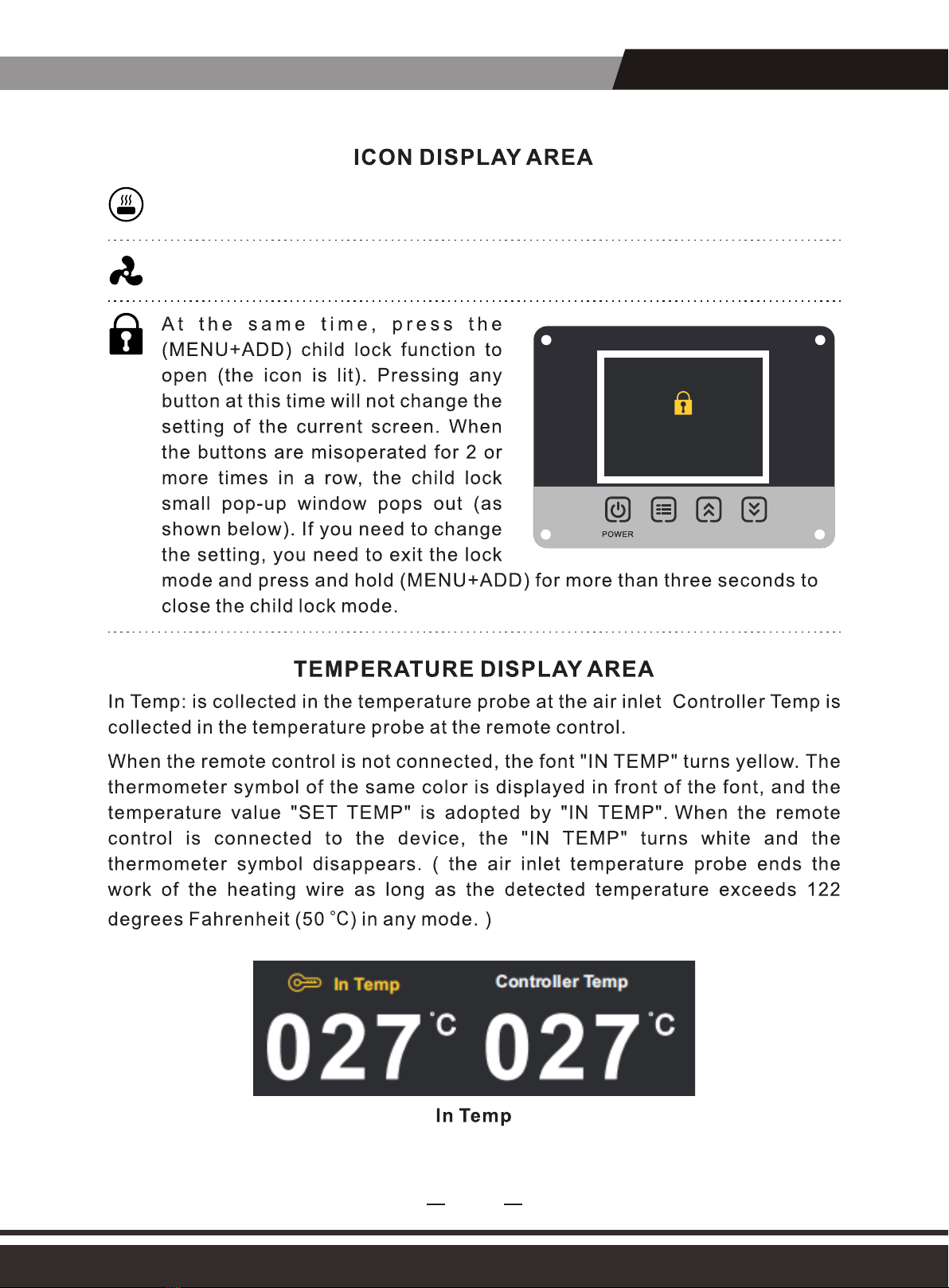

The heating wire starts the heating icon to light up, and the heating wire
closes the icon to hide.
Fan start fan icon lights up and rotates, fan stop icon is hidden.
The machine has been locked, and
long press “MENU+ADD” to exit, th
enother keys can be operated.
MENU LESSADD
Electric Heat Drying System
08

Temp Setpiont
Press to Change
27 C
MENU LESSADD
Electric Heat Drying System
09

When both timing on and off are set, the time of timing off is consumed to 0, and
then the clock and the device are activated and turned on at the same time until
the set time is finished, and then enter the cycle.
GENERAL SETTING
1.
Electric Heat Drying System
10

2.
3.
4.
5.
Electric Heat Drying System

Note:

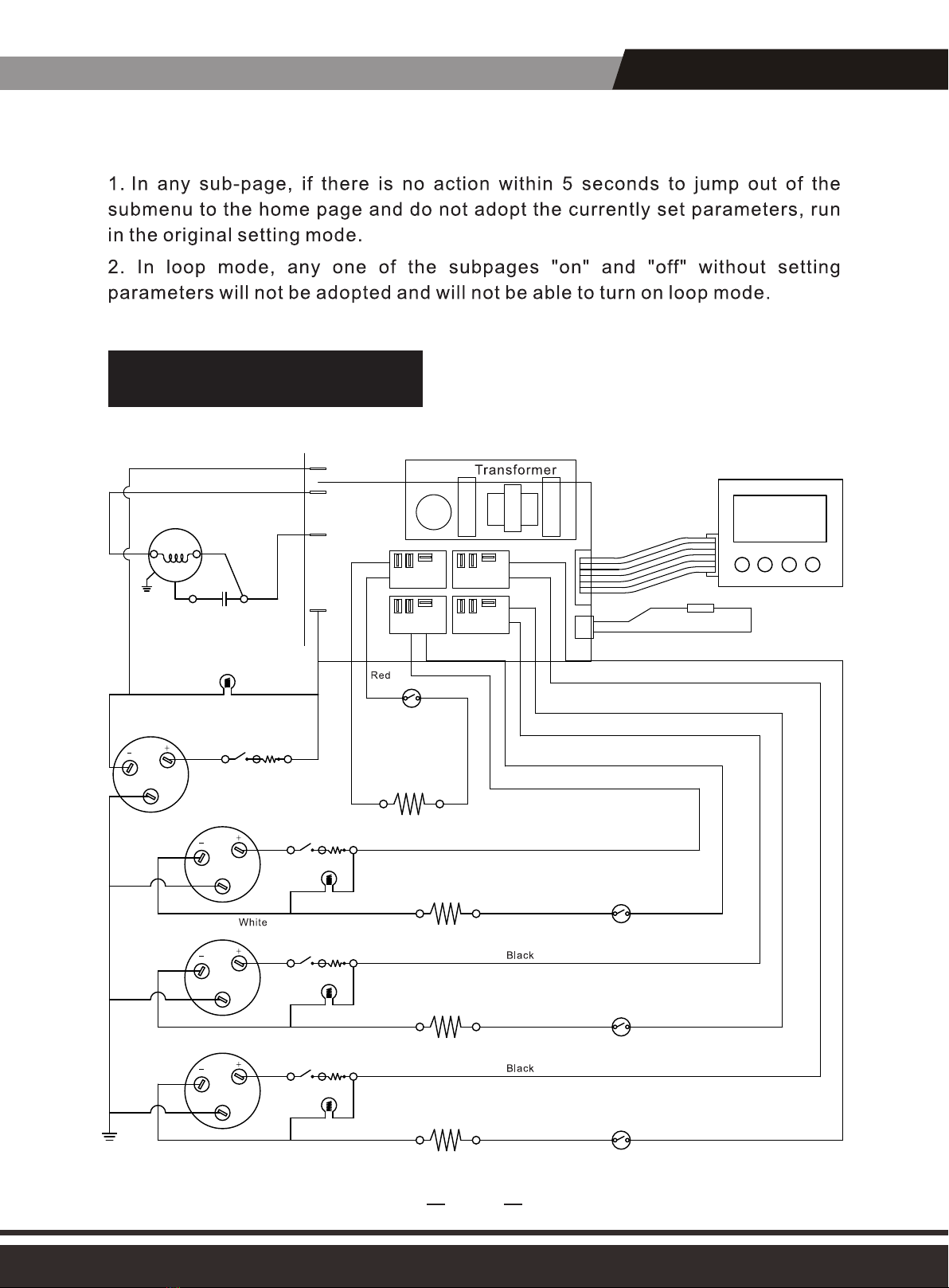

WIRING DIAGRAM
Electric Heat Drying System
12
Main Control Board
Relay 2Relay 1
Relay 4Relay 3
White
White
White Black
Black
Ndicator Light 1#
Overload Protection
Switch 1# White
Overload Protection Switch 3# Black
Black
Red Red Red
Black
Black
Temperature Switch Thermal
Protector 2#
Ptc Resistance Wire 2#
1500w
Ndicator Light 2#
Green
White
Ptc Resistance Wire 2#
1500w
Temperature Switch Thermal
Protector 4#
Ndicator Light 4#
White
Overload Protection Switch 4#
Overload Protection Switch 2#
Ptc Resistance Wire 3#
1500w
Temperature Switch Thermal
Protector 3#
Ndicator Light 3#
Ptc Resistance
Wire 1# 1500w
Temperature Switch
Thermal Protector 1#
Starting Capacitor
Centrifugal
lmpeller
Group
COM
NO COM NO
COM
NO COM NO
Monitor
Air Inlet Temperature Probe
T
Power 1#
Power 3#
Power 4#
Power 2#
N
N
L
L

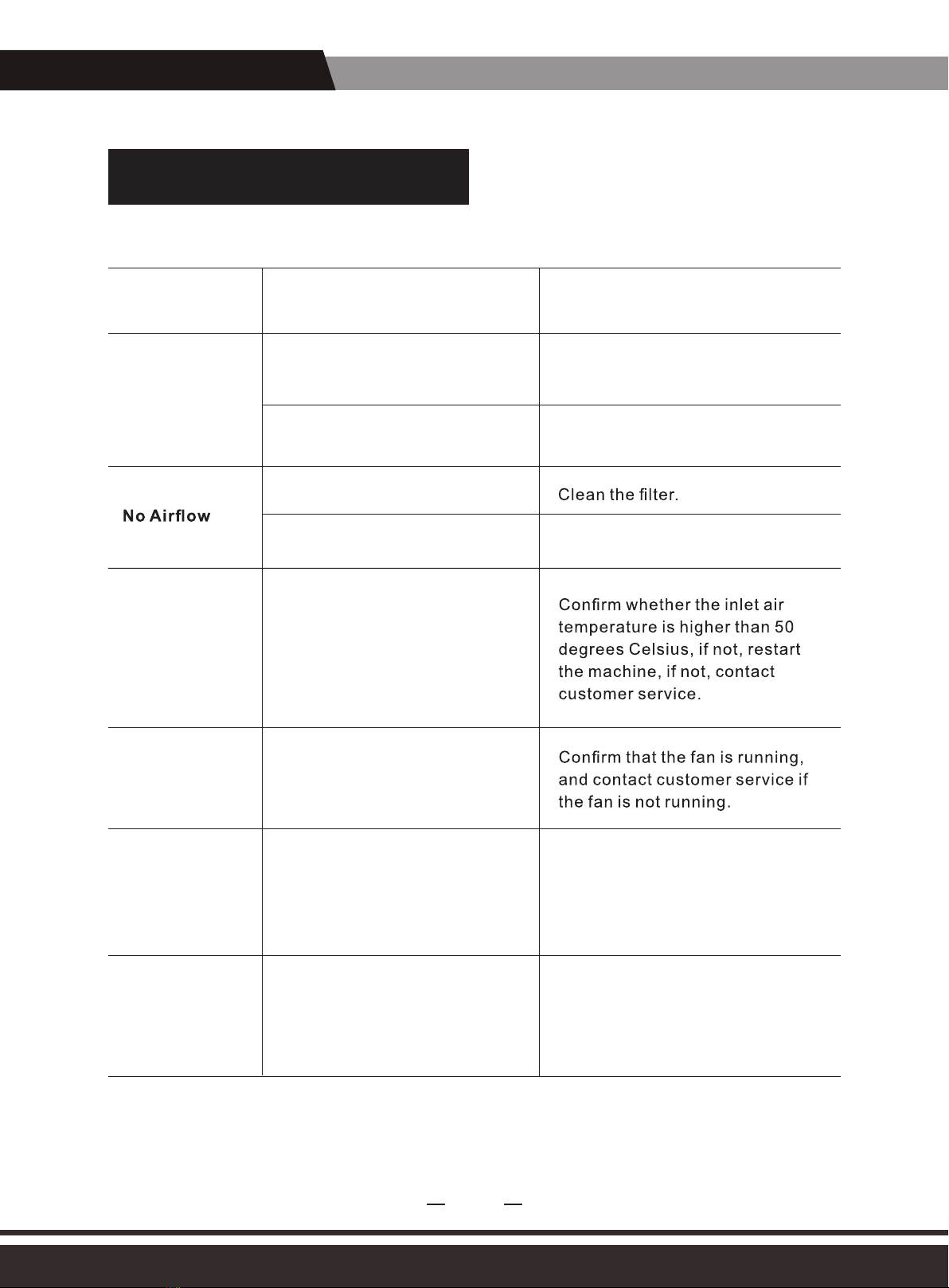

TROUBLESHOOTING
PANEL DISPLAY
FAULT REASONS SOLUTIONS
Verify that both ends of the
Power cord are plugged in.
Power Supply.
Display is
blank
Filter is Dirty.
Fan failure
pop-up window.
Hi
Check to make sure the remote
control cable is connected at
both ends, and contact customer
service if there is no problem.
Remote control probe
failure small pop-up window.
Ma2
Rt1
Power Outage. Reset power.
Thermal alarm code
pop-up window.
Small pop-up window
for air inlet probe failure.
Check to make sure the sensor
cable is connected at both ends.
If no problem is visible, the sensor
may be wrong.
Rt2
Clear the blockage.
AIR Inlet or Outlet is Blocked.
Electric Heat Drying System
13

Electric Heat Drying System
LIMITED WARRANTY
14
lf no warranty registration is sent to us, warranty period will begin the day the shipment left the warehouse.Please be sure to
record serial # and date of installation. You will need this information to receive the RA number.
Once goods are received, customers must log in www.alorair.com fill out the warranty Registration form and submit to
AlorAir company.We will receive your purchasing and installation information and save it.
1.
If warranty service is necessary, customers must contact AlorAir Tech Support by [e-mail] or local technical
service phone to receive a Return Authorization (RA number). Once an RA has been issued,customers should bring the unit
to a certified repair center.AlorAir will arrange the shipping to bring the unitback to the Alorair warehouse (at the expense of
the customers) if customers are not available.
2.
After the unit has been received by AlorAir (whether at a repair center or the warehouse), AlorAir will have an initial
inspection. lf it is determined to be invalid warranty claim (see exclusions below), customers have to pay for all associated
repair costs and shipping costs for units repair.
3.
Customers can pick up the unit after repair at their own expense for shipping. Units will have a rigorous testing before
sending it back to customers.
4.
lf the unit can no longer be fixed , and it is in the warranty period and determined to be valid claim, we will ship the customer
a new unit with in the same year warranty from the date of replacement.
5.
After parts are repaired or replaced by AlorAir, the original warranty period continues to apply until it meets its deadline. No
extensions to the original warranty period.
6.
The warranty is only valid if it is purchased from an authorized seller.
7.
Warranty becomes effective since the date of original purchase and will last for one (1) years.
This limited warranty is only effective for the original purchaser. It is NOT transferable.
Who’s covered?
Warranty Period
This limited warranty is only effective for the original purchaser. It is NOT transferable.
Who’s Not covered?
1. Damage caused by the owner when attempting to fix or alter the product by himself or herself.
2. Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
3. Natural depreciation.
How to request warranty services?
To obtain the benefit of this warranty, please leave your message online (www.alorair.com), or send an
email to [e-mail].
Our customer service will address your issue within 24 hours.

Electric Heat Drying System
15
WARRANTY EXCLISIONS
THE WARRANTIES AND LIABILITIES SET FORTH ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, IN
LAW OR IN FACT, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR
PURPOSE.
AlorAir total liability, regardless of nature of claim shall not exceed original purchase price of the product. If a product or
component is replaced while under warranty, the applicable warranty period shall not be extended beyond the original warranty
time period.
The foregoing shall constitute the total liability of seller in the case of defective performance of all or any of the equipment or
services provided to buyer. Buyer agrees to accept and hereby accepts the foregoing as the sole and exclusive remedy for any
breach or alleged breach of warranty by seller.
Any dishonesty or fraud in connection with AlorAir warranty thoroughly voids all warranty policies.AlorAir expressly reserves the
right to pursue legal action in the event of dishonesty, fraud, or attempted fraud.
DAMAGE DUE TO THE FOLLOWING IS NOT COVERED UNDER WARRANTY
POOL / SPA / TUB APPLICATIONS
MISUSE, ABUSE, OR TAMPERING WHETHER INTENTIONAL OR ACCIDENTAL
IMPROPER INSTALLATION OR DESIGN
IMPROPER VOLTAGE
LACK OF NORMAL CARE
FAILURE TO FOLLOW INSTRUCTIONS
IMPROPER USAGE- INCLUDING BUT NOT LIMITED TO:
CORROSION
FREEZING
ANY ADDITIONAL COSTS DUE TO CHANGES IN LAWS OR BUILDING CODES
FREIGHT CHARGES
ANY COSTS DUE TO LOST PROFIT OR DELAY
DAMAGE TO PROPERTY
CAUSE BEYOND CONTROL
CONSUMABLE PARTS, INCLUDING BUT NOT LIMITED TO:
Filters
Power Cords
Valves
Switches
Rubber Parts
11. DIRECT, INDIRECT, COLLATERAL OR INCONSEQUENTIAL DAMAGES OF ANY KIND
FIRE
FLOODING
HURRICANE/STORM DAMAGE
WATER DAMAGE
ACTS OF NATURE-INCLUDING BUT NOT LIMITED TO:
