Alpha Digital T101 User manual

Model: T101
PORTABLE POWER SUPPLY
User manual

1
Capacity: 155Wh, 14Ah/11.1V(equivalent42000mAh,3.7V)
Dimensions(L*W*H): 186x107x180mm
Weight: 1. 55Kg
Built-in Battery: High Quality Lithium ion Batteries
Input Recharging : Adapter: DC15V/2A
Solar Panel Charging: DC 13V~22V/2A Max
Fully Charged Time: DC15V/2A: 7~8 hours
DC Output: 5.5 x 2.5MM DC Output: 9~12.5V/10A(15A Max)
2 x USB 5V/2.1A Max
1 x USB C 5-9V/2A Qualcomm QuickCharge3.0
1 x USB 5~9V/2A Qualcomm QuickCharge3.0
USB Output:
ATTENTION
The unit provides Modified Sine Wave output, and can be compatible to AC electric appliance
that works with Sinusoidal waveform(power <100W). However, anything that uses an AC motor
isn't going to work to full capacity on a modified sine wave. such as an electrical fan, It will even
make the electric appliance arouse some noise .Apliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be better off with
apure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alternating current, for long -term use, please adapts the power station specification required
byelectrical appliances.
PRODUCT PARAMETERS
Modified Sine Wave Output;
AC Voltage: 110/120/220/230/240VACt10%
Output Frequency: 50/60Hz t 10%
Attention: Actual AC voltage/Frequency/Outlet(s) are
customized according to different Countries and areas.
AC Power: AC Continuous Output: 100W (150W Max)
Bulb Type: 4W Ultra bright LED light With SOS/ Blink mode
Power Indicator: Led Display
00
Operation temperature: -10 C-40 C
Lifecycle: >500 times
AC Output:
Package include:
1 x Portable Power Supply / 1 X 15V/2A Power Adapter
1 x Car Charger / 1 x Cigarette Lighter Adapter
1 x User manual / 1 x Quick Start Guide / 1 x Warranty card

FRONT
RIGHT
LEFT

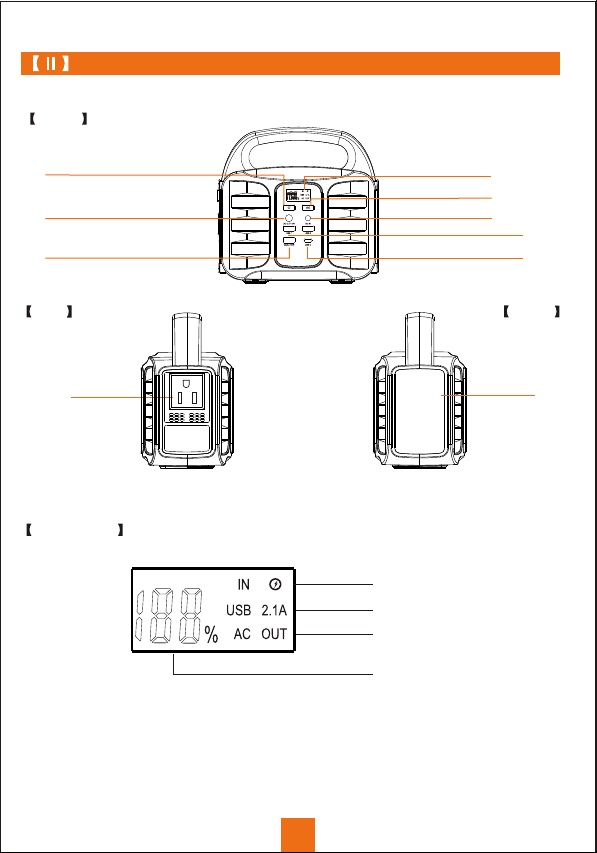

PRODUCT DESCRIPTION
POWER ON/OFF
Battery Check
USB/DC ON/OFF
(Long press this button to switch on the
power, Long press 3s to switch off )
5.5mm x 2.5mm DC12V Output
Output_Output10A,Max15A
USB 5~9V/2A Max
Qualcomm QuickCharge3.0
LED DISPLAY
AC ON/OFF
DC Input
2x USB 5V/2.1A Output
USB 5~9V/2A Max
Qualcomm QuickCharge3.0
AC Outlets LED Lamp
DC Input Status
USB Output Status
AC Output Status
Battery Capacity
LED DISPLAY
2

PRODUCT INSTRUCTION
1) How to provide power for DC 12V appliances(such as head lamp, fan) with this product?
Plug your appliances to the 5.5mm x 2.5mm DC output port, press the button to switch on DC
output. Long press the button for 3 seconds to switch off.
" "
Notices: Please confirm whether your DC12V appliance support charging with 5.5mm x2 .5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unableto
connect with the DC output, you can consult the electrical manufacturer, buy thecorresponding
adapter and connect with it.
5.5mm DC Jack for Fan or LED lights
(Current<10A, Peak current: 15A)
or charge car kits via DC to Cigarette Litghter
Connector
Support 5.5mm DC12V car kits with DC-Cigarette
Lighter Adapter, such as Vacuum Cleaner,Inflation
Pump,Electric wrench,fridge,etc. (Current<10A,
Peak current:15A
Protection Mode:
Short-circuit/Overpower Protection: If the DC output is short-circuited, the unit will shutdown to
protect itself. Please clear the problem and recharge the unit to recover from protection mode.
If the DC output is overpowered(Load(s) power> 150W) the unit will shutdown to protect itself
too, please unplug your device from the unit in time.
Note: The12V DC output voltage is range between 9V~12.5V, maximum output current is15A.
DC output voltage drops while battery capacity drops due to chemical characteristics of the
battery. If your appliance is not built-in input voltage stabilizing function, it may shutdown when
input voltage is too low, please unplug your device from the unit in time. Please charge the
unit in time.
If you use this product to change Bluetooth headsets, electronic watches or other products
with low power input, you need to turn on the low current output mode: double click the
button, and the LED display will flash. Please note that this mode must be manually closed by
pressing button for 3 seconds. If you don t need this function, please close it in time.
"AC"
" " '
3

LEFT
4

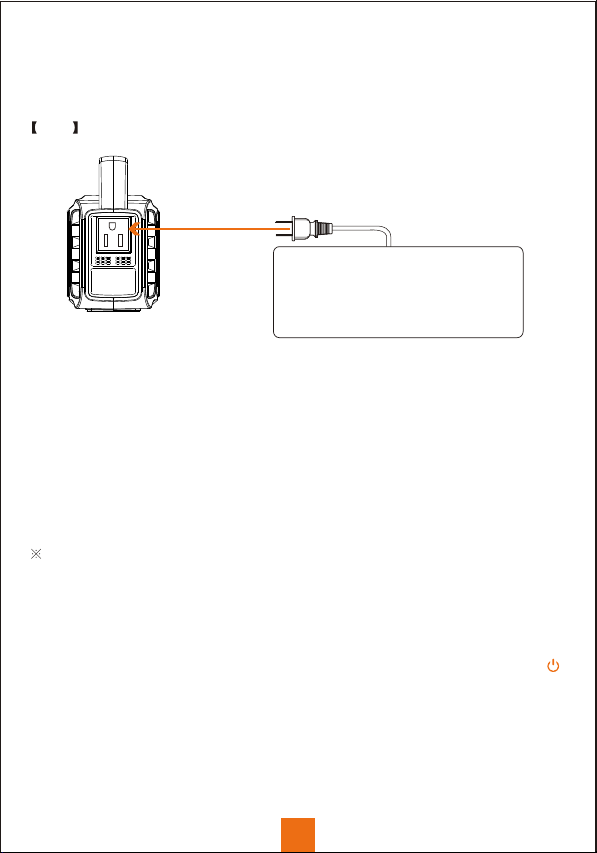

2) How to provide power for AC appliances with this product?
Connect the power cable plug of the electrical appliance to the AC outlet of the product, Long
press button for 3 seconds to switch on the power button and the unit will start providing
power to your appliances. Long press the button for 3 seconds to switch off.
"AC"
Limited Appliance Wattage<100W,Lamp, Electric Fan,
TV, etc. AC will shutdown when it's short circuited or
power overloaded. Remove the device and the unit
will recover from short-circuit or overpower protection
in a few seconds. Re -press the AC output button to
switch on AC output again.
When the AC port is not in use, turn it off to conserve power.
WARNING ! The AC outlets,AC voltage and frequency are different according to different
countries; please carefully check whether the product specifications are consistent with the
appliance specifications before use, otherwise it can lead to dangerous situations.
Protection Mode:
Short-circuit/Overpower Protection: If the AC output is short-circuited or overpowered(Load(s)
power>150W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC output button to switch on AC output again.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very time period, the surge power could exceed 150 W or even higher,
this could cause overpower protection with this unit. Please remove the devices and consult
with the device manufacturers for more information. Please clear the problem and re-press the
AC button for AC output.
3) How to provide power for USB digital appliances with this product?
Connect the standard USB cable of digital appliance to the USB output of the unit, press the
button to turn on USB output. Long press the button for 3 seconds to switch off.
" "
Quick Charge Output: This product supports Qualcomm QuickCharge 3.0 output, support
5V-9V / 2A max output for smart devices which also support Qualcomm QuickCharge 3.0.
Actual output voltage and current vaires, refer to your smart device manual to find out if it's usable.

FRONT
FRONT
5
4 ) How to use the Lamp
This unit is built with bright LED light. Double press button to switch on the lamp and double
press this button to switch between modes Flashlight / Blink / SOS. Long press button
3 seconds to switch off the lamp.
" "
" "
Warning! Do not point directly at eyes.
5) How to charge the unit ?
A. Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit.You will
know the unit is charging when "IN" ton the LED display is blinking. The unit is fully charged
when "IN" stop blinking and LED display displays "100%". After the unit is fully charged, please
remove the AC wall charger in time.
AC Outlet
AC Adapter (charger) 15V/2A
B. Charge from solar panel (not included, recommend to choose 18V/35W~ 40W solar panels)
1. Place your solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging. You will know the
unit is charging when the "IN" on the LED display is blinking. The unit is fully charged when "IN"
stop blinking and LED display displays "100%".

6
Input Charging
DC 13V~22V/2.0A Max
c. Charge from your car with a 12V cigarette lighter.
Using the included car charger, plug the unit into a 12V cigarette lighter (car port) of your car.
You will know the unit is charging when "IN" on the LED display is blinking. The unit is fully
charged when "IN" stop blinking and LED display displays "100%".
Warning: To avoid car battery power loss, only charge this unit through your car cigarette
lighter when your car engine is started.
SECURITY AND MAINTENANCE
1) Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.)
2) Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
3) Keep away from high humidity, dusty places.
4) Do not disassemble or reassemble this unit.
5) Do not drop, place heavy objects on, or allow strong impact to this unit.
6) This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities unless supervised.
7) Children should be supervised to ensure that they do not play with the appliance.
8) Do not cover the device with towels, clothing and other item.
9) The unit may become hot when charging. This is normal. Use caution when handling.
10) Do not charge the unit over the required time.
11) Disconnect the unit when fully charged.
12I) Use the unit properly to avoid electronic shock.
13) Please dispose the product in accordance with regulations, do not treat the built-in
battery as a household garbage, to avoid explosion and pollution.
14) The product cannot replace standard DC or AC power of household appliances or digital
products.

COLD WEATHER USAGE
RECYCLE
BATTERY INFORMATION
STATEMENT
15) This product is built in high quality original lithium ion battery, it has no memory effect but
0
high-capacity, and it is durable. However, we still recommend you to apply in the range of 10C
0
~30 C, so as to obtain the optimal charging capacity.
16) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
17) If the device has not been used for a long time, please disconnect the cable and store.
18) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more information.
19) In order to extend the life of product (lithium battery), it is best to charge within 3 months,
and charge at least once within 6 months.
Cold temperatures (below freezing) can affect the unit's battery capacity due to chemical
characteristics of the battery. If you'll be living off-grid in sub-zero conditions, we recommend
you keep your unit in an insulated cooler, and connected to a power source (solar panels). The
natural heat generated by the unit contained in an insulated cooler will keep battery capacity at
its highest.
Always return your used electronic products, batteries, and packaging materials to dedicated
collection points.
Your device has and internal, non-removable, rechargeable battery. Do not attempt to remove
the battery, as you may damage the device.
The battery can be charged and discharged over 500 times, but it will eventually wear out.
All rights reserved. Reproduction in whole or in part without written permission is prohibited.
All other trademarks are trademarks of their respective owners. Features and specifications are
subject to change without notice.
WARNING!!! This equipment has been tested and found to comply with the limits of a Class B
