Alpha Professional Tools Ecoguard M ECOGRDSB User manual

Part No: ECOGRDSB
Version 1
103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: [phone]
www.alpha-tools.com
Alpha®Ecoguard Type M
Spark Protection Cover
Instruction Manual
MANUAL
(*Shown with angle grinder / sold separately)

2
TABLE OF CONTENTS
Introduction .................................................................................................. 3
About The Symbols................................................................................. 3
Precautions For Using Spark Protection Cover ................................... 3
Ecoguard Type M Overview........................................................................... 4
Specications ............................................................................................ 4
Accessories .............................................................................................. 5
Components............................................................................................... 5
Attachable Grinders ....................................................................................... 6
Ecoguard Type M Spacers And Connectors................................................ 7
Installation Of The Spark Protection Cover ................................................. 8
Installing To Alpha®Or Makita®Variable-Speed Angle Grinder............. 8
Replacement of the Side Protectors A and B .............................................. 9
Installing The Connector ............................................................................. 10
Installation Of Blade......................................................................................11
Cutting Application....................................................................................... 13
Alpha®Ecoguard Type M Parts List............................................................ 14
Alpha®Ecoguard Type M Schematic .......................................................... 15

3
INTRODUCTION
Thank you for purchasing the Alpha®Ecoguard Type M aka Spark Buster. To
ensure correct use, read this Instruction Manual and the Instruction Manual
for the power tool and follow the operating instructions. Keep this manual
in a place where operators can access it easily whenever necessary!
ABOUT THE SYMBOLS
According to the hazard level, all safety notes in this manual are classied
into “DANGER”, “WARNING”, and “CAUTION”.
DANGER! Death or serious personal injury is imminent when
handling this polisher incorrectly.
WARNING! There is a possibility of death or serious personal injury
when handling this polisher incorrectly.
CAUTION! There is a possibility of personal injury or property
damage when handling this polisher incorrectly.
Note: In some situations, failing to observe WARNING notes could result
in death or serious personal injury. Be sure to read and observe the
safety notes to ensure safety and correct use of the polisher.
PRECAUTIONS FOR USING SPARK PROTECTION COVER
1. The Spark Protection Cover is for use with a 4.5” (115mm), 5” (125mm)
or 6” (150mm) variable-speed angle grinder.
2. The Spark Protection Cover is designed for metal cutting of ferrous
materials such as metal studs, pipe, cast iron and angle iron.
3. Be sure to wear protective goggles, dust mask, protective footwear,
earplugs and other protective equipment when working.
4. Conrm that Blade does not touch inside of the Spark Protection Cover.
5. Keep Spark Protection Cover away from gasoline, thinner, petroleum
and parafn.
6. Always check the Spark Protection Cover for damage, cracks or
deformation before starting work. Do not use the Spark Collection
Cover if it is damaged, cracked or bent as this could cause to injury.
7. The capacity of max. rotating speed of the blade must be higher than
that of the Grinder.
8. The supplied connector may not connect securely to every variable-
speed angle grinder. In this case, do not use the Spark Protection
Cover.

4
ECOGUARD TYPE M OVERVIEW
SPECIFICATIONS
Model Code....................................................................................................ECOGRDSB
Attachable Blade...................................................................................... 7/8” (22.23mm)
Tipped Saw Blade, Abrasive Cutting Wheel, Diamond Blades
Cutting Depth .........................................................................................................1-5/16”
(Do Not Cut the thick material exceeding the capacity of the Grinder)
Weight ........................................................................................1.7lbs / 780g (Main Unit)
Attachable Grinders................................................... SEE CHART ON PAGE 6

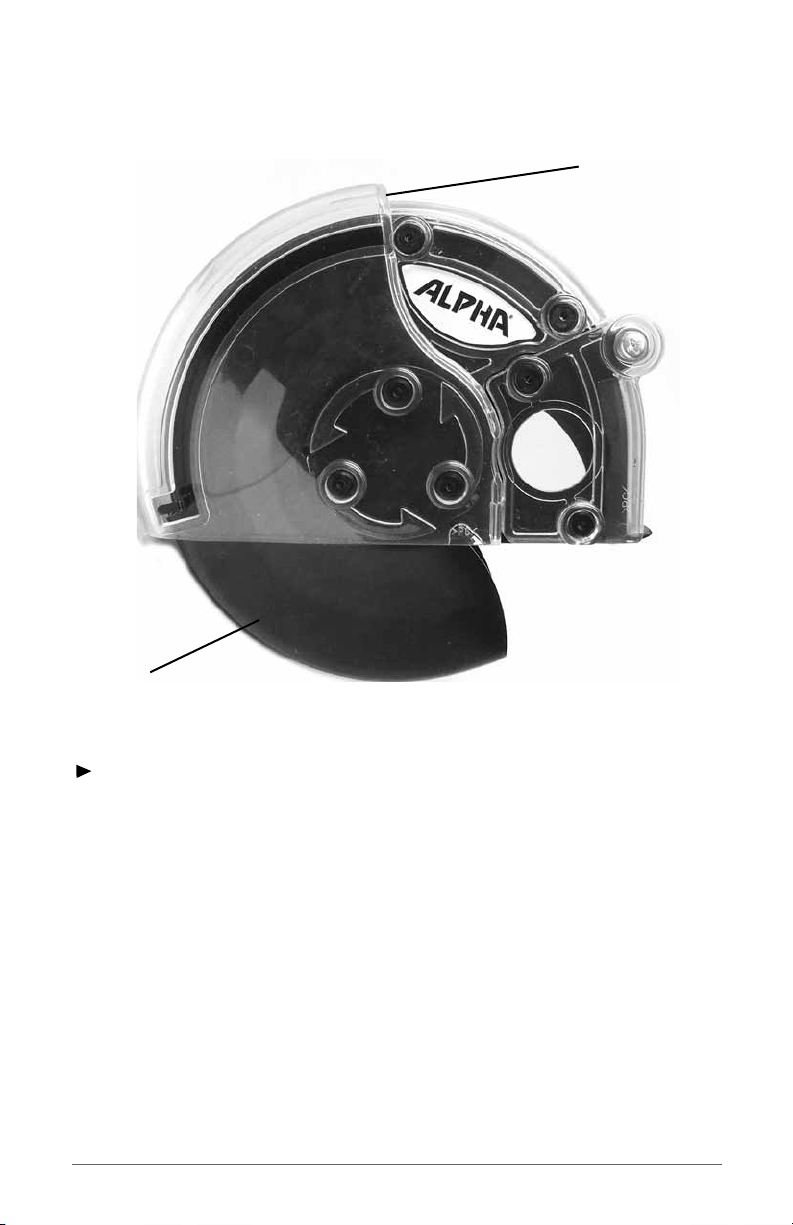

Figure-1
Safety Guard Assembly
Protector
Assembly

5
Figure-2

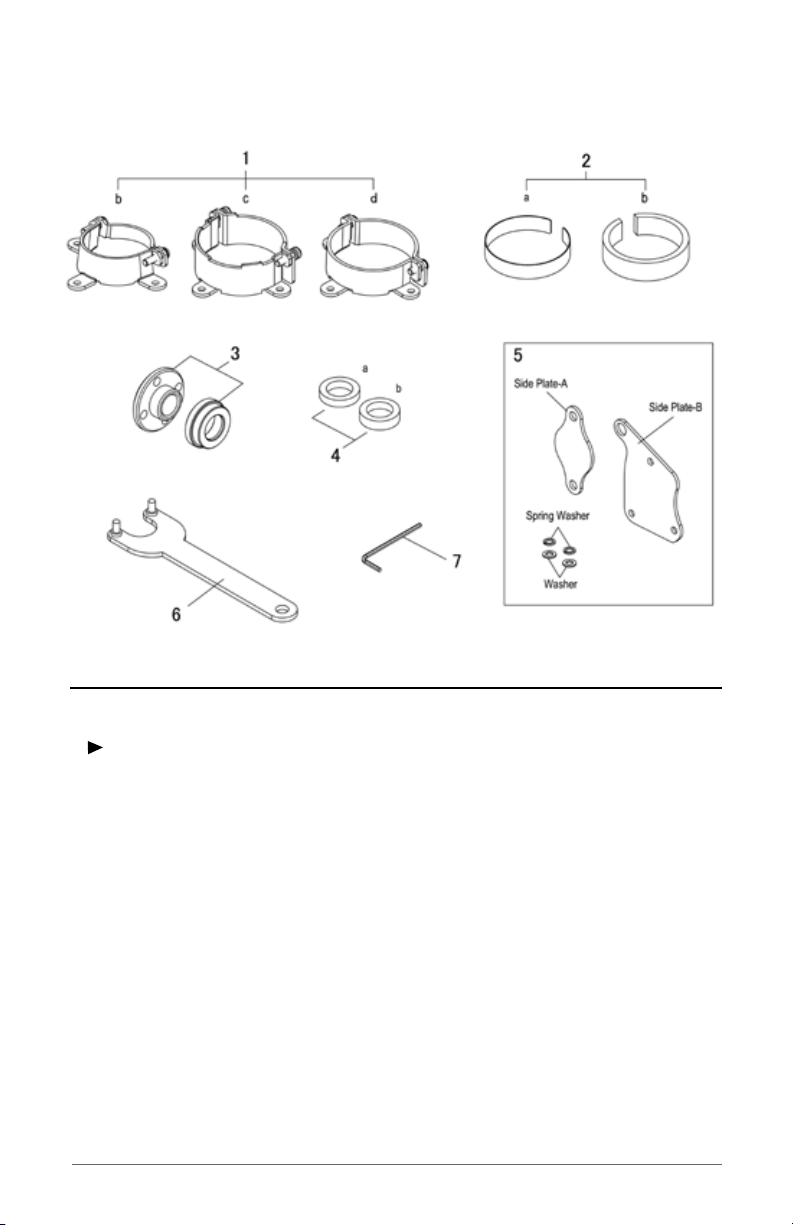

ACCESSORIES
COMPONENTS
1. Additional Connector Assembly for Most 5” Grinders.....................3pcs
2. Collar....................................................................................................2 pcs
3. Flange & Lock Nut Set........................................................................ 1 Set
4. Spacers................................................................................................2 pcs
5. Side Plates & Washer Set................................................................... 1 Set
6. Pin Wrench ............................................................................................1 pc
7. Hex. Wrench ..........................................................................................1 pc

6
ATTACHABLE GRINDERS
GRINDER SIZE MODEL
ALPHA®5” HSG-125
MAKITA
4-1/2”
GA4530
GA4534
9564CV
9564PC
9557NB
9557PB
5”
GA5010Z
GA5020
GA5020Y
9558PB
9565CV
9565PC
6”
GA6020
GA6010Z
9566CV
9566PC
HITACHI
4-1/2”
G12SA3
G12SE2
G12SE2P9
G12SVA
G12SR3
G12SS
5”
G13SC2
G13SC2P9
G13SP
G13VA
GRINDER SIZE MODEL
BOSCH
4-1/2”
1800
1810PS
1810PSD
5”
1801
1803EVS
1811PS
1821
1821D
6”
1806E
1812PSD
METABO
4-1/2”
W8-115
W8-115 Quick
W8-115
QuickProtect
5”
W8-125 Quick
W11-125 Quick
WA11-125
Quick
WE9-125 Quick
WE14-125 Plus
WE14-125 VS
WP8-125
QuickProtect
WP11-125
QuickProtect
WEPA14-125
QuickProtect
6”
W11-150 Quick
WE14-150
Quick
WEP14-150
QuickProtect
WEPA14-150
QuickProtect
WP11-150
QuickProtect
GRINDER SIZE MODEL
DEWALT
4-1/2”
D28110
D28112
D28402
4-1/2”
/ 5”
D28065
D28114
D28115
D28131
6”
D28140
D28144
MILWAUKEE
4/1/2”
6130-33
6140-30
6146-30
6146-31
6146-33
6147-30
6147-31
6121-30
6121-31
5”
6117-30
6117-31
6117-33
6117-33D
6121-31A
6”
6124-30
6124-31
6161-30
6161-31
6161-33

7

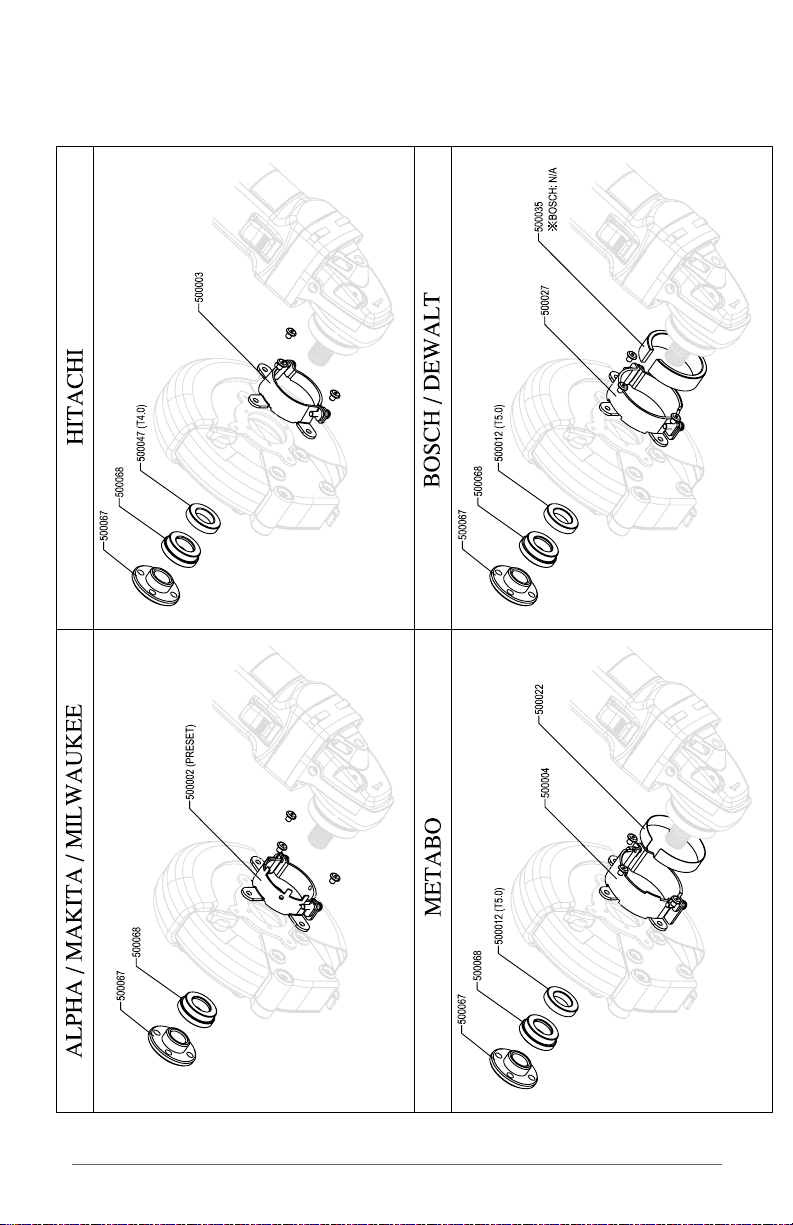

ECOGUARD TYPE M SPACERS AND CONNECTORS
® ®
Figure-3

8
WARNING!
1. Be sure to turn off the variable-speed angle grinder and remove the
plug from the electrical outlet before attaching and installing the Spark
Protection Cover.
2. Make sure the Spark Protection Cover is securely attached; otherwise it
may come loose which could cause injury.
3. If you installed the Spark Protection Cover to a variable-speed angle
grinder but the connector is loose and can not be securely attached, do not
use the Spark Protection Cover. Using it in this state could cause injury.

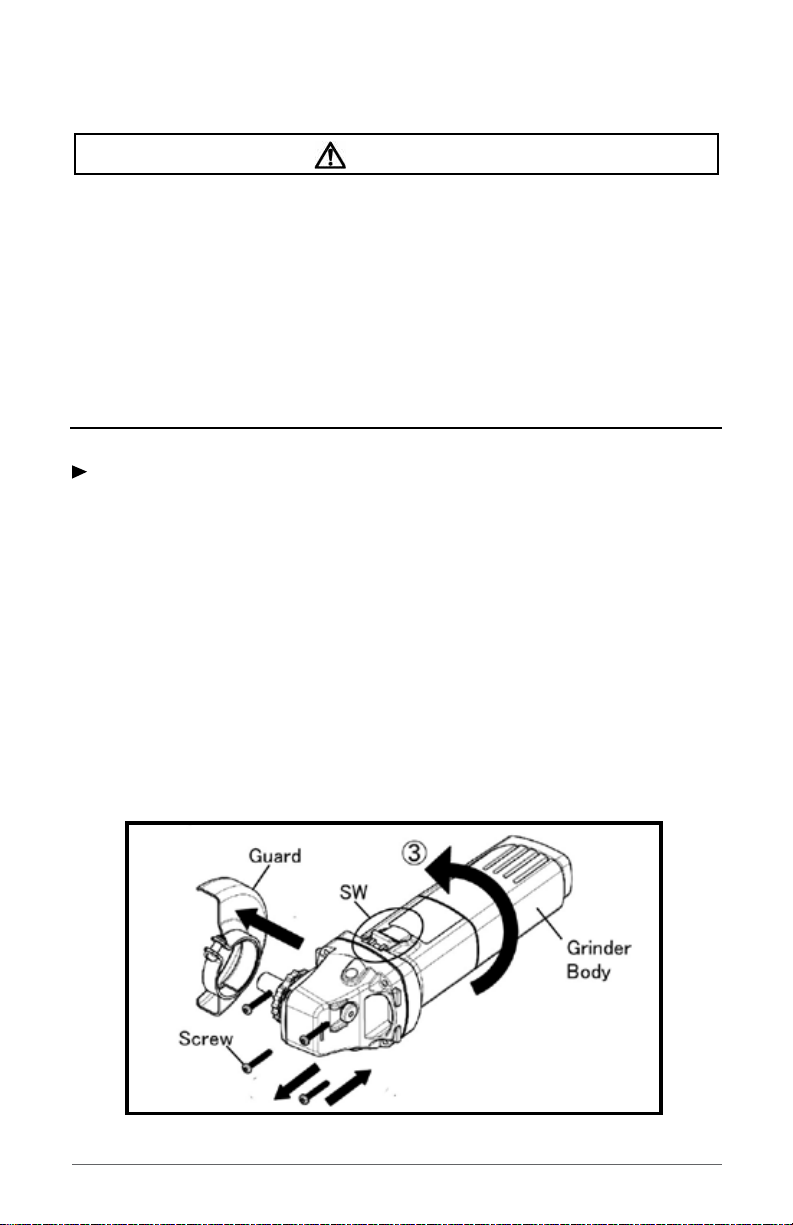

INSTALLING TO ALPHA®, MAKITA®OR MILWAUKEE VARIABLE-SPEED
ANGLE GRINDER
1. Dismantle the original safety guard from the variable-speed angle
grinder.
2. Remove the screws from the head of the grinder.
3. Turn the grinder body to move the switch (SW) to the upper position.
(Switch should not touch the workpiece)
4. Re-tighten the screws to secure.
INSTALLATION OF THE SPARK PROTECTION COVER
Figure-4

9

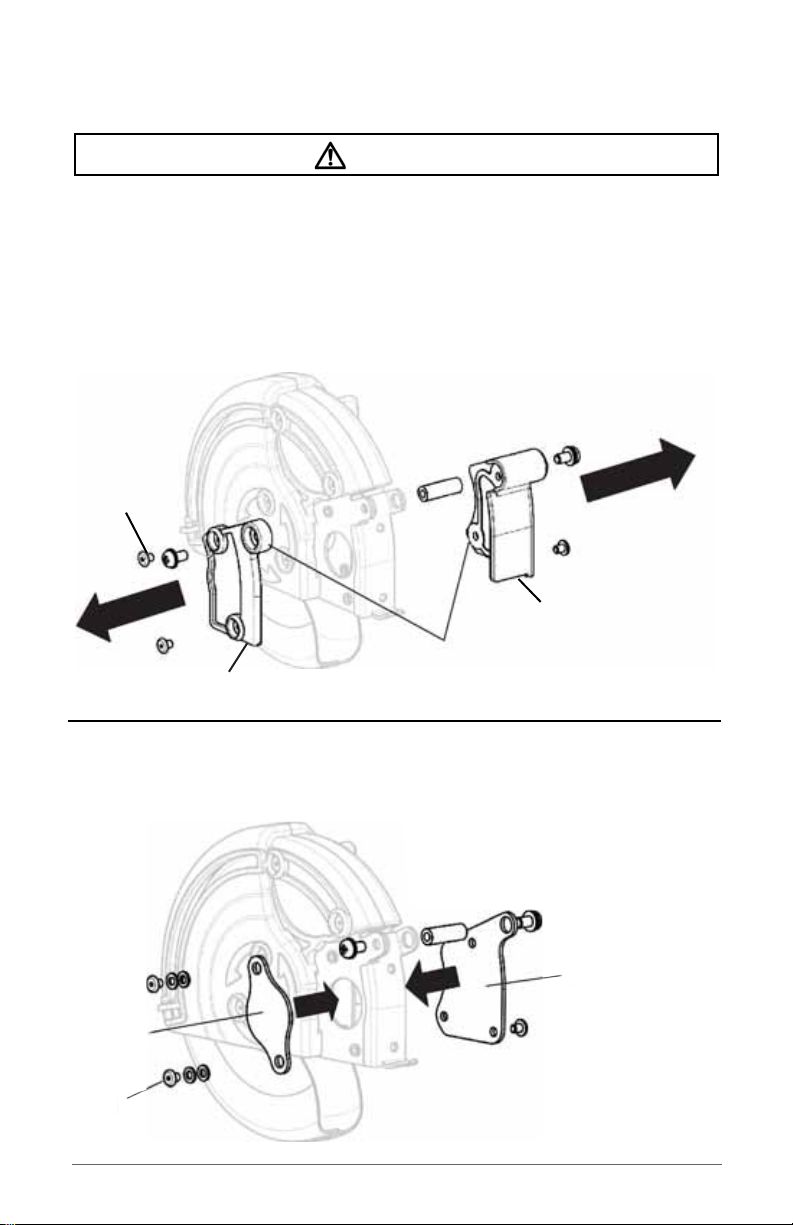

REPLACEMENT OF THE SIDE PROTECTOR A & B
WARNING!
Be sure to remove plastic covers and replace with Side Plates A and B (Part
no. 500063 & 500064) before use.
Step 1
Step 2
Figure-5
Figure-6
500020
500059
500060
500064
500063
500020
Remove Plastic Covers
Side Protectors
Install [i] [k] Side Plates
by [m] M4 Screws
instead of Plastic Covers.
[m]
[i]
[k]
[m]

10
Figure-7
Figure-8
INSTALLING THE CONNECTOR & THE COMBINATION
FLANGE, LOCKNUT & SPACER
1. Choose the proper Connector for the Grinder.
(See below)
ALPHA
®
MAKITA
®
MILWAUKEE
HITACHI BOSCH METABO DEWALT
MILWAUKEE
Connector
&
Collar
FACTORY PRESET
Flange
Lock Nut
Spacer
N/A 500047/T4.0
500068
500067
500012/T5.0
WARNING!
Be sure to turn off the grinder and remove the plug from the electrical outlet
before installation.
2. Open the guard of the spark protection
cover and attach to the Grinder by
tightening the screws on the Connector.

11
3. Adjust the angle of the Grinder so
that it sits at on the workpiece.
4. Tightly secure the Spark Collection
Cover ush against the grinder.

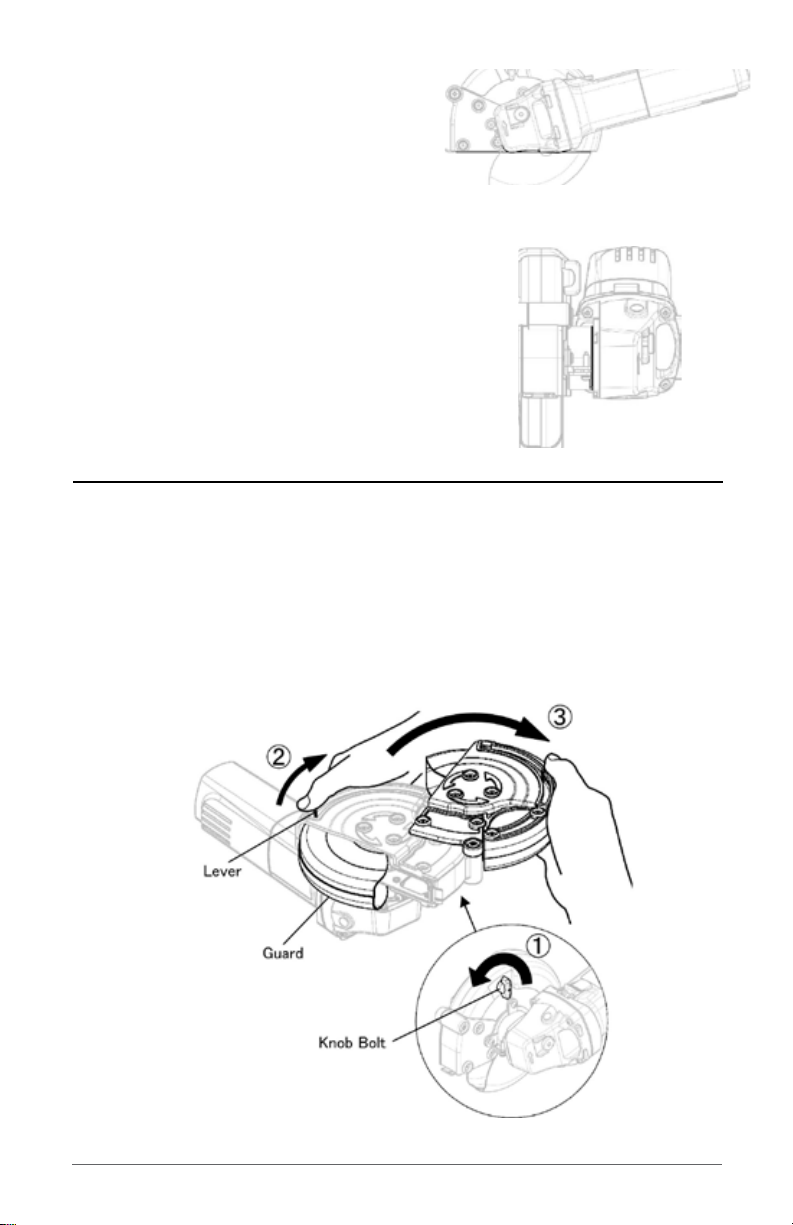

INSTALLATION OF BLADE
1. Loosen the Knob Bolt to open the cover.
2. Press down on Lever to release.
3. Slide protector cover open.
Figure-9
Figure-10
Figure-11

12

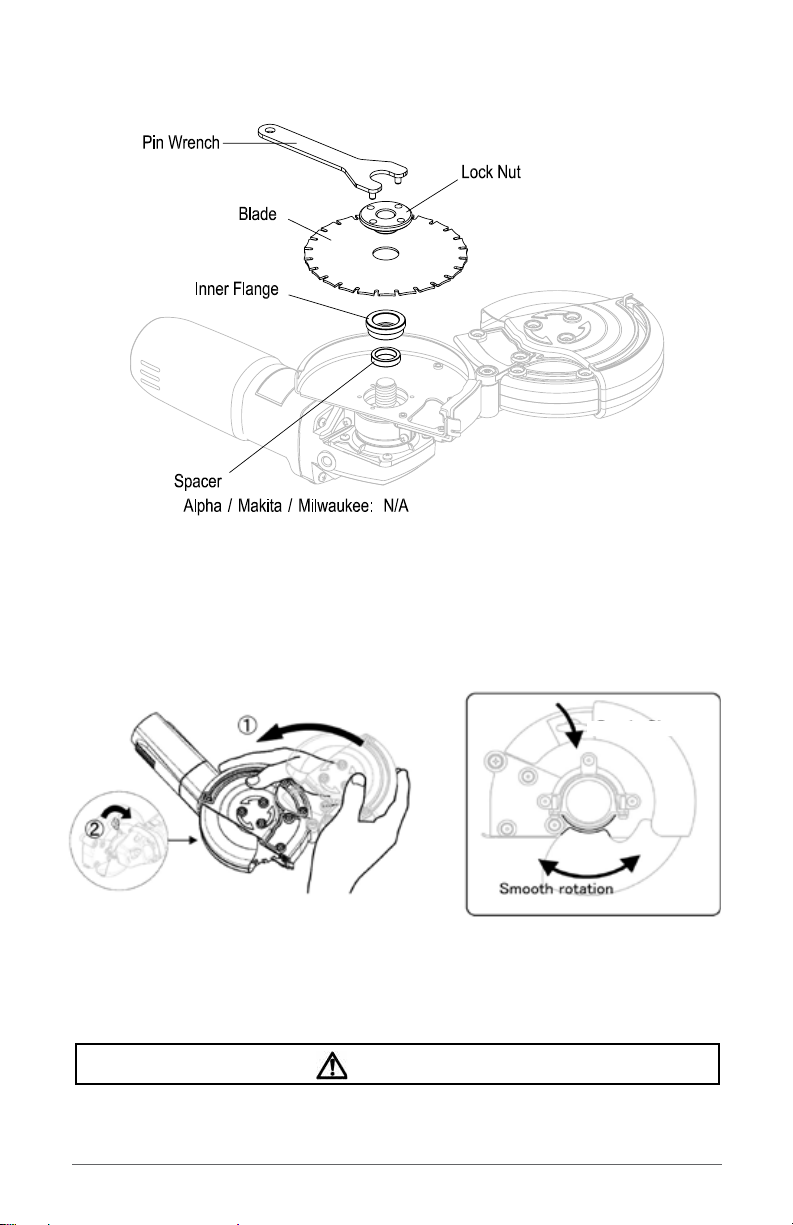

4. Set the blade with ring and base Flange, then tighten the wheel nut.
5. Close Main Unit and tighten Knob Bolt.
WARNING!
Conrm the Guard is moving smoothly
® ® Figure-12
Figure-13 Figure-14
Securely Close

13
CUTTING APPLICATION
1. Turn on the switch of the grinder
2. Set the base on workpiece
3. Slowly push the grinder forward and start cutting
WARNING!
• DO NOT contact the rotating Blade to the orkpiece directly. (Securely
set the Base on workpiece rst)
• Conrm the direction of cutting and Blade rotation.
• Hold the workpiece with clamping devices
Figure-15

14
DRAWING NO. PART NO. DESCRIPTION QUANTITY
1 500054 Main Guard-A 1
2 500055 Main Guard-B 1
3 & 4 500056 Protector Assembly 1
5 500057 Spring 1
6 500058 Holder Plate 1
7 500059 Side Protector-A 1
8 500061 Safety Guard Assembly 1
9 500062 Sleeve 1
10 500060 Side Protector-B 1
11 500020 Flat Head Screw M4x5 13
12 500019 Washer M5 2
13 500018 Spring Washer M5 1
14 500017 Screw M5x10 1
15 500021 Taper Washer 3
16a 500002 Connector Assembly (Alpha®/Makita®/Milwaukee) 1
16b 500003 Connector Assembly (Hitachi) 1
16c 500004 Connector Assembly (Metabo) 1
16d 500027 Connector Assembly (Bosch/Dewalt) 1
17 500049 Knob Bolt (M5/White) 1
18 500063 Side Plate-A 1
19 500064 Side Plate-B 1
20 500065 Spring Washer M4 2
21 500066 Washer M4 2
22 500067 Lock Nut 1
23 500068 Inner Flange 1
24a 500047 Spacer (T4.0/Hitachi) 1
24b 500012 Spacer (T5.0/Metabo/Bosch/Dewalt) 1
25a 500022 Collar (Metabo) 1
25b 500035 Collar (Dewalt) 1
26 500024 Hex. Wrench 1
27 210105 Pin Wrench 1
ALPHA®ECOGUARD TYPE M PARTS LIST

15
ALPHA®ECOGUARD TYPE M SCHEMATIC
®
®

Copyright © 2012 Alpha Professional Tools. All rights reserved.
103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: [phone]
www.alpha-tools.com
04/2012
