Alpha Vannus VC 1 User manual

VC 1
INSTRUCTION MANUAL

Warning
Installation and maintenance work shall only be performed by qualified persons, familiar
with local code and regulation, and experienced with this type of appliance.
All field wiring must be installed in accordance with the national wiring regulation.
Ensure that the rated voltage of the unit corresponds to that of the name plate before
commencing wiring work according to the wiring diagram.
The unit must be GROUNDED to prevent possible hazard due to insulation failure.
The earth wire is approximately 60mm longer than safety wire. This is to ensure at the
event whereby the suspension system fails, the (L) and (N) wire will break leaving the
fan remain earthed to prevent electrocution.
Tighten the blade firmly using a screw driver.
Blades that are detached from the unit during operation will cause serious injuries and
property damages.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliances.
Confirm that the power supply has been switched OFF before installing or servicing the
unit. Ensure that the blade is fully static before doing any maintenance work.
Safety Precaution
1. Safety Precaution ................................................................................. 1 - 2
2. Parts & Accessories .............................................................................. 3
3. Installation Instruction ........................................................................... 4 - 7
4. Power Supply Connection .................................................................... 7 - 8
5. Circuit Diagram ..................................................................................... 8
6. Transmitter Programming ..................................................................... 9
7. Transmitter Function & Assembly ......................................................... 10
8. Maintenance ........................................................................................ 11
9. Technical Specifications ....................................................................... 11 - 12
10. Customer Service Centre ................................................................... 12

Disconnect from the main power supply before servicing the unit.
DO NOT pull out the power cord when the power is ON. This may cause serious
electrical shocks which may result in fire hazards.
STOP using the ceiling fan when any abnormality or failure occurs.
Immediately stop using the ceiling fan and switch off the power supply. Please contact
you authorized dealer for repairing and maintenance work
CAUTION
Please take note of the following important points when installing.
Safety cord should not be longer than the earthing conductor.
Should failure of the suspension system occur, the supporting of the fan must not rely on
the earthing conductor. The earthing terminal in the fan assembly should be such that
should any part of the suspension system fall off, the body of the fan assembly shall
effectively earthed.
Ensure that the unit’s panel is closed after service or installation.
Unsecured panels will cause the unit to operate noisily.
Sharp edges and coil surfaces are potential locations which may cause injury
hazards. Avoid from being in contact with these places.
Before turning off the power supply set the remote controller’s ON/OFF switch to
the “OFF” position.
If this is not done, the unit’s fans will start turning automatically when power resumes,
posing a hazard to service personnel or the user.
Do not operate any heating apparatus too close to the ceiling fan unit or use in room
where mineral oil, oil vapour or oil steam exist, this may cause plastic part to melt or
deform as a result of excessive heat or chemical reaction.
Ensure the colour of wires of the outdoor unit and the terminal markings are same to the
indoors respectively.
Don’t use joined and twisted wires for incoming power supply.
Do not place any object in the path of the blades. Avoid raising objects or your arms near
the ceiling fan.
The installation instruction shall include the recommendation that the fan suspension
system and blade screw tightening shall be examined yearly. This recommendation shall
be written on the fan and on the regulator or permanently attached to the fan and to the
regulator and be visible to user. The writing shall be legible and permanent.
Safety Precaution
2

Canopy
Downrod
Coupling Cover
Motor Assembly
Blade
Transmitter Kit
Transmitter &
Holder x 1
AAA
AAA
Battery x 2
Blade Screw
& Washer x 7
3
3
Assembly Kit
3
FAN ON FAN OFF
1
2
3
4
5
6
LIGHT
ON F/R LIGHT
OFF
1H
2H
4H
8H

4
Step 1 - Remove the Screw and Earth Wire on the Downrod and assemble the Canopy,
Canopy Cover and Coupling Cover through the Downrod.
Step 2 - Fix the Rubber assemble to the Downrod with Bolt, Washer, Nut and tighten
them firmly then insert the Clevis Pin.
IMPORTANT : Clevis pin MUST be insert to prevent nut from loosening.
Canopy
Coupling
Cover
Bolt
Washer,
Nut & Clevis Pin

5

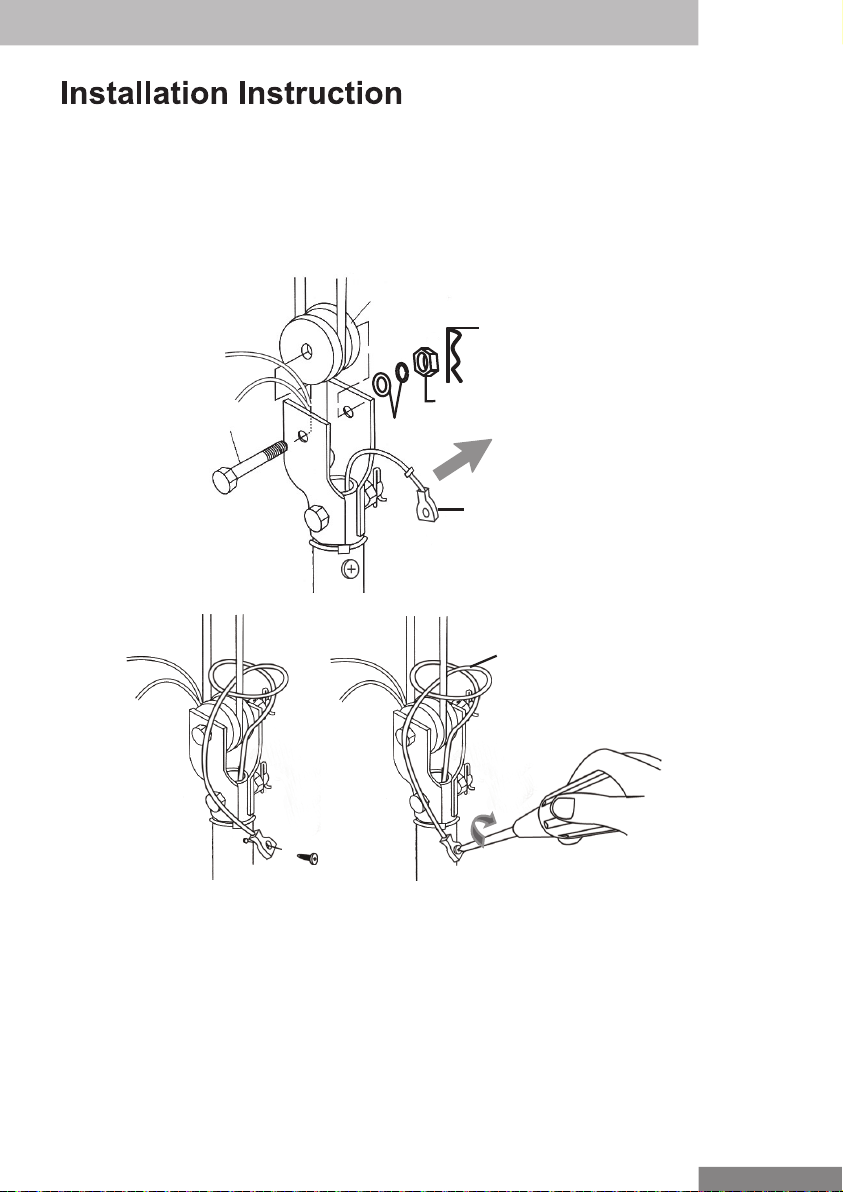

Step 3 - Remove the Bolt, Clevis, Nut, Washer and Rubber Pulley from the Downrod.
Place the Rubber Pulley onto the ceiling hook and fix back the Bolt, Clevis, Nut and
Washer. Tie the Safety Wire across the hook as shown and firmly screw the Safety Wire
onto the Downrod.
Rubber Pulley
Clevis Pin
Nut
Washer
Bolt
Safety Wire
Safety Wire

6
Green/Yellow(E)
Brown (L)
Blue (N)
Pink
Red
Grey
Green/Yellow
House Supply Wires
Brown (L)
Blue (N) Green/Yellow (E)
Pink
Red
Grey
Green/Yellow
Green/Yellow (E)
Step 7 - Connect the Connectors from Fan and Receiver. Connect the wires from the
receiver to House’s Supply Wire. Tighten Earth Wire back to Downrod and connect to
House Supply Earth Terminal.
Step 8 - Install the Blades on Motor with Screw & Washer. Install Switch Housing
onto fan by twisting in.
Switch Housing

7
Below shows a complete installation diagram.

8
ANT1
W
N
Pink Red Grey
Neutral (Blue)
Power Supply Live (Brown)
Earth (Green/Yellow)
Earth (Green/Yellow)
Blue
Brown
Green/Yellow
MAIN PCB
L
E
V
U
220V-240V~ 50Hz
220V-240V~ 50Hz
DC
Motor

9
The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more
fans using 1 transmitter, the below steps are required.
DO NOT PRESS ANY OTHER BUTTON DURING THIS PROCESS
Step 1
a) Insert the 2 pcs of batteries (provided) into transmitter.
b) Turn on the power supply (wall switch) to the fan.
c) Within 30 sec, press and hold the “FAN ON” button for 3 sec. Once the receiver has
detected the frequency, transmitter will “Beep Beep” twice. Programming process is
completed and fan is ready to use.
If the fan is not responding to the transmitter, repeat Step 1b.
Press and hold
for 3 sec
Transmitter Learning Process
FAN ON FAN OFF
1
2
3
4
5
6
LIGHT
ON F/R LIGHT
OFF
1H
2H
4H
8H

10
FAN ON - Turn on fan
FAN OFF - Turn off fan
1 - 6 - Lowest to highest speed
F/R - Turn anti-clockwise or
clockwise rotation
(Forward/Reverse)
1H - Fan turns off after 1hr
2H - Fan turns off after 2hr
4H - Fan turns off after 4hr
8H - Fan turns off after 8hr
Transmitter Function
FAN ON FAN OFF
1
2
3
4
5
6
LIGHT
ON F/R LIGHT
OFF
1H
2H
4H
8H
The transmitter & receiver is incorporated with last memory function. This function
stores your last setting in memory and the next time you turn on the fan, fan will
operate as the last setting.
Function of Forward & Reverse
Fan must be turned on and rotating.
Press F/R button and fan will slow down and then change direction (approx. 15 sec).
When the fan is slowing down to change direction, the Fan Speed function is disabled
until direction has been changed.
Forward
Fan rotates anti-clockwise blowing
the air downwards creating the
wind chill effect. Suitable for hot
weather condition.
Reverse
Fan rotates clockwise drawing the air
towards the ceiling circulating the warm
air downwards. This function works best
at low speed. Suitable for
air-conditioned condition.

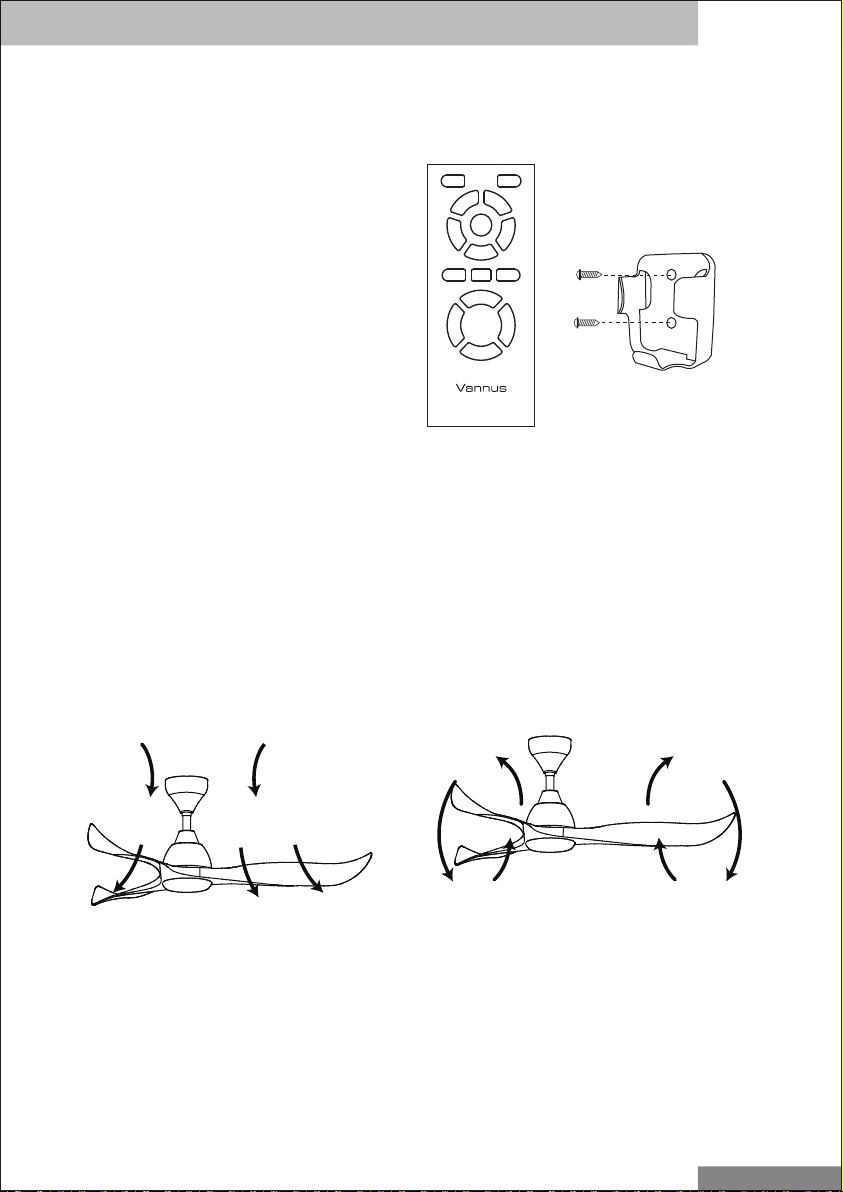

Mount the remote control holder
on the wall with the screws
provided.

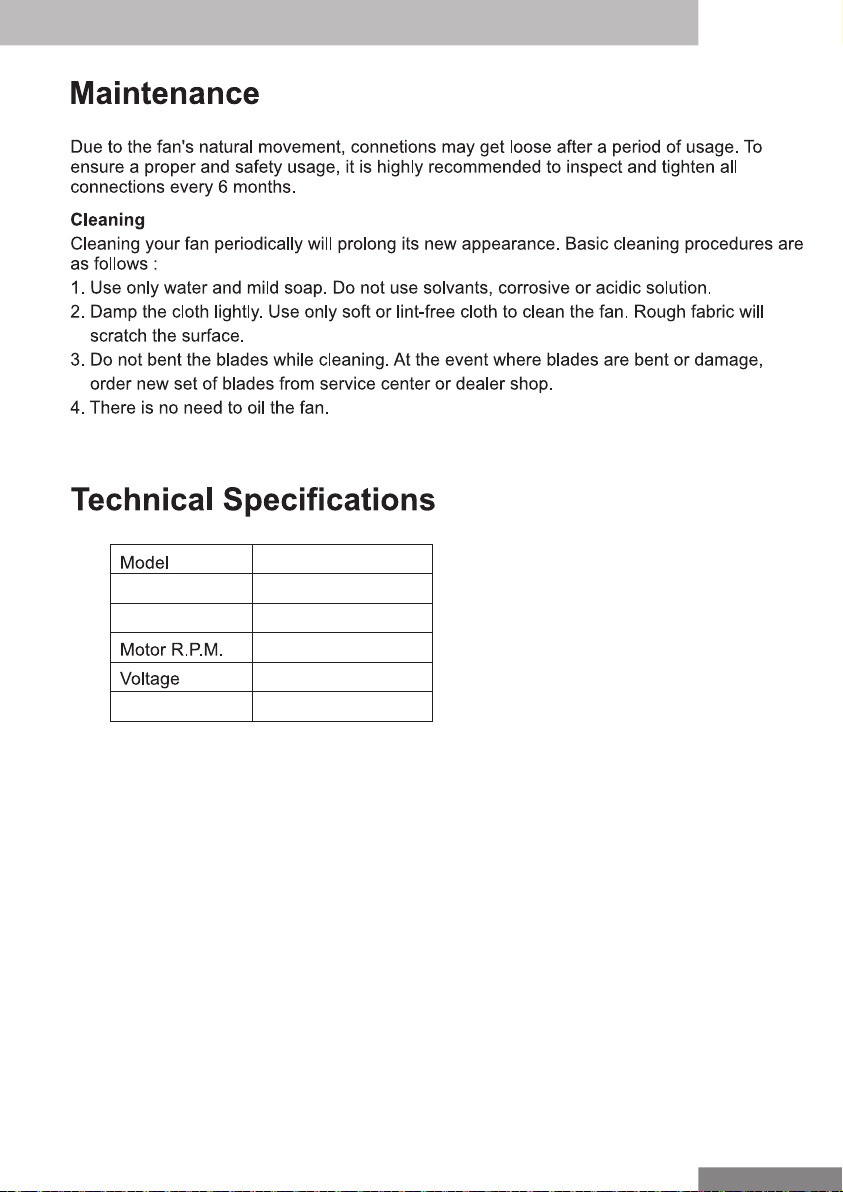

VC 1
Max. 185
Max. 35WMotor Wattage
Fan Width
No. of Blades
52”
3
220V-240V~ 50Hz
11

If you need any technical assistance or faulty report, please contact our customer
service centre at :
Alpha Home Appliances Sdn. Bhd. (390258-H)
Head Office : 6, Jalan Sungai Kayu 32/37, Berjaya Park, Sect 32, 40460 Shah Alam,
Selangor.
Tel : [phone] Fax : [phone]
Website : www.alphamalaysia.com Email : [email protected]
Johor : 71, Jalan Molek 3/10, Taman Molek, 81100 Johor Bahru.
Tel : [phone] / 4933 Fax : [phone]
Melaka : 19, 19-1 & 19-2, Jalan KSB 11, Taman Kota Syahbandar, 75200 Melaka.
Tel : [phone] / 6293 Fax : [phone]
Perak : 16, Jalan Tasek Timur, Taman Tasek Indra, 31400 Ipoh, Perak.
Tel : [phone] Fax : [phone]
Penang : 28, Jalan Icon City, Icon City, 14000 Bukit Mentajam, Penang.
Tel : [phone] / 2066 / 2566 Fax : [phone]
Pahang : A131, Jalan Dato Wong Ah Jang, Taman Liza, 25100 Kuantan, Pahang.
Tel : [phone] Fax : [phone]

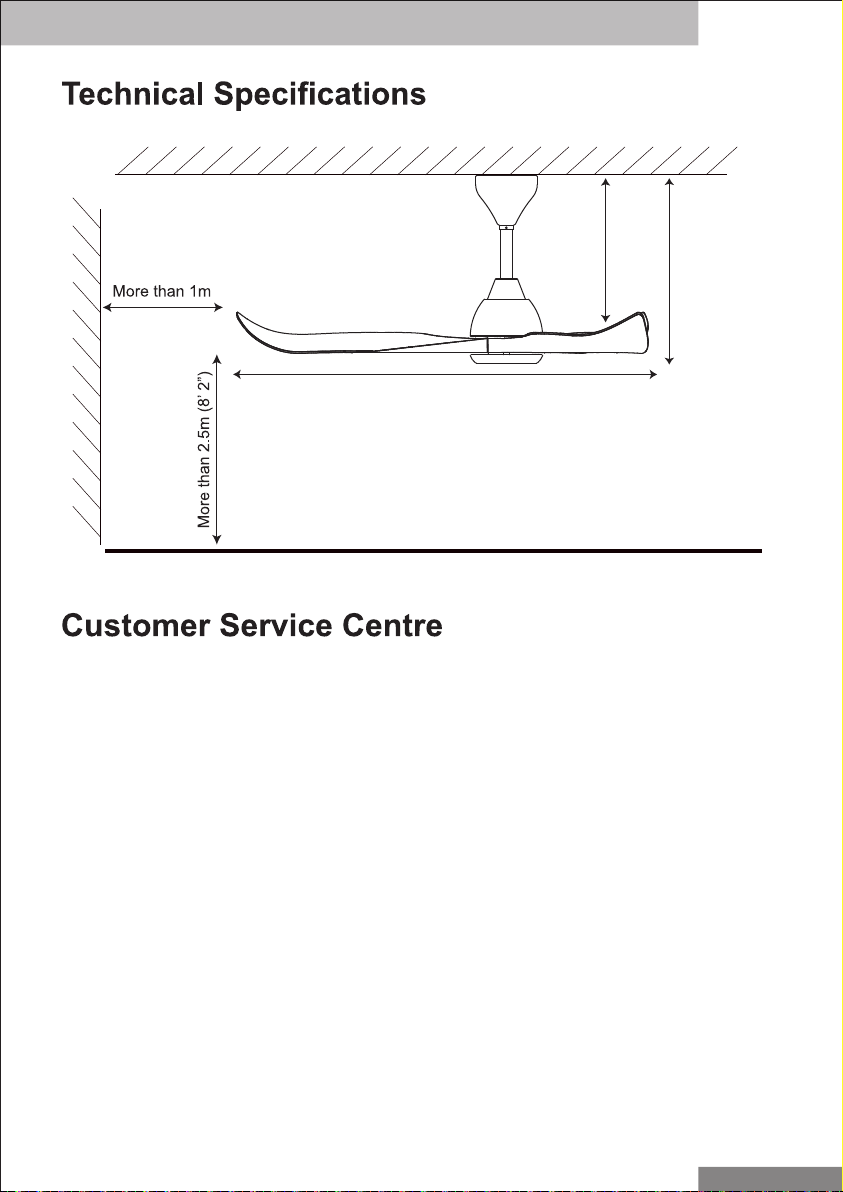

12
